How to navigate the exploded view

  1. Choose an assembly.
  2. Click on your desired part.
  3. Your part will be displayed in the part list.

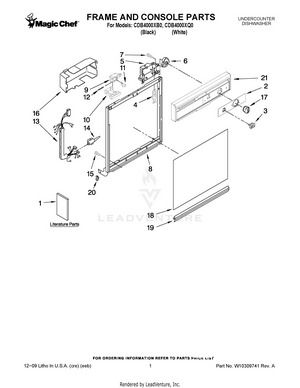

01 - FRAME AND CONSOLE PARTS

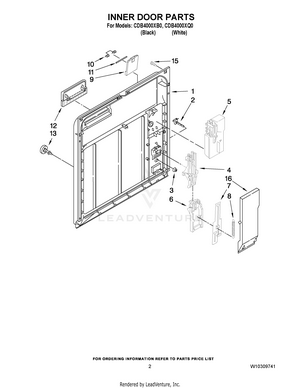

02 - INNER DOOR PARTS

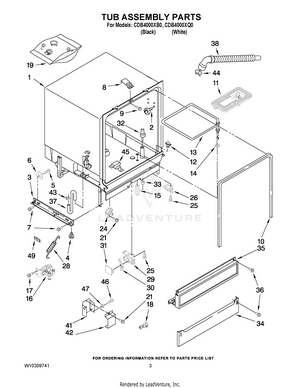

03 - TUB ASSEMBLY PARTS

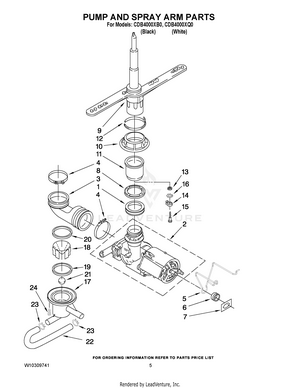

04 - PUMP AND SPRAY ARM PARTS

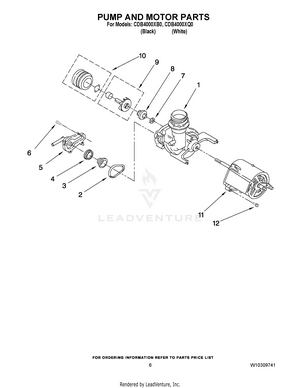

05 - PUMP AND MOTOR PARTS

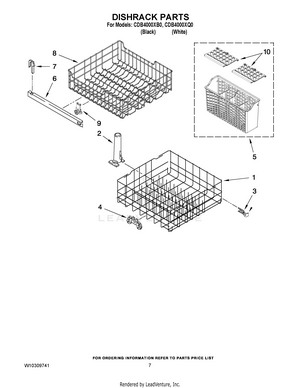

06 - DISHRACK PARTS

07 - OPTIONAL PARTS
