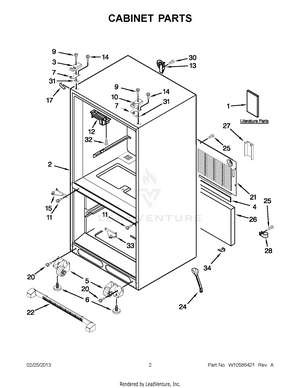

01 - CABINET PARTS

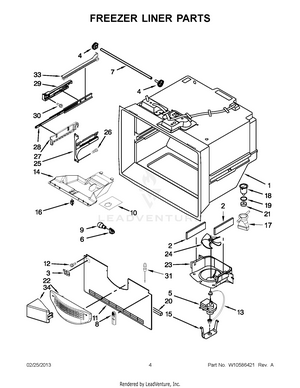

02 - FREEZER LINER PARTS

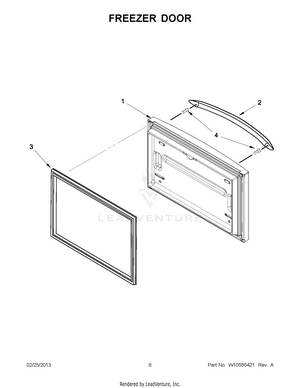

03 - FREEZER DOOR

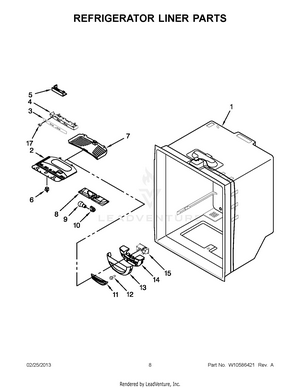

04 - REFRIGERATOR LINER PARTS

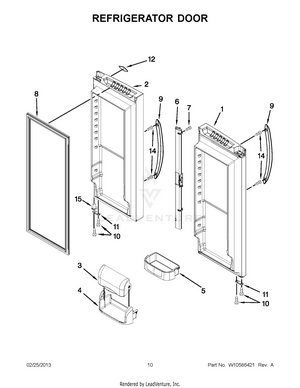

05 - REFRIGERATOR DOOR

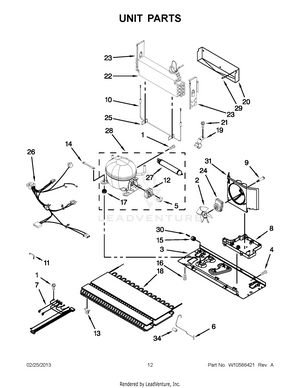

06 - UNIT PARTS

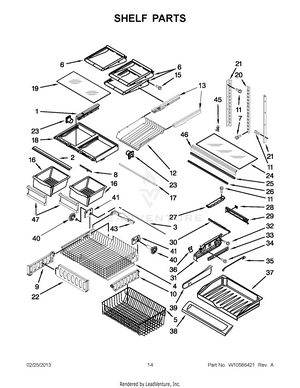

07 - SHELF PARTS

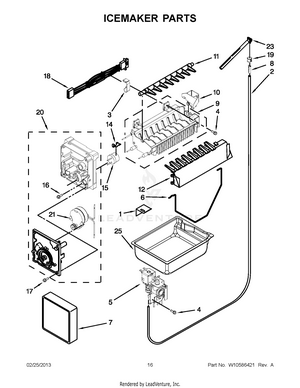

08 - ICEMAKER

09 - OPTIONAL PARTS (NOT INCLUDED)
