How to navigate the exploded view

  1. Choose an assembly.
  2. Click on your desired part.
  3. Your part will be displayed in the part list.

01 - COVER

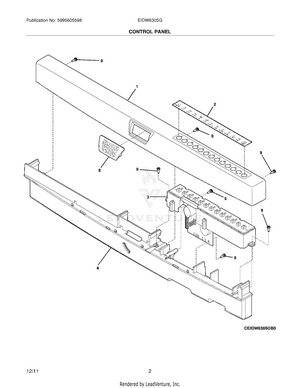

03 - CONTROL PANEL

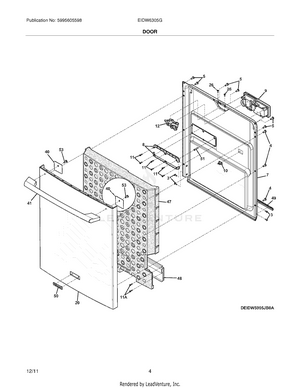

05 - DOOR

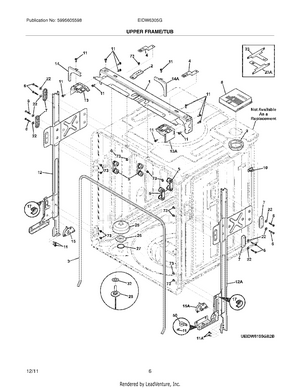

07 - UPPER FRAME/TUB

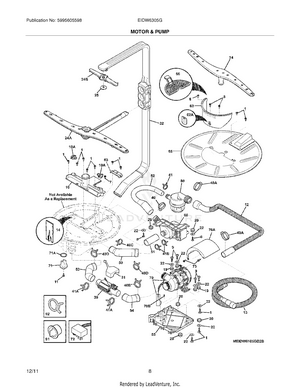

09 - MOTOR & PUMP

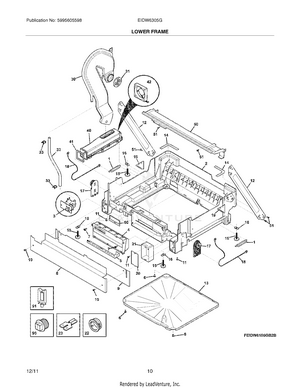

11 - LOWER FRAME

13 - RACKS

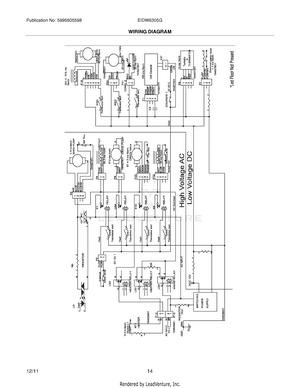

14 - WIRING DIAGRAM
