01 - COVER

02 - OVEN, OPTIONAL

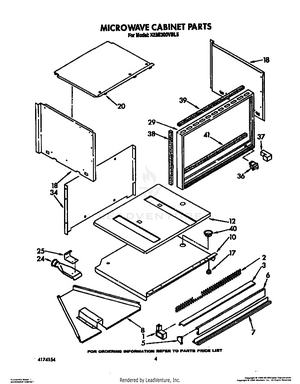

03 - MICROWAVE CABINET

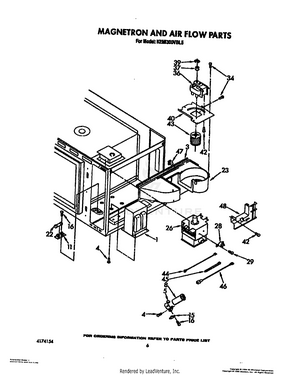

04 - MAGNETRON AND AIR FLOW

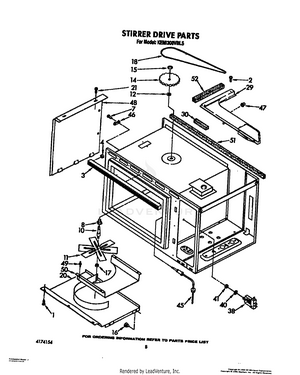

05 - STIRRER DRIVE

06 - MICROWAVE DOOR AND LATCH

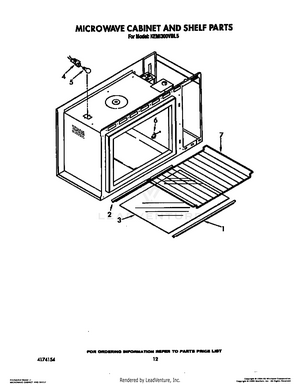

07 - MICROWAVE CABINET AND SHELF

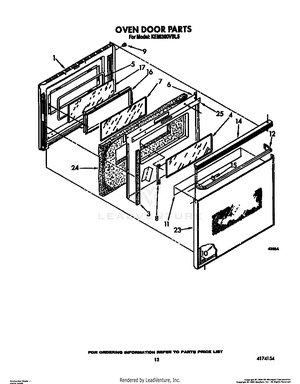

08 - OVEN DOOR

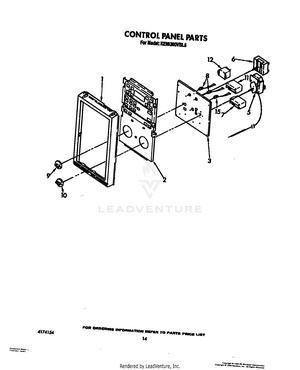

09 - CONTROL PANEL

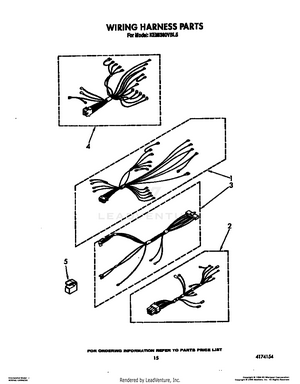

10 - WIRING HARNESS
