How to navigate the exploded view

  1. Choose an assembly.
  2. Click on your desired part.
  3. Your part will be displayed in the part list.

01 - COVER

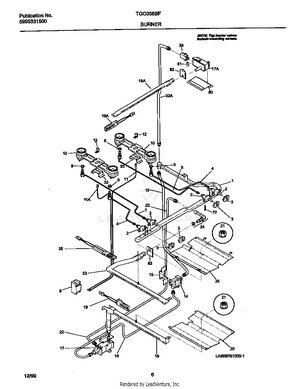

02 - BURNER

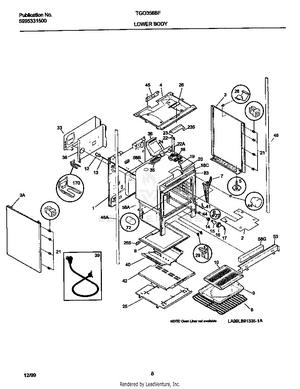

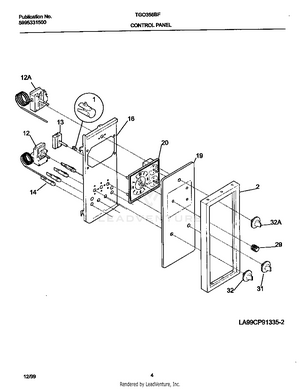

03 - LOWER BODY

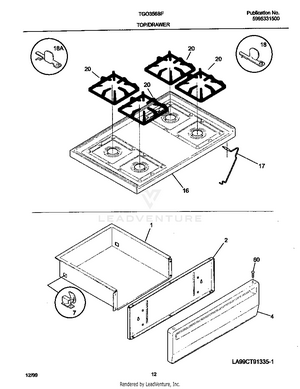

04 - TOP/DRAWER

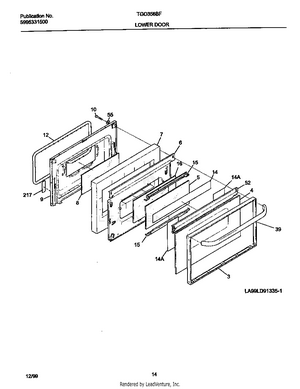

05 - LOWER DOOR

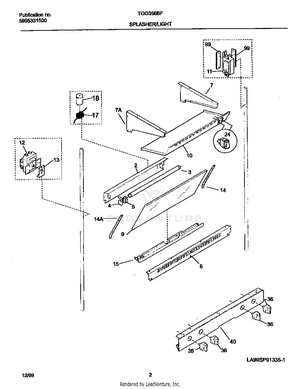

06 - SPLASHER

07 - CONTROL PANEL

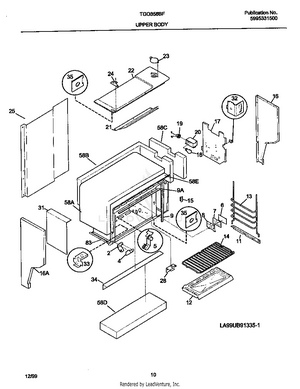

08 - UPPER BODY

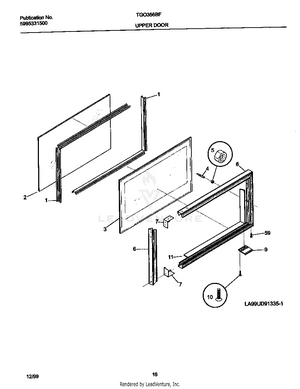

09 - UPPER DOOR

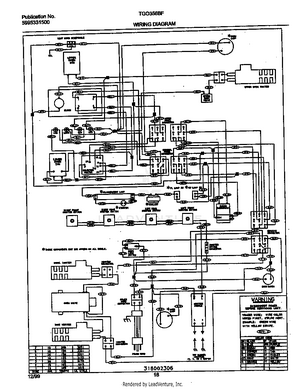

10 - WIRING DIAGRAM
