How to navigate the exploded view

  1. Choose an assembly.
  2. Click on your desired part.
  3. Your part will be displayed in the part list.

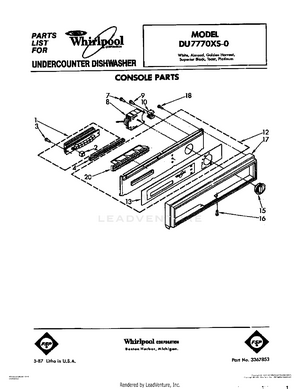

01 - CONSOLE

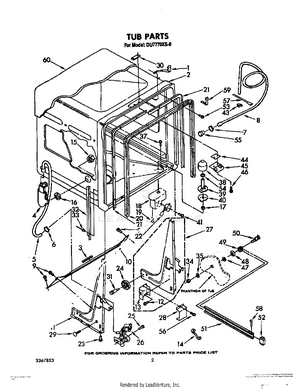

02 - TUB, LIT/OPTIONAL

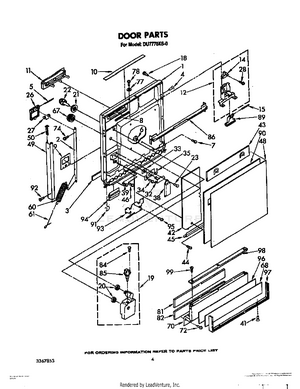

03 - DOOR

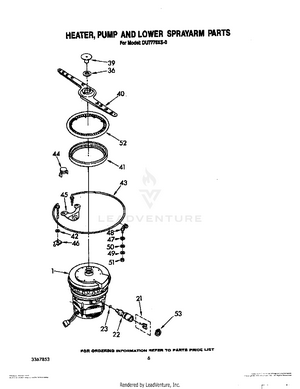

04 - HEATER, PUMP AND LOWER SPRAYARM

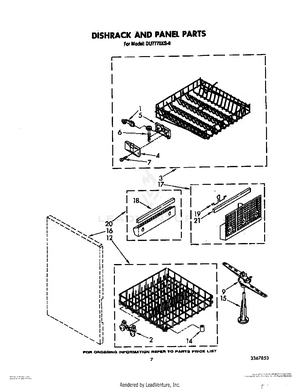

05 - DISHRACK AND PANEL

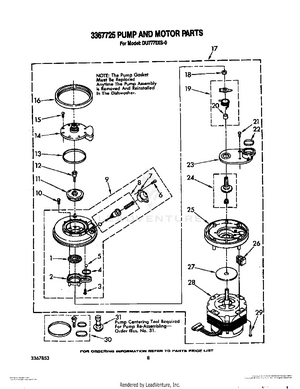

06 - 3367725 PUMP AND MOTOR

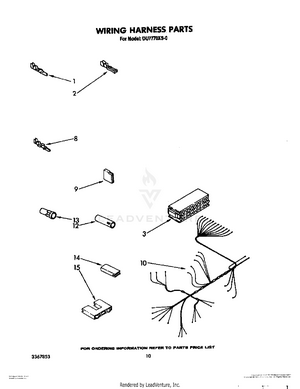

07 - WIRING HARNESS
