Manufacturer
Amana Commerical
Model Number
CRC518D
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 12210804 | ABSORBER-ENERGY |
| 12150002 | BARRIER, PC BOARD |
| R9800597 | BASE PAN ASSEMBLY |
| 59184621 | BASEPAN GASKET ASSEMBLY |
|
|
BIT, NON MAGNETIC Y DRIVE |
| 10091101 | BLOCK-FUSE |
| B5677203 | BLOCK-TERMINAL |
| 12343501 | BOARD, HV/LV |
| 12126806 | BOTTOM HINGE PLATE WELD |
| 12386101 | BRACKET, DIODE |
| 12224101 | BRACKET, DOOR |
| 12529501 | BRACKET-DIODE |
| 12114401 | BRKT-DOOR LATCH WSH |
| 10366912 | CAPACITOR |
| 10366908 | CAPACITOR |
| M0104106 | CLIP, CORD |
| M0104102 | CLIP, CORD |
| M0118705 | CLIP-GUIDE |
| 12131206 | COVER, LAMP- E CT |
| 12132601 | CRADLE, ANTENNA |
| R0150161 | DUCT ASSY |
| 12107304 | DUCT, MAG INLET |
| 12107407 | DUCT, MAG OUTLET |
| 12296601 | DUCT-AIR |
|
|
ENDCAP-ESC RIGHT |
| 12131002 | ENDCAP-L ESC |
| 12133203 | EXTRSN, LAMP ACCESS |
| 12133201 | EXTRSN, LAMP ACCESS |
| 59001893 | FILTER, LINE |
| 12173001 | FILTER, LINE |
| B5795302 | FUSE, THERMAL |
| M0805202 | FUSE-15A |
|
|
HANDLE-DOOR |
| 13017901 | HARNESS, HV |
| R0150148 | INNER DOOR ASSEMBLY |
|
|
INNER DOOR ASSEMBLY |
| R9800006 | KIT, ANTENNA |
|
|
KIT, ANTENNA MOTOR- TOP |
|
|
KIT, ANTENNA- TOP |
|
|

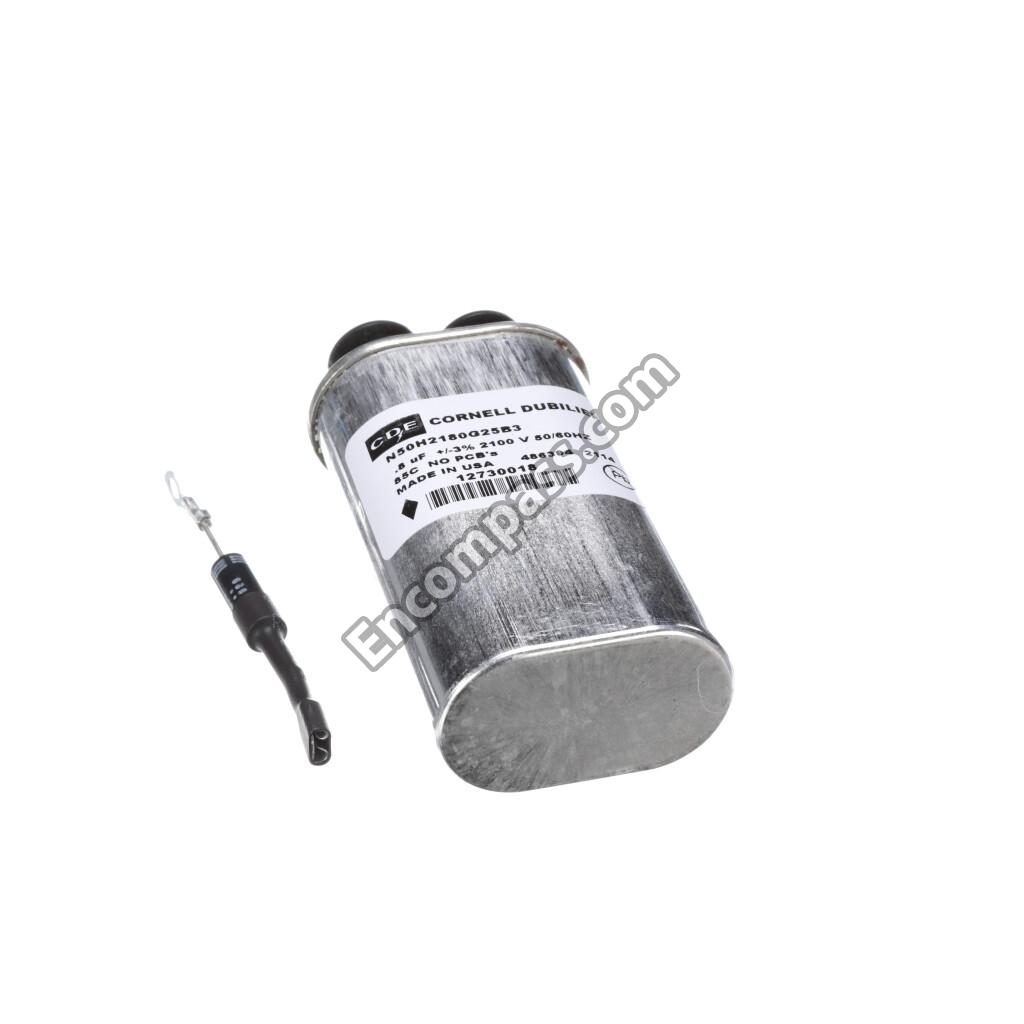

KIT, CAPACITOR- .80 DIODE |
| 59174587 | KIT, CAPACITOR- .88 DIOD |
| R0150144 | KIT, CERAMIC TRAY SEALER |
| 14159092 | KIT, CERAMIC TRAY SEALER |
|
|
KIT, DIODE |
| 14119064 | KIT, DOOR ASSEMBLY- MM |
|
|
KIT, HINGES- TOP BOTTOM |
| R0000277 | KIT, INTERLOCK SWITCH |
| R9900413 | KIT, OUTER DOOR WELD |
| 12343301 | KNOB, CONTROL |
| M0360402 | LAMP, 230/240 VAC |
| 59154464 | LAMP-LED 3W, 220/240V |
|
|
LATCH-DOOR |
| 12526201 | LINKAGE-DOOR LATCH |
|
|
MAGNETRON |
| D7831007 | MAGNETRON-2M229K |
| M0282021 | NUT, KEPS |
| 12296802 | PANEL, ACCESS |
| 12127002 | PIN, LATCH |
| 12127001 | PIN-LATCH |
| B8380601 | PLATE-TC MOUNTING |
| B8380602 | PLATE-TCO MOUNTING |
| B5669025 | POWER CORD |
| 59002001 | POWER CORD |
| 12163802 | RECEPTACLE-EXPORT |
| M0370009 | RELIEF-STRAIN |
| A4539618 | RIVET, .156 POP |
|
|
SEALER, RTV- TUBE |
| M0275501 | SEALER-RTV |
| M0800601 | SPACER |
| M0800501 | SPACER |
| C8893502 | SPRING-DOOR LATCH |
| 12132501 | STRAP-CAPACITOR |
| 12433101 | SUPPORT, OUTERCASE |
| 31866P01 | THERMAL CUTOUT |
|
|
THERMAL CUTOUT, CAVITY |
| 12126805 | TOP HINGE PLATE WELD |
| R9800240 | TOUCH PANEL ASSEMBLY |
| 59001993 | TRANSFORMER, HV |
| 12136105 | TRANSFORMER, HV |
| 12131301 | TRIM |
| 12873701 | TRIM, OC |
| M0270801 | WASHER, FINISH |
| M0274066 | WASHER-NYLON |
|
|
WASHER-NYLON SHOULDER |
| 14179138 | WASHER-U TYPE |
| 59104139 | WINDOW, OUTER |
| 12133802 | WINDOW, OUTER |
| 12114004Q | WRAPPER |
