Manufacturer
Amana Commerical
Model Number
DEC21E2
Description
Heavy Duty Commercial Compact Microwave
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 12210804 | ABSORBER-ENERGY |
| 20034602 | ACCESS PANEL WELD |
| 59124202 | ANTENNA SHIELD |
| 12126601 | ANTENNA SHIELD |
| 12525701 | BARRIER-AIR |
| 12544201 | BARRIER-LAMP |
| 12486002 | BASE COVER-E CT |
| R0000036 | BASE PAN ASSEMBLY |
| 59184621 | BASEPAN GASKET ASSEMBLY |
|
|
BLADE, FAN |
| 10091101 | BLOCK-FUSE |
| B5677203 | BLOCK-TERMINAL |
| 20043001Q | BLOWER BRACKET WELD |
| 59174525 | BLOWER MOTOR ASSEMBLY |
|
|

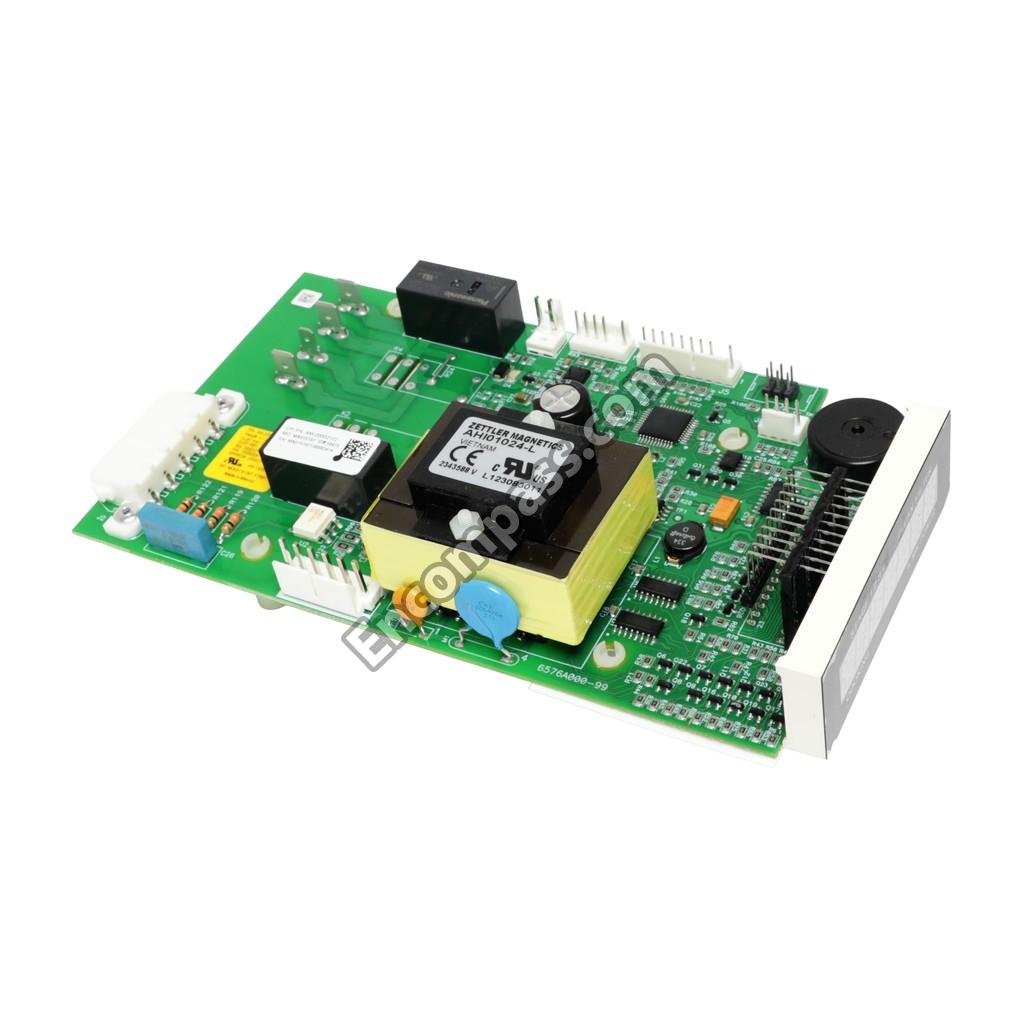

BOARD, HV/LV |
| 12126806 | BOTTOM HINGE PLATE WELD |
| 12271103 | BRACKET-BLOWER WSH |
| 12529501 | BRACKET-DIODE |
| 12114401 | BRKT-DOOR LATCH WSH |
| M0308801 | CAP-SCREW |
| 59001167 | CAPACITOR- .90 |
| 12135604 | CAVITY EXH DUCT-E CT |
| M0118901 | CLIP |
| M0104106 | CLIP, CORD |
| M0118705 | CLIP-GUIDE |
| 59174559 | COVER- LIGHT HARDWARE |
| 20173001 | COVER-BASE |
| 10785608 | COVER-LIGHT |
|
|
CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 13091701 | DIODE |
| 13098101 | DOOR RING WELD |
| 12472202 | DOOR RING WELD-E CT |
| 12135704 | DUCT, CAVITY EXHAUST |
| 12107407 | DUCT, MAG OUTLET |
| 12296601 | DUCT-AIR |
|
|
ENDCAP-ESC RIGHT |
| 12131002 | ENDCAP-L ESC |
|
|
FILTER, AIR |
| 59001893 | FILTER, LINE |
| 12905601 | FLOW DIVIDER |
| 59002000 | FLOW DIVIDER |
|
|
FUSE-20A |
| A3030330 | GASKET |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 59001643 | GASKET, BASEPAN- CUT |
| 59001642 | GASKET, BASEPAN- CUT |
| 59004077 | GASKET, PER FT |
| 10966601 | GASKET-NEOPRENE |
|
|
HANDLE-DOOR |
| 59002065 | HARNESS, HV |
| 59002066 | HARNESS, LW ANTENNA |
| 20026701 | HARNESS, OVEN |
| 13017901 | HARNESS- HI VOLT |
| 13017801 | HARNESS-LW ANT MOTOR |
|
|
INNER DOOR ASSEMBLY |
| 13067001 | INNER DOOR ASSEMBLY |
|
|
INTERLOCK SWITCH ASSEMBLY |
| 59002060 | INTERLOCK SWITCH ASSEMBLY |
| R9900668 | KIT, ANTENNA MOTOR- BOTTOM |
|
|
KIT, ANTENNA MOTOR- TOP |
|
|
KIT, ANTENNA- BOTTOM |
|
|
KIT, ANTENNA- TOP |
| R0150144 | KIT, CERAMIC TRAY SEALER |
| 14159092 | KIT, CERAMIC TRAY SEALER |
|
|
KIT, DIODE |
| 14119064 | KIT, DOOR ASSEMBLY- MM |
| R9800008 | KIT, DOOR ASSEMBLY- W/WINDOW |
| 14179127 | KIT, EXHAUST DUCTS GASKET |
|
|
KIT, HINGES- TOP BOTTOM |
| R0157373 | KIT, TRIAC |
|
|
KIT, TRIAC(40A) SNUBBER |
|
|
KIT, WINDOW |
| 14179138 | KIT- STUDS HARDWARE |
| 59002071 | LAMP |
| 59154464 | LAMP-LED 3W, 220/240V |
|
|
LATCH-DOOR |
| 12526201 | LINKAGE-DOOR LATCH |
|
|
MAGNETRON |
| 59001997 | MAGNETRON |
| 12138105 | MOTOR, BLOWER |
| 59002067 | PAN, ACCESS E CT |
| 12127002 | PIN, LATCH |
| 59002069 | PIN, LATCH |
| B8380601 | PLATE-TC MOUNTING |
| B8380602 | PLATE-TCO MOUNTING |
| 12163802 | RECEPTACLE-EXPORT |
| M0370009 | RELIEF-STRAIN |
| 20020502 | RETAINER |
| A4539638 | RIVET, POP |
| 12993002 | SCREW-HI LO/PAN |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990524 | SCREW-SM/HEX ROHS |
| 12990522 | SCREW-SM/HEX ROHS |
| 12991101 | SCREW-SM/KNIFE ROHS |
| 13095201 | SCREW-SM/OVAL |
| 12990606 | SCREW-SM/PAN |
| 12990402 | SCREW-SM/TRUSS TORX |
| 13047402 | SCREW-TC/FLAT |
| 12991611 | SCREW-TC/HEX |
| 12991610 | SCREW-TC/HEX ROHS |
| 12991606 | SCREW-TC/HEX ROHS |
| 12992307 | SCREW-TF/HEX |
| 13042002 | SCREW-TF/OVAL |
| 13041505 | SCREW-TF/PAN |
| 12138302 | SCROLL, BLOWER |
| M0275598 | SEALER |
|
|
SEALER |
| 12160602 | SHIELD-SPILL |
|
|
SNUBBER ASSEMBLY |
| M0800501 | SPACER |
| M0274072 | SPACER, RUBBER |
| C8893502 | SPRING-DOOR LATCH |
| 12132501 | STRAP-CAPACITOR |
| 12496801 | SUPPORT-SHELF |
| M0275163 | TAPE-TRANSFER |
| B5684129 | THERMAL CUTOUT |
|
|
THERMAL CUTOUT, CAVITY |
| 59001874 | THERMAL CUTOUT, CAVITY |
| 12126805 | TOP HINGE PLATE WELD |
| 44780P01 | TOROID |
| R0000244 | TOUCH PANEL ASSEMBLY |
|
|
TOUCH PANEL ASSEMBLY END CAPS |
| 59001993 | TRANSFORMER, HV |
| 59002068 | TRIM |
| 12873701 | TRIM, OC |
| M0274066 | WASHER-NYLON |
|
|
WASHER-NYLON SHOULDER |
|
|
WHEEL, BLOWER |
| 59104139 | WINDOW, OUTER |
| 12133801 | WINDOW, OUTER |
| 12408503Q | WRAPPER |
| 12408501Q | WRAPPER |
