Manufacturer
Amana Commerical
Model Number
JET14VSA
Description
Commercial Combination Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| TB10 | 10 (254 MM) X 12 (305 MM) NON-STICK BASKET |
| CA24 | 24 (610 MM) CART |
| CA30 | 30 (762 MM) CART |
| SB10 | 6 (152 MM) X 12 (305 MM) NON-STICK BASKET |
| 20172101 | ACCESS COVER WELD-E CT |
| 12537901 | BLADE, FAN |
| 20093001 | BLADE-FAN |
| B5677215 | BLOCK, TERMINAL |
| 10091101 | BLOCK-FUSE |
| B5677214 | BLOCK-TERMINAL |
|
|
BLOWER MOTOR ASSEMBLY- JET60 |
|
|
BOARD, DISPLAY |
| 59134363 | BOARD, HV |
| 59002117 | BOARD, RELAY MONITOR |
| 59134306 | BOARD, USB |
| 21015802 | BOTTOM-INLET DUCT |
| 21015002 | BRACE-CAVITY FRONT |
| 21019002 | BRACKET-ANT BOX VENT |
| 21018202 | BRACKET-ANTENNA MOTOR |
| 59134310 | BRACKET-ANTI-INTRUSION |
| 21022202 | BRACKET-CAPACITOR |
| 21015502 | BRACKET-CONV MOTOR |
| 21028202 | BRKT-TCO |
| A3293506 | BUSHING-SNAP |
| 59001159 | CAPACITOR- .65 |
| 59134319 | CATALYST ASSEMBLY |
| 21016702 | CHANNEL-GREASE |
| M0104106 | CLIP, CORD |
| M0104102 | CLIP, CORD |
| 59134300 | COVER, ANTENNA |
| 21018902 | COVER-BLOWER BOX |
| 20241404 | CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 13091701 | DIODE |
| 59154445 | DOOR, OUTER |
| DR10 | DRIP TRAY |
| 59001893 | FILTER, LINE |
|
|
FUSE-30A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 59004077 | GASKET, PER FT |
|
|
GASKET-SILICONE |
| 12019005 | GASKET-SILICONE |
| 12577401 | GASKET-U CHANNEL |
| 12570102 | GEAR-SPUR |
| 12570101 | GEAR-SPUR |
| 59134366 | GRILLE ASSEMBLY |
| 59134367 | GRILLE, EXHAUST |
| 20099502 | GROMMET-SCREW |
| 13013902 | HARNESS, DATAKEY |
| 20094001 | HARNESS-HV |
| 13095501 | HARNESS-INTERLOCK |
| 13018301 | HARNESS-PC BOARD |
| 20159801 | HARNESS-RELAY BD |
| 59134374 | HEATER |
| 20164702Q | HEATER BOX WELD- SERVICE |
| 20090602 | HINGE BRKT-E CT |
| 21015601 | INLET DUCT COVER-FLAT |
| 20099801 | INSULATION-ANT BRACKET |
| 20099201 | INSULATION-CATALYST |
| 20078801 | INSULATION-CAVITY |
| 20079001 | INSULATION-CONV MOTOR |
| 20092501 | INSULATION-DOOR |
| 12474903 | INSULATION-DOOR |
| 13095002 | INSULATION-FRONT |
| 20164902 | INSULATION-HEATER BOX |
| 12002512 | KIT, ANTENNA |
|
|

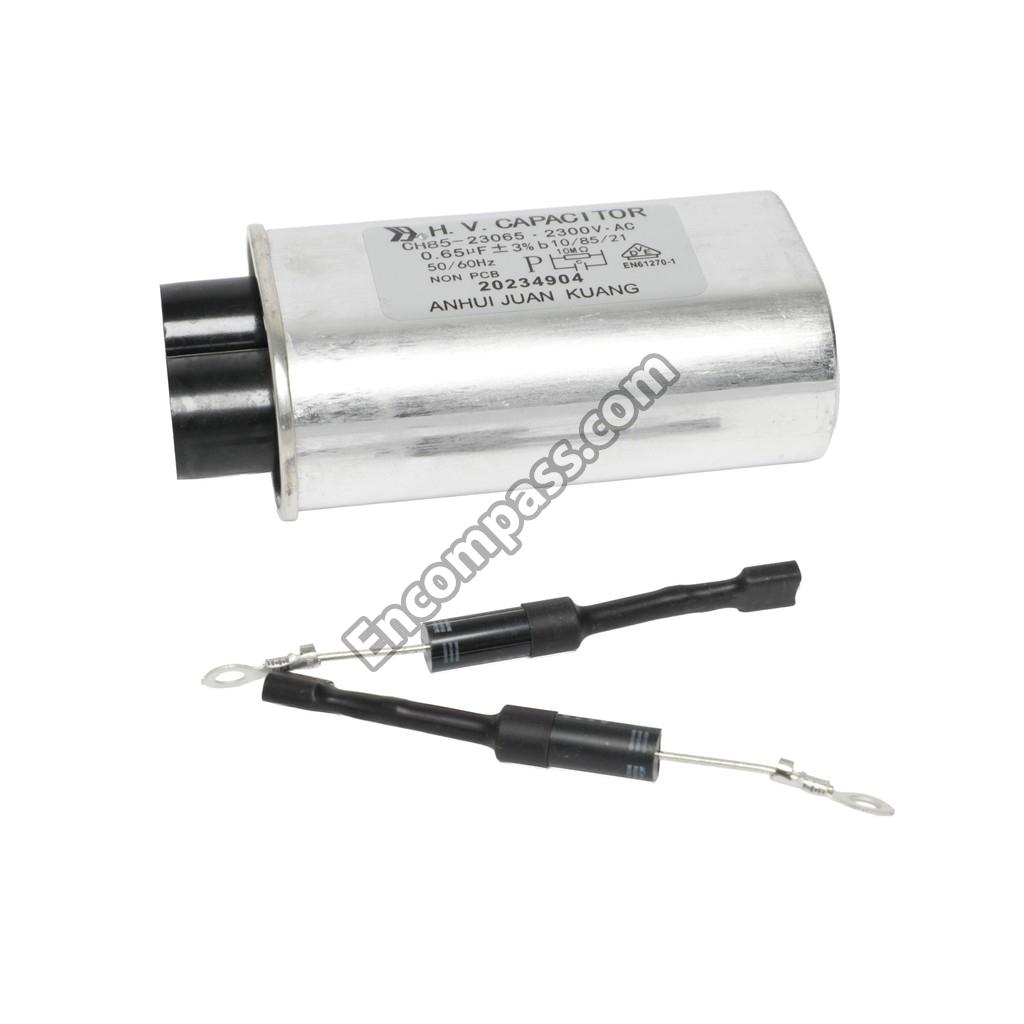

KIT, CAPACITOR- .65 DIODE |
|
|
KIT, HANDLE |
| 14159100 | KIT, HARNESS & OVEN TCO- JET/ACE |
| 59134313 | KIT, HINGE- LOWER |
| 59134312 | KIT, HINGE- UPPER |
| 14159096 | KIT, INNER DOOR W/LATCH PLUGS |
|
|

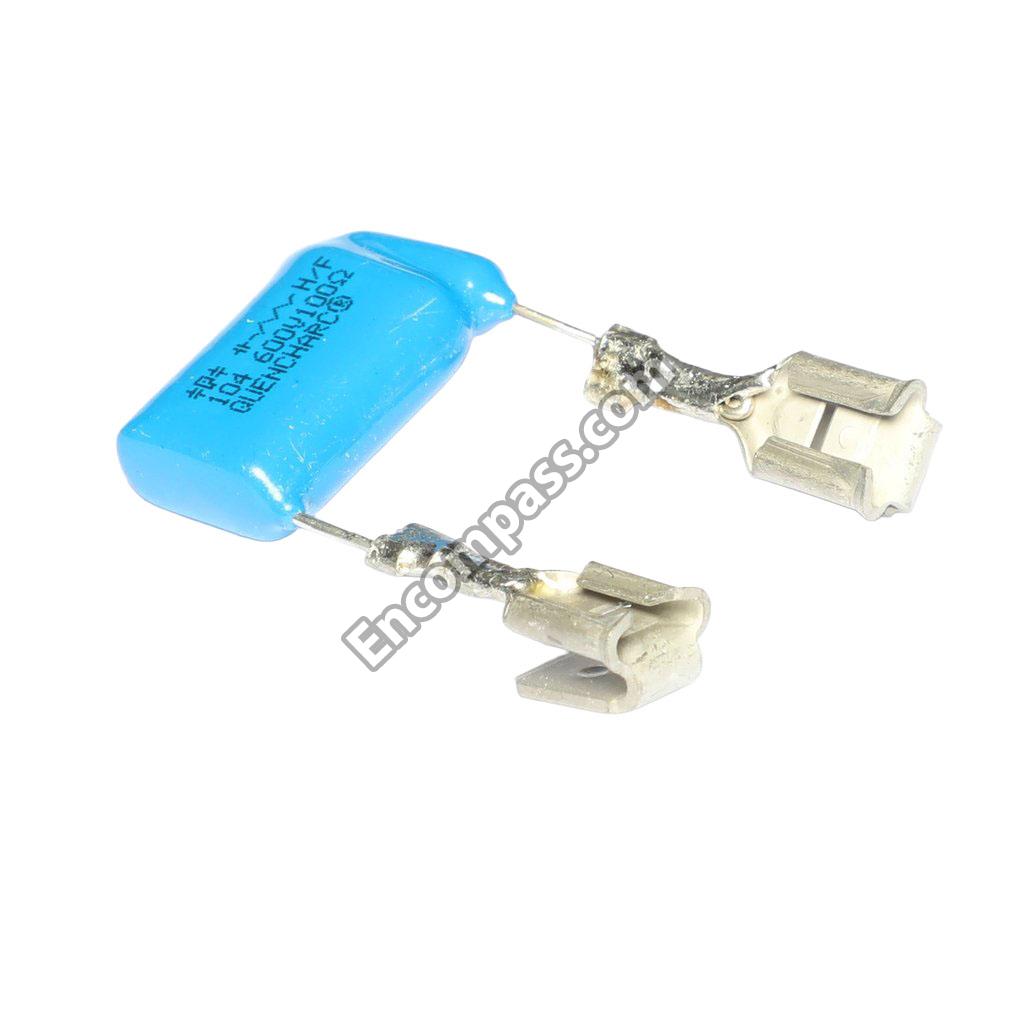

KIT, TRIAC(40A) SNUBBER |
| 59204743 | KIT- ANTENNAS (RED TIP), MOTOR, & GEARS |
|
|

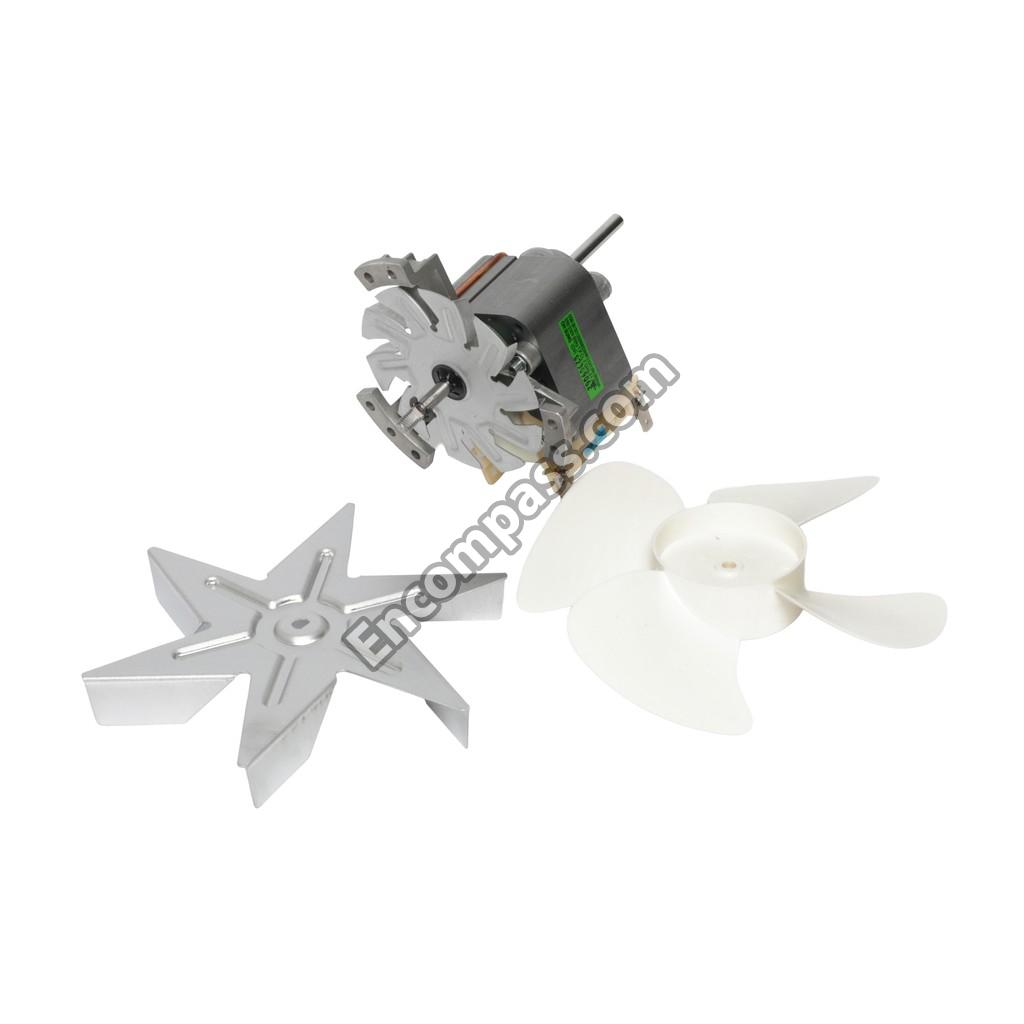

KIT- CONV MOTOR BLADES |
|
|
KIT- HINGE |
|
|
KIT- MONITOR RELAY BRD, FUSE (30A) & BLOCK |
| 20135503 | LWR ACCESS PANEL ASSEMBLY |
| 20165501 | MACH COMP BRACKET ASSEMBLY |
|
|
MAGNETRON |
|
|
MOTOR, ANTENNA (230V) |
| 13045502 | NUT- #8 KEPS |
| 13045501 | NUT-#6 KEPS |
| 12538001 | NUT-CAP |
| PA10 | OVEN PADDLE |
|
|
OVEN RACK FOR CONVECTION XPRES |
| 59154470 | PANEL, INNER DOOR & SEALANT- JET/ACE |
| JR10 | PANINI GRILL FOR CONVECTION XPRESS OVENS |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
| ST10C | PIZZA STONE FOR CONVECTION XPRESS & JETWAVE XPRESS |
| 20099402 | PLUG-HOLE |
| 20090902 | PLUG-HOLE |
| 20070101 | PLUG-USB PORT |
| 59002181 | POWER CORD |
|
|
RELAY |
| 12570202 | RETAINER, GEAR SHAFT |
| 21017302 | RETAINER-L/BTM INSUL |
| 21015202 | RETAINER-R INSUL |
| 21017202 | RETAINER-TOP INSUL |
| 12188901 | RETAINER-TRAY |
| M0213802 | SCREW |
| 59002164 | SCREW, HANDLE BOTTOM |
| 59002163 | SCREW, HANDLE SIDE |
| 12876603 | SCREW- PLASTITE |
| 20159201 | SCREW-MACH/HEX |
| 13079101 | SCREW-MACH/SHLD ROHS |

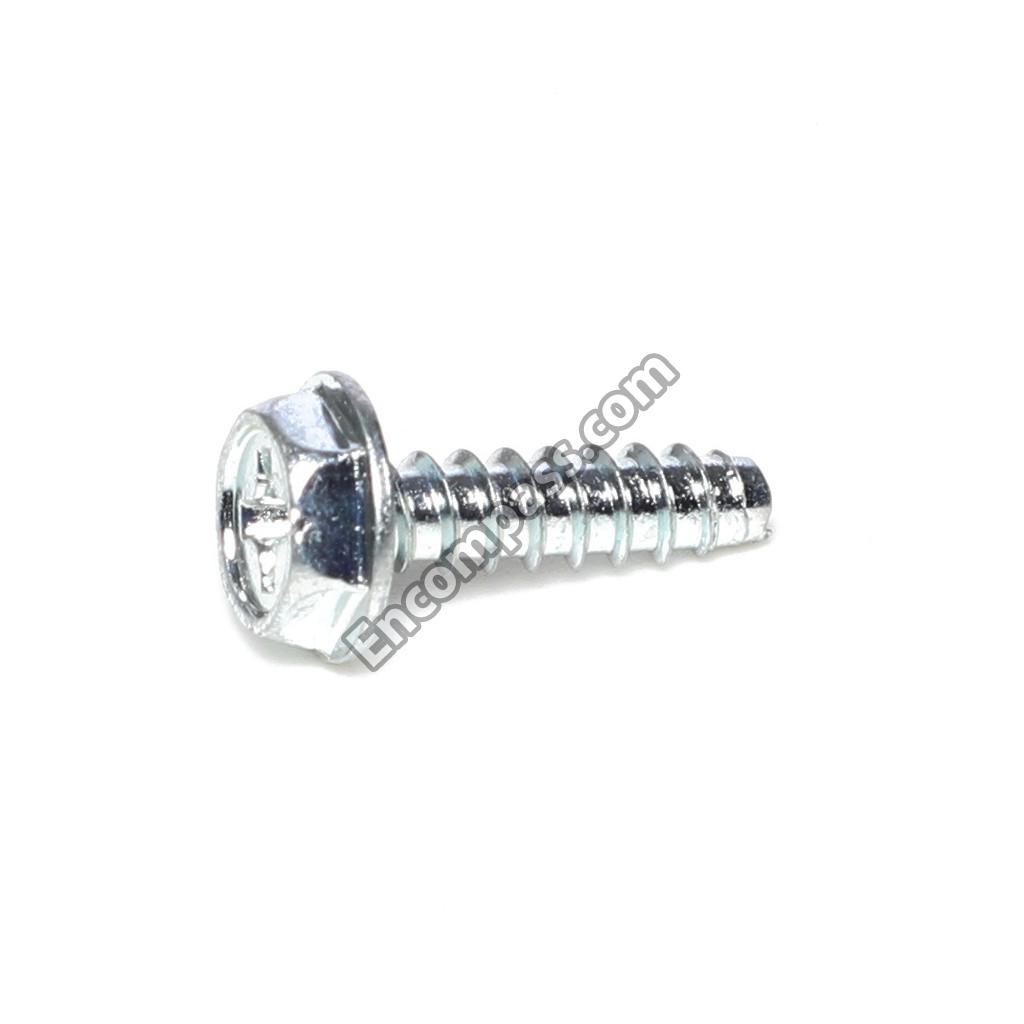

| 12990529 | SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990526 | SCREW-SM/HEX |
| 12990522 | SCREW-SM/HEX ROHS |
| 12991101 | SCREW-SM/KNIFE ROHS |
| 13095201 | SCREW-SM/OVAL |
| 13045301 | SCREW-SM/OVAL ROHS |
| 12991611 | SCREW-TC/HEX |
| 12991610 | SCREW-TC/HEX |
| 13074001 | SCREW-TC/PAN TORX ROHS |
| 13041604 | SCREW-TC/ROUND |
|
|
SCREW-TC/SOCKET TORX |
| 20171801 | SCREW-TF/HEX |
| 12992306 | SCREW-TF/HEX ROHS |
| 12992302 | SCREW-TF/HEX ROHS |
|
|
SENSOR-TEMP |
| TL12 | SET OF 3 NON-STICK LINERS FOR CONVECTION XPRESS |
|
|
SNUBBER ASSEMBLY |
| 20096602 | SPRING-DOOR HINGE |
| C8893506 | SPRING-DOOR LATCH |
|
|
SPRING-DOOR LATCH |
| A4055406 | STRAP-CAPACITOR |
| M0590602 | SUPPORT |
| M0800603 | SUPPORT-PCB |
|
|
SWITCH, INTERLOCK ASSEMBLY |
| M0275089 | TAPE- ROLL |
| 59134320 | TAPE-PTFE GASKET |
| B5684130 | THERMAL CUTOUT |
| 31866P01 | THERMAL CUTOUT |
| 59154471 | THERMAL CUTOUT, OVEN |
| M0322202 | TIE-WIRE |
| 21015702 | TOP-INLET DUCT |
| 44780P01 | TOROID |
| 59134370 | TOUCH PANEL ASSEMBLY- SIDE |
| 59134369 | TOUCH PANEL ASSEMBLY- TOP |
| 59134303 | TRANSFORMER, HV |
| 59002026 | TRIAC (40A) |
| 20079501 | TUBE-EXHAUST |
| 20079102 | UP ACCESS PANEL WELD-E CT |
| 12546101 | WASHER |
| 20003205 | WASHER-FLAT |
| 10903002 | WASHER-SPUR GEAR |
| 14179138 | WASHER-U TYPE |
| 10908909Q | WRAPPER- STAINLESS |
|
|
XPRESS OVEN CLEANER (6) 1 LITER BOTTLES, (2) NOZZL |
