Manufacturer
Amana Commerical
Model Number
KFC2W2
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 10827220 | ACCESS PANEL WLD-E CT |
| 20172101 | ACCESS- PNT BOTTOM |
|
|
ANTENNA SHIELD |
| 10790306Q | BASEPAN GASKET ASSEMBLY |
|
|
BIT, NON MAGNETIC Y DRIVE |
|
|
BLADE, FAN |
|
|
BLOCK, FUSE- 3 POLE |
| 10091101 | BLOCK-FUSE |
| B5677203 | BLOCK-TERMINAL |
|
|
BLOWER MOTOR ASSEMBLY- MC, RC |
|
|
BOARD, DISPLAY |
| 59002084 | BOARD, DISPLAY |
| 59194680 | BOARD, HV- KFC |
| 10782402 | BOTTOM ACCESS-E CT |
| 12567709 | BRACKET, BLOWER |
| 20172901 | BRACKET-HINGE SUPPORT |
| 12189003 | BRACKET-HINGE SUPPORT |
| A3293506 | BUSHING-SNAP |
| M0325401 | BUSHING-TERMINAL |
| M0308801 | CAP-SCREW |
| 59001160 | CAPACITOR- .69 |
| M0104106 | CLIP, CORD |
| B5667304 | CLIP-WIRE |
| 59174559 | COVER- LIGHT HARDWARE |
| 10785608 | COVER-LIGHT |
| 20241404 | CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 13091701 | DIODE |
| 14179130 | DIVIDER-BTM FLOW |
| 10781901 | DUCT- EXHAUST |
| 59174557 | DUCT- EXHAUST GASKET |
| 10989301 | DUCT-BTM EXHAUST |
| 14179136 | DUCT-TOP EXHAUST |
|
|
FUSE-15A |
|
|
FUSE-30A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| A3263904 | GASKET, EACH |
| 59004077 | GASKET, PER FT |
|
|
GASKET, PER FT |
| 10966601 | GASKET-NEOPRENE |
| 12570102 | GEAR-SPUR |
| 12570101 | GEAR-SPUR |
|
|
GRILL, AIR INLET THUMBSCREWS |
| 10853102 | GRILLE-AIR INLET |
| 12696201 | HARNESS, HV |
| 12598201 | HARNESS, LOWER ANTENNA MOTOR |
| 13095401 | HARNESS, MAIN |
| 13095501 | HARNESS-INTERLOCK |
| 13018201 | HARNESS-INTERLOCK |
| 13018801 | HARNESS-LW ANT MTR |
| 12543401 | HARNESS-OVEN LT |
| 59004034 | HINGE, DOOR |
|
|
INNER DOOR ASSEMBLY (NO SCREWS) |
| R0130262 | KIT, ANTENNA |
| R0130261 | KIT, ANTENNA- TOP FRONT- BLUE |
| 12002065 | KIT, BLOWER MOTOR |
|
|

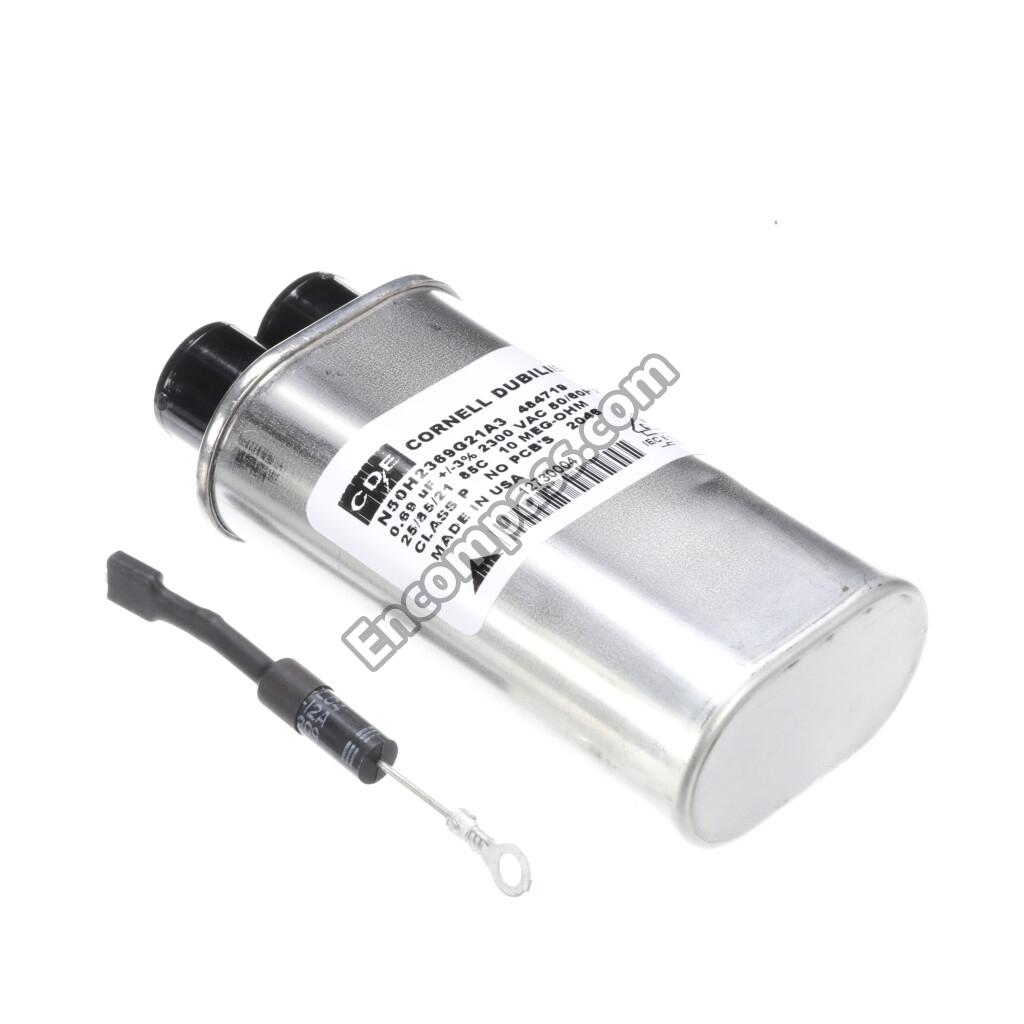

KIT, CAPACITOR- .69 DIODE |
| 12002484 | KIT, CAVITY- 3 TUBE S CHASSIS |
| R0156942 | KIT, CERAMIC TRAY SEALER |
|
|
KIT, HANDLE SCREWS |
| R0130265 | KIT, HARNESS- HVB/DISPLAY |
|
|
KIT, INTERLOCK SWITCH |
|
|
KIT, LATCH- RC CHASSIS |
| R0157373 | KIT, TRIAC |
|
|
KIT, TRIAC(40A) SNUBBER |
| 14179134 | KIT- ANTENNA (BLUE TIP) MOTOR |
|
|
KIT- ANTENNA (PLAIN TIP) & MOTOR |
| 14179140 | KIT- HINGE DOOR RING WELD- RC |
| 59214763 | KIT- RC 3 TUBE CAVITY |
| 12689202 | LABEL-MENU |
|
|
LAMP-41W |
| 59174554 | LIGHT COVERS- INSIDE OUT |
|
|
MAGNETRON |
|
|
MOTOR, ANTENNA (230V) |
| R0156918 | OUTER DOOR ASSY- WINDOW |
| R0156970 | PANEL, ACCESS- REAR |
| 59174558 | PCB SUPPORTS (10) SCREWS (10) |
|
|
PLATE-PARTITION |
| 59002165 | PLUG BUTTON WHITE |
|
|
PLUG-HOLE |
|
|
PLUG-WHITE BUTTON |
|
|
POWER CORD |
| B8371401 | RECEPTACLE-LAMP |
|
|
RELAY |
| M0370011 | RELIEF-STRAIN |
| 12570202 | RETAINER, GEAR SHAFT |
|
|
RIVET, POP |
| M0220417 | SCREW |
| M0200316 | SCREW |
| M0208342 | SCREW, SET |
|
|
SCREW-HI LO Y-DRIVE |
|
|
SCREW-SET/CONE ROHS |
|
|
SCREW-SET/DOG ROHS |
|
|
SCREW-SM/HEX |
|
|
SCREW-SM/HEX |
| 12990526 | SCREW-SM/HEX |
| 13095201 | SCREW-SM/OVAL |
| 12992302 | SCREW-TF/HEX ROHS |
| 13042002 | SCREW-TF/OVAL |
| 12552001 | SCROLL, BLOWER |
|
|
SEALER |
|
|
SNUBBER ASSEMBLY |
| C8893502 | SPRING-DOOR LATCH |
| 3010003001 | STANDOFF-POLY |
| M0590602 | SUPPORT |
| B5684130 | THERMAL CUTOUT |
|
|
THERMAL CUTOUT, CAVITY |
| M0322202 | TIE-WIRE |
|
|
TOUCH PANEL ASSEMBLY- SIDE |
|
|
TOUCH PANEL ASSEMBLY- TOP |
| 59001630 | TRANSFORMER, AUTO |
| 59001626 | TRANSFORMER, HV |
|
|
TRANSFORMER- AUTO SNUBBER |
| 10909001 | TRIM |
| 59174560 | TRIM- OC SCREWS |
| 10903002 | WASHER-SPUR GEAR |
| 59002013 | WELD, DOOR RING |
| C3670809 | WHEEL-BLOWER |
| B8367701 | WINDOW-OVEN LIGHT |
| 10908909Q | WRAPPER- STAINLESS |
| 10908901Q | WRAPPER- STAINLESS |
