Manufacturer
Amana Commerical
Model Number
MOC5241
Description
Oncue Commercial Microwave
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 59184614 | ANTENNA SHIELD |
| 59004101 | BASEPAN GASKET ASSEMBLY |
| 10091101 | BLOCK-FUSE |
| B5677203 | BLOCK-TERMINAL |
|
|

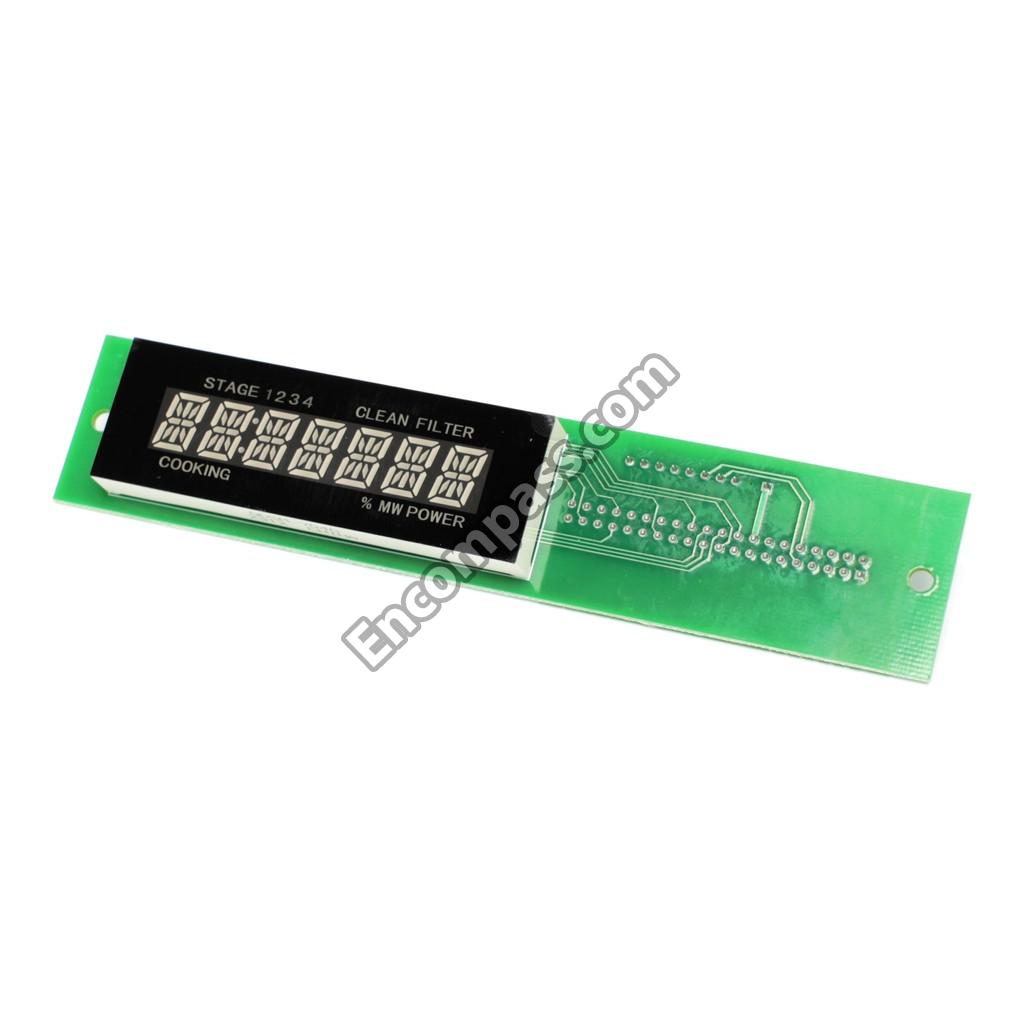

BOARD, DISPLAY |
| 59004084 | BOARD, MAIN CONTROL |
| 20023501 | BRACKET-40 PIN HEADER |
| 13069001 | BRACKET-CAPACITOR |
| 20023301 | CLIP, RETAINER |
| 20241404 | CUTOUT-THERMAL, MAG |
|
|
DIODE |
| 13091701 | DIODE |
| 59004109 | DOOR ASSEMBLY SCREWS |

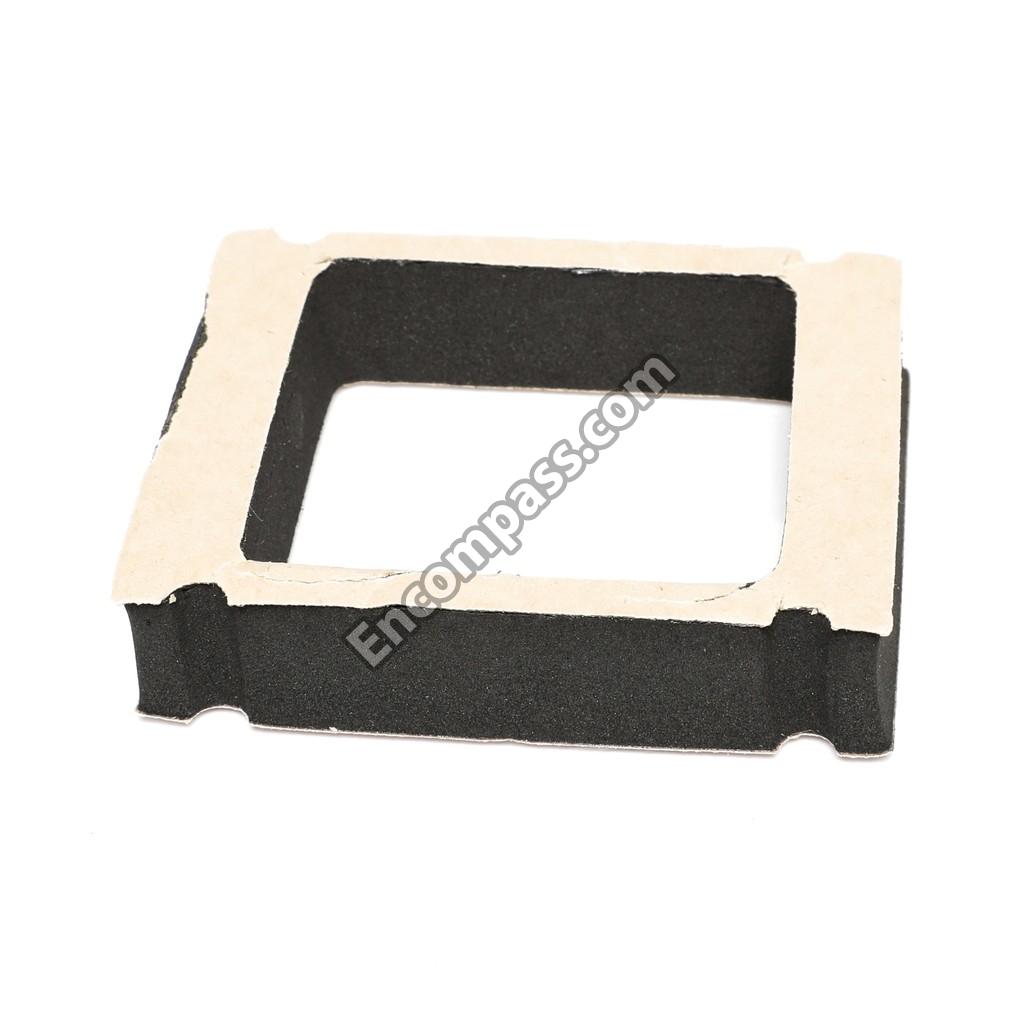

| 59004105 | DUCT, MAG EXHAUST GASKET |
| 21021202 | ESCUTCHEON-CONTROL |
| 59001893 | FILTER, LINE |
|
|
FUSE, 2.5A |
|
|
FUSE-20A |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
|
|
GASKET-CAV FAN |
| 59194708 | GASKET-MAG SEAL |
| 20009701 | GRILLE-EXH FAN |
| 20095701 | GROMMET-RUBBER |
| 20013701 | GUARD-FAN |
| 20019401 | HARNESS, HV |
| 20216701 | HARNESS-OVEN |
| 59184622 | HOLE PLUGS- 6 PACK |
| 21020302 | HOOD-CAVITY FAN |
| 14189146 | KIT, ANTENNA MOTOR- OC |
| 59174543 | KIT, CAPACITOR- 1.05 DIODE |
|
|
KIT, CAVITY EXH MOTOR GASKET |
|
|
KIT, FAN MOTOR |
| 14090025 | KIT, GLIDE STRIPS RIVETS |
| 14090028 | KIT, HARNESS- PC BD TO TP |
|
|
KIT, HINGE- LH |
| 14090027 | KIT, HINGE- RH |
| 14189148 | KIT, SOLENOID ASSEMBLIES- L R |
|
|

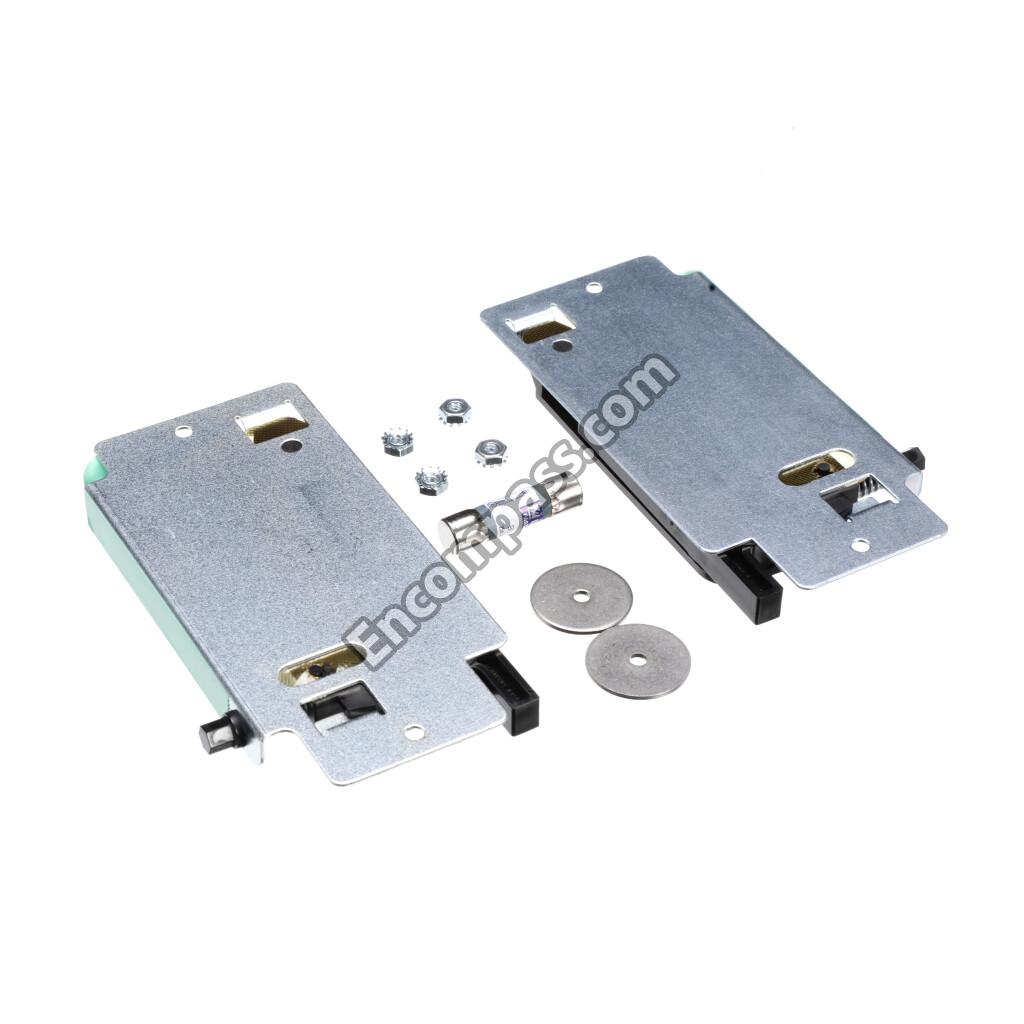

KIT, SWITCHES FUSE |
| 14139083 | KIT, TOUCH PANEL |
|
|
KIT, TRIAC(40A) SNUBBER |
| 14179138 | KIT- STUDS HARDWARE |
| 20023608 | LWR OC BACK WELD-E CT |
|
|
MAGNETRON |
| 13045501 | NUT-#6 KEPS |
| 20018901 | NUT-#8 HEX |
| 59004102 | OUTER PANEL- LH |
| 59004103 | OUTER PANEL- RIGHT HAND |
| 59004104 | OUTER PANEL- TOP |
| 59002001 | POWER CORD |
| 21001503 | REAR MC BRACKET-E CT |
| A4539638 | RIVET, POP |
| 20022301 | SCREW-MACH/PAN |
| 20021703 | SCREW-SM/FLAT |
| 12990522 | SCREW-SM/HEX ROHS |
| 13047404 | SCREW-TC/FLAT |
| 12991611 | SCREW-TC/HEX |
| 12991605 | SCREW-TC/HEX ROHS |
| 13041802 | SCREW-TC/PAN |
| 13074001 | SCREW-TC/PAN TORX ROHS |
|
|
SCREW-TC/SOCKET TORX |
| 20021804 | SEALER, RTV- ALUMINUM |
| 20209801 | SHIELD-CAPACITOR |
| 20020601 | SPRING, HINGE |
|
|
SPRING, LATCH |
| 21009501 | STRAP-OVEN |
| 20013601 | STRIP, ANTI INTRUSION |
| 20021601 | STUD-#6 SC X .31 |
| 59001235 | SUCTION CUP- FOR SHIELD REMOVA |
| M0590609 | SUPPORT-PCB |
| B5684130 | THERMAL CUTOUT |
|
|

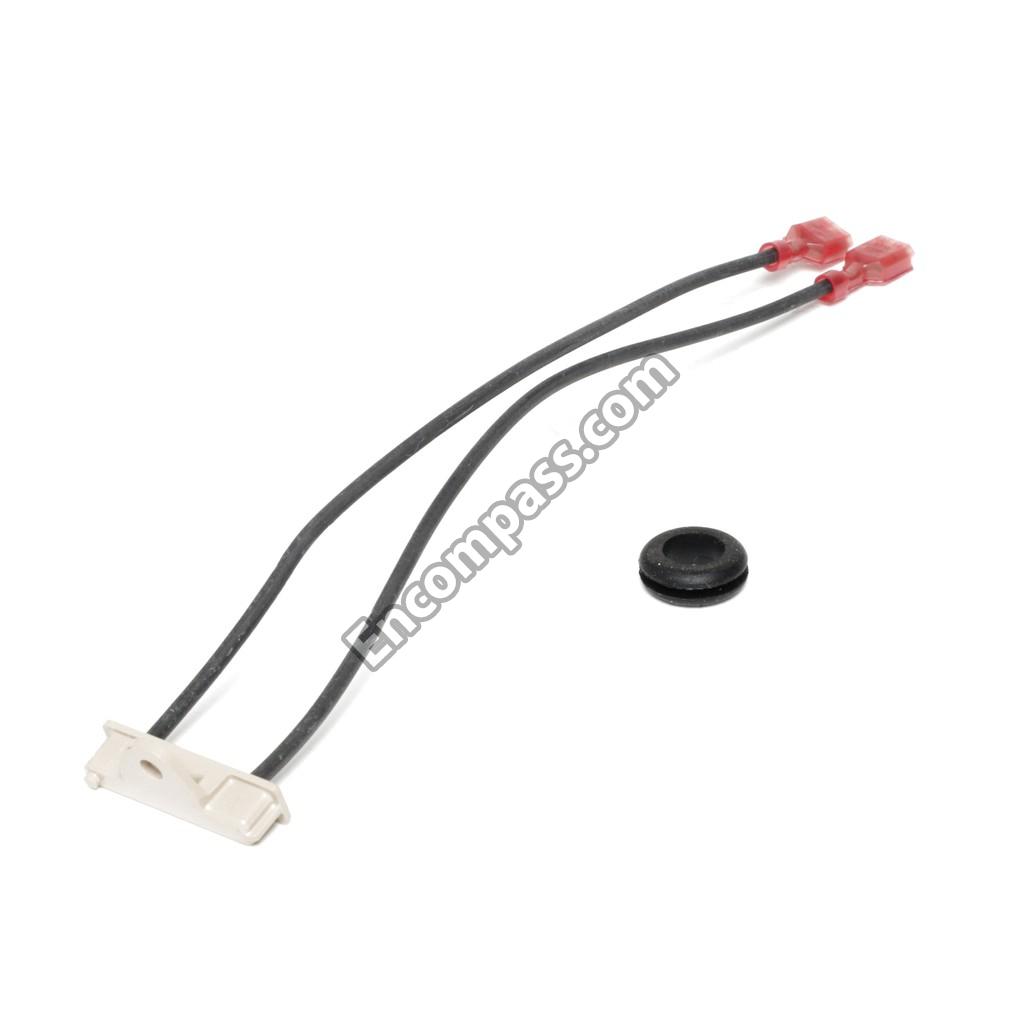

THERMAL CUTOUT ASSEMBLY- CAVITY |
| B5684135 | THERMAL CUTOUT, LATCH |
|
|
TOUCH PANEL ASSEMBLY- MM |
|
|
TRANSFORMER, CONTROL |
| 59004117 | TRANSFORMER, HV |
|
|

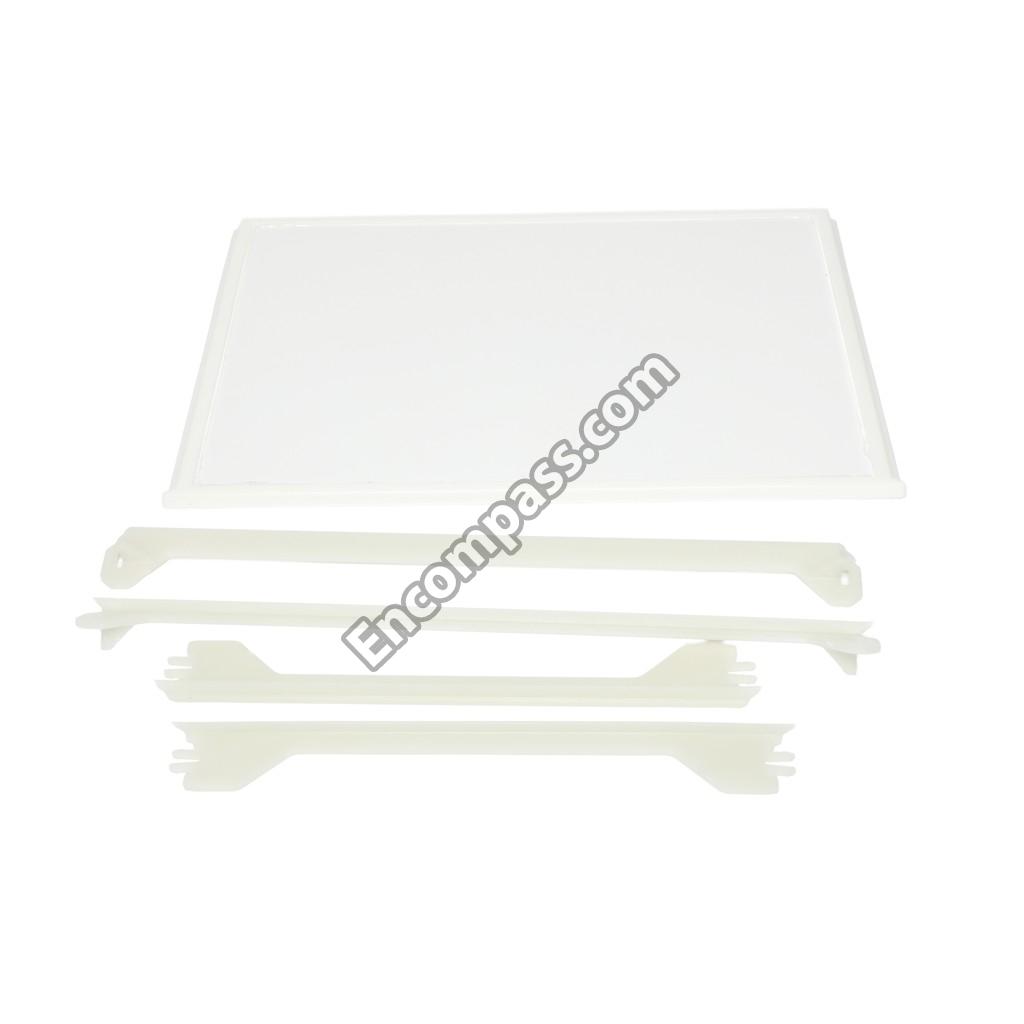

TRAY, CERAMIC SUPPORTS |
| 20018002Q | UP MAG SHROUD WELD-E CT |
| 20020001 | WASHER-NYLON |
| 13017716 | WIRE, JUMPER |
