Manufacturer
Amana Commerical
Model Number
RCS10DSE
Description
Commercial Microwave Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 20111804 | BASEPAN |
| 59224794 | BLOWER ASSEMBLY- RCS 60 |
| 20117801 | BRACKET-INLET AIR |
| 20060901 | BRACKET-REAR CAP |
| 20117301 | BTM HINGE ASSY |
|
|

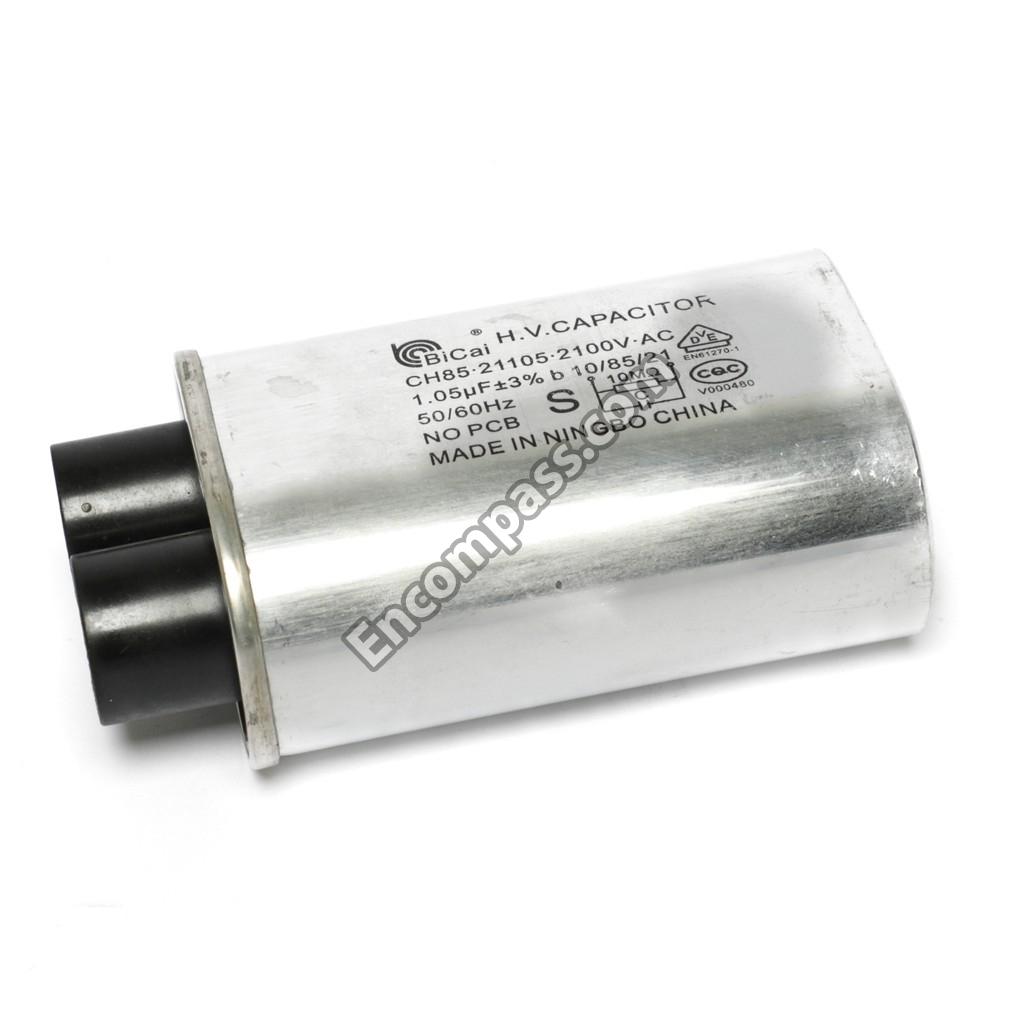

CAPACITOR, 1.05 |
| B5667304 | CLIP-WIRE |
| 59214755 | CONTROL ASSY- DIAL 60 |
| 20241101 | CORD-POWER,60 |
|
|
DIODE |
| 54157101 | DOOR ASSEMBLY- MM |
| 20117201 | DUCT, AIR |
|
|

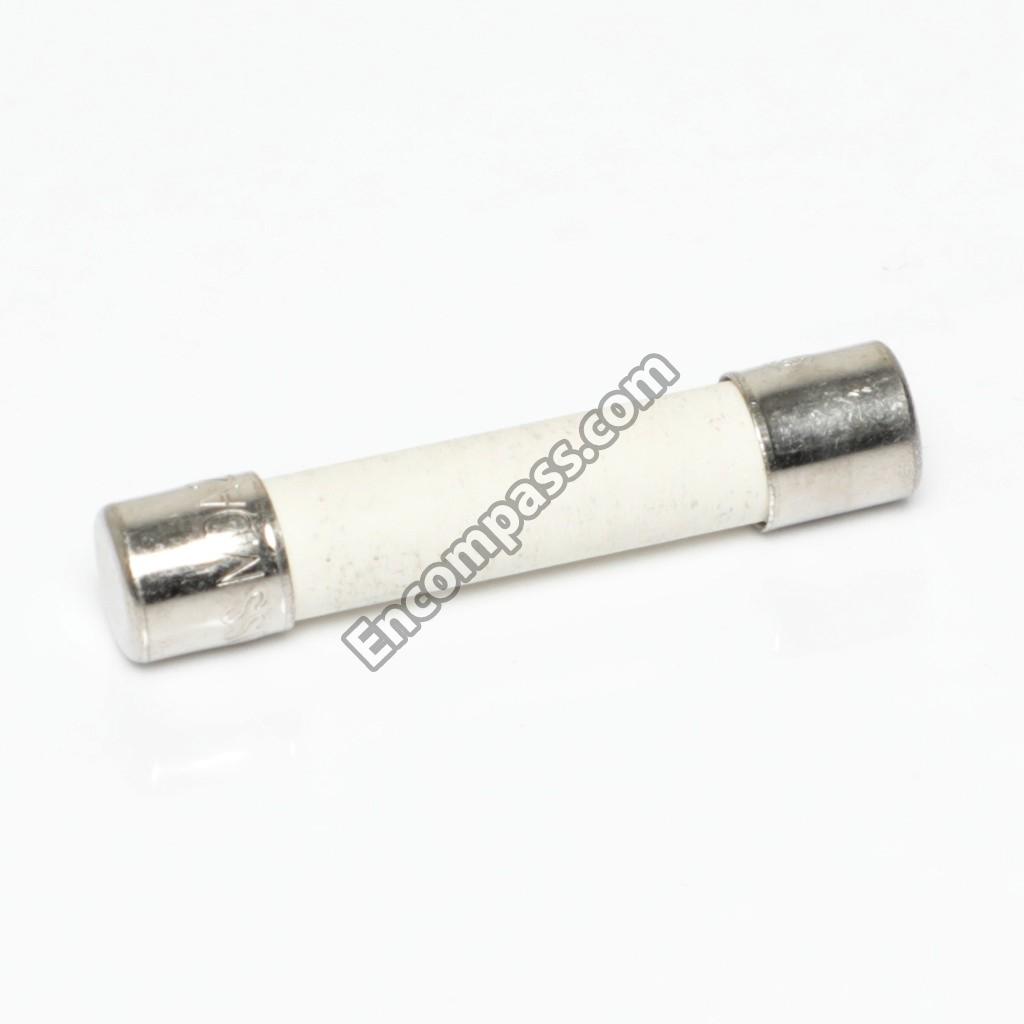

FUSE-20A TD |
| R0000413 | GASKET, BASEPAN- 90 IN (228 CM |
| 20116701 | HARNESS-OVEN 60 |
|
|
KIT, COVER/STIRRER BLADE/RIVET |
| 14124069 | KIT, DOOR HANDLE |
| 14174131 | KIT, INTERLOCK FUSE BLOCK |
| 14154101 | KIT, SPRING/LATCH/CHOKE COVER |
|
|

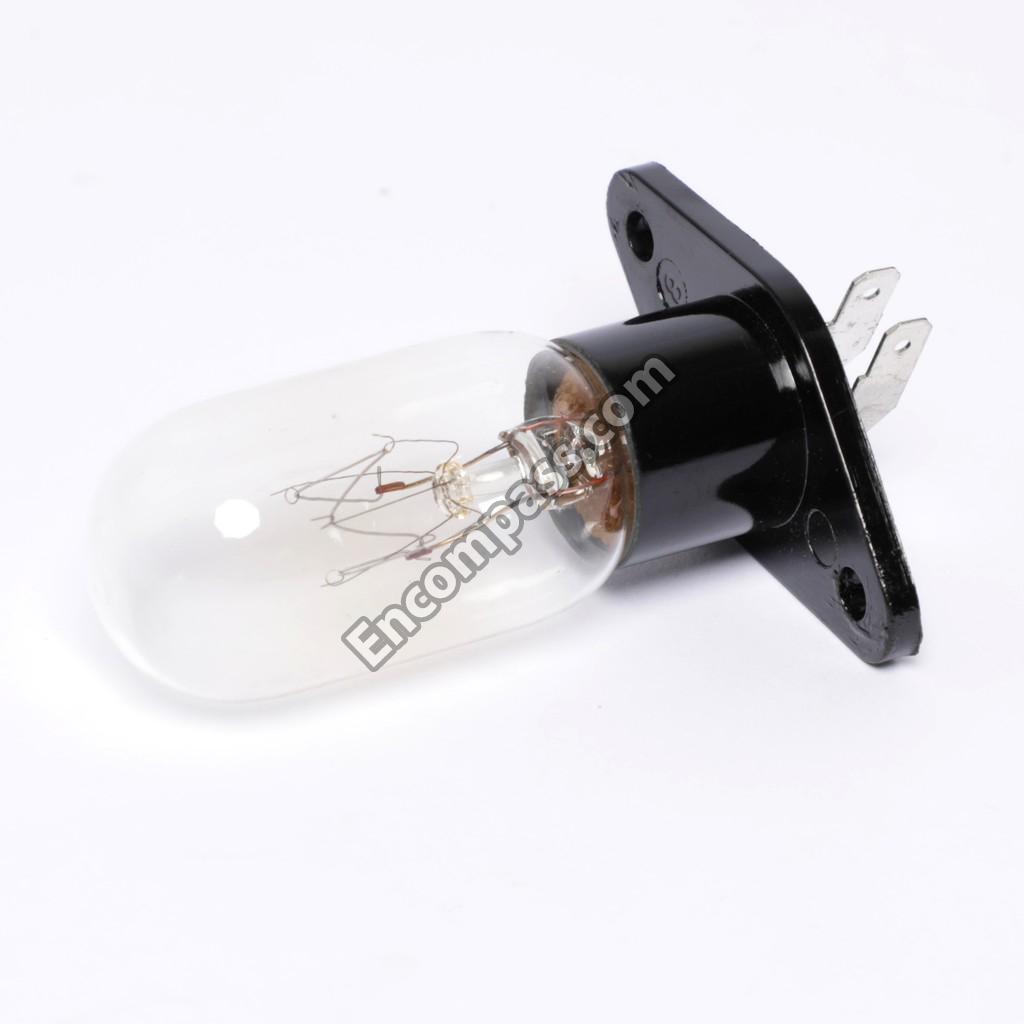

LAMP/SOCKET ASSEMBLY |
|
|
MAGNETRON |
| 56002013 | MOTOR, ANTENNA |
|
|

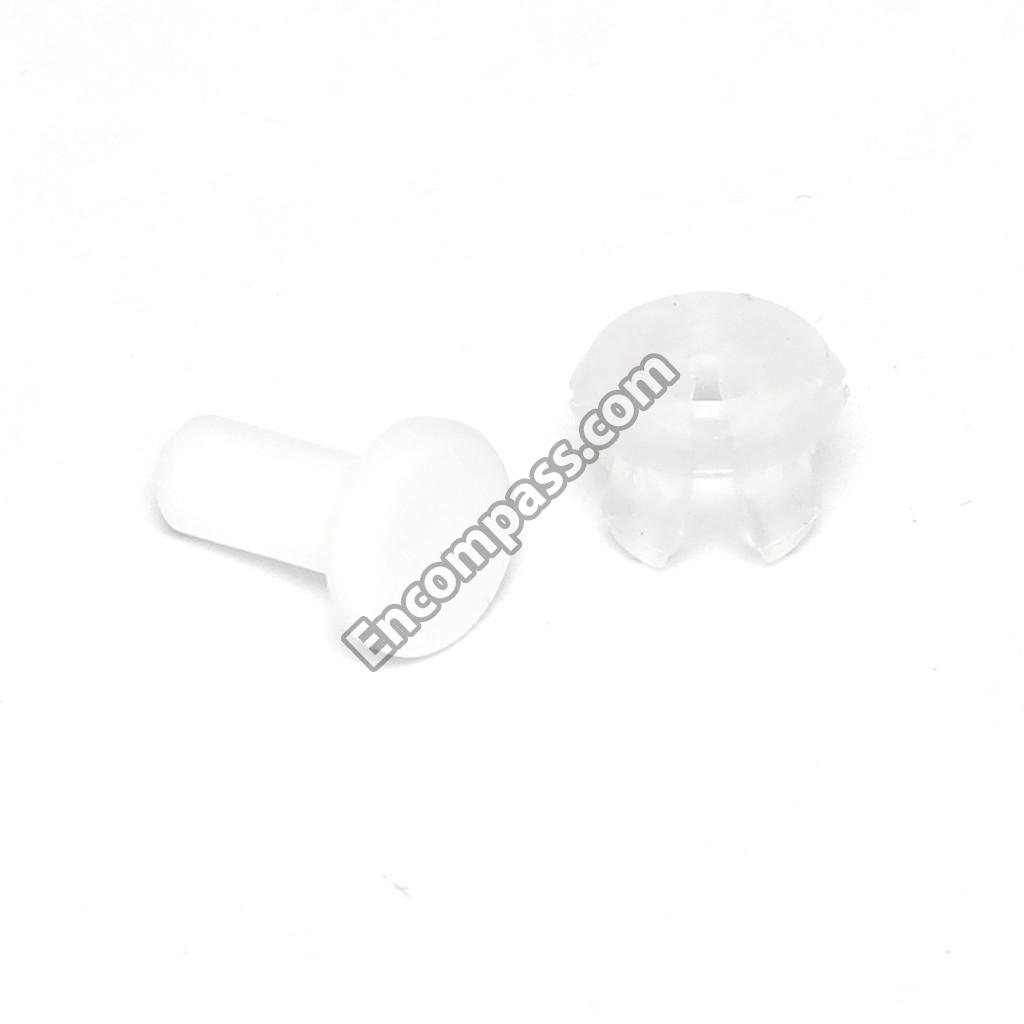

RIVET ASSEMBLY |
| 20280101 | SCREW-METRIC/HEX |
| 20275506 | SCREW-METRIC/RD |
| 20275505 | SCREW-METRIC/TRUSS |
| 20275406 | SCREW-METRIC/TRUSS |
| 20275405 | SCREW-METRIC/TRUSS |
| 20275402 | SCREW-METRIC/TRUSS |
| 20275401 | SCREW-METRIC/TRUSS |
| 13041510 | SCREW-TF/PAN |
| 54127037 | THERMAL CUTOUT, CAVITY |
|
|
THERMAL CUTOUT, MAG |
| 59204740 | TRANSFORMER- HV |
| 54127018 | TRAY, CERAMIC |
| 54127026 | WINDOW, INNER |
| 54127045 | WRAPPER |
