Manufacturer
Amana Commerical
Model Number
RFS511TSW
Description
Commercial Microwave Oven
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 53002003 | ANTENNA SHIELD |
| 20052302 | BACK-OVEN |
| 53001568 | BASE, TRANSFORMER |
| 54116012 | BASEPAN ASSEMBLY |
| 53001670 | BLOWER MOTOR ASSEMBLY |
| 54116068 | BOARD, HV/LV |
| 20061201 | BRACKET, STACKING |
| 53001643 | BRACKET, THERMOSTAT |
| 20056301 | BRKT-MACH COMP |
| 20060902 | BRKT-REAR CAP |
| 53001543 | CAP, TOP HINGE |
| 53002066 | CAPACITOR, 1.2 |
| 20061101 | CLIP-DOOR |
| B5667304 | CLIP-WIRE |
| 20064601 | CORD-POWER |
| 53002013 | COVER, CHOKE |
| 53001579 | COVER, LAMP- SS |
| 53001621 | COVER, POWER CORD |
| 53001620 | DEFLECTOR, AIR |
|
|
DIODE |
| 20036801 | DIODE, SLEEVED |
| 59194706 | DOOR ASSY- RFS |
| 20051701 | DOOR-LAMP ACCESS |
| 53001563 | DUCT, MAIN |
| 53001559 | DUCT, OUTLET-TOP |
| 20058701 | DUCT, REAR AIR |
| 20056501 | DUCT-AIR |
| 20058101 | DUCT-TOP AIR |
| 54116007 | ESC/TOUCH PANEL ASSEMBLY- SW |
| 53001667 | FILTER ASSEMBLY, NOISE |
| 20066501 | FUSE BLOCK/FILTER ASSEMBLY |
| 54116072 | FUSE, HV |
|
|
FUSE-12A |
| 53001610 | GASKET |
| 59004077 | GASKET, PER FT |
| 20063801 | HOLDER-GROUND |
| 20067701 | INSULATOR |
|
|
KIT - LATCH & CHOKE COVER |
| 12002451 | KIT, ANTENNA - W/RIVETS |
|
|
KIT, HANDLE |
| 54116028 | LAMP |
| 53001590 | LAMP |
| 20059102 | LAMP HOLDER ASSY |
| 53001591 | LAMP SOCKET / BRACKET ASSEMBLY |
| 53001779 | LATCH |
|
|
MAGNETRON |
| 59001484 | MAGNETRON |
|
|
MOTOR, ANTENNA |
| 59001625 | MOTOR, ANTENNA |
| 54116003 | OUTER DOOR ASSEMBLY- MM |
| 53001625 | PLATE, BASE- W/COVER GASKETS |
| 20058501 | RETAINER-CORD |
|
|
RIVET ASSEMBLY |
| 53001554 | RIVET ASSY |
| 20281801 | SCREW |
| 54116044 | SCREW |
| 20275505 | SCREW |
| 54116031 | SCREW |
| 54116021 | SCREW |
| 54116024 | SCREW |
| 54116038 | SCREW |
| 53001609 | SCREW |
| 59002164 | SCREW, HANDLE BOTTOM |
| 59002163 | SCREW, HANDLE SIDE |
| 20275506 | SCREW-METRIC/RD |
| 20275406 | SCREW-METRIC/TRUSS |
| 20275405 | SCREW-METRIC/TRUSS |
| 20275402 | SCREW-METRIC/TRUSS |
| 20275401 | SCREW-METRIC/TRUSS |
| 13004401 | SCREW-TF/FLAT ROHS |
|
|

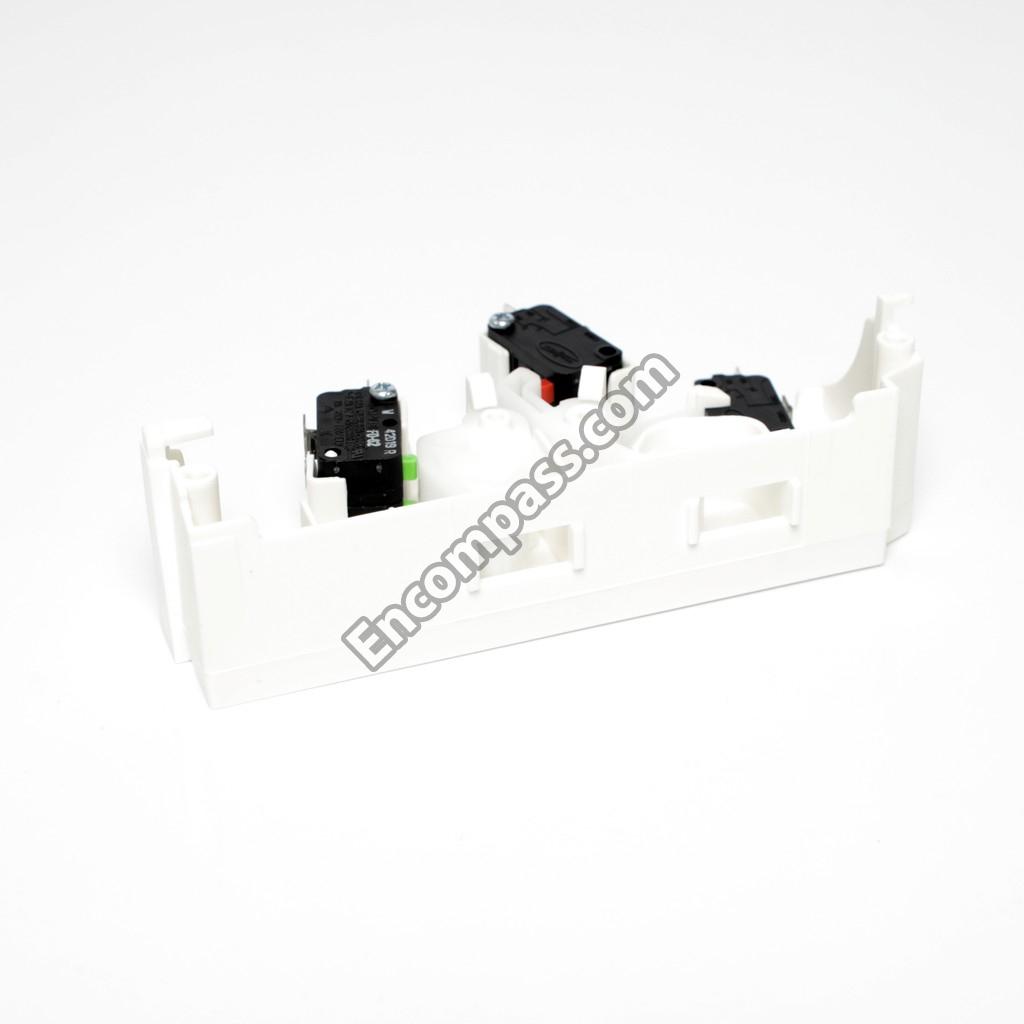

SWITCH, INTERLOCK ASSEMBLY |
| 20057002 | TCO-MAGNETRON |
|
|
THERMAL CUTOUT, CAVITY |
| 53002024 | TRANSFORMER, HV |
| 53002009 | TRAY, CERAMIC |
| 53002018 | WELD, INNER DOOR |
| 13066801 | WINDOW, INNER |
| 53001577 | WRAPPER- SS |
