Manufacturer
Blomberg
Model Number
7185881400
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ADJUSTABLE PLASTIC FOOT (5VB) |
|
|
AIR CHANNEL ASSEMBLY (ARES_AV_UL) |
|
|
AIR OUTLET PIPE ( EARED/5VA) |
|
|
BEARING SENSOR COVER ASSEMBLY |
|
|
BELT TIGHTENER SPRING |
|
|

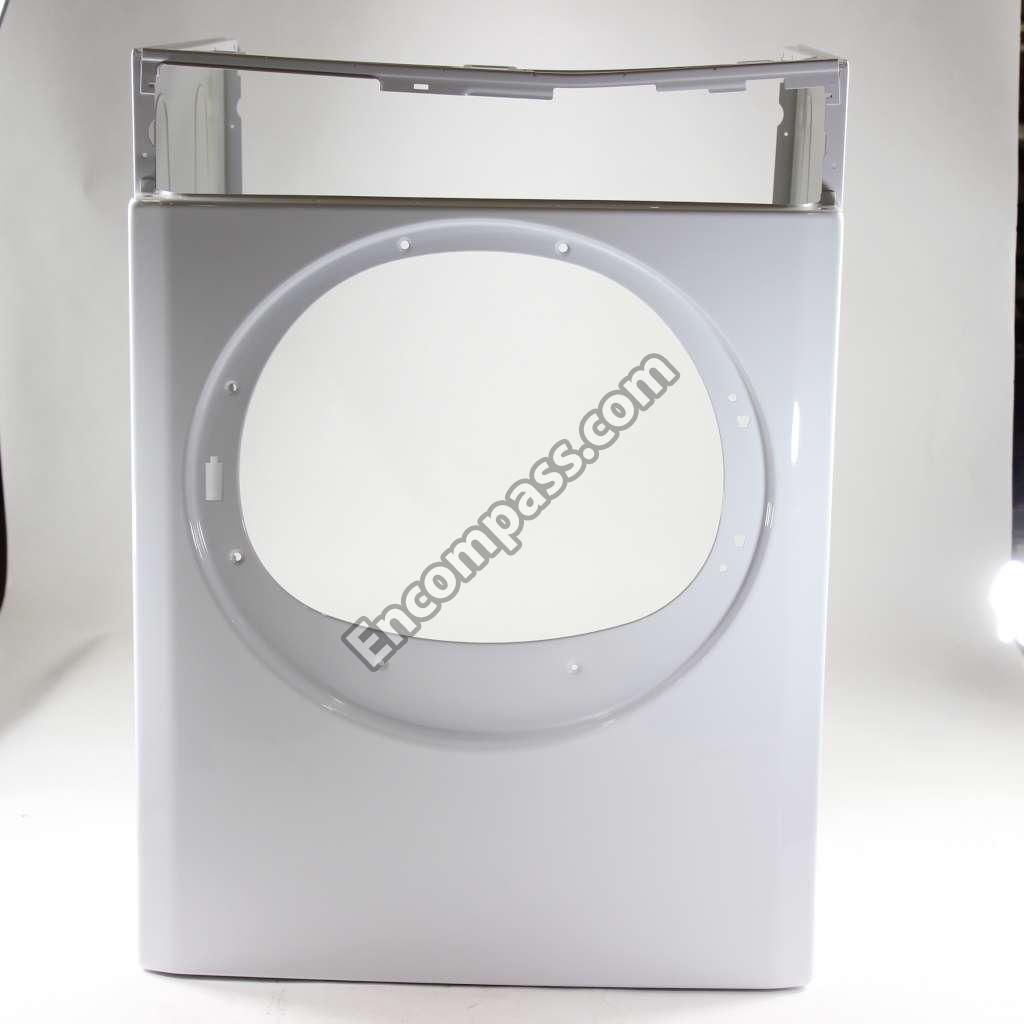

CABINET AS. (ARES AV AB09_UL_ARC1_WHITE) |
|
|
CABLE HARNESS(HP_UL_SENSOR_CABLE) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CABLE HARNESS(UL) |
|
|
CAPACITOR (ARCOTRONICS 8 UF) |
|
|
COUNTERSUNK HEAD PT SCREW (6X30) |
|
|
DELTA PT VIDA 50X26 WN 5454 HB |
|
|
DOME HEAD BOLT. (AM4X10 DIN 7985 8.8-H) |
|
|
DOOR GASKET |
|
|
DOOR GASKET_(V0) |
|
|
DOOR GLASS |
|
|
DOWEL PLASTIC CLAMP |
|
|
DRUM ASSEMBLY |
|
|
DRUM LIFTER (54CM_CLAMP_5VB) |
|
|
DRYER FAN (4 FEEDER) |
|
|
DRYER MOTOR (IHRAC-TERRA AV-60HZ)_UL |
|
|
DRYER PULLEY ASSY.SERVICE-UL 3880100-200 |
|
|
ELASTIC POLY-V BELT. 6H 1930 |
|
|
ELEC.PCB HARNESS(AV SENS_369_USA7KG_UL) |
|
|
FAN HAUSING |
|
|

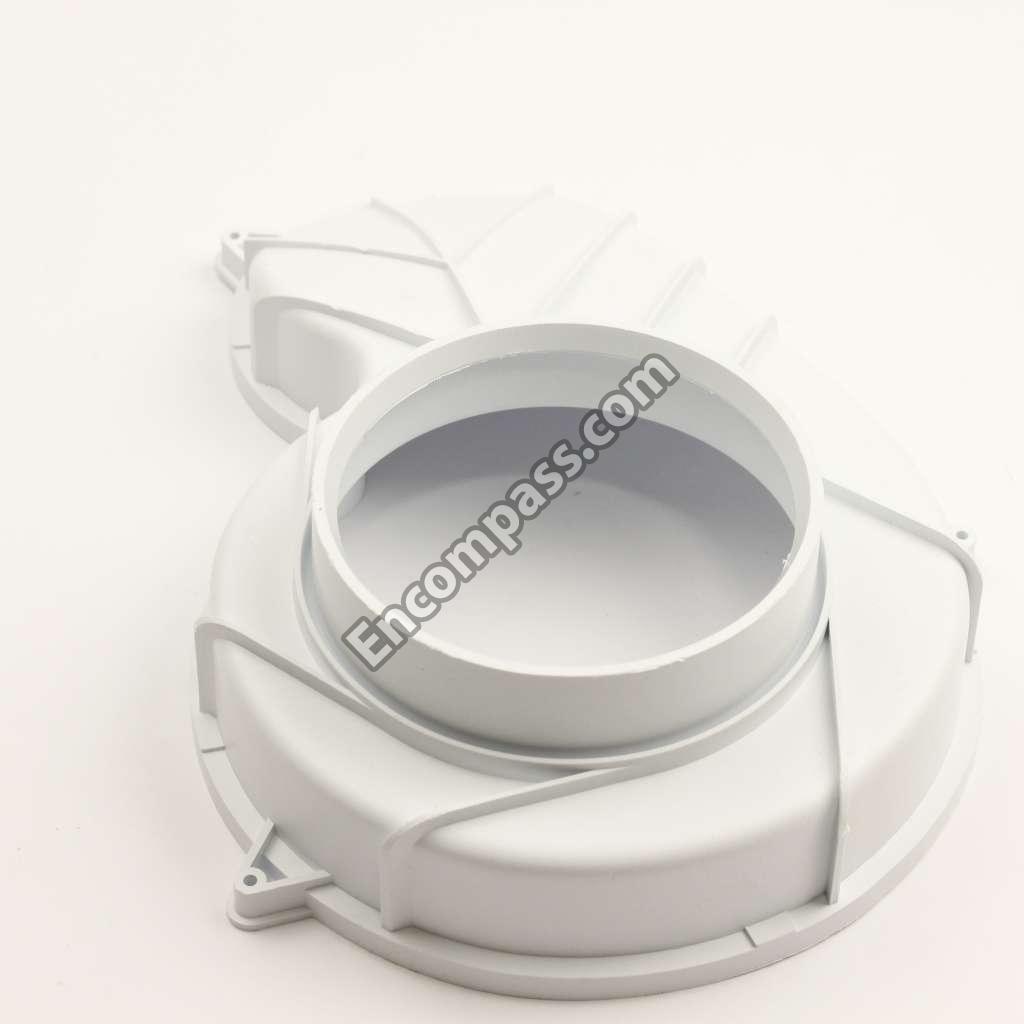

FAN HAUSING COVER |
|
|
FASTON HARNESS(USA_10 AWGX4C_T105) |
|
|
FIBERED_NUT_M6X1_DIN_985 |
|
|
FILTRE CASETTE ASSY |
|
|
FIXED FOOT RUBBER |
|
|
FRICTIONAL BEARING |
|
|
FRICTIONAL BEARING COVER |
|
|
FRONT BEARING(N.L_SRT.BEARING_T.SZI_UL) |
|
|
FRONT SELING FELT |
|
|

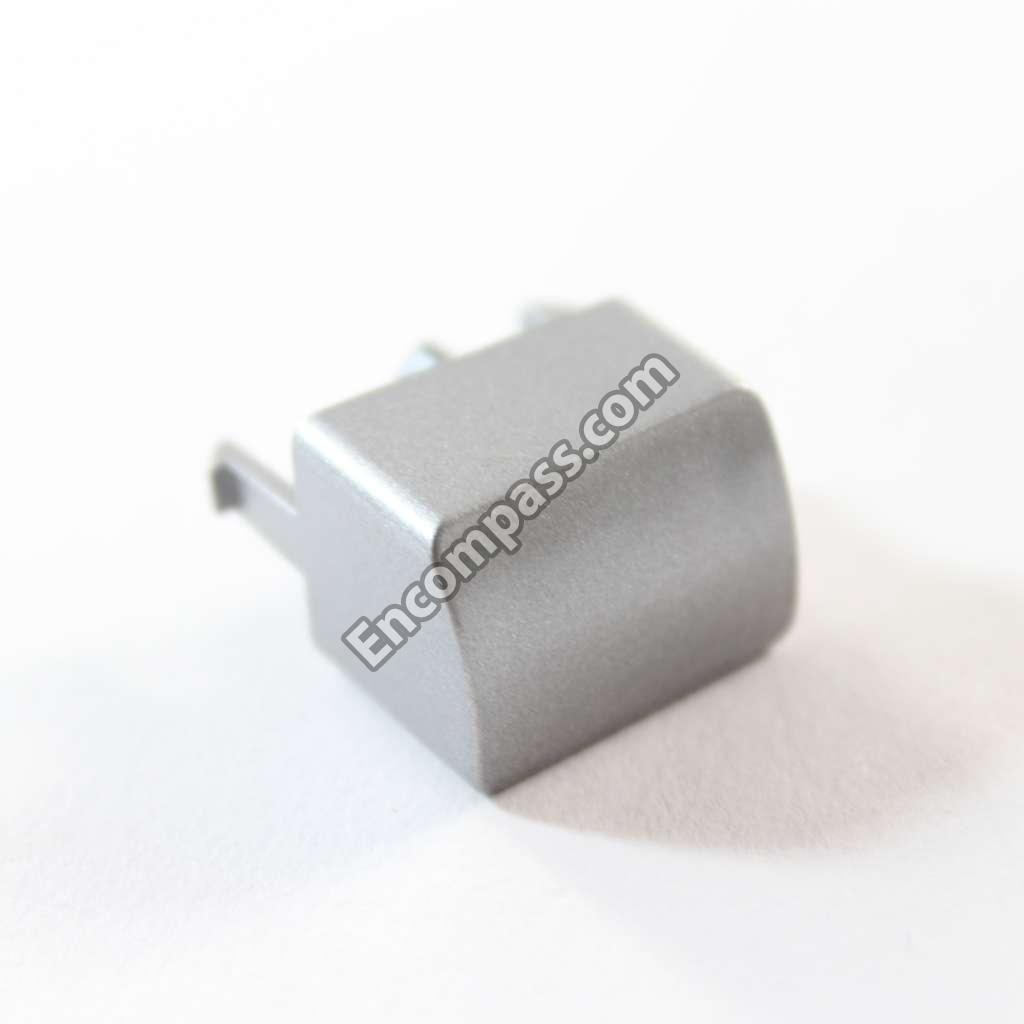

FUNCTION BUTTON (AB09_LEDLI_ARC 1 WHITE) |
|
|

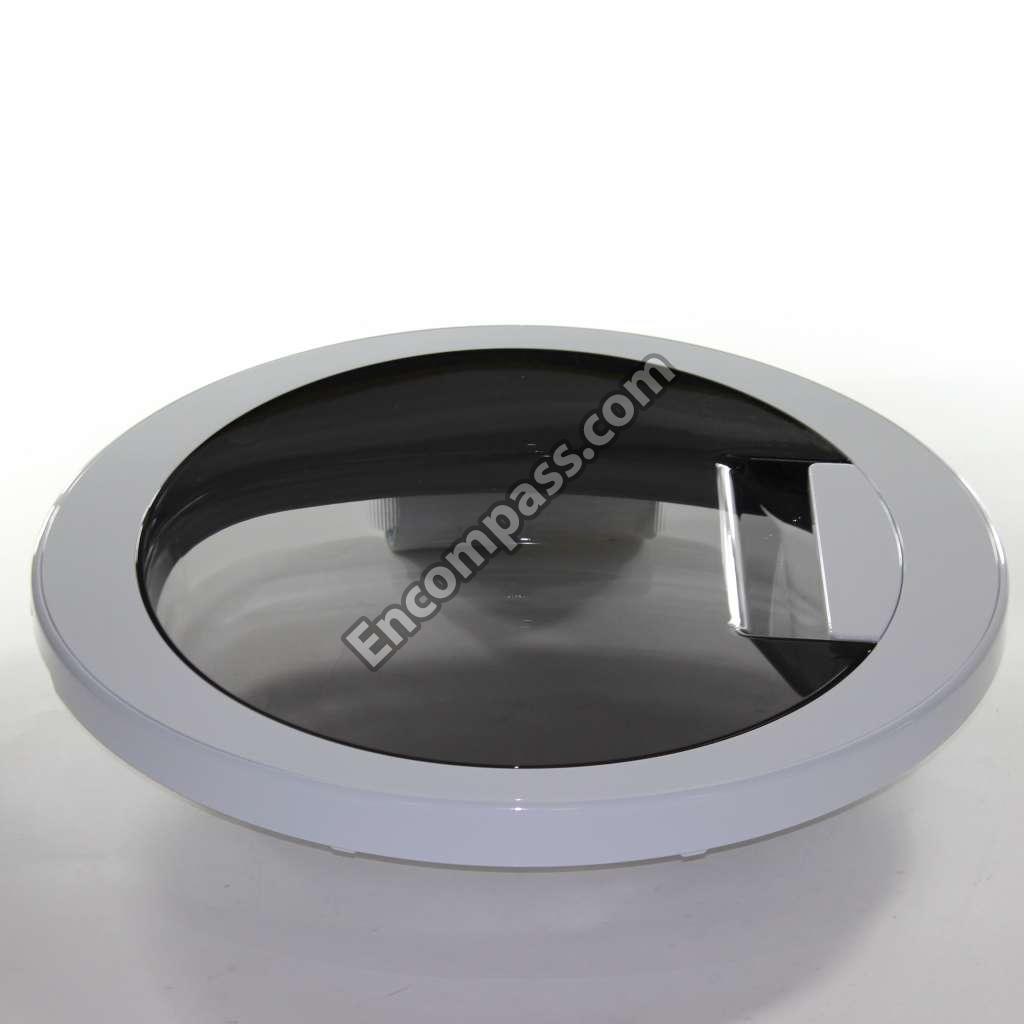

GLASS DOOR ASSEMBLY_(ARC1_ARC1_SHORT_UL) |
|
|

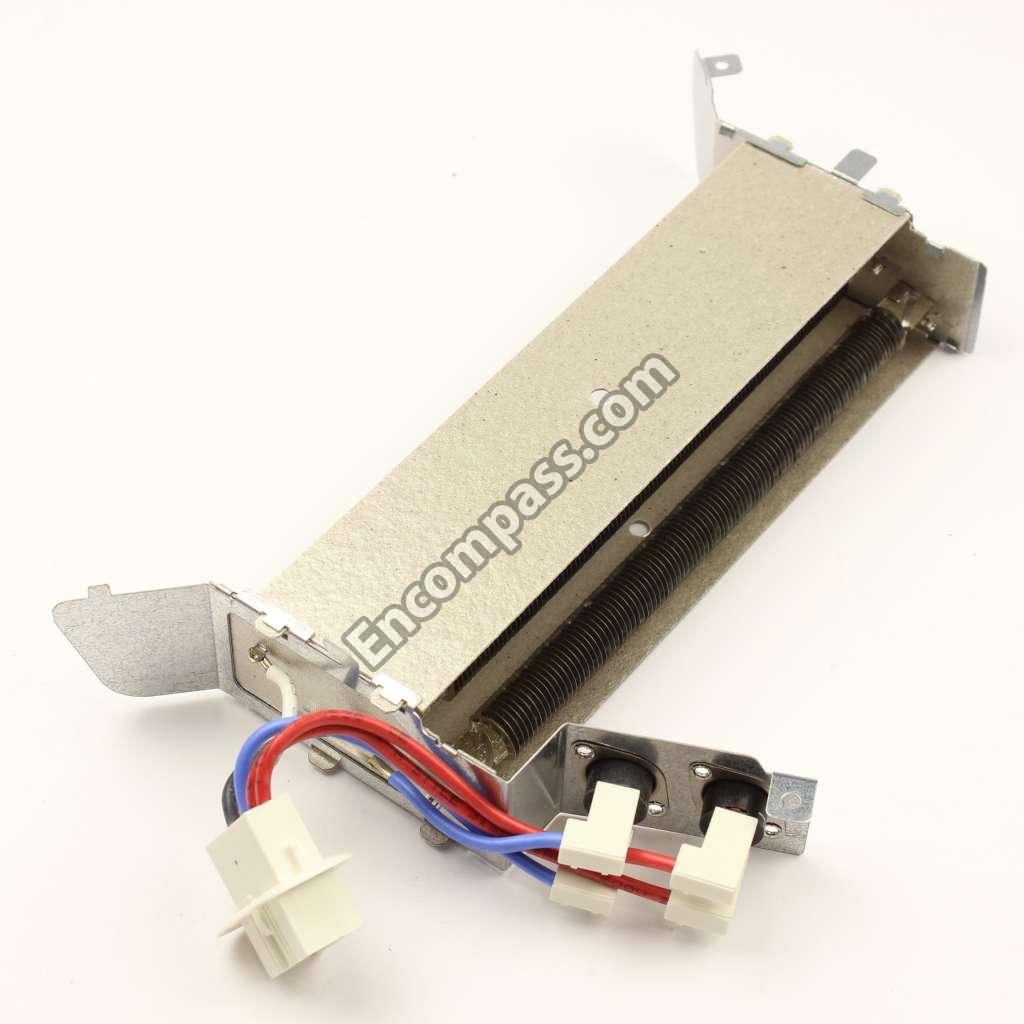

HEATER ASSEMBLY (AV LED SES_240V_UL) |
|
|
HEATER COVER ASSY.(TERRA_AV_GAL. IK) |
|
|

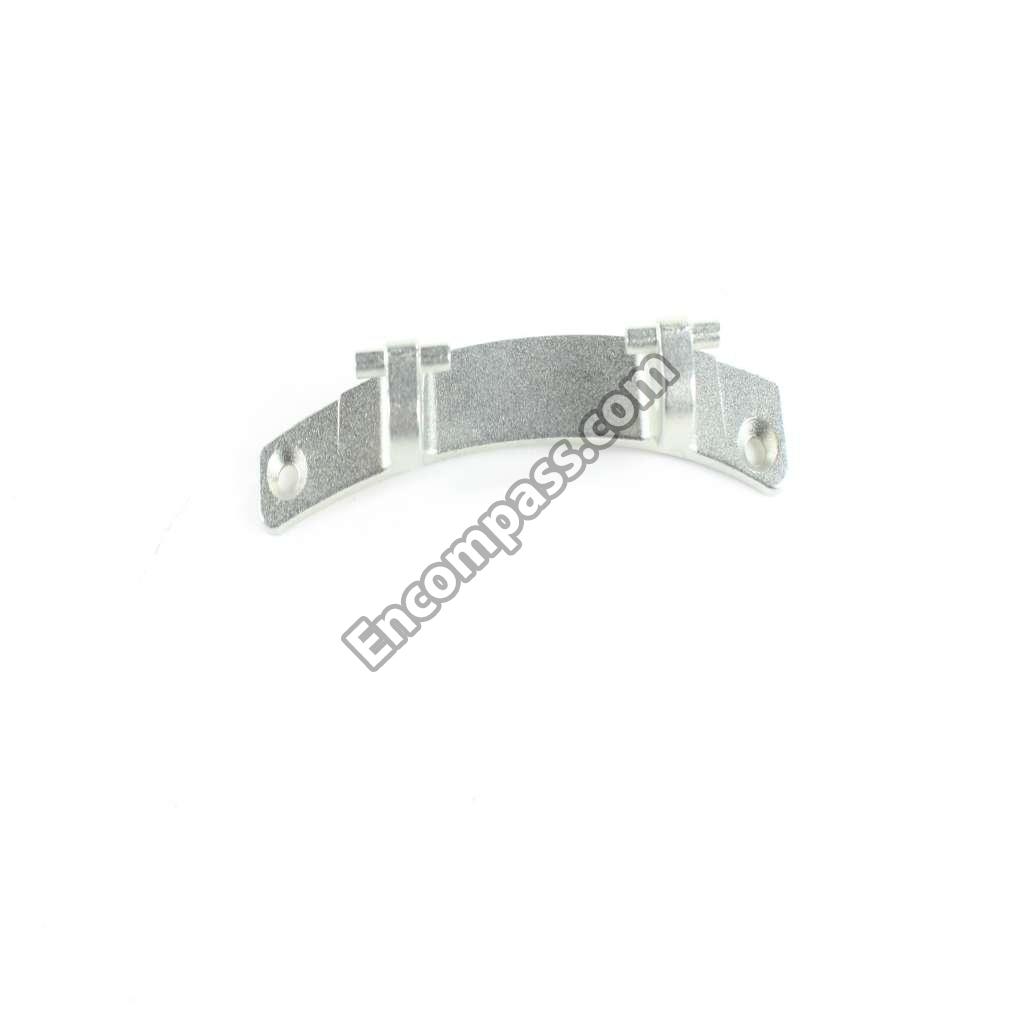

HINGE |
|
|
HINGE BUSHING |
|
|

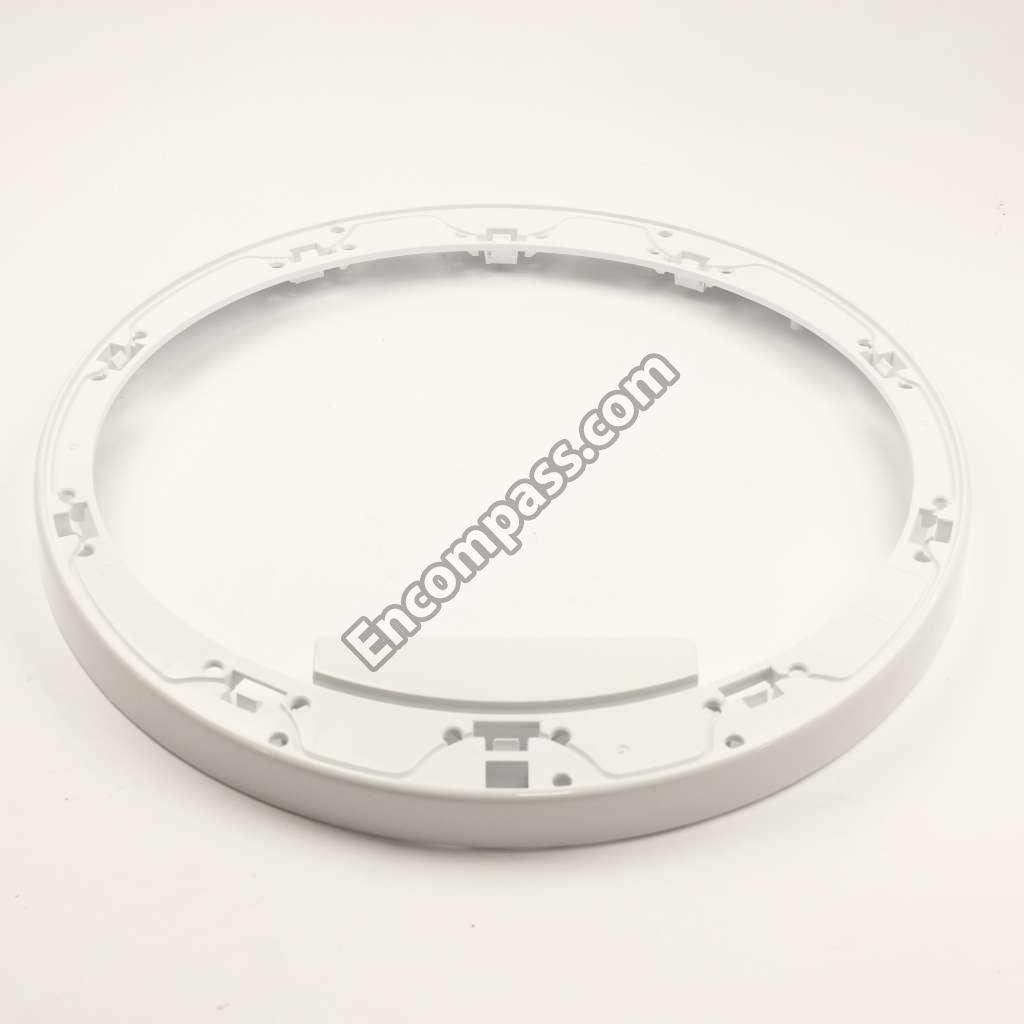

INNER DOOR_(V0) |
|
|
INNER INLAY_(ARC722_PIANO_BLACK) |
|
|
INNER_HANDLE_(ARC1_WHITE) |
|
|

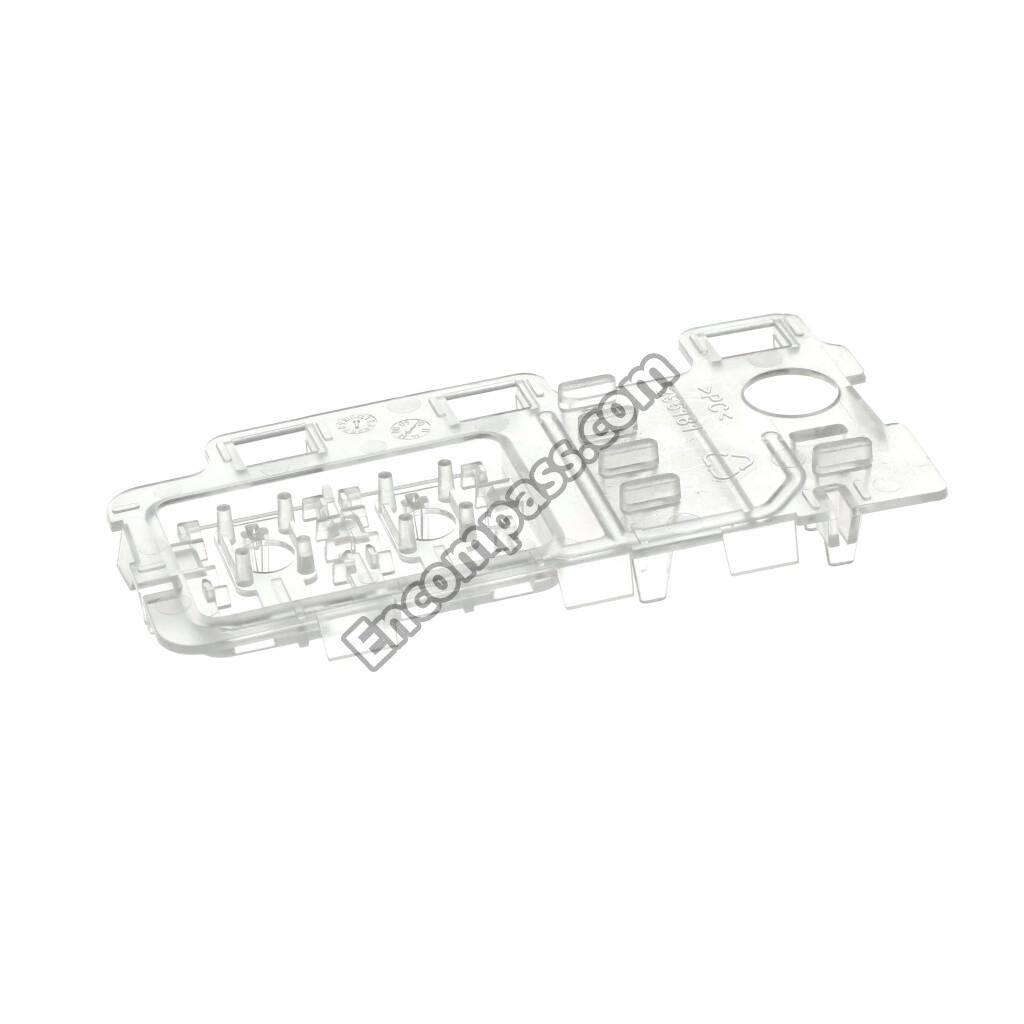

LIGHT GUIDE SET (AB09/AV) |
|
|
LOCK BODY ASS |
|
|
LOCK HOOK |
|
|
LOCK MOUTH |
|
|
M4 NUT (DIN 934) |
|
|
M4X10 TAPTITE SCREW |
|
|
M4X10 TAPTITE SCREW |
|
|
M5X10 BOLT |
|
|
M6X12 HEXAGON P. HEAD BOLT(BEVELLED END) |
|
|
M6X14 HEXAGON PART HEAD BOLT |
|
|
MAIN CABLE HARNESS(AV_LED_SEN_WOLAMP_UL) |
|
|

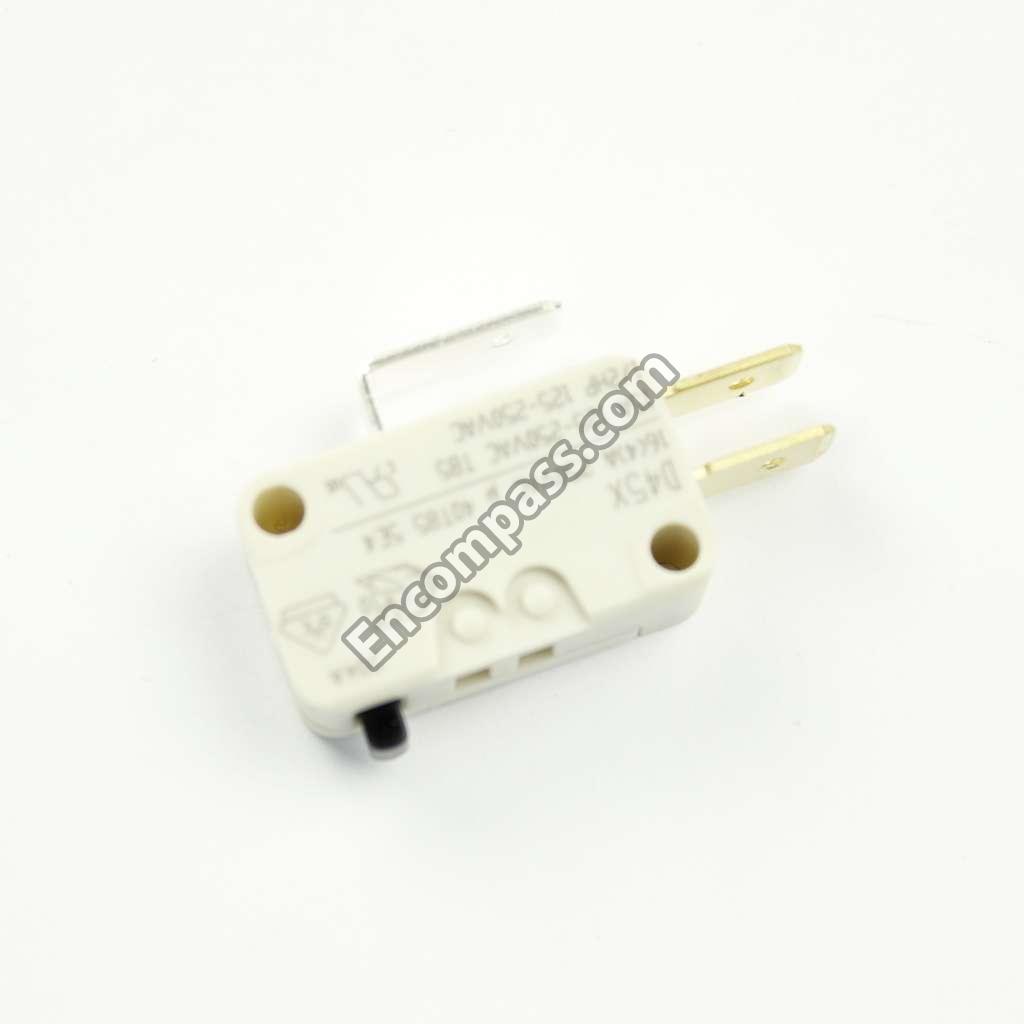

MICROSWITCH |
|
|
MOTOR BRACKET |
|
|
MOTOR BRACKET CLAMP (PLASTIC) |
|
|
MOTOR BRACKET CLAMP (PLASTIC) |
|
|
NTC WITH CABLE (L=340MM_UL) |
|
|
NTC-THERMOSTAT GASKET |
|
|
NUT (M5 DIN 934) |
|
|
ON OFF BUTTON (5VB) (TYPE04+ARC 745) |
|
|
ON_OFF SWITCH(ROLD (+) FORM) |
|
|
OUTER DOOR_(ARC1_WHITE) |
|
|
OUTER_INLAY (ARC1) |
|
|
PANEL ASSY BEKO VD24001W_B1 AV S AB11 |
|
|
PANEL BODY VD24001W-ING B1 AV S AB11 |
|
|
PCB HOLDER |
|
|
PCB HOLDER COVER |
|
|
PIPE ADAPTER CONNECTOR (5VB) |
|
|
PLASTIC ADJUSTABLE FOOT STOPPER. |
|
|
PLASTIC ADJUSTABLE FOOT STOPPER. |
|
|
PLASTIC CLAMP |
|
|
PLASTIC SCREW |
|
|
PLASTIC SCREW |
|
|
PLASTIC SCREW |
|
|
PLASTIC SCREW (4_10) |
|
|
PLASTIC SCREW (4_12) |
|
|
PLASTIC SCREW (DIAMETER 3X6) |
|
|
PLASTIC SCREW (DIAMETER 4X10) INOX |
|
|
POWER SUPPLY CABLE GLAND |
|
|
PROGRAMME KNOB ASSEMBLY (AB11) |
|
|
PT SCREW (3_5X8) |
|
|
PUL A 6_4X1_5 DIN 9021 INOX. |
|
|
REAR BEARING ASSEMBLY |
|
|
REAR PANEL ASSY. (AV_GALVANIZ_AMERICA) |
|
|
REAR PANEL WITH PERFORATED SEAL ASSY. |
|
|
ROTARY SWITCH |
|
|
RUBBER STOPPER |
|
|
SCREW. |
|
|
SELF LOCKING CABLE HOLDER |
|
|
SERRATED LOCK WASHER (A4.3 DIN 6798) |
|
|
SERRATED LOCK WASHER (M5 DIN 6798) |
|
|
SERVICE COVER(AV_PERFORATED) |
|
|
SHEET METAL SCREW |
|
|
SHEET METAL SCREW (B4.2X13 DIN 7981-H) |
|
|
SHEET METAL SCREW(B4_2X9_5-PERFORATED) |
|
|
SHEET METAL SCREW(B4_2X9_5-PERFORATED) |
|
|
SINGLE ADHESIVE FOAM |
|
|
SINGLE ADHESIVE FOAM |
|
|
SINGLE ADHESIVE FOAM |
|
|
SINGLE ADHESIVE FOAM |
|
|
SINGLE LIGHT GUIDE (AB09_W/LED) |
|
|
SPECIAL WASHER (8,1*17*1,5) |
|
|
SPRING BRACKET |
|
|
SPRING WASHER (B6 DIN127) |
|
|
SWITCH-FILTER CABLE HARNESS (UL) NO FUSE |
|
|
TERMINAL BLOCK ASSY |
|
|
TERMINALBOXASSY |
|
|
TOP PLATE ASSY |
|
|
TRANSPARENT_DOOR_COVER_(SMOKED_GREY) |
|
|
USER'S MANUAL (ENGLISH) |
|
|
USER'S MANUAL (FRENCH) |
|
|
USER'S MANUAL (SPANISH) |
|
|
WASHER 12X18X1 DIN 988.. |
|
|
WM RECEPTACLE |
|
|
ZEEGER 9X1 DIN 6799 DRCS68 |
