Manufacturer
Blomberg
Model Number
7221545713
Description
Brfb1042whn 24-inch Counter Depth Bottom-freezer R
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

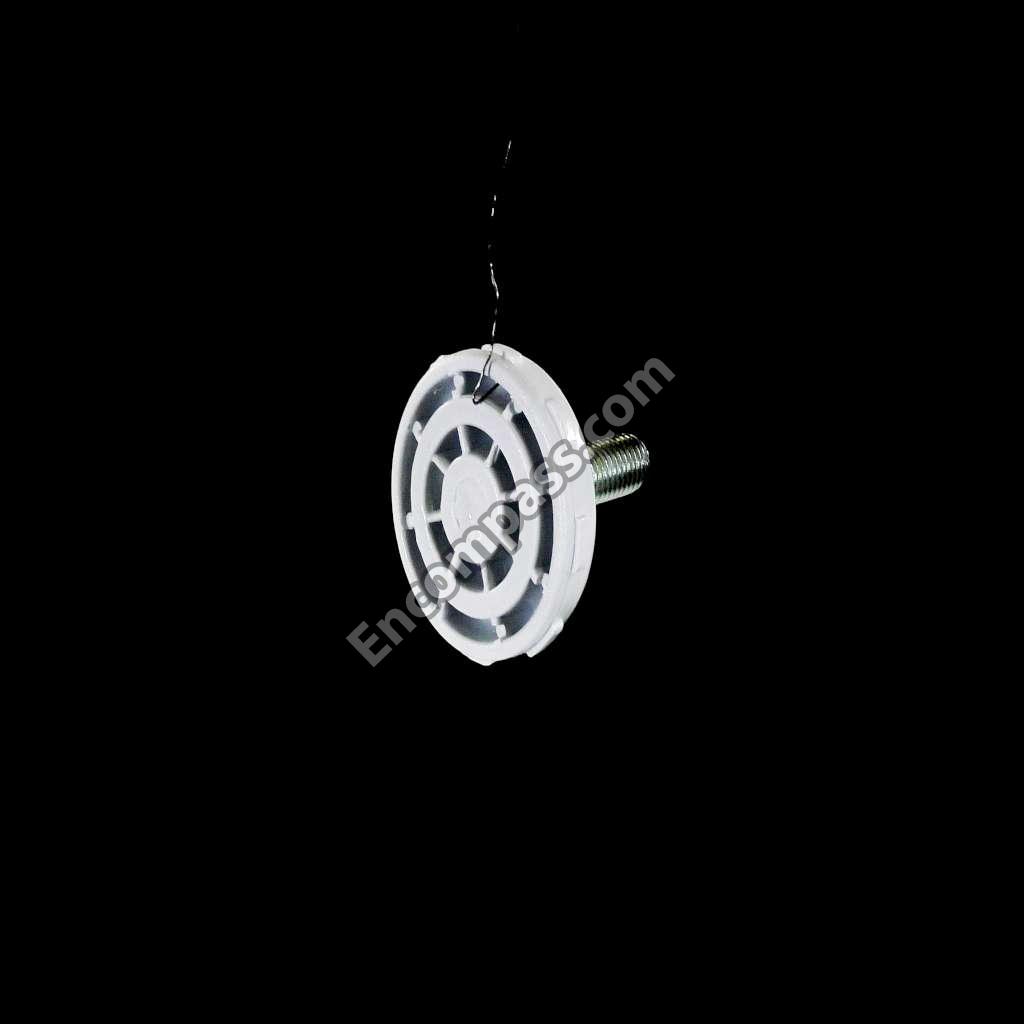

ADJUSTABLE GLIDER (LONG)(PLS+CIV) B-650 |
|
|
ADJUSTABLE GLIDER (SHORT)(PLS+CIV) B-650 |
|
|
ADJUSTABLE GLIDER CAP |
|
|
ATK LED BOARD_230V_HUALIAN |
|
|
B-750 TOP DOOR GASKET ASSY (ARCP1) |
|
|
B-750_760 LOWER DOOR GASKET ASSY(ARCP1) |
|
|
BI-METAL THERMOSTAT(INCHANG_72C)_UL |
|
|
BITUM FOR EVAPARATOR TUBES |
|
|
CHARGING TUBE |
|
|
CHARGING TUBE |
|
|
COMPRESSOR RUBBER GROMMET |
|
|
COMPRESSOR WASHER |
|
|
CONDENSER ASSY. |
|
|
CRISPER (COMBI_60CM_ARC2009) |
|
|
CRISPER COVER EDGE PROFILE |
|
|
DAIRY COMPARTMENT COVER.ARC2009_GRI 286 |
|
|
DOOR LEFT KIT ASSEMBLY |
|
|
DOOR SHELF GROUP |
|
|
DOUBLE ENTRY DRAYER |
|
|
DRAIN HEATER (UL_ B763_25W) ROHS |
|
|
DRAWER BODY |
|
|

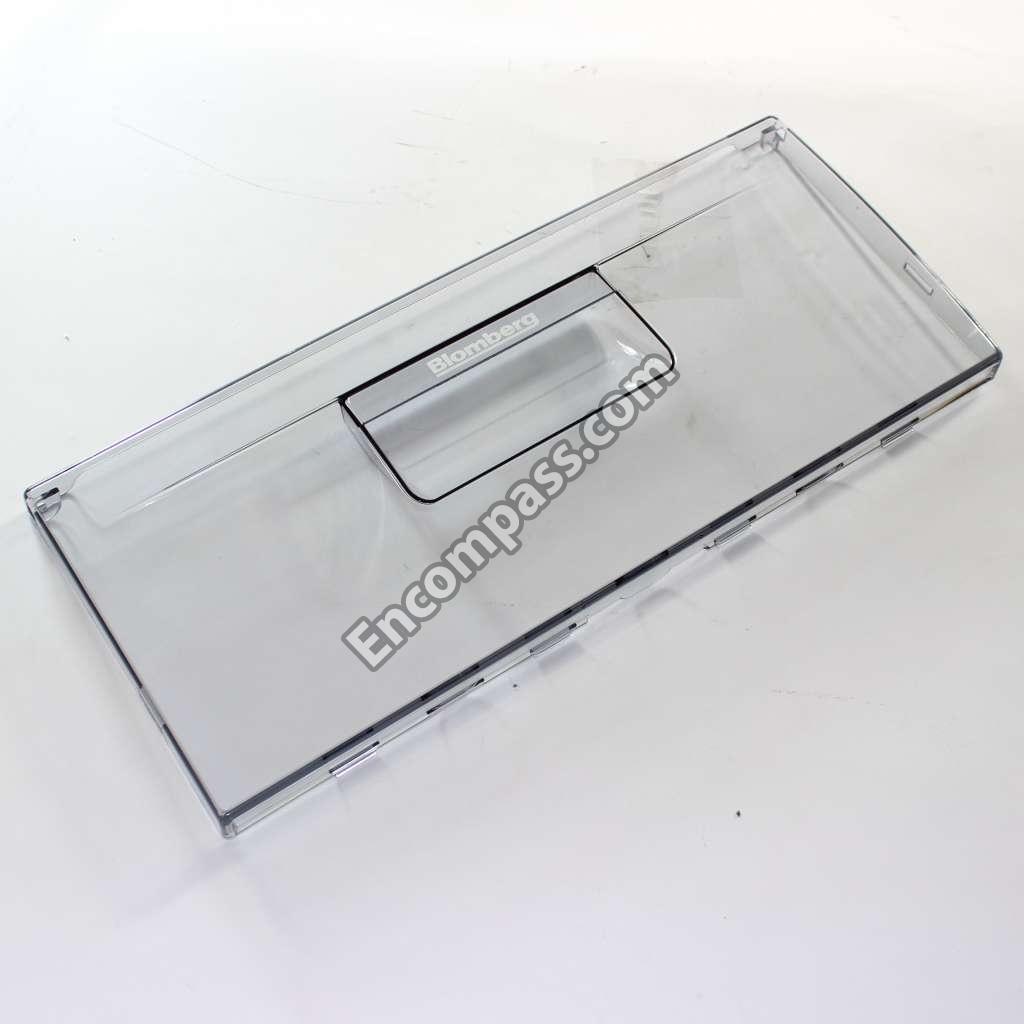

DRAWER COVER GROUP |
|
|
EGG TRAY (GRUNDIG_ARC P1_6PCS) |
|
|
EVAPORATING PAN |
|
|
EVAPORATOR (B763 HCA FANLI_B753) |
|
|
EVAPORATOR COVER(B-753_763) |
|
|
EVAPORATOR HOLDER GROUP |
|
|
FAN ASS. (B-763T_UL) |
|
|
FAN BLADE(NF-CCW-100MM) |
|
|
FAN MOTOR (IS-27210ARCU_115V_UL APPROVED |
|
|
FOAMED DOOR ASS-B-750__ARC09 |
|
|
FOAMED UPPER DOOR ASS-B-750_753 |
|
|
FRONT_PANEL(ARC_2009_60 CM_WTHOUT_LIGHT) |
|
|
FULL DEPTH BASKET_ARC2009 |
|
|
GLASS SHELF GROUP |
|
|
GLASS SHELF PROFILE(FRONT_60CM |
|
|
GLASS SHELF PROFILE(REAR_60CM |
|
|
GROUND CABLE ASSEMBLY |
|
|

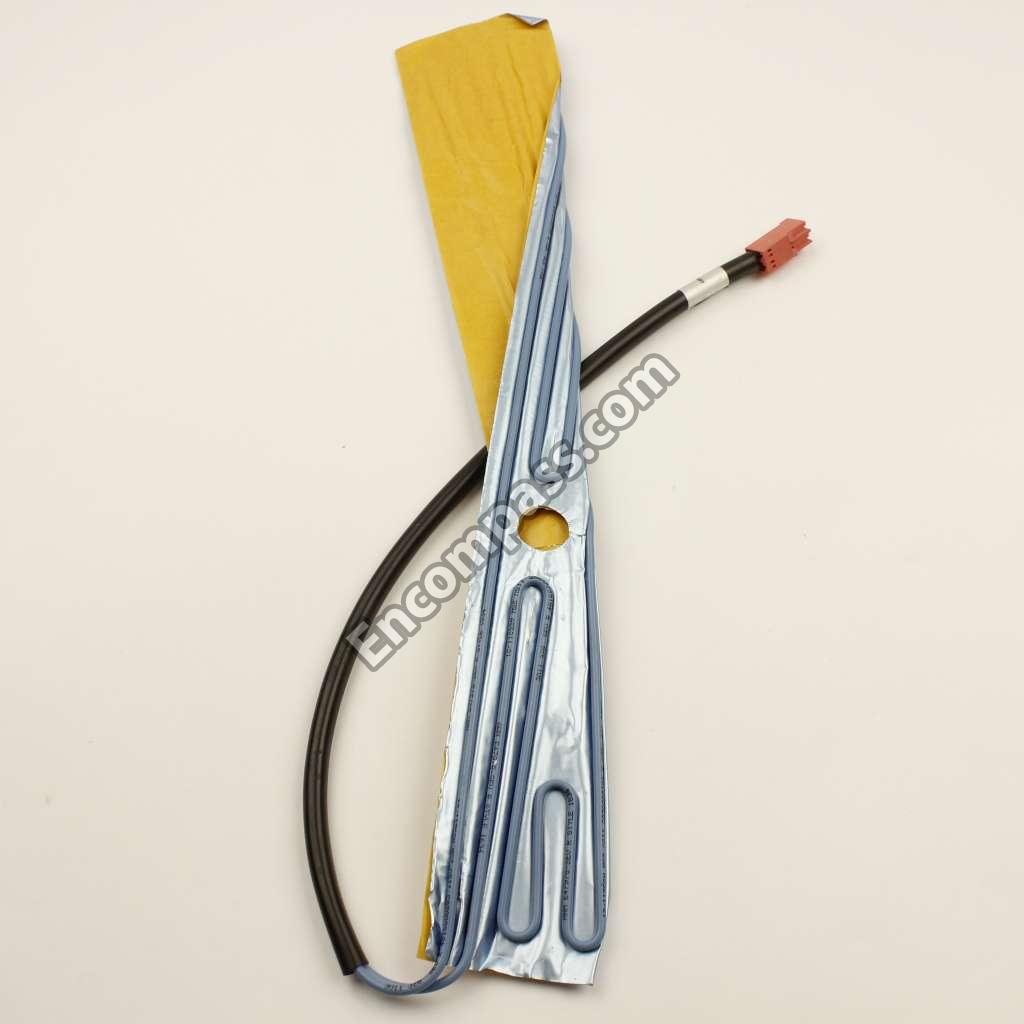

HEATER (UL) |
|
|
HINGE COVER_RIGHT_ARC2009_ARC P1 |
|
|
HINGE HOLDER-LINE 2001 |
|
|
HINGE HOUSING |
|
|
ICE BANK ARC P1 |
|
|
ICE CUBE TRAY (ARC-P1) (NEW) |
|
|

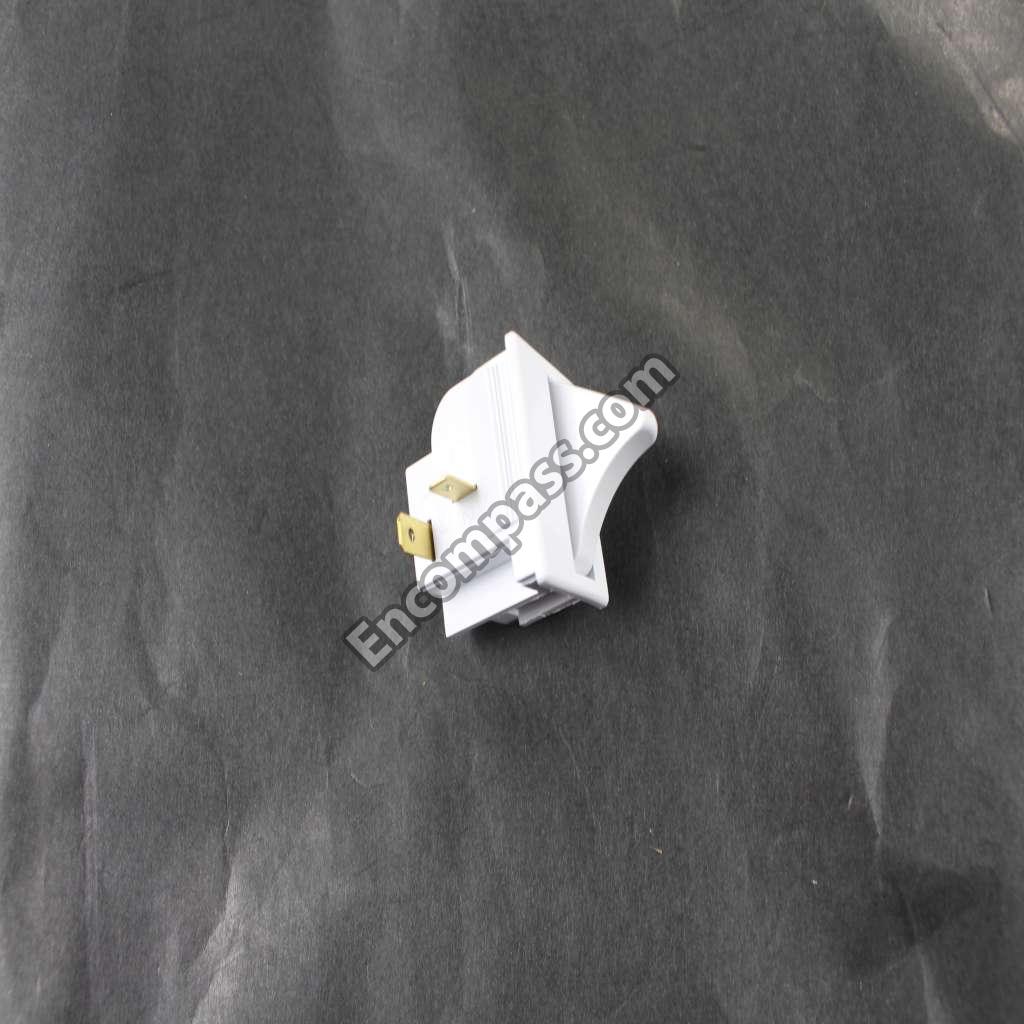

INTERIOR LIGHT SWITCH |
|
|

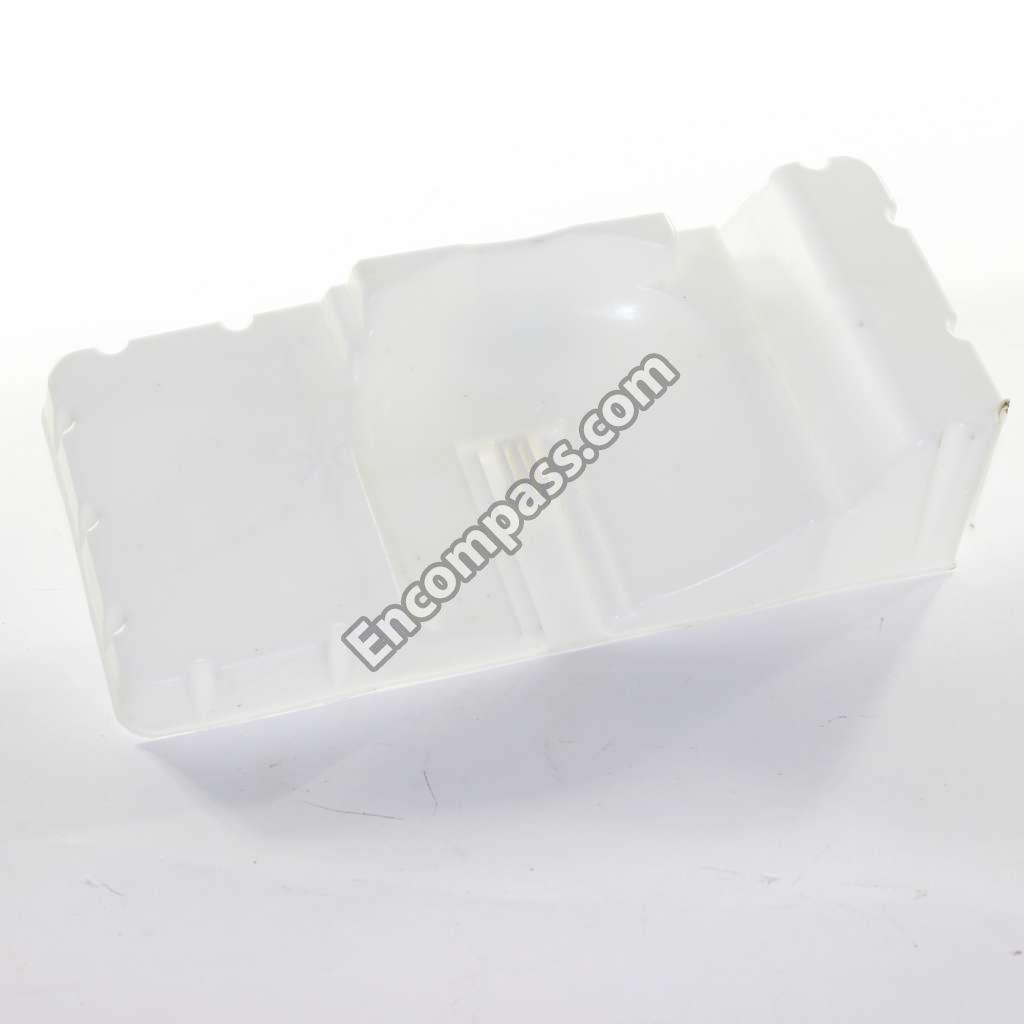

LAMP_THERMOSTAT HOUSING |
|
|
LED CARD PROTECTOR (UPPER INSIDE LIGHT) |
|
|
LOWER DOOR STOPPER-LINE 2001_SHORT |
|
|
LOWER HINGE GROUP |
|
|
MAGNET COVER_ARCP1 |
|
|
MIDDLE HINGE GR.(ARC2009_33MM AXIS) |
|
|
PC DOOR LOWER ENDCAP HINGE HOLDER |
|
|
PLASTIC PLUNGER (DRAIN HOLE) |
|
|
POWER CORD GROUP |
|
|
PRINTED GLASS SHELF ASSY_B760 |
|
|
SPACER (NATURAL - SN_T) |
|
|
SUPPORTIVE WIRE |
|
|
SUPPORTIVE WIRE HOLDER (LEFT). |
|
|
SUPPORTIVE WIRE HOLDER (RIGHT). |
|
|
THERMOSTAT KNOB ASS. PRINTED (BEKO_UK) |
|
|
THERMOSTAT _K59-S2774_RANCO_ROHS |
|
|
TIMER SANKYO (TMDJ710KE9) |
|
|
TOP HINGE GROUP |
|
|
TOP HINGE HOUSING. ( NATURAL) |
|
|
T_CABLE_ASS_COMBI_WITH SOCK (LED_MLX_UL) |
|
|
UPPER DOOR HINGE STOPPER (LG) |
|
|
UPPER LIGHTING GLASS (BLOMBERG) |
|
|
VCC COMPRESSOR (VEMC9C_R600_115-60_EMBRA |
|
|
VCC INVERTER |
|
|
VCC INVERTER GROUP(WITH SUPPLY CORD) |
|
|
WHEEL |
|
|
WHEEL PIN (50MM) |
|
|
WIRE FAN PROTECTOR B-753 |
|
|
WIRE SHELF B-760_762 |
