Model Image
Manufacturer

Goodman

Model Number

AMEC960302BN

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
0161M00003P 0161M00003P AMANA NAMEPLATE
0121F00314 0121F00314 ANGLE, DECK
0121F00313 0121F00313 ANGLE, SIDE
0270F03667 0270F03667 BAG ASSY UF
0121F00530DG 0121F00530DG BASEPAN, 17.5
0163F00017 0163F00017 BECKETT BURNER
764740 764740 BLOWER BLOCK-OFF 10 X 8
0271F00181 0271F00181 BLOWER HSG ASSY
0121F00389 0121F00389 BRACKET, DOOR SWITCH
0121F00456 0121F00456 BRACKET-BURNER 2
M0570808 M0570808 BUTTON PLUG
M0570807 M0570807 BUTTON PLUG
M0570806 M0570806 BUTTON PLUG
M0310345 M0310345 BUTTON PLUG
A1781105 A1781105 CAP-VINYL .500
0163M00049 0163M00049 CLAMP HOSE

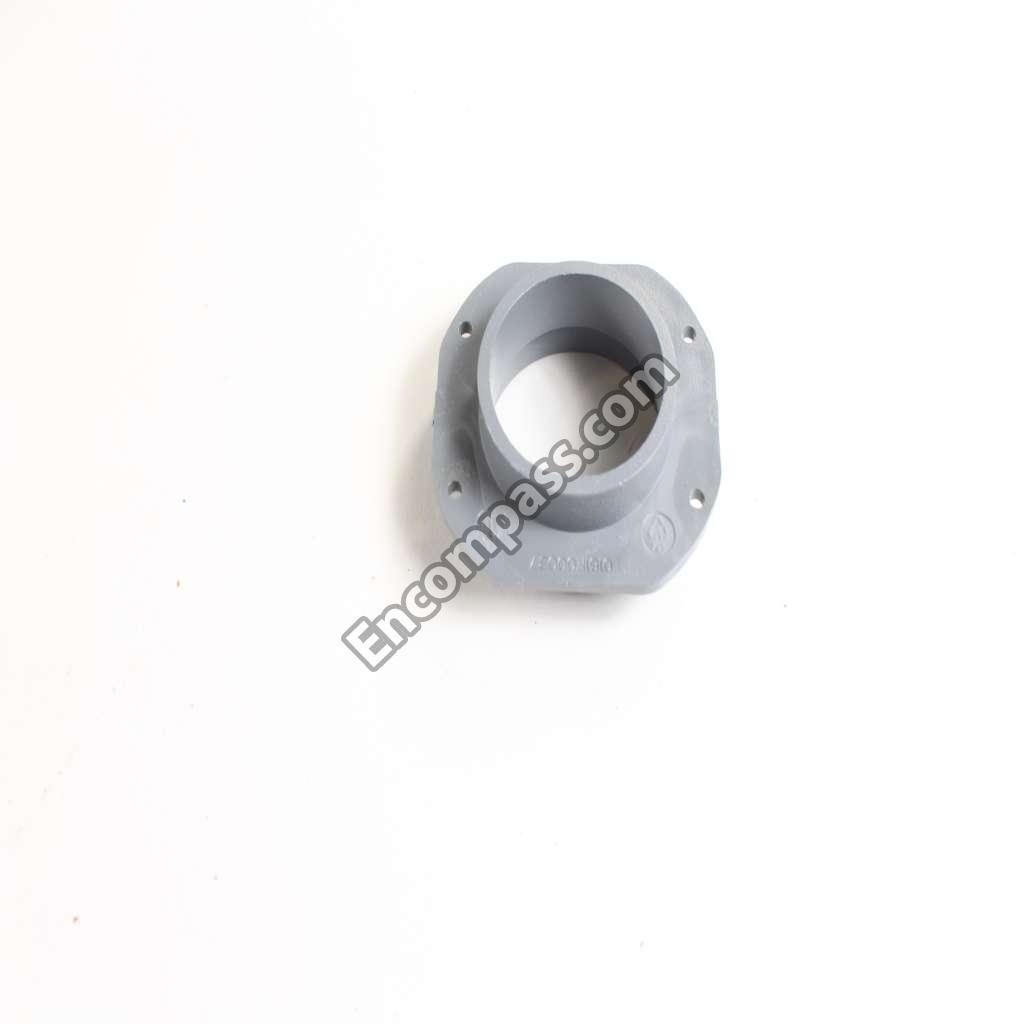

0161F00037 0161F00037 COUPLING
0161F00047 0161F00047 COUPLING, HOSE BARBED
0161F00032 0161F00032 COVER, FRONT
0121F00317 0121F00317 COVER, REAR

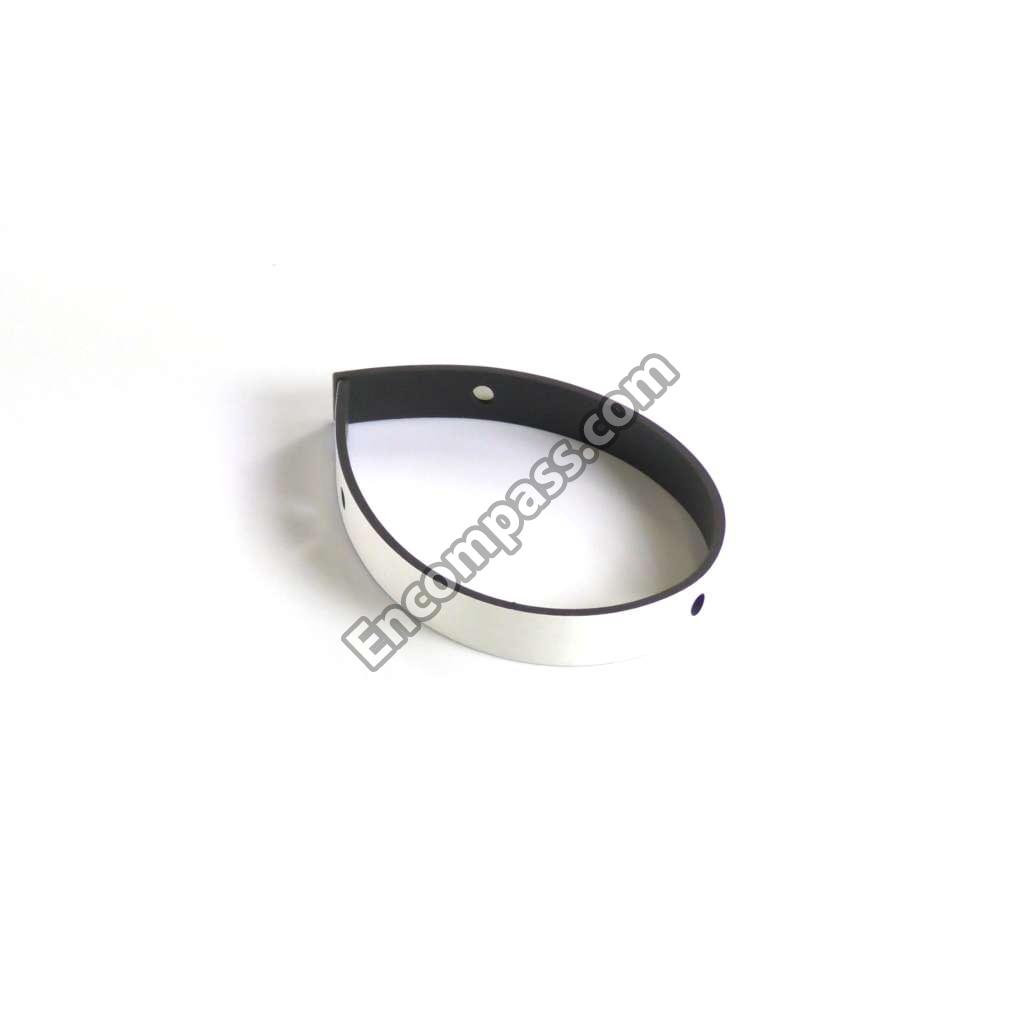

0154F00020 0154F00020 DECK GASKET
0121F00533 0121F00533 DECK-BLOWER 17.5-INCH
0121F00337LG 0121F00337LG DOOR, ACCESS 17.5-INCH PNT
0121F00340LG 0121F00340LG DOOR, BLOWER 17.5-INCH PNT

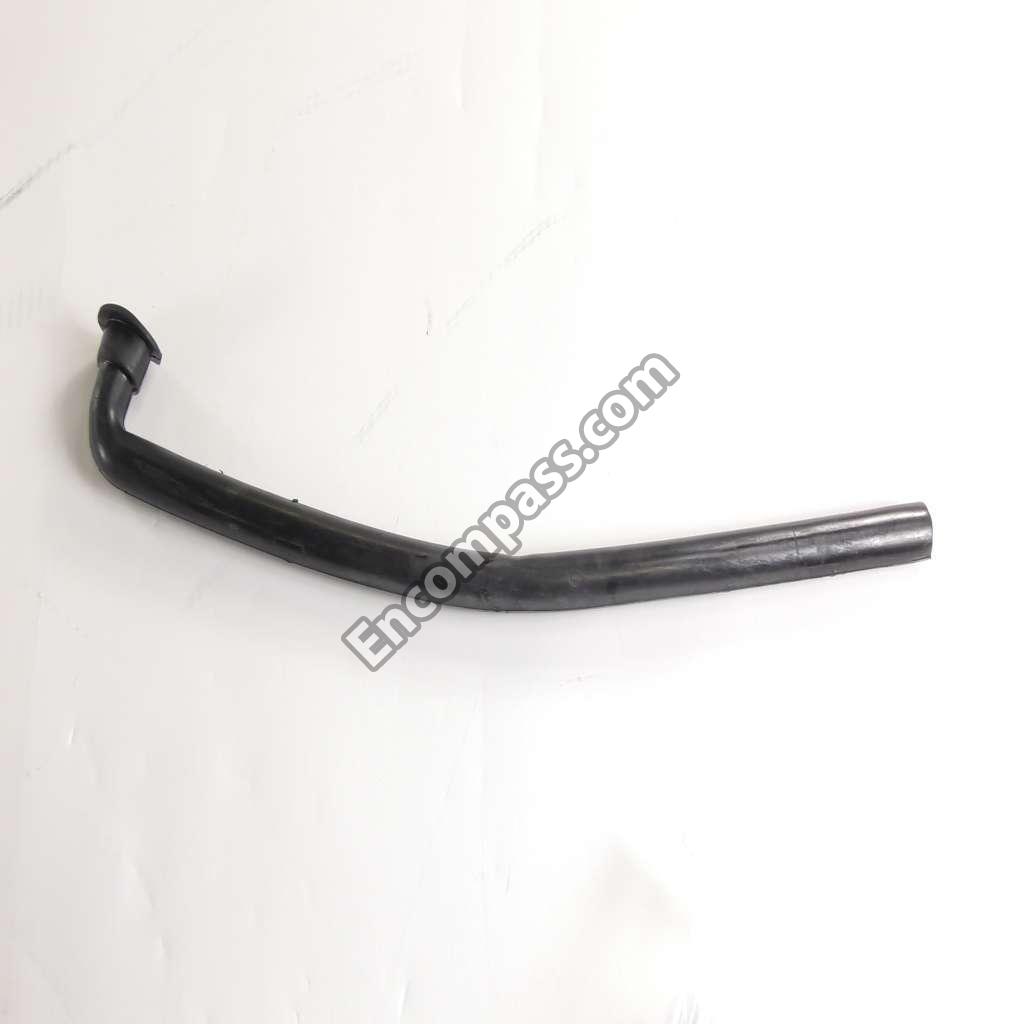

0270F03140 0270F03140 DRAIN PART BAG ASSY UF
0161F00046 0161F00046 DRAIN TRAP
0164F00001 0164F00001 ELBOW-FLUE, UPFLOW
0130F00010 0130F00010 FLAME SENSOR
0164F00002 0164F00002 FLUE PIPE W/BEND
0154F00041 0154F00041 FRESH AIR GASKET
0151M00027 0151M00027 GAS VALVE
0154F00025 0154F00025 GASKET
0154F00024 0154F00024 GASKET
0154F00015 0154F00015 GASKET
0154F00014 0154F00014 GASKET
0154F00026 0154F00026 GASKET FRONT COVER
0154F00043 0154F00043 GASKET ID BLOWER
0154F00037 0154F00037 GASKET, REAR CVR
0159F00068 0159F00068 HARNESS-WIRING
0257F00388 0257F00388 HEAT EXCHANGER ASSY.
0164F00006 0164F00006 HOSE, COVER/TRAP

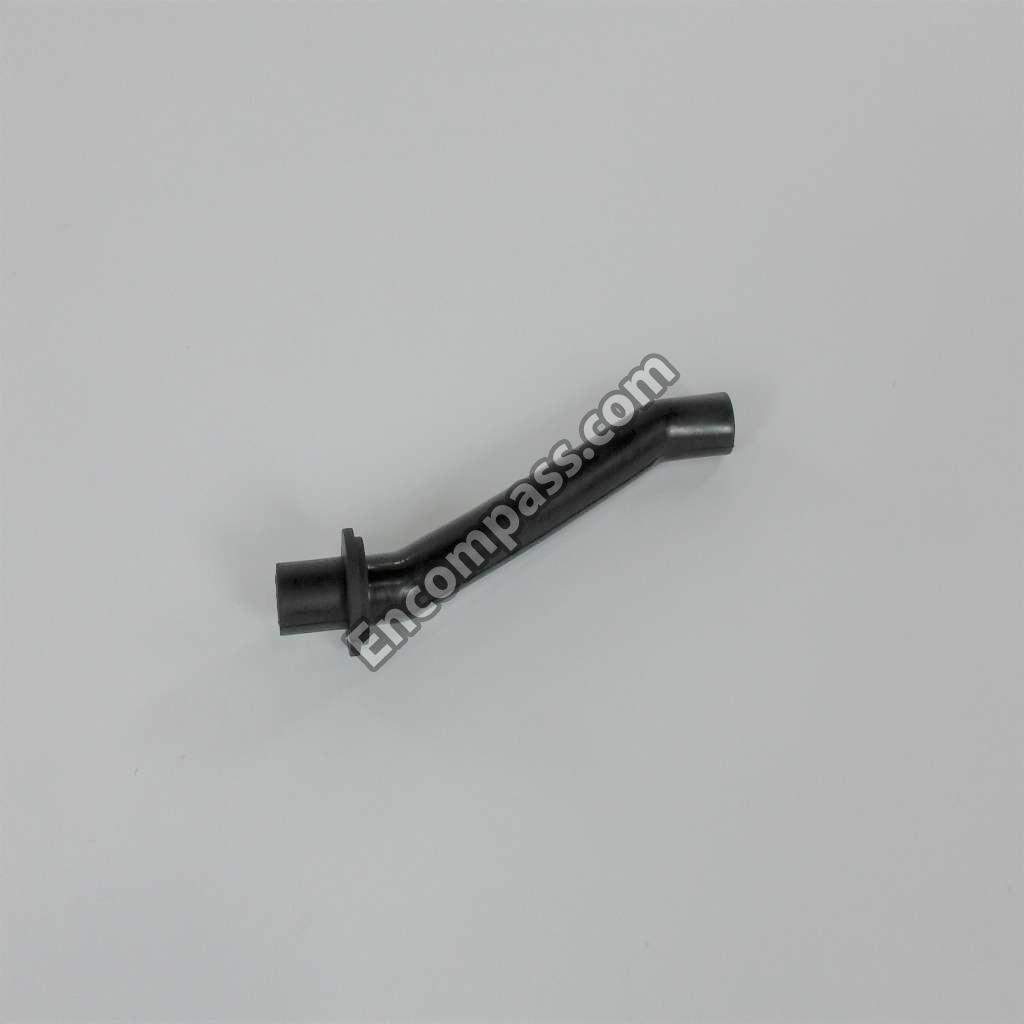

0164F00017 0164F00017 HOSE-ELBOW/TRAP
0164M00019 0164M00019 HOSE-PRESSURE SW 6-INCH
0130F00008 0130F00008 IGNITOR-SINI 17 SEC
0160F00015 0160F00015 INSULATION, HT EXCHANGER 17.5-INCH
0121F00583 0121F00583 INSULATION, RETAINER
0130M00243 0130M00243 INTERLOCK SWITCH
0161F00043 0161F00043 JUNCTION BOX LID
0161F00042 0161F00042 JUNCTION BOX PLA
B1393800 B1393800 LOCKNUT, NYLON, INSERT 1/4, 20
B1393323 B1393323 MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ
0163F00007 0163F00007 MANIFOLD
10123533 10123533 MANUAL RESET LIMIT-YELLOW
B1376857 B1376857 MOTOR MOUNT ARM
0121M00038 0121M00038 MOTOR MOUNT BAND
0131F00032 0131F00032 MOTOR, BLOWER
0171M00002 0171M00002 MOTOR-ID, BLOWER
0121F00464 0121F00464 MOUNTING PLATE-CONTROLS
0163F00019 0163F00019 ORIFICE
0121F00469 0121F00469 ORIFICE BURNER BRACKET 2B
0121F00279DG 0121F00279DG PAINTED TOP, FURNACE 17.5
PCBBF139 PCBBF139 PCB IGNITION HSI INTEG
M0501301 M0501301 PIPE GROMMET
B1392021 B1392021 PLASTIC PLUG, 1-INCH 2713-BLK
0161M00027 0161M00027 PLUG, HOLE

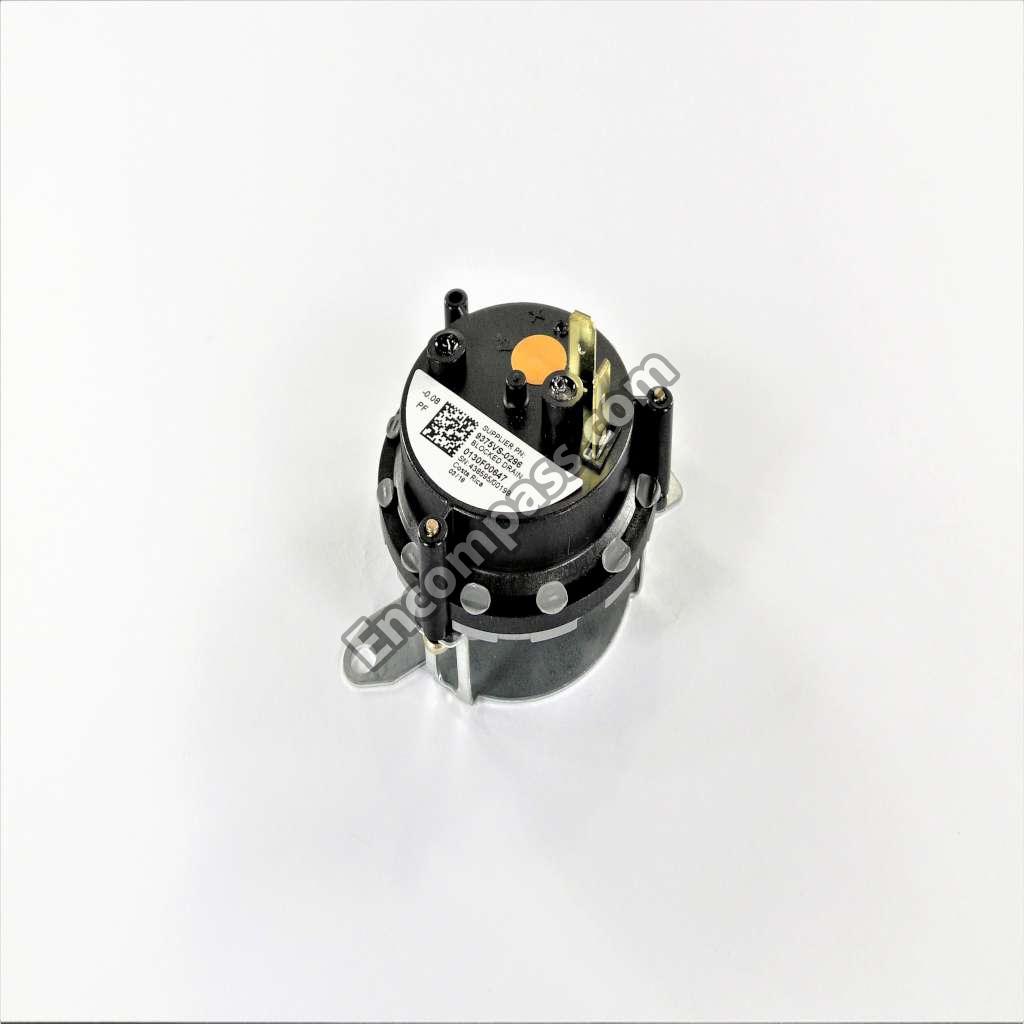

0130F00485 0130F00485 PRESSURE SWITCH
0130F00434 0130F00434 PRESSURE SWITCH
0164M00002 0164M00002 PRESSURE SWITCH HOSE
0130F00038 0130F00038 PRIMARY LIMIT - LT BLUE 120 AUX
0121F00439 0121F00439 PRIMARY LIMIT-HEAT SHIELD
20162904 20162904 PRIMARY LIMIT-TEMPERATURE CONTROL
M0209730 M0209730 SCREW-DECORATIVE
0121F00539 0121F00539 SHEILD, BURNER
0121F00355 0121F00355 SHIELD, COIL
M0250565 M0250565 TC SCREW 1.25-INCH
0130M00140 0130M00140 TRANSFORMER 120V TO 24V, 40VA
M0326804 M0326804 TUBE PLUG
B1392104 B1392104 UNIVERSAL BUSHING UB 875
B1392139 B1392139 VIEW PORT BUSHING-BLOWER DOOR
B1392918 B1392918 WASHER, FLAT 1/4 ID X 1 OD
0150M00043 0150M00043 WHEEL, BLOWER 10 X 8
0159F00076 0159F00076 WIRE HARNESS
0259F00024 0259F00024 WIRE HARNESS-BLOWER
