Model Image
Manufacturer

Goodman

Model Number

AMH951155DX

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
B2810816 B2810816 2-INCH MESH INSERT
B2810814 B2810814 3-INCH MESH INSERT
0121F00068LG 0121F00068LG ACCESS DOOR
0161M00003P 0161M00003P AMANA NAMEPLATE
10861101 10861101 AUXILIARY LIMIT BRACKET
20273212S 20273212S BACK PANEL
0121F00052DG 0121F00052DG BASE PAN
10735102S 10735102S BECKETT BURNER
C6121807 C6121807 BLOWER CUT-OFF
0121F00048 0121F00048 BLOWER DECK
0121F00065LGS 0121F00065LGS BLOWER DOOR
0271F00048 0271F00048 BLOWER HOUSING ASSY 11 X 10
10759415S 10759415S BLOWER MOTOR 3/4 HP, 4 SP, 8 PL
A4002702 A4002702 BLOWER MOTOR GROMMET
D6723311S D6723311S BLOWER WHEEL
20190413 20190413 BURNER BRACKET 5B
M0570808 M0570808 BUTTON PLUG
M0570807 M0570807 BUTTON PLUG
M0570806 M0570806 BUTTON PLUG
M0310345 M0310345 BUTTON PLUG
A1781105 A1781105 CAP-VINYL .500
CAP150000370VAS CAP150000370VAS CAPACITOR 15/370V BLOWER
0163M00049 0163M00049 CLAMP HOSE
M0119205 M0119205 CLAMP-HOSE GREEN
M0119207 M0119207 CLAMP-HOSE RED
0154F00002P 0154F00002P COIL GASKET
0121F00025P 0121F00025P CONTROL BRACKET
20049701 20049701 COUPLING-FA
10254303 10254303 COUPLING-RUBBER
22320003 22320003 DECK GASKET
20214203 20214203 DRAIN ANGLE
20171701 20171701 DRAIN TRAP
20201802 20201802 DRAIN TUBE
20171802S 20171802S ELBOW
0130F00010 0130F00010 FLAME SENSOR
22309501 22309501 FLUE PIPE
20171004AS 20171004AS FRONT COVER
0151F00000P 0151F00000P GAS VALVE - WHITE-RODGERS 2-STAGE
20194608 20194608 GASKET
20194607 20194607 GASKET
20179308 20179308 GASKET
A4691701 A4691701 GROMMET
0159F00002 0159F00002 HARNESS-WIRING
0257F00174S 0257F00174S HEAT EXCHANGER ASSY 5B
HI-115B HI-115B HOMEOWNERS INSTRUCTIONS
M0119206 M0119206 HOSE CLAMP
20201902 20201902 HOSE-DRAIN
20201901 20201901 HOSE-DRAIN
22307501S 22307501S ID BLOWER
PCBBF122S PCBBF122S IGNITION BOARD, HSI INTEGRATED 2-STG
IO-661 IO-661 INSTALL INSTRUCTIONS
IO-669 IO-669 INSTALLATION INSTRUCTIONS-HUMIDIFIER
IO-297F IO-297F INSTRUCTIONS, INST 95 +
C6415909 C6415909 INSUL-HT EX
20006603 20006603 INSULATION
20243503 20243503 INSULATION SIDE
B1370818 B1370818 INTERLOCK SWITCH
0161F00004S 0161F00004S JUNCTION BOX
0161F00005S 0161F00005S JUNCTION BOX COVER
20196404 20196404 MANIFOLD
10123519 10123519 MANUAL RESET LIMIT
10123533 10123533 MANUAL RESET LIMIT-YELLOW
10441501 10441501 MOTOR MOUNT ARM
10441601 10441601 MOTOR MOUNT BAND
10716003 10716003 ORIFICE
11072204 11072204 ORIFICE SHIELD
M0501301 M0501301 PIPE GROMMET
0164M00014 0164M00014 PRESSURE SWITCH HOSE
0164M00009 0164M00009 PRESSURE SWITCH HOSE
0130F00001P 0130F00001P PRESSURE SWITCH-GRAY
20197310 20197310 PRESSURE SWITCH-ORANGE
20162906 20162906 PRIMARY LIMIT-WHITE
20175101 20175101 RAIL-BLWR SIDE
20191303 20191303 RAIL-DECK
M0275521 M0275521 SEALER-PLASTIC
11165107 11165107 SHIELD ID BLWR
0121F00092DGS 0121F00092DGS SIDE PANEL LH
0121F00090DGS 0121F00090DGS SIDE PANEL RH
20191604 20191604 SIDE RAIL

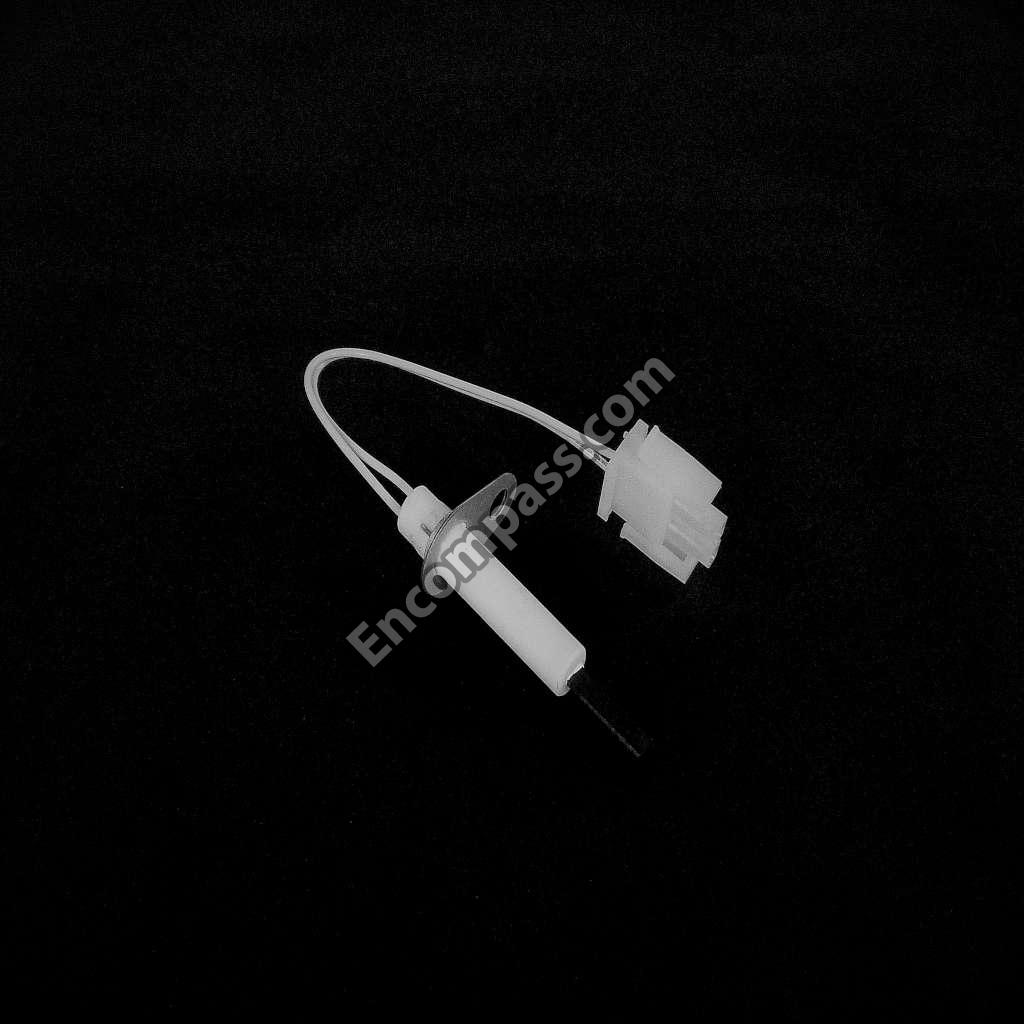

0130F00008S 0130F00008S SINI IGNITOR
10195517Q 10195517Q STANDPIPE BAG ASSY
M0221461 M0221461 TC SCREW
0270F00002PS 0270F00002PS TOP COVER ASSY
B1141605 B1141605 TRANSFORMER 120V TO 24V, 40 VA
M0626804 M0626804 TUBE PLUG
B1392104 B1392104 UNIVERSAL BUSHING UB 875
B1392139 B1392139 VIEW PORT BUSHING-BLOWER DOOR
