Manufacturer
Goodman
Model Number
CPC0600103HXBC
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ACORN NUT 5/16 HEX BLACK |
|
|
ACORN NUT 5/16 X 18 |
|
|
ANGLE-MOTOR PIVOT |
|
|
BALL BEARING 1.00-INCH |
|
|

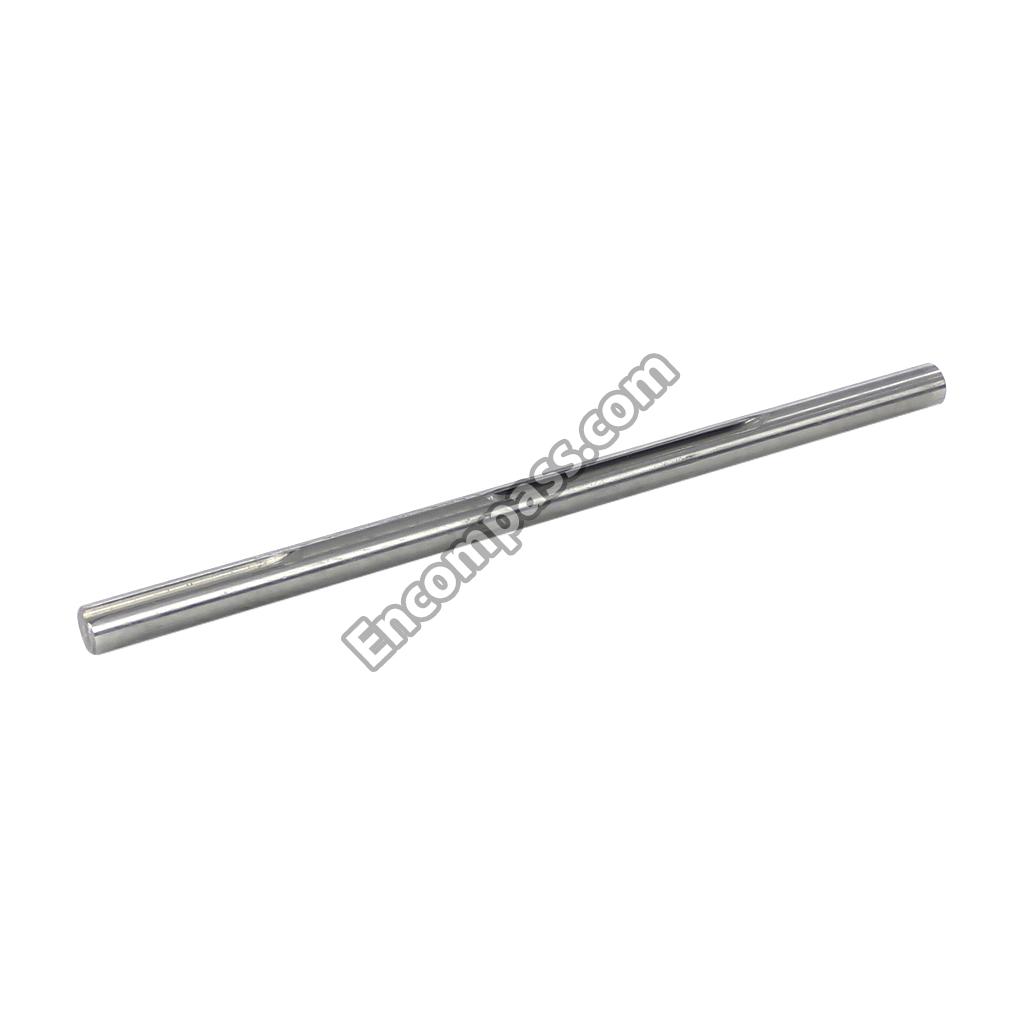

BELT DRIVE BLOWER SHAFT |
|
|
BELT DRIVE BLOWER WHEEL |
|
|
BELT DRIVE MOTOR 1 HP |
|
|
BELT DRIVE MOTOR 1.5 HP |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING 11 X 10 |
|
|
BLOWER SIDE ANGLE |
|
|
BOLT |
|
|
BOLT 1/4-20 X 3/4-INCH |
|
|
CAPACITOR 5/370V |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR 51000, 208/230/60/3 |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR MOUNTING PLATE |
|
|
COMPRESSOR SCROLL HARNESS |
|
|
COND BLOCK-OFF |
|
|
COND BLOCK-OFF PLATE |
|
|
COND MOTOR 1/4 HP, 1 SP, 6 PL |
|
|
COND MOUNTING ANGLE |
|
|
CONTACTOR 30 AMP, 3P, 24V |
|
|
CORNER POST |
|
|
CUT-OUT SWITCH, HIGH PRESSURE |
|
|
CUT-OUT SWITCH, LOW PRESSURE |
|
|
DECK SIDE CHANNEL |
|
|
DECK-BLOWER |
|
|
DRAIN PAN |
|
|
DRAIN PAN GASKET |
|
|
DRAIN PAN SUPPORT |
|
|
ELECT. CONNECTING BUSHING |
|
|
ELECTRIC HEAT COVER |
|
|
ELECTRIC HEAT DOOR |
|
|
ELECTRIC HEAT PANEL |
|
|
ELECTRIC HEAT RETAINER |
|
|
END RAIL |
|
|
FAN BELT, NOTCHED |
|
|
FAN BLADE |
|
|
FAN GRILLE |
|
|
FILTER 14 X 20 X 2 |
|
|
FILTER ANGLE-HORIZONTAL |
|
|
FILTER ANGLE-HORIZONTAL CENTER |
|
|
FILTER ANGLE-VERTICAL HAIRPIN SIDE |
|
|
FILTER ANGLE-VERTICAL RETURN SIDE |
|
|
FILTER DRIER |
|
|
FIXED SHEAVE AK61 |
|
|
FLANGED LOCKNUT 5/16-18TPI |
|
|
FLOWRATOR EVAP |
|
|
HAIL GUARD ASSEMBLY |
|
|
HEX NUT INSERT 5/16-18 |
|
|
INSULATED ASSY, BLOWER DOOR |
|
|
INSULATED ASSY, DUCT PANEL |
|
|
INSULATED ASSY, ECONOMIZER DOOR |
|
|
INSULATED ASSY, FILTER DOOR |
|
|
INSULATED ASSY, RETURN DUCT |
|
|
INSULATED ASSY, SUPPLY DUCT |
|
|
INSULATED ASSY, TOP PANEL |
|
|
LOUVERED COMPRESSOR PANEL |
|
|
LOUVERED CONTROL PANEL |
|
|
LOW AMBIENT KIT |
|
|
MOTOR ADJUST BRACKET |
|
|
MOTOR MOUNT ANGLE |
|
|
MOTOR MOUNT PLATE |
|
|
MOUNTING BRACKET BEARING |
|
|
MOUNTING BRACKET INSERT |
|
|
POST-SIDE SUPPORT |
|
|
PVC CONDUIT 8.25-INCH |
|
|
RAIL CORNER BRACKET |
|
|
SIDE RAIL |
|
|
SMOKE DETECTOR COVER |
|
|
STEEL KEY 000158812 2.0-INCH |
|
|
STEEL KEY 000158812 4.5-INCH |
|
|
TERMINAL BOARD |
|
|
TF SHOULDER SCREW |
|
|
TRANSFORMER 208/230, 24V |
|
|
TUBING ASSY, COND COIL |
|
|
TUBING ASSY, EVAP COIL |
|
|
VARIABLE PITCH SHEAVE 1VL44 X 3/8-INCH |
|
|
VARIABLE PITCH SHEAVE 1VP50 |
|
|
VENTURI RING 22-INCH |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS |
|
|
WIRING HARNESS |
