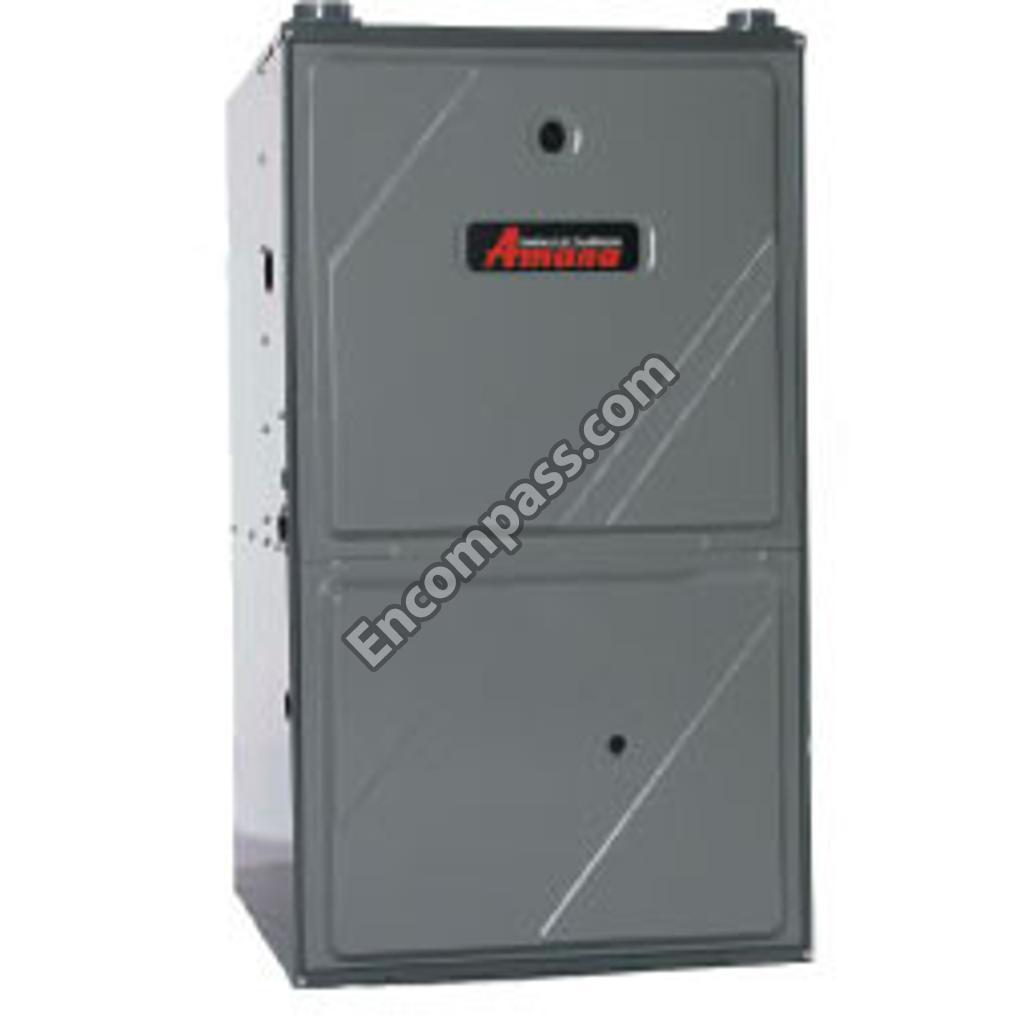

Manufacturer
Goodman
Model Number
DMS90703BXA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2-INCH MESH INSERT |
|
|
3-INCH MESH INSERT |
|
|
ACCESS DOOR |
|
|
AMANA NAMEPLATE |
|
|
ASSY, HEAT EXCHANGER 3B |
|
|
AUXILIARY LIMIT BRACKET |
|
|
BACK PANEL |
|
|
BASEPAN |
|
|
BECKETT BURNER |
|
|
BLOWER CUT-OFF |
|
|
BLOWER DECK |
|
|
BLOWER DOOR |
|
|
BLOWER HOUSING ASSY |
|
|
BLOWER WHEEL 10 X 8 |
|
|
BOX-HIGH VOLT |
|
|
BURNER BRACKET 3B |
|
|
BUSHING-SNAP |
|
|
BUTTON PLUG |
|
|
BUTTON PLUG |
|
|
BUTTON PLUG |
|
|
CAPACITOR 12.5/370V |
|
|
CLAMP-HOSE GREEN |
|
|
CLAMP-HOSE RED |
|
|
COIL GASKET |
|
|
CONTROL BRACKET |
|
|
COUPLING-FA |
|
|
COUPLING-RUBBER |
|
|
COVER-HV BOX |
|
|
DECK GASKET |
|
|
DECK RAIL |
|
|
DRAIN ANGLE |
|
|
DRAIN TRAP |
|
|
DRAIN TUBE |
|
|
ELBOW |
|
|
FILLER PLATE |
|
|
FLAME SENSOR |
|
|
FLUE PIPE |
|
|
FRONT COVER |
|
|
GAS VALVE 36G |
|
|
GASKET |
|
|
GASKET |
|
|
GASKET |
|
|
GROMMET |
|
|
HEAT EXCHANGER INSULATION |
|
|
HOSE CLAMP |
|
|
HOSE CLAMP |
|
|
HOSE-DRAIN |
|
|
HOSE-DRAIN |
|
|
ID BLOWER |
|
|
IGNITION BOARD, HSI INTEGRATED |
|
|
IGNITOR |
|
|
INSTALL INSTRUCTIONS |
|
|
INSTALLATION INSTRUCTIONS |
|
|
INSTALLATION-HUMIDIFIER |
|
|
INSULATION |
|
|
INSULATION SIDE |
|
|
INTERLOCK SWITCH |
|
|
LIMIT-RESET MAN AUXILIARY |
|
|
MANIFOLD |
|
|
MANUAL RESET LIMIT-YELLOW |
|
|
MOTOR 1/3 HP, 4 SP, 6 PL |
|
|
ORIFICE |
|
|
ORIFICE SHIELD |
|
|
PANEL-SIDE LH UF PNT |
|
|
PANEL-SIDE RH UF PNT |
|
|
PIPE GROMMET |
|
|
PRESSURE SWITCH HOSE |
|
|
PRESSURE SWITCH HOSE |
|
|
PRESSURE SWITCH HOSE |
|
|
PRESSURE SWITCH-ORANGE |
|
|
PRIMARY LIMIT - BLUE |
|
|
RAIL-BLWR SIDE |
|
|
SEALER-PLASTIC |
|
|
SHIELD ID BLWR |
|
|
SIDE RAIL |
|
|
SNAP-BUSHING CLR |
|
|
STANDPIPE BAG ASSY |
|
|
TC SCREW |
|
|
TOP COVER ASSY |
|
|
TRANSFORMER 120V TO 24V, 40 VA |
|
|
TUBE PLUG |
|
|
UNIVERSAL BUSHING UB 875 |
|
|
USERS MANUAL |
|
|
VIEW PORT BUSHING-BLOWER DOOR |
|
|
WIRING HARNESS |
