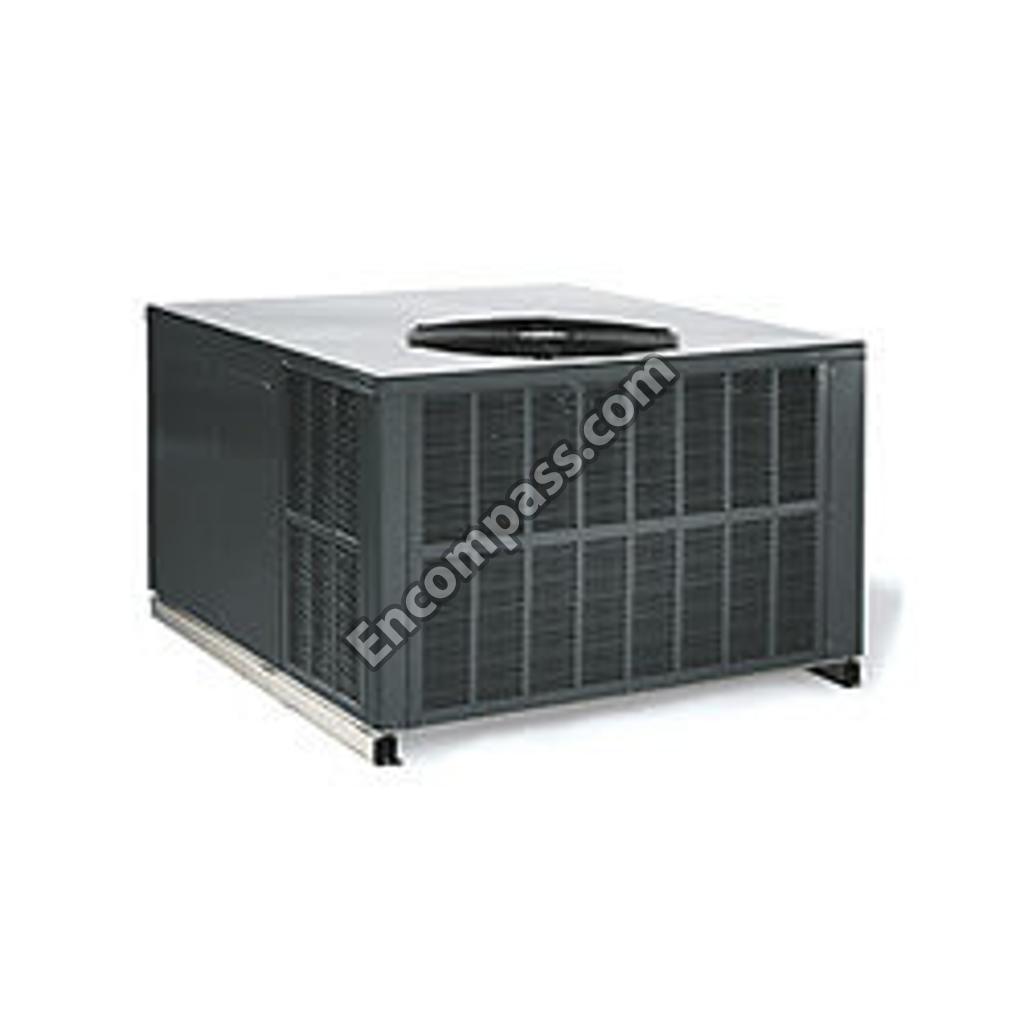

Manufacturer
Goodman
Model Number
GPC1324H41
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
2.0TONRECHI COMPR.4 LEGS |
|
|
240 VOLT RELAY |
|
|
ACCESS FITTING |
|
|
ACCESS-FITTING BOX |
|
|
ACORN NUT 5/16 HEX BLACK |
|
|
BASEPAN RAIL |
|
|
BLOWER CUT-OFF |
|
|
BLOWER HOUSING 9 X 6 |
|
|
BLOWER MOTOR 1/4 HP, 3 SP, 8 PL |
|
|
BLOWER MOUNT 9 X 6 |
|
|
BLOWER SUPPORT |
|
|
BLOWER WHEEL 9 X 6 |
|
|
CAP WITH O-RING |
|
|
CAPACITOR 10/370V |
|
|
CAPACITOR 5/45/440V/DUAL RD |
|
|
CAPACITOR BOOT |
|
|
CAPACITOR STRAP |
|
|
COMPRESSOR PANEL 13.68-INCH X 27.50-INCH |
|
|
COND MOTOR 1/6 HP, 1 SP, 8 PL |
|
|
CONDENSER COIL BLOCKOFF |
|
|
CONTACTOR 25 AMP, 1P, 24V |
|
|
CORNER PANEL 27.5-INCH |
|
|
CORNER POST 27.5-INCH |
|
|
DRIP PAN |
|
|
DUCT PANEL 27.5-INCH |
|
|
ELECTRONIC BLOWER TIME DELAY |
|
|
EVAP DRIP SHIELD |
|
|
EVAP PANEL 8.75-INCH X 27.5-INCH |
|
|
EXTERNAL BLOWER PANEL 27.5-INCH |
|
|
EXTERNAL CONTROL BOX PANEL |
|
|
FAN BLADE |
|
|
FAN GRILLE |
|
|
FASTEST FITTING NUT |
|
|
FLOWRATOR EVAP |
|
|
GROMMET - RECHI COMPRESSOR |
|
|
GROMMET, 26TAL F/TORSIN FLEX |
|
|
GROMMET/HS 1.0-.79 |
|
|
HEATER KIT COVER |
|
|
INSULATED ASSY, BASEPAN |
|
|
LOUVERED PANEL 4 BANK 27.5-INCH |
|
|
LOUVERED PANEL 5 BANK 27.5-INCH |
|
|
POST 27.5-INCH |
|
|
PVC CONDUIT 8.25-INCH |
|
|
SCREW-SHOULDER TF |
|
|
SINGLE-FLOW FILTER DRIER, STEEL |
|
|
SMALL SCREW |
|
|
SOLENOID COIL |
|
|
TC SCREW |
|
|
TERMINAL COVER |
|
|
TERMINAL COVER GASKET |
|
|
TERMINAL NUT - RECHI COMP |
|
|
TOP PANEL PAINTED |
|
|
TRANSFORMER 208/230, 24V |
|
|
TRANSITION DUCT ASSY-EX1520 |
|
|
TUBING ASSY, COND COIL |
|
|
TUBING ASSY, EVAP COIL |
|
|
WASHER - RECHI COMPRESSOR |
|
|
WIRE HARNESS, ELECTRIC HEAT |
