Model Image
Manufacturer

Goodman

Model Number

GUVA115AX50

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
20273103 20273103 ACCESS DOOR
10690301 10690301 ANGLE-FILTER
20273403 20273403 BASEPAN-UPFLOW
10735102 10735102 BECKETT BURNER
20273003 20273003 BLOWER DOOR
11185811 11185811 BLOWER HOUSING 11 X 10
20245902 20245902 BLOWER-I.D.
20214001 20214001 BOARD PLATE
10736102 10736102 BOX-HIGH VOLT
20190404 20190404 BRKT-BURNER
20190409 20190409 BRKT-BURNER 5B
10746205 10746205 BRKT-CONTROL
M0571002 M0571002 BUSHING-SNAP
A4554801 A4554801 BUSHING-SNAP
20000003 20000003 CERT-WARRANTY
A3326008 A3326008 CLAMP-HOSE
M0119205 M0119205 CLAMP-HOSE GREEN
M0119207 M0119207 CLAMP-HOSE RED
M0104102 M0104102 CLIP-CORD
20218901 20218901 COIL-INDUCTOR
10207713 10207713 CONTROL-INTEG
20049701 20049701 COUPLING-FA
10254303 10254303 COUPLING-RUBBER
10736202 10736202 COVER, HIGH VOLTAGE BOX
20171004 20171004 COVER-FRONT
C6121811 C6121811 CUT-OFF
20214103 20214103 DECK GASKET
20190318 20190318 DECK-BLOWER
20214201 20214201 DRAIN ANGLE
20171701 20171701 DRAIN TRAP
20171801 20171801 ELBOW DRAIN
20511005 20511005 END BELL
10735201 10735201 FLAME-SENSOR
M0274008 M0274008 FLAT WASHER
20273303 20273303 FLUE/FA COVER
20194604 20194604 GASKET
20194603 20194603 GASKET
20179308 20179308 GASKET
20215703 20215703 GASKET-COIL
20215701 20215701 GASKET-FA

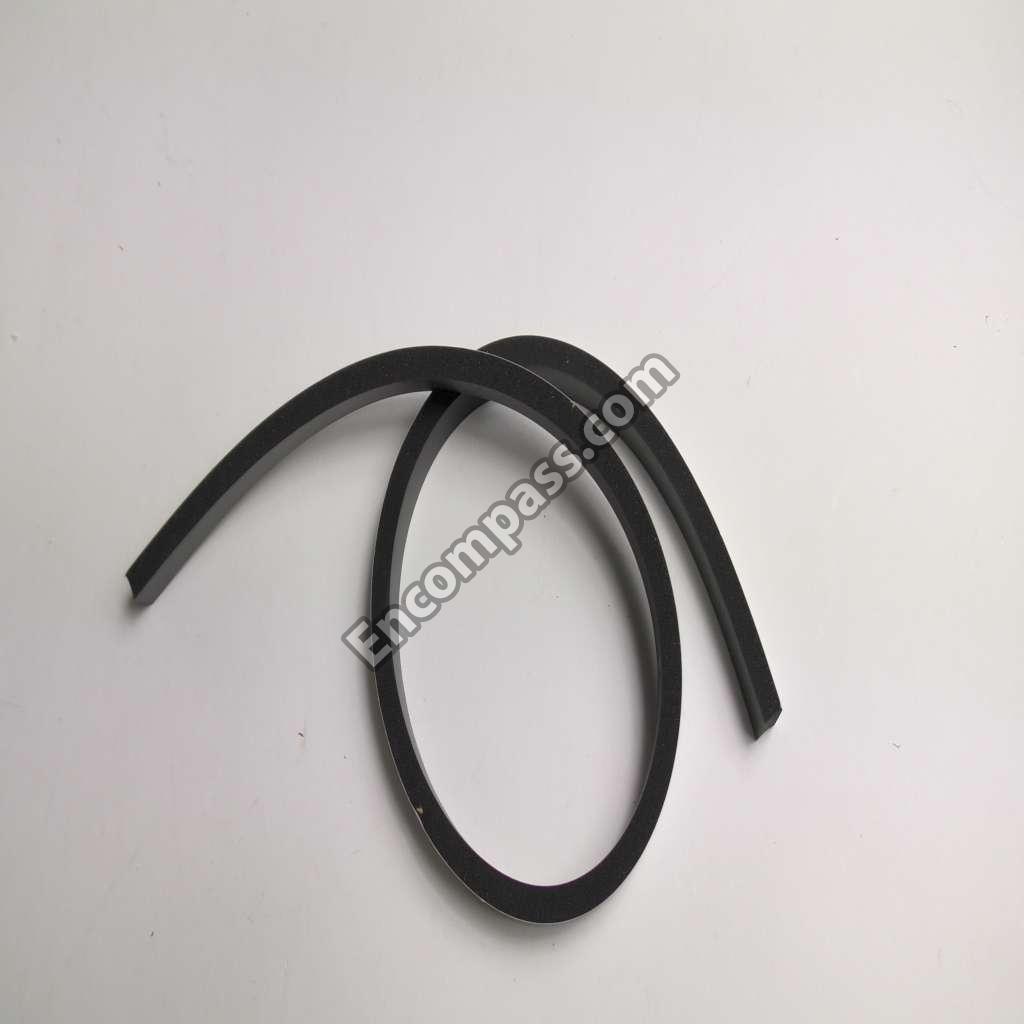

20179307 20179307 GASKET-FA
A4691701 A4691701 GROMMET
A4002701 A4002701 GROMMET
20276002 20276002 HARNESS-WIRING
20275901 20275901 HARNESS-WIRING
20158801 20158801 HARNESS-WIRING ECM INTERFACE 16 PIN CONNECTOR
20194210 20194210 HEAT EXCHANGER ASSY 5B
20201902 20201902 HOSE-DRAIN
20201901 20201901 HOSE-DRAIN
B1410309 B1410309 HOSE-PRESSURE SW BLOWER
B1410305 B1410305 HOSE-PRESSURE SW COIL COVER 21-INCH
20165702 20165702 IGNITOR
M0294801 M0294801 INSERT-KNURLED
10318730 10318730 INSTALLATION INSTRUCTIONS
C6415909 C6415909 INSUL-HT EX
20192703 20192703 INSULATION
20006603 20006603 INSULATION
20243501 20243501 INSULATION-SIDE

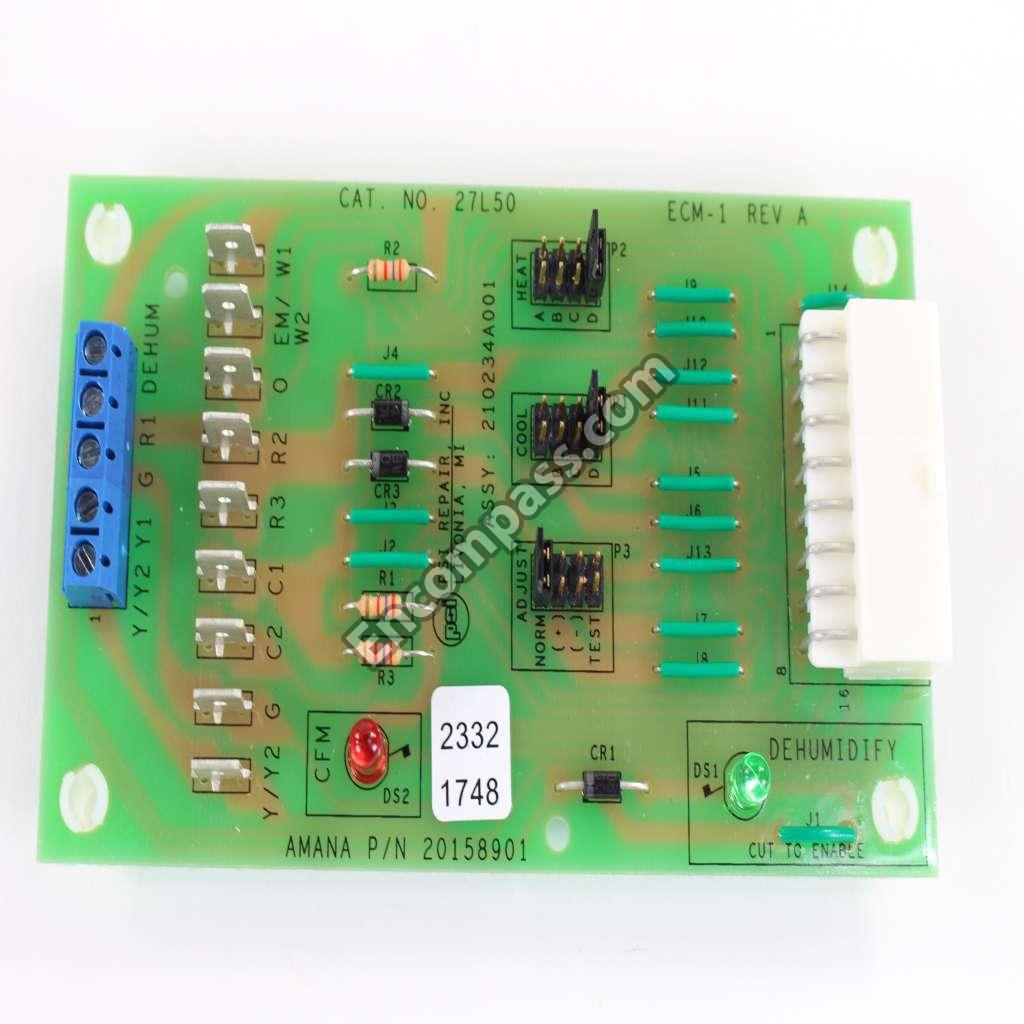

20158901 20158901 INTERFACE BOARD
M0282015 M0282015 KEPS NUT
M0267144 M0267144 MACHINE SCREW
M0219916 M0219916 MACHINE SCREW
20196404 20196404 MANIFOLD
10123533 10123533 MANUAL RESET LIMIT-YELLOW
0231K00028A 0231K00028A MOTOR BLWR-EC 1
10441501 10441501 MOTOR MOUNT ARM
10441601 10441601 MOTOR MOUNT BAND
20213214 20213214 NAMEPLATE-AMANA
10716003 10716003 ORIFICE
11072204 11072204 ORIFICE SHIELD
20273203 20273203 PANEL-BACK
20274001 20274001 PANEL-SIDE LH UF
20274101 20274101 PANEL-SIDE RH UF
M0501301 M0501301 PIPE GROMMET
20190503 20190503 PIPE-FLUE UF
M0570804 M0570804 PLUG-BUTTON
M0570803 M0570803 PLUG-BUTTON
M0570802 M0570802 PLUG-BUTTON
20162903 20162903 PRIMARY LIMIT - BLUE
20175101 20175101 RAIL-BLWR SIDE
20191303 20191303 RAIL-DECK
20242801 20242801 RAIL-FILTER
20191601 20191601 RAIL-SIDE
20178501 20178501 RETAINER-FILTER
M0273904 M0273904 RETAINER-SCREW
10261302 10261302 SCREEN-VENT
10261301 10261301 SCREEN-VENT
M0209717 M0209717 SCREW-DECORATIVE
M0218154 M0218154 SCREW-SM
M0218153 M0218153 SCREW-SM
M0211216 M0211216 SCREW-SM
M0216714 M0216714 SCREW-SM
M0216536 M0216536 SCREW-SM
M0211031 M0211031 SCREW-SM 10-5/8
M0219918 M0219918 SCREW-SM 8-5/8
M0211020 M0211020 SCREW-SM 8-7/8
M0227803 M0227803 SCREW-TC
M0253516 M0253516 SCREW-TR
11165107 11165107 SHIELD ID BLWR
11104002 11104002 SNAP-BUSHING CLR
11104001 11104001 SNAP-BUSHING CLR
11134622 11134622 SPEC-SHEET
10195511 10195511 STANDPIPE BAG ASSY
10690401 10690401 SWITCH-INTERLOCK
20197301 20197301 SWITCH-PRESSURE COIL COVER
11177114 11177114 SWITCH-PRESSURE ID BLOWER
M0221461 M0221461 TC SCREW
M0321202 M0321202 TIE-ELEC LG, QTY AR
C6349703 C6349703 TRANSFORMER
M0326804 M0326804 TUBE PLUG
20201801 20201801 TUBE-DRAIN
10318818 10318818 USER'S MANUAL
C6476909 C6476909 VALVE-GAS
M0270001 M0270001 WASHER-CUP
M0270544 M0270544 WASHER-FLAT
D6723319 D6723319 WHEEL-BLOWER
