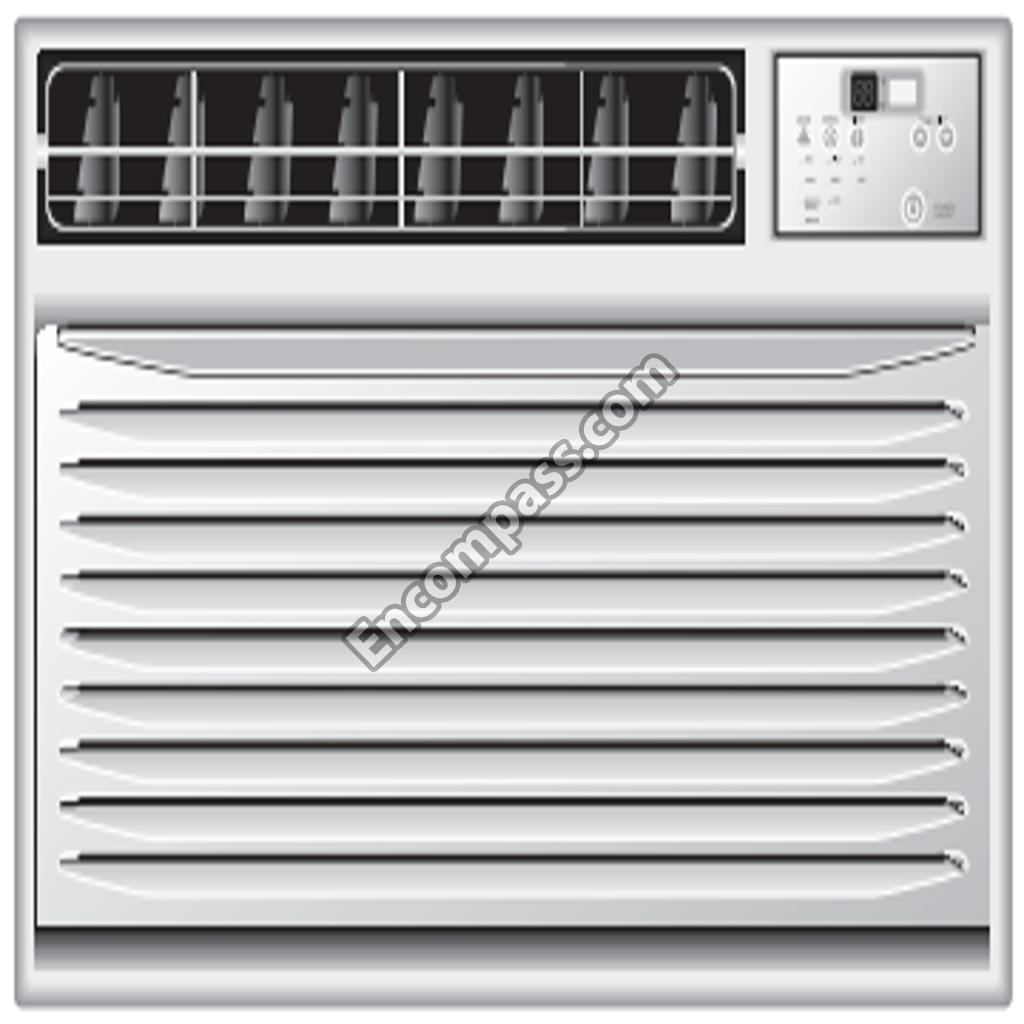

Model Image
Manufacturer

GE

Model Number

HWR12XCB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WJ01X23601 WJ01X23601 BAG-SCREW
AC-0255-03 AC-0255-03 BASEPAN
AC-0668-10 AC-0668-10 BOARD-CORRUGATED
AC-0750-07 AC-0750-07 BOLT
AC-0750-04 AC-0750-04 BOLT-COMPRESSOR
AC-0800-01 AC-0800-01 BOX-ELECTRIC
AC-0840-09 AC-0840-09 BRACE-ANGLE
AC-0840-03 AC-0840-03 BRACE-FRONT
AC-0840-05 AC-0840-05 BRACE-LEFT TIE
AC-0840-04 AC-0840-04 BRACE-REAR LOWER
AC-0840-10 AC-0840-10 BRACE-TRIANGLE [LEFT
AC-1300-04 AC-1300-04 CABINET
AC-1400-12 AC-1400-12 CAPACITOR-COMPRESSOR
AC-1415-02 AC-1415-02 CARD
AC-1470-03 AC-1470-03 CASE-BLOWER SCROLL
AC-1650-01 AC-1650-01 CLIP-CAPACITOR
AC-1750-19 AC-1750-19 COMPRESSOR
AC-1800-02 AC-1800-02 CONDENSER
AC-1950-21 AC-1950-21 COVER-CONDENSER
AC-1950-09 AC-1950-09 COVER-TERMINAL
AC-2015-35 AC-2015-35 CUSHION
AC-2015-36 AC-2015-36 CUSHION
AC-2015-07 AC-2015-07 CUSHION-RUBBER
AC-2480-03 AC-2480-03 ELBOW-DRAIN
AC-2650-04 AC-2650-04 EVAPORATOR-[ASSY]
AC-3100-39 AC-3100-39 GASKET-DRAIN ELBOW
AC-3100-05 AC-3100-05 GASKET-HORIZ REAR
AC-3100-03 AC-3100-03 GASKET-LEFT
AC-3100-18 AC-3100-18 GASKET-LEFT COND COV
AC-3100-06 AC-3100-06 GASKET-LEFT PILLAR
AC-3100-08 AC-3100-08 GASKET-REAR COND COV
AC-3100-04 AC-3100-04 GASKET-RIGHT
AC-3100-28 AC-3100-28 GASKET-SASH
AC-3100-35 AC-3100-35 GASKET-SEAL
AC-3100-34 AC-3100-34 GASKET-SILL

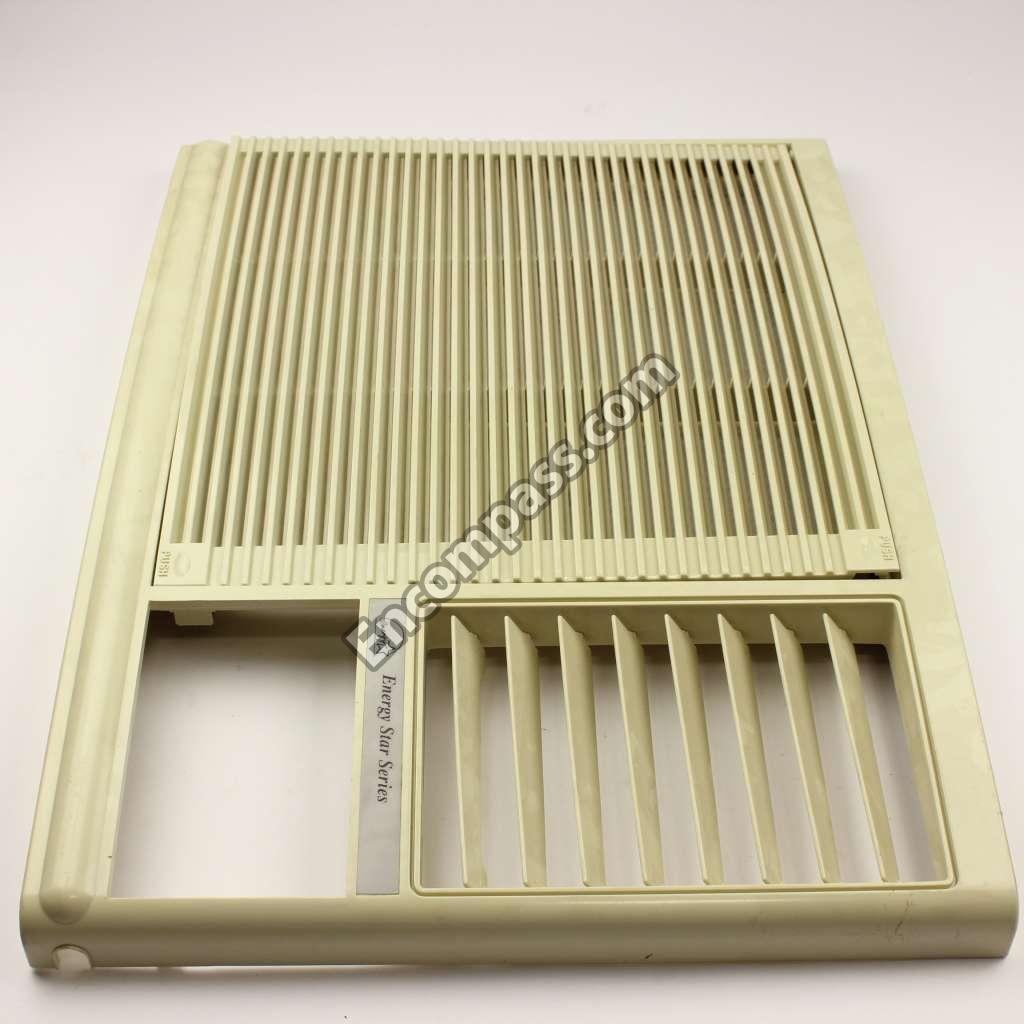

AC-3150-10 AC-3150-10 GRILL-FRONT
AC-3300-16 AC-3300-16 GUIDE-UPPER
AC-4720-06 AC-4720-06 NUT
AC-4800-08 AC-4800-08 OVERLOAD
AC-5150-09 AC-5150-09 PAN-DRAIN
AC-5200-78A AC-5200-78A PANEL-FRONT [COMPLET
AC-5200-18 AC-5200-18 PANEL-INLET
AC-5550-04 AC-5550-04 RAIL-BOTTOM
AC-5950-05 AC-5950-05 ROD-CONNECTING
AC-6150-03 AC-6150-03 SCREW
AC-6150-09 AC-6150-09 SCREW
AC-6150-10 AC-6150-10 SCREW
AC-6150-21 AC-6150-21 SCREW
AC-6150-14 AC-6150-14 SCREW-10MM
AC-6150-15 AC-6150-15 SCREW-25MM WOOD
AC-0750-35 AC-0750-35 SCREW-BRACE
AC-6500-02 AC-6500-02 SHROUD-CONDENSER
AC-7000-15 AC-7000-15 SUPPORT-BOTTOM
AC-7000-01 AC-7000-01 SUPPORT-FAN MOTOR
WJ27X23600 WJ27X23600 SWITCH-MODE SELECTIO
AC-7750-20 AC-7750-20 TUBE-DISCHARGE
AC-7750-21 AC-7750-21 TUBE-EVAP LIQUID
AC-7750-17 AC-7750-17 TUBE-SUCTION ASSY
