Manufacturer
Electrolux
Model Number
80462054
Description
80462054 Lagan Range W Gl Cer Cktp White Us
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANTI TIPKIT, ASSY, W/TEMPLATE |
|
|
BRACKET, ANTI-TIP |
|
|
BRACKET, CABLE MTG |
|
|
BRACKET, CHASSIS SUPPORT, FRONT |
|
|
BRACKET, CONCRETE BLOCK |
|
|
BRACKET, REAR SUPPORT,(2) |
|
|
BRACKET, SUPPORT, OVEN BOTTOM, (2) |
|
|
BRACKET-BODYSIDE,(2) |
|
|
BRACKET-HINGE,MAIN TOP |
|
|
BRACKET-SUPPORT, CHASSIS, ALUMINUM |
|
|
BUMPER, FRONT,MAIN |
|
|
CAP, END, WHITE, LH |
|
|
CAP, END, WHITE, RH |
|
|
CAP,DOOR TRIM, WHITE |
|
|
CHANNEL, ELEMENT SUPPORT |
|
|
CLIP, ELEMENT MTG |
|
|
CLIP,BODYSIDE |
|
|
CONTROL, ELECTRONIC, ES100 |
|
|
COUNTERWEIGHT, CONCRETE BLOCK |
|
|
COVER, ACCESS |
|
|
COVER, FRONT FRAME |
|
|
DRAWER, UTILITY |
|
|
ELEMENT, BAKE, 4 PASS |
|
|
ELEMENT, BROIL, 4 PASS |
|
|
ELEMENT, DUAL,9-INCH /6-FEET ,SURFACE,3000W,QUICK BOIL |
|
|
ELEMENT, SURFACE,6-FEET ,1200(,2),RADIANT |
|
|
ELEMENT, WARMER, 100W |
|
|
GLASS ASSEMBLY,OUTER, WHITE |
|
|
GLASS,OVEN DOOR, INNER |
|
|
GLIDE, DRAWER, BLACK, LH INNER |
|
|
GLIDE, DRAWER,BLACK, LH OUTER |
|
|
GLIDE, DRAWER,BLACK, RH INNER |
|
|
GLIDE, DRAWER,BLACK, RH OUTER |
|
|
HANDLE, DOOR, WHITE |
|
|
HARNESS, SURFACE |
|
|
HARNESS, WIRING,MAIN |
|
|
HINGE, OVEN DOOR, LILAC |
|
|
INSERT, BROILERPANOPTIONAL ACCESSORY |
|
|
INSULATION, OVEN BACK |
|
|
INSULATION, OVEN BOTTOM |
|
|
INSULATION, OVEN WRAPPER |
|
|
KNOB, CONTROL, WHITE |
|
|
LABEL, ANTI-TIP |
|
|
LAMP, OVEN LIGHT |
|
|
LENS, OVENLIGHT,GLASS |
|
|
LENS-LIGHT/LAMP, INDICATOR, CLEAR |
|
|
LEVELING LEG ASSY,METAL, FRONT,(2), BRACKET &LEG |
|
|
LIGHT/LAMP, INDICATOR,BLACK, 125 V |
|
|
LINER, DRAWER |
|
|
LINER, OVEN DOOR |
|
|
NUT, HOUR GLASS,HANDLE MTG. |
|
|
NUT,HEX FLANGE, 3/810-32 |
|
|
OVERLAY, CLOCK, WHITE |
|
|
PAN, BROILEROPTIONALACCESSORY |
|
|
PANEL, BACKGUARD, WHITE |
|
|
PANEL, BODYSIDE, WHITE, RH |
|
|
PANEL, BODYSIDE, WHITE,LH |
|
|
PANEL, DRAWER, WHITE, OUTER, W/INTGR HANDLE |
|
|
PANEL, MAIN BACK |
|
|
PANEL, OVEN BOTTOM |
|
|
PLATE, GROUNDING STRAP |
|
|
PLATE, GROUNDING STRAP |
|
|
PLUG, BUTTON, OVAL, HARNESS |
|
|
PLUG, HOLE, LIGHT SWITCH |
|
|
PROBE, OVEN TEMP |
|
|
RACK, OVEN |
|
|
RECEPTACLE, OVEN LIGHT |
|
|
RECEPTACLE,HINGE |
|
|
RETAINER,LENS |
|
|
SCREW, 10-16 X 486 |
|
|
SCREW, 6-20 X 0312 |
|
|
SCREW, 8-18 X 0.5, CHROME |
|
|
SCREW, CONCRETE, 175-INCH , ANTI-TIP BRKT |
|
|
SCREW, GROUND WIRE |
|
|
SCREW, SIMSIP,#8-32 X 5/16-INCH ,BLACK |
|
|
SCREW, TRILOBE,10-32 X 5/16-INCH ,BLACK |
|
|
SCREW, TRUSS SQDR, 8-32X 3/16, SWITCH MTG |
|
|
SCREW,BRACKET, STIFFENER,(4) |
|
|
SCREW,HANDLE MTG.,#10-24X 2,(2) |
|
|
SCREW,HANDLE SET |
|
|
SCREW,HEX HEAD CUP PT, 8-18X 0375, BLACK |
|
|
SCREW,LEVELING,PLASTIC,REAR, (2) |
|
|
SCREW,W/WASHER, 8-18 |
|
|
SCREW,WAFER HEAD, 8-32T X 0 500, BLACK, 44* |
|
|
SCREW-SHOULDER, W/SHOULDER,#8-18X 1/2-INCH |
|
|
SEAL,OVEN DOOR |
|
|
SHIELD, WIRE,VENT TUBE |
|
|
SHIELD,BACKGUARD, REAR WALL |
|
|
SHIELD,BACKGUARD, WHITE, INNER |
|
|
SHIELD,REAR WALL |
|
|
SHIELD,WOOL |
|
|
SHIELD,WOOL, LOWER |
|
|
SMOOTHTOP, ASSEMBLY, GLASS/STEEL, BLACK/WHITE |
|
|
SPACER,GLASS |
|
|
SUPPORT, ELEMENT,BROIL |
|
|
SWITCH, CONTROL, SMALL ELEMENT |
|
|

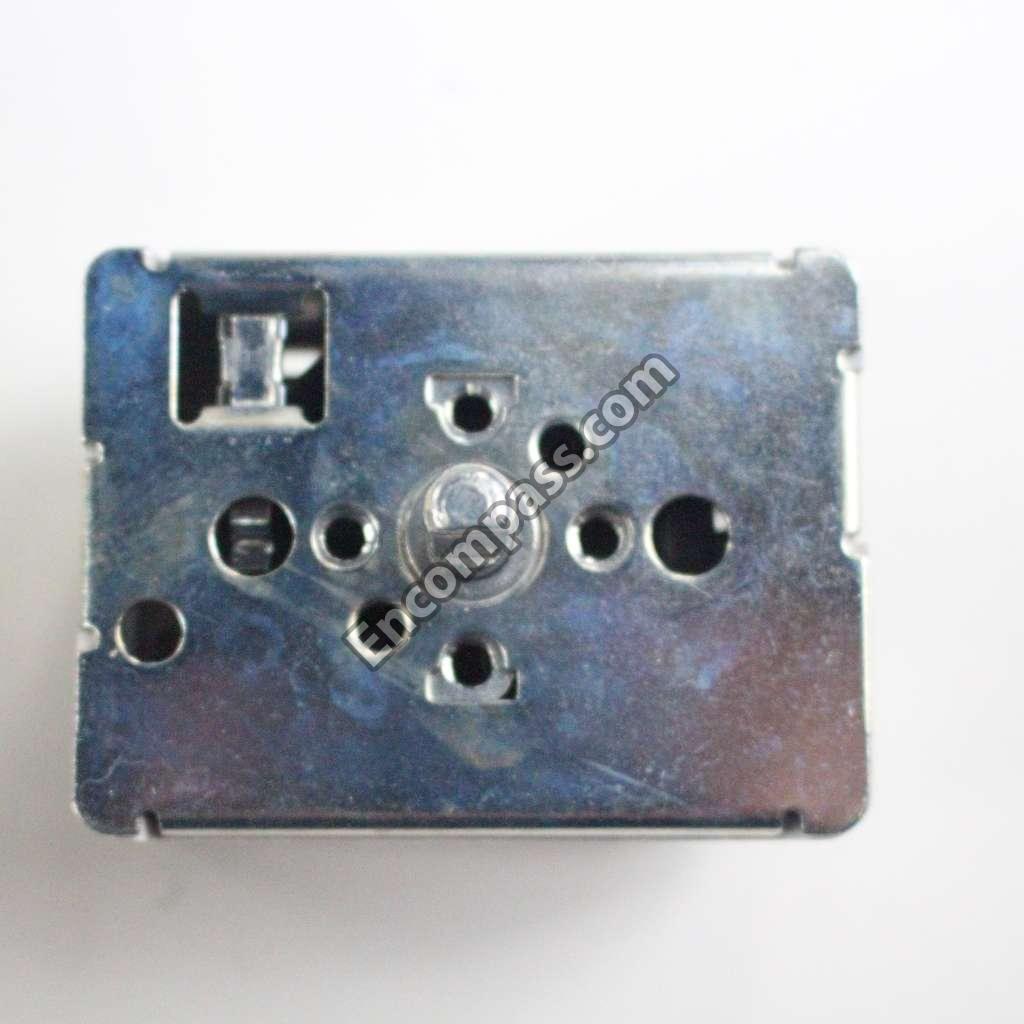

SWITCH, INFINITE, LARGE ELEMENT |
|
|
SWITCH, INFINITE, RADIANT DUAL |
|
|
SWITCH, INFINITE, WARMER |
|
|
SWITCH, ROCKER, WHITE |
|
|
TEMPLATE, ANTI-TIP |
|
|
TERMINAL BLOCK KIT |
|
|
TRIM KIT-DOOR,3SIDED,WHITE, W/TAPE |
|
|
TUBE, OVEN VENT, UPPER |
|
|
TUBE, OVEN VENT,LOWER |
