Model Image
Manufacturer

Liebherr

Model Number

C1600

Description

Combined Fridge-freezer-built-in-nofrost-st. Steel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
704297101 704297101 ADJUSTING SCREW
694211800 694211800 AIR SENSOR FOR FREEZER COMPARTMENT
694204202 694204202 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
711367900 711367900 BOLT
774370900 774370900 BRACKET
726607901 726607901 BUFFER
742466500 742466500 BUSHING
742867000 742867000 BUSHING
740205800 740205800 BUSHING
742496000 742496000 BUTTON
779078902 779078902 CASTOR BASE
779079102 779079102 CASTOR BASE
611877901 611877901 COMPACT FAN
611878100 611878100 COMPACT FAN
611974501 611974501 COMPRESSOR R 134 A
611974701 611974701 COMPRESSOR R 134 A
594167700 594167700 CONDENSER WIRE TUBE, UPRIGHT
408440402 408440402 COUNTERSUNK SCREW
409814401 409814401 COUNTERSUNK SCREW
408291501 408291501 COUNTERSUNK SELF-TAPPING SCREW
408286001 408286001 COUNTERSUNK SELF-TAPPING SCREW
741222000 741222000 COVER CAP
764052802 764052802 COVER PROFILE TRIM
742471900 742471900 COVERS, VARIOUS
742488100 742488100 COVERS, VARIOUS
602102101 602102101 DISTRIBUTOR STRIP
742460700 742460700 DIVIDING WALL
742471700 742471700 DIVIDING WALL
704464900 704464900 DOOR HINGE
704270801 704270801 DOOR OPENING LIMITATION
901606501 901606501 DOOR, CAVITY-FOAMED
901606901 901606901 DOOR, CAVITY-FOAMED
740256301 740256301 DRAWER BODY
740256500 740256500 DRAWER BODY
789004801 789004801 DRAWER RAIL
740246300 740246300 DRAWER TRIM, NON-PRINTED
743021200 743021200 DRAWER TRIM, PRINTED
743021400 743021400 DRAWER TRIM, PRINTED
743021600 743021600 DRAWER TRIM, PRINTED
979012101 979012101 DRAWER, NON-PRINTED
742461101 742461101 DRAWER, NON-PRINTED
979013701 979013701 DRAWER-COMPLETE
979013501 979013501 DRAWER-COMPLETE
594203400 594203400 DRYER
742429300 742429300 ELECTRONICS COVER
594095700 594095700 EVAPORATOR - FREEZING
743220100 743220100 EVAPORATOR FIXTURE
694210000 694210000 EVAPORATOR SENSOR FOR REFRIGERATOR
742668001 742668001 EVAPORATOR TRAYS
629979700 629979700 FAN BLADE
629979900 629979900 FAN BLADE
742488300 742488300 FAN COVER
743600401 743600401 FASTENING
743369801 743369801 FASTENING
742677400 742677400 FASTENING
742677200 742677200 FASTENING
742677000 742677000 FASTENING
742676800 742676800 FASTENING
743318200 743318200 FASTENING
594079900 594079900 FIN-TYPE EVAPORATOR
804139100 804139100 FOLDING CARDBOARD BOX
727159500 727159500 GLASS PLATE - COMPLETE
727178300 727178300 GLASS PLATE - COMPLETE
727190300 727190300 GLASS PLATE - COMPLETE
727190500 727190500 GLASS PLATE - COMPLETE
727190700 727190700 GLASS PLATE - COMPLETE
727190900 727190900 GLASS PLATE - COMPLETE
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409810001 409810001 HEXAGON-HEAD SELF-TAPPING SCREW
409818800 409818800 HEXAGON-HEAD SELF-TAPPING SCREW
409819600 409819600 HEXAGON-HEAD SELF-TAPPING SCREW
409812400 409812400 HEXAGON-HEAD SELF-TAPPING SCREW
409804401 409804401 HEXAGON-HEAD SELF-TAPPING SCREW
704466100 704466100 HINGE PLATE
994179901 994179901 HOSE
607079700 607079700 INCANDESCENT BULB
614367700 614367700 INTEGRAL BOARD
929279902 929279902 KEY
990080500 990080500 KIT VENTILATION GRILLS
607279900 607279900 LAMPHOLDER

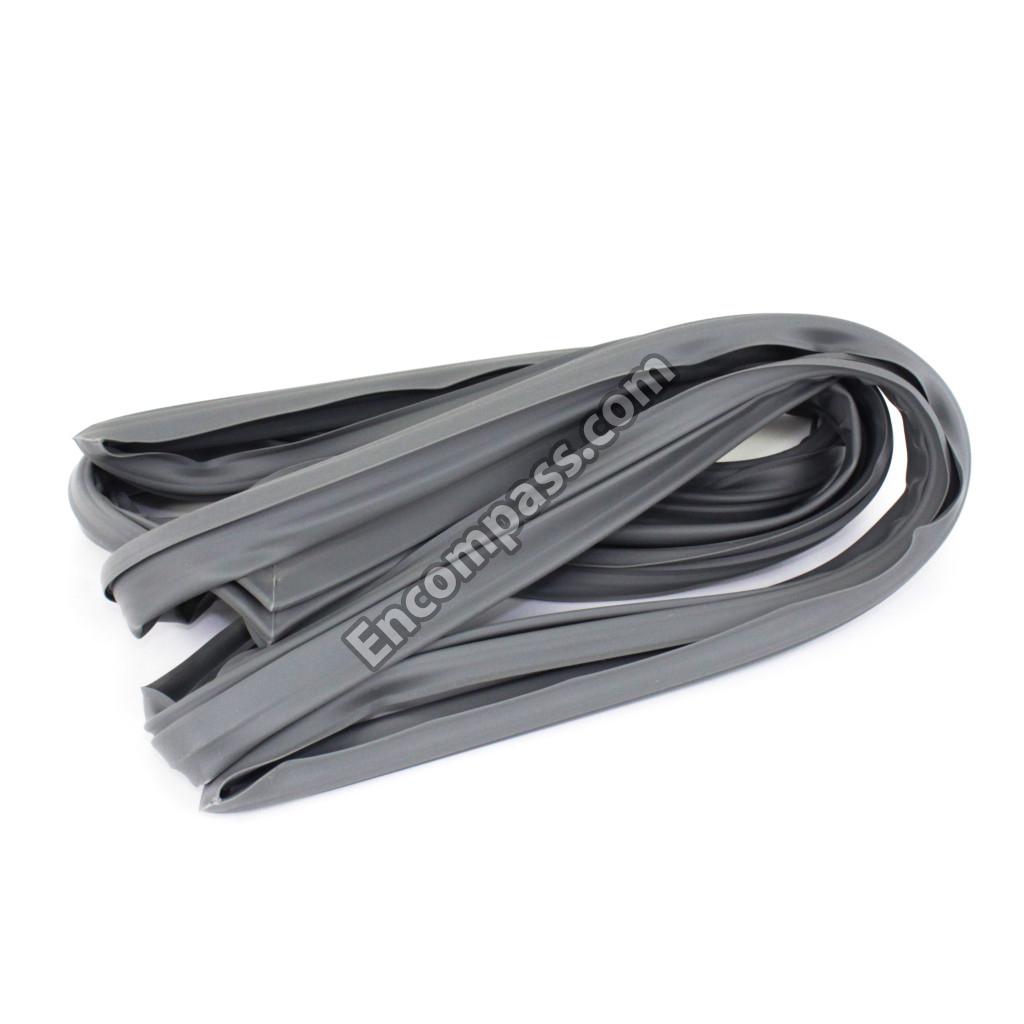

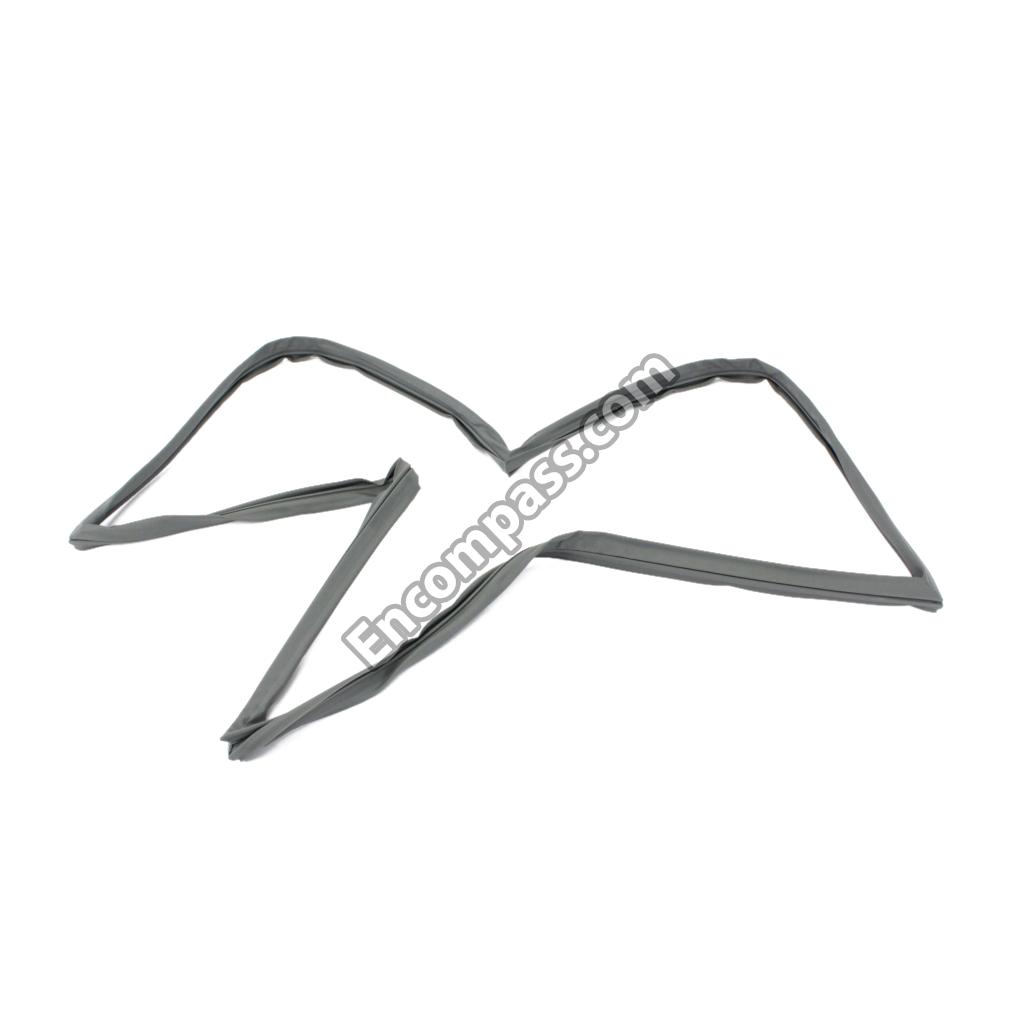

710919100 710919100 MAGNETIC DOOR SEAL TO BOND
710919300 710919300 MAGNETIC DOOR SEAL TO BOND
704234901 704234901 MOULDED HANDLE
704236301 704236301 MOULDED HANDLE
800308601 800308601 MOULDING
800379100 800379100 MOULDING
708000701 708000701 OPERATING INSTRUCTIONS
708036103 708036103 OPERATING INSTRUCTIONS
742465300 742465300 OPERATING PANEL HOUSING
611377501 611377501 OPERATING UNIT BOARD
742876100 742876100 OPERATING UNIT TRIM
711379501 711379501 OVAL-HEAD SCREW
408401101 408401101 OVAL-HEAD SCREW
408279500 408279500 OVAL-HEAD SELF-TAPPING SCREW
408270401 408270401 OVAL-HEAD SELF-TAPPING SCREW
408279100 408279100 OVAL-HEAD SELF-TAPPING SCREW
408279700 408279700 OVAL-HEAD SELF-TAPPING SCREW
408278501 408278501 OVAL-HEAD SELF-TAPPING SCREW
988012100 988012100 PACKAGING, COMPLETELY
987368101 987368101 PARTS, POWDER-COATED, COLOURED
770000100 770000100 PIPE
742644000 742644000 PLUG
740262400 740262400 PLUG
742750900 742750900 PLUG
742751100 742751100 PLUG
740261200 740261200 PLUG
742238900 742238900 PLUG
611342500 611342500 POWER BOARD
904179300 904179300 PRESSURE COMPENSATION VALVE
703078101 703078101 PROFILE STRIP
703066700 703066700 PROFILE STRIP
703077902 703077902 PROFILE STRIP
409877901 409877901 PT SCREW
611361601 611361601 REED BOARD
774360100 774360100 REFLECTOR
743003700 743003700 RETAINING STRIP FOR GLASS PLATES
409878901 409878901 SCREW
409802601 409802601 SCREW
740267500 740267500 SEALING RINGS
694279900 694279900 SENSOR F. FREEZER COMPARTMENT EVAPORATOR
990069700 990069700 SPARE PART
774312300 774312300 SPARE PART
726679700 726679700 SPECIAL SECURING HARDWARE
774408700 774408700 SPECIAL SECURING HARDWARE
600979500 600979500 SUPPLY LINE
615201000 615201000 TEMPERATURE LIMITER
727152900 727152900 TOUGHENED SAFETY-GLASS PLATE
727151300 727151300 TOUGHENED SAFETY-GLASS PLATE
727150500 727150500 TOUGHENED SAFETY-GLASS PLATE
764065901 764065901 TRIM STRIP PROFILE
764065501 764065501 TRIM STRIP PROFILE
743141300 743141300 VARIABLE EGG TRAY
742429500 742429500 VARIOUS HOUSINGS
740241700 740241700 VARIOUS INJECTION-MOULDED ITEMS
742456900 742456900 VARIOUS INJECTION-MOULDED ITEMS
742456700 742456700 VARIOUS INJECTION-MOULDED ITEMS
742456500 742456500 VARIOUS INJECTION-MOULDED ITEMS
742255800 742255800 VARIOUS INJECTION-MOULDED ITEMS
910102700 910102700 VARIOUS INJECTION-MOULDED ITEMS
742777901 742777901 VARIOUS INJECTION-MOULDED ITEMS
742745300 742745300 VARIOUS RETAINING FIXTURES
741263400 741263400 VARIOUS RETAINING FIXTURES
720379901 720379901 VARIOUS RETAINING FIXTURES
764061300 764061300 VARIOUS RETAINING FIXTURES
764061100 764061100 VARIOUS RETAINING FIXTURES
742477300 742477300 VARIOUS RETAINING FIXTURES
742620200 742620200 VARIOUS RETAINING FIXTURES
742619800 742619800 VARIOUS RETAINING FIXTURES
711309400 711309400 VARIOUS RETAINING FIXTURES
422950300 422950300 WASHER
711257100 711257100 WIRE BRACKET/GLASS-LINE DOOR
711257300 711257300 WIRE BRACKET/GLASS-LINE DOOR
711266900 711266900 WIRE BRACKET/GLASS-LINE DOOR
711266700 711266700 WIRE BRACKET/GLASS-LINE DOOR
711266500 711266500 WIRE BRACKET/GLASS-LINE DOOR
711261502 711261502 WIRE SHELF
704305100 704305100 ZINC DIE-CAST BEARING BLOCK
704325900 704325900 ZINC DIE-CAST BEARING BLOCK
704305700 704305700 ZINC DIE-CAST BEARING BLOCK
704305300 704305300 ZINC DIE-CAST BEARING BLOCK
704368101 704368101 ZINC DIE-CAST BEARING BLOCK
