Model Image
Manufacturer

Liebherr

Model Number

CS1360B

Description

Combined Fridge-freezer-nofrost-st. Steel Doors

Interactive Exploded View
Exploded View

Parts List

Part Number Description
959020602 959020602 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
711315201 711315201 BOLT
711317800 711317800 BOLT
711304600 711304600 BOLT
726604100 726604100 BUFFER
726609500 726609500 BUFFER
743262401 743262401 BUSHING
743236800 743236800 BUSHING
743237000 743237000 BUSHING
610809801 610809801 COMPACT FAN
611814401 611814401 COMPACT FAN
614328500 614328500 COMPRESSOR ACCESSORIES
610950400 610950400 COMPRESSOR R 600 A
594148900 594148900 CONDENSER WIRE TUBE, UPRIGHT
743842201 743842201 COVER
743837602 743837602 COVER
743116701 743116701 COVER
743716600 743716600 COVER
743048301 743048301 COVER
741222000 741222000 COVER CAP
743212400 743212400 COVER PLATE
743272200 743272200 COVER PLATE
743272600 743272600 COVER PLATE
743624801 743624801 COVER, WELDED
743625200 743625200 COVER, WELDED
929086200 929086200 COVERS, VARIOUS
929000700 929000700 COVERS, VARIOUS
743855900 743855900 DIVIDING WALL

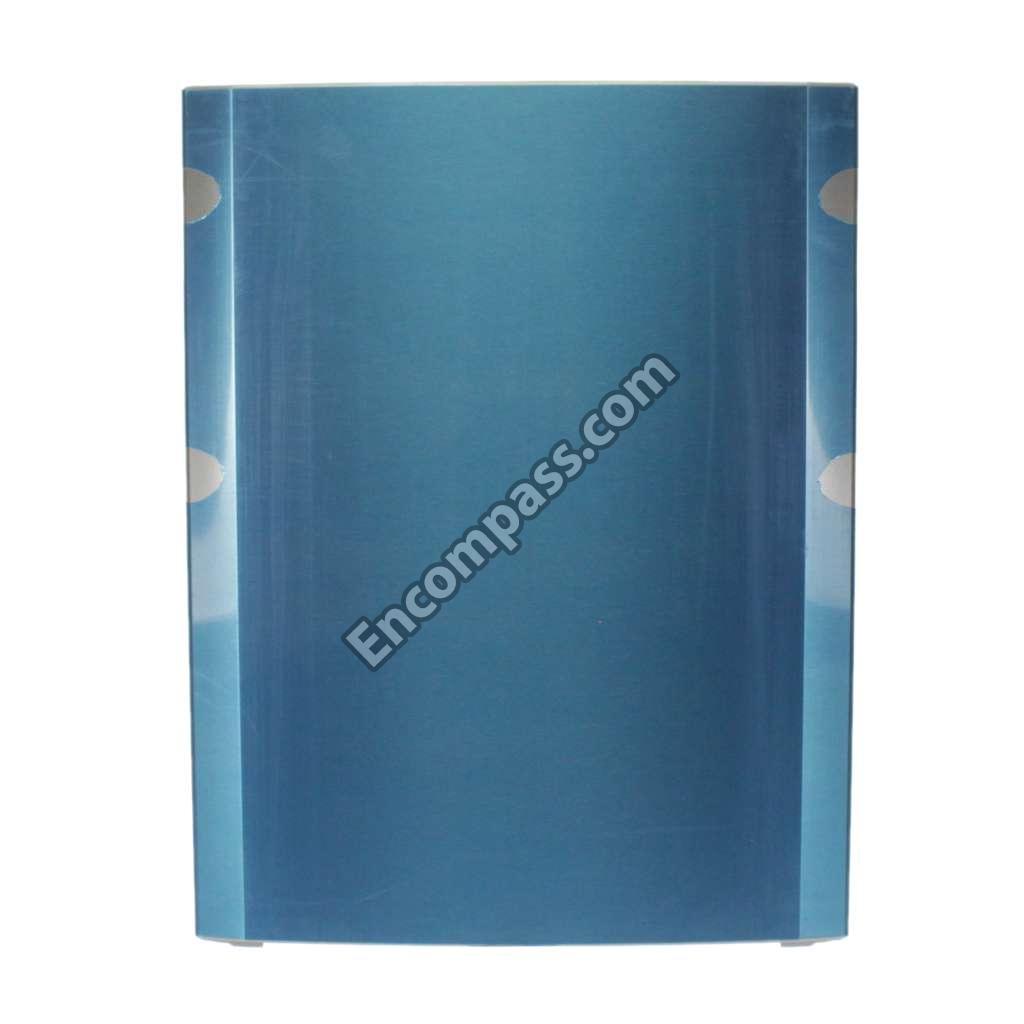

902134101 902134101 DOOR, CAVITY-FOAMED

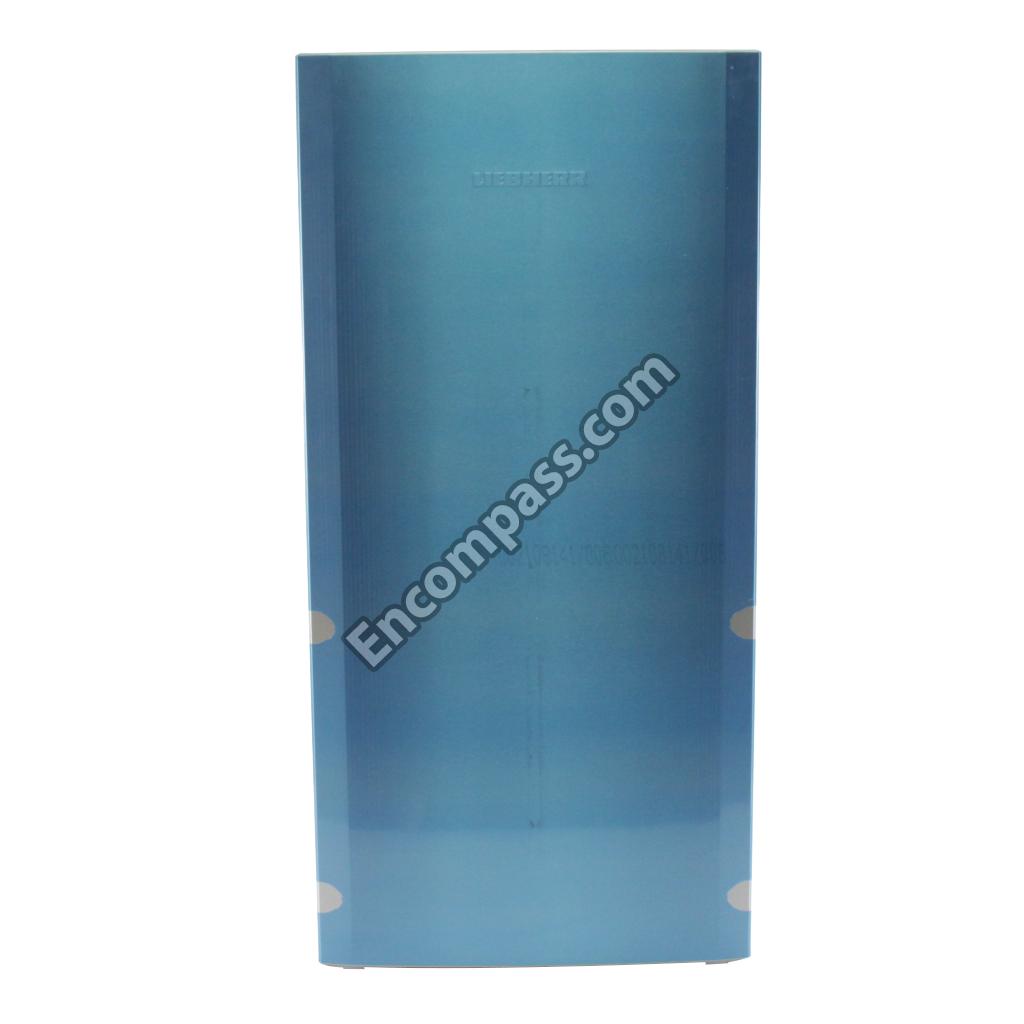

902132701 902132701 DOOR, CAVITY-FOAMED

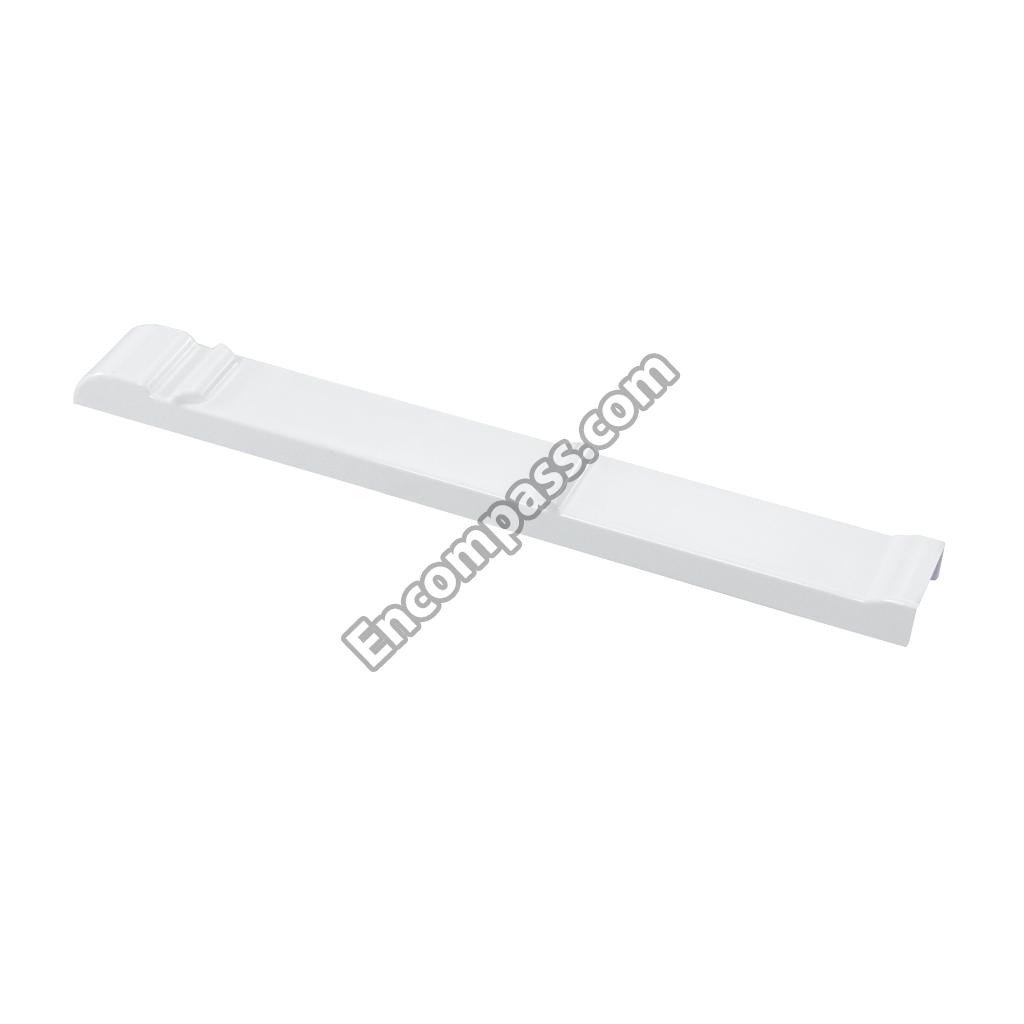

979135600 979135600 DRAWER TRIM, NON-PRINTED
742984001 742984001 DRAWER TRIM, PRINTED

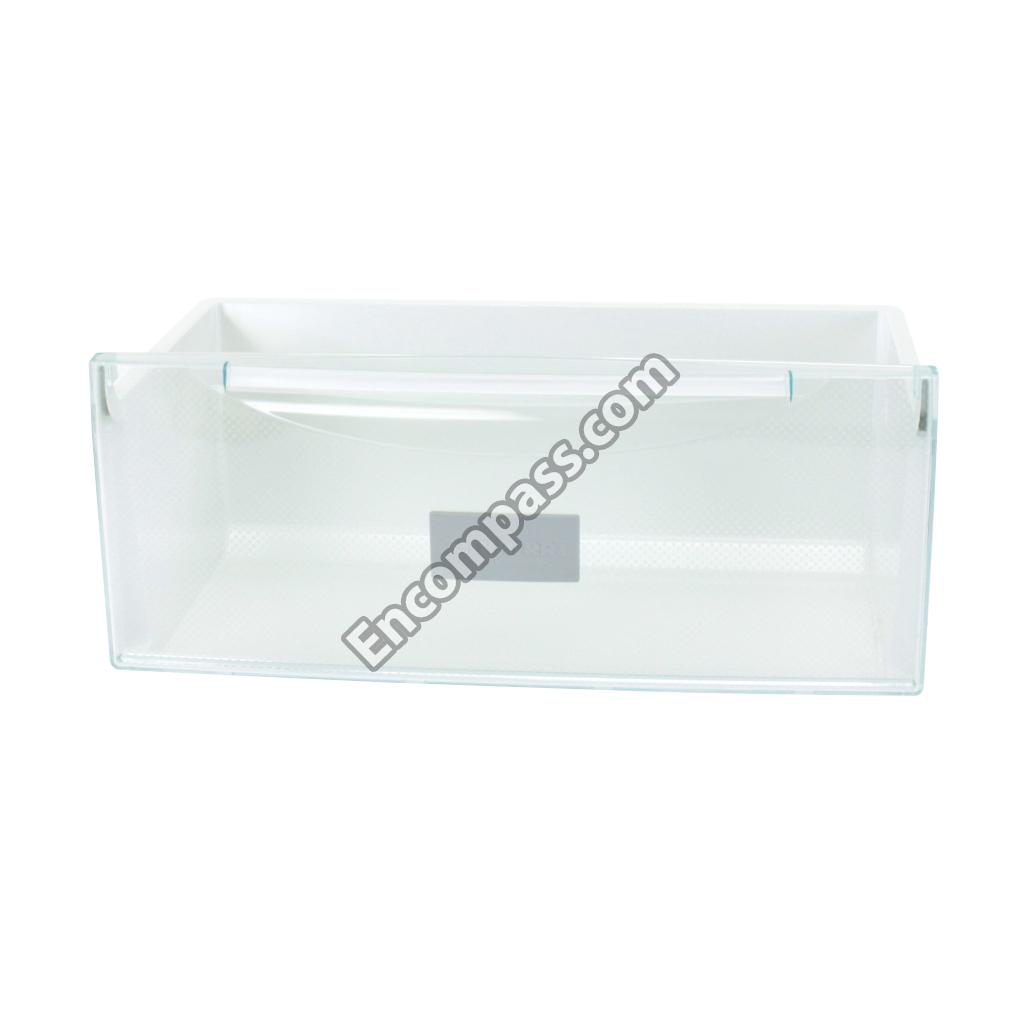

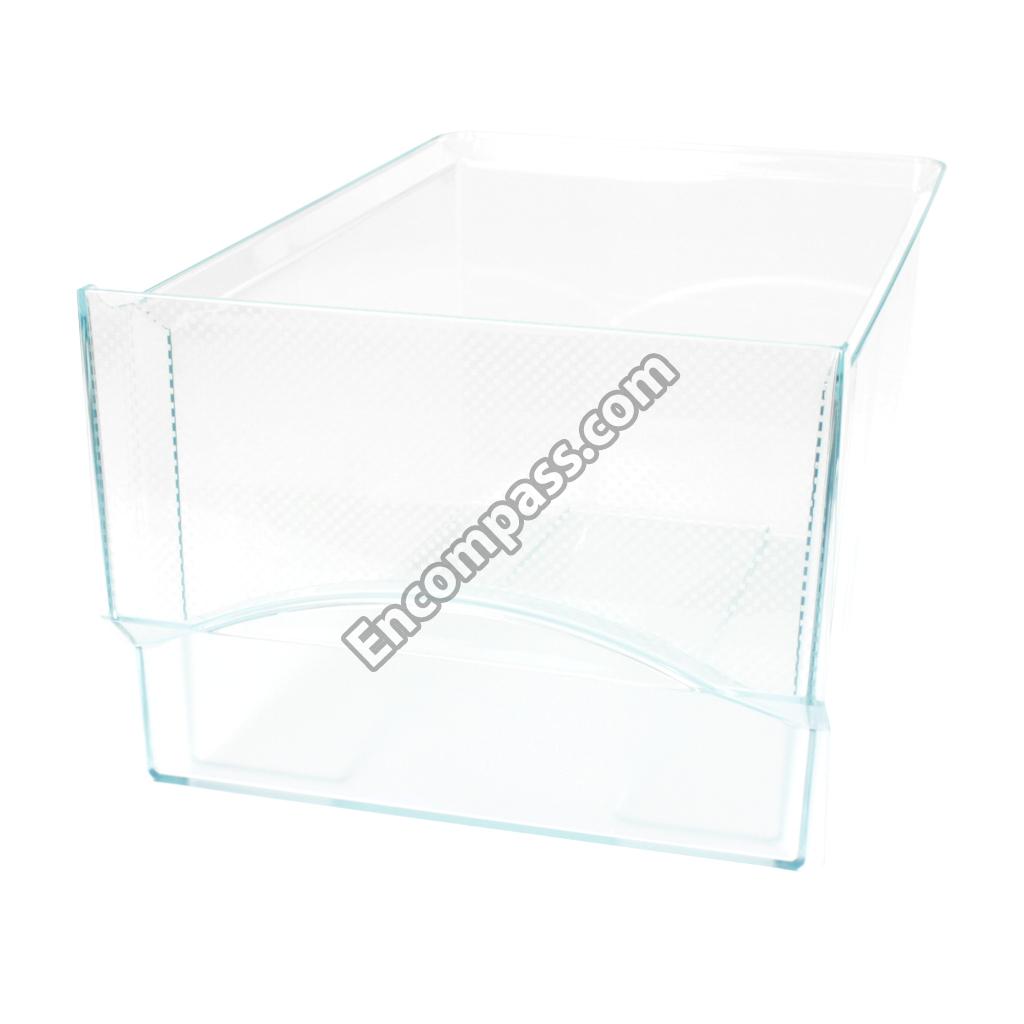

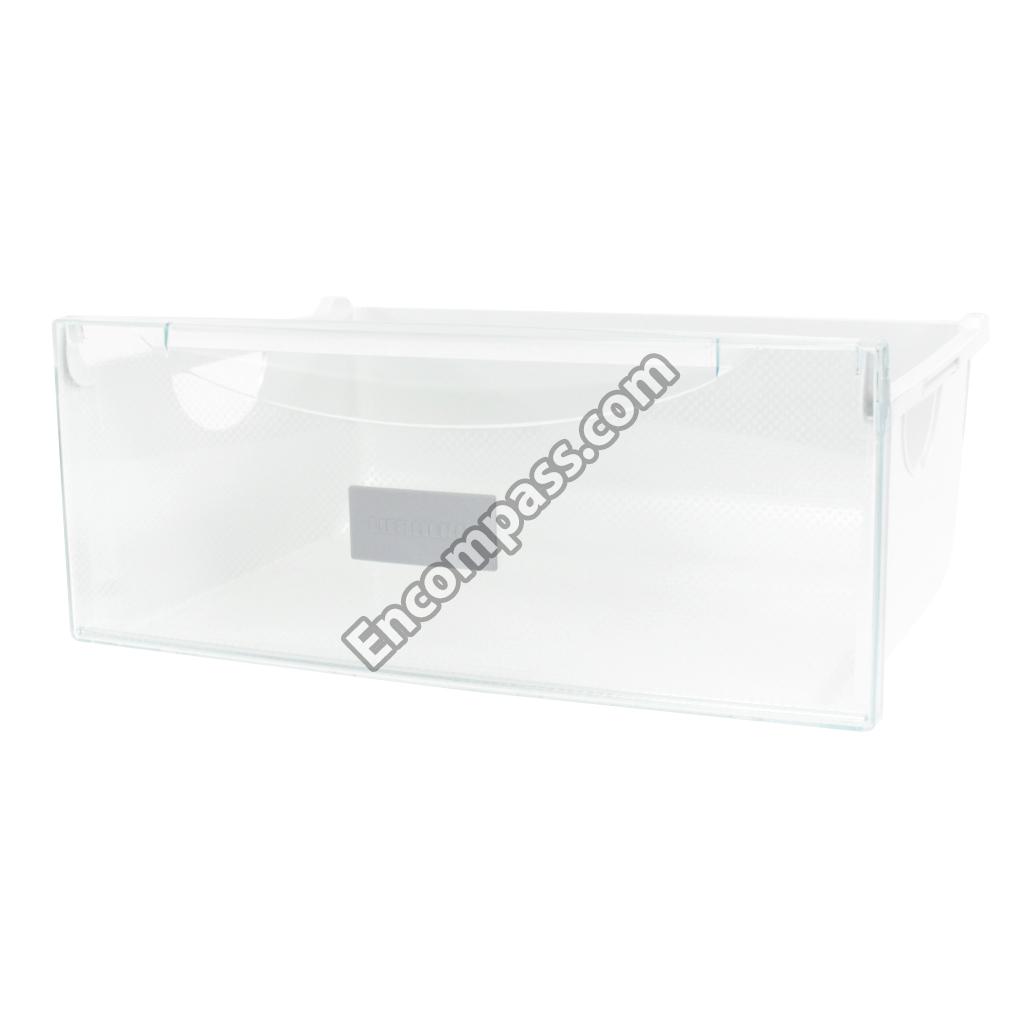

979243500 979243500 DRAWER-COMPLETE
979243900 979243900 DRAWER-COMPLETE
979243700 979243700 DRAWER-COMPLETE
594207001 594207001 DRYER
989064101 989064101 EVAPORATOR TRAYS
629901600 629901600 FAN BLADE
741309001 741309001 FAN COVER
743818900 743818900 FAN COVER PRE-ASSEMBLED
743702900 743702900 FASTENING
711044101 711044101 GASKET
711043701 711043701 GASKET

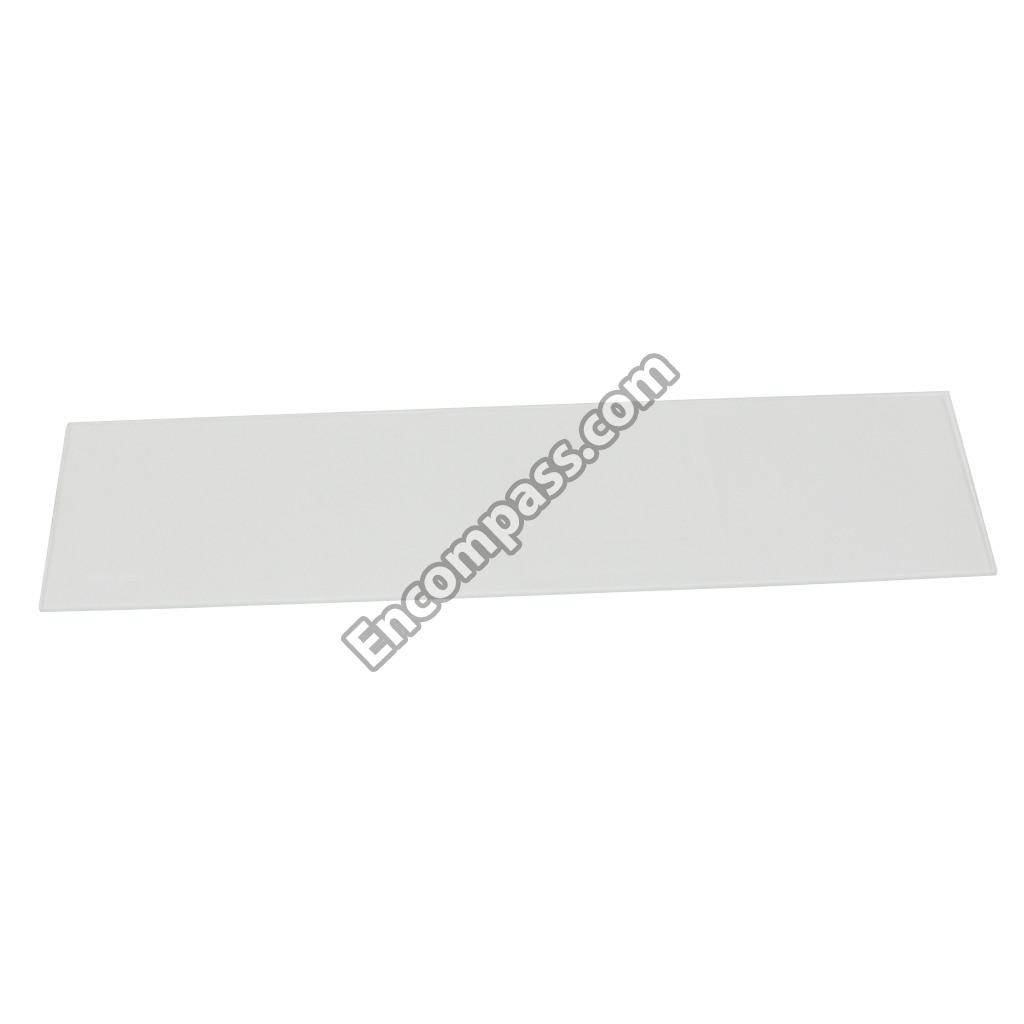

727227700 727227700 GLASS PLATE - COMPLETE
959019001 959019001 HANDLE, WRAPPED

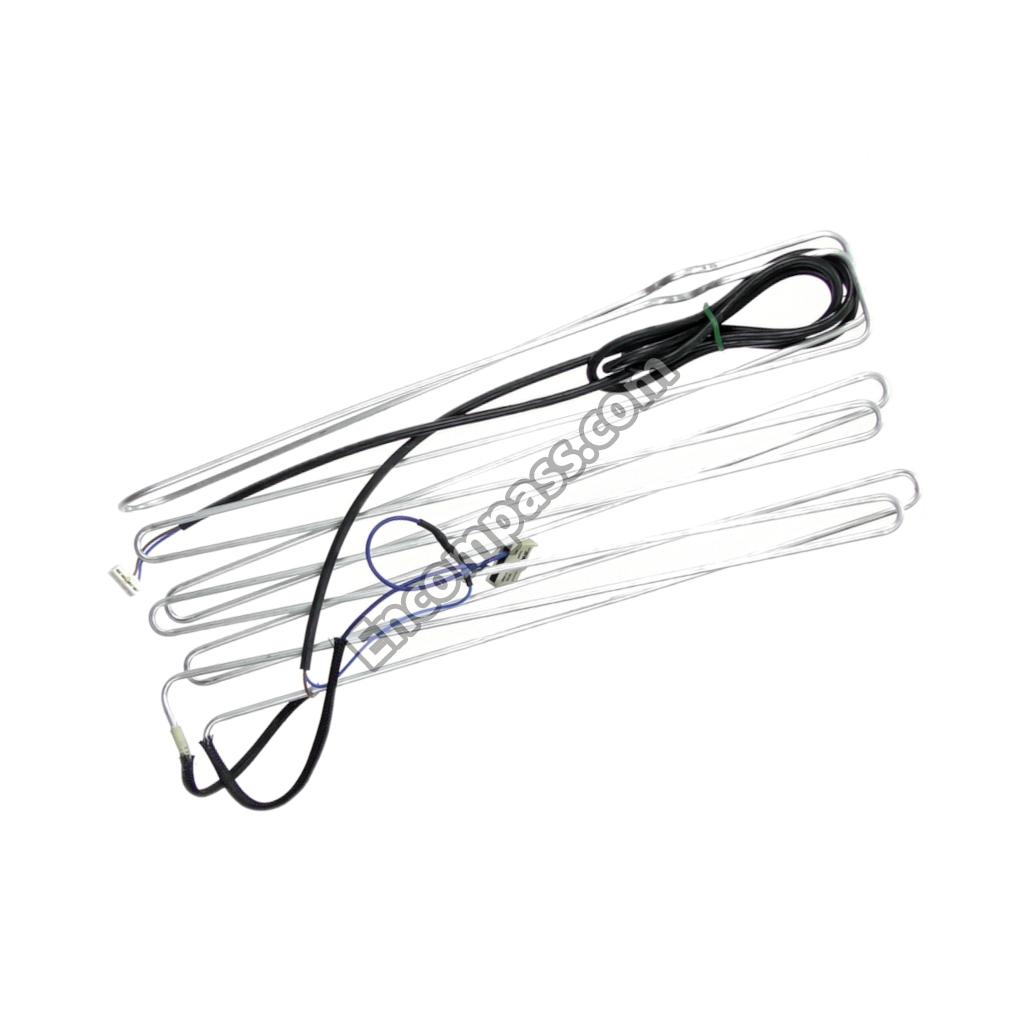

694155300 694155300 HEATING TUBE
694157100 694157100 HEATING TUBE
409836000 409836000 HEXAGON-HEAD SELF-TAPPING SCREW
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW
409813401 409813401 HEXAGON-HEAD SELF-TAPPING SCREW
409826400 409826400 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
409827000 409827000 HEXAGON-HEAD SELF-TAPPING SCREW
409826600 409826600 HEXAGON-HEAD SELF-TAPPING SCREW
409811202 409811202 HEXAGON-HEAD SELF-TAPPING SCREW
409843600 409843600 HEXAGON-HEAD SELF-TAPPING SCREW
409838800 409838800 HEXAGON-HEAD SELF-TAPPING SCREW
971072600 971072600 HOSE
994103101 994103101 HOSE
743714501 743714501 HOUS. AUDIBLE WARNING SIGNAL/FAN SWITCH
610864301 610864301 ICE-CUBE MAKER
704332400 704332400 KEY
704202900 704202900 KEY
607109601 607109601 LIGHT FIXTURE ELEMENTS
770048000 770048000 LOKRING
770049000 770049000 LOKRING
770047400 770047400 LOKRING
770049600 770049600 LOKRING
770048800 770048800 LOKRING
770046800 770046800 LOKRING
770045800 770045800 LOKRING

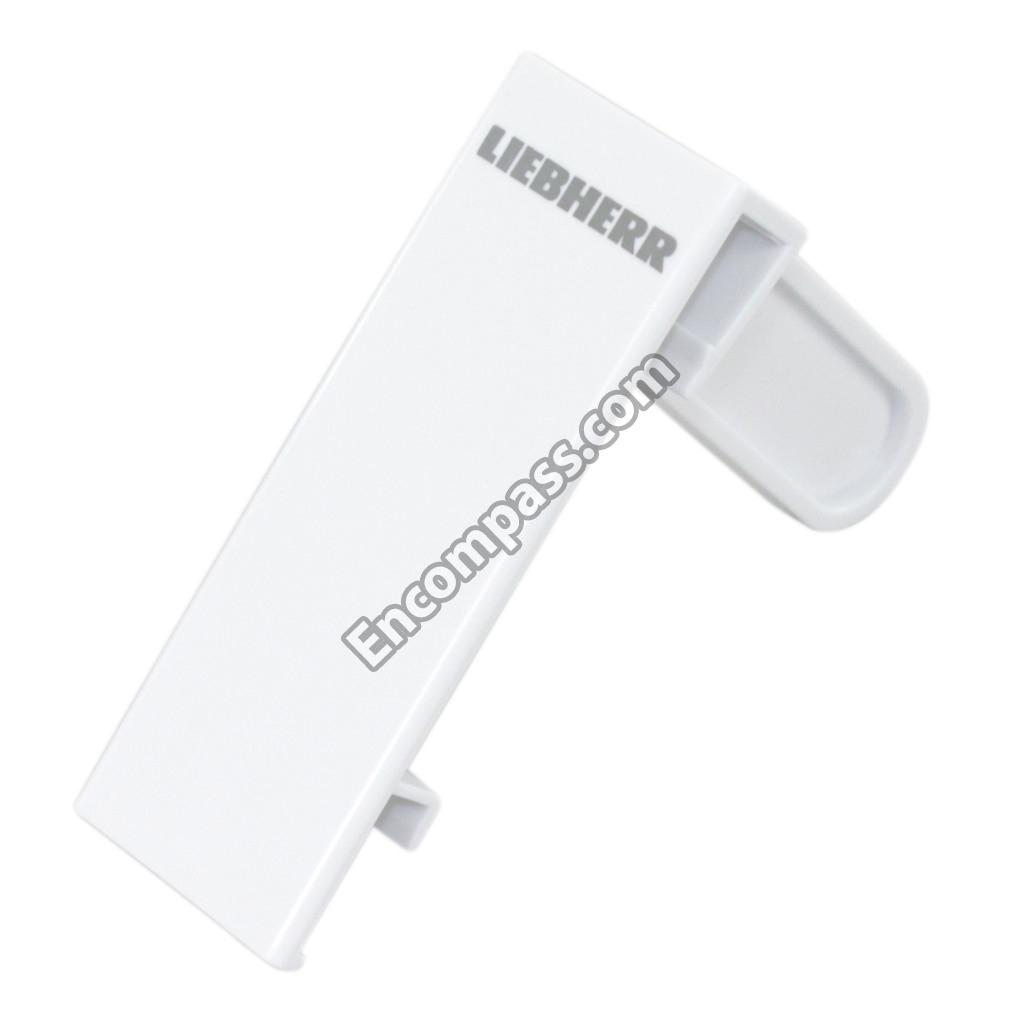

743849001 743849001 MOULDED HANDLE
743849201 743849201 MOULDED HANDLE
800308601 800308601 MOULDING
708556302 708556302 OPERATING INSTRUCTIONS
708556100 708556100 OPERATING INSTRUCTIONS

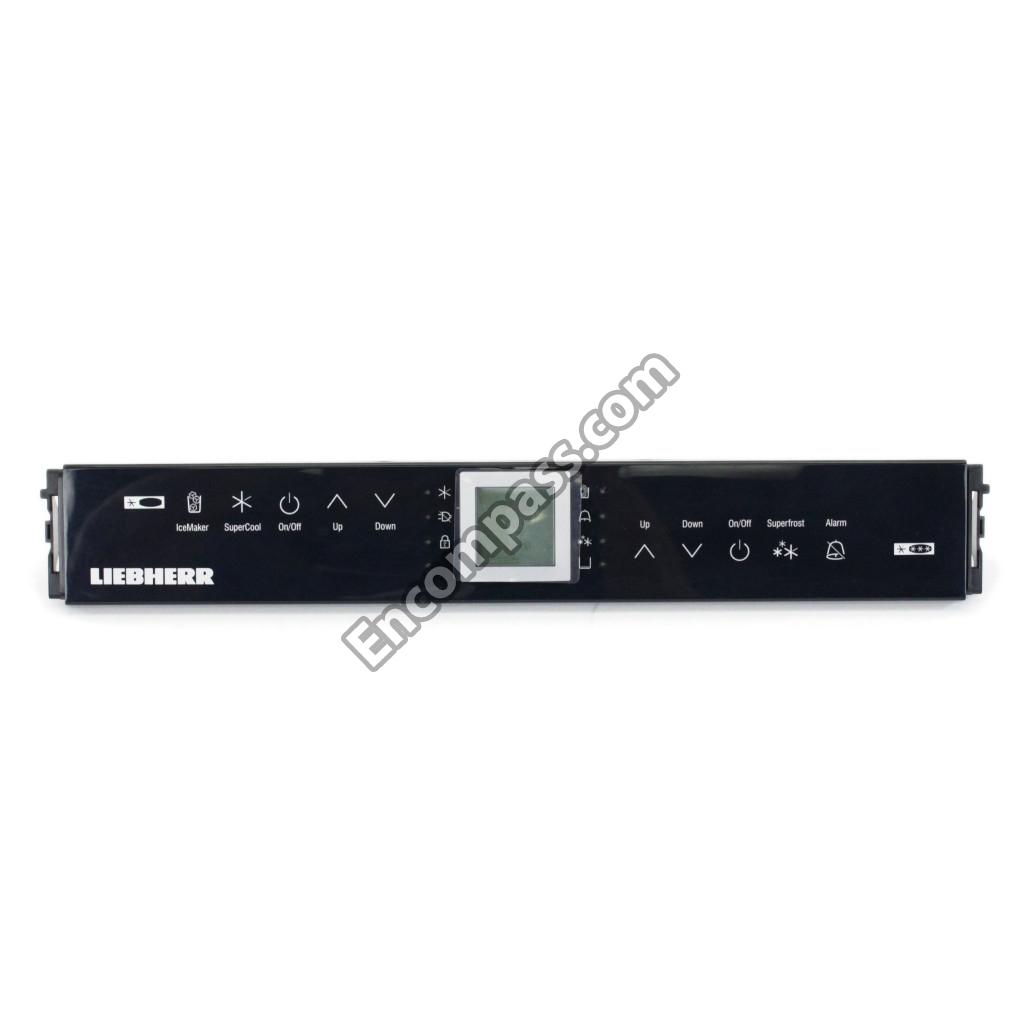

612400300 612400300 OPERATING PANEL HOUSING
408401302 408401302 OVAL-HEAD SCREW
408401600 408401600 OVAL-HEAD SCREW
409899101 409899101 OVAL-HEAD WOOD SCREW
801000600 801000600 PACKAGING
988108500 988108500 PACKAGING, COMPLETELY
987400900 987400900 PARTITION, COMPLETE
742542700 742542700 PLASTIC TUBE
741223300 741223300 PLUG
743202700 743202700 PLUG
743318800 743318800 PLUG
743267401 743267401 PLUG
742160200 742160200 PLUG
743364200 743364200 PLUG CONNECTOR WATER
743617400 743617400 PLUG CONNECTOR WATER
787102700 787102700 PLUG CONNECTOR WATER

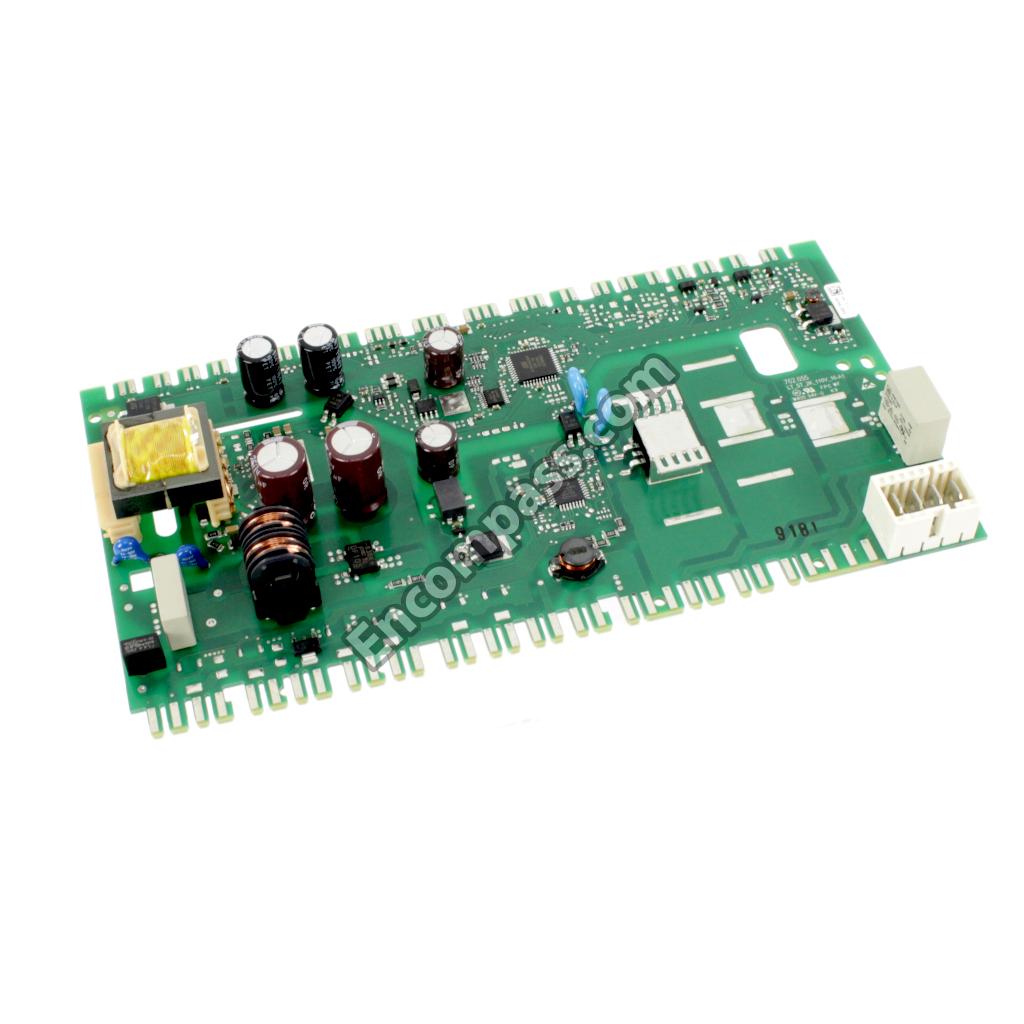

614319300 614319300 POWER BOARD
765261500 765261500 PROFILE STRIP
614318000 614318000 REED BOARD
614345800 614345800 REED BOARD
594466700 594466700 REFRIGERATOR EVAPORATOR, SPEC. DESIGN

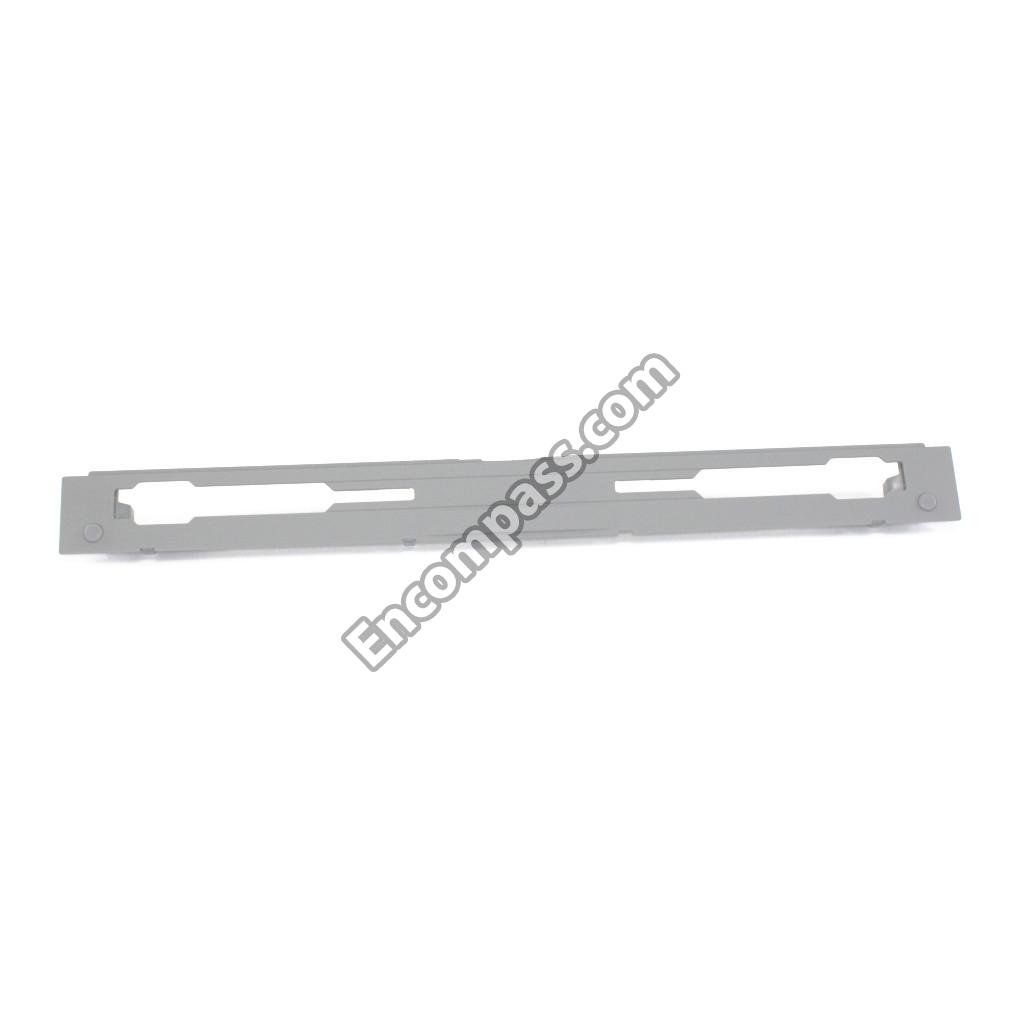

742998000 742998000 RETAINING STRIP FOR GLASS PLATES
742998100 742998100 RETAINING STRIP FOR GLASS PLATES
742853000 742853000 ROLLERS
710920300 710920300 SEAL
742468001 742468001 SENSOR RETAINING FIXTURE
726603601 726603601 SLEEVE
959275900 959275900 SOLENOID VALVE
950359500 950359500 SOLENOID VALVE
743050800 743050800 SPACERS
743090600 743090600 SPACERS
726679700 726679700 SPECIAL SECURING HARDWARE
726620201 726620201 SPECIAL SECURING HARDWARE

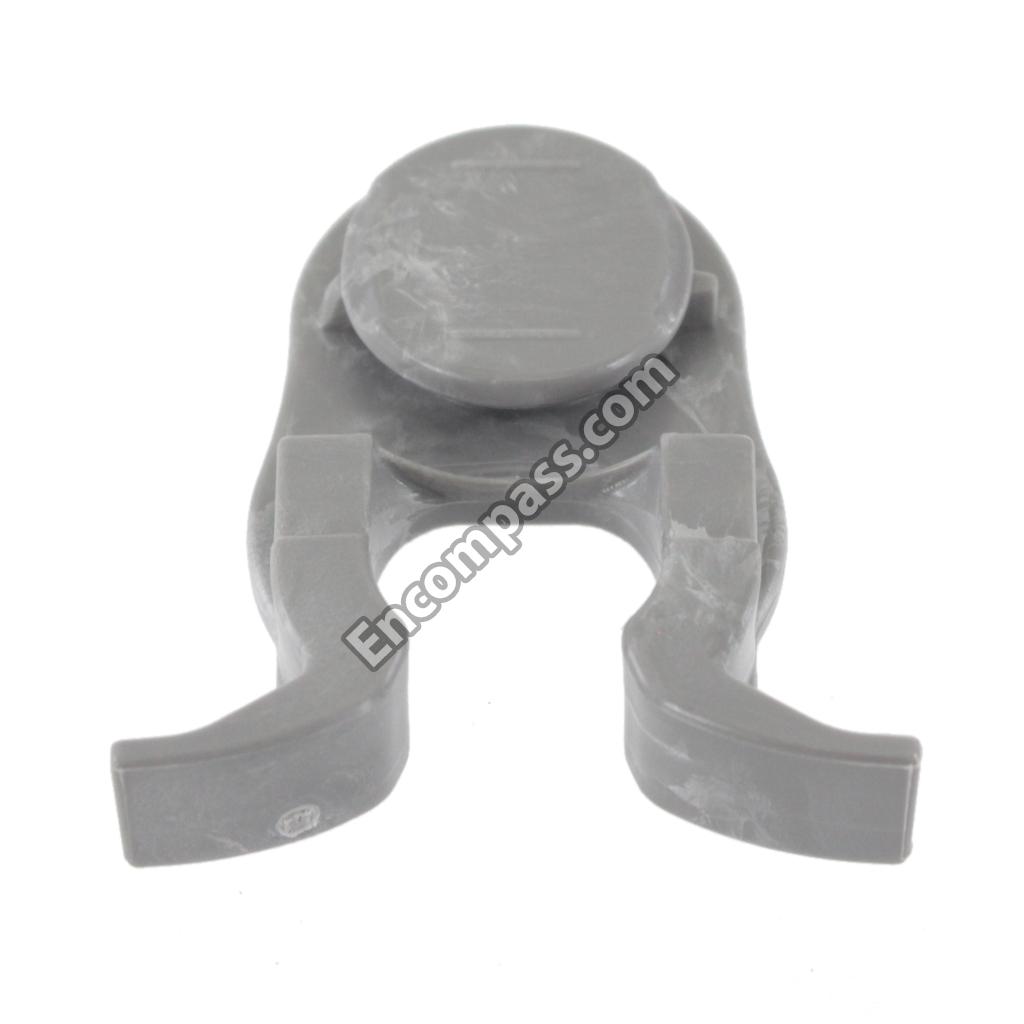

742127800 742127800 SPRING CLIP
704328400 704328400 STEEL BEARING BLOCK
909731100 909731100 STEEL BEARING BLOCK
704311700 704311700 STEEL BEARING BLOCK
600961300 600961300 SUPPLY LINE
750101000 750101000 SWITCHING COMPONENTS
615203800 615203800 TEMPERATURE LIMITER

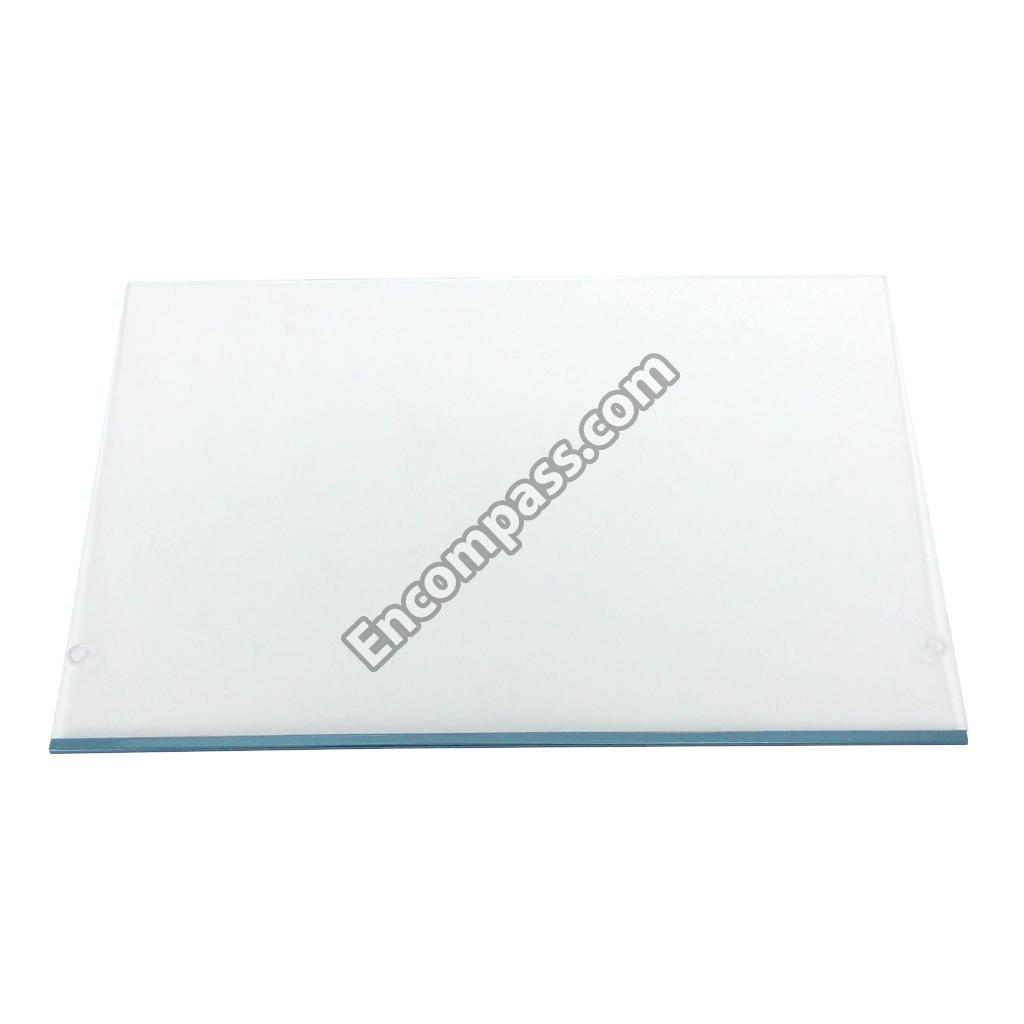

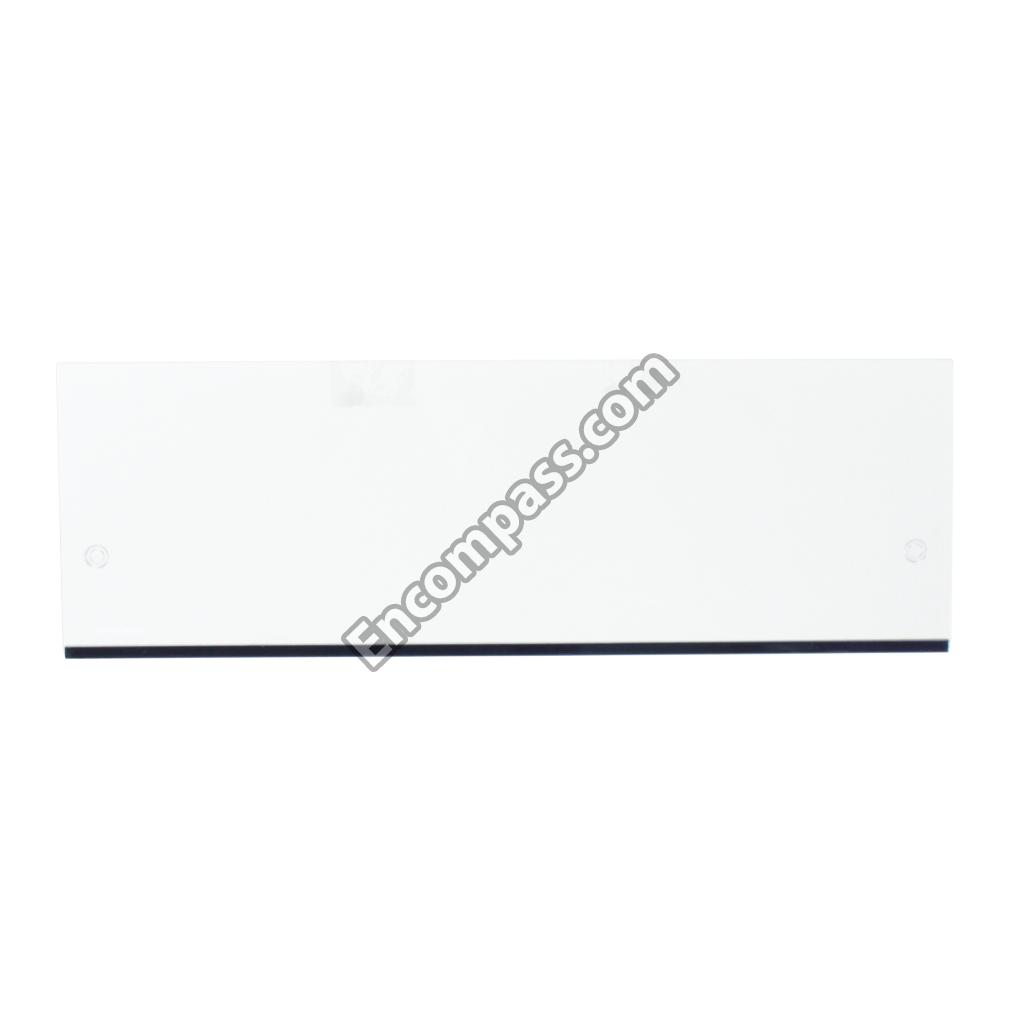

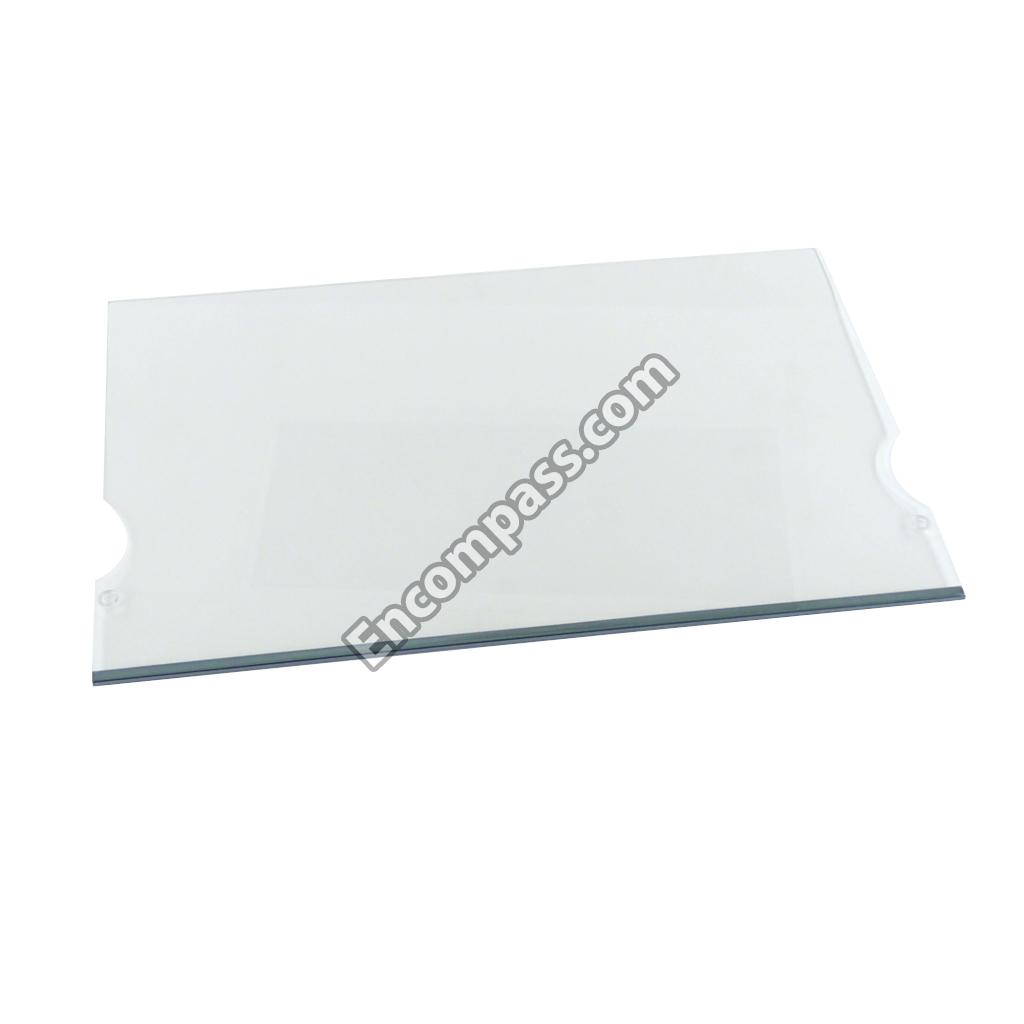

727228500 727228500 TOUGHENED SAFETY-GLASS PLATE
727225900 727225900 TOUGHENED SAFETY-GLASS PLATE
727226500 727226500 TOUGHENED SAFETY-GLASS PLATE
727147601 727147601 TOUGHENED SAFETY-GLASS PLATE
727259400 727259400 TOUGHENED SAFETY-GLASS PLATE
929041600 929041600 TRAY
764084400 764084400 TRIM STRIP PROFILE
743733400 743733400 VARIABLE EGG TRAY
743078400 743078400 VARIOUS HOUSINGS
743837200 743837200 VARIOUS HOUSINGS
743855700 743855700 VARIOUS INJECTION-MOULDED ITEMS
743181900 743181900 VARIOUS INJECTION-MOULDED ITEMS
743852300 743852300 VARIOUS INJECTION-MOULDED ITEMS
742857002 742857002 VARIOUS INJECTION-MOULDED ITEMS
726605200 726605200 VARIOUS INJECTION-MOULDED ITEMS
742789200 742789200 VARIOUS INJECTION-MOULDED ITEMS
743215600 743215600 VARIOUS INJECTION-MOULDED ITEMS
743266002 743266002 VARIOUS INJECTION-MOULDED ITEMS
743007700 743007700 VARIOUS INJECTION-MOULDED ITEMS
743639801 743639801 VARIOUS INJECTION-MOULDED ITEMS
742853600 742853600 VARIOUS PLATES
742853200 742853200 VARIOUS PLATES
742853400 742853400 VARIOUS PLATES
774819600 774819600 VARIOUS PLATES

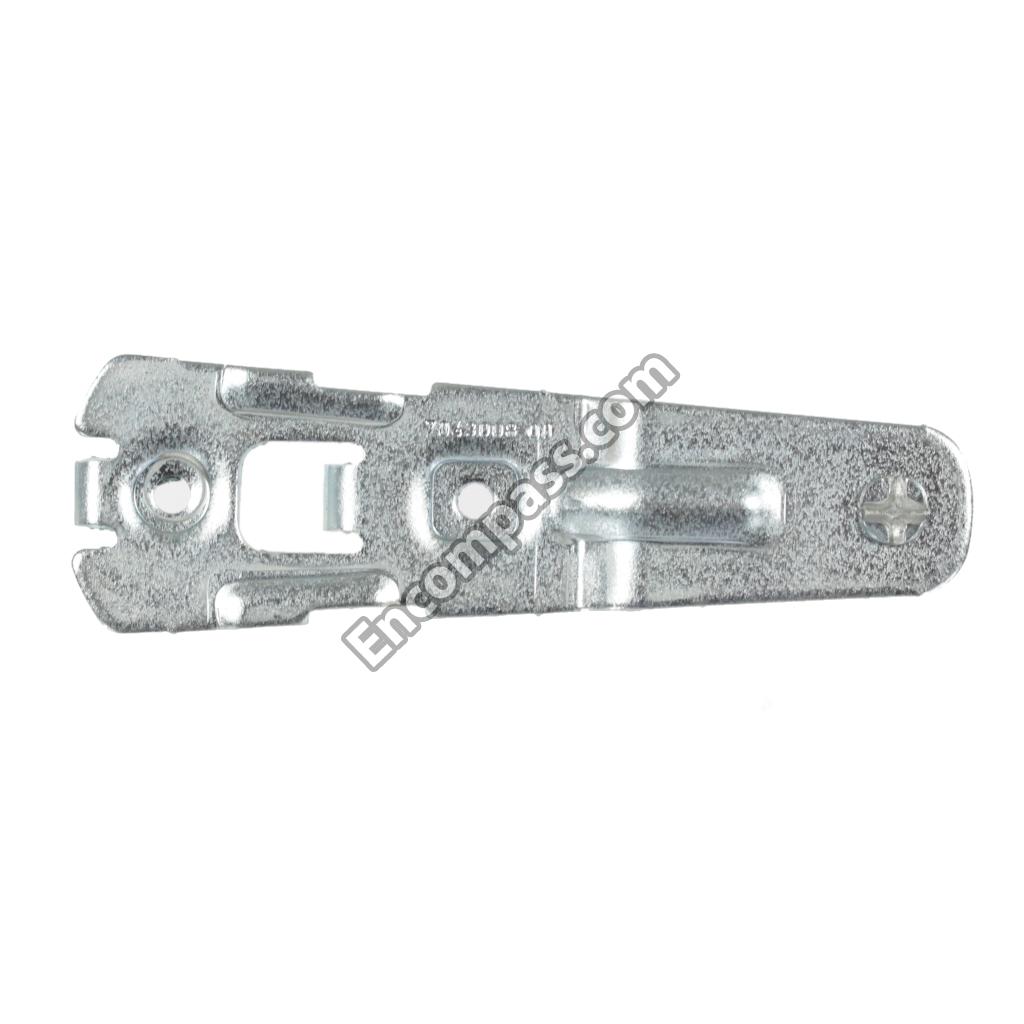

742223400 742223400 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
743300600 743300600 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
743829200 743829200 VARIOUS RETAINING FIXTURES
743232800 743232800 WASHER
994159300 994159300 WATER INTAKE
704275200 704275200 ZINC DIE-CAST BEARING BLOCK
743235600 743235600 ZINC DIE-CAST BEARING BLOCK
