Model Image
Manufacturer

Liebherr

Model Number

GRT50S2HC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
743858700 743858700 AIR FUNNEL
743007301 743007301 AIR FUNNEL
704430900 704430900 BRACKET
774566300 774566300 BRACKET
726607901 726607901 BUFFER

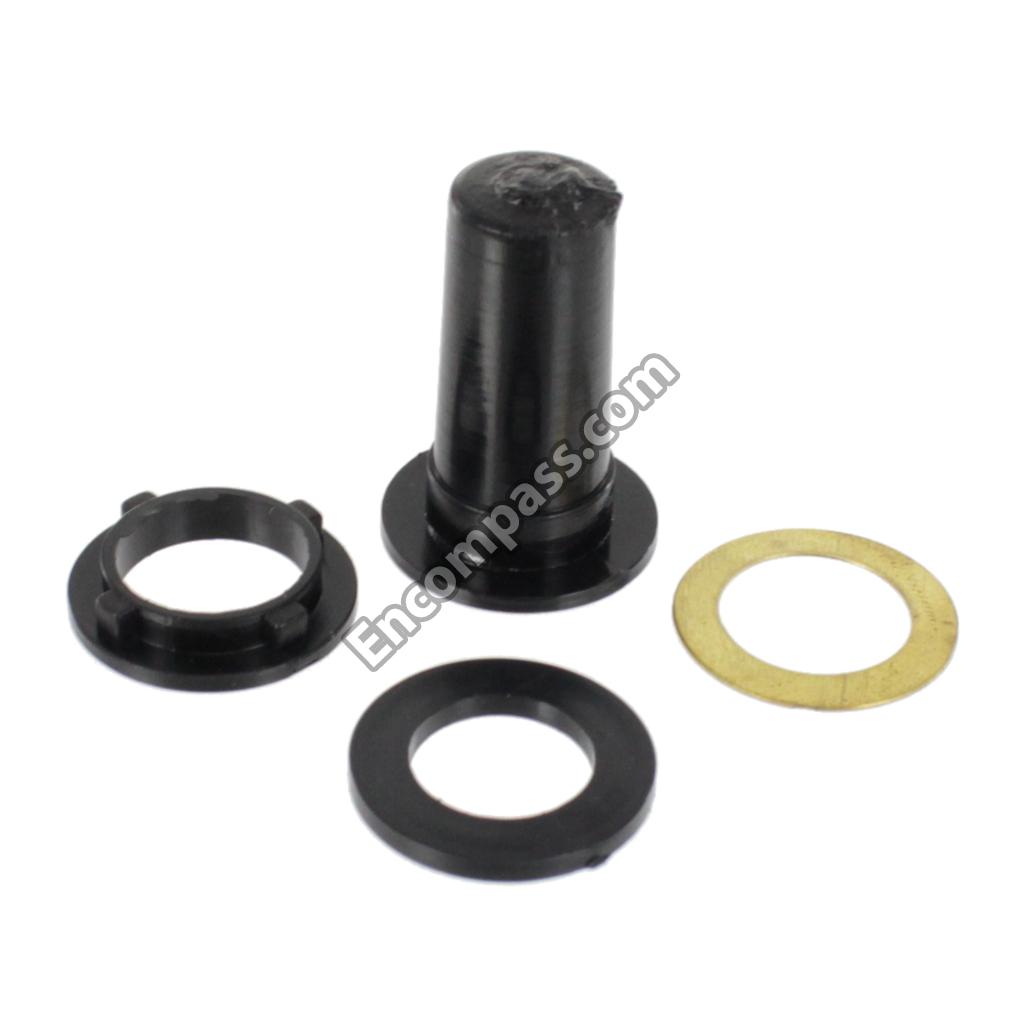

740289401 740289401 BUSHING
704321300 704321300 BUSHING

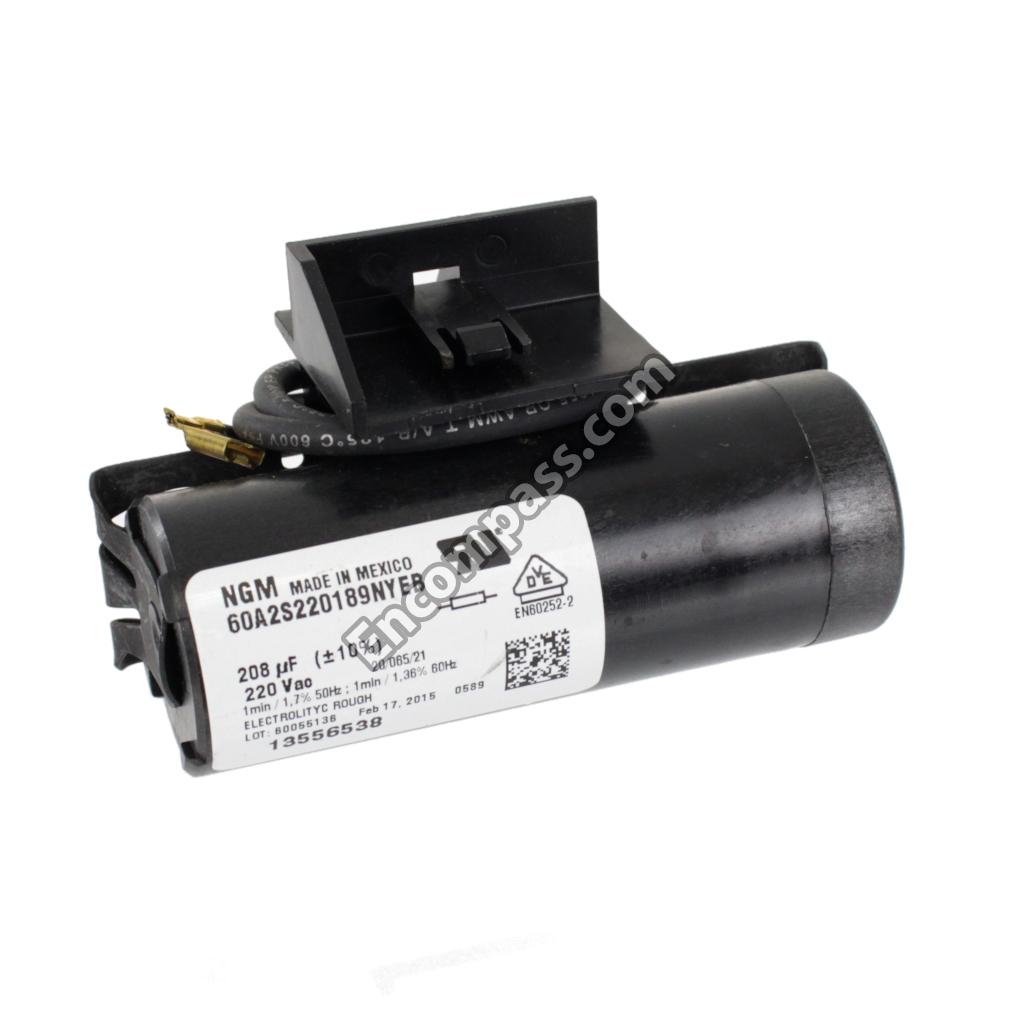

634274800 634274800 CAPACITOR
612076800 612076800 COMPRESSOR R 290
594164300 594164300 CONDENSER WIRE TUBE, UPRIGHT
408450001 408450001 COUNTERSUNK SCREW
409814401 409814401 COUNTERSUNK SCREW
408288101 408288101 COUNTERSUNK SELF-TAPPING SCREW
742939101 742939101 COVER
743338100 743338100 COVER PLATE
742773900 742773900 COVER PLATE
742762300 742762300 COVERS, VARIOUS
704339900 704339900 DOOR HINGE
704339300 704339300 DOOR HINGE
704339500 704339500 DOOR HINGE
902114103 902114103 DOOR, CAVITY-FOAMED
594299701 594299701 DRYER
987447100 987447100 EVAPORATOR HOOD
743512500 743512500 EVAPORATOR TRAYS
742474900 742474900 FAN BLADE
629990503 629990503 FAN BLADE
743008101 743008101 FASTENING

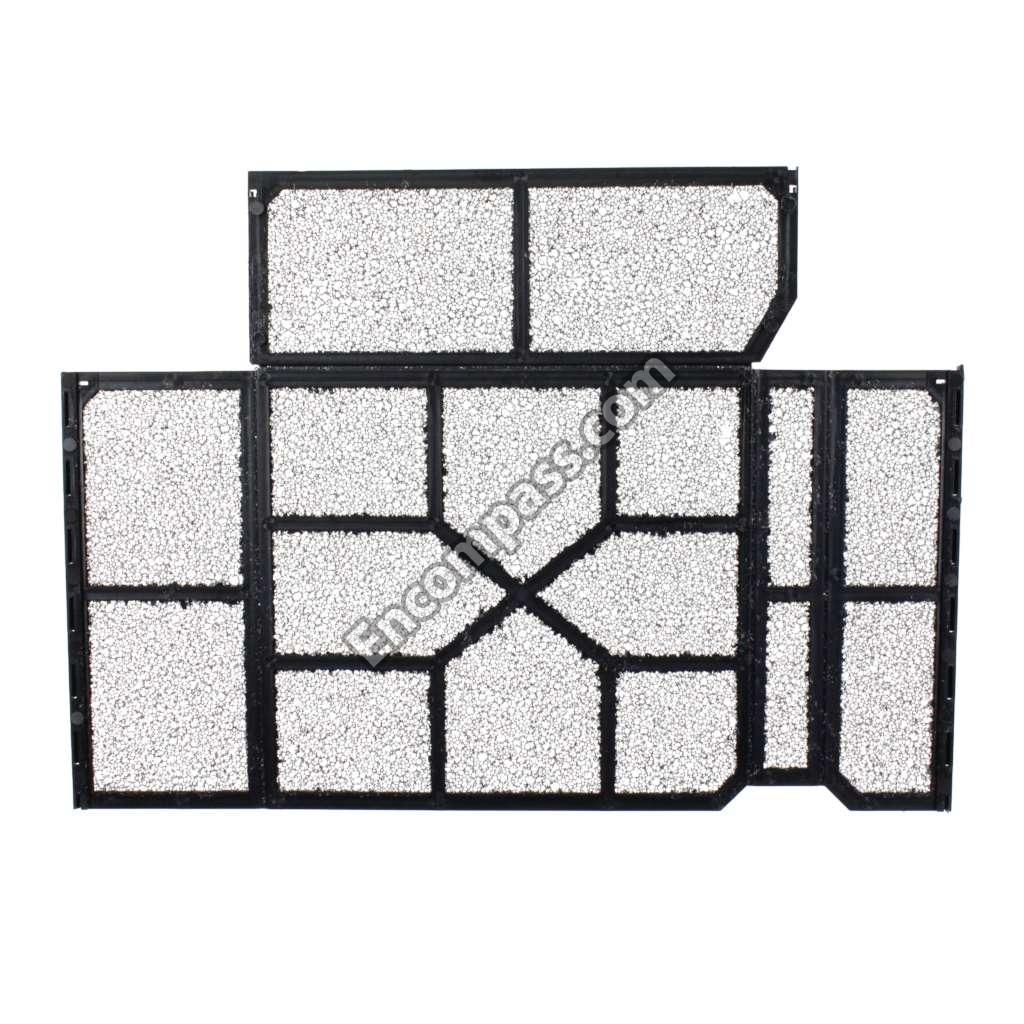

742917700 742917700 FILTER MAT

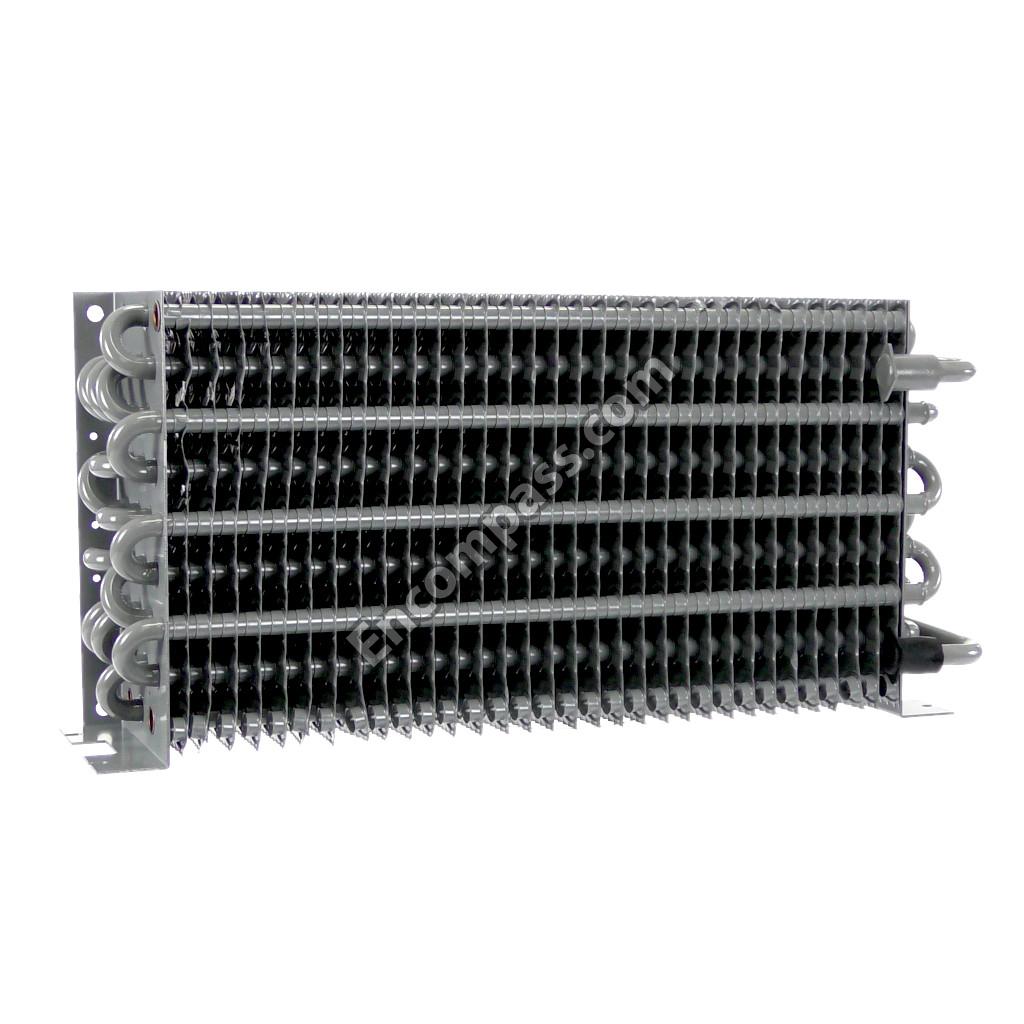

594071300 594071300 FIN-TYPE EVAPORATOR
804273900 804273900 FOLDING CARDBOARD BOX
711050000 711050000 GASKET
409810001 409810001 HEXAGON-HEAD SELF-TAPPING SCREW
994175101 994175101 HOSE
708403701 708403701 INFORMATION SHEETS
611464700 611464700 INTEGRAL BOARD
611435700 611435700 INTEGRAL BOARD
607167500 607167500 INTERIOR LIGHT
704334100 704334100 KEY

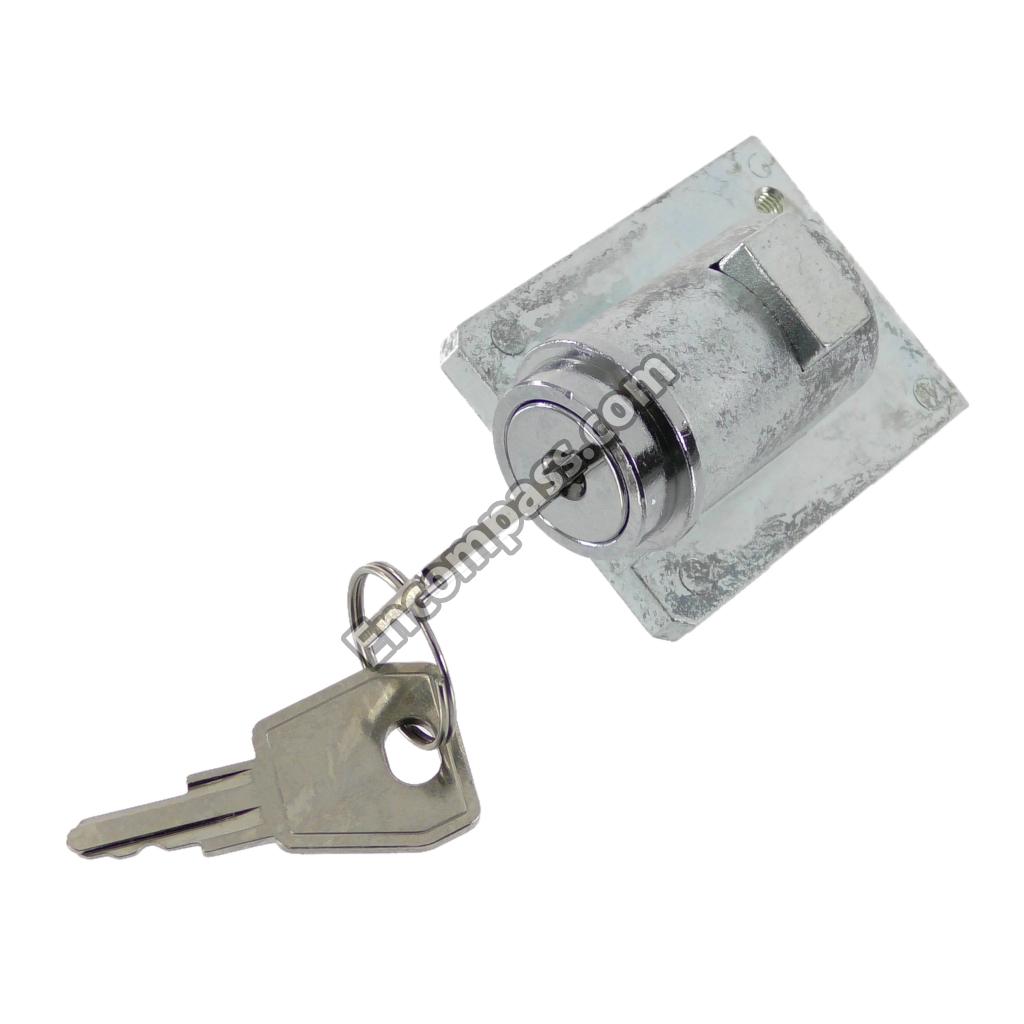

704319700 704319700 LOCK

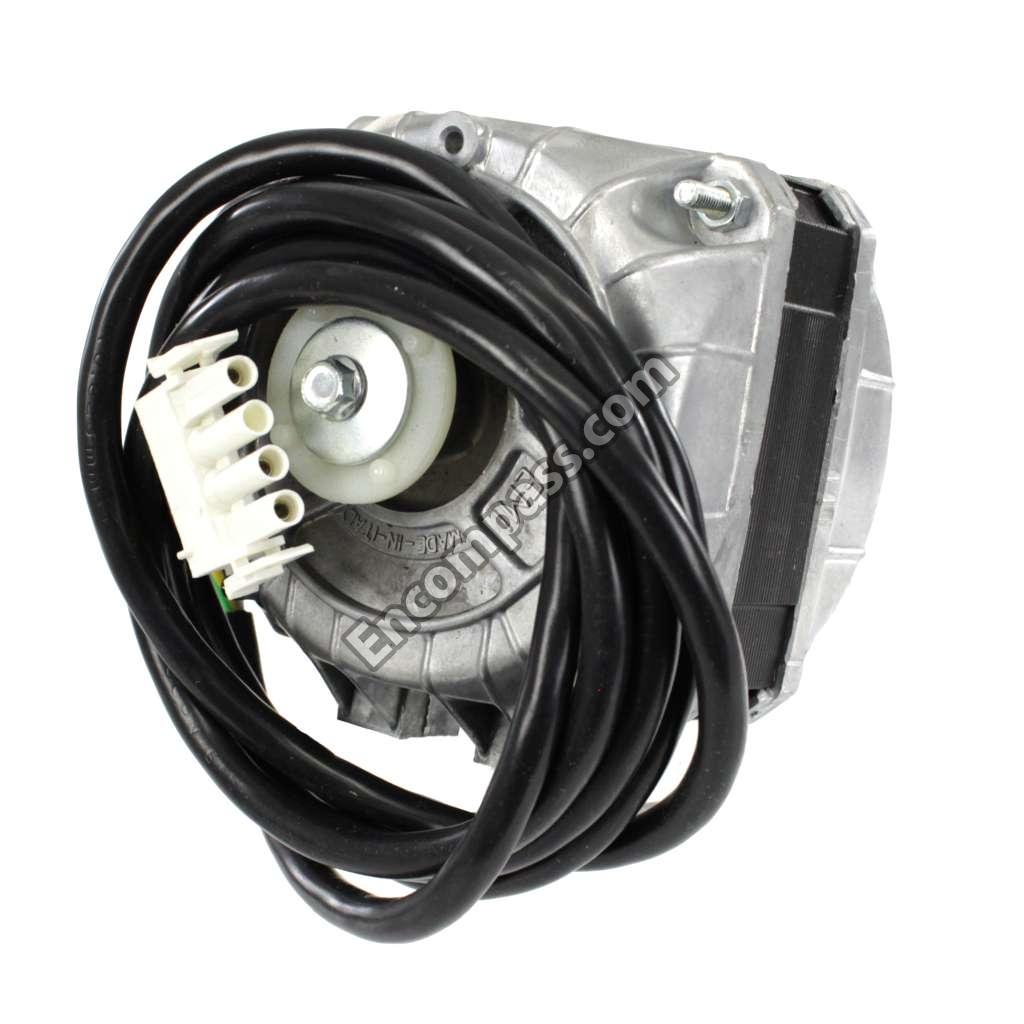

611861500 611861500 MOTOR

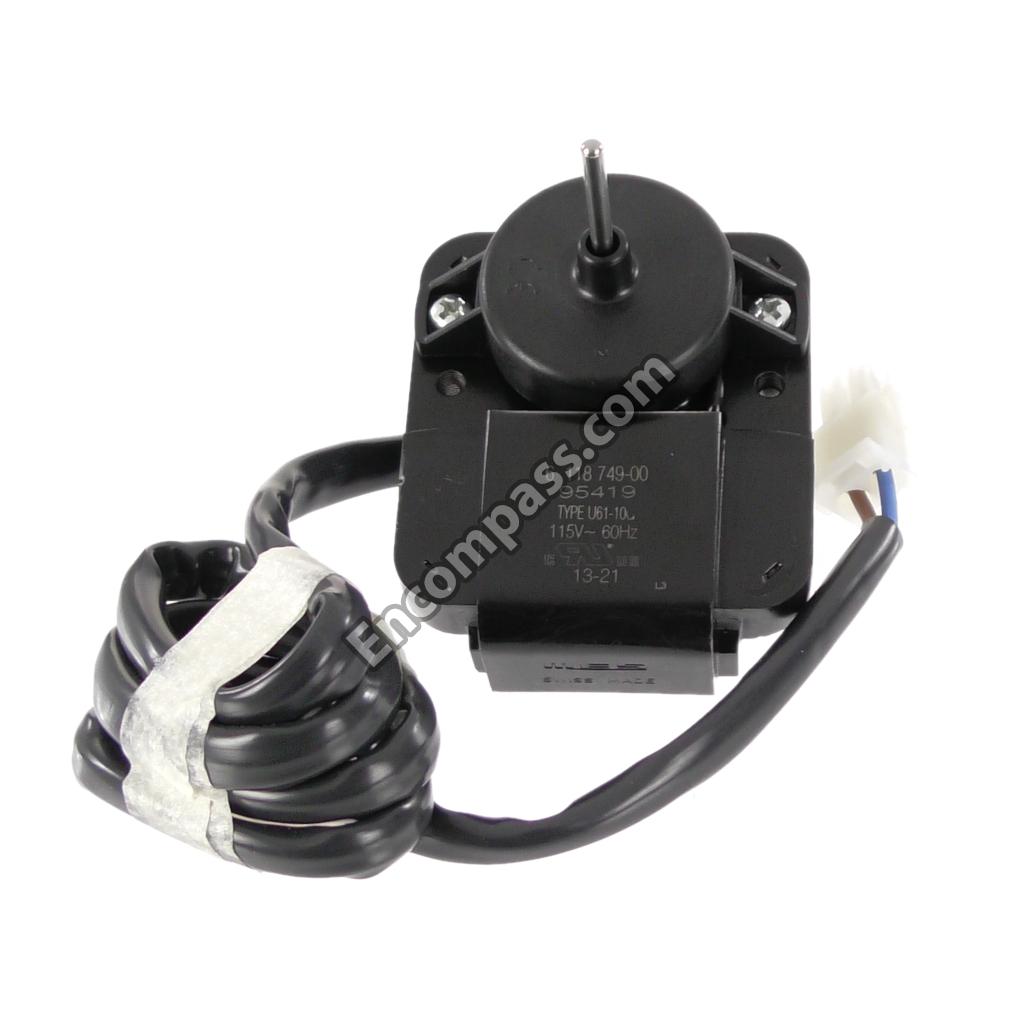

611863300 611863300 MOTOR
773953900 773953900 OPERATING UNIT FILM
408478301 408478301 OVAL-HEAD SCREW
409898901 409898901 OVAL-HEAD SCREW
409863700 409863700 OVAL-HEAD SCREW
409868100 409868100 OVAL-HEAD SCREW
408479500 408479500 OVAL-HEAD SCREW
408281301 408281301 OVAL-HEAD SELF-TAPPING SCREW
408281401 408281401 OVAL-HEAD SELF-TAPPING SCREW
408273001 408273001 OVAL-HEAD SELF-TAPPING SCREW
409899701 409899701 OVAL-HEAD WOOD SCREW
409899101 409899101 OVAL-HEAD WOOD SCREW
988112100 988112100 PACKAGING, COMPLETELY
968060100 968060100 PARTS, POWDER-COATED, COLOURED
770057300 770057300 PIPE
770063501 770063501 PIPE
602169700 602169700 PLUG HOUSING

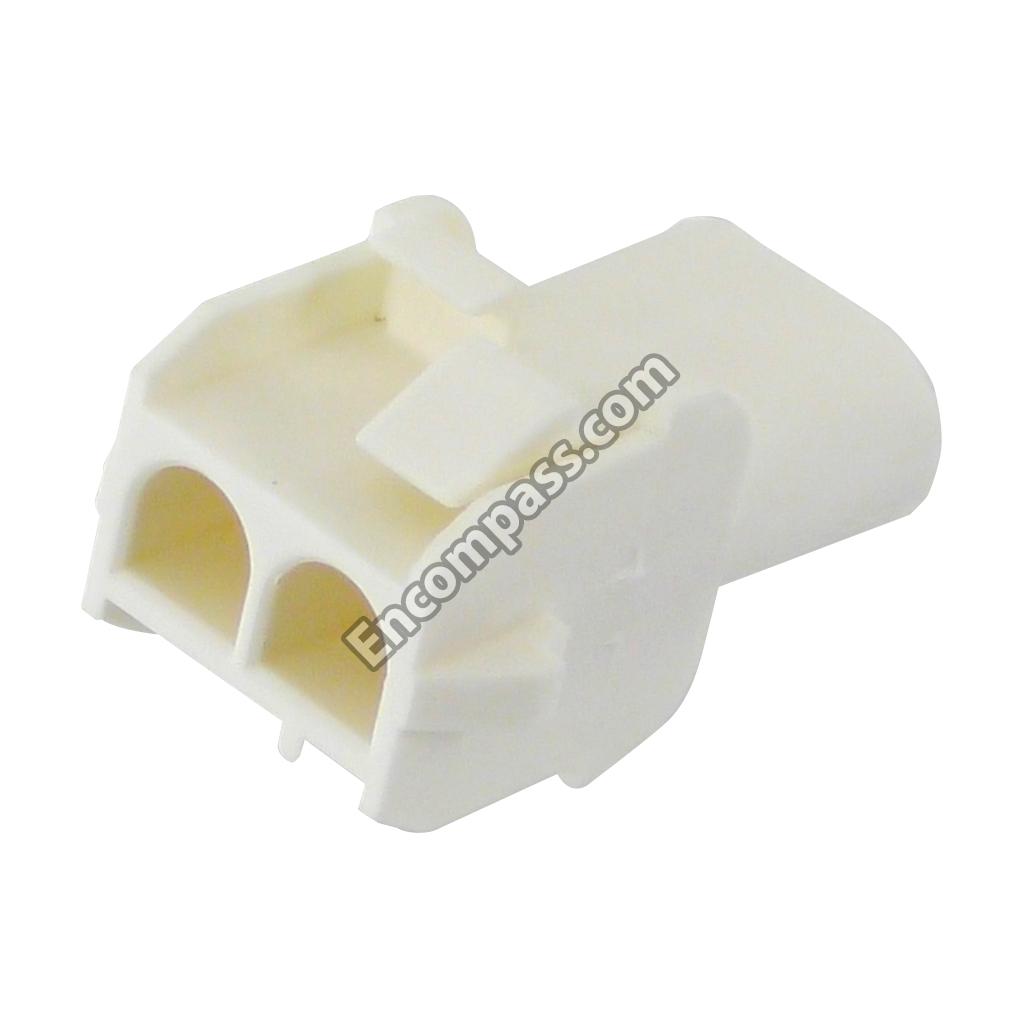

602108801 602108801 PLUG HOUSING
602109001 602109001 PLUG HOUSING

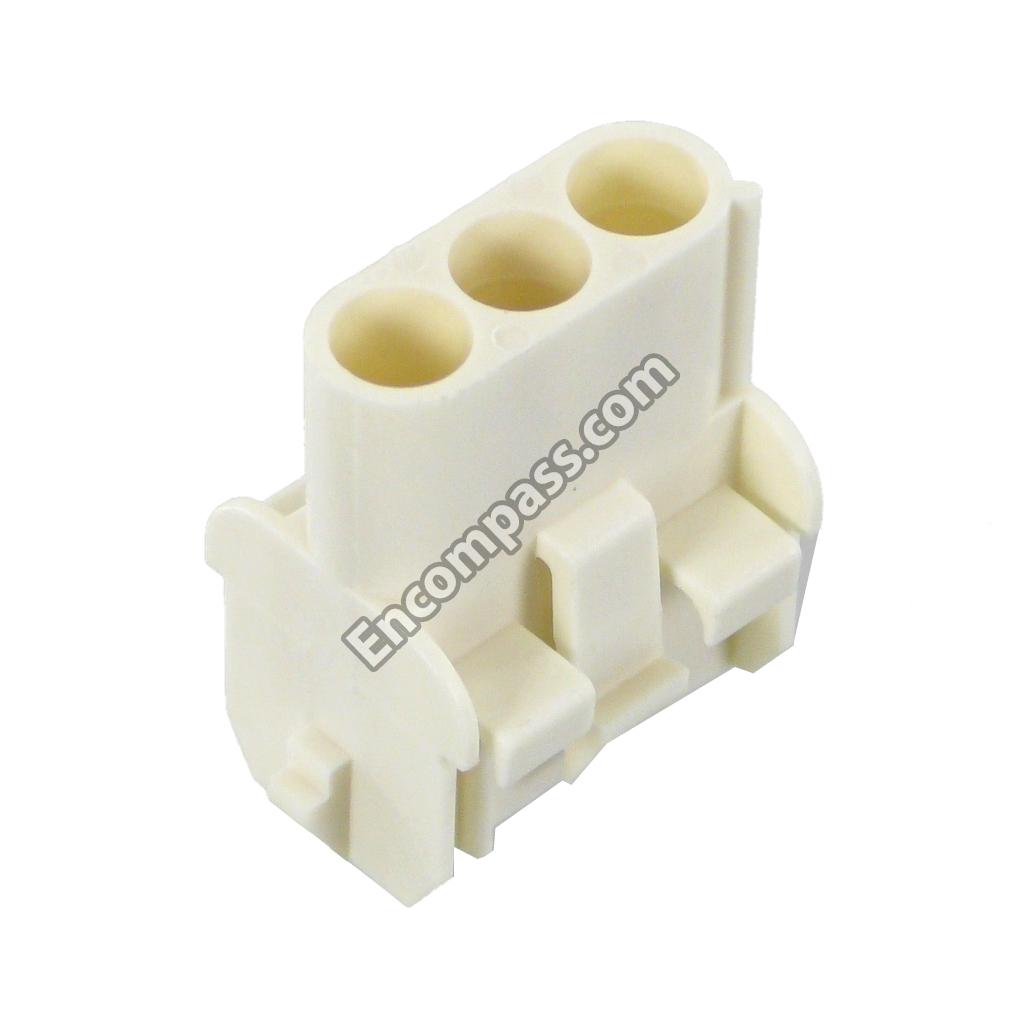

602108601 602108601 PLUG HOUSING
602108201 602108201 PLUG HOUSING

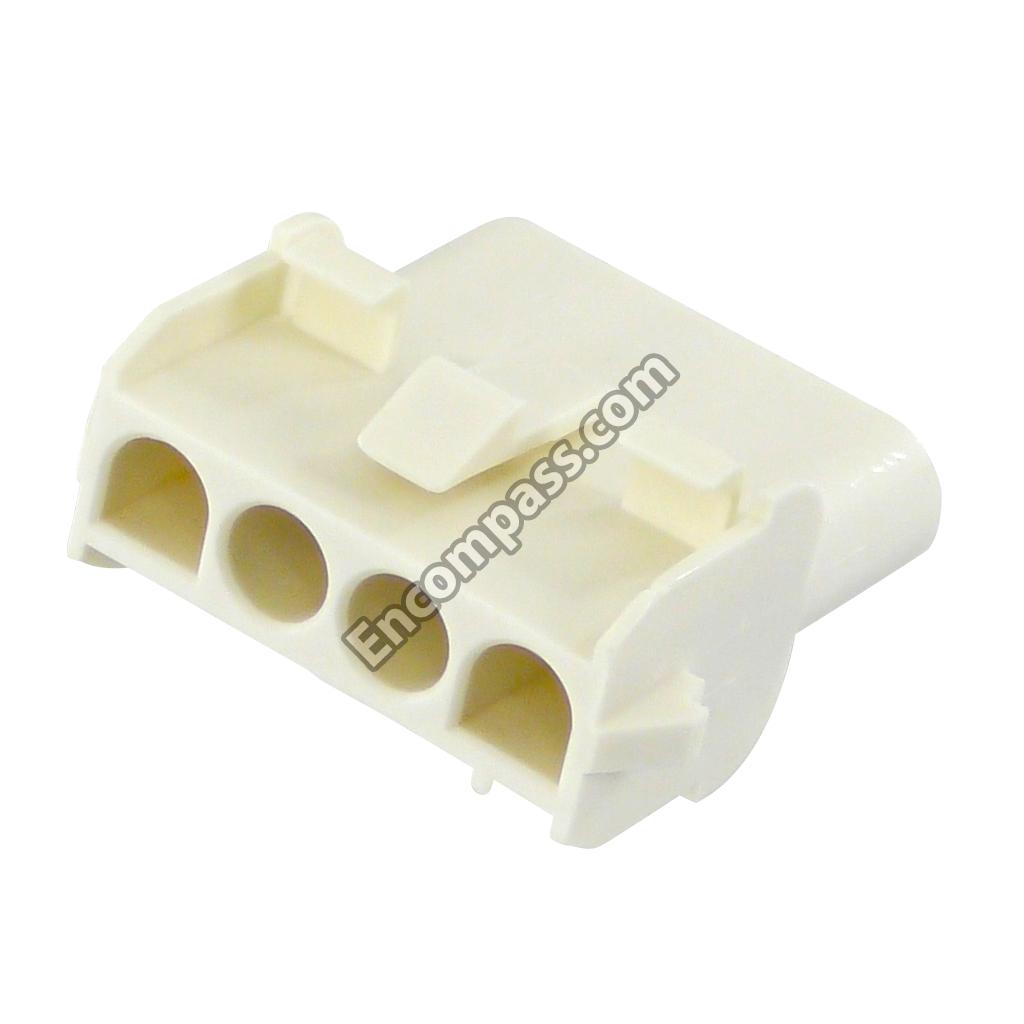

602100401 602100401 PLUG HOUSING

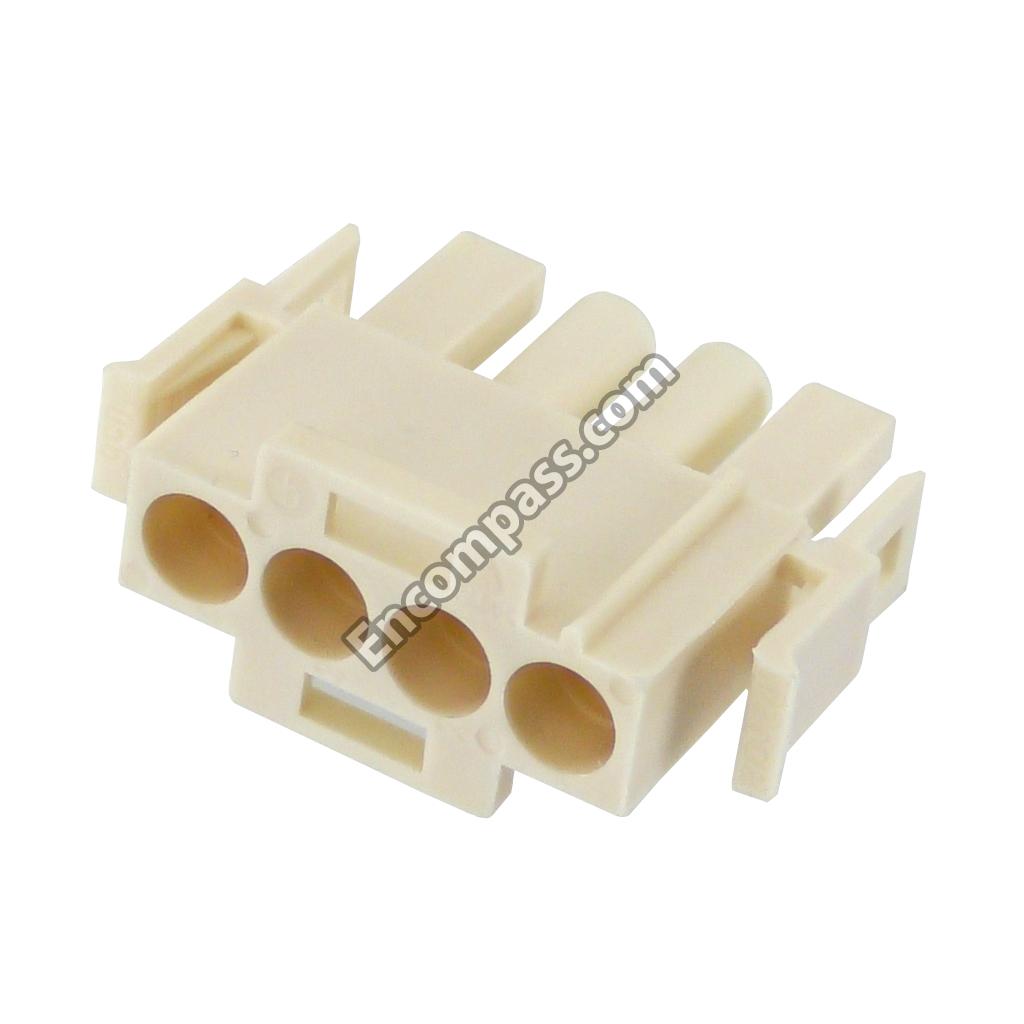

602101401 602101401 PLUG HOUSING
904155701 904155701 PROFILE STRIP
929165901 929165901 PROGRAMMED ELECTRONIC
774746500 774746500 REFR. UNIT HOUSING, FRONT SECTION
900703200 900703200 REFR. UNIT HOUSING, FRONT SECTION
900715700 900715700 REFR. UNIT HOUSING, FRONT SECTION

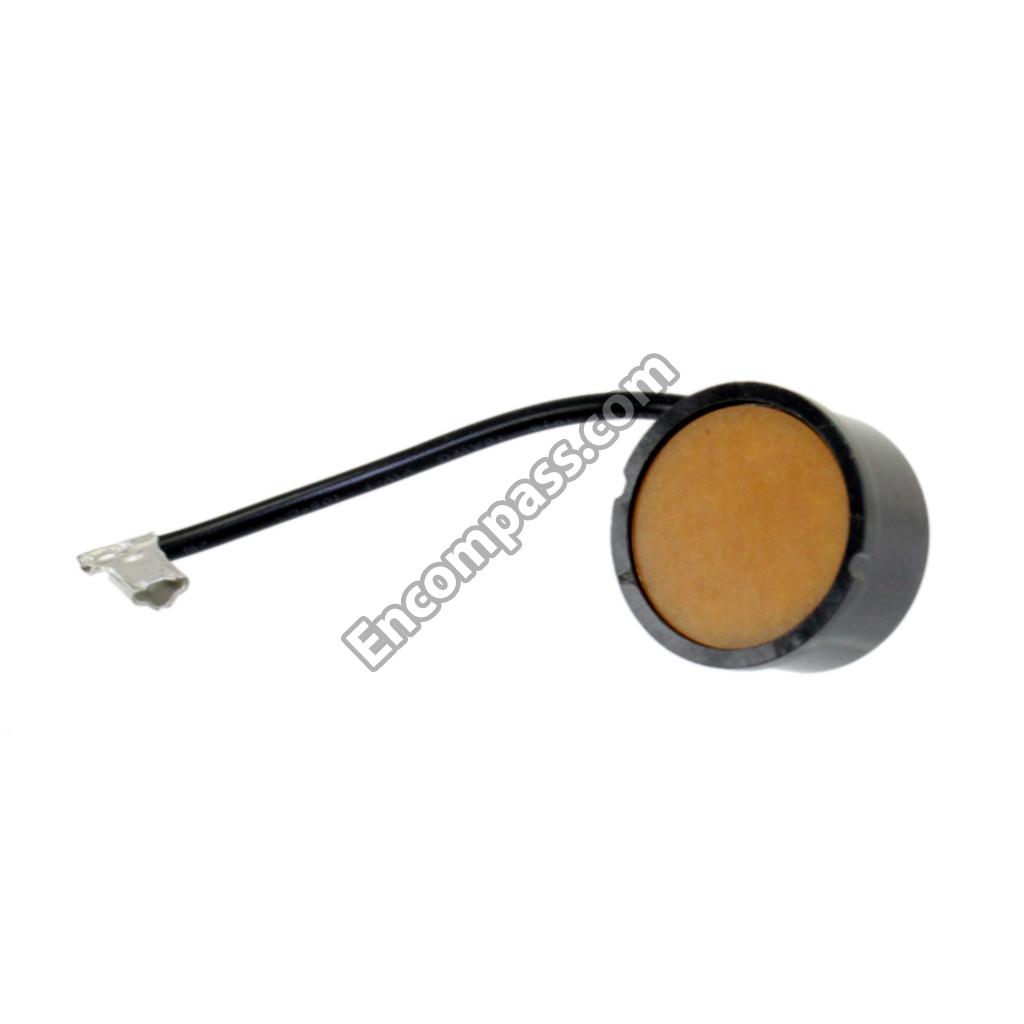

694173100 694173100 SAFETY TEMPERATURE LIMITER
409806002 409806002 SCREW
409800601 409800601 SCREW
409890201 409890201 SCREW

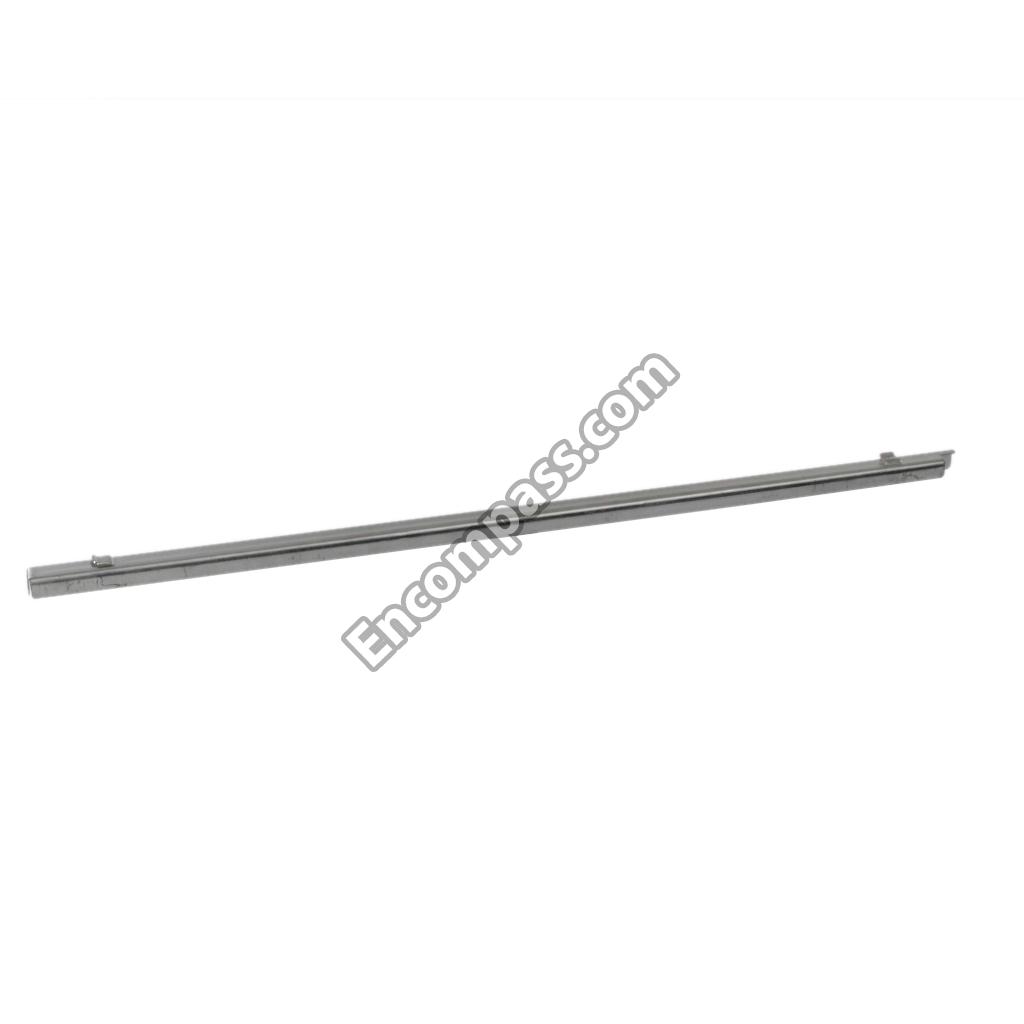

900176100 900176100 SHELF RAIL

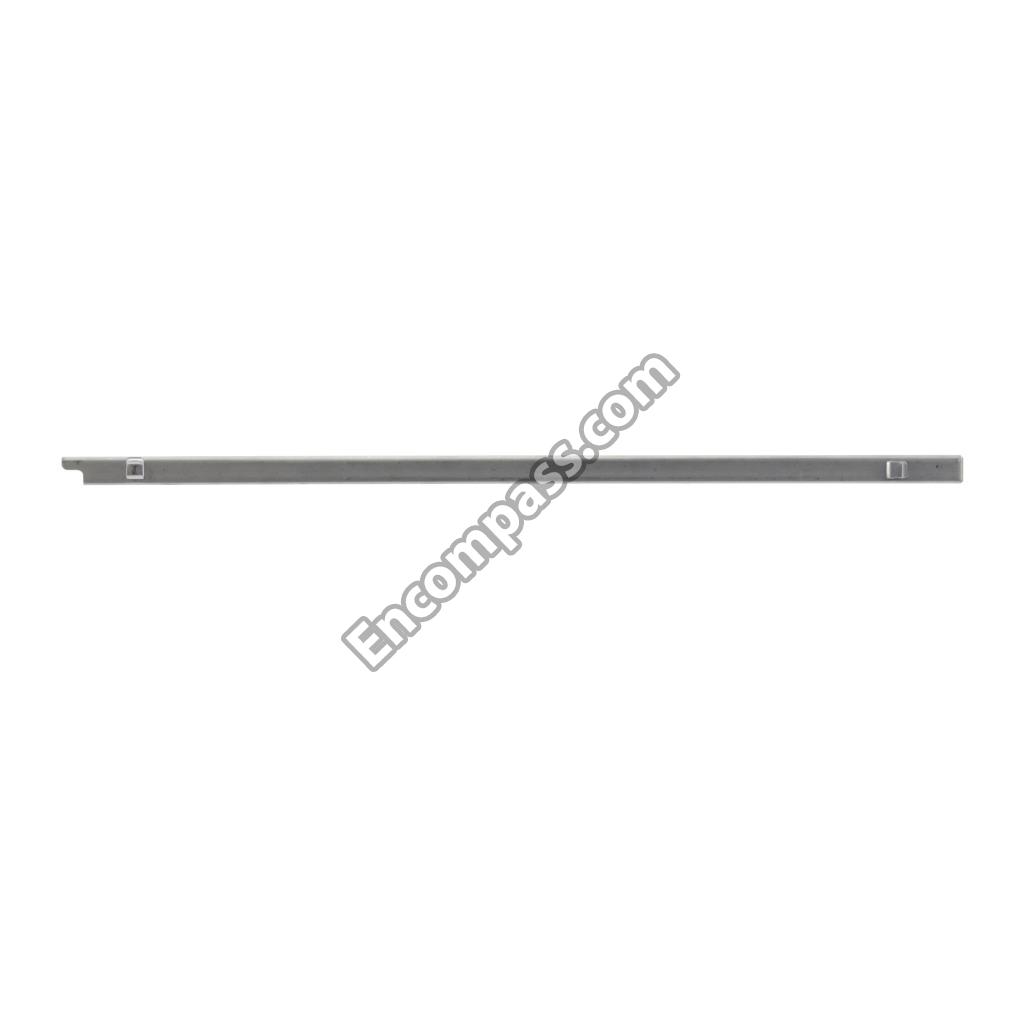

900175700 900175700 SHELF RAIL
787176701 787176701 SOLENOID VALVE
742437300 742437300 SPACERS
726612000 726612000 SPECIAL SECURING HARDWARE
411500000 411500000 STANDARD NUT
411579900 411579900 STANDARD NUT
970477301 970477301 STORAGE RACK CLIP-IN STRIP
914068500 914068500 SUCTION LINE
600959900 600959900 SUPPLY LINE
606099100 606099100 SWITCH
704326500 704326500 SWIVELLING CASTORS

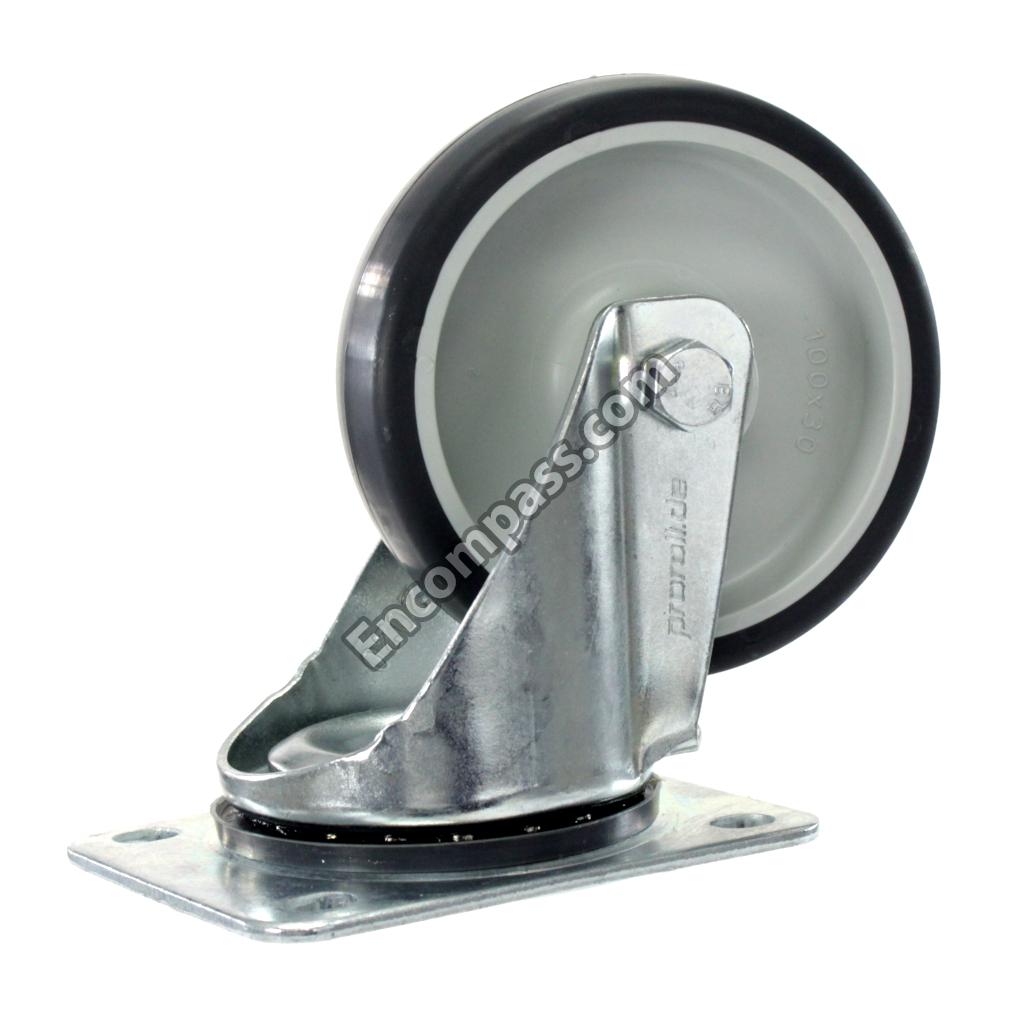

704326700 704326700 SWIVELLING CASTORS
694262900 694262900 TEMPERATURE SENSOR
774600001 774600001 TIGHTENING STRAP
904005700 904005700 VARIOUS COMPONENTS
742929700 742929700 VARIOUS COMPONENTS
743039300 743039300 VARIOUS COMPONENTS
743039100 743039100 VARIOUS COMPONENTS
743512900 743512900 VARIOUS INJECTION-MOULDED ITEMS
720379901 720379901 VARIOUS RETAINING FIXTURES
997068500 997068500 VERTICAL STAY, EMBEDDED IN FOAM
420000000 420000000 WASHER
711332900 711332900 WIRE SHELF

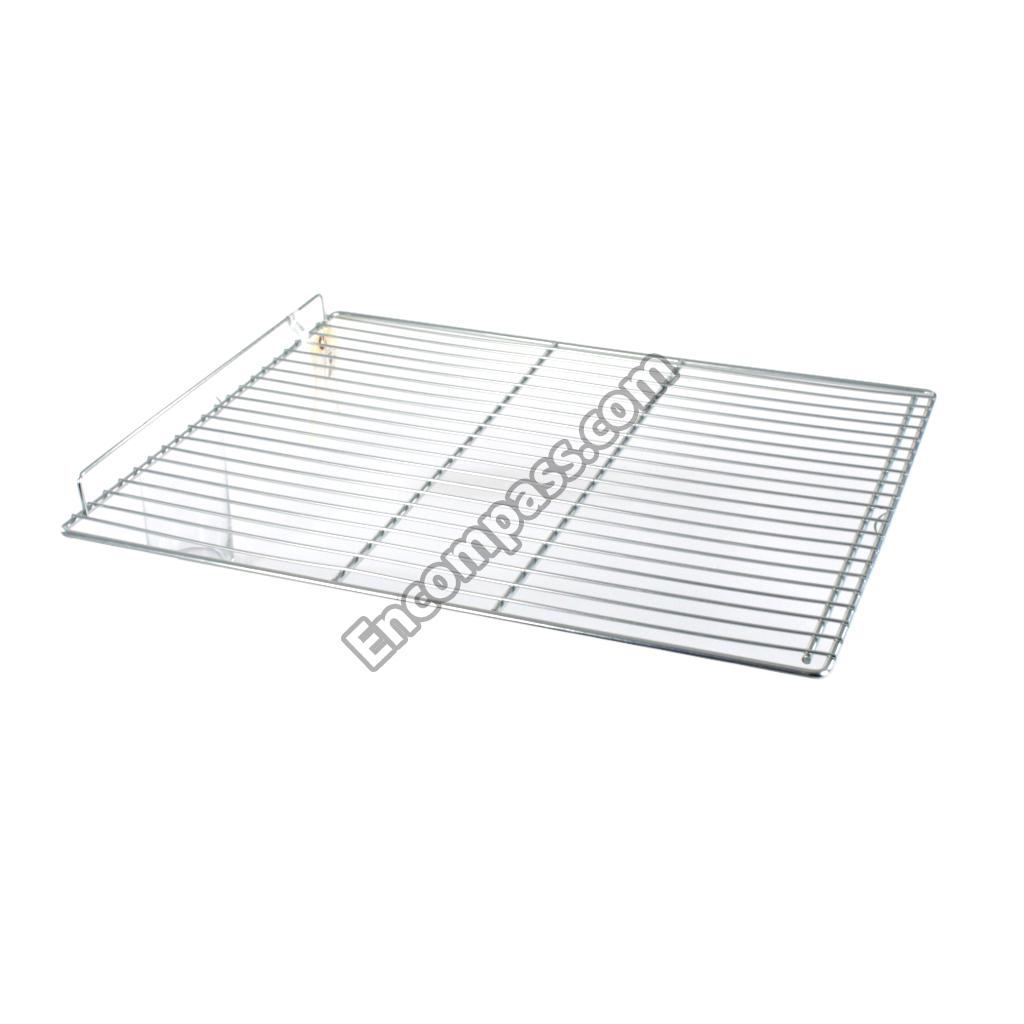

711333100 711333100 WIRE SHELF
704228300 704228300 ZINC DIE-CAST BEARING BLOCK
704323701 704323701 ZINC DIE-CAST BEARING BLOCK
704349301 704349301 ZINC DIE-CAST BEARING BLOCK
