Model Image
Manufacturer

Liebherr

Model Number

LRB23W1HC

Description

Laboratory Refrigerator Ventilated

Interactive Exploded View
Exploded View

Parts List

Part Number Description
959078700 959078700 ACCESSORY PACK
908666101 908666101 ACCESSORY PACK
908665901 908665901 ACCESSORY PACK
908645700 908645700 ACCESSORY PACK
704436100 704436100 BOLT
711376100 711376100 BOLT
704432100 704432100 BUSHING
742934900 742934900 BUSHING
742935100 742935100 BUSHING
742951701 742951701 BUSHING
940757101 940757101 CABLE CONNECTION, COMPLETE
611922900 611922900 COMPRESSOR R 290
594146501 594146501 CONDENSER WIRE TUBE, UPRIGHT
781059100 781059100 COVER
781058900 781058900 COVER
743724500 743724500 COVER
742801301 742801301 COVER
742801500 742801500 COVER
742270900 742270900 COVER CAP
743817700 743817700 COVER PLATE
409863900 409863900 CROSS-REC. COUNTERSUNK-HEAD WOOD SCREW
902246101 902246101 DOOR, CAVITY-FOAMED
594267900 594267900 DRYER
594050701 594050701 EVAPORATOR - FREEZING
743220100 743220100 EVAPORATOR FIXTURE
742542500 742542500 EVAPORATOR TRAYS
629990503 629990503 FAN BLADE
742758301 742758301 FAN COVER
900142301 900142301 FAN COVER
743724300 743724300 FASTENING
804144500 804144500 FOLDING CARDBOARD BOX
743075900 743075900 FRONT TRIM
711052901 711052901 GASKET
406599900 406599900 HEXAGON-HEAD CAP SCREW
406599700 406599700 HEXAGON-HEAD CAP SCREW
409800800 409800800 HEXAGON-HEAD SELF-TAPPING SCREW
409804401 409804401 HEXAGON-HEAD SELF-TAPPING SCREW
409803001 409803001 HEXAGON-HEAD SELF-TAPPING SCREW
409825202 409825202 HEXAGON-HEAD SELF-TAPPING SCREW
409805901 409805901 HEXAGON-HEAD SELF-TAPPING SCREW
409834400 409834400 HEXAGON-HEAD SELF-TAPPING SCREW
611464700 611464700 INTEGRAL BOARD
611309900 611309900 INTEGRAL BOARD
607154501 607154501 INTERIOR LIGHT
704334100 704334100 KEY
704307500 704307500 LOCK
611874900 611874900 MOTOR
708557501 708557501 OPERATING INSTRUCTIONS
929059800 929059800 OPERATING UNIT BOARD
773934300 773934300 OPERATING UNIT FILM
408478301 408478301 OVAL-HEAD SCREW
408401302 408401302 OVAL-HEAD SCREW
408490301 408490301 OVAL-HEAD SCREW
409899701 409899701 OVAL-HEAD WOOD SCREW
409875500 409875500 OVAL-HEAD WOOD SCREW
988103501 988103501 PACKAGING, COMPLETELY
968079300 968079300 PARTS, POWDER-COATED, WHITE
770000100 770000100 PIPE
740260500 740260500 PLUG
742809900 742809900 PLUG
743202700 743202700 PLUG
741223300 741223300 PLUG

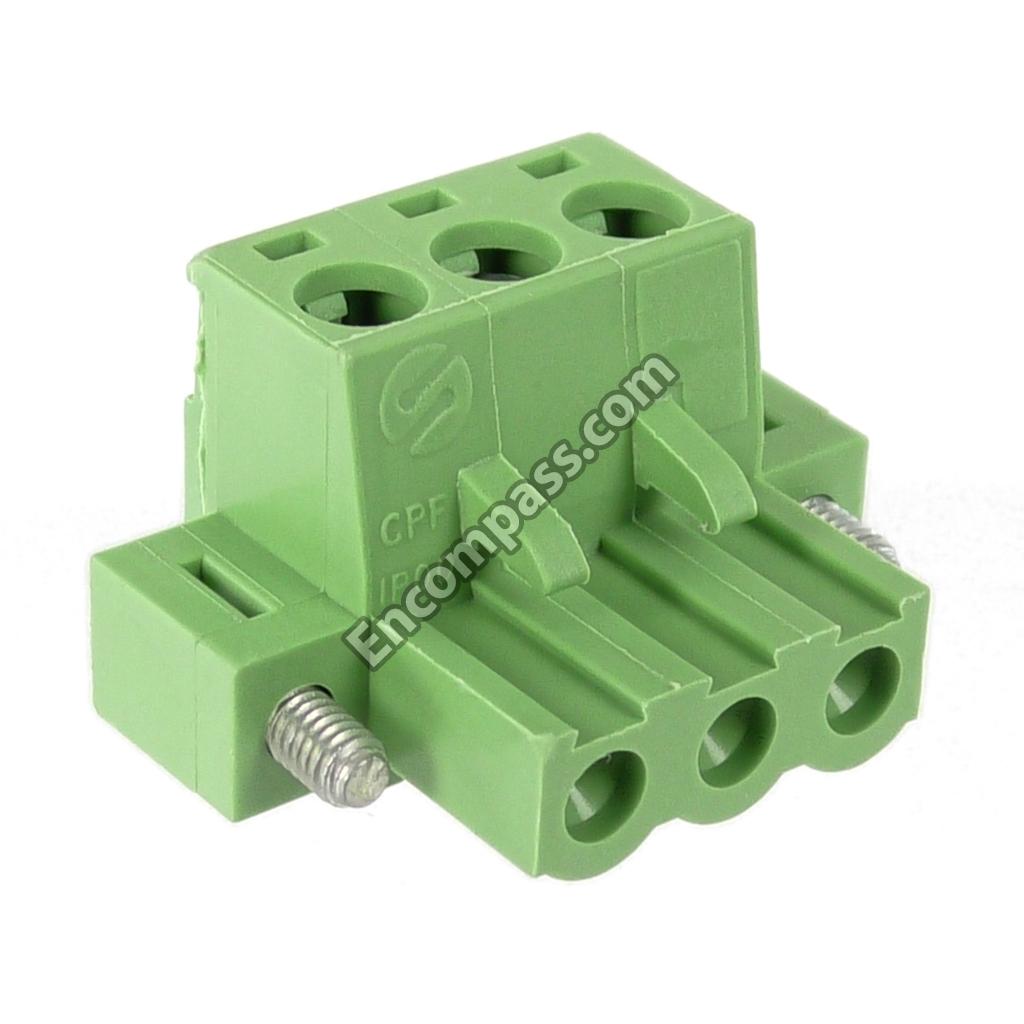

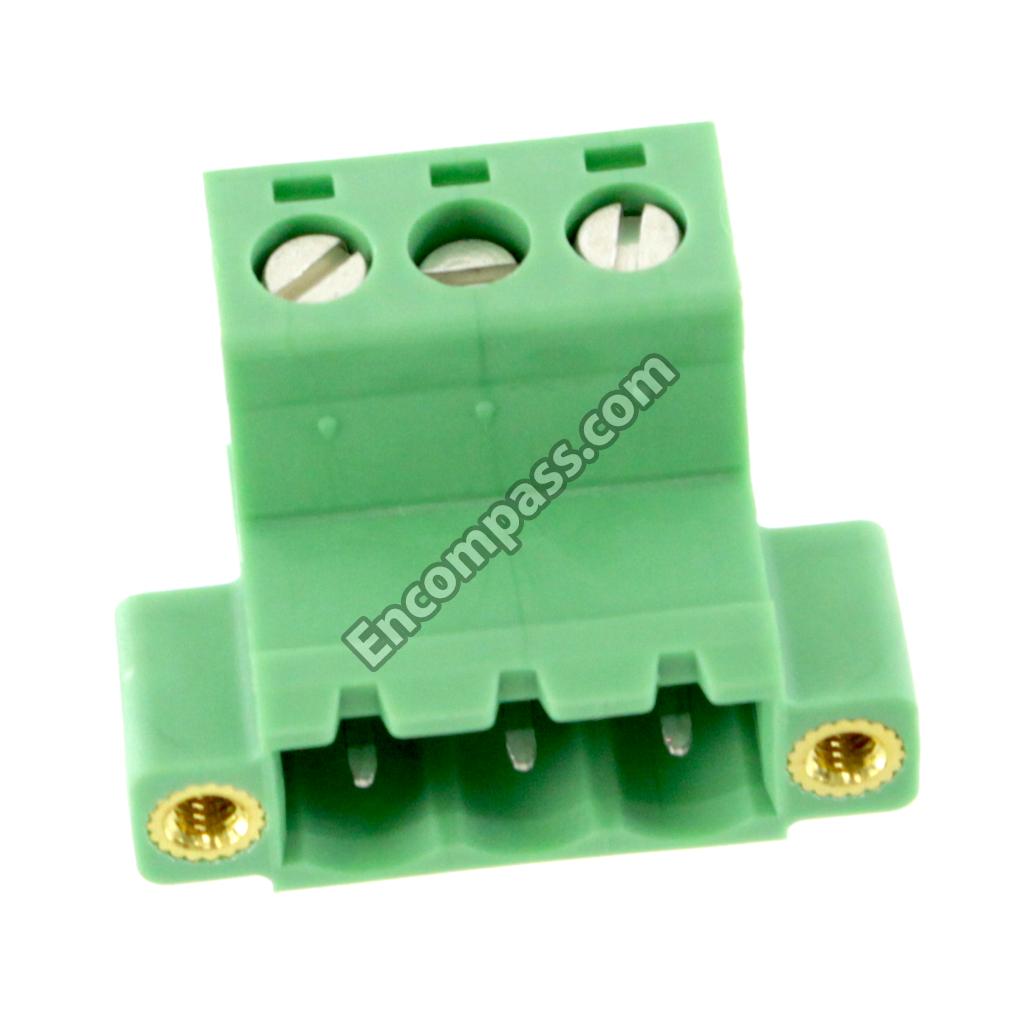

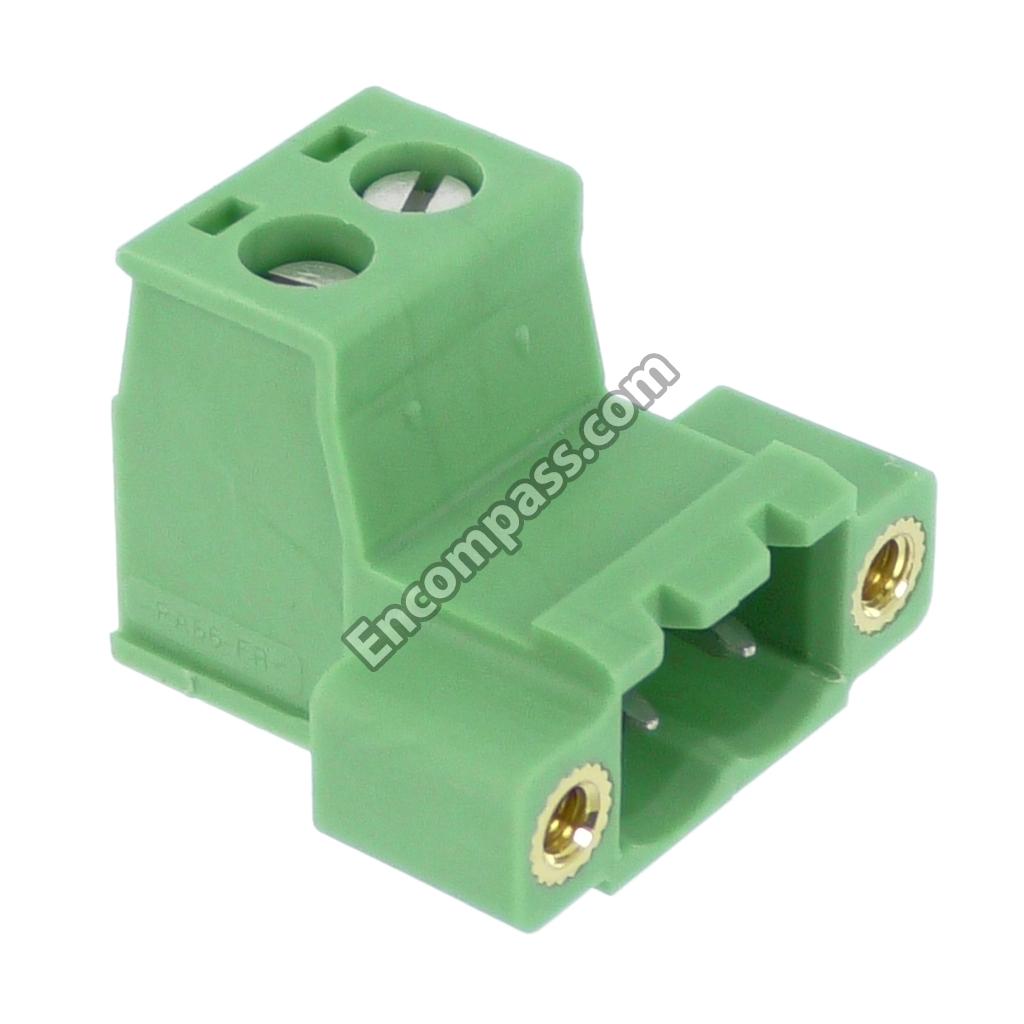

602165700 602165700 PLUG HOUSING
602166100 602166100 PLUG HOUSING
602165300 602165300 PLUG HOUSING
602165500 602165500 PLUG HOUSING
602169700 602169700 PLUG HOUSING
765248300 765248300 PROFILE STRIP

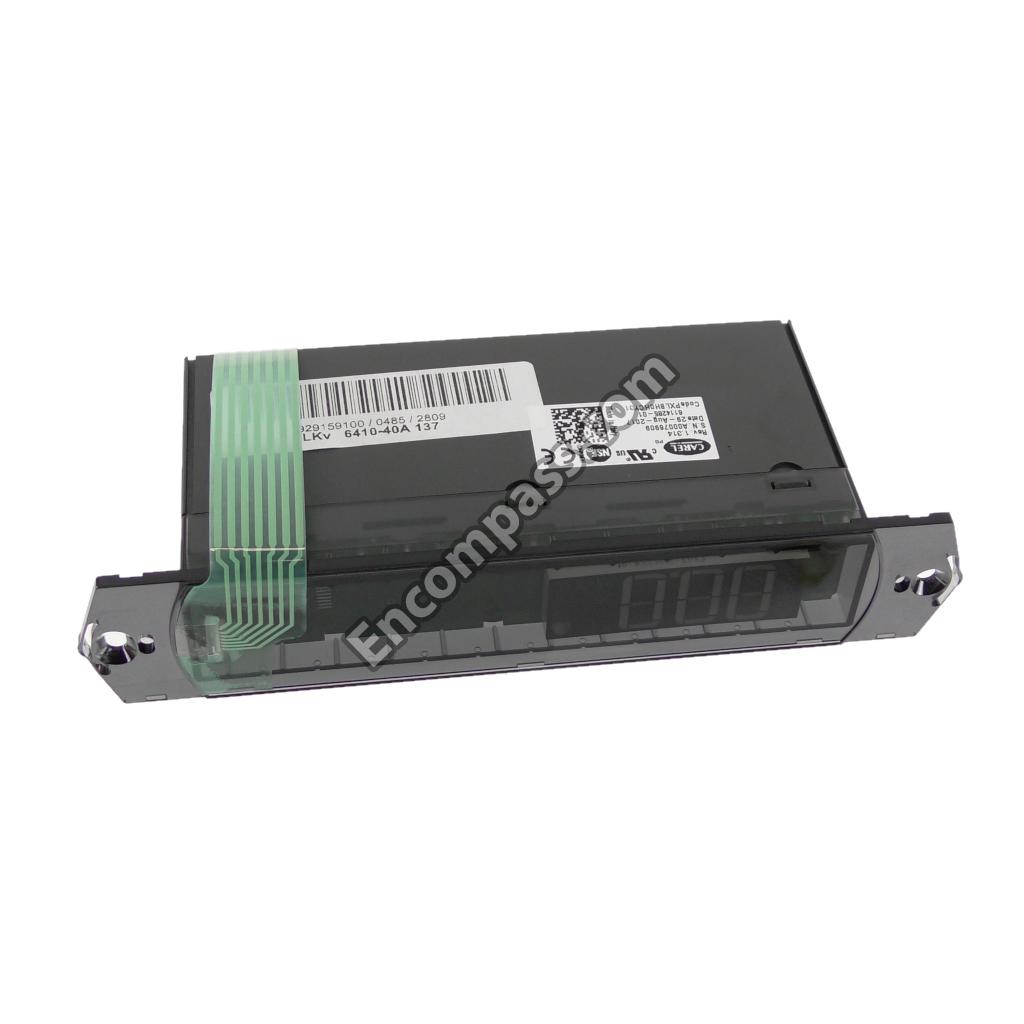

929159100 929159100 PROGRAMMED ELECTRONIC
920151900 920151900 PSEUDOGROUP
614350500 614350500 REED BOARD

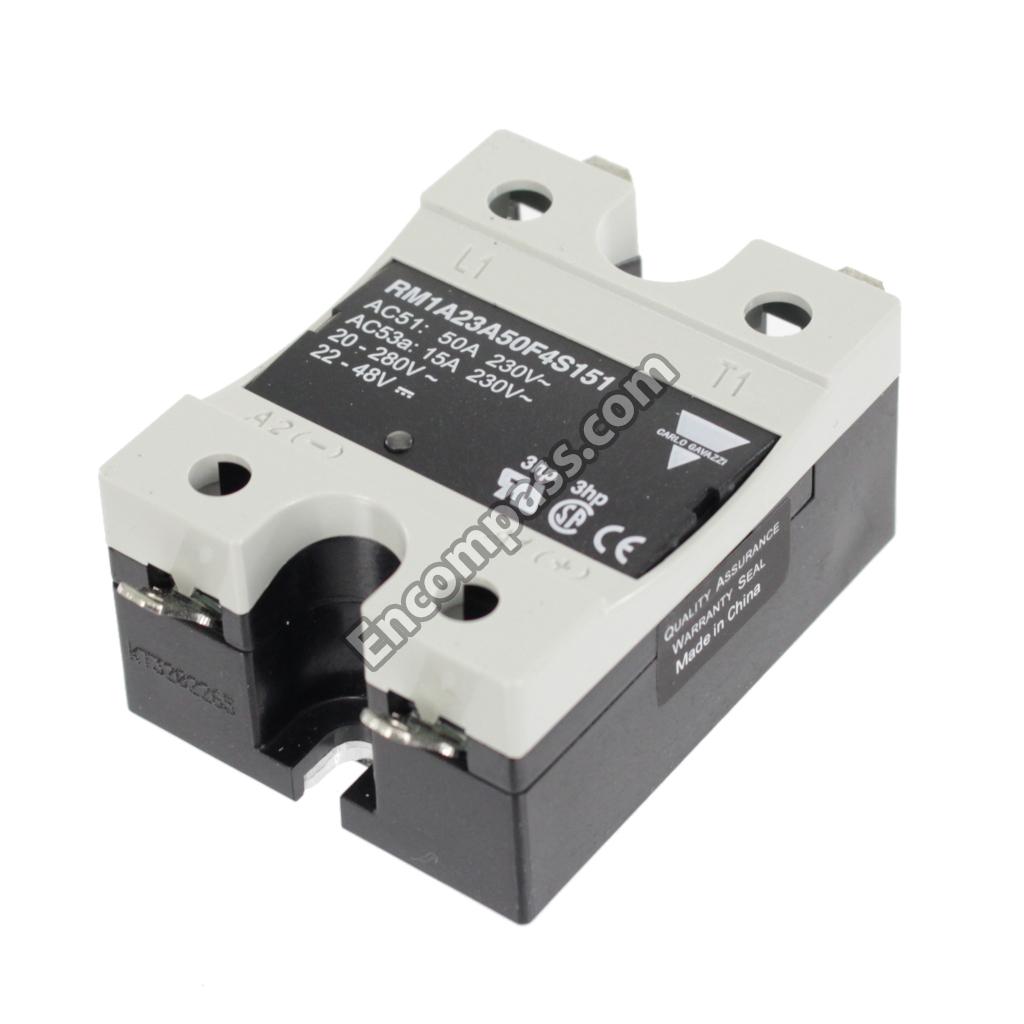

694154900 694154900 RELAY
409890401 409890401 SCREW

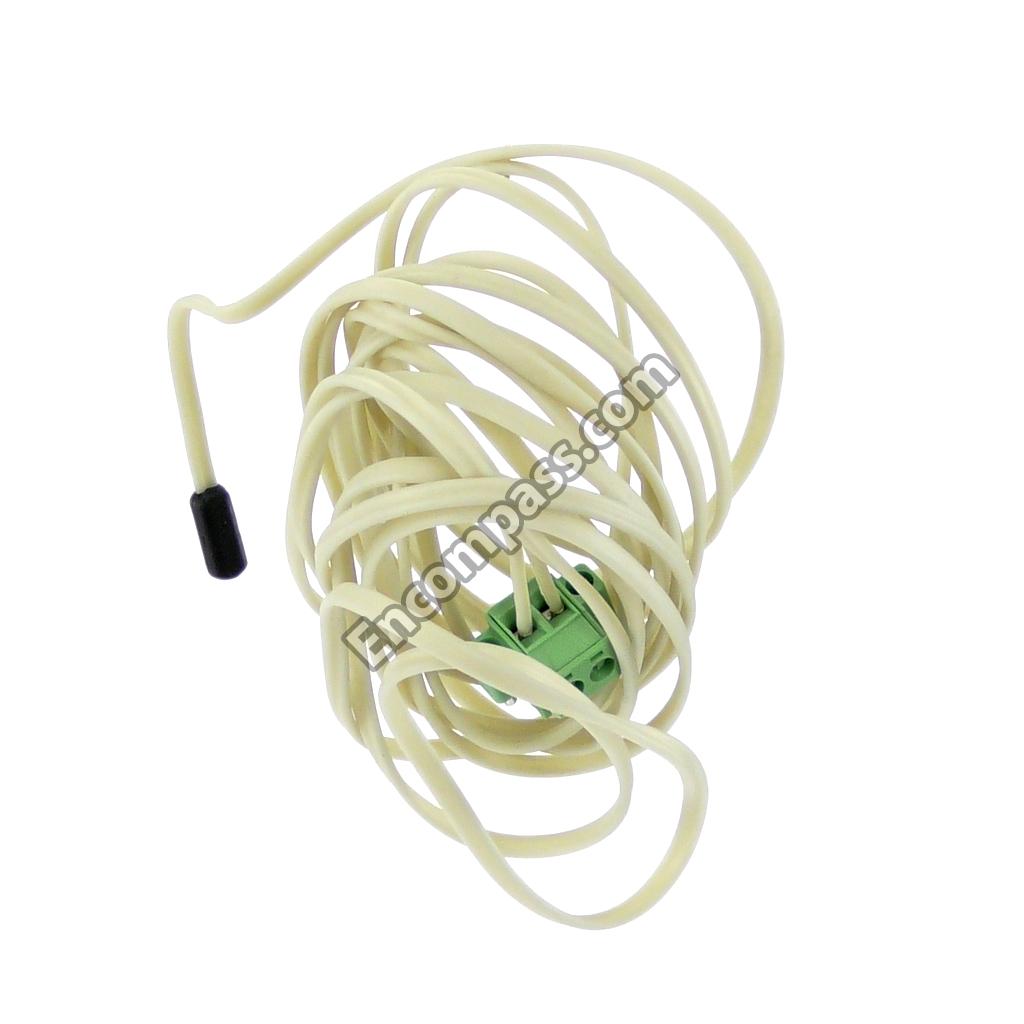

694279500 694279500 SENSOR F. FREEZER COMPARTMENT EVAPORATOR
694246300 694246300 SENSOR F. FREEZER COMPARTMENT EVAPORATOR
740298700 740298700 SENSOR RETAINING FIXTURE
740296900 740296900 SENSOR RETAINING FIXTURE
726608101 726608101 SLEEVE
726603601 726603601 SLEEVE
741297300 741297300 SPARE PART
904179500 904179500 SPARE PART
740288800 740288800 SPECIAL SECURING HARDWARE
409857500 409857500 SPECIAL WOOD SCREW

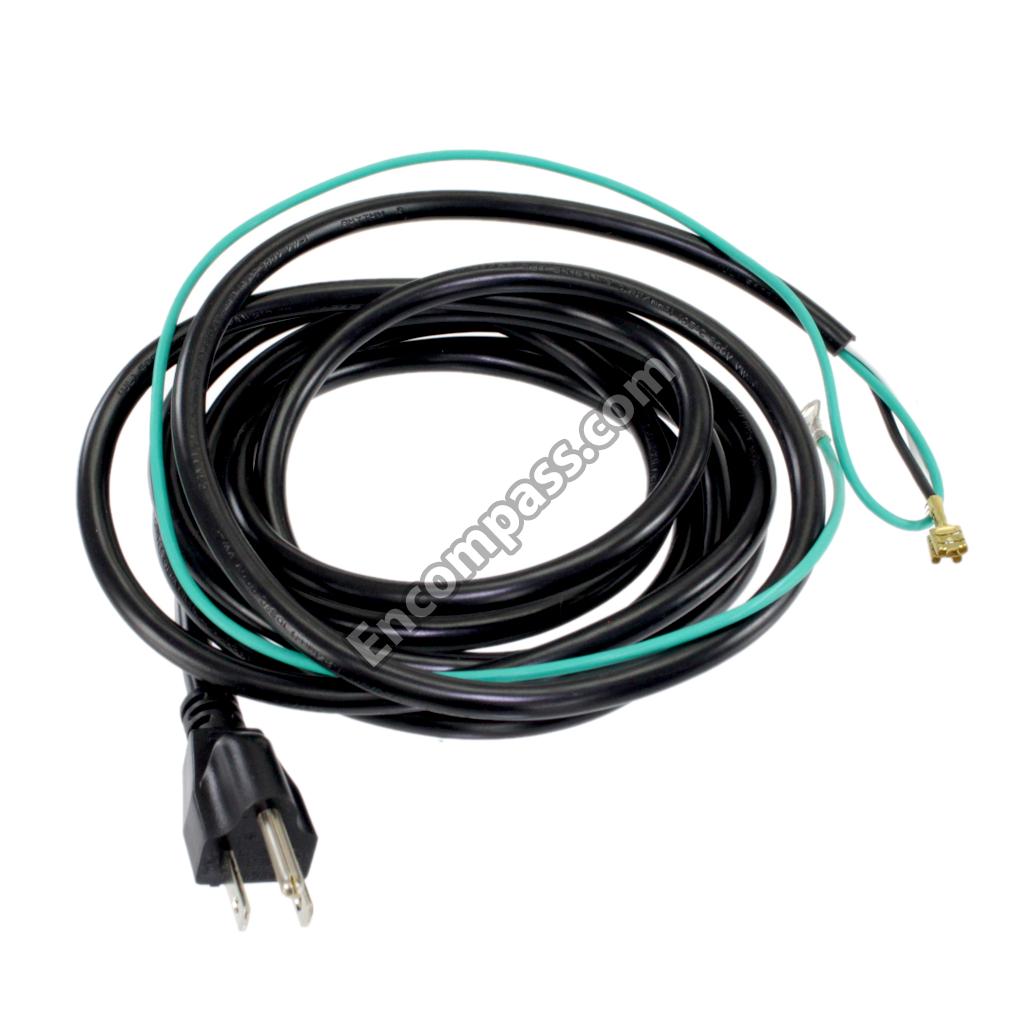

600959300 600959300 SUPPLY LINE
742652500 742652500 SWITCHING COMPONENTS

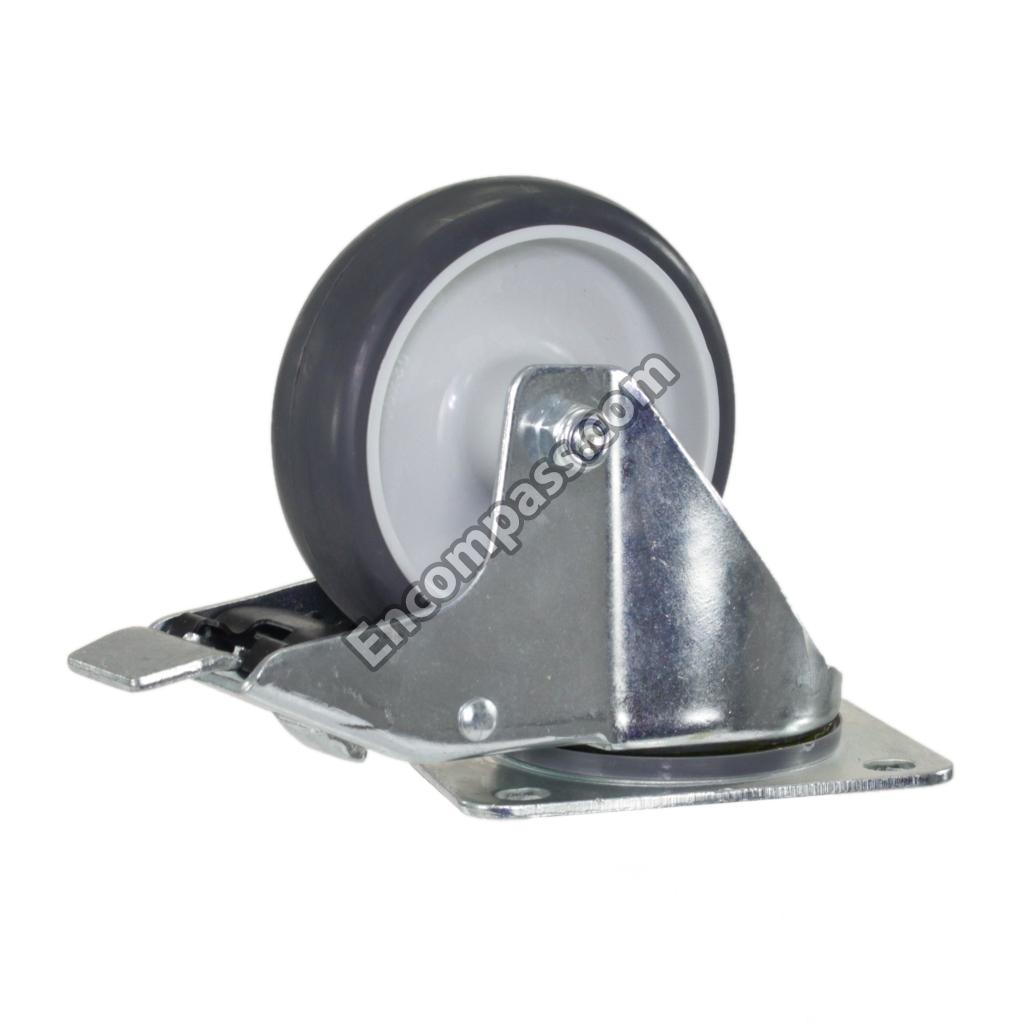

704326300 704326300 SWIVELLING CASTORS
704326500 704326500 SWIVELLING CASTORS
615157100 615157100 THERMOSTAT
743811701 743811701 VARIOUS INJECTION-MOULDED ITEMS
743246101 743246101 VARIOUS INJECTION-MOULDED ITEMS
742742200 742742200 VARIOUS INJECTION-MOULDED ITEMS
743512900 743512900 VARIOUS INJECTION-MOULDED ITEMS
781068100 781068100 VARIOUS INJECTION-MOULDED ITEMS
930157100 930157100 VARIOUS RETAINING FIXTURES
420000100 420000100 WASHER

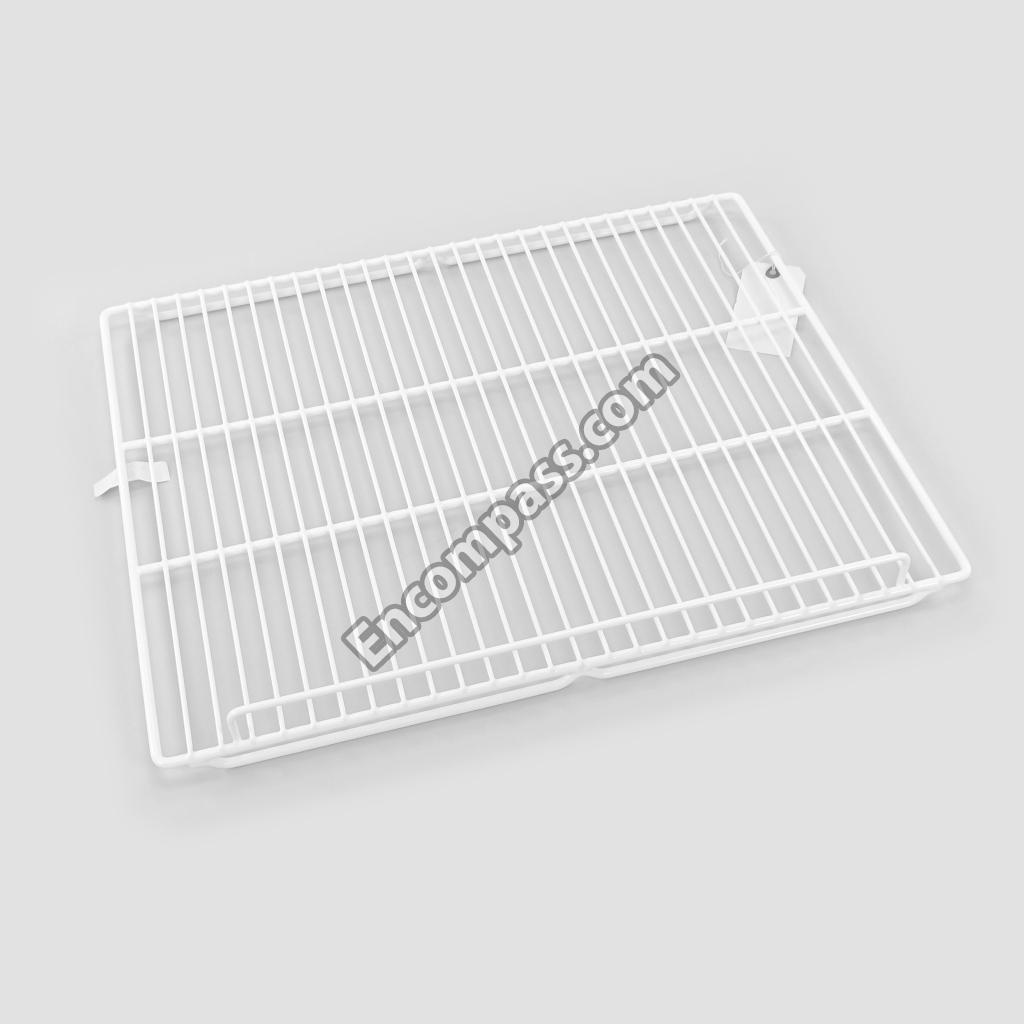

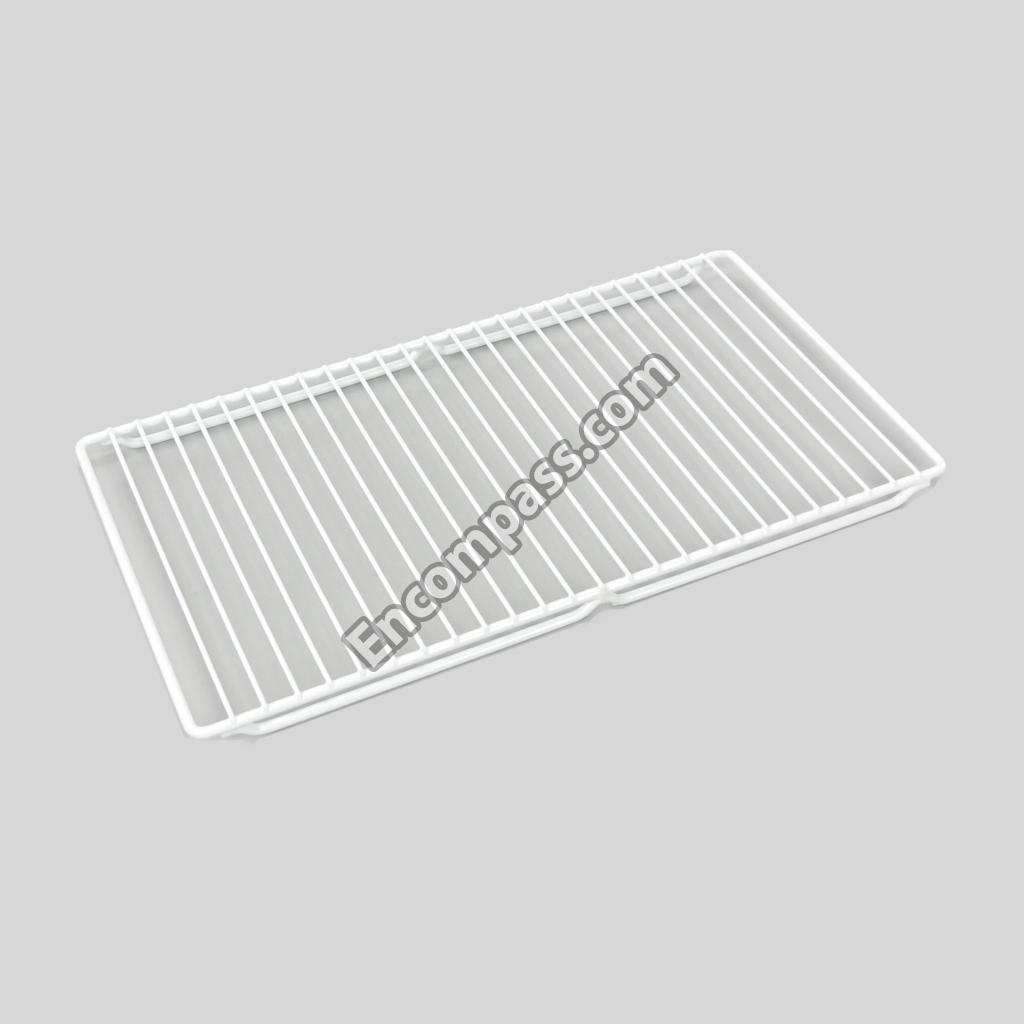

711235100 711235100 WIRE SHELF
711346901 711346901 WIRE SHELF
711348501 711348501 WIRE SHELF
704443900 704443900 ZINC DIE-CAST BEARING BLOCK
