Model Image
Manufacturer

Liebherr

Model Number

RO510

Description

Stainless Steel Free-standing Outdoor Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
743707201 743707201 ADJUSTING SCREW
694238000 694238000 AIR SENSOR FOR FREEZER COMPARTMENT
694240300 694240300 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
711356700 711356700 BOLT
704159700 704159700 BOLT
711356901 711356901 BOLT
711351101 711351101 BOLT

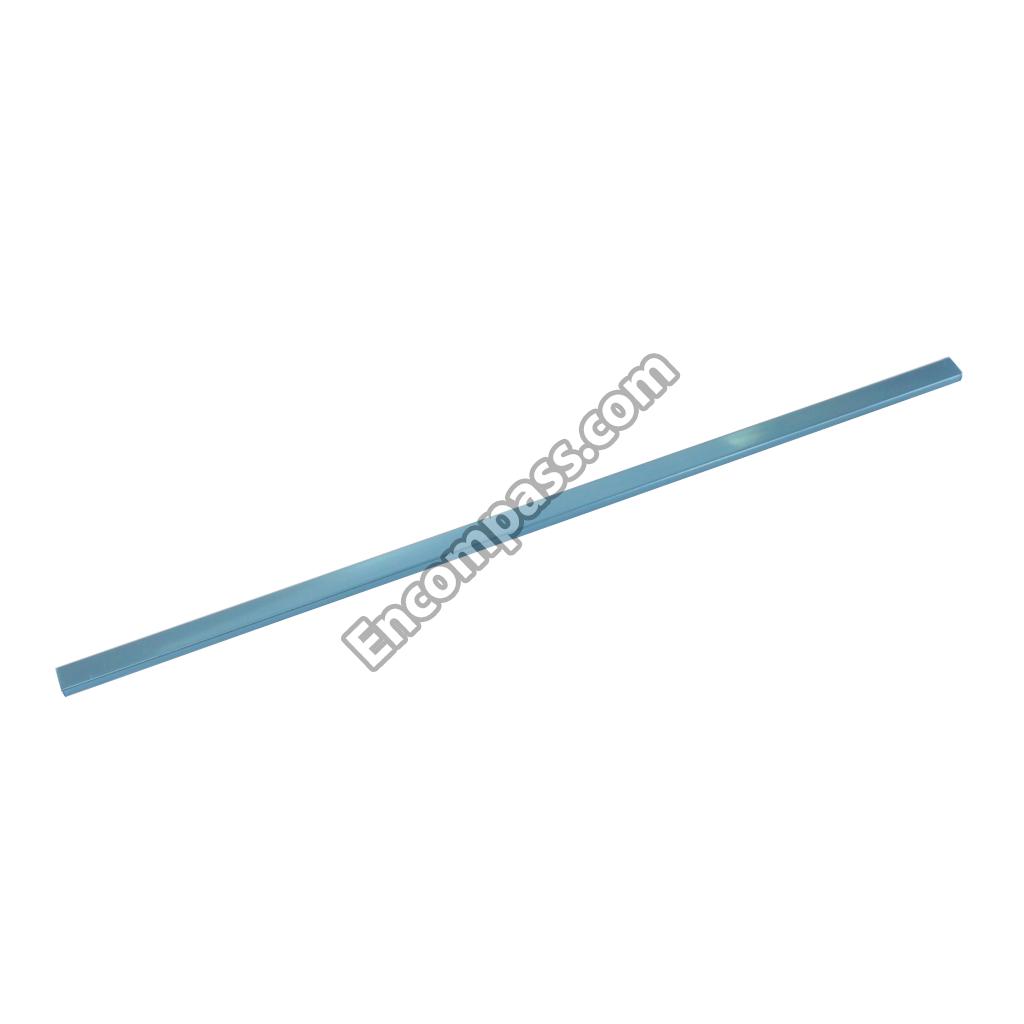

764304400 764304400 BOTTLE RACK RETAINING STRIP

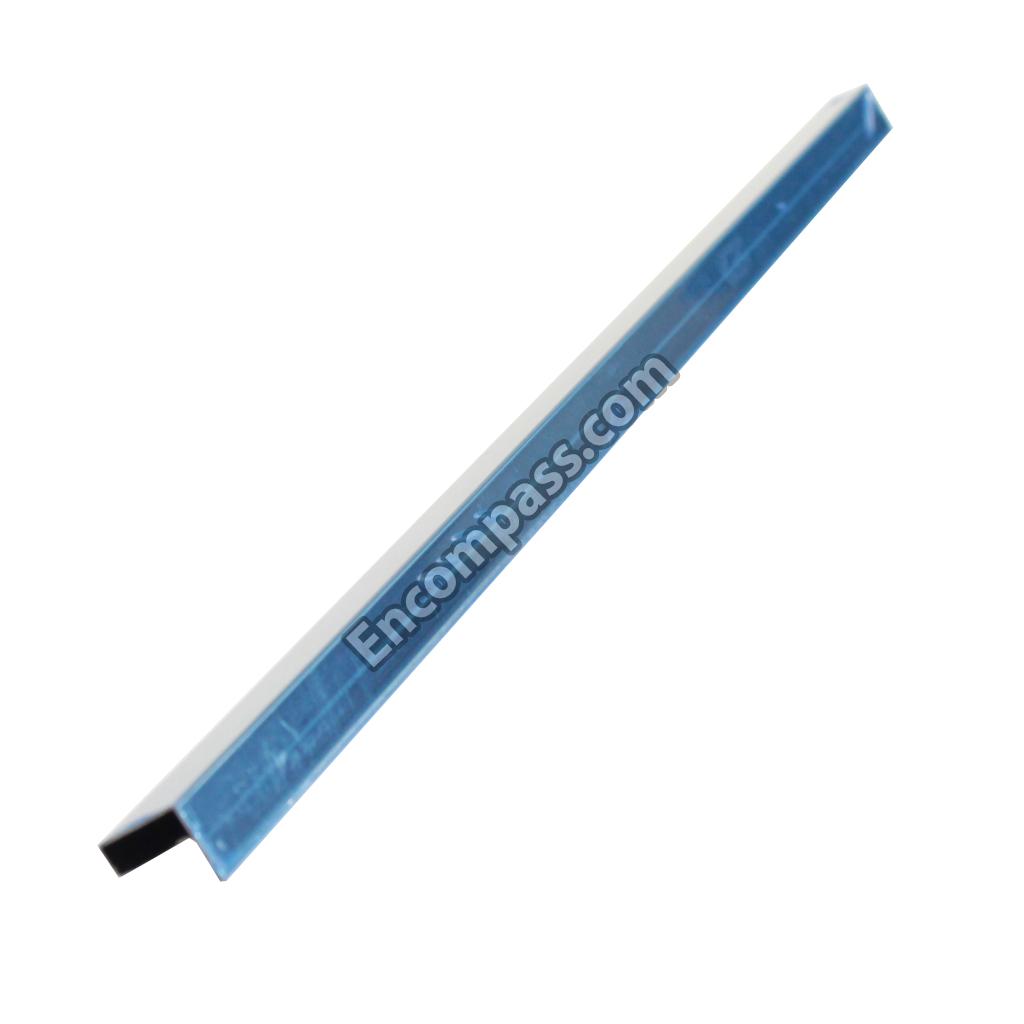

764304600 764304600 BOTTLE RACK RETAINING STRIP
774656900 774656900 BRACKET
920166100 920166100 BRACKET
726625400 726625400 BUFFER
610865100 610865100 COMPACT FAN
610816401 610816401 COMPACT FAN
611936300 611936300 COMPRESSOR R 600 A
743075300 743075300 COVER
743621300 743621300 COVER
743076900 743076900 COVER
743631100 743631100 COVER
743630900 743630900 COVER
743630700 743630700 COVER
743622700 743622700 COVER
743633900 743633900 COVER
743764700 743764700 COVER
743764900 743764900 COVER
743619100 743619100 COVER
743627500 743627500 COVER
743407100 743407100 COVER CAP
774653100 774653100 COVER PANEL
743309100 743309100 COVERS, VARIOUS
990002500 990002500 COVERS, VARIOUS

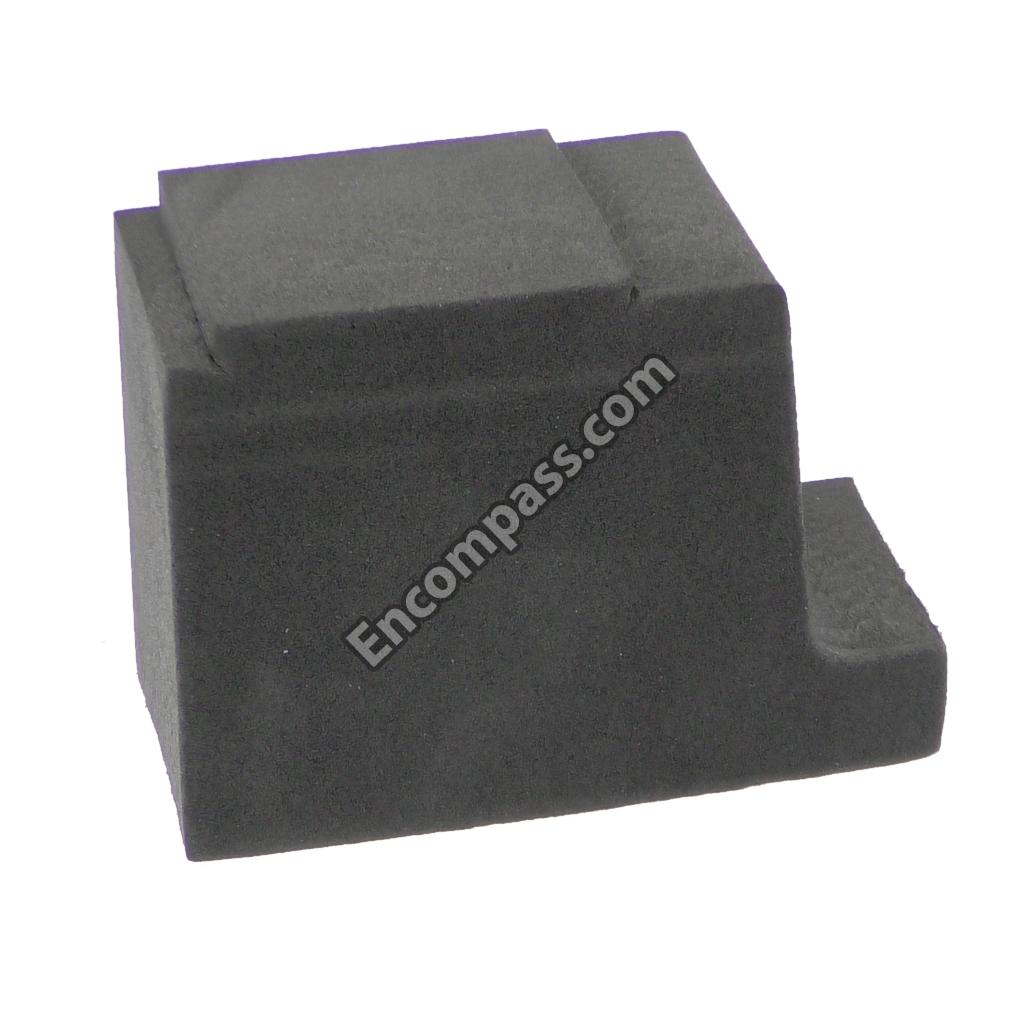

285169700 285169700 DIVIDING WALL
901914102 901914102 DOOR, CAVITY-FOAMED
789062301 789062301 DRAWER RAIL
789062101 789062101 DRAWER RAIL
594207001 594207001 DRYER
614376600 614376600 ELECTRONICS
743329900 743329900 ELECTRONICS HOUSING
743330100 743330100 ELECTRONICS HOUSING
742632001 742632001 EVAPORATOR FIXTURE
742642601 742642601 EVAPORATOR TRAYS
987457700 987457700 EVAPORATOR-MODULE COMPLETE
743622100 743622100 FASTENING
743868100 743868100 FASTENING
743868300 743868300 FASTENING
740335700 740335700 FILM
704452700 704452700 FILTER MAT
804126700 804126700 FOLDING CARDBOARD BOX
743747300 743747300 FRONT TRIM
743637900 743637900 FRONT TRIM
711069500 711069500 GASKET
727235500 727235500 GLASS PLATE - COMPLETE
727235300 727235300 GLASS PLATE - COMPLETE
727235900 727235900 GLASS PLATE - COMPLETE
594152901 594152901 HEAT EXCHANGER
409801000 409801000 HEXAGON-HEAD SELF-TAPPING SCREW
409808201 409808201 HEXAGON-HEAD SELF-TAPPING SCREW
409832000 409832000 HEXAGON-HEAD SELF-TAPPING SCREW
409802901 409802901 HEXAGON-HEAD SELF-TAPPING SCREW
743651500 743651500 INJECTION-MOULDED WORKTOP
607164503 607164503 INTERIOR LIGHT
909454500 909454500 KEY
774654700 774654700 KEY
704102400 704102400 LOCK
770049000 770049000 LOKRING
770048000 770048000 LOKRING
770047400 770047400 LOKRING
770046400 770046400 LOKRING
770048800 770048800 LOKRING
743881600 743881600 MOULDED HANDLE
743641100 743641100 MOULDING
743653100 743653100 MOULDING
743681400 743681400 MOULDING
727234300 727234300 NORMAL GLASS PLATE
708005802 708005802 OPERATING INSTRUCTIONS
611618400 611618400 OPERATING PANEL HOUSING
408278501 408278501 OVAL-HEAD SELF-TAPPING SCREW
408202700 408202700 OVAL-HEAD SELF-TAPPING SCREW
988164400 988164400 PACKAGING, COMPLETELY
770000100 770000100 PIPE
924012700 924012700 PLATE FOR INTERIOR CONTAINER
742461500 742461500 PLUG
740261200 740261200 PLUG
742860100 742860100 PLUG
720367500 720367500 PSEUDOGROUP
409868900 409868900 PT SCREW
614350500 614350500 REED BOARD
694051700 694051700 RELAY
694164900 694164900 SAFETY TEMPERATURE LIMITER
711168700 711168700 SEAL
694251200 694251200 SENSOR F. FREEZER COMPARTMENT EVAPORATOR
743764100 743764100 SPARE PART
726620201 726620201 SPECIAL SECURING HARDWARE
726612000 726612000 SPECIAL SECURING HARDWARE
411569500 411569500 STANDARD NUT
600961300 600961300 SUPPLY LINE
750101000 750101000 SWITCHING COMPONENTS
614300700 614300700 TEMPERATURE LIMITER
727259200 727259200 TOUGHENED SAFETY-GLASS PLATE
764304200 764304200 TRIM STRIP PROFILE
743247100 743247100 VARIOUS HOUSINGS
743622300 743622300 VARIOUS INJECTION-MOULDED ITEMS
743064800 743064800 VARIOUS INJECTION-MOULDED ITEMS
743763900 743763900 VARIOUS INJECTION-MOULDED ITEMS
743763700 743763700 VARIOUS INJECTION-MOULDED ITEMS
743742900 743742900 VARIOUS INJECTION-MOULDED ITEMS
740225600 740225600 VARIOUS INJECTION-MOULDED ITEMS
704437900 704437900 VARIOUS RETAINING FIXTURES
743269300 743269300 VARIOUS RETAINING FIXTURES
742925700 742925700 VARIOUS RETAINING FIXTURES
742429200 742429200 VARIOUS RETAINING FIXTURES
742429400 742429400 VARIOUS RETAINING FIXTURES

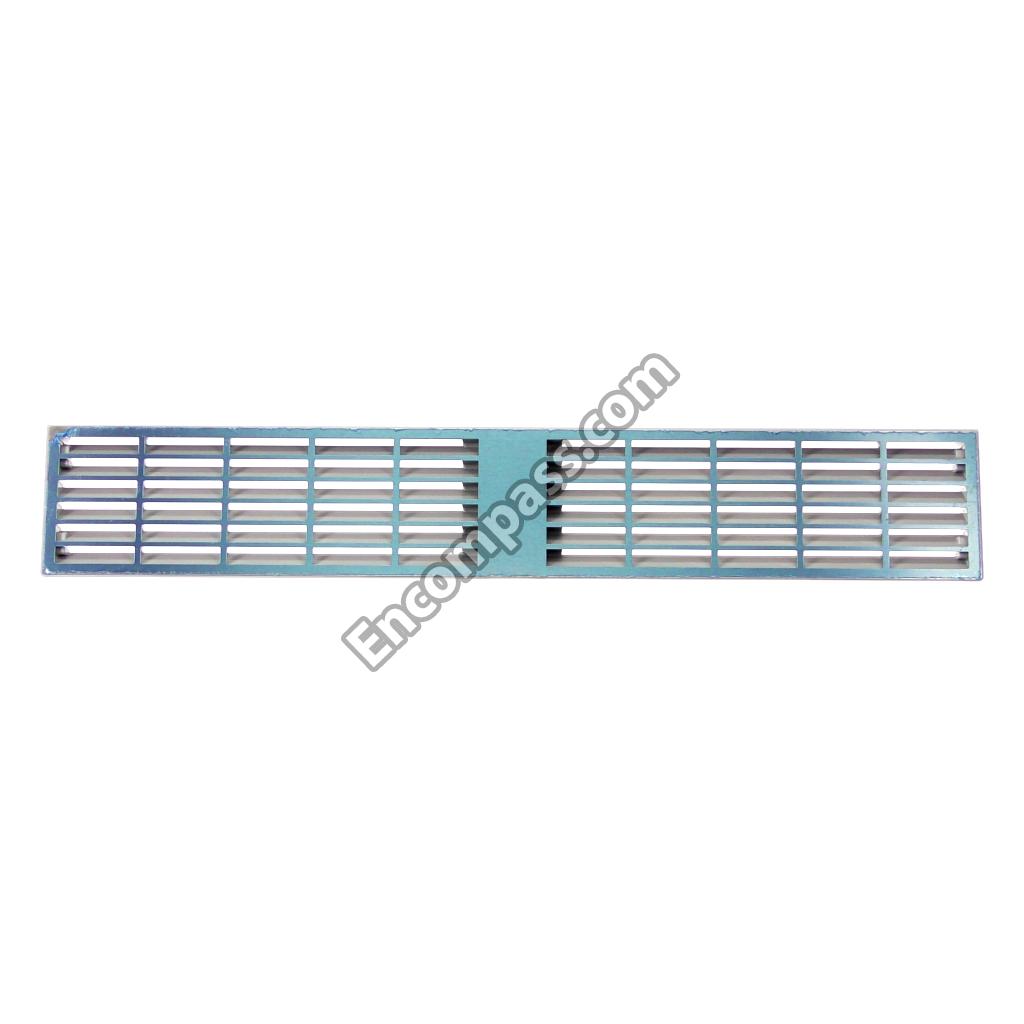

908683500 908683500 VENTILATION TRIM
711345501 711345501 WIRE SHELF
704450902 704450902 ZINC DIE-CAST BEARING BLOCK
704451102 704451102 ZINC DIE-CAST BEARING BLOCK
