Model Image
Manufacturer

Liebherr

Model Number

WS14300

Description

Multi-temperature Wine Cabinet-upright-st. Steel

Interactive Exploded View
Exploded View

Parts List

Part Number Description
704297101 704297101 ADJUSTING SCREW
694249900 694249900 AIR SENSOR FOR FREEZER COMPARTMENT
694250100 694250100 AIR SENSOR FOR FREEZER COMPARTMENT
694250300 694250300 AIR SENSOR FOR FREEZER COMPARTMENT
694252100 694252100 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
694215201 694215201 AIR SENSOR FOR REFRIGERATOR COMPARTMENT
694035900 694035900 ALUM. HEATING STRIP
774679300 774679300 ALUMINIUM PLATE
774679500 774679500 ALUMINIUM PLATE
774679700 774679700 ALUMINIUM PLATE
711368500 711368500 BOLT
743032800 743032800 BRACKET
742715500 742715500 BUSHING
742870900 742870900 BUTTON
742867900 742867900 BUTTON
742867500 742867500 BUTTON
742865100 742865100 BUTTON

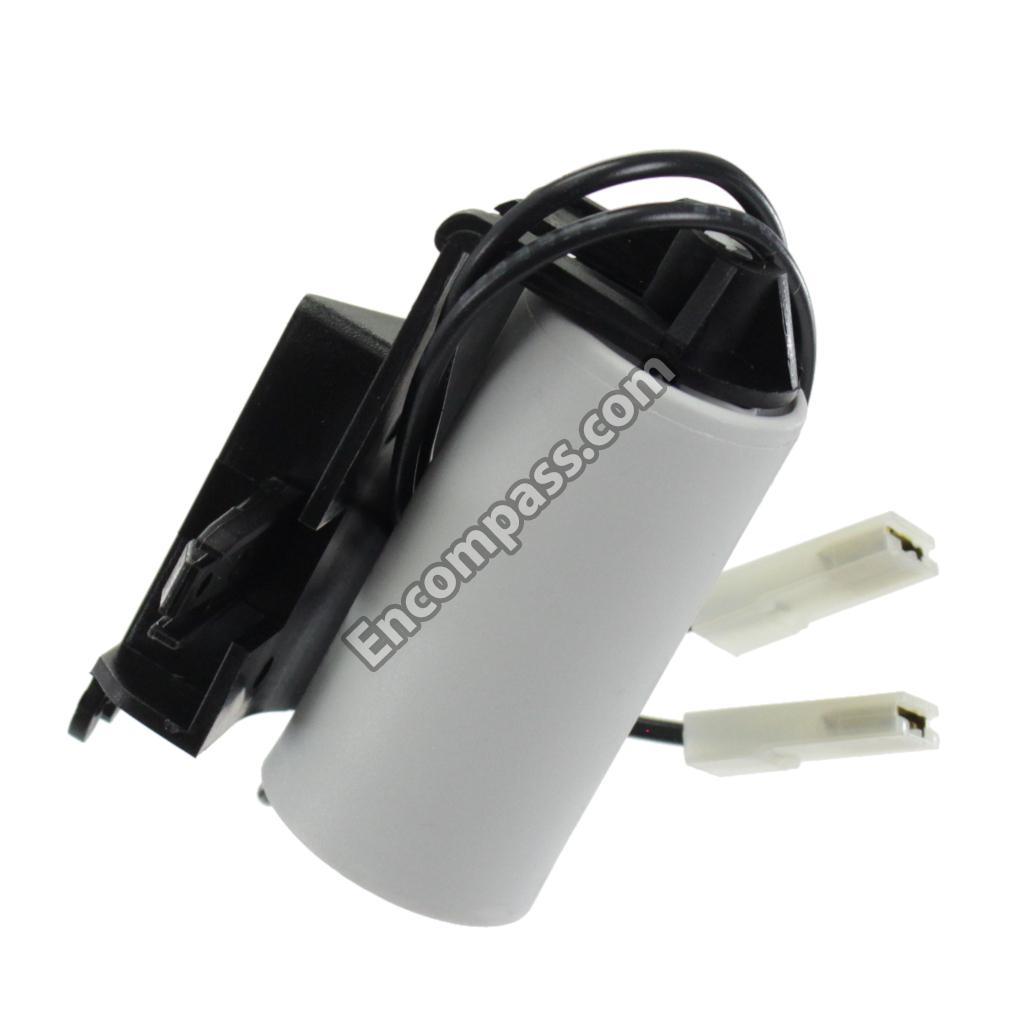

634279700 634279700 CAPACITOR
610809801 610809801 COMPACT FAN

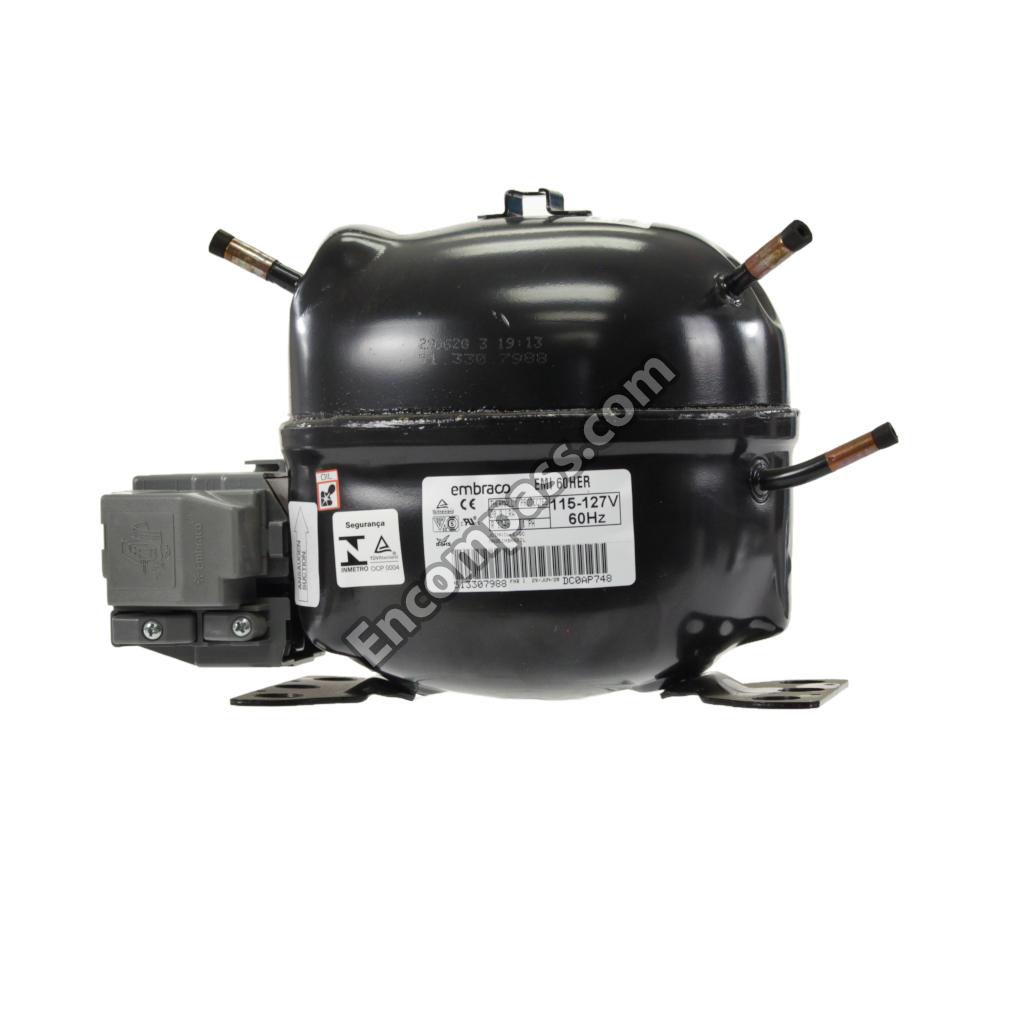

611967300 611967300 COMPRESSOR R 134 A
611968100 611968100 COMPRESSOR R 134 A
594163301 594163301 CONDENSER WIRE TUBE, UPRIGHT
742776700 742776700 COVER
742416300 742416300 COVER PLATE
919044300 919044300 COVERS, VARIOUS
919058700 919058700 COVERS, VARIOUS
919058100 919058100 COVERS, VARIOUS
919059900 919059900 COVERS, VARIOUS
742719700 742719700 COVERS, VARIOUS
743123101 743123101 CROSS PIECE FOR COMB. DOORS
743122900 743122900 CROSS PIECE FOR COMB. DOORS
773478300 773478300 DISPLAY TRIM
708002100 708002100 DISPLAY TRIM
602102101 602102101 DISTRIBUTOR STRIP
594204801 594204801 DRYER
594203600 594203600 DRYER
594070300 594070300 EVAPORATOR - FREEZING
742632001 742632001 EVAPORATOR FIXTURE
694215601 694215601 EVAPORATOR SENSOR FOR REFRIGERATOR
740235100 740235100 EVAPORATOR TRAYS

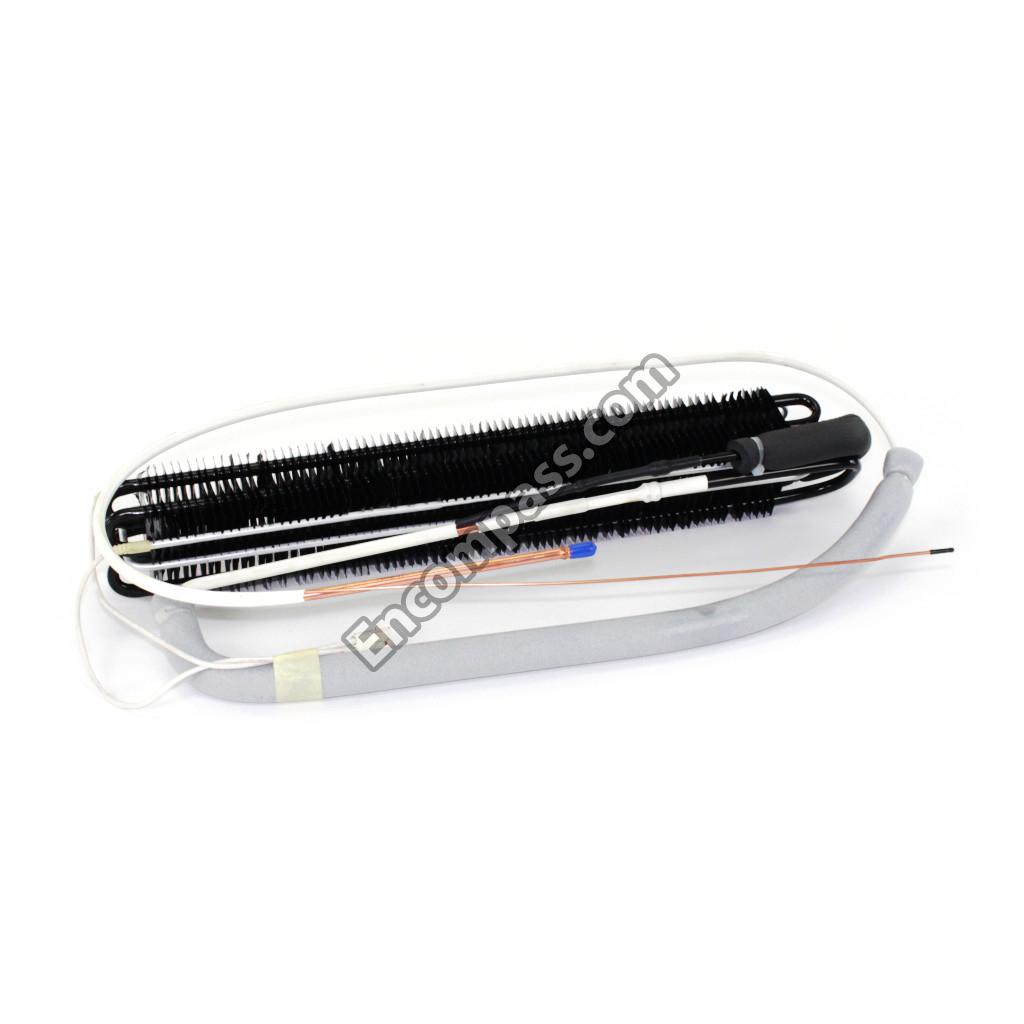

594063300 594063300 FIN-TYPE EVAPORATOR
804138900 804138900 FOLDING CARDBOARD BOX
744099900 744099900 FRESHAIR ACTIVATED CHARCOAL FILTER
743168900 743168900 FRONT TRIM
743169100 743169100 FRONT TRIM
710957702 710957702 GASKET
980909901 980909901 GLASS DOOR, COMPLETE
409805901 409805901 HEXAGON-HEAD SELF-TAPPING SCREW
409823201 409823201 HEXAGON-HEAD SELF-TAPPING SCREW
409810001 409810001 HEXAGON-HEAD SELF-TAPPING SCREW
409899500 409899500 HEXAGON-HEAD SELF-TAPPING SCREW
994178301 994178301 HOSE
607166900 607166900 INTERIOR LIGHT
607167100 607167100 INTERIOR LIGHT
743014800 743014800 MOULDED HANDLE
708151700 708151700 OPERATING INSTRUCTIONS

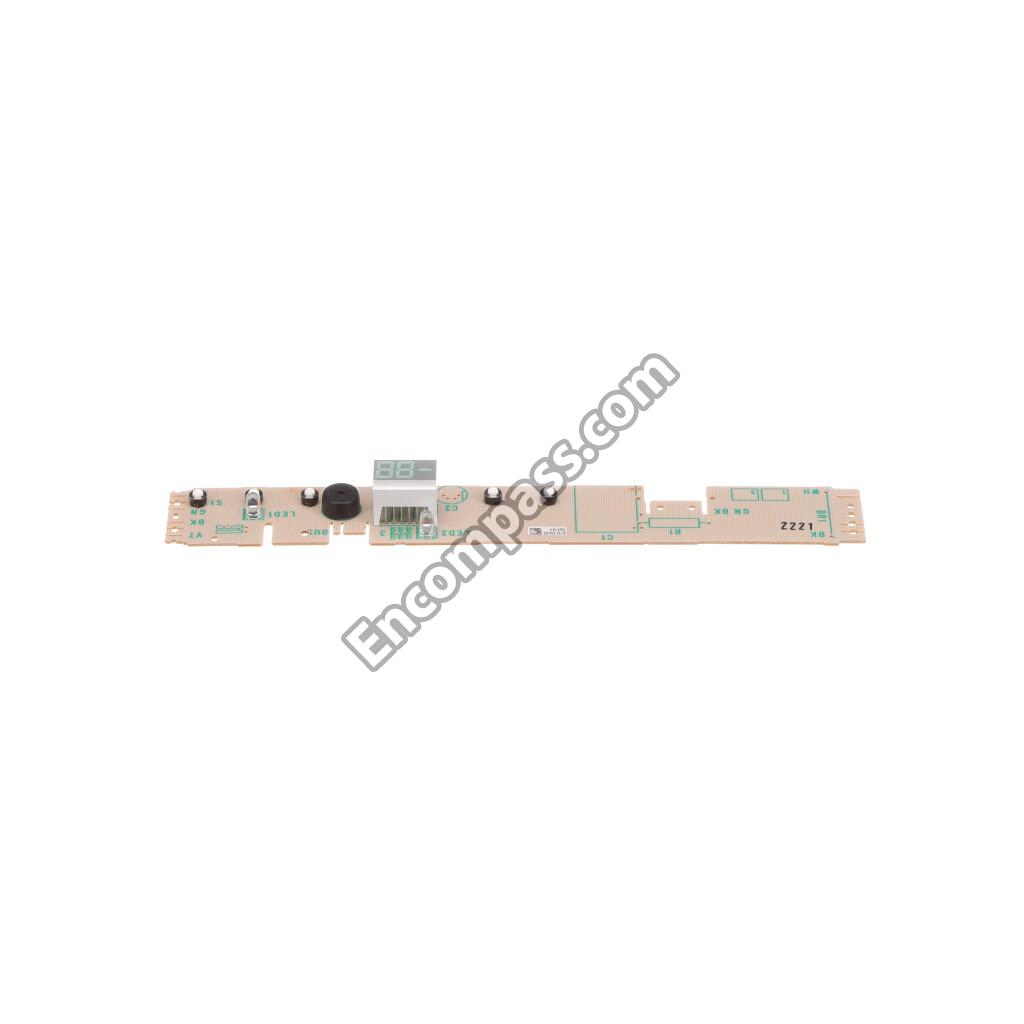

613330400 613330400 OPERATING UNIT BOARD
613350200 613350200 OPERATING UNIT BOARD
409898901 409898901 OVAL-HEAD SCREW
408401302 408401302 OVAL-HEAD SCREW
409876301 409876301 OVAL-HEAD SELF-TAPPING SCREW
409899701 409899701 OVAL-HEAD WOOD SCREW
409899101 409899101 OVAL-HEAD WOOD SCREW
988011100 988011100 PACKAGING, COMPLETELY
945076300 945076300 PARTS, POWDER-COATED, COLOURED
770000100 770000100 PIPE
742461500 742461500 PLUG
740261200 740261200 PLUG
611321500 611321500 POWER BOARD
611303700 611303700 POWER BOARD
611308100 611308100 POWER BOARD
409868900 409868900 PT SCREW
611361601 611361601 REED BOARD

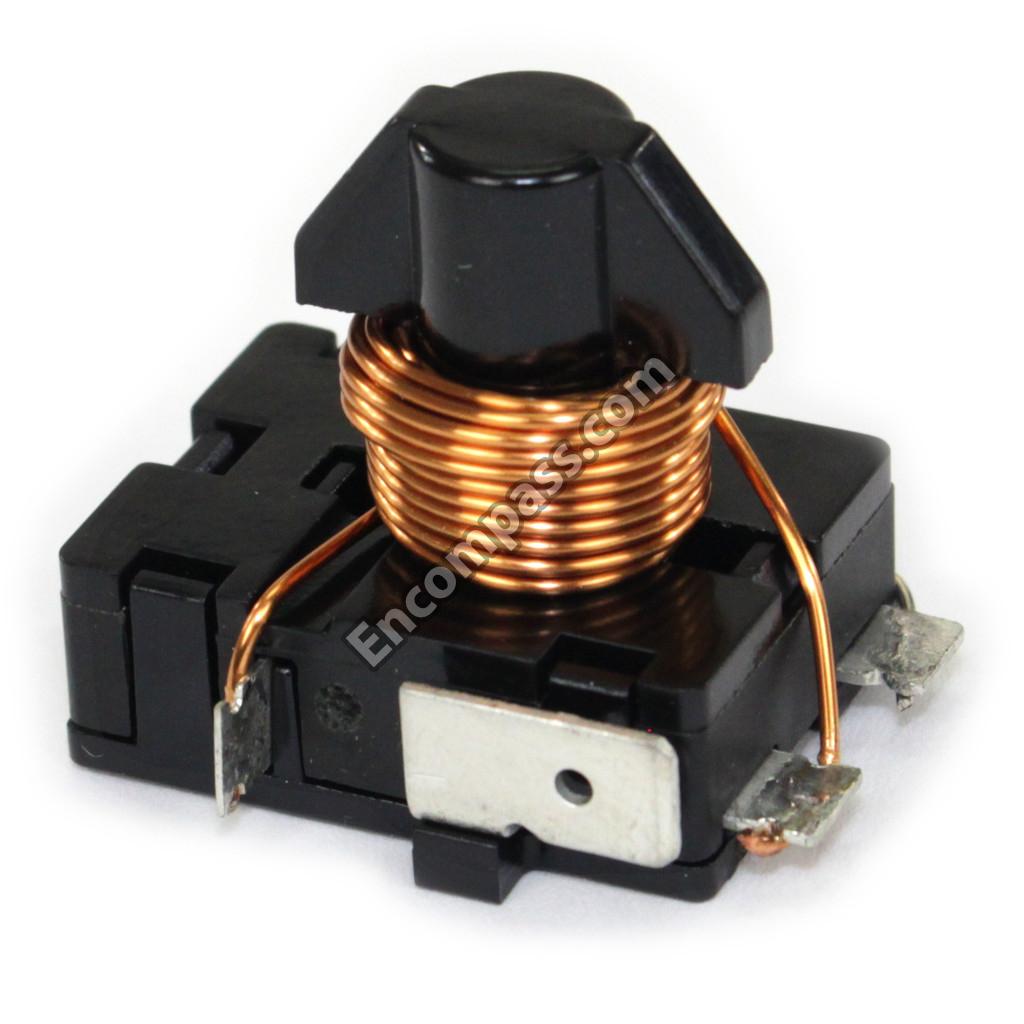

694042300 694042300 RELAY
694051700 694051700 RELAY
970300201 970300201 ROLLERS

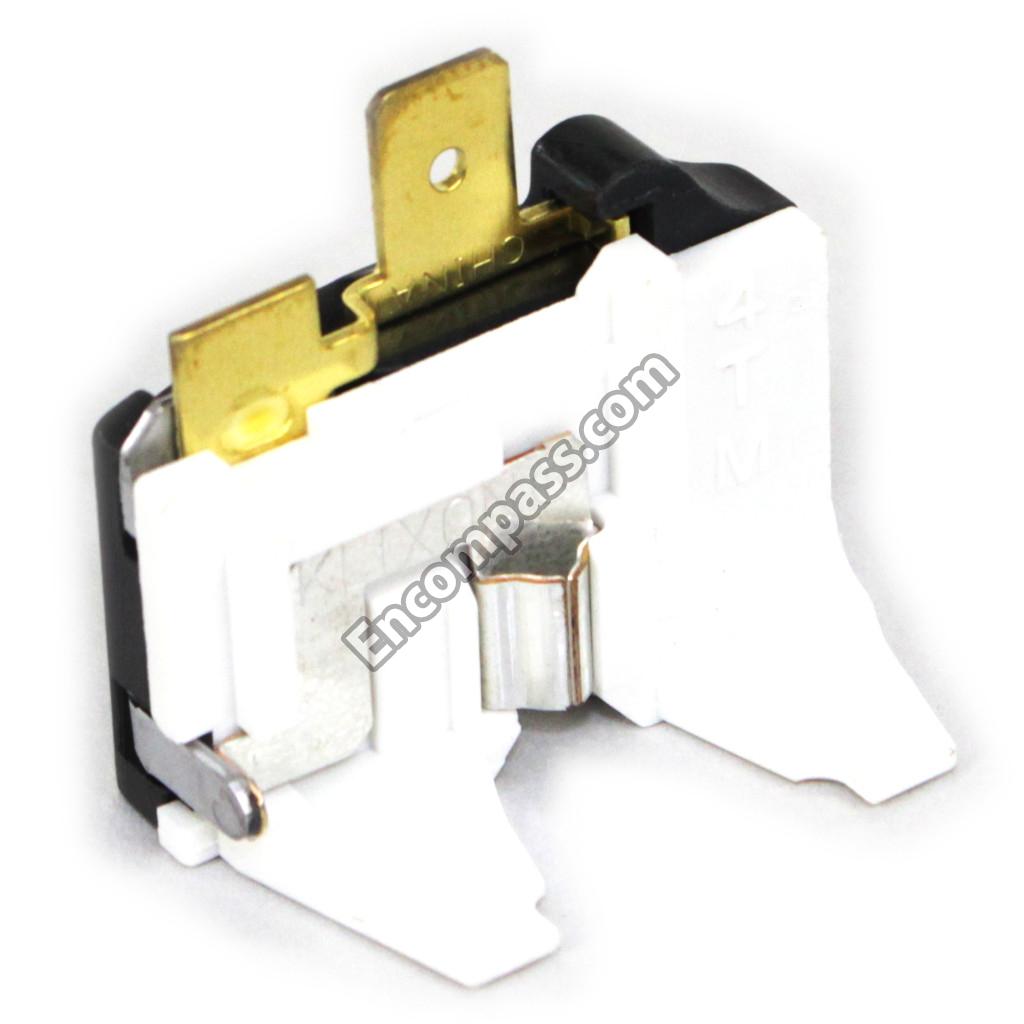

694042100 694042100 SAFETY TEMPERATURE LIMITER
694051900 694051900 SAFETY TEMPERATURE LIMITER
409873300 409873300 SCREW
694269901 694269901 SENSOR
742937300 742937300 SENSOR RETAINING FIXTURE
743163100 743163100 SENSOR RETAINING FIXTURE
770072700 770072700 SLEEVE
950369301 950369301 SOLENOID VALVE
789076300 789076300 SPECIAL SECURING HARDWARE
789076500 789076500 SPECIAL SECURING HARDWARE
904001600 904001600 SPECIAL SECURING HARDWARE
726613200 726613200 SPECIAL SECURING HARDWARE
726612000 726612000 SPECIAL SECURING HARDWARE
720375500 720375500 SPRING
720375700 720375700 SPRING
840902801 840902801 STAINLESS STEEL CLEANER CHROMOL
742829500 742829500 STRIP
742718500 742718500 STRIPS, VARIOUS
750199900 750199900 SWITCHING COMPONENTS
611313300 611313300 THERMOSTAT
940668700 940668700 VARIOUS COMPONENTS
742742200 742742200 VARIOUS INJECTION-MOULDED ITEMS
742847300 742847300 VARIOUS INJECTION-MOULDED ITEMS
742874700 742874700 VARIOUS INJECTION-MOULDED ITEMS
742663000 742663000 VARIOUS INJECTION-MOULDED ITEMS
742777901 742777901 VARIOUS INJECTION-MOULDED ITEMS
742724100 742724100 VARIOUS PLATES
742724300 742724300 VARIOUS PLATES
742724500 742724500 VARIOUS PLATES
742843900 742843900 VARIOUS RETAINING FIXTURES
742710901 742710901 VARIOUS RETAINING FIXTURES
743307200 743307200 VARIOUS RETAINING FIXTURES
742716100 742716100 VARIOUS RETAINING FIXTURES
742770200 742770200 VARIOUS RETAINING FIXTURES
742811400 742811400 VARIOUS RETAINING FIXTURES
743029300 743029300 VARIOUS RETAINING FIXTURES
743029501 743029501 VARIOUS RETAINING FIXTURES
741263400 741263400 VARIOUS RETAINING FIXTURES
742776300 742776300 VARIOUS RETAINING FIXTURES
742223600 742223600 VARIOUS RETAINING FIXTURES
742223400 742223400 VARIOUS RETAINING FIXTURES
742741601 742741601 WALL CONNECTION STRIP
420679700 420679700 WASHER
774557900 774557900 WASHER
711245701 711245701 WOODEN SHELF

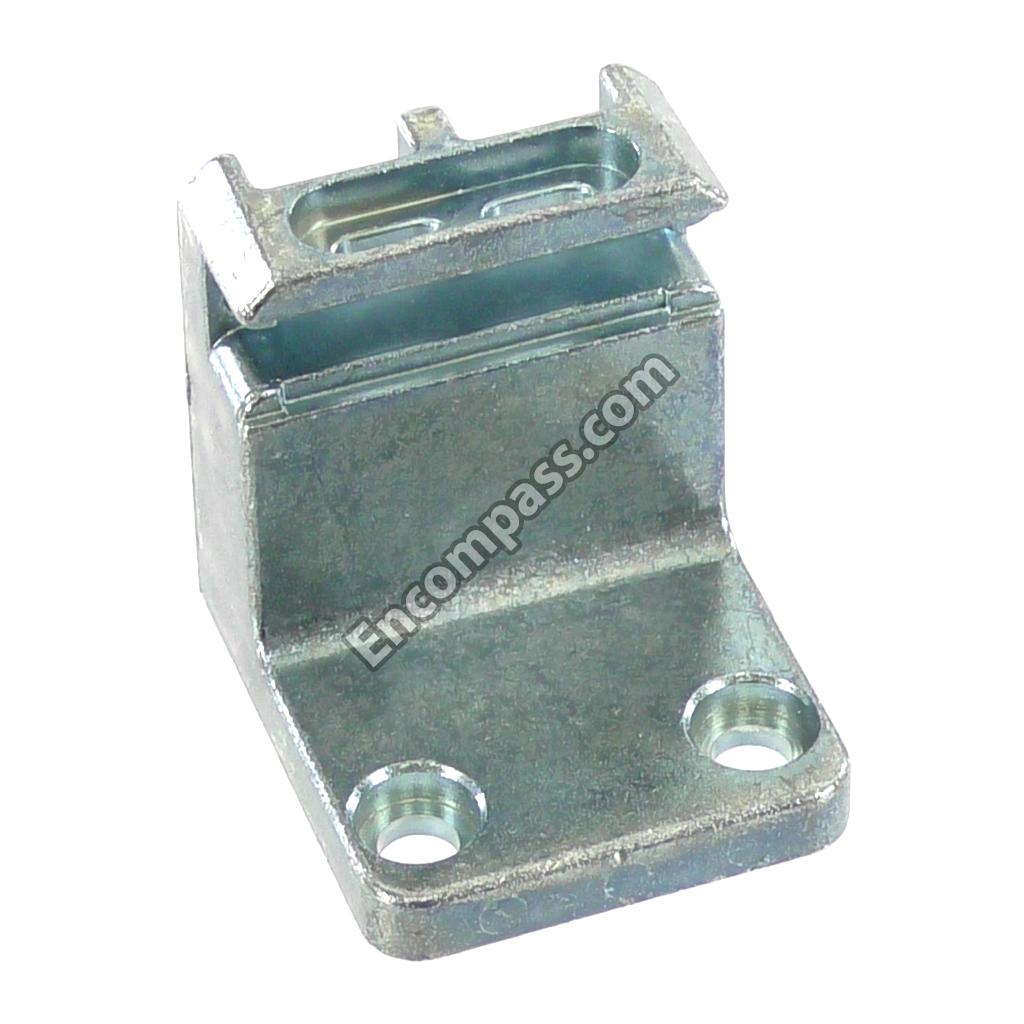

704356101 704356101 ZINC DIE-CAST BEARING BLOCK
704356501 704356501 ZINC DIE-CAST BEARING BLOCK
