Manufacturer
Samsung
Model Number
BDD6500
Description
3d Blu-ray Disc Player (black)
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| AK97-01943A | ASSY ACCESSORY;DVD-R157/XAA,-,NEXUS,- |
| AK96-01526A | ASSY COVER P-FRONT;BD-D6500,W/W |
| AK96-01535A | ASSY COVER P-SIDE L;BD-D6700 |
| AK96-01534A | ASSY COVER P-SIDE R;BD-D6700 |
| AK96-01535B | ASSY COVER P-SIDE-L;BD-D6500 |
| AK96-01534B | ASSY COVER P-SIDE-R;BD-D6500 |
| AK96-01528B | ASSY COVER P-TOP;BD-D6500 |
| AK96-01528A | ASSY COVER P-TOP;BD-D6500 |
| AK96-01579F | ASSY DECK P;HT-D6500,D6700,D6900,MOLD, 6 |
| AK94-00419C | ASSY PCB FRONT;BD-D6500/ZA,ASSY PCB FRON |
| AK94-00438B | ASSY PCB LED;BD-D6500,LED ASSY |
| AK94-00503A | ASSY PCB MAIN-VE;BD-D6500/ZA,MAIN PCB AS |
| AK94-00412D | ASSY PCB S-SUB-USB;BD-D6500/ZA,ASSY SUB- |
| AK94-00421B | ASSY PCB SMPS;BD-D6700/ZA,ASSY PCB SMPS |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,28,2 |
| AC43-12002H | BATTERY-DRY;LI-ION POLYMER,4.2V,R03(AAAM |
| 3301-001808 | BEAD-SMD;120OHM,1005,TP,530OHM/390MHZ,12 |
| 3301-001404 | BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ,- |
| 2401-001340 | C-AL;0.47UF,20%,50V,WT,TP,5X11,5 |
| 2401-003480 | C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5 |
| 2401-004702 | C-AL;100UF,20%,200V,BK,16*20,7.5MM |
| 2401-003499 | C-AL;330UF,20%,16V,LZ,TP,8X11.5MM,5 |
| 2401-001838 | C-AL;470UF,20%,25V,WT,TP,10X16,5MM |
| 2401-001583 | C-AL;47UF,20%,50V,WT,TP,6.3X11,5 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608 |
| 2203-001397 | C-CER,CHIP;2.2NF,5%,50V,NP0,TP,1608 |
| 2203-006170 | C-CER,CHIP;220NF,10%,16V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006377 | C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608 |
| 2201-002076 | C-CERAMIC,DISC;0.068NF,10%,1000V,SL,TP,8 |
| 2201-000963 | C-CERAMIC,DISC;1NF,20%,400V,Y5U,9.5X6MM, |
| 2201-000987 | C-CERAMIC,DISC;2.2NF,20%,400V,Y5U,TP,12. |
| 2301-000129 | C-FILM,LEAD-PEF;100NF,5%,50V,TP,10X9X4.3 |
| 2301-000383 | C-FILM,LEAD-PEF;10NF,5%,50V,TP,6X7X3.2MM |
| 2305-000382 | C-FILM,LEAD-PEF;4.7NF,5%,400V,TP,-,5MM |
| 2301-001683 | C-FILM,MPEF;100NF,20%,275V,BK,12.5X6X12M |
| 2301-001679 | C-FILM,PEF;2.2NF,5%,50V,TP,5.8X3X7MM,- |
| AC97-01746A | CABLE-RCA;SJ01-08-099,3P,1200MM,30V,PVC, |
|
|

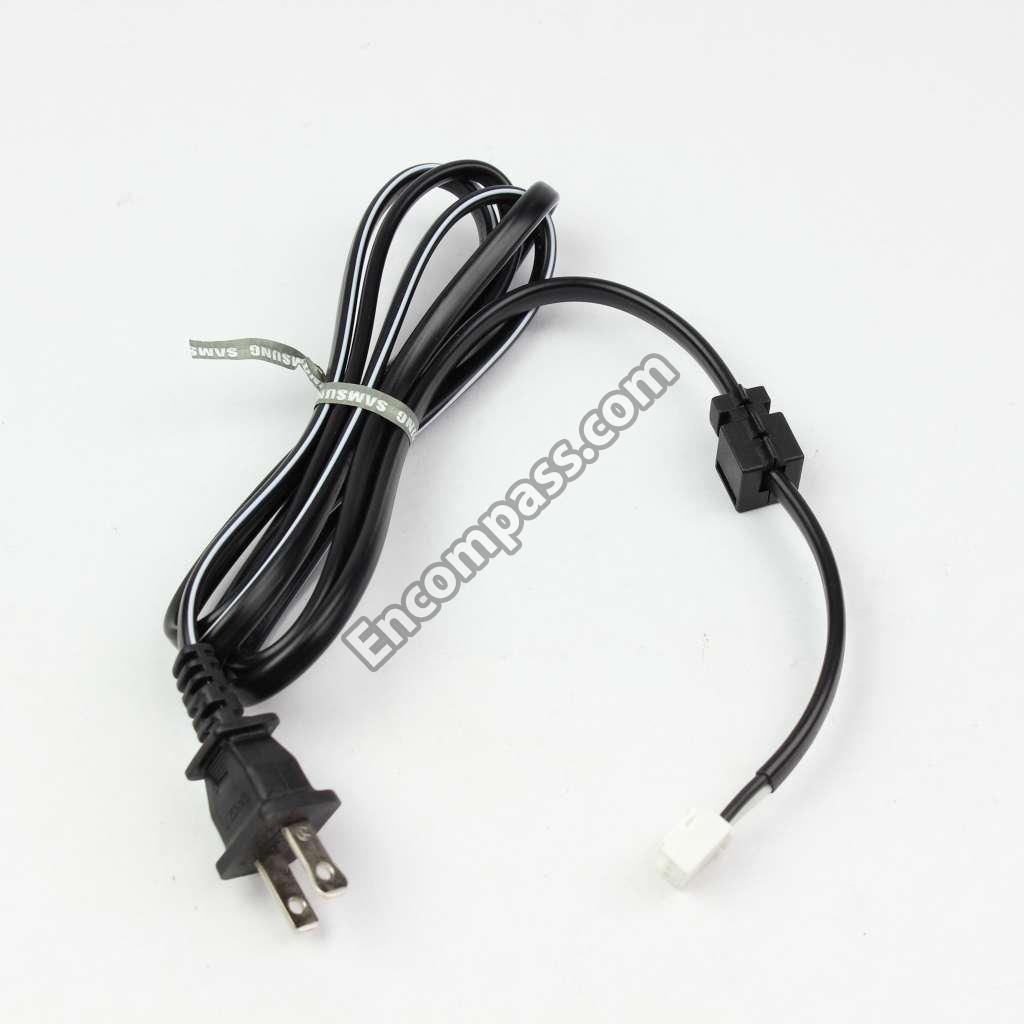

CBF-POWER CORD;AT,US,EP2/Y,HOUSING(2P),1 |
| AK65-00001A | CLAMPER CORE-CORD POWER;EXINO,ABS,BLK |
| AC27-92001M | COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),T |
| 3708-002044 | CONNECTOR-FPC/FFC/PIC;15P,1MM,SMD-A,SN,N |
| 3708-001837 | CONNECTOR-FPC/FFC/PIC;15P,1MM,SMD-S,SN,N |
| 3708-002203 | CONNECTOR-FPC/FFC/PIC;40P,0.5MM,SMD-A,AU |
| 3708-002908 | CONNECTOR-FPC/FFC/PIC;40P,0.5MM,SMD-S,0. |
| 3708-001878 | CONNECTOR-FPC/FFC/PIC;6P,1MM,SMD-A,SNPB, |
| 3708-002624 | CONNECTOR-FPC/FFC/PIC;8P,0.5MM,SMD-A,AU, |
| 3701-001293 | CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU |
| 3707-001103 | CONNECTOR-OPTICAL;ANGLE-TX |
| 2801-004284 | CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH |
| 0602-001197 | DIODE-LASER;25MW,2V,405NM,TP |
| 0602-001172 | DIODE-LASER;25MW,2V,405NM,TR |
|
|
DIODE-RECTIFIER;1N4007,1000V,1A,DO-41,TP |
| 0402-000351 | DIODE-RECTIFIER;1N4937,600V,1A,DO-41,TP |
| 0402-000268 | DIODE-RECTIFIER;SB360,60V,3A,DO-201AD,TP |
| 0402-001783 | DIODE-RECTIFIER;SF35G,300V,3A,DO-201AD,T |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000008 | DIODE-SWITCHING;DAN217,80V,100MA,SOT-23, |
| 0406-001253 | DIODE-TVS |
| 0406-001395 | DIODE-TVS;AOZ8802ADI,6/-/-V,DFN-6 |
| 0406-001239 | DIODE-TVS;RCLAMP0502B,6/-/-V,125W,SOT-52 |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,5%,500MW,SOD-123,T |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89/6.51V,500M |
| 0403-000720 | DIODE-ZENER;MTZJ9.1B,8.57/9.01V,500MW,DO |
| 0403-001083 | DIODE-ZENER;UDZSNP9.1B,8.85/9.23V,200MW, |
| AK64-02528A | DOOR-USB;BD-D6500,ABS+PMMA,40,NTR |
| 0505-001089 | FET-SILICON;AO3409L,P,-30V,-2.6A,0.097/0 |
| 0505-002598 | FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
| 3809-002718 | FFC CABLE-FLAT;60V,105?,160MM,15P,1.0MM, |
| AK29-00006B | FILTER LINE NOISE;BD-C6900,UU1116V,2.46O |
| 3601-001600 | FUSE-ETC;250V,1.6A,TIME-LAG,THERMOPLASTI |
| 3711-003380 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-006145 | HEADER-BOARD TO CABLE;3WALL,4P,1R,2MM,ST |
| 3711-006099 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,SMD |
| 3711-004182 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,STR |
| 3711-007137 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 1002-001662 | IC-D/A CONVERTER;PCM5101,24,TSSOP,20P,6. |
| 1203-006455 | IC-DC/DC CONVERTER;TPS65251RHAR,QFN,40P, |
| 1105-002161 | IC-DDR3 SDRAM;K4B2G1646C-HCH9,1333 DDR3 |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1203-006067 | IC-POWER SUPERVISOR;TPS2553DBVR,SOT-23,6 |
| 1203-001212 | IC-VOL. DETECTOR;7029,SOT-89,3P,-,PLASTI |
| AC14-12006D | IC;KA431Z,TO-92,TAPING |
| 2703-000166 | INDUCTOR-SMD;2.7UH,5%,3225,1.1OHM,290MA, |
| 2703-001873 | INDUCTOR-SMD;4.7UH,20%,6060,.028OHM,1600 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003266 | JACK-MODULAR;8P/8C,YES,ANGLE-DIP,W/O,AU, |
| 3722-001051 | JACK-USB;4P/1C,AU,BLK,ANGLE,A TYPE |
| AK39-00154A | LEAD CONNECTOR;BD-D5700/D6500/D6700,LEAD |
| AK39-00156A | LEAD CONNECTOR;D6500/D6700,FLAT CONNECTO |
| 0601-001916 | LED;ROUND,WHITE,3.0MM,4.32MM,- |
| 0601-002908 | LED;SMD(SIDE VIEW),WHT,3.8X1.2MM,3.8X1.2 |
|
|
LEG;DVD-VR330,RUBBER,BLK,12,PLASTOMER 10 |
| 0609-001355 | MODULE REMOCON;HORIZONTAL,9.1MM,TUBE |
| BN59-01130B | NETWORK;WIDT-10A,BCM43236,INTERNAL WIFI, |
| 0604-001032 | PHOTO-COUPLER;TR,50-600%,250MW,DIP-4,ST |
| 2001-000302 | R-CARBON;10OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000331 | R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000429 | R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000440 | R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000527 | R-CARBON;22OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2007-007482 | R-CHIP;1.24KOHM,1%,1/10W,TP,1608 |
| 2007-000079 | R-CHIP;1.8KOHM,5%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-007467 | R-CHIP;12.1KOHM,1%,1/16W,TP,1005 |
| 2007-000103 | R-CHIP;120KOHM,5%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-000381 | R-CHIP;13KOHM,5%,1/10W,TP,1608 |
| 2007-007830 | R-CHIP;14KOHM,1%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-007834 | R-CHIP;16.5KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-000512 | R-CHIP;2.4KOHM,5%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000606 | R-CHIP;240OHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000701 | R-CHIP;3.6KOHM,1%,1/10W,TP,1608 |
| 2007-000708 | R-CHIP;3.9KOHM,1%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000835 | R-CHIP;39OHM,1%,1/10W,TP,1608 |
| 2007-000083 | R-CHIP;3KOHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000057 | R-CHIP;40.2KOHM,1%,1/10W,TP,1608 |
| 2007-000910 | R-CHIP;43KOHM,1%,1/10W,TP,1608 |
| 2007-007512 | R-CHIP;43OHM,5%,1/10W,TP,1608 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-000072 | R-CHIP;47OHM,5%,1/10W,TP,1608 |
| 2007-000108 | R-CHIP;510KOHM,5%,1/10W,TP,1608 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-001038 | R-CHIP;56KOHM,1%,1/10W,TP,1608 |
| 2007-000099 | R-CHIP;62KOHM,5%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-000100 | R-CHIP;68KOHM,5%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-001164 | R-CHIP;75OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-000101 | R-CHIP;82KOHM,5%,1/10W,TP,1608 |
| 2002-001013 | R-COMPOSITION;4.7MOHM,5%,1/2W,AA,TP,3.7X |
| 2003-000403 | R-METAL OXIDE(S);0.68OHM,5%,2W,AF,TP,3.9 |
| 2003-000994 | R-METAL OXIDE(S);33KOHM,5%,2W,AF,TP,3.9X |
| 2003-002102 | R-METAL OXIDE(S);68KOHM,5%,2W,AF,TP,4X12 |
| 2004-000202 | R-METAL;100OHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 2004-000433 | R-METAL;1KOHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 2004-000869 | R-METAL;3KOHM,1%,1/8W,AA,TP,1.8X3.2MM |
| 2802-001164 | RESONATOR-CERAMIC;8.000MHZ,0.5%,TP,8.0X |
| 6001-001730 | SCREW-MACHINE;BH,+,M1.7,L2.5,ZPC(WHT),SW |
| 6001-001370 | SCREW-MACHINE;CH,+,M1.7,L3,ZPC(WHT),SWRC |
| 6001-001291 | SCREW-MACHINE;CH,+,M1.7,L4,ZPC(BLK),SWRC |
| 6002-001086 | SCREW-TAPPING;PH,+,B,M1.7,L5,ZPC(WHT),SW |
| 6003-001561 | SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
| 6003-001375 | SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(WHT),SW |
| 6003-001070 | SCREW-TAPTYPE;BH,+,B,M2,L4,ZPC(BLK),SWRC |
| 6003-001620 | SCREW-TAPTYPE;CH,+,B,M1.4,L5,NI PLT,SWRC |
| 6003-001742 | SCREW-TAPTYPE;CH,+,B,M2,L5,ZPC(WHT),SWRC |
| AH61-50327A | SHAFT-PU L84.7;BD-P,SUS420J2,L84.7,OD3,W |
| 3710-001922 | SOCKET-BOARD TO CABLE;4P,1R,2MM,ANGLE,SN |
| AK61-01187A | SPRING ETC-DOOR;STEEL |
| AK61-00974A | SPRING ETC-DVD LD;SOH-SBP2,SUS301,3.7,0. |
| 1404-001361 | THERMISTOR-NTC;3OHM,4A,-,35MW/C,0UF,9,TP |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7KOH |
| 0504-000129 | TR-DIGITAL;KSR1104,NPN,200MW,47K/47KOHM, |
| 0504-000156 | TR-DIGITAL;KSR2103,PNP,200MW,22K/22K,SOT |
| 0501-000150 | TR-SMALL SIGNAL;2SA1037,PNP,200MW,SOT-23 |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
|
|
TRANS SWITCHING;EFD_2525_BD-D5500/6500,B |
| 1405-001192 | VARISTOR;12VDC,30A,1.6X0.8X0.55MM,TP,50V |
| 1405-000188 | VARISTOR;560V,455VDC,2500A,14X8.5MM,TP,9 |
| AK07-00076A | VF DISPLAY;HNV-06SM24T,BD-D6500/6600(LEA |
| 2104-001125 | VR-SMD;1KOHM,25%,1/10W,TOP |
| 2104-001087 | VR-SMD;2.2KOHM,25%,0.15W,TOP |
| 3811-001868 | WIRE-NO SHEATH CU;SNCUFE,52MM,GRY |
