Manufacturer
Samsung
Model Number
DVE53BB8900GA3
Description
Electric Dryer - 7.6 Cu. Ft.
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DC72-00040E | ABSORBER SPONGE , GRACE DRYER, |
|
|
ABSORBER SPONGE;-,EPDM,T3,D0,-,-,-,- |
| DC63-01548A | ABSORBER SPONGE;DV220AEW/XAA,E |
| DC63-02104D | ABSORBER SPONGE;EPDM,T3.0,BLAC |
| DC72-00032G | ABSORBER SPONGE;GRACE-DRYER,EP |
| 0201-003678 | ADHESIVE-HM;HL3700WS,WHITE,9,0 |
| 0102-001603 | ALUMINUM INGOT;ALDC8 |
| DC98-02087D | ASSEMBLY ACCESSORY;DV7000R,DVE52A5500C/A3 |
|
|
ASSEMBLY BRACKET IDLER;ALL DRYER |
|
|
ASSEMBLY BRACKET MOTOR;BIGBANG |
|
|
ASSEMBLY BRACKET THERMOSTAT;DRYER |
| DC97-23359B | ASSEMBLY COVER FILTER;DV8900B,DV*53BB8900,PP |
| DC97-23340G | ASSEMBLY COVER PANEL;DV8900B,DVE53BB8900GA3, |
| DC97-23319D | ASSEMBLY COVER TOP-MODULE;DV8900B,DV*53BB890 |
|
|
ASSEMBLY DIE RACK DRY;GRACE-DRYER,-,- |
| DC97-23336D | ASSEMBLY DOOR-MODULE;DV8900B,DV*53BB8900*,HF |
| DC97-21492G | ASSEMBLY DRUM BACK-MODULE;DV8900B,VERSAILLES |
| DC97-23335B | ASSEMBLY DRUM FRONT-MODULE;DV8900B,FLAT (HFF |
| DC97-23529A | ASSEMBLY DRUM WRAPPER-MODULE;DV8900B,STS430, |
| DC93-00165B | ASSEMBLY DUCT AIR , GRACE(S) D |
|
|
ASSEMBLY DUCT EXHAUST;DV7000J, DV7000H,GI-SG |
|
|

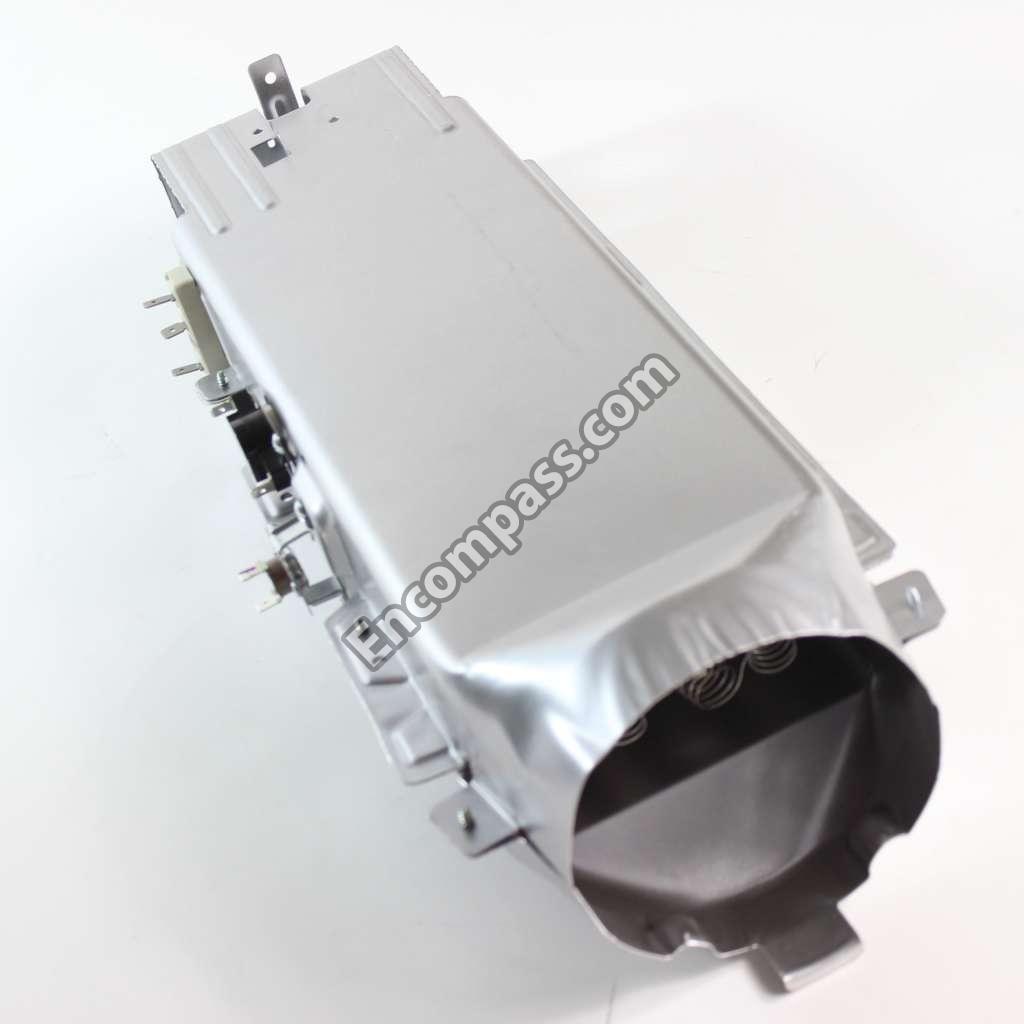

ASSEMBLY DUCT HEATER-MODULE;GRACE DRYER,DV52 |
| DC93-00187A | ASSEMBLY DUCT OUTLET;GRACE PJT,DV520AEP,SGCC |
|
|
ASSEMBLY FAN MOTOR-MODULE;GRACE(S) DRYER,DV4 |
| DC97-23343G | ASSEMBLY FRAME FRONT-MODULE;DV8900B,DV*53BB8 |
| DC97-23317B | ASSEMBLY FRAME PLATE-UP;DV8900B,DVG24BB8900D |
| DC97-23342G | ASSEMBLY FRAME-MODULE;DV8900B,DVE53BB8900GA3 |
|
|

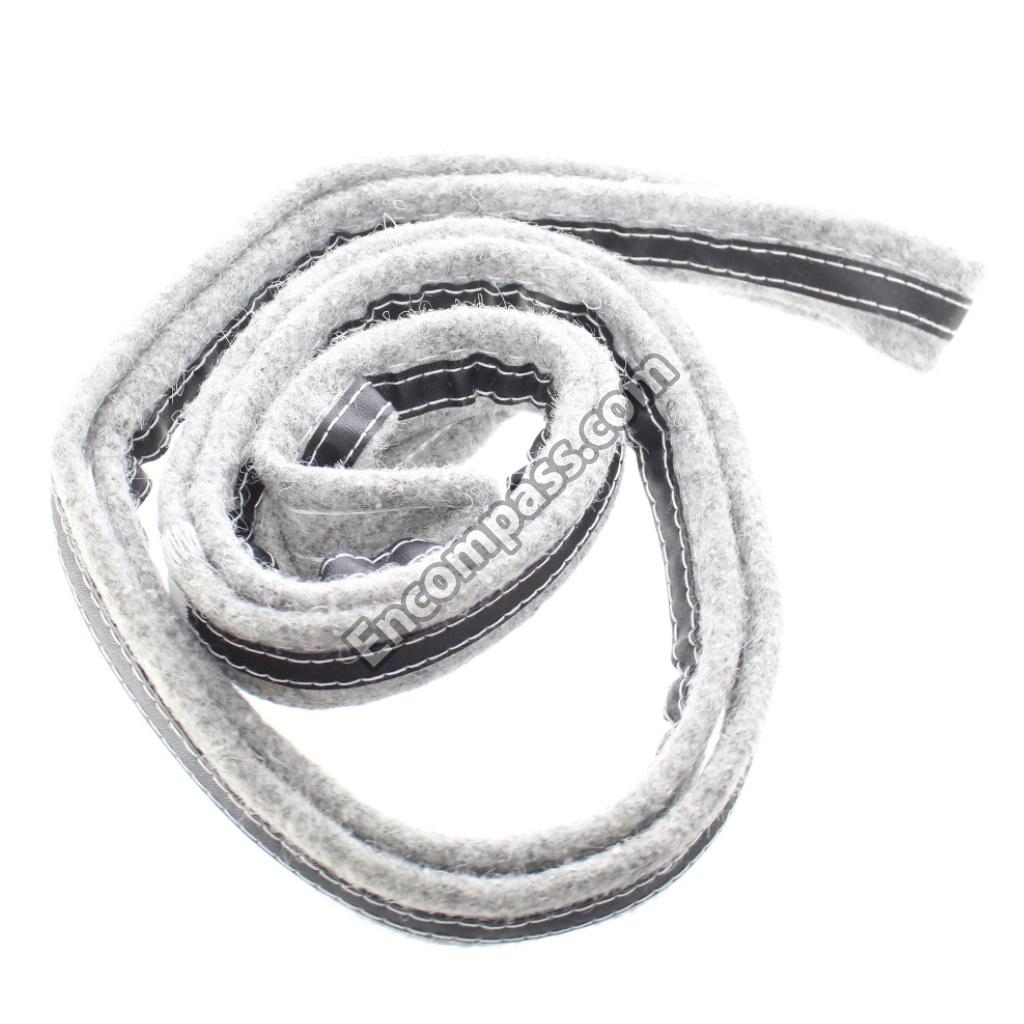

ASSEMBLY GASKET PAD;MDE9700AYW,DRYER/DRUM-WR |
|
|
ASSEMBLY HOLDER LEVER;DV7500K,DV50K7500*,VER |
| DC97-23512A | ASSEMBLY HOSE WATER;STEAM,STEAM,ASSEMBLY HOSE WA |
| DC96-01710D | ASSEMBLY LAMP LED;1,FR-4,WHITE,SMH200-03H,45 |
| DC98-04909A | ASSEMBLY MANUAL , DV53BB8900A3 |
| DC92-03136A | ASSEMBLY MICOM , DV8900B_VENT_ |
| DC92-03171A | ASSEMBLY MICOM , U-PROJECT_FLA |
| DC90-15188A | ASSEMBLY MOTOR DUCT;DV-6000HA |
|
|
ASSEMBLY MOTOR PARTS;27" DRYER |
| DC97-23396M | ASSEMBLY PANEL CONTROL;DV8900B,DVE53BB8900GA |
| DC92-03077J | ASSEMBLY PBA MODULE-DISPLAY;HW,FCD_TOUCH DIS |
| DC94-14493A | ASSEMBLY PCB AUTO;FCD,DV8600A,190X97MM,120V/ |
| DC94-14848Y | ASSEMBLY PCB EEPROM;0080,EEPROM,DV8900B,DUAL |
| DC92-03601J | ASSEMBLY PCB KIT;SW,FCD_MAIN,DV8900B,190*97M |
| DC92-03330P | ASSEMBLY PCB MAIN;FCD,DV8600A,190X97MM,120V/ |
| DC94-14495A | ASSEMBLY PCB SMD;FCD,DV8600A,190X97MM,120V/2 |
|
|
ASSEMBLY PLASTIC SUPPORT;DV7000R,- |

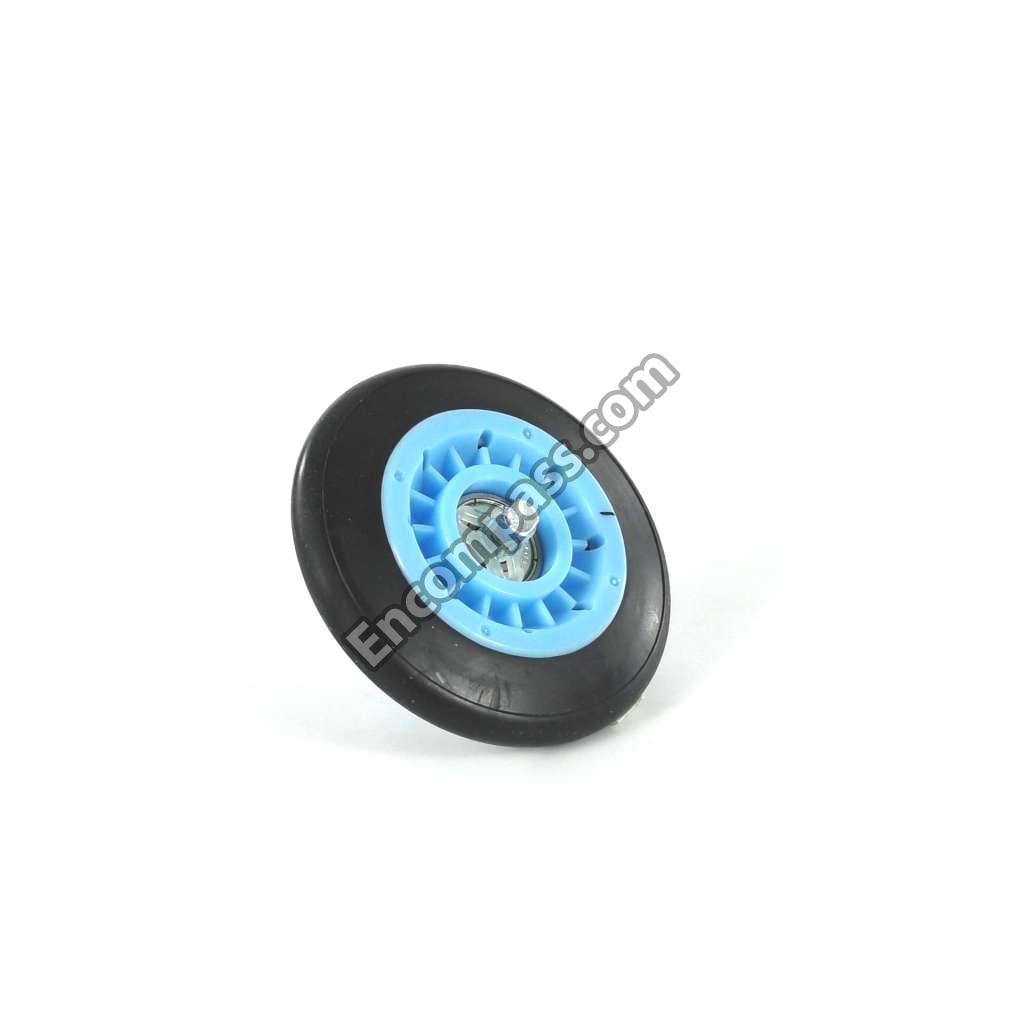

| DC97-07509C | ASSEMBLY ROLLER;DV5000H,DV42H5000E |
| DC97-23339A | ASSEMBLY S.DRUM FRONT;DV8900B,FLAT,- |
|
|
ASSEMBLY SCREW;ACE-PJT,DV419AEU,SWRCH18A,M4* |
| DC97-16919D | ASSEMBLY STEAM KIT;NOZZLE_INJECTION,SCREW |
|
|

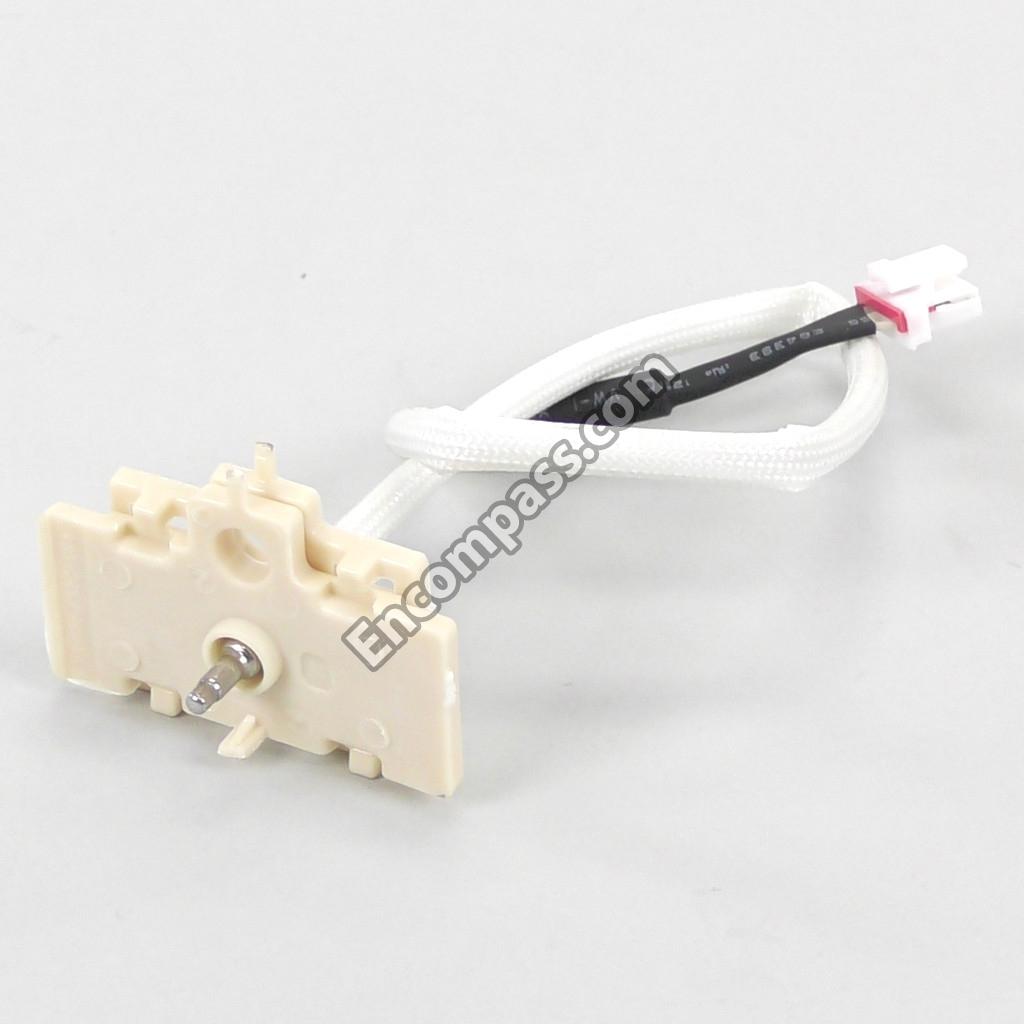

ASSEMBLY THERMISTOR;DRYER,5V,-20~250 ,240MM, |
| DC93-00957A | ASSEMBLY WIRE HARNESS-MAIN;DRYER-L,DUAL HEAT |
|
|
ASSEMBLY WIRE HARNESS-TOUCH;DRYER-L,-,,,,,,, |
| 6902-002371 | BAG PE;HDPE,T0.015,W200,L300,T |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OH |
| 6601-003218 | BEARING BALL;ID10.0,OD22.0,L6, |
| 6601-000125 | BEARING-BALL;608ZZ,STB2,BALL,RADIAL,DB,L |
|
|
BELT-TIMING GEAR;RUBBER,RED/YEL,T2.4,W8, |
| DC66-00440A | BLADE-BLOWER |
|
|
BOLT-ETC;M5,L11,ZPC(WHT),SWRCH18A |
| DC61-05794A | BRACKET DRUM BACK;DV520AEP/XAA,GI-SGCC,T |
| DC61-05796A | BRACKET DRUM BACK;WINGS-DRYER,GI-SGCC,T0 |
| DC61-05793A | BRACKET DRUM BACK;WINGS-DRYER,GI-SGCC,T0 |
| DC61-01236A | BRACKET DRUM FRONT;-,HGI-SGHC,T3,-,-,-,D |
| DC61-03754A | BRACKET DUCT;DV9000H,GI-SGCC,T1,-,-,ELEC |
| DC61-04018A | BRACKET EXHAUST;DV3000J,GI-SGC |
| DC61-02626C | BRACKET HINGE;GRACE-DRYER,HGI-SGHC,T2,-, |
| DC61-01230C | BRACKET IDLER;DV18H5000EW,HGI- |
|
|
BRACKET MOTOR;WINGS-DRYER,HGI-SGHC,T1.8, |
| DC61-01204A | BRACKET-THERMOSTAT;WINGS-DRYER,GI-SGCC,T |
| DC61-02960A | BUSH FAN;27-DRYER,ALDC,FAN INS |
| 2402-001517 | C-AL,SMD;47UF,20%,50V,TP,6.3X6 |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-004267 | C-AL;22UF,20%,500V,GP,TP,16X25 |
| 2203-010032 | C-CER,CHIP , 47NF,10%,50V,X7R, |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,T0.8, |
| 2203-010033 | C-CER,CHIP;220NF,10%,25V,X5R,T |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2301-001220 | C-FILM,LEAD-PPF;100NF,10%,275VAC,BK,18X6 |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V, |
| 2301-001788 | C-FILM,MPEF;220NF,10%,275VAC,BK,18X8.5X1 |
| 6502-000127 | CABLE CLAMP;DAWH-18NB,PA66,NTR |
| DC61-00553B | CABLE CLAMP;DAWS-3NE,PA66,NTR |
| DC61-00553C | CABLE CLAMP;PA66,NTR |
| DC67-01178A | CAP COVER TOP , WF8900B,PP,T2. |
| DC61-05489A | CASE FILTER;DV8900B,PP+TD30%,-,VERSAILLE |
| DC02-00014A | CHEMICALS-BOND |
| DC02-10009A | CHEMICALS-LOCK SCREW;NO2 |
| DC27-00007A | COIL CHOKE;20MH,1.5A,13X10MM,M |
| 3711-004826 | CONNECTOR-HEADER |
| 3711-000744 | CONNECTOR-HEADER |
| DC60-00146A | CONNECTOR;POM,DV4000H,NATURAL,-,-,-,H100 |
| DC63-01983D | COVER CONNECTOR;DV6000R,PP,-,5VA,VERSAIL |
| DC63-02702A | COVER CONNECTOR;DV8800A,PP,T2.5,V-0,DARK |
| DC63-01026A | COVER DUCT FAN;27-DRYER,GI-SGC |
| DC63-01140B | COVER FILTER-UP;GRACE-DRYER,PP,-,5VA,VER |
| DC63-01202A | COVER HINGE;DV520AEP/XAA,PET+G |

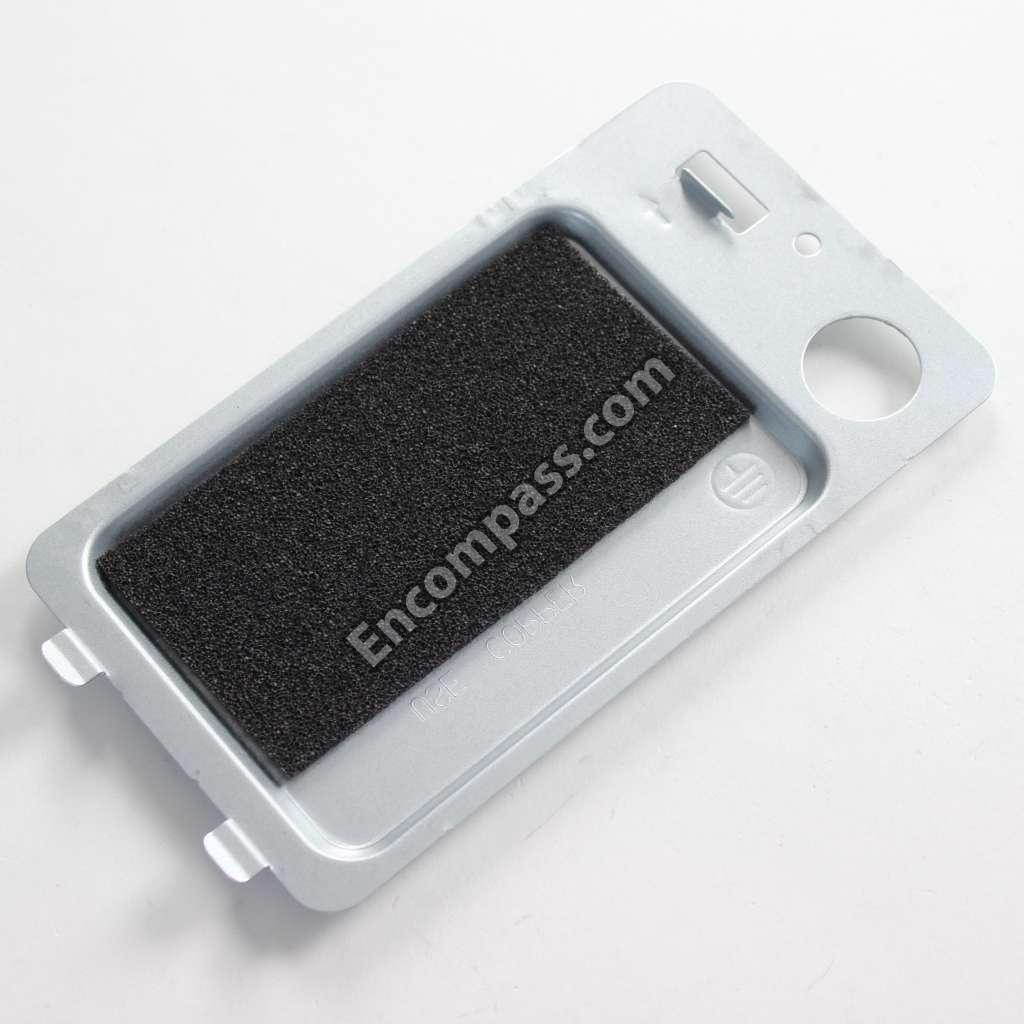

| DC63-02385A | COVER PCB;DVE45R6400V,GI-SGCC,T0.6,-,-,- |
|
|
COVER POWER;WINGS-DRYER,GI-SGCC,T0.5 |
| DC63-02822D | COVER SCREW;DV8900B,ABS,-,-,WOODY GREEN |
|
|
COVER SWITCH;DV448,PC+ABS,T1.5,V-0,NATUR |
|
|
DIE RACK DRY;GRACE-DRYER,PP+TD30%,NEAT W |
|
|
DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP |
| 0402-001472 | DIODE-RECTIFIER |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
| 0402-001741 | DIODE-RECTIFIER;S1M,1000V,1A,S |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0406-001594 | DIODE-TVS;P6SMB24CAT3G,22.8/24 |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
|
|
DOOR GLASS;27-DRYER,GLASS,T5,-,-,-,-,ARC |
| DC64-04020A | DOOR SAFETY;WF8800A,GLASS,T3.2 |
| DC66-01095B | DRUM LIFTER;DV8900B,PP+TD30%,-,-,HB,FC23 |
| DC67-00456A | DUCT AIR-FRONT , ALCOAT-SA1C,T |

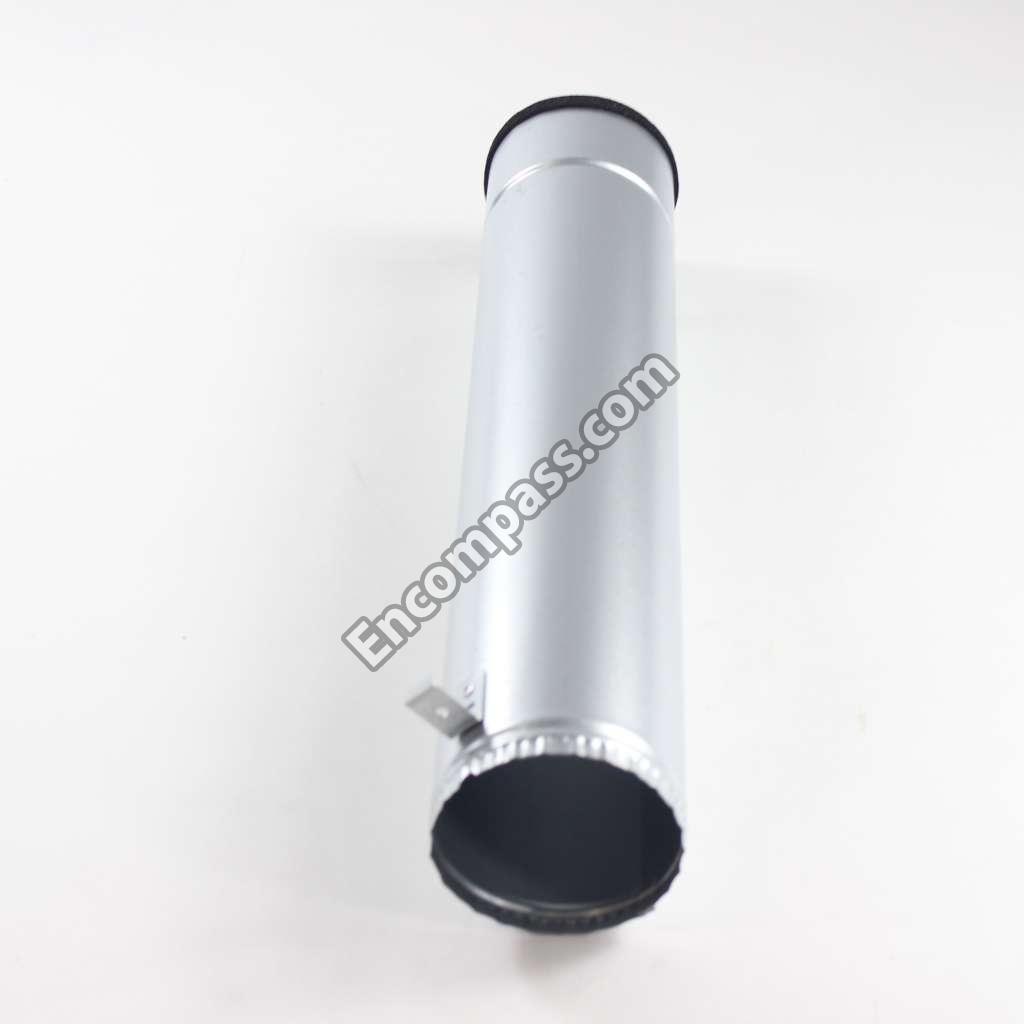

| DC67-00822A | DUCT EXHAUST;GI-SGCC,T0.35,-,-,- |
| DC67-00457A | DUCT HEATER-LOW , GRACE-DRYER, |
|
|
DUCT HEATER-UP;ALCOAT-SA1C,T0.5 |
| DC67-00135C | DUCT-AIR(B) , ALCOAT-SA1C,T0.5 |
| DC67-00454A | DUCT-OUTLET(B);GRACE-DRYER,GI- |
|
|
FAN;PP+GLF15%,T3,-,HLG41S,NATURAL,GLF15% |
|
|
FASTENER-PLAIN;HUDSON-DRYER,EGI-SECC,T1. |
| 0505-001943 | FET-SILICON;FDN342P,P,20V,2A,0 |
| DC63-01758A | FILTER MESH;PET,NATURAL,25*25 |
|
|
FIXER LAMP;GE24-DRYER,EPDM,-,GRAY,- |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX |
| DC61-03133A | GUIDE COVER TOP;DV5471AEP,PA66+GF25%,-,- |
|
|
GUIDE COVER TOP;HUDSON,POM,-,-,500P,BLAC |
|
|
GUIDE DUCT FAN;27-DRYER,GI-SGCC,T0.6 |
|
|
GUIDE HINGE;HAUZEN(DOM),POM,-,HB,K300,NA |
|
|
GUIDE-FAN;DV50F9A8EVW,PP+TD30%,T3,W102.1 |
| DC61-01208A | GUIDE-PCB |
| DC61-01227A | GUIDE-ROLLER |
| 3711-009517 | HEADER-BOARD TO CABLE , BOX,3P |
| 3711-000833 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,2P, |
| 3711-009410 | HEADER-BOARD TO CABLE;BOX,28P, |
| DC47-00032A | HEATER DRY , AC240V,3700W+1500 |
| DC61-05278A | HINGE DOOR , DV8800A,ALDC,T2.5 |
| DC61-04553A | HOLDER SHAFT;DRYER,PA6,T2.3,NA |
| DC61-04235A | HOLDER SHAFT;PA66,T2,NATURAL,H |
| DC61-60074A | HOLDER WIRE;-,PA66,-,NATURAL,-,-,101F,RE |
|
|
HOLDER WIRE;DAWH-2NC,PA66,-,NATURAL,-,-, |
|
|
HOLDER-POWER;MDE9700AYW,PP,SNOW WHITE,BJ |
| DC61-03396A | HOUSING-THERMISTOR;GRACE(S),PET+GF30%,T2 |
| 1203-009429 | IC-DC/DC CONVERTER;SYU812C1,SO |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 0903-002266 | IC-MICROCONTROLLER;A34M418YLN- |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,M |
| 1209-002491 | IC-TOUCH;CY8C4014LQI-422,QFN,2 |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DC64-04055A | INLAY FRAME FRONT , WF9500A,PE |
| DC64-03921A | KNOB ENCODER;A1 SIMPLE,ABS,-,HB,NATURAL, |
| DC68-02742B | LABEL INSTRUCTION;DV220AEW,ART |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMIN |
| DC68-02977C | LABEL RATING , VENT DRYER,USA, |
| DC68-03257B | LABEL TAG;SEA,SECA,MOJO,W297,L |
| DC68-02948A | LABEL WARNING;27-DRYER,ART,W19 |
| DC68-20091J | LABEL-BAR CODE |
| DC68-02322A | LABEL-CAUTION |
| DC68-02173A | LABEL-PACKING |
| DC68-02321A | LABEL-WARNING |
| 0601-002679 | LED;SMD(TOP VIEW),Y-GRN,WATER |
| DC61-03128B | LEG;DV511AER,PP,5VA,VERSAILLES GRAY,-,HF |
|
|
LEVER DOOR;DV9000H,ZNDC,T3 |
| DC68-04394A | MANUAL USERS , VENT DRYER,SEA/ |
| 0103-002990 | MASTERBATCH-PP;01-0022,SNOW WH |
| 0103-010287 | MASTERBATCH-PP;05-4596,GY0039, |
|
|

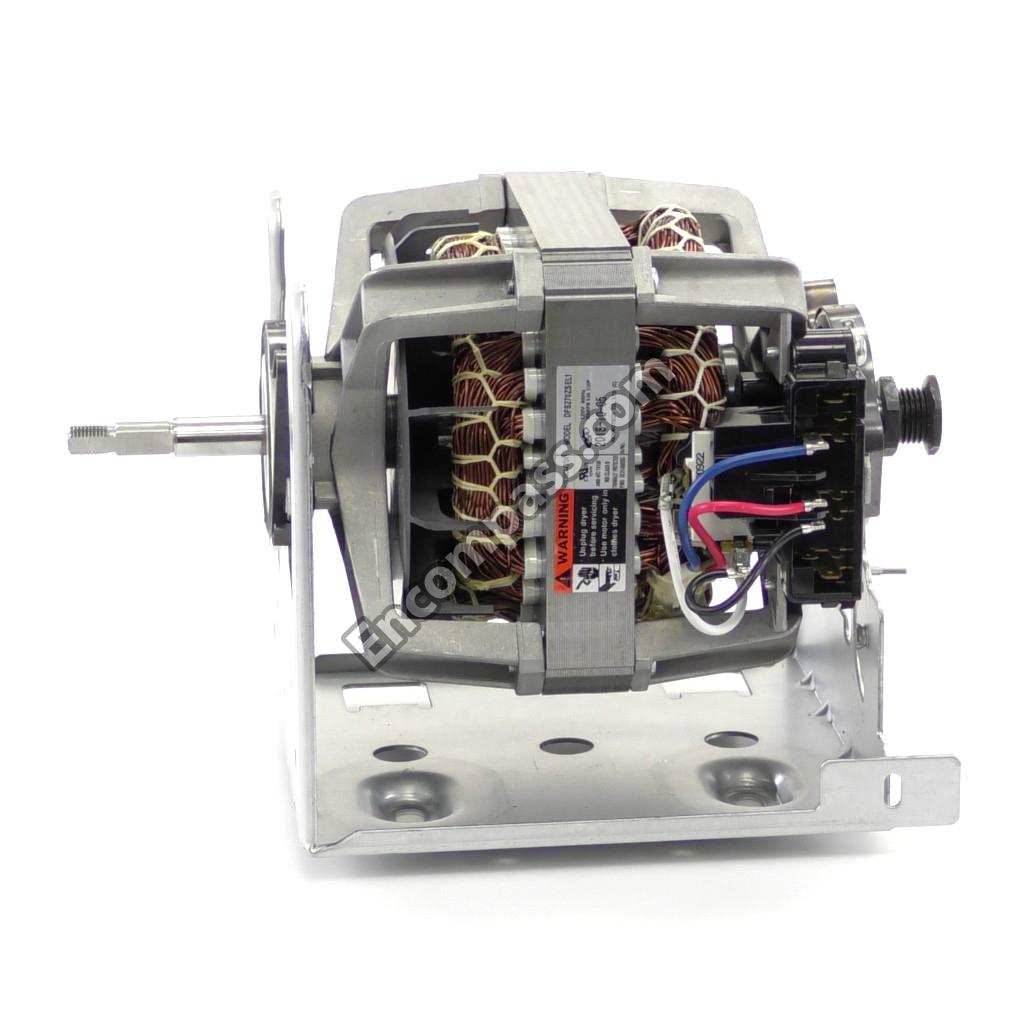

MOTOR AC DRIVE-MODULE;DRYER MOTOR,-,4POL |
|
|
NUT HEX;-,MSWR,T,-,-,-,M10 |
|
|
NUT-INCH;SWRCH10A,ZPC(YZPC(YEL)EL),LEFT |
| DC69-01928V | PACKING ANGLE;DV8000, DV7000,P |
| DC69-01721B | PACKING CASE SHRINKAGE;FWM,LDP |
| DC69-02297D | PACKING CASE;DV6000R,CB,SW1,L7 |
| DC69-02097E | PAD SHEET , DV8600A,HDPE/PE FO |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200M |
| DA62-03447M | PIPE WATER-LINE;RS8000,HDPE,WH |
| DC61-05124A | PLATE SENSOR;DV16T8740BV,STS430,T0.8,-,- |
| DC01-00127B | PLATE STEEL;BB-DRYER,HGI-SGHC, |
| DC01-00259A | PLATE STEEL;DV7000H,DV8000J,DV |
| DC01-00246A | PLATE STEEL;GI-SGCC,L100,0.5MM |
| DC01-00258A | PLATE STEEL;GI-SGCC,L510,0.35M |
| DC01-00518A | PLATE STEEL;GI-SGCD,L289,0.6MM |
| DC01-00123M | PLATE STEEL;H5000/H6000,GI-SGC |
| DC01-00128B | PLATE STEEL;H5000/H6000,HGI-SG |
| 0204-004868 | POLYURETHANE;CPU 90A,TRANSPARE |
| 0204-004866 | POLYURETHANE;CPU 90B,TRANSPARE |
| 2007-007306 | R-CHIP |
| 2007-001015 | R-CHIP |
| 2007-000568 | R-CHIP |
| 2007-008682 | R-CHIP , 2.2MOHM,1%,1/16W,TP,1 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000474 | R-CHIP;1MOHM,1%,1/8W,TP,2012,T0.5 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000761 | R-CHIP;330KOHM,5%,1/4W,TP,3216 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216,T6 |
| 2007-008231 | R-CHIP;680OHM,1%,1/16W,TP,1005 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
| 3501-001207 | RELAY-POWER |
| 0103-003217 | RESIN ABS;VE-0856/NTR,NATURAL, |
| 0103-008912 | RESIN EPS;S-450/NTR,NATURAL,NC |
| 0103-002994 | RESIN PA66;101F/NC0001,NATURAL |
| 0103-001041 | RESIN PA66;2110R,NATURAL,NC000 |
| 0103-003325 | RESIN PA66;FR50/BK0001,BLACK,B |
| 0103-003294 | RESIN PC ABS;NH-1015/NC0001,NA |
| 0103-003378 | RESIN PET , FR530/NATURAL,NATU |
| 0103-003385 | RESIN POM;DELRIN 500P,BLACK,BK |
| 0103-004710 | RESIN POM;K300/NATURAL,NATURAL |
| 0103-003461 | RESIN PP;FC2305/NTR,NATURAL,NC |
| 0103-007355 | RESIN PP;FH2150MF/GY0162,DARK |
| 0103-003454 | RESIN PP;RJ700,NATURAL,NC0001, |
| 0103-007539 | RESIN PP;SSPP-640/BLACK,BLACK, |
| 0103-001345 | RESIN PP;TB53/W52,NEAT WHITE,W |
| 0103-002442 | RESIN-FRPP |
| 0103-001846 | RESIN-PP |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| 6041-001030 | RIVET-RH |
| 6041-001035 | RIVET-RH;K1661-0512,AL,NTR,L10,OD4.1 |
| DC66-00903A | ROLLER-IDLER;DV3000J,POM,62,NA |
|
|
ROLLER;WINGS-PROJECT,EPDM,BLACK,INSERT |
|
|
SCREW-HEX;HEX,+,M5,L10,NI-ZN(WHT),SWRCH1 |
|
|
SCREW-HEX;HWH,+,M5,L16,PASS,STS430,FP,SE |
|
|
SCREW-MACHINE;STS304,PASS,L12,M5,TH,+,2, |
|
|
SCREW-MACHINE;STS430,PASS,L16,M5,TH,+,FP |

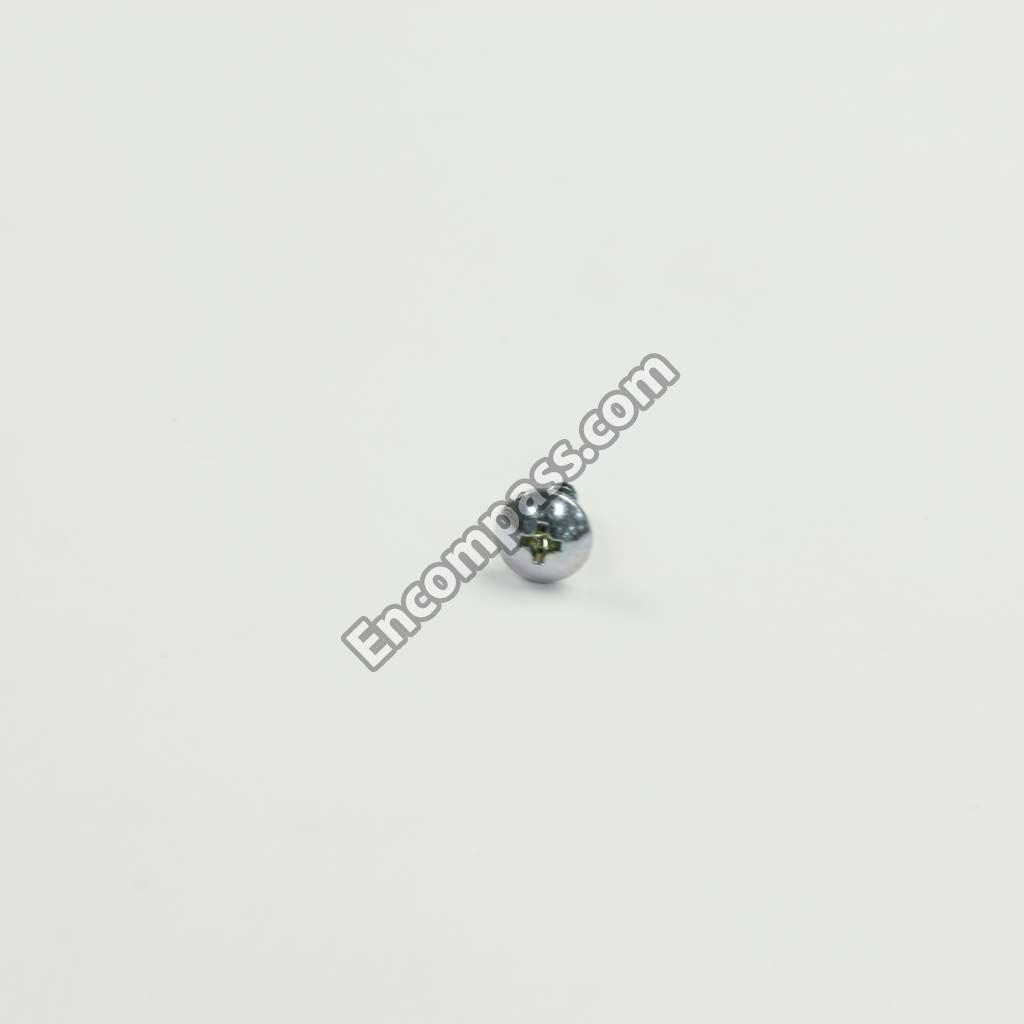

| 6002-001384 | SCREW-TAPPING |
| 6002-000473 | SCREW-TAPPING;STS304,PASS,L14,M4,TH,+,1 |
|
|
SCREW-TAPPING;STS304,PASS,L8,M4,TH,+,NO, |
|
|
SCREW-TAPPING;STS430,PASS,L16,M4,TH,+,1 |
|
|
SCREW-TAPPING;SWRCH18A,NI PLT,L12,M4,TH, |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M5,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M3,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,F |
| 6002-001436 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
| 6003-000226 | SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SEAL DOOR;DV448AEW,TPE,-,-,EK-1045,DARK |
|
|
SEAL WATER;DV338,EPDM,T3,ID13.5,OD24.5,H |
| DC66-00902A | SHAFT IDLER;DV40J3000EW,SM45C, |
| DC66-00400G | SHAFT ROLLER;DV7000R,SWRCH45K |
| DC63-00621F | SHEET-INSULATION , GRACE DRYER |
| DC01-00120K | SHEET-STEEL , BIGBANG-DRYER,EG |
| DC01-00123L | SHEET-STEEL , H600,ALCOAT-SA1C |
| DC01-00120V | SHEET-STEEL;BIGBANG-DRYER,ALCO |
| DC01-00120U | SHEET-STEEL;BIGBANG-DRYER,ALCO |
| DC01-00120D | SHEET-STEEL;BIGBANG-DRYER,ALCO |
| DC01-00129H | SHEET-STEEL;GI-SGCC,L370,0.6MM |
| DC01-00122Q | SHEET-STEEL;GI-SGCC,L38,0.6MM, |
| DC01-00122V | SHEET-STEEL;GI-SGCD,L280,0.8MM |
| DC01-00123G | SHEET-STEEL;H600,GI-SGCC,L275, |
| DC01-00123D | SHEET-STEEL;H600,GI-SGCC,L84,T |
| DC01-00124A | SHEET-STEEL;HGI-SGHC,L56,2MM,1 |
| DG26-01003A | SMG PART |
| DC98-04883A | SMG PART |
| DC98-04881A | SMG PART |
| DC97-24387A | SMG PART |
| DC97-24066A | SMG PART |
| DC97-23483D | SMG PART |
| DC97-23462R | SMG PART |
| DC97-23286A | SMG PART |
| DC97-23247G | SMG PART |
| DC97-07895B | SMG PART |
| DC92-03178A | SMG PART |
| DC90-30741A | SMG PART |
| DC90-30314S | SMG PART |
| DC90-30296M | SMG PART |
| DC90-27334K | SMG PART |
| DC69-02971A | SMG PART |
| DC69-02869A | SMG PART |
| DC69-02824A | SMG PART |
| DC69-02823A | SMG PART |
| DC69-02822A | SMG PART |
| DC69-02340A | SMG PART |
| DC67-01276A | SMG PART |
| DC67-00130B | SMG PART |
| DC66-01087A | SMG PART |
| DC66-00735H | SMG PART |
| DC66-00397G | SMG PART |
| DC64-04087G | SMG PART |
| DC64-04086D | SMG PART |
| DC64-03908D | SMG PART |
| DC63-02874E | SMG PART |
| DC63-02859D | SMG PART |
| DC63-02849B | SMG PART |
| DC63-02848B | SMG PART |
| DC63-02823D | SMG PART |
| DC63-02104A | SMG PART |
| DC61-05862A | SMG PART |
| DC61-05861A | SMG PART |
| DC61-05853A | SMG PART |
| DC61-05585D | SMG PART |
| DC61-05504D | SMG PART |
| DC61-05502B | SMG PART |
| DC61-05488A | SMG PART |
| DC61-04162A | SMG PART |
| DC41-00293B | SMG PART |
| DC01-00757A | SMG PART |
| DC01-00739A | SMG PART |
| DC01-00725A | SMG PART |
| DC01-00724A | SMG PART |
| DC01-00723A | SMG PART |
| DC01-00718A | SMG PART |
| DC01-00675A | SMG PART |
| DC01-00674D | SMG PART |
| DC01-00661D | SMG PART |
| DC01-00658G | SMG PART |
| DC01-00635B | SMG PART |
| DC01-00281A | SMG PART |
| DC01-00224B | SMG PART |
| DC01-00123J | SMG PART |
| 6902-001831 | SMG PART |
| 3501-001753 | SMG PART |
| 2203-007809 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007573 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007107 | SMG PART |
| 1203-009879 | SMG PART |
| 1201-000181 | SMG PART |
| 0103-012232 | SMG PART |
| 0103-012057 | SMG PART |
| 0101-004382 | SMG PART |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM |
| 0202-001463 | SOLDER-WIRE |
| DC72-00056A | SPONGE-CUSHION |
| DC72-00032E | SPONGE-EPDM |
| DC72-00032D | SPONGE-EPDM |
|
|
SPONGE-EPDM |
|
|
SPRING ETC FILTER;BIGBANG-DRYER,HSWR,PI0 |
|
|
SPRING ETC TENSION;MDE9700AYW,HSWR-SWRH, |
|
|
SPRING PLATE;DRYER,SK5,-,HEAT TREATMENT, |
|
|

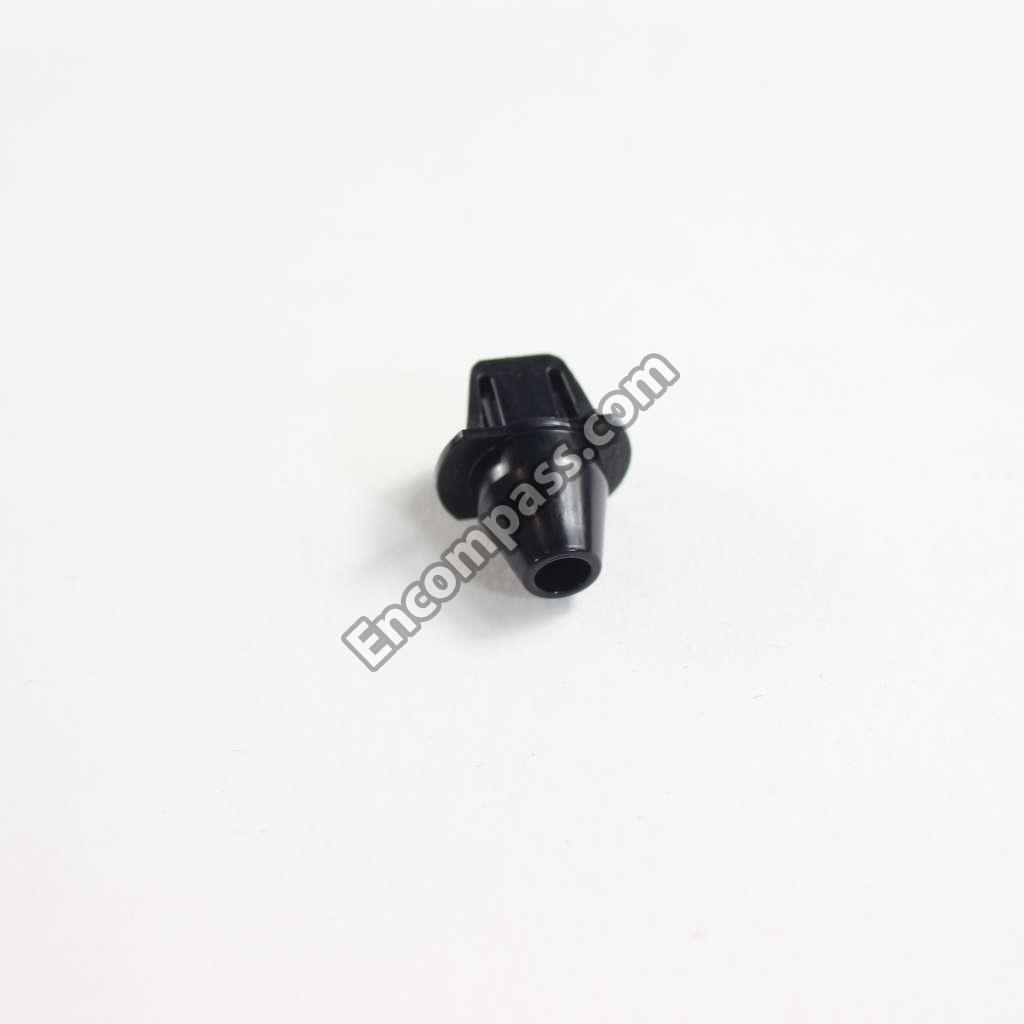

STAND OFF;NTR,PA66,DAWH-3NA |
| DC61-04154A | SUPPORT HINGE;DV7500K,GI-SGCC,T1.4,SGCC |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A |
|
|
SWITCH DOOR;AC125/250V,7.5A,5A,BUTTON HE |
| 3405-001118 | SWITCH-MICRO;125/250VAC,16A,180,SPST-NC, |
| DC69-90008A | TAPE OPP;OPP,T0.054,W50 |
| 0203-001544 | TAPE-FILAMENT;260A,T0.16,W15,L50M |
| 0203-001545 | TAPE-FILAMENT;PP,T0.16,W35,L50M,WHITE |
| 0203-004932 | TAPE-POLY;PP,RAPGARD F8R,T0.035,W50,L100 |
| 0203-006425 | TAPE-POLY;TESA 4298,T0.116,W12 |
| 0203-006428 | TAPE-SINGLE FACE;OPP,T0.12,W30 |
|
|
TERMINAL BLOCK;DV520,CERAMIC,.250/.312,W |
| 1404-001544 | THERMISTOR-NTC;10KOHM,1%,3435K |
| 1404-001872 | THERMISTOR-PTC |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
|
|
THERMISTOR;WASHER,-40~105 ,5,5,10K 2%( |
|
|

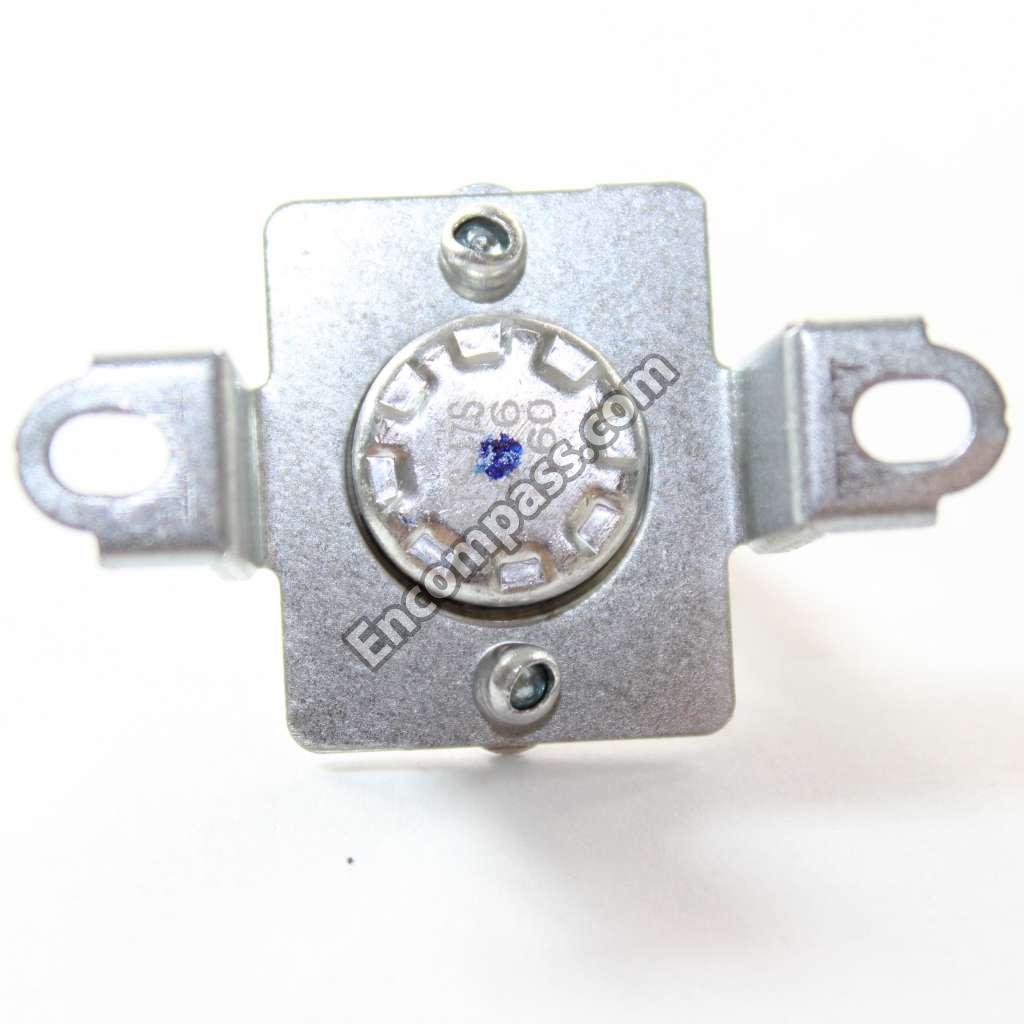

THERMOSTAT;AC125/250V,25A,127C,99C,NORMA |
|
|
THERMOSTAT;AC125/250V,25A,160,-35,S.O.D, |
|
|
THERMOSTAT;AC125/250V,25A,85,-35,S.O.D,2 |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
|
|

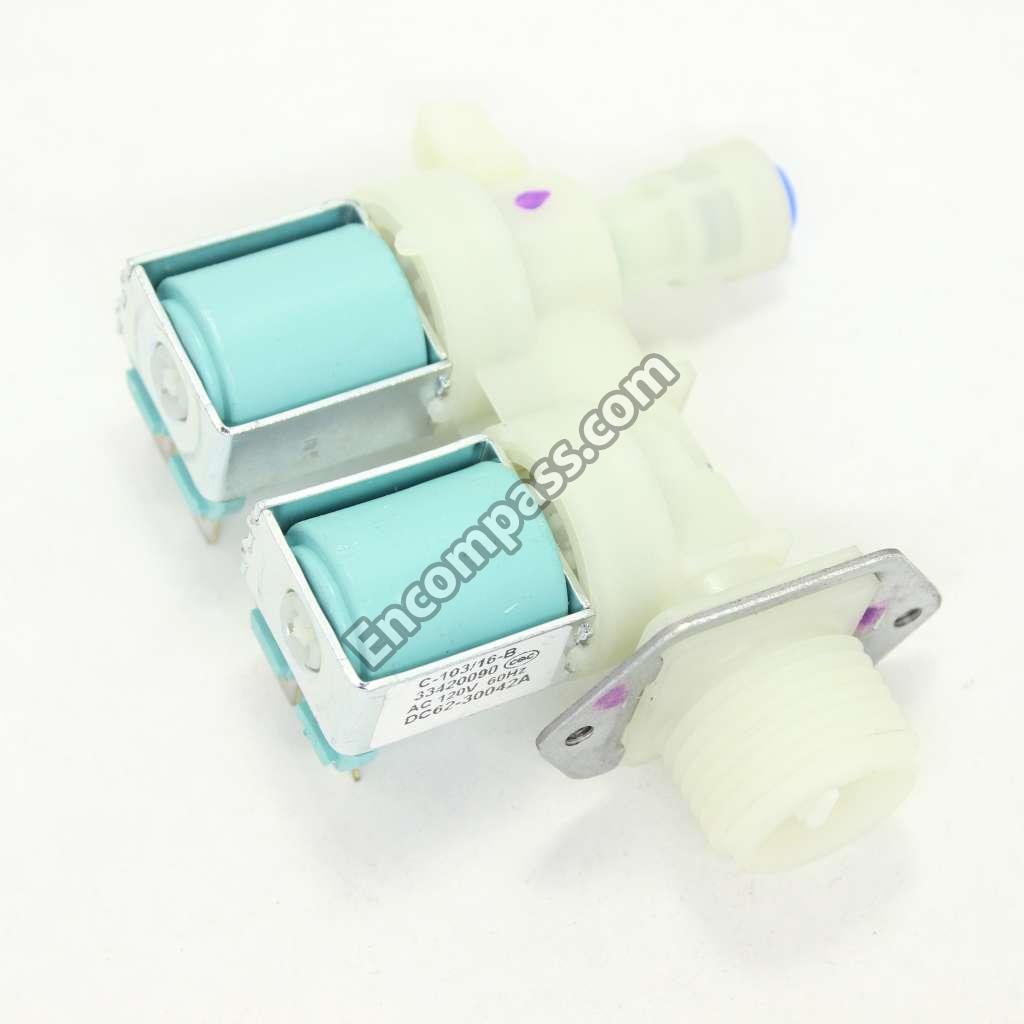

VALVE WATER;AC110-127V,ELEC-DRYER ONLY, |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X |
| 4709-003031 | W-LAN MODULE , CCAR210R,SDA870 |
| 6031-001876 | WASHER-PLAIN;SCP,ID3.7,OD12,T1 |
