Manufacturer
Samsung
Model Number
DW80BB707012AA
Description
Rotary Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DD63-00224G | ABSORBER-DOOR;DW8000R,FELT,T10,LIGHT WAR |
|
|
ACTUATOR THERMAL;-,-,-,-,AC120/240V,-,0. |
| DD97-00656A | ASSEMBLY BASE;DW7000B,BESPOKE,WIRE FOR DUCT |
| DD97-00604D | ASSEMBLY BASKET 3RD-MODULE;DW7000B,COMMON |
| DD97-00572D | ASSEMBLY BASKET ADJUSTER L;DW7000B |
| DD97-00569D | ASSEMBLY BASKET ADJUSTER R;DW7000B |
| DD97-00605C | ASSEMBLY BASKET MIDDLE;DW7000B,COMMON |
| DD97-00648A | ASSEMBLY BASKET-CUTLERY MODULE;DW7000B |
| DD97-00651A | ASSEMBLY BASKET-LOW MODULE;DW7000B |
| DD96-00061A | ASSEMBLY BUZZER;DW LED MODEL,30,-40TO+85C,MI |
|
|
ASSEMBLY COVER BASE-MODULE;DW9900M,COMMON,-, |
|
|
ASSEMBLY COVER DOOR SWITCH;DW9000H,-,-,-,-,- |
| DD97-00653A | ASSEMBLY COVER DRY-MODULE;DW7000B |
| DD97-00652A | ASSEMBLY COVER PCB;DW7000B |
| DD97-00661A | ASSEMBLY COVER PCB;DW7000B,GIUDE COVER+COVER |
| DD97-00524B | ASSEMBLY COVER TUB;DW7000B,ASSEMBLY COVER TUB-LO |
| DD97-00607E | ASSEMBLY DOOR INNER;DW7000B,DISPENSER JEJU Y |
| DD97-00608B | ASSEMBLY DOOR INNER;DW8000R,COMMON,SUB |
| DD97-00640B | ASSEMBLY DOOR-MODULE;DW7000B,BESPOKE,WIFI,TI |
| DD98-01107A | ASSEMBLY DOOR-OUTER;DW7000B BESPOKE,DW80B707 |
| DD93-01022A | ASSEMBLY DUCT DRY-HEATER;DW7000B,120V |
| DD93-01021A | ASSEMBLY DUCT DRY-MODULE;DW7000B,120V |
| DD93-01023A | ASSEMBLY DUCT DRY-THERMOSTAT;DW7000B,120V |
| DD97-00513D | ASSEMBLY DUCT MIDDLE;DW7000B,COMMON,CLEAR GR |
| DD97-00647A | ASSEMBLY DUCT POWER-MODULE;DW7000B,COMMON |
| DD93-01019B | ASSEMBLY DUCT;DW7000B,COMMON |
| DD97-00499D | ASSEMBLY FRAME FRONT-MODULE;DW8000R,COMMON |
| DD93-01024A | ASSEMBLY GUIDE NOZZLE;DW7000B |
| DD97-00516B | ASSEMBLY GUIDE WATER-DISTRIBUTION;DW8000R,CO |
|
|
ASSEMBLY GUIDE WATER-INLET;DW8000R,PP+TPE,L6 |
| DD97-00627E | ASSEMBLY GUIDE WATER-MODULE;DW7000B,COMMON |
|
|
ASSEMBLY GUIDE WATER-SUB;DW8000R,COMMON |
|
|
ASSEMBLY GUIDE WATER;DW8000R,COMMON |
|
|
ASSEMBLY HINGE-LEFT;DW9900H,COMMON,PO-SPHC,C |
| DD97-00252A | ASSEMBLY HINGE-RIGHT;DW9900H,COMMON,PO-SPHC, |
|
|
ASSEMBLY HOSE DRAIN;DW8000R,PP+TPE,830,20,LI |
|
|
ASSEMBLY HOSE DRAIN;DW9900R,PP+TPE,LIGHT GRA |
| DD92-00065A | ASSEMBLY MODULE;TOUCH,DW9000M,EU / FBI,YES |
|
|
ASSEMBLY MOTOR BLDC;-,-,-,DW9900M,-,COMMON |
| DD97-00638A | ASSEMBLY PANEL BOX;DW7000B,BESPOKE,WIFI,TIME |
| DD97-00641A | ASSEMBLY PANEL CONTROL;DW7000B BESPOKE,SPRAY |
| DD92-00082A | ASSEMBLY PBA MODULE-SUB;DISPLAY_CONTROL,DW70 |
| DD92-00059M | ASSEMBLY PCB MAIN;MAIN,DW7000B,328X88MM,120V |
| DD97-00507B | ASSEMBLY ROLLER-LOW;DW7000B,COMMON |
| DD97-00637A | ASSEMBLY ROLLER;DW7000B,POM,T1.5 |
|
|
ASSEMBLY ROTOR MIDDLE;DW7000B,COMMON,CLEAR G |
| DD97-00646A | ASSEMBLY ROTOR-MODULE;DW7000B,COMMON,-,- |

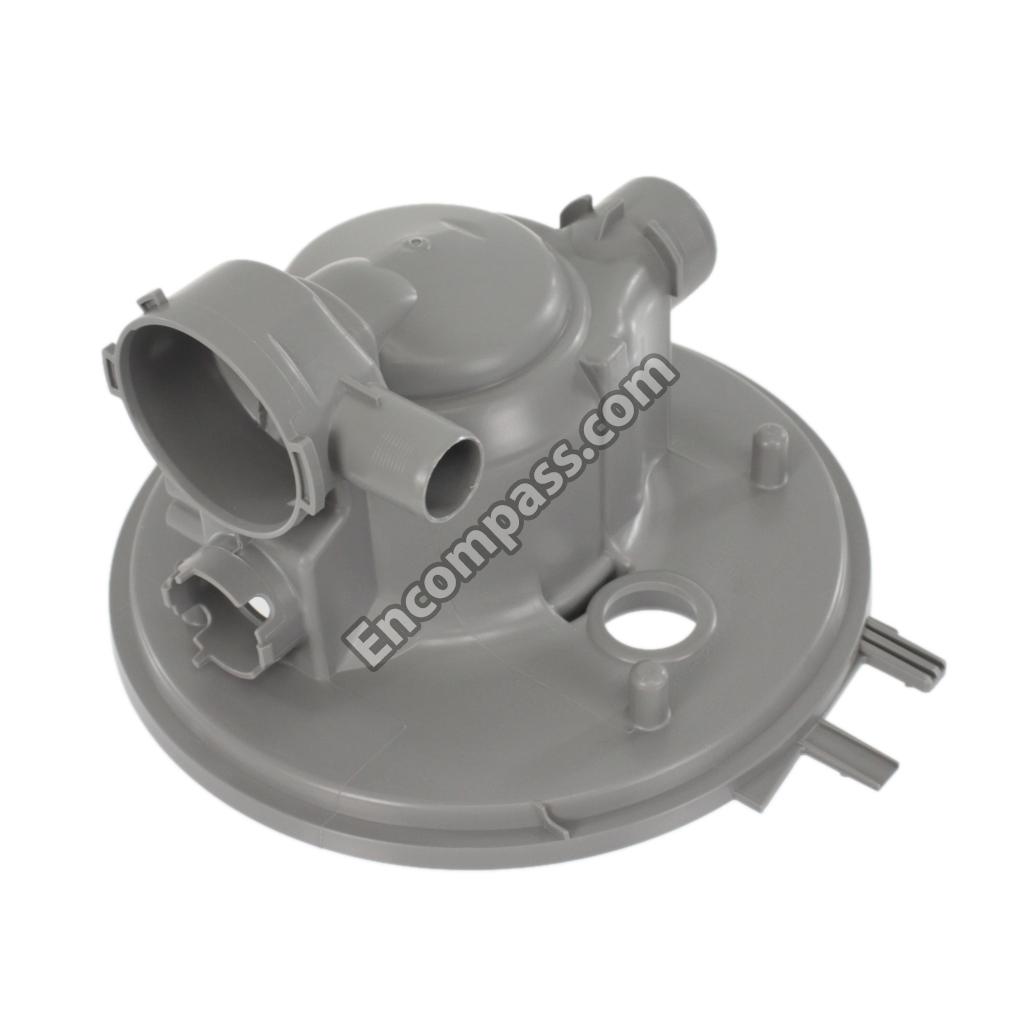

| DD90-00597C | ASSEMBLY SUMP-MODULE;DW8000R,COMMON |
| DD97-00655A | ASSEMBLY TUB PARTS;DW7000B,DUCT DRY |
|
|
ASSEMBLY WIRE HARNESS-LEAKAGE;GALA-E,DC5V/0. |
| DD39-00012T | ASSEMBLY WIRE HARNESS-MAIN;DW7000B,DC12V/0.1 |
| DD39-00013V | ASSEMBLY WIRE HARNESS-SUB;DW7000B,AC120V/0.1 |
| DD39-00013U | ASSEMBLY WIRE HARNESS-SUB;DW7000B,DC12V/0.1A |
| DD39-00030G | ASSEMBLY WIRE HARNESS-SUB;DW8700B,DC12V/0.1A |
| DD39-00013T | ASSEMBLY WIRE HARNESS-SUB;DW9900R,DC12V/0.1A |
| 6902-000336 | BAG PE;LDPE,T0.05,W70,L80,TRP,RECYCLE,HO |
| DD61-00665B | BASKET 3RD-UP;DW7000B,PP+TD30%,T2,CLEAR |
| DD61-00650B | BASKET 3RD;DW7000B,PP+GLF15%,T2.5,CLEAR |
| DD61-00688A | BASKET CUTLERY MAIN;DW7000B,PP+TD30%,T3, |
| DD67-00130E | BASKET LOWER;DW7000B,MSWR,D5,T5,-,SILVER |
| DD67-00131E | BASKET MIDDLE;DW7000B,MSWR,T5,-,SILVER,N |
|
|
BOLT-HEX;M6,L24(11),ZPC(WHT),SWRCH18A |
|
|
BRACKET 3RD-RAIL;DW9900R,STS304,T0.8,POL |
| DD61-00510A | BRACKET DOOR INNER;DW9000H,GI-SGCC,T0.8, |
|
|
BRACKET HOSE;DW8000R,GI-SGCC,T0.8,ID 28. |
|
|
BRACKET HOSE;DW9900M,GI-SGCC,T0.8,ID 39. |
|
|
BRACKET INSTALL;DW9900H,GI-SGCC,T0.6,-,- |
| DD61-00700A | BRACKET RAIL-LEFT;DW7000B,STS304,T1.5,-, |
| DD61-00329B | BRACKET RAIL-MID;DW8000J,STS304,T0.8,-,- |
| DD61-00699A | BRACKET RAIL-RIGHT;DW7000B,STS304,T1.5,- |
|
|
BRACKET RAIL;DW9900H,GI-SGCC,T1 |
|
|
BRACKET SPRING;DW9900H,GI-SGCC,T2 |
|
|
BRACKET TUB;DW9000H,PP,BLACK,C05-2,BK000 |
|
|
BRACKET-TUB 3RD;GALA-E,PREMIUM,BEST,STS3 |

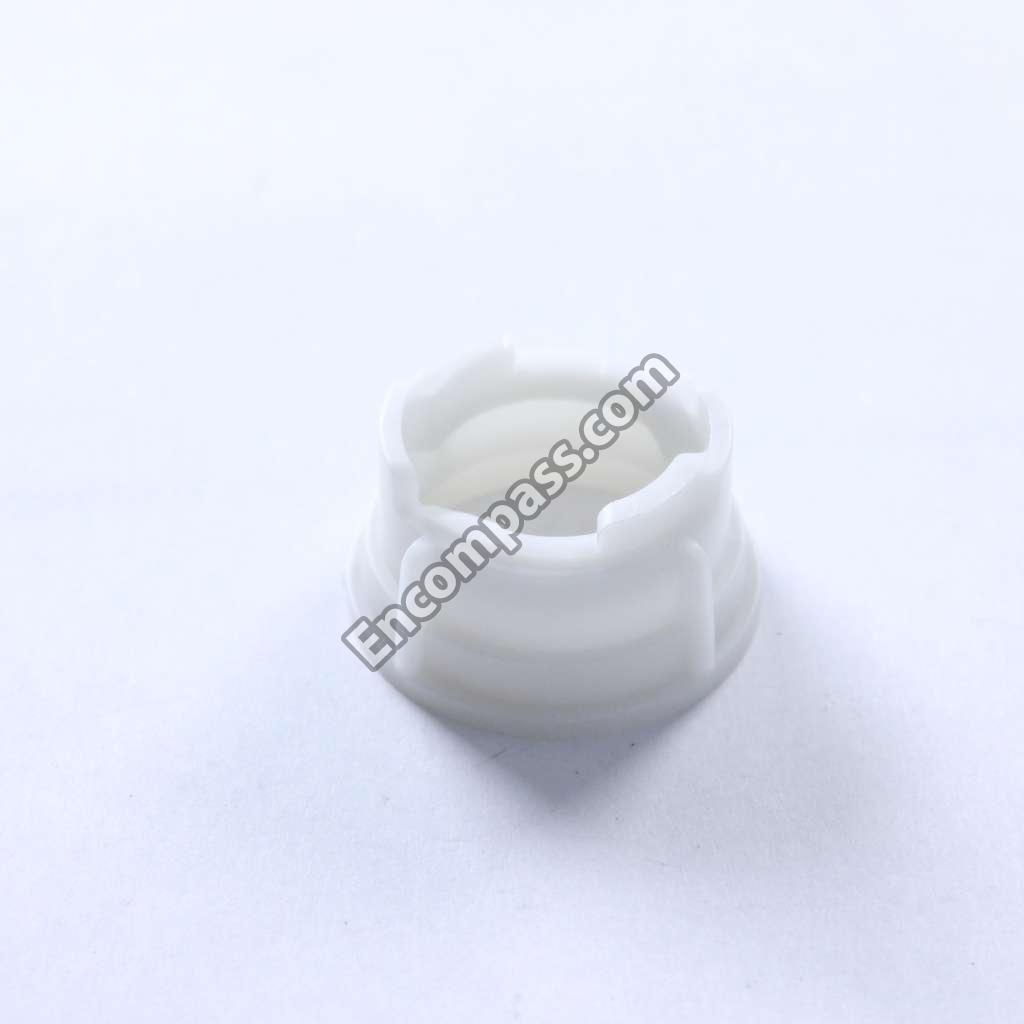

| DD61-00593B | BUSH;DW7000B,POM,CLEAR GRAY,-,F20-03 |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-003139 | C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO |
| 2401-003503 | C-AL;100UF,20%,25V,TP,6.3X11MM,5MM,-40TO |
| 2401-000481 | C-AL;10UF,20%,50V,WT,TP,5X11MM,5MM |
| 2401-000842 | C-AL;220UF,20%,25V,WT,TP,8X11.5MM,5MM |
| 2401-004524 | C-AL;330UF,20%,250V,BK,30X25MM,10MM |
| 2401-003069 | C-AL;470UF,20%,50V,TP,10X20MM,5MM,-55TO+ |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-000206 | C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-005135 | C-CER,CHIP;1NF,10%,630V,X7R,TP,3216,T1.1 |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-006992 | C-CER,CHIP;330PF,5%,50V,C0G,TP,1005,-55T |
| 2203-000888 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608,T0. |
| 2201-000285 | C-CERAMIC,DISC;1NF,10%,1000V,Y5P,TP,8X5M |
| 2301-000131 | C-FILM,LEAD-PEF;100NF,5%,630V,TP,18X12X8 |
|
|
CAP DOOR GUIDE;DW9000M,POM,F20-03,INNER |
| DD67-00162B | CAP OUTLET DRY;DW7000B,PP+TD30%,-,-,PTN9 |
|
|
CAP-DOWN;DW9900H,POM,F20-03,NATURAL,NC00 |
| DD67-00207A | CAP-HEATFAN OUTER;DW7000B,PP+GLF15%,-,-, |
|
|
CASE BRAKE-UP;DW8000R,PP,T2.5,NATURAL,BJ |
| DD61-00281A | CASE GEAR;DW5000C,PP,-,BLACK,-,P-002HB,- |
| DD61-00687A | CASE SENSOR;DW7000B,PP,T2.3,BLACK,-,RM60 |
|
|

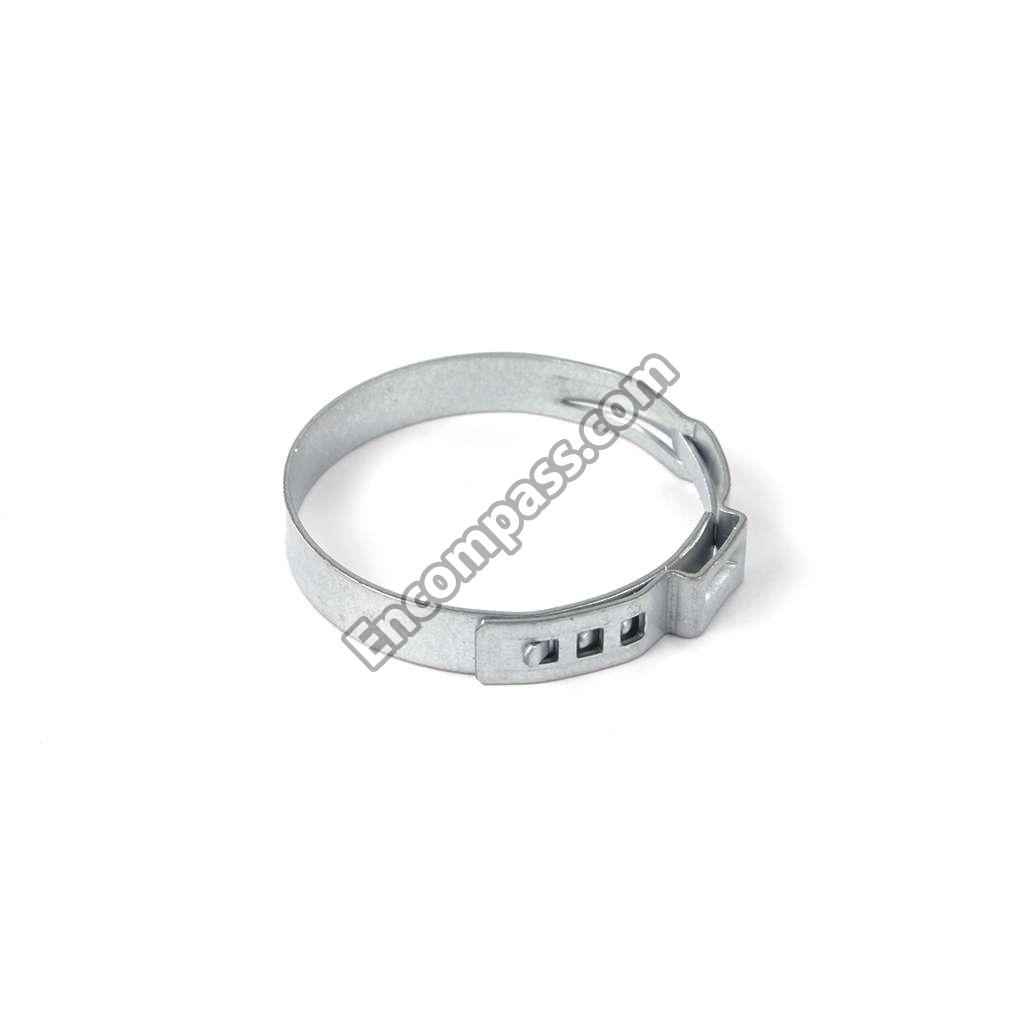

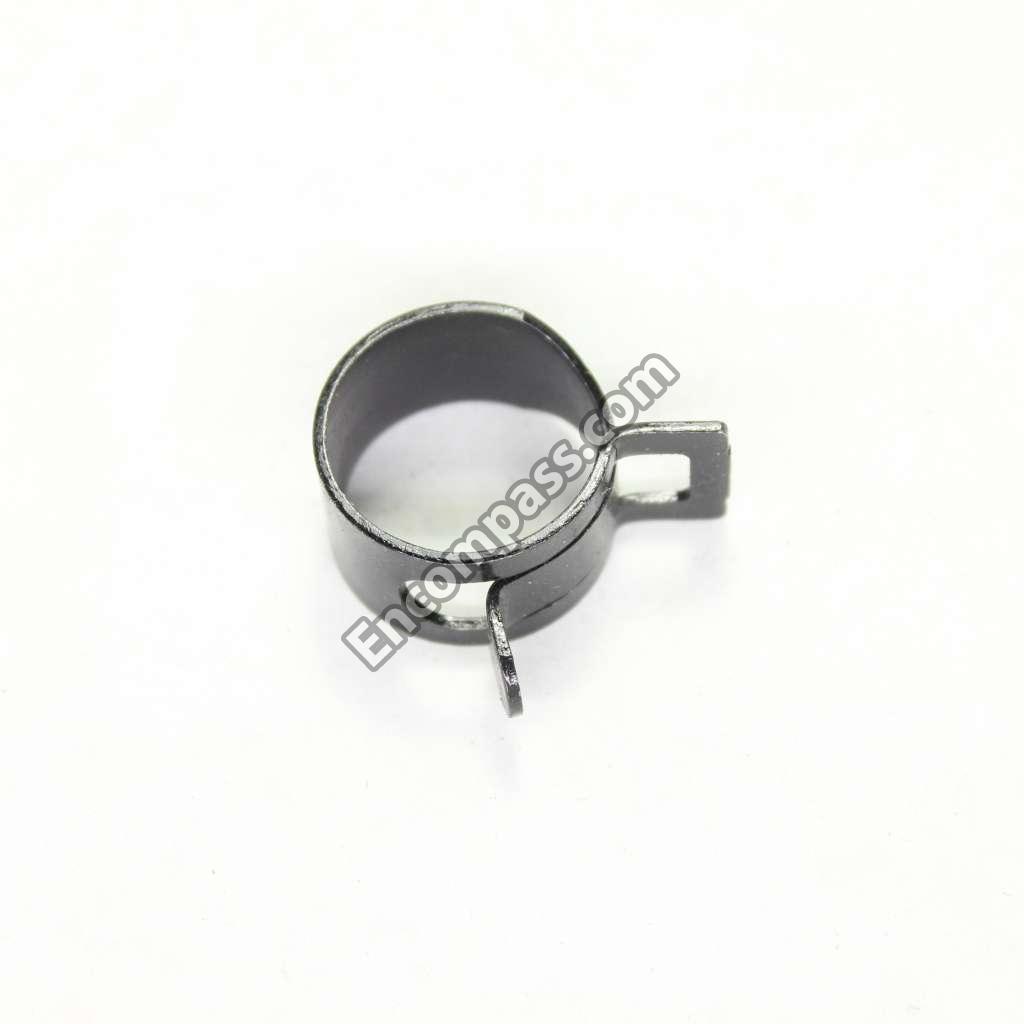

CLAMPER HOSE;ALL MODEL,SK5,-,-,-,-,ID24, |
|
|
CLAMPER HOSE;GALA-E,SK5,,-,-,-,-,ID19,,T |
|
|
CLAMPER HOSE;SSEC-GE,SK5,-,-,-,-,ID14.2, |
| 3711-000996 | CONNECTOR-HEADER;BOX,5P,1R,2.5MM,STRAIGH |
|
|
COVER CIRCULATION PUMP;DW9900M,PP+TD20%, |
| DD63-00370A | COVER CUTLERY;DW7000B,PP+TD30%,T2.5,HB,D |
| DD63-00342A | COVER DISTRIBUTE-LOW;DW8000R,PP+TD20%,LI |
| DD63-00307B | COVER DRAIN PUMP;DW8000R,PP+TD20%,LIGHT |
| DD63-00366B | COVER FILTER;DW7000B,PP+TD30%,-,-,CLEAR |
| DD63-00343B | COVER FILTER;DW7000B,PP+TD30%,-,HB,CLEAR |
| DC63-01432C | COVER FILTER;WA456DRHDWD,ABS,T2.5,5VA,NA |
| DD63-00215B | COVER FRONT;STS304,T0.4 |
| DD63-00369A | COVER HANDLE;DW7000B,ABS,T2.5,HB,INOX GR |
|
|
COVER PLINTH;DW9900H,GI-SGCC,T0.4,-,-,-, |
|
|
COVER POWER-LOW;DW9900H,GI-SGCC,T0.8 |
|
|
COVER POWER-UP;DW9900H,GI-SGCC,T0.8 |
|
|
COVER TUB EDGE-LEFT;DW9900H,PP,BLACK,RM6 |
|
|
COVER TUB EDGE-RIGHT;DW9900H,PP,BLACK,RM |
| DD63-00326B | COVER WIRE;DW7000B,PP,-,V-0,NATURAL,-,FH |
|
|
COVER WIRE;DW9900M,PP,BLACK,RM60,C05-2,B |
| DD63-00151A | COVER-WIRE HARNESS DOOR;GALA-E,PP,BLACK, |
| DD63-00221B | CUSHION DUCT-LEFT;DW9900H,PU FOAM,T25,BL |
| DD66-00098A | DAMPER BLDC PUMP;GALA-E,EPDM,-,BLACK,-,- |
| 0402-000324 | DIODE-BRIDGE;D3SB60,600V,4A,SIP-4,ST,120 |
| 0402-001427 | DIODE-RECTIFIER;ES1D,200V,1A,DO-214AC,TP |
| 0402-001192 | DIODE-RECTIFIER;ES2D,200V,2A,SMB,TP |
| 0402-001669 | DIODE-RECTIFIER;ES3D,200V,3A,SMC,TP |
| 0401-001010 | DIODE-SWITCHING;1N4148W,75V,150MA,400MW, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-000132 | DIODE-SWITCHING;BAV99,75V,50MA,SOT-23,TP |
| DD59-01003B | DISPENSER-MODULE;DW7000B,AC120V, SOLENOI |
| DD64-00224A | DOOR OUTER;DW7000B,ABS,T2.5,HB,GP-35,INO |
| DD67-00209A | DUCT DRY-LOW;PA66+GF15%,-,V-0,KN3321G15V |
| DD67-00210A | DUCT DRY-UP;PA66+GF15%,-,V-0,KN3321G15V0 |
| DD67-00183B | DUCT POWER-LOW;PP+TD30%,T1.5,-,TB53,CLEA |
| DD67-00184B | DUCT POWER-UP;PP+TD30%,T1.5,-,TB53,CLEAR |
| DD60-00008A | ELBOW HOSE;EPDM,OD20,T2 |
| DD60-00007A | ELBOW HOSE;TPE,DARK HOLDER GRAY,EK-1045, |
| DD63-00305A | FILTER COARSE-MODULE;DW9900M,PP+TD20%,LI |
|
|

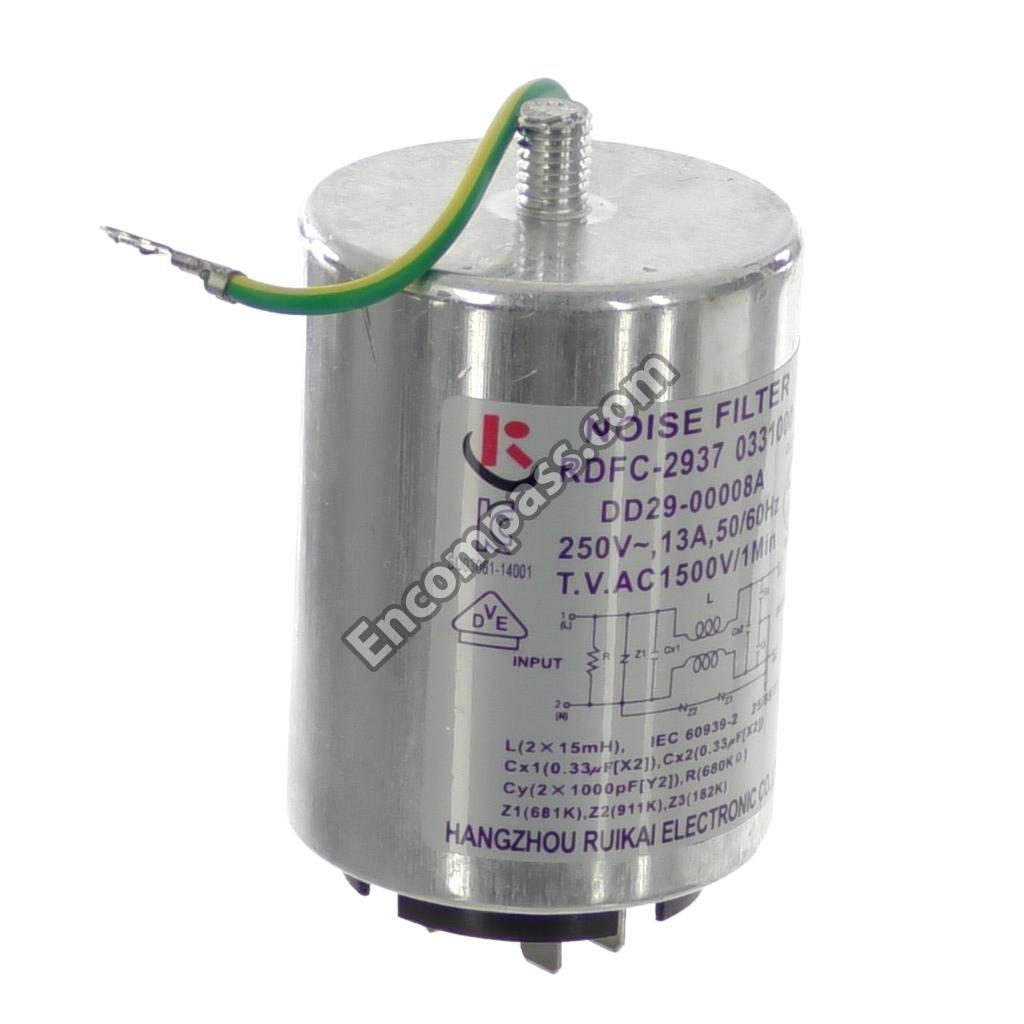

FILTER EMI;15MH,53X70,12A,AC 250V,CAN,-2 |
| DD63-00344A | FILTER FINE;DW9900M,STS304,T0.3,ROTARY |
| DD63-00304A | FILTER MICRO-MODULE;DW9900M,PP+TD20%,LIG |
|
|
FOOT FREE STANDING;DW9900R,PA66+GF15%,BL |
|
|
GASKET;DW7000B,EPDM,-,-,W4.1,L82.8,WHITE |
|
|
GEAR HELICAL;GALA-E,PA6,NATURAL,-,OD35,1 |
|
|
GEAR WORM;GALA-E,PA6,NATURAL,-,OD23,1015 |
| DD61-00660B | GUIDE BUTTON;DW7000B,POM,T2,-,F20-03,JEJ |
| DD61-00671A | GUIDE CUFF D;DW9900R,POM,F20-03,BLACK |
| DD61-00682A | GUIDE FRAME FRONT;DW9900*,DW8000R,PP,PPC |
|
|
GUIDE HINGE;DW9900H,POM,F20-03,NATURAL |
| DD61-00580B | GUIDE ROLLER-LOW;DW7000B,PP+TD30%,-,-,PT |
| DD64-00229A | HANDLE CUTLERY;DW7000B,PP+TD30%,T2,PTN96 |
| 3711-000999 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,5P, |
| 3711-004182 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,STR |
| 3711-005221 | HEADER-BOARD TO CABLE;BOX,10P,2R,4.2MM,S |
| 3711-003895 | HEADER-BOARD TO CABLE;BOX,13P,1R,2MM,STR |
| 3711-000833 | HEADER-BOARD TO CABLE;BOX,2P,1R,8MM,STRA |
| 3711-008000 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,SMD- |
| 3711-006042 | HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM |
| 3711-005941 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| 3711-001154 | HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST |
| 3711-004349 | HEADER-BOARD TO CABLE;ST,STRAIGHT,1R,3P, |
| 3711-006099 | HEADER-BOARD TO CABLE;TP,SMD-S,1R,10P,2. |
| DD47-00013A | HEATER;AC120V,220W,INCOLOY800,-,L0,NON,B |

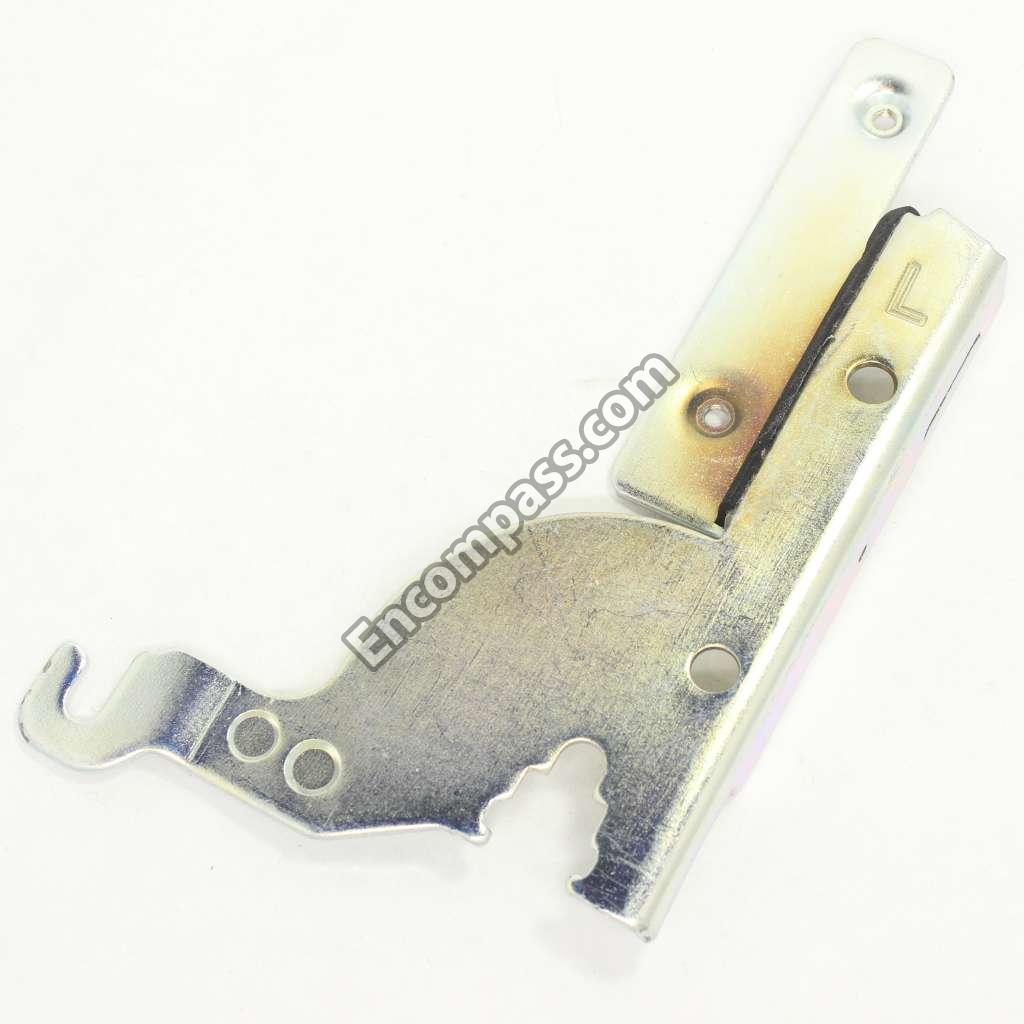

| DD61-00463A | HINGE-LEFT;DW9900H,PO-SPHC,T3,COATING ED |
|
|

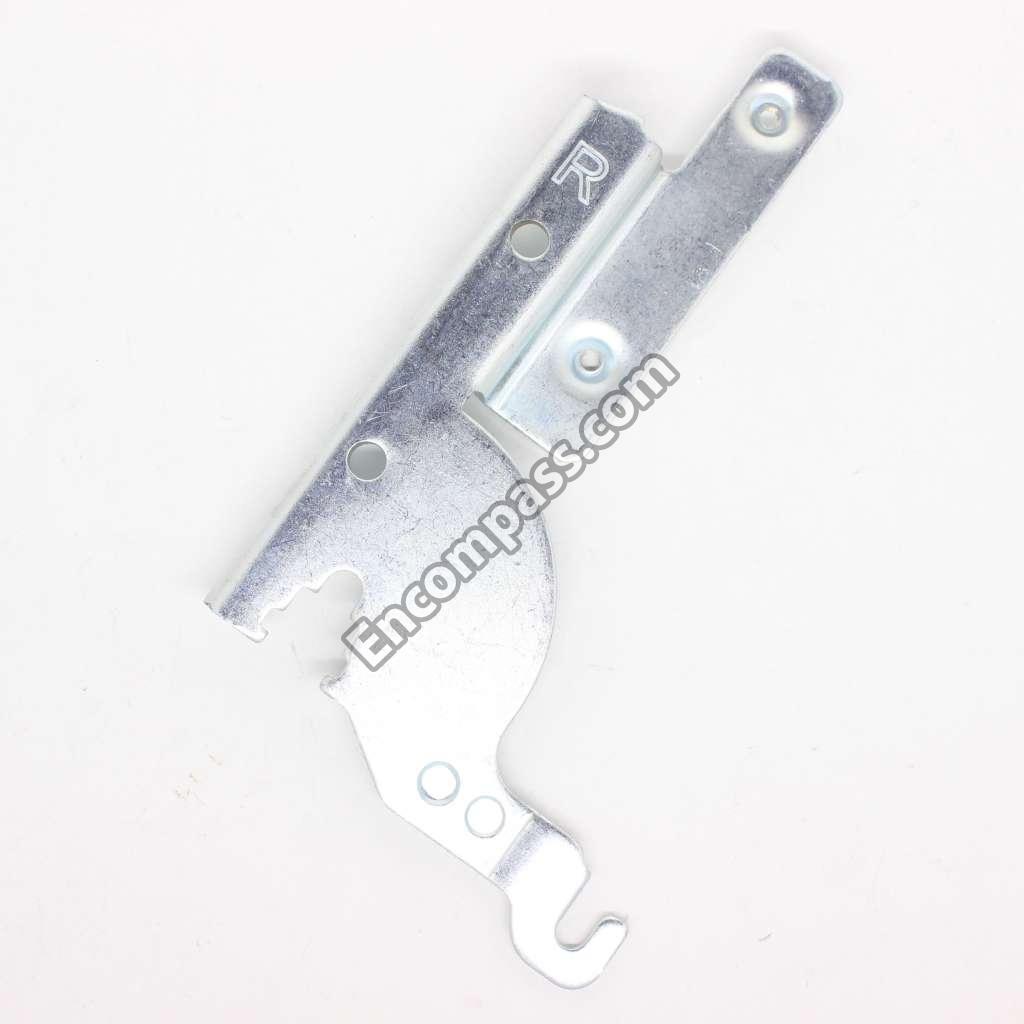

HINGE-RIGHT;DW9900H,PO-SPHC,T3,COATING E |
| DD61-00185A | HOLDER BOLT;GALA-E,MSWR,T0.3,-,-,-,-,M6 |
| DD61-00340B | HOLDER DUCT-MIDDLE;DW7000B,PP+TD20%,-,CL |
| DD61-00592B | HOLDER DUCT-UP;DW7000B,PP+TD30%,-,CLEAR |
| DD61-00574B | HOLDER FILTER;DW7000B,PP+TD30%,-,CLEAR G |
| DD61-00598A | HOLDER HOSE-OUTLET;DW9900M,PP,BLACK,RM60 |
| DD61-00518B | HOLDER HOSE;DW9000H,PP,BLACK,RM60,BK0001 |
| DD61-00657B | HOLDER RAIL 3RD;DW7000B,POM,-,CLEAR GRAY |
| DD61-00526B | HOLDER RAIL 3RD;DW7000B,POM,-,CLEAR GRAY |
| DD61-00355B | HOLDER RAIL-MIDDLE FRONT;DW7000B,POM,-,C |
| DD61-00546D | HOLDER ROPE DOOR;DW7000B,POM,-,NATURAL,- |
| DD61-00591B | HOLDER ROTOR-UP;DW7000B,PP+TD30%,-,CLEAR |
| DD61-00656A | HOLDER ROTOR;DW8000R,POM,T2,NATURAL,F20- |
| DD61-00449A | HOLDER SEAL DOOR;DW9900H,PP,BLACK,EP649N |
|
|
HOLDER TINE-LOW;DW7000B,POM,T2,CLEAR GRA |
| DD61-00681B | HOLDER TINE-UP;DW7000B,POM,-,CLEAR GRAY, |
| DD61-00691A | HOLDER TINE;DW7000B,PP+GLF15%,T2.5,CLEAR |
| DD61-00680B | HOLDER;DW7000B,POM,-,CLEAR GRAY,-,-,F20- |
| DD67-00179A | HOSE PUMP-OUT;DW8000R,EPDM,ID28,T2,HS70, |
| DD61-00696A | HOUSING-RIGHT MODULE;DW7000B,GI-SGCC,T0. |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 0903-001983 | IC-MICROCONTROLLER;R5F100FCAFP,LQFP,44P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,D2PAK(TO-252) |
| 1203-002722 | IC-POSI.FIXED REG.;KA78R15,TO-220,4P,10X |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
|
|
LEVER DOOR;DW9900H,ZNDC,-,-,-,- |
|
|

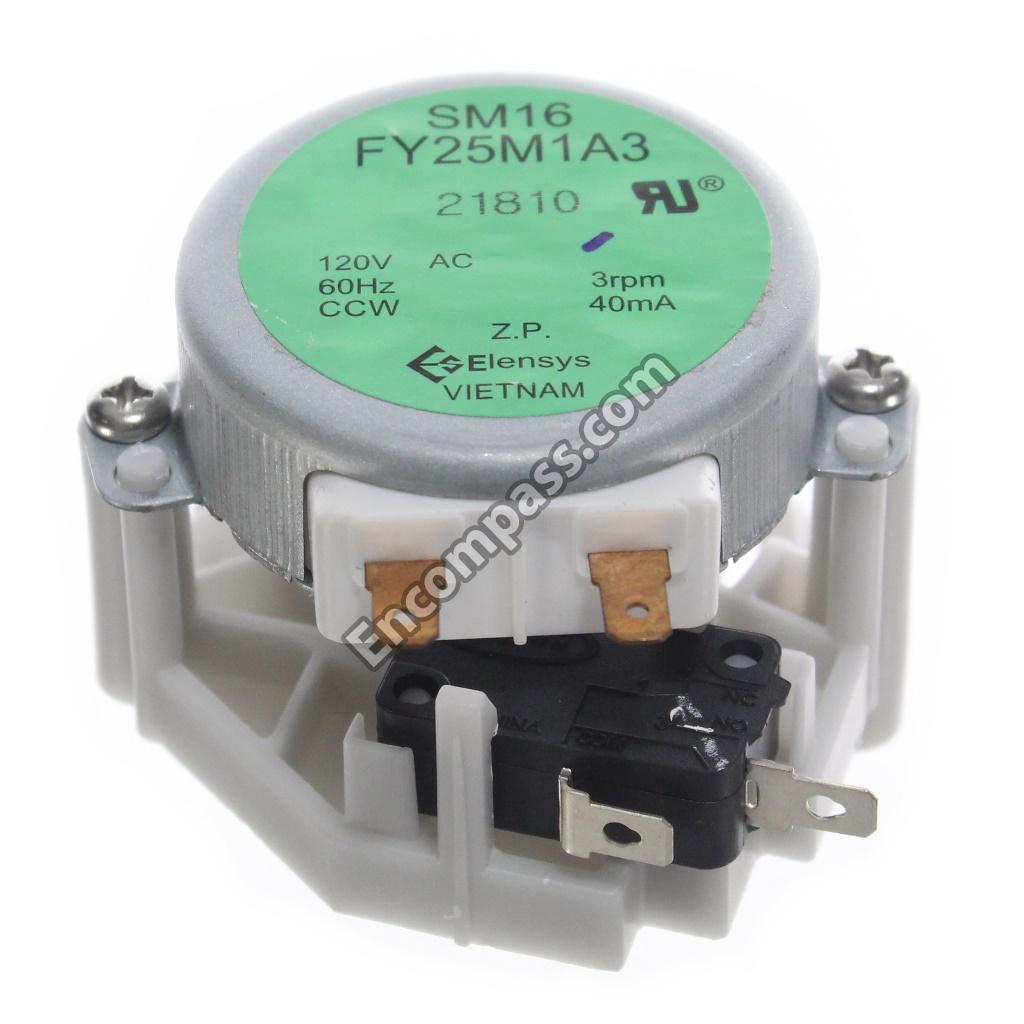

MOTOR AC DRIVE;OTR,SM16FY25M1A3, 50TYZ-0 |
| DD31-00024C | MOTOR BLDC FAN;G90T12MS1BZ-52K091,2600RP |
|
|
MOTOR BLDC PUMP;BLP3,3400RPM,230V,350MA, |
| DC60-50153A | NUT HEX;SM10C |
| 6021-000258 | NUT-HEXAGON;STS304,ZPC(YEL),3C,M5 |
| 0205-001027 | OIL-SILICON;G746 |
| DD69-00136A | PACKING SHEET;BUILT-IN,PP,T0.15,W100,L66 |
|
|
PLATE BACK;DW9900M,PP,-,BLACK,-,-,P-002H |
| DD61-00577C | PLATE BASE;DW9900R,PP,-,BLACK,-,-,P-002H |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-000490 | R-CHIP;2.2KOHM,1%,1/8W,TP,2012 |
| 2007-000537 | R-CHIP;200OHM,1%,1/4W,TP,3216 |
| 2007-000586 | R-CHIP;22KOHM,5%,1/8W,TP,2012 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000668 | R-CHIP;2KOHM,1%,1/8W,TP,2012 |
| 2007-000701 | R-CHIP;3.6KOHM,1%,1/10W,TP,1608 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-000924 | R-CHIP;470KOHM,1%,1/4W,TP,3216 |
| 2007-000930 | R-CHIP;470OHM,1%,1/4W,TP,3216 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-000119 | R-CHIP;560OHM,5%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-007321 | R-CHIP;68OHM,1%,1/16W,TP,1005,T0.35 |
|
|
RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1 |
|
|
RELAY-POWER;12V,0.9W,25000MA,1FORMA,20MS |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
| DD66-00078A | ROLLER-3RD TUB;GALA-E,POM,OD22,INNER GRA |
| DD66-00020A | ROLLER;GALA-E,POM,OD20.3,NATURAL,-,F20-0 |
| DD67-00189C | RUBBER SKIRT;DW7000B,BESPOKE,EPDM,-,-,BL |
| 6001-000516 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,P |
|
|
SCREW-SPECIAL;SPECIAL FH,TORX,M4,L16,STS |
|
|
SCREW-SPECIAL;TH,+,WT,M4,L10,ZPC(WHT),SW |
|
|
SCREW-TAPPING;STS304,PASS,L12,M4,FH,+,1 |
| 6002-001435 | SCREW-TAPPING;STS430,PASS,L12,M4,TH,+,2 |
|
|
SCREW-TAPPING;STS430,PASS,L14,M4,TH,+,2 |
| 6002-000413 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
| 6002-000554 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPTYPE;STS304,PASS,L16,M4,PH,+,B |
|
|
SEAL DISTRIBUTER;GALA-E,SI,-,-,-,-,- |
| DD62-00170A | SEAL DUCT DRY;DW7000B,EPDM,-,-,-,-,- |
|
|
SEAL HOLDER DUCT-MIDDLE;DW9900M,EPDM,-,- |
| DD62-00164A | SEAL RUBBER;DW8000R,EPDM,-,HB,-,-,- |
|
|
SEAL SOIL SENSOR;GALA-E,EPDM,-,-,-,BLACK |
|
|
SEAL SUMP;DW9900H,EPDM,-,-,65,BLACK,- |
|
|
SEAL TUB PACKING;DW9900H,TPV,-,-,SA7-35N |
|
|
SEAL TUB;DW9900R,EPDM,-,-,-,INNER BLACK, |
|
|
SEAL-3RD RACK;GALA-E,EPDM,-,- |
| DD62-00171A | SEAL-THERMISTOR;DW7000B,SI,-,-,-,-,-,SIL |
|
|
SENSOR TEMP;L100,17.59KOHM,1.8%,50C,5PHI |
| DC32-00024A | SENSOR TEMP;PIPE LENGTH 45MM,L120,17.6KO |
|
|
SENSOR;5V,-,-,SMAW250-3PIN,0-3000NTU,VCC |
| DD66-00181B | SHAFT ROLLER-LOW;DW7000B,POM,-,-,CLEAR G |
| DD66-00096A | SHAFT-BASKET TUB 3RD;GALA-E,STS304,L21,O |
| DE02-00030A | SMG PART |
| DD98-01130B | SMG PART |
| DD98-01093C | SMG PART |
| DD98-01051D | SMG PART |
| DD98-01022A | SMG PART |
| DD98-01021A | SMG PART |
| DD98-01020A | SMG PART |
| DD97-00660A | SMG PART |
| DD97-00657A | SMG PART |
| DD97-00649A | SMG PART |
| DD97-00558B | SMG PART |
| DD97-00509B | SMG PART |
| DD97-00487G | SMG PART |
| DD97-00486G | SMG PART |
| DD97-00485G | SMG PART |
| DD97-00393A | SMG PART |
| DD97-00236A | SMG PART |
| DD97-00214B | SMG PART |
| DD97-00213A | SMG PART |
| DD97-00212K | SMG PART |
| DD94-01300A | SMG PART |
| DD94-01260A | SMG PART |
| DD94-01259A | SMG PART |
| DD94-01242A | SMG PART |
| DD94-01241A | SMG PART |
| DD92-00079A | SMG PART |
| DD92-00066B | SMG PART |
| DD92-00064A | SMG PART |
| DD90-00682A | SMG PART |
| DD90-00660A | SMG PART |
| DD90-00659C | SMG PART |
| DD90-00657B | SMG PART |
| DD90-00656A | SMG PART |
| DD69-00172B | SMG PART |
| DD69-00134A | SMG PART |
| DD69-00128A | SMG PART |
| DD69-00116B | SMG PART |
| DD69-00115A | SMG PART |
| DD69-00075A | SMG PART |
| DD69-00073A | SMG PART |
| DD69-00072B | SMG PART |
| DD69-00072A | SMG PART |
| DD69-00069C | SMG PART |
| DD69-00069B | SMG PART |
| DD69-00068A | SMG PART |
| DD69-00067A | SMG PART |
| DD69-00066A | SMG PART |
| DD69-00065A | SMG PART |
| DD69-00054A | SMG PART |
| DD69-00052B | SMG PART |
| DD69-00051A | SMG PART |
| DD68-00242A | SMG PART |
| DD68-00241A | SMG PART |
| DD68-00216A | SMG PART |
| DD68-00206C | SMG PART |
| DD68-00185D | SMG PART |
| DD68-00152K | SMG PART |
| DD68-00150K | SMG PART |
| DD68-00114A | SMG PART |
| DD68-00098C | SMG PART |
| DD68-00020A | SMG PART |
| DD68-00019A | SMG PART |
| DD67-00208A | SMG PART |
| DD67-00205A | SMG PART |
| DD67-00196A | SMG PART |
| DD67-00195A | SMG PART |
| DD67-00194A | SMG PART |
| DD67-00182B | SMG PART |
| DD67-00181B | SMG PART |
| DD67-00180B | SMG PART |
| DD67-00178A | SMG PART |
| DD67-00177A | SMG PART |
| DD67-00168A | SMG PART |
| DD67-00127A | SMG PART |
| DD67-00123A | SMG PART |
| DD67-00095D | SMG PART |
| DD66-00215A | SMG PART |
| DD66-00214A | SMG PART |
| DD66-00213A | SMG PART |
| DD66-00212A | SMG PART |
| DD66-00211A | SMG PART |
| DD66-00210A | SMG PART |
| DD66-00206A | SMG PART |
| DD66-00204A | SMG PART |
| DD66-00203B | SMG PART |
| DD66-00196B | SMG PART |
| DD66-00195B | SMG PART |
| DD66-00186B | SMG PART |
| DD66-00185B | SMG PART |
| DD66-00149A | SMG PART |
| DD66-00148A | SMG PART |
| DD66-00147A | SMG PART |
| DD66-00122B | SMG PART |
| DD66-00111A | SMG PART |
| DD66-00076B | SMG PART |
| DD64-00232B | SMG PART |
| DD64-00231A | SMG PART |
| DD64-00230A | SMG PART |
| DD64-00228A | SMG PART |
| DD64-00227A | SMG PART |
| DD64-00137D | SMG PART |
| DD63-00373A | SMG PART |
| DD63-00372A | SMG PART |
| DD63-00371A | SMG PART |
| DD63-00352D | SMG PART |
| DD63-00352B | SMG PART |
| DD63-00350A | SMG PART |
| DD63-00336B | SMG PART |
| DD63-00320B | SMG PART |
| DD63-00313A | SMG PART |
| DD63-00298C | SMG PART |
| DD63-00278A | SMG PART |
| DD63-00271A | SMG PART |
| DD63-00242B | SMG PART |
| DD63-00241C | SMG PART |
| DD63-00240A | SMG PART |
| DD63-00239C | SMG PART |
| DD63-00216A | SMG PART |
| DD62-00178A | SMG PART |
| DD62-00172A | SMG PART |
| DD62-00169A | SMG PART |
| DD62-00168A | SMG PART |
| DD62-00156A | SMG PART |
| DD62-00100A | SMG PART |
| DD61-00698A | SMG PART |
| DD61-00693A | SMG PART |
| DD61-00669A | SMG PART |
| DD61-00667A | SMG PART |
| DD61-00666A | SMG PART |
| DD61-00649B | SMG PART |
| DD61-00648B | SMG PART |
| DD61-00647E | SMG PART |
| DD61-00643D | SMG PART |
| DD61-00618B | SMG PART |
| DD61-00617B | SMG PART |
| DD61-00600A | SMG PART |
| DD61-00599B | SMG PART |
| DD61-00578A | SMG PART |
| DD61-00569B | SMG PART |
| DD61-00541B | SMG PART |
| DD61-00516A | SMG PART |
| DD61-00425A | SMG PART |
| DD61-00424A | SMG PART |
| DD61-00423A | SMG PART |
| DD61-00422B | SMG PART |
| DD61-00421B | SMG PART |
| DD61-00420A | SMG PART |
| DD61-00419A | SMG PART |
| DD61-00401A | SMG PART |
| DD61-00375A | SMG PART |
| DD61-00319B | SMG PART |
| DD61-00305B | SMG PART |
| DD47-00012A | SMG PART |
| DD47-00011A | SMG PART |
| DD47-00009A | SMG PART |
| DD41-00018C | SMG PART |
| DD41-00016B | SMG PART |
| DD31-00011B | SMG PART |
| DD07-00021C | SMG PART |
| DD07-00017E | SMG PART |
| DD02-01003A | SMG PART |
| DD01-01023A | SMG PART |
| DD01-01015A | SMG PART |
| DD01-01008A | SMG PART |
| DD01-01002A | SMG PART |
| DC94-02705A | SMG PART |
| DC68-02173A | SMG PART |
| DC67-00424E | SMG PART |
| DC62-00243A | SMG PART |
| DC61-02469A | SMG PART |
| DB68-03058C | SMG PART |
| DB62-04178A | SMG PART |
| DB26-00143A | SMG PART |
| 6922-000009 | SMG PART |
| 6902-003459 | SMG PART |
| 6902-001827 | SMG PART |
| 6812-000145 | SMG PART |
| 6041-001066 | SMG PART |
| 6002-001018 | SMG PART |
| 6001-002698 | SMG PART |
| 3711-008905 | SMG PART |
| 3711-005096 | SMG PART |
| 3711-000262 | SMG PART |
| 3711-000260 | SMG PART |
| 3601-001765 | SMG PART |
| 3502-001180 | SMG PART |
| 3501-001306 | SMG PART |
| 3501-001291 | SMG PART |
| 2401-006176 | SMG PART |
| 2203-010033 | SMG PART |
| 2203-010032 | SMG PART |
| 2201-002687 | SMG PART |
| 2007-012404 | SMG PART |
| 2007-008606 | SMG PART |
| 2007-007385 | SMG PART |
| 2007-001011 | SMG PART |
| 2007-000764 | SMG PART |
| 2007-000592 | SMG PART |
| 2007-000571 | SMG PART |
| 1404-001481 | SMG PART |
| 1203-008881 | SMG PART |
| 1203-004967 | SMG PART |
| 1003-002536 | SMG PART |
| 0903-002203 | SMG PART |
| 0903-002197 | SMG PART |
| 0604-001405 | SMG PART |
| 0601-002679 | SMG PART |
| 0505-003681 | SMG PART |
| 0505-001943 | SMG PART |
| 0403-001003 | SMG PART |
| 0402-001741 | SMG PART |
| 0205-001197 | SMG PART |
| 0204-009273 | SMG PART |
| 0204-004665 | SMG PART |
| 0203-007184 | SMG PART |
| 0203-001607 | SMG PART |
| 0203-001524 | SMG PART |
| 0202-001933 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001463 | SMG PART |
| 0201-003987 | SMG PART |
| 0201-002354 | SMG PART |
| 0201-001982 | SMG PART |
| 0103-008912 | SMG PART |
| 0103-001533 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007319 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007627 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-008672 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-001072 | SMG PART |
| 2203-002487 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007809 | SMG PART |
| 2802-001196 | SMG PART |
| 0202-001338 | SOLDER-BAR;LEED-FREE SOLDER BAR,W20L350H |
| 0202-001459 | SOLDER-CREAM;D20~38UM,96.5SN/3AG/0.5CU,F |
| DD60-00009A | SPACER HEATER;DW7000B,STS304,-,-,T0.4,-, |
|
|
SPRING ETC DOOR;DW9900H,HSWR,OD20,-,- |
|
|
SUMP;DW9900M,PP+TD20%,LIGHT WARM GRAY |
| DD61-00697A | SUPPORT CUP;DW7000B,MSWR10,T3.5,-,-,-,-, |
|
|
SWITCH DOOR;DC12V,0.01 |
|
|
SWITCH-MICRO;AC125-250V,0.1A,60GF |
| DE02-00029B | TAPE FILAMENT;POLYESTER,T0.15,W40,L110,N |
| 0203-006665 | TAPE-OPP MASKING;PP,T0.045,W24,L1000M,WH |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0502-001266 | TR-POWER;KTA1532T,PNP,900MW,TSM,TP,200/- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
|
|
TRIM SIDE;DW9900M,PP,EP649N,-,BLACK,-,TP |
| DD61-00692A | TUB-MIDDLE;DW7000B,STS430,T0.4,-,REAL ST |
| DD62-00162A | VALVE DISTRIBUTER-LEFT;DW9900M,POM,NATUR |
| DD62-00163A | VALVE DISTRIBUTER-RIGHT;DW9900M,POM,NATU |
| DD62-00161A | VALVE DISTRIBUTER;DW9900M,POM,NATURAL |
|
|
VALVE WATER;AC110-127V,INCH,#250,1,1,5.5 |
| 4709-003019 | W-LAN MODULE;CCAR210R,SDA8700CSM,IEEE802 |
| 6031-002163 | WASHER-PLAIN;S45C,T1.0,OD17,ID5.5 |
| DD67-00187A | WIRE FOLDING-FRONT LEFT FRONT;DW9900R,MS |
| DD67-00206A | WIRE FOLDING-LEFT;DW7000B,MSWR,T3.8,9108 |
| DD67-00188A | WIRE FOLDING-REAR LEFT REAR;DW9900R,MSWR |
| DD67-00193A | WIRE FRAME 3RD;DW8000R,MSWR,T5,-,SILVER, |
| DC66-10003A | WIRE VINYL;SEW-100 JL,PVC,- |
