Manufacturer
Samsung
Model Number
GTN5110ZWYXAR
Description
Galaxy Note (16gb) 8-inch Android Tablet
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

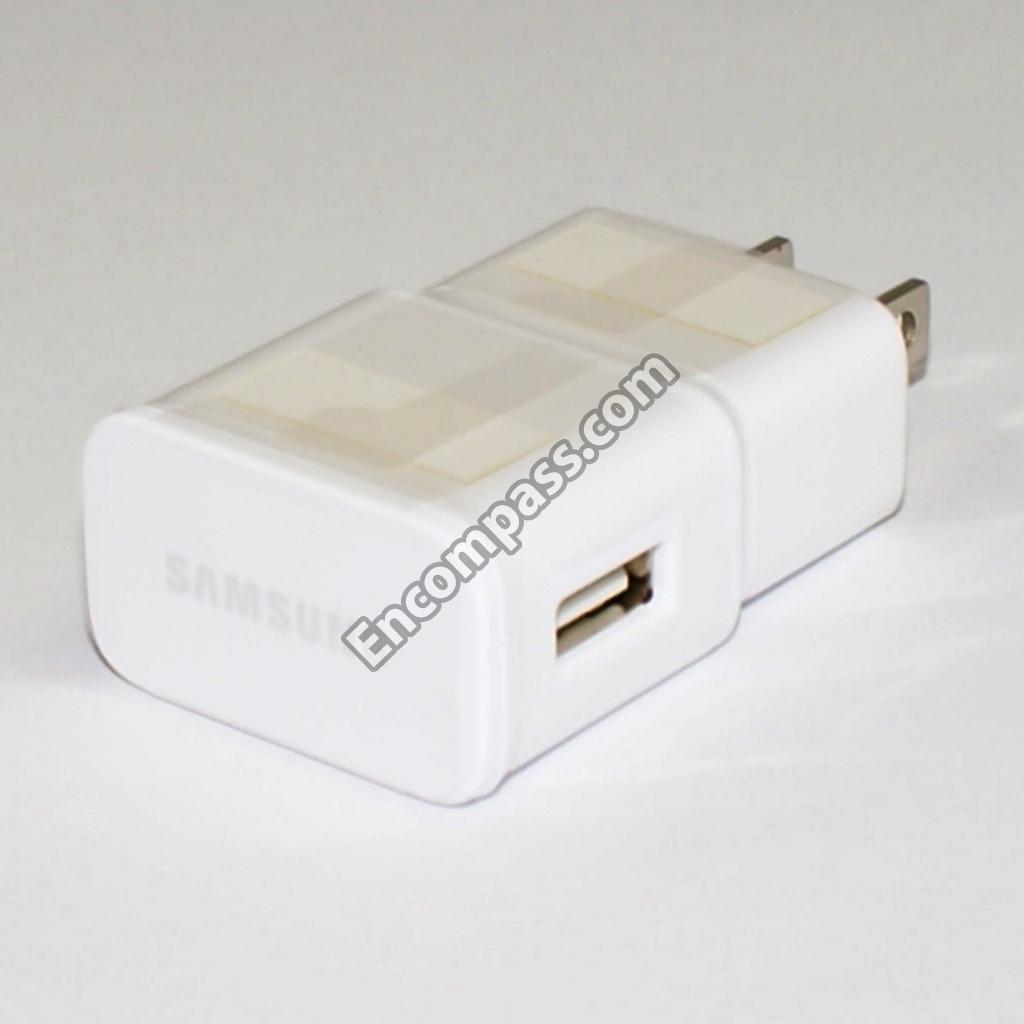

ADAPTOR-ETA-U90JWE |
| 2203-007456 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1005,0. |
| 2203-007634 | C-CER,CHIP;1000NF,10%,50V,X5R,TP,2012,0. |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-002709 | C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 0406-001239 | DIODE-TVS;RCLAMP0502B,6/-/-V,125W,SOT-52 |
| 2911-000233 | DUPLEXER-FEM |
| 1205-004521 | IC-CONTROLLER |
| 1107-002190 | IC-FLASH MEMORY |
| 0902-002996 | IC-MICROPROCESSOR |
| 1203-007677 | IC-POSI.FIXED REG. |
| 1204-003387 | IC-REMOTE CONTROL |
| 1203-006346 | IC-RESET |
| 1209-002153 | IC-SENSOR |
| 2703-004297 | INDUCTOR-SMD;1UH,20%,2520,0.9T,0.048OHM, |
|
|
KEY-VOLUME |
| GH68-38298A | MANUAL-BAND-PAPER |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005 |
| 2007-007199 | R-CHIP;2.7OHM,5%,1/16W,TP,1005 |
| 2007-009964 | R-CHIP;44.2OHM,1%,1/16W,TP,1005 |
