Manufacturer
Samsung
Model Number
HG50Q60AANFXZA
Description
Luxury Commercial Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-20696A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 |
| BN96-52854A | ASSEMBLY CHASSIS FRONT P-BOTTOM;50QAQ60G,PC+ |
| BN96-52775B | ASSEMBLY CHASSIS FRONT P;50QAQ60G,PC+ABS+ED1 |
| BN96-52841A | ASSEMBLY CHASSIS REAR P;50QAQ60G,EGI-SECC |
| BN96-52857F | ASSEMBLY COVER P-DECORATION;50AU8000B,PC+ABS |
| BN96-55423F | ASSEMBLY COVER P-REAR;50Q60BH,PC+ABS+ED20%,V |
| BN96-52591A | ASSEMBLY LED BAR P;21Y Q60A,ALUMINUM |
| BN96-52426A | ASSEMBLY OPEN CELL;AUO,50INCH,Y21 NEW,T500QV |
| BN94-17110S | ASSEMBLY PCB MAIN;HQ60A |
| BN96-52484B | ASSEMBLY SPEAKER P-FRONT;TV-SPK,50Q60A,2CH,6 |
| BN96-52637B | ASSEMBLY STAND P-COVER TOP;55QAQ60G,PP+GF40% |
| BN96-49093F | ASSEMBLY STAND P-HOLDER CABLE;65AU7000C,ABS, |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557E | BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557F | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006391 | C-CER,CHIP;1UF,10%,10V,X7R,TP,1608,-55TO |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001408 | C-EDL;220000UF,3.3V,TP,6.8X11.4MM |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3707-001133 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
|
|

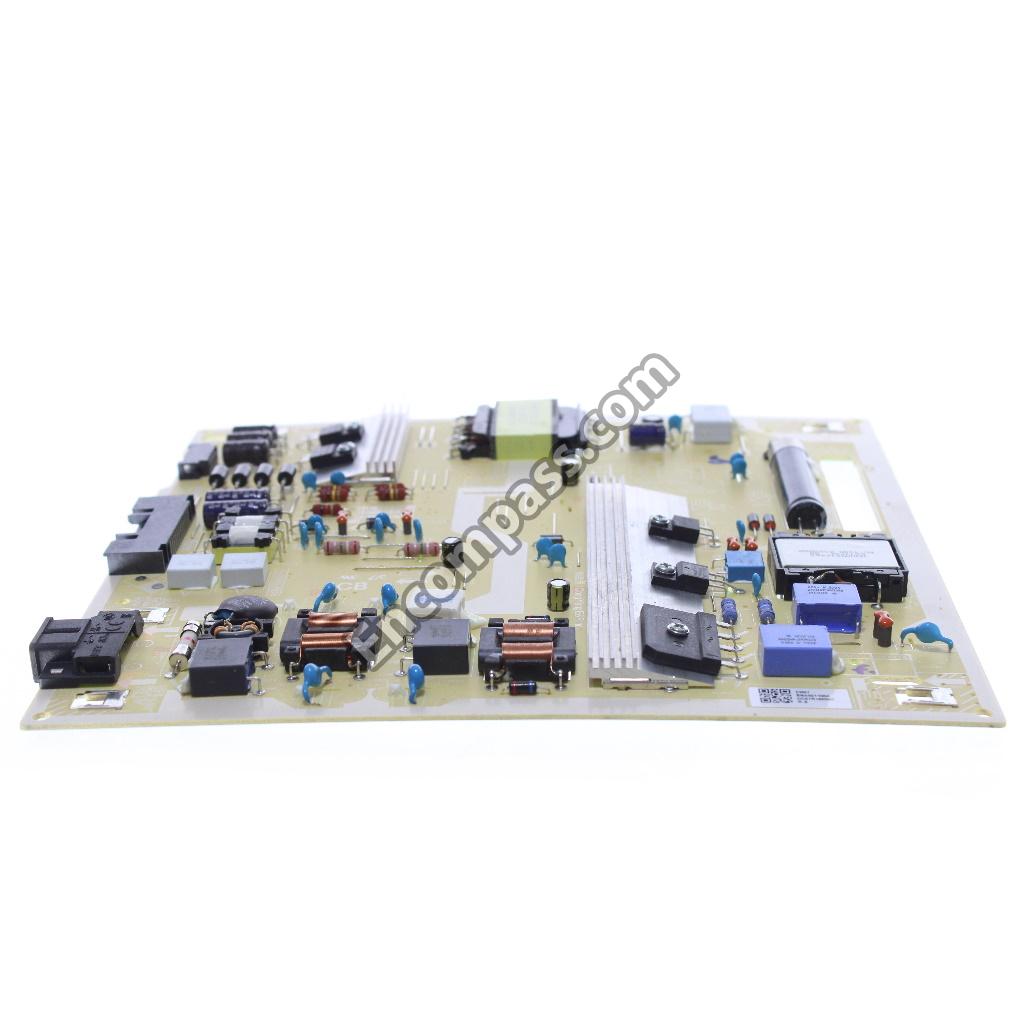

DC VSS-PD BOARD;L55E7_ADY,AC/DC,159.3W,A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
FFC;50Q60A,FOLD,L480,96P |
| BN96-52800A | FFC;50Q60A,FOLD,L500,24P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-17482A | HOLDER-SHEET;65QAQ60G,STS304,T0.2,NATURA |
| BN61-16080A | HOLDER-STAND CABLE;65QRQ60T,ABS,BK0007,H |
| 1201-004117 | IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU |
| 1201-004305 | IC-AUDIO AMP;TAS5807M,TP,9.7X4.4X1.2MM,- |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 0801-002564 | IC-CMOS LOGIC;74VHCT244A,BUFFER,TSSOP,20 |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009502 | IC-DC/DC CONVERTER;TPS563202,6P,SOT563,T |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1203-009494 | IC-DC/DC CONVERTER;VPMS3SM,72P,QFN,TP,8X |
| 1105-002993 | IC-DDR3 SDRAM;H5TQ4G63EFR-TEC,DDR3-SDRAM |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1204-003818 | IC-DECODER;SDP19403,TR,27X27X1.78MM,-10T |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002688 | IC-EMMC;THGBMJG6C1LBAIL,8GBIT,64GBX1,BGA |
| 1205-005595 | IC-ETHERNET CONTROLLER;RTL8304MB-CG,QFN, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004258 | IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 0909-001085 | IC-REAL TIME CLOCK;BQ32002,SOIC,8P,4.9X6 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
| 3722-004158 | JACK-PHONE;1P/8C,SN,BLK,ANGLE,3.5PI |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN68-09258D | LABEL ETC;ALL MODEL,PET,T0.05,W42,L30,RE |
| BN39-02461A | LAN CABLE;STEREO TO RJ12,5P/6P,L1800,UL2 |
| BN39-02462A | LAN CABLE;STEREO TO RJ12,5P/6P,L1800,UL2 |
|
|
LEAD CONNECTOR-BLU;50Q60A,UL21016,12P,L8 |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;UN50KU6000,UL210 |
| BN61-17763A | LGP;21Y_Q70Q60A_50INCH_LGP,PMMA,T2 |
|
|
NETWORK-WLAN CLIENT;WCA734M,90.83X20.94X |
| BN61-17761A | OPTICAL SHEET-COMPLEX;Y21_Q70Q60A_50INCH |
| BN61-18284A | OPTICAL SHEET-HIGH COLOR;21Y_Q70Q60A_50I |
| BN61-17755A | OPTICAL SHEET-REFLECTOR;Y21_Q70A60A_50IN |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| BN95-07623A | PRODUCT LCD-AUO;CY-QA050HGAV1H/V,QAQ60G, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01363E | REMOCON-ECO SMART CONTROL;2021 TV,SAMSUN |
| 3601-001374 | SMG PART |
| 2801-003856 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006361 | SMG PART |
| 2203-005393 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000242 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-007086 | SMG PART |
| 0203-007142 | SMG PART |
| 0203-007235 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005715 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003503 | SMG PART |
| 6902-003527 | SMG PART |
| 6902-003625 | SMG PART |
| 6902-003718 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN41-02924A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01158A | SMG PART |
| BN46-01508A | SMG PART |
| BN60-00162V | SMG PART |
| BN60-00162X | SMG PART |
| BN60-01656C | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01668B | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13520D | SMG PART |
| BN61-16805B | SMG PART |
| BN61-17483A | SMG PART |
| BN61-17484B | SMG PART |
| BN61-17486B | SMG PART |
| BN61-17490A | SMG PART |
| BN61-17491A | SMG PART |
| BN61-17564B | SMG PART |
| BN61-17922A | SMG PART |
| BN62-00923A | SMG PART |
| BN63-19276Z | SMG PART |
| BN63-19286B | SMG PART |
| BN63-19333B | SMG PART |
| BN63-19568B | SMG PART |
| BN63-19568C | SMG PART |
| BN63-19572A | SMG PART |
| BN63-19681A | SMG PART |
| BN63-19858A | SMG PART |
| BN64-04494B | SMG PART |
| BN64-04501A | SMG PART |
| BN64-04514A | SMG PART |
| BN64-04615A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-08112A | SMG PART |
| BN68-08792C | SMG PART |
| BN68-09367A | SMG PART |
| BN68-09671F | SMG PART |
| BN68-12830A | SMG PART |
| BN68-12885E | SMG PART |
| BN69-17053P | SMG PART |
| BN69-21892B | SMG PART |
| BN69-23012B | SMG PART |
| BN81-17110A | SMG PART |
| BN81-20471C | SMG PART |
| BN81-20660A | SMG PART |
| BN81-20662A | SMG PART |
| BN81-20697A | SMG PART |
| BN81-20698A | SMG PART |
| BN81-20699A | SMG PART |
| BN81-20700A | SMG PART |
| BN81-20701A | SMG PART |
| BN90-11483E | SMG PART |
| BN90-11977L | SMG PART |
| BN90-12265D | SMG PART |
| BN90-12346A | SMG PART |
| BN91-23548M | SMG PART |
| BN91-23549N | SMG PART |
| BN92-30689G | SMG PART |
| BN92-30690J | SMG PART |
| BN92-30691A | SMG PART |
| BN92-30692D | SMG PART |
| BN96-54171J | SMG PART |
| BN97-00055W | SMG PART |
| BN97-00055Z | SMG PART |
| BN97-16699A | SMG PART |
| BN97-18177A | SMG PART |
| BN97-18186A | SMG PART |
| BN97-18873N | SMG PART |
| BN97-18874S | SMG PART |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
