Manufacturer
Samsung
Model Number
HG55CU700NFXZA
Description
Standard Commercial Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN95-09832S | |
| BN81-21735A | A/S-IC DRIVER SOURCE;LC550EQC-SPA2,0ISSL |
| BN96-50467C | ASSEMBLY CHASSIS FRONT P;55UTU8000H,PC+ABS+E |
| BN96-54109L | ASSEMBLY COVER P-REAR;55HCU7000,PC+ABS+ED20% |
| BN96-51571A | ASSEMBLY FRAME P-MIDDLE BOTTOM;55UTU7000K,PC |
| BN96-50315A | ASSEMBLY LED BAR P;20Y 55TU8000,ALUMINUM,LEF |
| BN96-50316A | ASSEMBLY LED BAR P;20Y 55TU8000,ALUMINUM,RIG |
| BN96-53409A | ASSEMBLY OPEN CELL;LGD,55INCH,Y21 NEW,LC550E |
| BN94-18275B | ASSEMBLY PCB MAIN;HCU7000 |
|
|
ASSEMBLY SPEAKER P-FRONT;TV-SPK,QET,2CH,6OHM |
| BN96-50867M | ASSEMBLY STAND P-COVER TOP LEFT;55AU7000C,PP |
|
|
ASSEMBLY STAND P-COVER TOP RIGHT;55AU7000C,P |

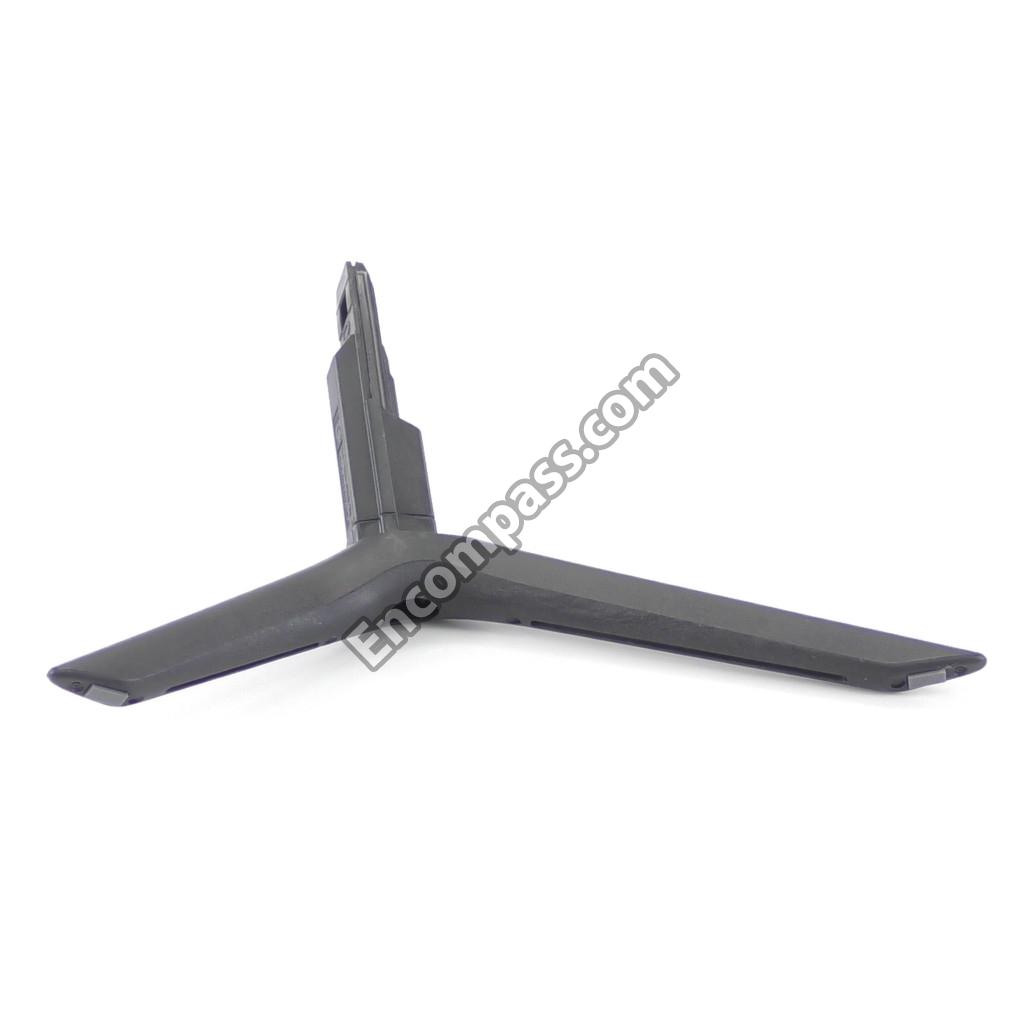

| BN96-50850F | ASSY STAND P-COVER TOP RIGHT |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001560 | BEAD-SMD;80OHM/100MHZ,1.6X0.8X0.8MM,TP,8 |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557W | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557U | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007370 | C-CER,CHIP;10UF,10%,10V,X7R,TP,2012,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006960 | C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-001640 | C-CER,CHIP;390PF,10%,50V,X7R,TP,1608,-55 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001408 | C-EDL;220000UF,3.3V,TP,6.8X11.4MM |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001133 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01054H | DC VSS-PD BOARD;L55S6_BDY,AC/DC,165.6W,A |
| BN61-16891A | DIFFUSER PLATE;20Y_TU7000_55INCH_DP,PS,T |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
FFC;55NU7100,FOLD,L350,96P,- |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008859 | HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-04471A | HOLDER-CARE |
| 0801-002630 | IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT |
| 0801-002564 | IC-CMOS LOGIC;74VHCT244A,BUFFER,TSSOP,20 |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009648 | IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1204-003818 | IC-DECODER;SDP19403,TR,27X27X1.78MM,-10T |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1003-003306 | IC-DRIVER;AD22653B,TP,4.4X5.0X1.2MM,-40T |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 0909-001072 | IC-REAL TIME CLOCK;5P90005CDCGI8,SOIC,8P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
| 3722-003667 | JACK-PHONE;1P/7C,NI+SN,BLK,STRAIGHT,3.6P |
| 3722-004158 | JACK-PHONE;1P/8C,SN,BLK,ANGLE,3.5PI |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN68-09258D | LABEL ETC;ALL MODEL,PET,T0.05,W42,L30,RE |
| BN39-02462A | LAN CABLE;STEREO TO RJ12,5P/6P,L1800,UL2 |
| BN39-02461A | LAN CABLE;STEREO TO RJ12,5P/6P,L1800,UL2 |
| BN39-02549A | LEAD CONNECTOR-BLU;55TU8000,UL21016,4P,L |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;UN50KU6000,UL210 |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;VE TU7K,UL21451, |
| BN59-01370A | NETWORK-WLAN CLIENT;WCT733M,44.17X31.99X |
| BN61-17104A | OPTICAL SHEET-COMPLEX;20Y_55INCH_TU7000_ |
| BN61-16880A | OPTICAL SHEET-REFLECTOR;20Y_TU7000_55INC |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000103 | PRIMARY BATTERY ALKALINE;1.5V,750MAH,LR0 |
| BN95-09832A | PRODUCT LCD-LGD;CY-BC055HGXV1H/V,CU7000C |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| BN59-01358J | REMOCON-TV;2023 HOTEL TV,SAMSUNG,20KEY,3 |
| BN63-07229A | SHEET-PROTECTION COVER;ROSE70",PET,T0.05 |
| BN69-26010J | SMG PART |
| BN68-09371E | SMG PART |
| BN68-09367B | SMG PART |
| BN97-21018A | SMG PART |
| BN97-21017A | SMG PART |
| BN97-21010B | SMG PART |
| BN97-21009U | SMG PART |
| BN97-20406A | SMG PART |
| BN97-20405A | SMG PART |
| BN97-16699A | SMG PART |
| BN96-51168D | SMG PART |
| BN96-50470A | SMG PART |
| BN96-00141X | SMG PART |
| BN92-32583A | SMG PART |
| BN92-32581H | SMG PART |
| BN92-32580D | SMG PART |
| BN92-32376A | SMG PART |
| BN91-24849E | SMG PART |
| BN91-24848Z | SMG PART |
| BN90-12775F | SMG PART |
| BN90-12127V | SMG PART |
| BN90-12016X | SMG PART |
| BN81-21736A | SMG PART |
| BN81-19757A | SMG PART |
| BN81-19756A | SMG PART |
| BN69-25691A | SMG PART |
| BN69-22276B | SMG PART |
| BN69-20428E | SMG PART |
| BN69-17053S | SMG PART |
| BN68-17239B | SMG PART |
| BN68-17204A | SMG PART |
| BN68-11236A | SMG PART |
| BN68-09367A | SMG PART |
| BN68-08792C | SMG PART |
| BN68-06708G | SMG PART |
| BN68-05595A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-04746A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-00513A | SMG PART |
| BN64-04570M | SMG PART |
| BN64-04258B | SMG PART |
| BN64-04256A | SMG PART |
| BN63-20486U | SMG PART |
| BN63-19472S | SMG PART |
| BN63-19004A | SMG PART |
| BN63-18965B | SMG PART |
| BN63-18837A | SMG PART |
| BN63-18576A | SMG PART |
| BN63-18575A | SMG PART |
| BN63-17418G | SMG PART |
| BN63-17418A | SMG PART |
| BN62-00923A | SMG PART |
| BN61-16985A | SMG PART |
| BN61-16805B | SMG PART |
| BN61-16693A | SMG PART |
| BN61-16692A | SMG PART |
| BN61-16691A | SMG PART |
| BN61-16648B | SMG PART |
| BN61-13520D | SMG PART |
| BN61-11982B | SMG PART |
| BN60-01665A | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01655C | SMG PART |
| BN46-02289A | SMG PART |
| BN46-02104A | SMG PART |
| BN46-01158A | SMG PART |
| BN46-00110P | SMG PART |
| BN46-00109H | SMG PART |
| BN41-03164B | SMG PART |
| BN02-00352A | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00102B | SMG PART |
| BH69-00418A | SMG PART |
| BH68-00697A | SMG PART |
| 6902-004140 | SMG PART |
| 6902-003718 | SMG PART |
| 6902-003620 | SMG PART |
| 6302-001376 | SMG PART |
| 2703-005889 | SMG PART |
| 2703-005715 | SMG PART |
| 2007-001058 | SMG PART |
| 1404-001731 | SMG PART |
| 1203-009732 | SMG PART |
| 1203-009719 | SMG PART |
| 1203-009643 | SMG PART |
| 1203-009590 | SMG PART |
| 1201-004380 | SMG PART |
| 1201-004368 | SMG PART |
| 1105-003102 | SMG PART |
| 0403-002014 | SMG PART |
| 0403-001783 | SMG PART |
| 0204-006855 | SMG PART |
| 0203-007179 | SMG PART |
| 0202-001976 | SMG PART |
| 0406-001200 | SMG PART |
| 0406-001568 | SMG PART |
| 1001-001965 | SMG PART |
| 2007-000070 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000168 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007405 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008672 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-005393 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007795 | SMG PART |
| 2703-000213 | SMG PART |
| 2703-002269 | SMG PART |
| 2801-003856 | SMG PART |
| 3601-001374 | SMG PART |
| 0202-001830 | SOLDER-CREAM;PFM-48W LT-SH,D20~38UM,96.5 |
| BN02-00431B | TAPE SINGLE FACE;LFD OHD,PET,T0.05,W20,L |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
|
|
TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF, |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
| 0203-007461 | |
| BN63-19568N | |
| BN68-19416A |
