Manufacturer
Samsung
Model Number
HG55ND890WFXZA
Description
Led Tv(h),hg55nd890wf,55,united States,
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-37097C | ASSEMBLY BOARD P-FUNCTION IR |
|
|
ASSEMBLY BOARD P-JOG SWITCH PB |
|
|
ASSEMBLY CABLE P |
| BN96-35557A | ASSEMBLY CHASSIS FRONT P |
| BN96-38012B | ASSEMBLY COVER P-REAR |
|
|
ASSEMBLY GUIDE P-STAND NECK |
|
|
ASSEMBLY HOLDER P-RING |
| BN96-34569A | ASSEMBLY OPEN CELL |
| BN94-08836H | ASSEMBLY PCB MAIN |
| BN96-34998A | ASSEMBLY SPEAKER P-JU7.5K 55IN |
|
|
ASSEMBLY STAND P-BASE |
| BN96-38161A | ASSEMBLY STAND P-BOTTOM |
|
|
ASSEMBLY T CON P |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
| 4301-000121 | BATTERY-MN |
|
|
BEAD-SMD |
| 3301-001404 | BEAD-SMD |
| BN61-04692A | BOSS-PRIMER |
| 2402-001268 | C-AL,SMD |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006818 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-005083 | C-CER,CHIP |
| 2203-003039 | C-CER,CHIP |
| 2203-002982 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-001851 | C-CER,CHIP |
| 2203-001124 | C-CER,CHIP |
| 2203-000975 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2203-000575 | C-CER,CHIP |
| 2409-001168 | C-EDL |
| 2503-001051 | C-NETWORK |
| 2409-001191 | C-ORGANIC,SMD |
| 2409-001118 | C-POLYMER ,CHIP |
|
|
CBF IF-MODULAR/MODULAR |
|
|
CBF IF-MODULAR/MODULAR |
|
|
CBF-POWER CORD |
| 3701-001861 | CONNECTOR-HDMI |
| 3701-001856 | CONNECTOR-HDMI |
| 3707-001106 | CONNECTOR-OPTICAL |
| 2801-005324 | CRYSTAL-SMD |
| 2801-004814 | CRYSTAL-SMD |
|
|
DC VSS-LED TV PD BD |
| 0404-001881 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0401-001099 | DIODE-SWITCHING |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0505-003397 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-001844 | FET-SILICON |
|
|
FUSE-SURFACE MOUNT |
| AA63-00800A | GASKET-(C) |
| 3711-008690 | HEADER-BOARD TO CABLE |
| 3711-008659 | HEADER-BOARD TO CABLE |
| 3711-008454 | HEADER-BOARD TO CABLE |
| 3711-008422 | HEADER-BOARD TO CABLE |
|
|
HOLDER-BOLT |
| BP61-00495C | HOLDER-CARE |
| 1201-003690 | IC-AUDIO AMP |
| 1205-003201 | IC-BUS SWITCH |
| 0801-003330 | IC-CMOS LOGIC |
| 0801-002780 | IC-CMOS LOGIC |
| 0801-002564 | IC-CMOS LOGIC |
| 1203-008118 | IC-DC/DC CONVERTER |
| 1203-007984 | IC-DC/DC CONVERTER |
| 1203-007018 | IC-DC/DC CONVERTER |
| 1105-002529 | IC-DDR3 SDRAM |
| 1204-003354 | IC-DEMODULATOR |
| 1006-001509 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1103-001561 | IC-EEPROM |
| 1107-002287 | IC-EMMC |
| 1205-004385 | IC-ETHERNET CONTROLLER |
| 0903-001879 | IC-MICROCONTROLLER |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1203-008023 | IC-POSI.ADJUST REG. |
| 1203-007757 | IC-POSI.ADJUST REG. |
| 1203-007242 | IC-POSI.ADJUST REG. |
| 1203-006136 | IC-POSI.FIXED REG. |
| 1203-006130 | IC-POSI.FIXED REG. |
| 1203-006109 | IC-POSI.FIXED REG. |
| 0909-001032 | IC-REAL TIME CLOCK |
| 1205-004983 | IC-SWITCH |
| 1204-003573 | IC-VIDEO PROCESS |
| 1001-001886 | IC-VIDEO SWITCH |
| 1001-001885 | IC-VIDEO SWITCH |
| 1203-007728 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-004724 | INDUCTOR-SMD |
| 2703-003747 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 2703-003263 | INDUCTOR-SMD |
| 2703-002834 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
| 3722-003246 | JACK-MODULAR |
| 3722-003199 | JACK-MODULAR |
| 3722-003667 | JACK-PHONE |
| 3722-003657 | JACK-PHONE |
|
|
JACK-PIN |
| 3722-003837 | JACK-USB |
|
|
JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-02020B | LEAD CONNECTOR |
| BN39-02003B | LEAD CONNECTOR |
|
|
LEAD CONNECTOR-FUNCTION |
| BN39-02133B | LEAD CONNECTOR-SUB ASSEMBLY |
| BN59-01235B | NETWORK-WLAN CLIENT |
| 2806-001308 | OSCILLATOR-VCXO |
|
|
PRODUCT LCD-AUO |
| 2007-008779 | R-CHIP |
| 2007-008332 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007617 | R-CHIP |
| 2007-003015 | R-CHIP |
| 2007-001168 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-001116 | R-CHIP |
| 2007-000772 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001527 | R-NETWORK |
| 2011-001506 | R-NETWORK |
| 2011-001449 | R-NETWORK |
| 2011-001262 | R-NETWORK |
|
|

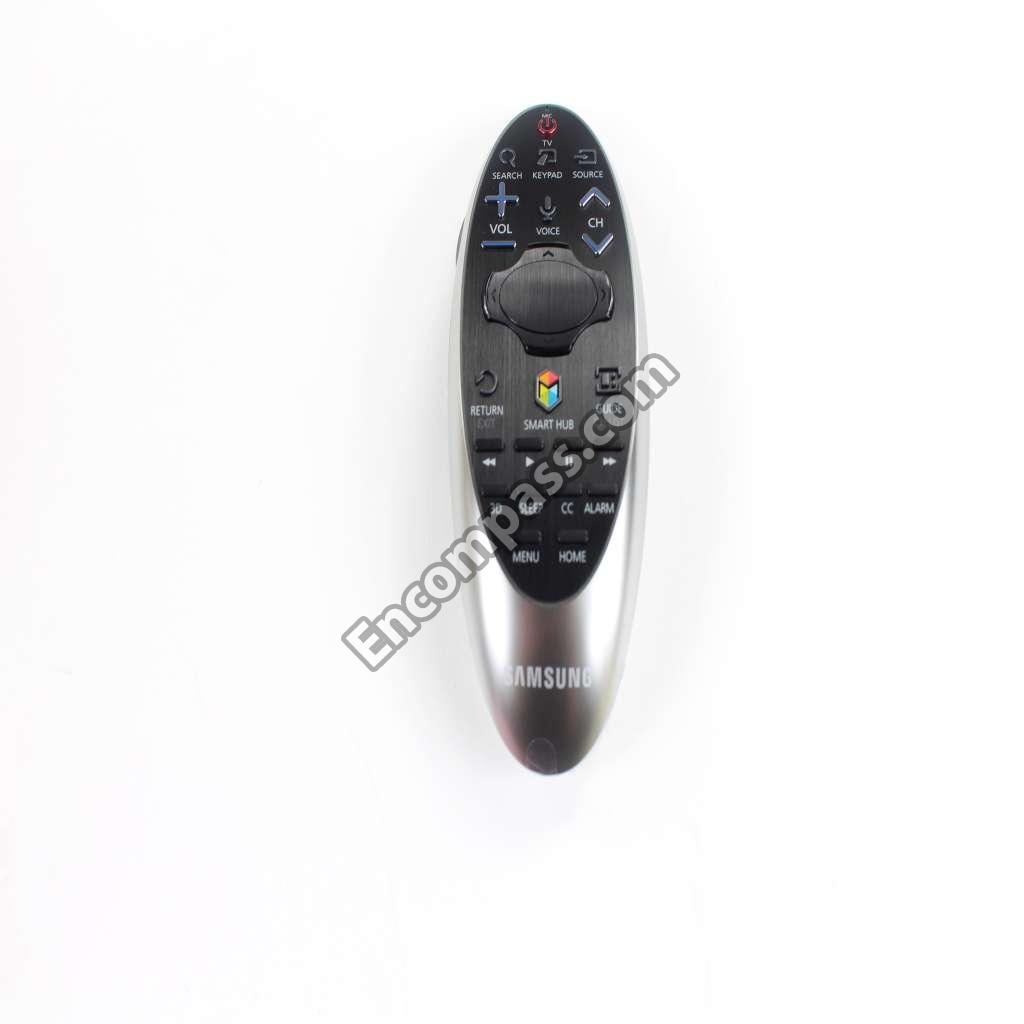

REMOTE CONTROL |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| BN63-05199H | SHEET-COVER |
| 0203-001598 | TAPE-FILAMENT |
| 0203-001602 | TAPE-OPP MASKING |
| 0504-000126 | TR-DIGITAL |
| 0501-000445 | TR-SMALL SIGNAL |
| BN40-00307A | TUNER |
|
|
VARISTOR |
| 1405-001233 | VARISTOR |
