Manufacturer
Samsung
Model Number
LC27F398FWNXZA
Description
27-inch Cf398 Curved Led Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-39758A | ASSEMBLY BOARD P-FUNCTION JOG |
| BN96-39808A | ASSEMBLY CHASSIS FRONT P |
| BN96-39408A | ASSEMBLY LED BAR P |
| BN96-39481B | ASSEMBLY OPEN CELL |
| BN96-39763A | ASSEMBLY STAND P-COVER BODY |
|
|
ASSEMBLY STAND P-COVER TOP |

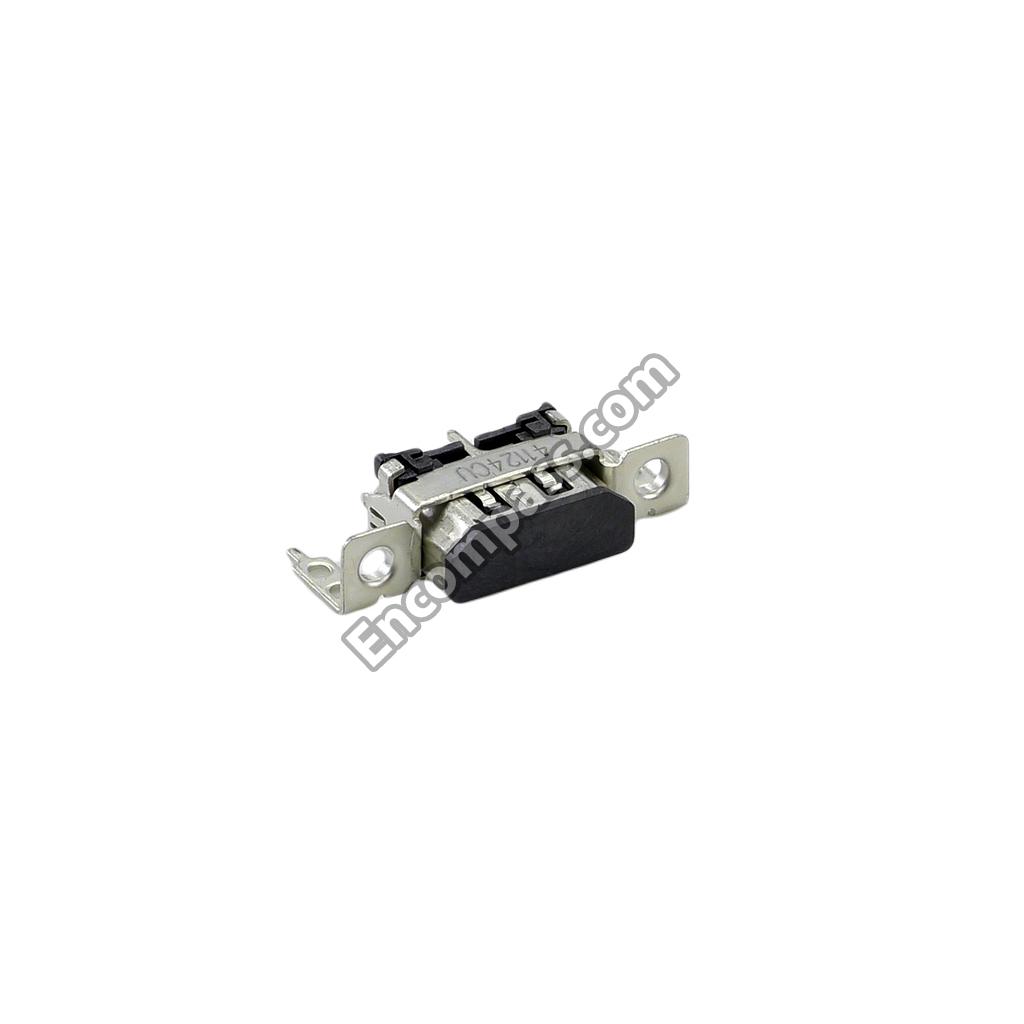

| 6902-000609 | BAG ROLL |
| BN61-13312B | BRACKET SCREWLESS POWER CONTRO |
| BN64-03398A | BUTTON-CONTROL |
| BN64-03400A | BUTTON-FUNCTION |
| 3701-001898 | CONNECTOR-DISPLAY PORT |
|
|
CONNECTOR-HDMI |
| BN96-39317B | COVER ASSEMBLY P-REAR |
| BN63-02183C | COVER-SHEET |
| BN63-02183L | COVER-SHEET |
|
|
DC VSS(A) |
| BN96-34321G | FFC CABLE |
| BN67-00327J | FOOT-RUBBER |
| BN63-12151A | GASKET-EMI |
|
|
HDMI CABLE |
| 3711-008646 | HEADER BOARD TO CABLE |
| 3711-005872 | HEADER-BOARD TO CABLE |
| 3711-007838 | HEADER-BOARD TO CABLE |
| BN61-08235A | HOLDER-LGP |
|
|
HOLDER-STAND |
|
|
JACK-DC POWER |
| 3722-003465 | JACK-PHONE |
| BN68-07667A | LABEL |
| BN68-03920C | LABEL BOX |
| BN68-00513F | LABEL-AMS |
| BH68-40364A | LABEL-BLANK |
| BN68-00513A | LABEL-E, PASS |
| BN68-01570A | LABEL-RATING |
| AK68-02233C | LABEL-RATING |
| BN68-04551A | LABEL-TWO DIMENSIONAL CODE |
| BN68-00129A | LABELSHIPPING |
| BN95-03882U | LCD PANEL DP |
| BN95-02712B | LCD PANEL PANEL |
| BN39-01452N | LEAD CONNECTOR-BLU |
| BN39-01878J | LEAD CONNECTOR-SUB ASSEMBLY |
| BN68-04972G | LEAFLET-REGULATORY GUIDE |
| BN68-03677A | LEAFLET-WARRANTY |
| 0601-001896 | LED |
| BN67-00551A | LENS-LED |
| BN94-10765H | MAIN PCB ASSEMBLY |
| BN68-00226M | MANUAL FLYER-WARRANTY |
| BH69-00457E | PACKING INNER-00, PAD |
| BN69-00391D | PAD-ANGLE |
| BN69-01438G | PALLET-WOODEN |
|
|
POWER CORD-DT |
| BN61-09175B | SCREW-MACHINE |
| 6001-002685 | SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| 0202-001919 | SOLDER-CREAM |
| 0202-001608 | SOLDER-WIRE FLUX |
|
|
SPRING ETC-STAND |
| BN61-02932E | STUD-PEM |
| 3404-001490 | SWITCH-TACT |
| BN02-00404C | TAPE DOUBLE FACE |
| BN02-00043T | TAPE SINGLE FACE |
| 0203-001598 | TAPE-SINGLE FACE |
| BN74-00008D | TAPE-SINGLE FACE |
| BN69-11504A | WRAP VINYL |
