Manufacturer
Samsung
Model Number
LC34F791WQNXZA
Description
34-inch Cf791 Curved Widescreen Monitor
Interactive Exploded View

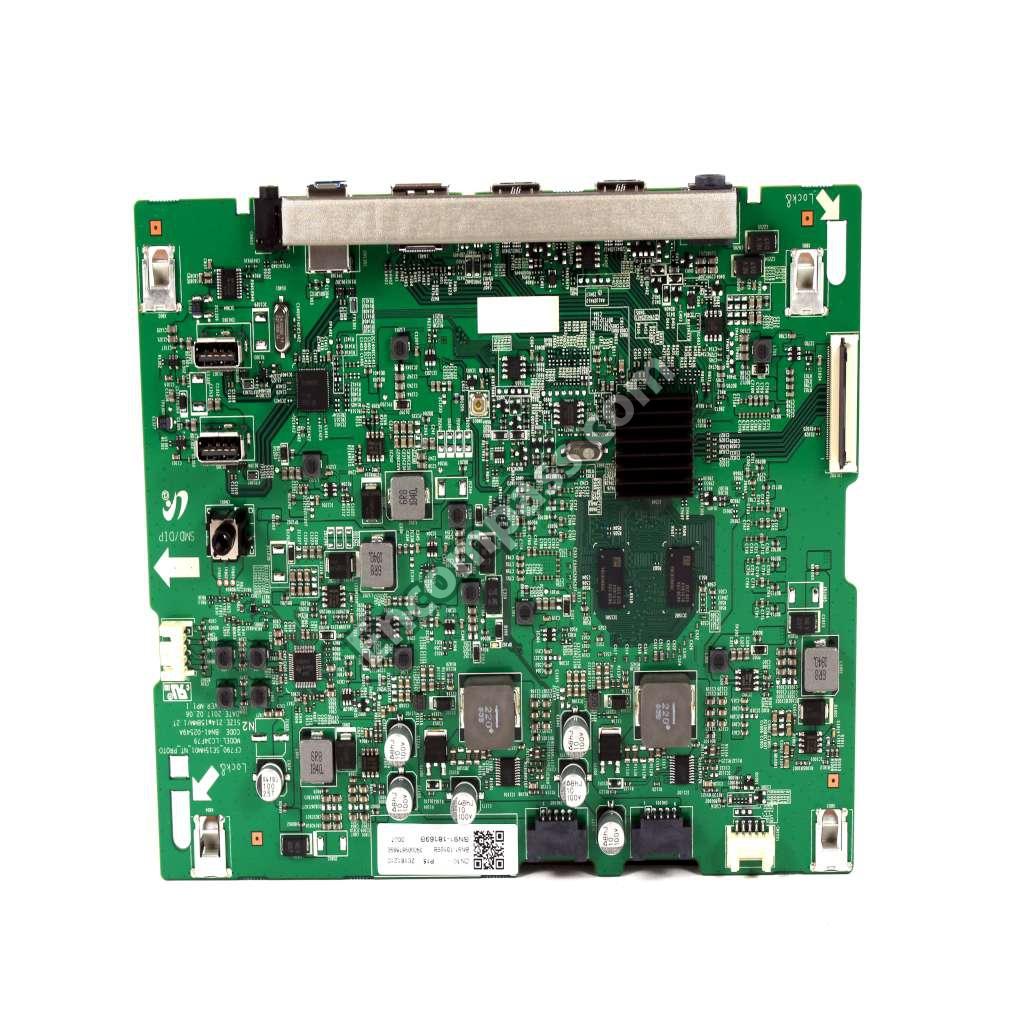

Parts List
| Part Number | Description |
|---|---|
| 0201-001457 | ADHESIVE-AA |
| BN96-39759A | ASSEMBLY BOARD P-FUNCTION JOG |
| BN96-41711A | ASSEMBLY BRACKET P-WALL |
|
|
ASSEMBLY CHASSIS |
| BN96-41259A | ASSEMBLY CHASSIS FRONT P |
| BN96-39787A | ASSEMBLY LED BAR P |
| BN96-41333A | ASSEMBLY SPEAKER P-FRONT |
| BN96-41255A | ASSEMBLY STAND P-COVER BODY |
| BN96-41817A | ASSEMBLY STAND P-COVER NECK LE |
| BN96-41254A | ASSEMBLY STAND P-SET |
| BN96-41484B | ASSEMBLY T CON P |
| 6902-000609 | BAG ROLL |
| BN69-11532A | BOX ACCESSORY |
| BN61-13312B | BRACKET SCREWLESS POWER CONTRO |
| BN64-03402A | BUTTON-CONTROL |
| BN64-03403A | BUTTON-FUNCTION |
| 3701-001670 | CONNECTOR-DISPLAY PORT |
| 3701-001861 | CONNECTOR-HDMI |
| BN96-41201A | COVER ASSEMBLY P-REAR |
|
|
COVER-REAR SUB |
| BN63-02183K | COVER-SHEET |
| BN63-02183D | COVER-SHEET |
| BN44-00888B | DC VSS(A) |
| BN39-01879L | DISPLAY PORT CABLE |
| BN96-41395A | FFC CABLE |
| BN67-00327S | FOOT-RUBBER |
| 3601-001470 | FUSE-SURFACE MOUNT |
| BN63-12151A | GASKET-EMI |
| BN39-01928B | GENDER CABLE |
| BN39-02258A | HDMI CABLE |
| 3711-008646 | HEADER BOARD TO CABLE |
|
|
HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 3711-005872 | HEADER-BOARD TO CABLE |
| AH62-00243A | HEAT SINK-ES |
| BN62-00725A | HEAT SINK-PS |
| BP61-00495C | HOLDER-CARE |
| BP61-00492C | HOLDER-CARE |
| BN61-08235A | HOLDER-LGP |
| 3722-003447 | JACK USB |
|
|
JACK-DC POWER |
| 3722-003465 | JACK-PHONE |
| 3722-003394 | JACK-PHONE |
| BN68-08422A | LABEL BOX |
| BN68-03920C | LABEL BOX |
| BN68-00513F | LABEL-AMS |
| BH68-40364A | LABEL-BLANK |
| BN68-07788A | LABEL-RATING |
| AK68-02233C | LABEL-RATING |
| BN68-00129A | LABELSHIPPING |
|
|
LCD PANEL |
|
|
LCD PANEL DP |
| BN39-01878L | LEAD CONNECTOR-SUB ASSEMBLY |
| BN68-04972G | LEAFLET-REGULATORY GUIDE |
| BN68-03677A | LEAFLET-WARRANTY |
| 0601-001896 | LED |
| 0601-001094 | LED |
| BN67-00553A | LENS-LED |
| BN68-00226M | MANUAL FLYER-WARRANTY |
| BH69-00457D | PACKING-PAD |
| BN69-00391D | PAD-ANGLE |
| BN69-02871A | PALLET-WOOD |
| 3903-001137 | POWER CORD-DT |
|
|
SCREW-MACHINE |
| 6001-002685 | SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| BN63-10945B | SHEET-PROTECTION COVER |
| 0202-001919 | SOLDER-CREAM |
| 0202-001608 | SOLDER-WIRE FLUX |
| BN60-00162X | SPACER-FOAM |
| BN60-00162V | SPACER-FOAM |
| BN60-00073A | SPACER-WASHER |
| BN61-03855A | SPRING ETC-DISK |
| 3404-001490 | SWITCH-TACT |
| 3404-001379 | SWITCH-TACT |
| BN02-00043T | TAPE SINGLE FACE |
| BN74-00008D | TAPE-SINGLE FACE |
| 0203-001598 | TAPE-SINGLE FACE |
| BN39-01493E | USB CABLE |
| 3722-003908 | USB JACK |
| BN69-11504A | WRAP VINYL |
