Manufacturer
Samsung
Model Number
LC49HG90DMNXZA
Description

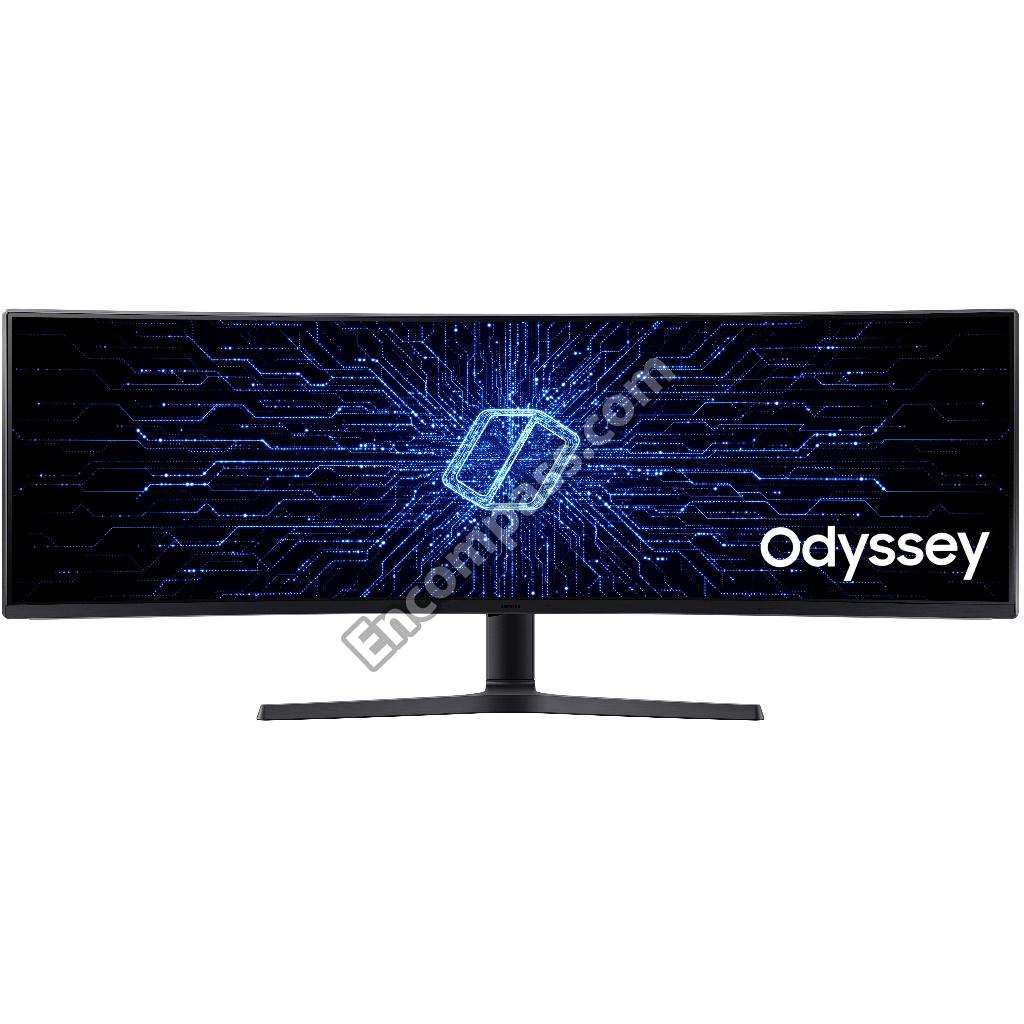

49-inch Chg90 Qled Gaming Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-15714A | A/S OPEN CELL-ADHESIVE-A.C.F;LSM490YP01- |
| BN81-15713A | A/S OPEN CELL-ADHESIVE-A.C.F;LSM490YP01- |
| BN81-15716A | A/S OPEN CELL-ADHESIVE-SIL;LSM490YP01-V, |
| BN81-15715A | A/S OPEN CELL-ADHESIVE-SIL;LSM490YP01-V, |
| BN81-15717A | A/S OPEN CELL-IC DRIVER SOURCE;LSM490YP0 |
| BN81-15718A | A/S OPEN CELL-POLARIZER C/F;LSM490YP01-V |
| BN81-15719A | A/S OPEN CELL-POLARIZER TFT;LSM490YP01-V |
| BN81-01918A | A/S-RESIN;EPS,SG-302 |
| BN81-16719A | A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,LJ94 |
| BN81-16720A | A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,LJ |
| 0201-001457 | ADHESIVE-AA;BP-111,YEL,35CPS,#94,VOC(250 |
| BN96-43305M | ASSY ACCESSORY MANUAL CABLE;LC49HG90DMNX |
| BN92-22316M | ASSY ACCESSORY;CHG90,49" |
| BN90-09161A | ASSY BACK LIGHT UNIT;49CHG9 |
|
|
ASSY BOARD P-FUNCTION JOG;CHG90,CT15SF39 |
|
|
ASSY BOARD P-FUNCTION TACT;LC24F770,CT15 |
| BN96-43799A | ASSY BOARD P-LED;CHG70/CHG90, |
| BN92-22313G | ASSY BOX;CHG90,49" |
| BN96-44619A | ASSY BRACKET P-FRAME;49CHG90,HGI,NATURAL |
|
|
ASSY BRACKET P-WALL;49CHG90,HGI,NATURAL, |
| BN96-43792B | ASSY CHASSIS FRONT P;49CJ89,AL,CHARCOAL |
| BN96-52284A | ASSY CHASSIS REAR P;49CHG9,LED BAR |
| BN96-43787A | ASSY CHASSIS REAR P;49CHG90,EGI-SECC,PRE |
| BN91-18910C | ASSY CHASSIS;CHG9 |
| BN90-09259A | ASSY COVER BOTTOM;CHG90,49" |
| BN96-44169A | ASSY COVER P-CLEAN BACK TERMINAL;49CHG90 |
| BN96-43793A | ASSY COVER P-DECORATION;49CHG90,PC+ABS+M |
| BN96-44140A | ASSY COVER P-REAR BOTTOM;49CHG90,ABS+PMM |
| BN96-44598A | ASSY COVER P-REAR TOP;49CHG90,ABS+PMMA,H |
| BN96-44063A | ASSY COVER P-REAR;49CHG90,ABS+PMMA,HB,GY |
| BN90-09258A | ASSY COVER REAR;CHG90,49" |
| BN97-13305A | ASSY DRM;CHG70,HDCP 2.2 |
| BN96-43786A | ASSY FRAME P-MIDDLE BOTTOM;49CHG90,PC+GF |
| BN92-22315C | ASSY LABEL;CHG90,49" |
| BN96-43676A | ASSY LED BAR P;CHG90 49INCH,ALUMINUM,703 |
| BN97-13225A | ASSY MICOM;CHG90,49" |
| BN96-43644B | ASSY OPEN CELL;SDC,49INCH,ADD OCP FUNCTI |
| BN92-22314A | ASSY P/MATERIAL;CHG90,49" |
| BN94-11861C | ASSY PCB FUNCTION;CHG90,BN96-42664B |
| BN94-12242D | ASSY PCB MAIN;CHG90,49" |
| BN96-44156A | ASSY SHIELD P-MAIN;49CHG90,EGI-SECC |
| BN96-44064A | ASSY SHIELD P-POWER;49CHG90,GI-SGCC |
| BN91-19251A | ASSY SHIELD;CHG90,49" |
| BN97-13226D | ASSY SMD;CHG90,49,BN94-12242D |
| BN97-12740B | ASSY SMD;CHG90,BN94-11861C |
| BN96-44129A | ASSY STAND P-COVER BODY;49HG90,ABS,GY031 |
| BN96-44126A | ASSY STAND P-COVER TOP;49HG90,ABS,GY0318 |
| BN90-09260A | ASSY STAND;CHG90 |
| BN96-43675B | ASSY T CON P;LMM490YP01-3,LSM490YP01-3,8 |
| BN64-03688B | BADGE;27CHG70,NI,T0.11,W75,ICE BLUE,INLE |
| BN64-03688D | BADGE;49CHG90,NI,T0.11,W35,ICE BLUE,2000 |
| BN64-03973A | BADGE;49CHG90,NI,T0.11,W35,ICE BLUE,SAND |
| 6902-000817 | BAG PE;HDPE/PE FOAM,T0.015/T0.5(DOUBLE), |
| 6902-002463 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W100,L40 |
| 6902-001846 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W140,L18 |
| 6902-002552 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W160,L45 |
| 6902-001059 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W200,L30 |
| 6902-002696 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W200,L70 |
| 6902-002678 | BAG ROLL;HDPE,T0.015/T0.5,W1400,L600M,WH |
| 6902-001611 | BAG ROLL;HDPE/PE FOAM,T0.5/T0.015,W1500, |
| 6902-000609 | BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,RECY |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001404 | BEAD-SMD;30OHM/100MHZ,2X1.2MM,TP,10MOHM, |
| 3301-001594 | BEAD-SMD;90OHM,2X1.2MM,TP |
| 6601-003352 | BEARING BALL;49HG90,ID5,OD16,L5.5,STS301 |
| BN69-11532A | BOX ACCESSORY;34SE790C,ACCESSORY,CB,SW-E |
| BN69-16636D | BOX UNIT;49CHG90,CB,DW3,A1,L1305,W461,H2 |
| BN61-15359A | BRACKET-BODY;49CHG90,HGI,T2.5,NATURAL |
| BN61-15349A | BRACKET-BUSH;49CHG90,SUM24L,T1,NATURAL |
| BN61-14521A | BRACKET-CLIP;55Q7F,SK5,T0.2,NATURAL |
| BN61-15254A | BRACKET-RAIL;49HG90,HGI,T2,NATURAL |
| BN61-15347A | BRACKET-SHAFT;32UH85,SUM24L,T1,NATURAL,D |
| BN61-15346A | BRACKET-SHAFT;32UH85,SUM24L,T1,NATURAL,D |
| BN61-15367A | BRACKET-SHAFT;49CHG90,SUM24L,NATURAL,D5, |
| BN61-15350A | BRACKET-SHAFT;49CHG90,SUM24L,T1,NATURAL, |
| BN61-15267A | BRACKET-SHIELD;49CHG90,ETP-SPTE,T0.3,NAT |
| BN61-15250A | BRACKET-STAND BODY;49CHG90,ALDC12,BLACK |
| BN61-15255A | BRACKET-STAND BOTTOM;49HG90,ALDC12,BLACK |
| BN61-15257A | BRACKET-STAND HOLDER;49HG90,SM50C,T1.5,B |
| BN61-15251A | BRACKET-STAND NECK;49CHG90,ALDC12,BLACK |
| BN61-15353A | BRACKET-STAND PIVOT FRONT;49CHG90,SM50C, |
| BN61-15262A | BRACKET-STAND PIVOT;49HG90,CR-SPCC,T2,BL |
| BN61-15258A | BRACKET-STAND STOPPER;49HG90,CR-SPCC,T2, |
| BN61-15253A | BRACKET-STAND SWIVEL;49HG90,SM50C,T2,BLA |
| BN61-15252A | BRACKET-STAND TILT;49HG90,SM50C,T2,BLACK |
| BN61-14898B | BRACKET-WALL;49CHG90,HGI,T1.6,NATURAL,M4 |
| BN61-15342A | BRACKET-WASHER;32UH85,SK5,T0.5,NATURAL,D |
| BN61-15345A | BRACKET-WASHER;32UH85,SK5,T1.2,NATURAL,D |
| BN61-15382A | BRACKET-WASHER;32UH85,SK5,T1.5,NATURAL,D |
| BN61-15351B | BRACKET-WASHER;49CHG90,SK5,T0.5,NATURAL, |
| BN61-15351A | BRACKET-WASHER;49CHG90,SK5,T0.5,NATURAL, |
| BN61-13557H | BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557C | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN64-03505A | BUTTON-CONTROL;24CF770,ABS,GRAY,GY0318 |
| BN64-02286E | BUTTON-FUNCTION;49CHG90,ABS,GRAY |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-000140 | C-CER,CHIP;1.5NF,10%,50V,X7R,TP,1608,55 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005148 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608,55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608,T0.8 |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,55 |
| 2203-005194 | C-CER,CHIP;220PF,10%,50V,X7R,TP,1608,55 |
| 2203-000626 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1608,55TO |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55 |
| 2203-001103 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1608,55 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2409-001213 | C-ORGANIC,SMD;150UF,20%,6.3V,TP,3.5X2.8X |
| 2409-001191 | C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T) |
| BN64-03911B | CHASSIS-FRONT;49CJ89,AL,CHARCOAL BLACK,H |
| BN64-03912A | CHASSIS-REAR;49CHG90,EGI-SECC,T0.8,NAT |
| 3701-001927 | CONNECTOR-DISPLAY PORT;20P,2R,FEMALE,ANG |
| 3701-001670 | CONNECTOR-DISPLAY PORT;20P,2R,MALE,ANGLE |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| BN63-17262A | COVER-CLEAN BACK TERMINAL;49CHG90,ABS+PM |
| BN63-17270A | COVER-DECORATION MIDDLE;49CHG90,PC,T1.6, |
| BN63-17340A | COVER-DECORATION POWER;49CHG90,HIPS,T2,V |
| BN63-16905A | COVER-DECORATION;27CHG70,ABS,T2,HB,BK000 |
| BN63-17133A | COVER-DECORATION;49CHG90,PC+ABS+MF17%,V- |
| BN63-17261A | COVER-REAR BOTTOM;49CHG90,ABS+PMMA,T2.5, |
| BN63-17258A | COVER-REAR TOP;49CHG90,ABS+PMMA,T2.5,HB, |
| BN63-17237A | COVER-REAR;49CHG90,ABS+PMMA,T2.5,HB,GY03 |
| BN63-17252A | COVER-STAND BODY FRONT;49CHG90,ABS,HB,GY |
| BN63-17253A | COVER-STAND BODY REAR;49CHG90,ABS,HB,GY0 |
| BN63-17247A | COVER-STAND HOLDER;49CHG90,ABS+PMMA,HB,G |
| BN63-17251A | COVER-STAND NECK BOTTOM LEFT;49CHG90,ABS |
| BN63-17250A | COVER-STAND NECK BOTTOM RIGHT;49CHG90,AB |
| BN63-17254A | COVER-STAND NECK LEFT;49CHG90,ABS,HB,GY0 |
| BN63-17255A | COVER-STAND NECK RIGHT;49CHG90,ABS,HB,GY |
| BN63-17248A | COVER-STAND TOP;49CHG90,ABS,HB,GY0318,SI |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| BN69-16617A | CUSHION-SET;49CHG90,EPS,16.7G/L,WHITE |
|
|

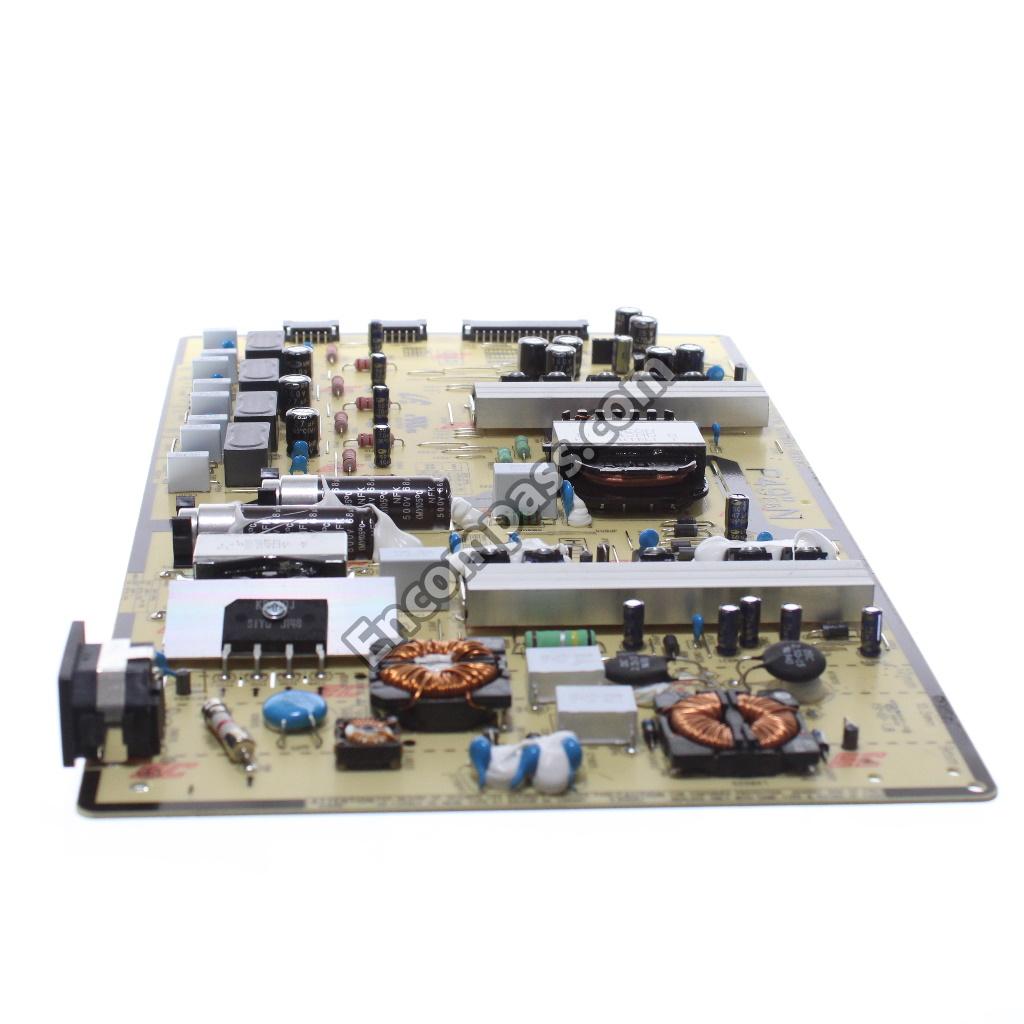

DC VSS-PD BOARD;P49E8N_MHS,AC/DC,137W,AC |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6V,1MAV,5A,TR |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001783 | DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO |
| 0403-001411 | DIODE-ZENER;BZT52-B5V6S,5.49~5.73V,200MW |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001784 | DIODE-ZENER;NZH7V5C,7.29~7.67V,500MW,SOD |
| BN39-01879N | DISPLAY PORT CABLE;C49HG90,19P,L2000,UL2 |
| BN39-02090A | DISPLAY PORT CABLE;UE850,20P,L1500,UL202 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002560 | FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH |
|
|

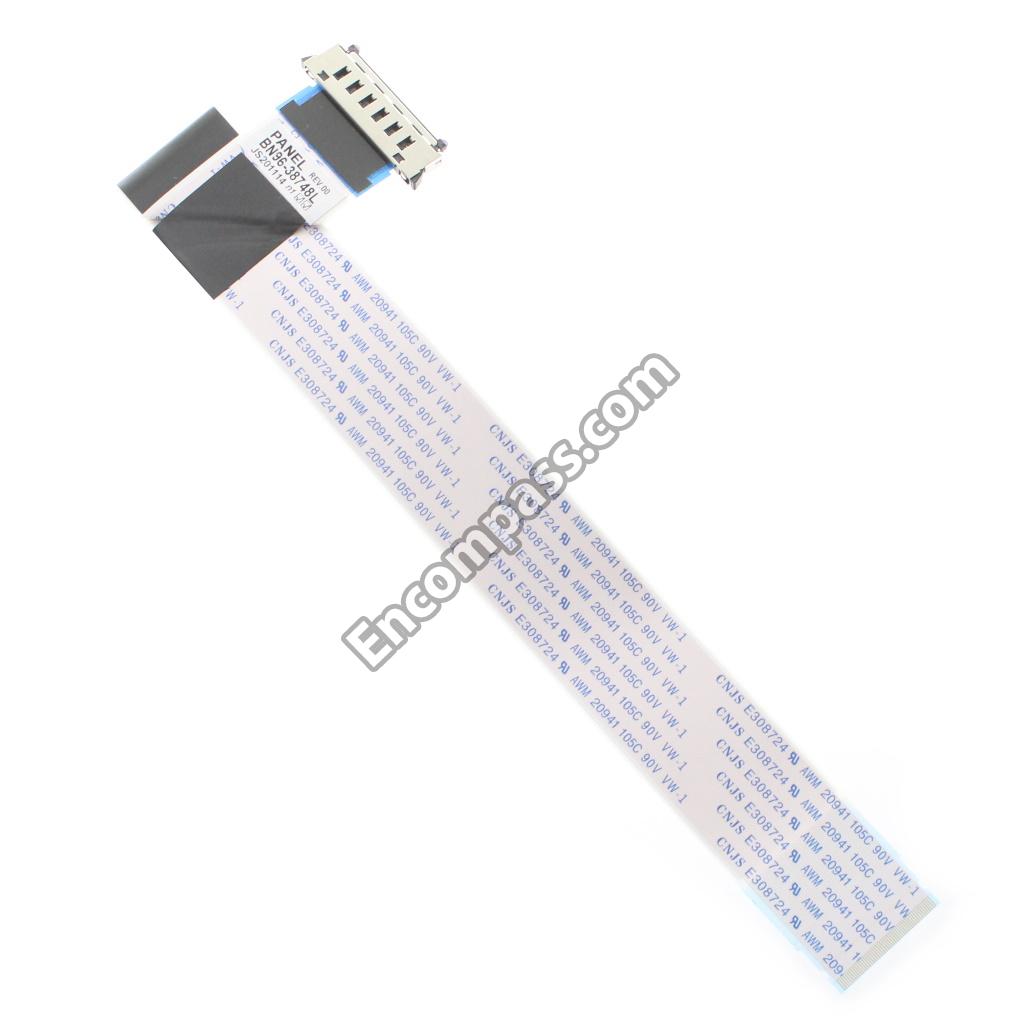

FFC;C49HG90,FOLD,L300,51P |
| BN96-39488A | FFC;KS9500,STRAIGHT,L57,96P |
| BN67-00327J | FOOT-RUBBER;PE400,SI,GRAY,T2.5 |
| BN61-15134A | FRAME-CHASSIS REAR;49CHG90,AL,NATURAL |
| BN61-15133A | FRAME-MIDDLE BOTTOM;49CHG90,PC+GF10%,V-2 |
| 3601-001926 | FUSE-SURFACE MOUNT;250V,5A,SLOW-BLOW,CER |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| BN63-12151A | GASKET-EMI;EMI SHIELDING,FABRIC,T0.13,W2 |
| BN63-02996A | GASKET-TAPE;EMI SHIELDING,FABRIC,T0.13,W |
| BN39-01997C | HDMI CABLE;C49HG90,19,2000MM,BLACK,HDMI |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| 3711-007412 | HEADER-BOARD TO CABLE;BOX,3P,1R,1.25MM,S |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-008646 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 3711-008168 | HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,ANGL |
| BN62-00094B | HEAT SINK-CERAMIC;46QMF,A6063,W30,L30,BL |
| BP61-00887A | HOLDER-CABLE;47Q2,PA66,NATURAL,DAFC-2000 |
| BN61-15357A | HOLDER-CABLE;49CHG90,ABS,T2,GY0318,HB |
| BN61-15243A | HOLDER-FUNCTION;49CHG90,ABS,T2.3,BK0007, |
| BN61-08235G | HOLDER-LGP;49CHG90,SWRCH18A,BLACK,M3.5, |
| BN61-14981A | HOLDER-SHEET;65Q9F,PC+GF10%,BK0007,V-2 |
| BN61-15270A | HOLDER-STAND CABLE;49HG90,ABS,GY0318,HB |
| BN61-15352A | HOLDER-STAND LEFT;49CHG90,POM,T2,BLACK,H |
| BN61-15269A | HOLDER-STAND LIFT;49HG90,POM,BK0059,HB |
| BN61-15261A | HOLDER-STAND SUPPORT;49HG90,POM,BK0059,H |
| BN61-15268A | HOLDER-STAND;49HG90,POM,BK0059,HB |
|
|
HOLDER-STAND;BIZET,SUM24L,NATURAL,M4,L11 |
| 1002-001787 | IC-A/D&D/A CONVERTER;TLV320AIC3104,32BIT |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-008391 | IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, |
| 1203-008522 | IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23, |
| 1203-008030 | IC-DC/DC CONVERTER;TPS54531DDA,SO POWERP |
| 1203-008063 | IC-DC/DC CONVERTER;TPS54540DDA,HSOIC,8,6 |
| 1105-002866 | IC-DDR3 SDRAM;K4B1G1646I-BCNB,DDR3 SDRAM |
| 1204-003725 | IC-DECODER;SE16Q01-MST,HSBGA,1283P,31X31 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001646 | IC-EEPROM;M24C02-RMN6T,2KBIT,X8,SOP,8P,4 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002626 | IC-NOR FLASH;W25Q128JVSIQ,128MBIT,128MX1 |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
| 1203-008104 | IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 |
| 1203-008105 | IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 |
| 1203-007151 | IC-PWM CONTROLLER;TPS54328DDAR,SO POWERP |
| 1205-004704 | IC-SWITCH;AP2151W-7,SOT25,5Z30,3.1*3.0MM |
| 1205-005116 | IC-SWITCH;SN1408009RTER,WQFN,16P,3.15X3. |
| 1205-005264 | IC-SWITCH;SOT-23,5P,2.9X1.6MM,PLASTIC,6V |
| 0904-003059 | IC-USC;TUSB8042RGC,VQFN,64P,9X9MM,24MHZ, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-003135 | INDUCTOR-SMD;4.7UH,20%,6965,T3,0.04OHM,4 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 2703-003719 | INDUCTOR-SMD;6.8UH,20%,10.7X10MM,T3.8,0. |
| BN63-15889F | INSULATOR-SMPS;49CHG90,PC,BLACK,L300,W21 |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-003705 | JACK-PHONE;2P/6C,AU,BLK,ANGLE,3.5PI,10.2 |
| 3722-003447 | JACK-USB;9P/1C,NI,BLK,ANGLE,B,3.0,15.1X1 |
| 3722-003946 | JACK-USB;9P/2C,AU,BLU,SMD-A,A,3.0,13.1X1 |
| BN46-00700A | KEY CODE-CERTIFICATION;CHG70,2.2,1044BYT |
| BH68-00697A | LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9 |
| BN68-08142A | LABEL BOX;ALL,THERMAL PAPER,T0.05,W75,L1 |
| BN68-04746A | LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER, |
| BN68-05458A | LABEL-BARCODE;ALL,ART,W45,L12,BLACK,WHIT |
| BN68-00513A | LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W |
| BN68-05722A | LABEL-E PASS;PP,NON-COATING |
| BN68-07103D | LABEL-RATING;ALL,WW,PP,T0.1,W90,L45,DARK |
| BN68-06922R | LABEL-STICKER;MONITOR,ART,W50,L20,ASSY S |
| BN39-02355A | LEAD CONNECTOR-BLU;49CHG90,UL21016,10P,L |
| BN39-02354A | LEAD CONNECTOR-BLU;49CHG90,UL21016,10P,L |
| BN39-02340B | LEAD CONNECTOR-POWER;UL21016,30P,L900,BL |
| BN39-02254F | LEAD CONNECTOR-SUB ASSY;C49HG90,UL21016, |
| BN39-02338A | LEAD CONNECTOR-SUB ASSY;CHG70 27'',UL210 |
| BN68-08465D | LEAFLET-QUICK SETUP GUIDE;LC49HG90DMNXZA |
| BN68-04972G | LEAFLET-REGULATORY GUIDE;LFD/LM,W/W,MOJO |
| BN68-02482U | LEAFLET-STAND GUIDE;C49HG90,ALL,GUIDE,MO |
| BN68-00226M | LEAFLET-WARRANTY;COMM,SAMSUNG,ENG/FRE,CA |
| BN68-03677A | LEAFLET-WARRANTY;QR,1YEAR,US,MOJO 80G,14 |
| 0601-002642 | LED;SMD(SIDE VIEW),BLU,BLU DIFF.,2.3X0.3 |
| BN67-00553A | LENS-LED;27CF591,PC,WHITE,V-2,LDW01 |
| BN61-15141A | LGP;17Y_CHG90_49INCH_LGP,PMMA,CURVED,2.5 |
| BN61-15144A | OPTICAL SHEET-COMPLEX;17Y_CHG90_49INCH_C |
| BN61-15143A | OPTICAL SHEET-DIFFUSER;17Y_CHG90_49INCH_ |
| BN61-15142A | OPTICAL SHEET-HIGH COLOR;17Y_CHG90_49INC |
| BN61-15140A | OPTICAL SHEET-REFLECTOR;17Y_CHG90_49INCH |
| BN69-21424B | PACKING ANGLE;55TU8000,PAPER,T3,W50,L230 |
| BN69-17053Q | PACKING ANGLE;ALL,PAPER,T3,W1800,L50,YEL |
| BN69-16859A | PAD-ACCESSORY;32CHG70,CB,W212,L275,YELLO |
| BN69-03565R | PAD-SHEET;2433LW,CB,SW4,W1300,L950,YELLO |
| BN69-00617H | PALLET-WOODEN;VENICE 15",WOOD,W1330,L960 |
| BN41-02578B | PCB-FUNCTION;CHG9,FR-4,1L,T1.2,27.5X25.5 |
| BN41-02580C | PCB-MAIN;CHG90,FR-4,4L,T1.6,290X214MM,1, |
|
|
POWER CORD-DT;USA,3P-F,125V,10A,BLK,L150 |
| BN95-04306B | PRODUCT LCD-SDC;CY-PM490LSLV2V/H,CHG90,B |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608,T0.45,GEN |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-000536 | R-CHIP;200OHM,1%,1/10W,TP,1608 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000701 | R-CHIP;3.6KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000857 | R-CHIP;4.3KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000910 | R-CHIP;43KOHM,1%,1/10W,TP,1608 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008807 | R-CHIP;53.6KOHM,1%,1/16W,TP,1005 |
| 2007-008766 | R-CHIP;6.04KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000127 | R-CHIP;9.1KOHM,5%,1/10W,TP,1608 |
| 2007-007331 | R-CHIP;90.9KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 0103-010103 | RESIN PC;SC-1220R,WHITE,WT0025,V-2 |
| BN61-09175B | SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
| 6001-001547 | SCREW-MACHINE;BH,+,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
| 6003-001449 | SCREW-TAPTYPE;BH,+,B,M2.6,L6,NI PLT,SWRC |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
| 6003-001914 | SCREW-TAPTYPE;CH,+,M3,L5,ZPC(BLK),SWRCH1 |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,B,M3,L6,ZPC(WHT),S |
| BN63-16432E | SHEET-PROTECTION COVER;55KU6400,PO,T0.06 |
| BN63-15453C | SHEET-PROTECTION COVER;KS7000,PO,T0.05,W |
| BN63-15632B | SHEET-THERMAL;49CHG90,GRAPHITE,T0.5,W190 |
| BN63-15632D | SHEET-THERMAL;49CHG90,GRAPHITE,T0.5,W200 |
| BN63-15632C | SHEET-THERMAL;49CHG90,GRAPHITE,T0.5,W200 |
| BN63-17257A | SHIELD-MAIN;49HG90,EGI-SECC,T1 |
| BN63-17238A | SHIELD-POWER;49CHG90,GI-SGCC,T1 |
| BN02-00138B | SILICAGEL;100GR,NON-WOVEN FABRIC BAG,100 |
| 0204-008185 | SILICAGEL;CALCIUM CHLORIDE,CACL2,94%,20G |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001830 | SOLDER-CREAM;PFM-48W LT-SH,D20~38UM,96.5 |
| BN60-01269T | SPACER-CONDUCTIVE;49CHG90,CONDUCTIVE FAB |
| BN60-00143C | SPACER-FELT;CHG90,FELT,L100,BLACK,T0.3,W |
| AA63-60122K | SPACER-FELT;SPD-42P4S,FELT,L60,T0.3,D20 |
| BN60-01410M | SPACER-FOAM;49CHG90,PU FOAM,L1191,BLACK, |
| BN60-01269S | SPACER-FOAM;49CHG90,PU FOAM,L1195,BLACK, |
| BN60-01410K | SPACER-FOAM;49CHG90,PU FOAM,L1210,BLACK, |
| BN60-01410L | SPACER-FOAM;49CHG90,PU FOAM,L338,BLACK,T |
| BN60-00634C | SPACER-FOAM;49CHG90,PU FOAM,L340,BLACK,T |
| BN60-01410N | SPACER-FOAM;49CHG90,PU FOAM,L80,BLACK,T3 |
| BN60-01528A | SPACER-FOAM;55Q5F,PE FOAM,ROLL,BLACK,T1. |
| BN61-15348A | SPRING ETC-DISC;32UH85,SK5,T1,D14(D8) |
| BN61-15259A | SPRING ETC-PLATE;STS301,T0.21,W30,6.2~6. |
| BN61-15260A | SPRING ETC-STAND;49HG90,SWPB |
| BN61-15355A | SPRING ETC-TORSION;49CHG90,SWPB,LEFT ,49 |
| BN61-15354A | SPRING ETC-TORSION;49CHG90,SWPB,RIGHT |
| BN01-00688A | STEEL;49CHG9,EGI-SECC,L1275,0.8MM,415MM, |
| BN61-02431B | STUD-PEM;AUDI,SUM24L,T0.5,L8,PRESS,ZPC(S |
| BN61-02429Y | STUD-PEM;COBALT,SUM24L,T0.5,L16.8,PRESS, |
| BN61-09449A | STUD-PEM;GENOA,SUM24L,L2,PRESS |
| BN61-02428F | STUD-PEM;HAYDN,SUM24L,PRESS,ZPC(SIL),SUM |
| 3404-001490 | SWITCH-TACT;12V,50MA,353GF,7.5X7.5X6MM,6 |
| BN02-00404C | TAPE DOUBLE FACE;27CF390,PET,T0.2,W8,L15 |
| BN02-00467C | TAPE SINGLE FACE;49CHG90,PET,T0.05,W9,L9 |
| BN02-00173L | TAPE SINGLE FACE;49CHG90,PET,T0.1,W70,L1 |
| BN02-00489A | TAPE SINGLE FACE;55KS7500,PET,T0.22,W3,L |
| BN02-00049C | TAPE SINGLE FACE;75UE9000,PET,T0.1,W15,L |
| BN02-00467A | TAPE SINGLE FACE;KS9000,PET,T0.05,W10,L1 |
| BN02-00043K | TAPE SINGLE FACE;PET,T0.05,W9.5,L20,BLAC |
| BN02-00173B | TAPE SINGLE FACE;Y13 SNB F8K,PET,T0.05,W |
| BN02-00486A | TAPE-DOUBLE FACE;PU FOAM,T0.5,W3.2,L33M, |
| 0203-006894 | TAPE-SINGLE FACE;OPP,3M, #3675,T0.05,W75 |
| BN02-00319A | TAPE-SINGLE FACE;OPP,T0.05,W60,L800M,CLE |
| BN02-00319B | TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE |
| BN02-00102B | TAPE-SINGLE FACE;OPP,T0.15,W25,L50M,WHIT |
| BP61-00495C | TAPE-SINGLE FACE;PC,T0.25,W30,L33M,CLEAR |
| 0501-000341 | TR-SMALL SIGNAL;KSC1623-L,NPN,200MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN39-01493A | USB CABLE;CA750/CA550,9,1500MM,BLACK,USB |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| BN69-11504A | WRAP VINYL;LDPE,T0.018,W500,L1800,TRANSP |
| BH69-00418A | WRAP;762,1828M,SAMEX FACTORY |
