Manufacturer
Samsung
Model Number
LH24QBRTBGCXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-19721A | A/S-DRIVER SOURCE;DRIVER SOURCE,47-70116 |
| BN96-52880A | ASSEMBLY BOARD P-TOUCH MODULE;QBR-T,LTM-SC24 |
| BN96-52958A | ASSEMBLY COVER P-FRONT;24QBRT,PC+ABS ED18,5V |
| BN96-52790B | ASSEMBLY COVER P-REAR;24QBR-T,PC+ABS+ED20%,5 |
| BN96-52790D | ASSEMBLY COVER P-REAR;24QBR-T,PC+ABS+ED20%,5 |
| BN96-51992A | ASSEMBLY LED BAR P;T35F,ALUMINUM |
| BN96-51982A | ASSEMBLY OPEN CELL;BOE,23.8INCH,Y20 NEW,MV23 |
| BN94-16773D | ASSEMBLY PCB MAIN;QBR-T |
| BN96-37928C | ASSEMBLY SPEAKER P-FRONT;TV-SPK,24QBR,1CH,6O |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,RECYCLE+ |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002720 | C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006378 | C-CER,CHIP;4.7UF,10%,6.3V,X5R,TP,1608,-5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001168 | C-EDL;200000UF,3.3V,0.01MA,TP,6.8X11.3MM |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
| 6801-001760 | CARD INFORMATION;MEXICO,SPANISH,W/P,W215 |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,30P,1.0MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01122A | DC VSS-PD BOARD;F24SFD_APN,AC/DC,48.1W,A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| BN96-34321Q | FFC CABLE;SH65 24W,STRAIGHT,L150,30P,FFC |
| BN96-53163A | FFC;LH24QBREBGC,STRAIGHT,L65,30P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
|
|
GENDER CABLE;PROTON,3P,200,UL2547,BLK,ST |
|
|
HEADER-BOARD TO CABLE;BOX,10P,2R,2MM,ANG |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-005477 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.0MM,SM |
| 3711-005872 | HEADER-BOARD TO CABLE;TP,SMD-A,1R,5P,2.0 |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1001-002047 | IC-ANALOG MULTIPLEX;TS3USB3031,QFN,12P,1 |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 1205-006351 | IC-BUFFER;SLG4AX44117V,STQFN,14P,1.6X2.0 |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,TP,2X1.25X0.95MM,-40 |
| 1301-002160 | IC-CPLD;SLG4P4190VTR,TQFN20,20P,3X2MM,21 |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009069 | IC-DC/DC CONVERTER;TPS566250,SOP,8P,6.2X |
| 1203-008139 | IC-DC/DC CONVERTER;TPS56C20PWPR,HTSSOP,2 |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1105-002882 | IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR |
| 1204-003752 | IC-DECODER;SDP1711,FCBGA,932P,27X27X1.79 |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1107-002641 | IC-EMMC;SDINBDG4-8G-945D,8GBYTE,64GBX1,B |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 0909-001085 | IC-REAL TIME CLOCK;BQ32002,SOIC,8P,4.9X6 |
| 1205-005706 | IC-RECEIVER;SN65LVDS4,UQFN,10P,1.50X2.00 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1205-005789 | IC-TRANSCEIVER;EP192,LQFP,64P,9X9MM,PLAS |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005720 | INDUCTOR-SMD;1UH,20%,1608,T0.8,0.6OHM,25 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-004127 | JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 |
| 3722-004140 | JACK-USB;4P/1C,AU,BLK,ANGLE,B,2.0,12.1X1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02681A | LEAD CONNECTOR-DIMMING;QB24R,UL21016,6P, |
| BN39-01476N | LEAD CONNECTOR-DIMMING;S19B300NW S19B360 |
| BN39-02275H | LEAD CONNECTOR-POWER;QB24R,UL21016,10P,L |
| BN39-02219F | LEAD CONNECTOR-SUB ASSEMBLY;32K5300,UL21016, |
| 0601-002852 | LED;SMD(TOP VIEW),RED,WATER CLEAR,1X0.8M |
|
|
NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7. |
| 2804-001595 | OSCILLATOR-CLOCK;27MHZ,50PPM,10TTL,15PF, |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| BN95-07263A | PRODUCT LCD-BOE;CY-MT238BPEVZH,QBR,LFD Q |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-007008 | R-CHIP;300OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|

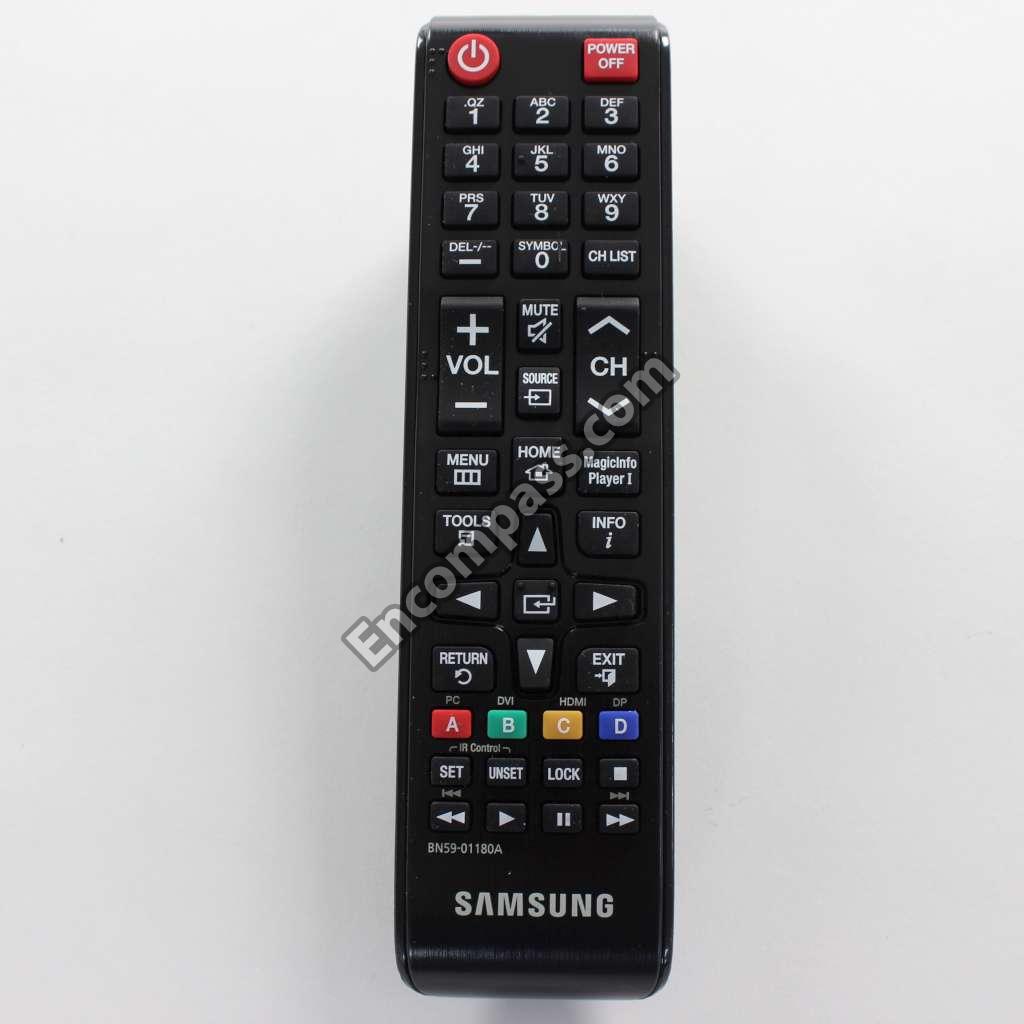

REMOCON-TV;2013 LFD,SAMSUNG,44KEY,3V,14Y |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 3601-001374 | SMG PART |
| 2801-003856 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-005393 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001072 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000714 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000386 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000233 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008136 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007470 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007317 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007315 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 1001-001965 | SMG PART |
| 0601-002037 | SMG PART |
| 0406-001200 | SMG PART |
| 0403-001339 | SMG PART |
| 0101-003397 | SMG PART |
| 0103-004609 | SMG PART |
| 0103-009706 | SMG PART |
| 0103-010808 | SMG PART |
| 0103-011141 | SMG PART |
| 0103-011533 | SMG PART |
| 0103-011801 | SMG PART |
| 0202-001830 | SMG PART |
| 0203-007211 | SMG PART |
| 0203-007243 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-001976 | SMG PART |
| 0609-001485 | SMG PART |
| 0609-001510 | SMG PART |
| 1103-001584 | SMG PART |
| 1205-006118 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-000609 | SMG PART |
| 6902-002592 | SMG PART |
| 6922-000013 | SMG PART |
| 6922-000421 | SMG PART |
| AA68-03727A | SMG PART |
| BN01-00679A | SMG PART |
| BN02-00043J | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00319A | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00615B | SMG PART |
| BN02-00640A | SMG PART |
| BN41-02849A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN60-01656B | SMG PART |
| BN60-01668A | SMG PART |
| BN61-08997A | SMG PART |
| BN61-09637B | SMG PART |
| BN61-17404A | SMG PART |
| BN61-17422A | SMG PART |
| BN61-17424A | SMG PART |
| BN61-17431A | SMG PART |
| BN61-17719A | SMG PART |
| BN61-17729A | SMG PART |
| BN62-00834A | SMG PART |
| BN63-07229A | SMG PART |
| BN63-12151A | SMG PART |
| BN63-14196B | SMG PART |
| BN63-19427A | SMG PART |
| BN63-19428A | SMG PART |
| BN63-19428B | SMG PART |
| BN63-19429A | SMG PART |
| BN63-19473A | SMG PART |
| BN63-19554A | SMG PART |
| BN63-19568A | SMG PART |
| BN64-04249D | SMG PART |
| BN64-04564A | SMG PART |
| BN68-00107A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00735F | SMG PART |
| BN68-00797H | SMG PART |
| BN68-02021D | SMG PART |
| BN68-03677E | SMG PART |
| BN68-04657D | SMG PART |
| BN68-05458A | SMG PART |
| BN68-05603E | SMG PART |
| BN68-05722A | SMG PART |
| BN68-06810A | SMG PART |
| BN68-07104D | SMG PART |
| BN68-08142A | SMG PART |
| BN68-09370A | SMG PART |
| BN68-11530D | SMG PART |
| BN68-12374A | SMG PART |
| BN69-00391P | SMG PART |
| BN69-11504A | SMG PART |
| BN69-17053P | SMG PART |
| BN69-21940A | SMG PART |
| BN69-22025A | SMG PART |
| BN69-22342A | SMG PART |
| BN81-01918A | SMG PART |
| BN81-19722A | SMG PART |
| BN81-19723A | SMG PART |
| BN81-19724A | SMG PART |
| BN81-20514A | SMG PART |
| BN81-20515A | SMG PART |
| BN90-11808E | SMG PART |
| BN90-12019M | SMG PART |
| BN91-23102A | SMG PART |
| BN91-23103G | SMG PART |
| BN92-26947B | SMG PART |
| BN92-29871B | SMG PART |
| BN92-29872Z | SMG PART |
| BN92-29874D | SMG PART |
| BN96-52705A | SMG PART |
| BN96-52706A | SMG PART |
| BN96-52750D | SMG PART |
| BN96-52951A | SMG PART |
| BN97-09686A | SMG PART |
| BN97-18086B | SMG PART |
| BN97-18107A | SMG PART |
| BN97-18108A | SMG PART |
| BN97-19045A | SMG PART |
| 3407-000183 | SWITCH-DIP;50V,100MA,SLIDE,STANDARD |
| 3404-001560 | SWITCH-TACT;12V,50MA,220GF,4.5X2.2X2.6MM |
| 3404-001379 | SWITCH-TACT;12V,50MA,250GF,4.9X4.9X1.5MM |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN39-00397D | USB CABLE;LIME-DUAL,4,1500MM,BLACK,USB A |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001306 | VARISTOR;11VDC,45A,1608,TP,50V,40PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
