Manufacturer
Samsung
Model Number
LN26A330J1XZP
Description
26-inch 720p Lcd Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-01866A | AS-T-CON BOARD;V260B1-L13,00548A |
|
|
ASSY BOARD P-FUNCTION;SONOMA,SJ06-01-008 |
| BN96-04884B | ASSY BOARD P-POWER & IR;LNT3242HX/XAA,CT |
| BN96-09179A | ASSY BRACKET P-STAND;LINK;26,SECC,T1.6 |
| BN96-07766A | ASSY CABLE P-FFC;CORAL,FFC CABLE,325MM,3 |
| BN96-04750K | ASSY COVER P-FRONT;26L330,LO,ABS+PMMA,HB |
| BN96-04755E | ASSY COVER P-REAR;26L330,LO,HIPS,HB,BK50 |
| BN94-02280A | ASSY PCB MAIN;LATIN AMERICA,N61A |
| BN96-04769A | ASSY SPEAKER P;16OHM,4PIN,5W,JASMINE 23" |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
| 3301-001324 | BEAD-SMD;15OHM,2012,600MA,TP,,,0.1OHM |
| 3301-001404 | BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ,- |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
| 3301-001148 | BEAD-SMD;60OHM,1608,TP |
| 3301-001393 | BEAD-SMD;60OHM,3216,1500MA,TP,41OHM/40MH |
| 3301-001145 | BEAD-SMD;60OHM,4516,TP,70OHM/45MHZ,82OHM |
| 3301-001163 | BEAD-SMD;80OHM,2012,TP,192OHM/867MHZ |
| BN61-03261C | BOSS-TAPE;TULIP,ACRYL,T1.1,W24MM,GRAY,TA |
| BN61-02210A | BRACKET-GUIDE POWER;BORDEAUX 26,SECC,T1. |
| BN61-02205B | BRACKET-PANEL TOP;BORDEAUX 26,SECC,T1.2 |
| BN61-02931A | BRACKET-STAND LINK;JASMINE 26,SECC,T1.6 |
| BN61-03346A | BRACKET-WALL;LCD TV,GPSP,T1.2 |
| 2402-001128 | C-AL,SMD;100UF,20%,16V,TP,6.3X5.7MM |
| 2402-001238 | C-AL,SMD;1UF,20%,50V,HR,TP,4.3X4.3X5.2MM |
| 2402-001259 | C-AL,SMD;220UF,20%,16V,WT,REEL,8X10 |
| 2402-001273 | C-AL,SMD;220UF,20%,35V,WT,TP,10X10MM |
| 2402-001183 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM |
| 2402-001330 | C-AL,SMD;330UF,20%,25V,TP,10X10MM |
| 2402-001129 | C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-005809 | C-CER,CHIP;1000NF,10%,16V,X7R,TP,2012 |
| 2203-005261 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,3216 |
| 2203-005533 | C-CER,CHIP;1000NF,20%,6.3V,X7R,TP,1608 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005005 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-001630 | C-CER,CHIP;330NF,+80-20%,16V,Y5V,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-005384 | C-CER,CHIP;4700NF,+80-20%,10V,Y5V,TP,201 |
| 2203-000925 | C-CER,CHIP;470NF,+80-20%,50V,Y5V,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608 |
| BN39-00615D | CBF HARNESS;BORDEAUX,1617#22,3P,1P,RING, |
|
|
CBF-POWER CORD;DT,US,BP3/Y,U(IEC C13-RA) |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3701-001480 | CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;30P,1MM,SMD-A,SN,Z |
| 3701-001367 | CONNECTOR-HDMI;21P,2R,FEMALE,SMD,AU |
| 3711-007583 | CONNECTOR-HEADER;BOX,10P,1R,2.0MM,ANGLE- |
| BN63-03176B | COVER-BOTTOM;JASMINE 22,23,26,HIPS,HB,BK |
| BN63-02183F | COVER-SHEET;RHCM,PE VINYL,T0.05,900MM,20 |
| 2801-003667 | CRYSTAL-SMD;14.31818MHZ,30PPM,28-AAN,16P |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0407-000123 | DIODE-SWITCHING;DAN202K,80V,100MA,SOT-23 |
| 0401-001049 | DIODE-SWITCHING;LS4148,75V,150MA,SOD-80, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0403-001425 | DIODE-ZENER;BZX84C33,31-35V,350MW,SOT-23 |
| 0403-001052 | DIODE-ZENER;RD8.2MB,7.7-8.7V,200MW,SOT-2 |
| 0403-000002 | DIODE-ZENER;VLZ5V6B,5.45/5.73V,500MW,SOD |
| 0403-000771 | DIODE-ZENER;VLZ6V2B,5.96-6.27V,500MW,SOD |
|
|

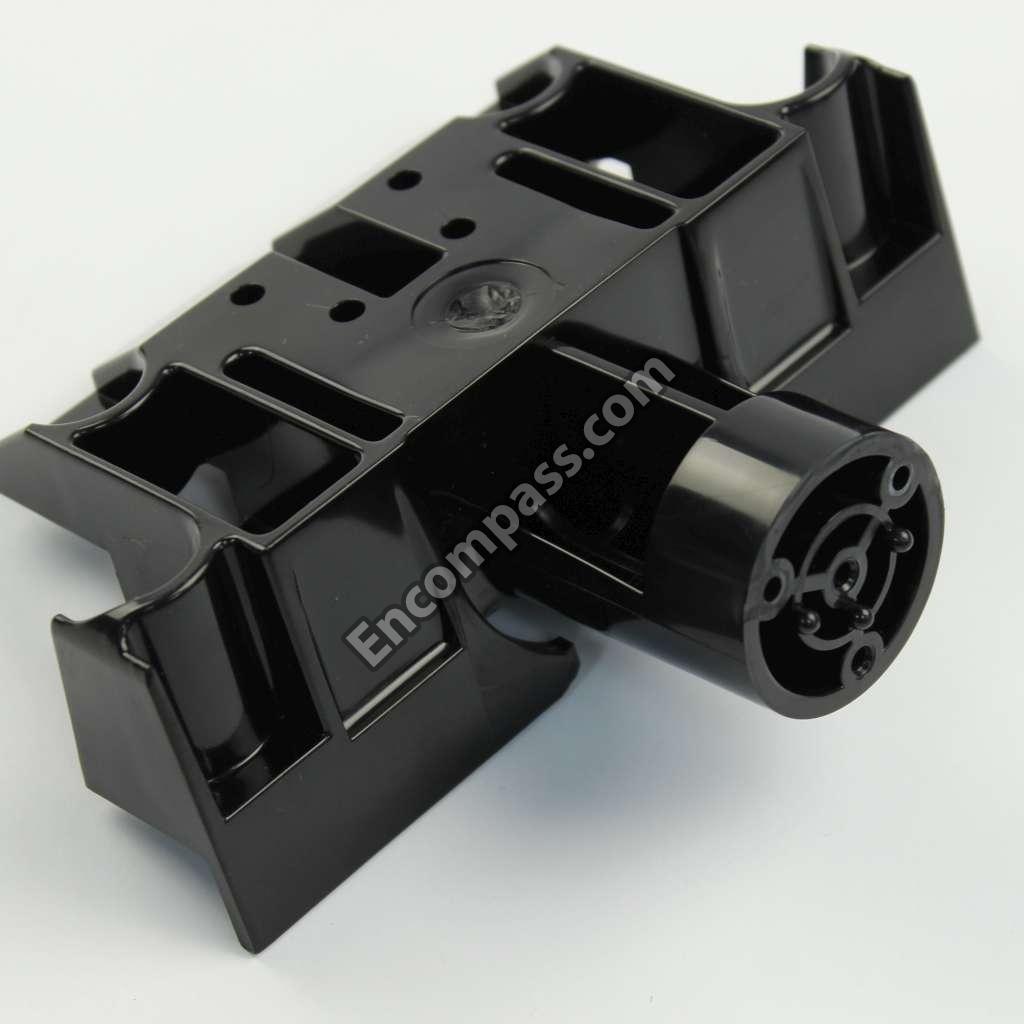

GUIDE-STAND;JASMINE 26,ABS,BK500,V0(NT) |
| 3711-004531 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,ANG |
| 3711-006766 | HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR |
| 3711-000058 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-004484 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| BN61-03972A | HOLDER-SIDE AV;L330,HIPS,V0,BK500 |
| 1001-000164 | IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 |
| 1201-002487 | IC-AUDIO AMP;MAX9728A,QFN,12P,3X3MM,DUAL |
| 0801-002633 | IC-CMOS LOGIC;7WBD3125,2BIT BUS SWITCH,S |
| 1203-005188 | IC-DC/DC CONVERTER;AOZ1021AIL,SOP,8P,4.9 |
| 1105-001838 | IC-DDR SDRAM;EM6A9160TS0A-5G,DDR SDRAM,1 |
| 1006-001076 | IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, |
| 1103-000129 | IC-EEPROM;24C02,2KBIT,256X8,SOP,8P,5X4MM |
| 1103-001385 | IC-EEPROM;AT24C256,256KBIT,32KX8,SOP,8P, |
| 1107-001709 | IC-FLASH MEMORY;MX25L1605DM2I-12G,16MBIT |
| 1205-003432 | IC-LCD CONTROLLER;SEMS01,LQFP,256P,30X30 |
| 1201-000541 | IC-OP AMP;062,SOP,8P,153MIL,DUAL,6V/MV,P |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-002995 | IC-POSI.ADJUST REG.;AP1117D,TO-252,3P,6. |
| 1203-001815 | IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST |
| 1203-002842 | IC-POSI.FIXED REG.;AP1117D-33,TO-252,3P, |
| 1203-003696 | IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 |
| 1201-002677 | IC-POWER AMP;NTP3100,QFN56,56P,8X8MM,DUA |
| 1204-002779 | IC-VIDEO PROCESS;S4LF136X01,PBGA,208P,17 |
| 1001-001440 | IC-VIDEO SWITCH;SII9185CTU,QFP,80P,3.3V, |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2704-000018 | INDUCTOR-SMD-ARRAY;15UH,2000MA,2,0.124OH |
| 2703-000398 | INDUCTOR-SMD;10UH,10%,3225,.5OHM,300MA,1 |
| 2703-000417 | INDUCTOR-SMD;220UH,5%,3225,21OHM,50MA,20 |
| 2703-003362 | INDUCTOR-SMD;4.7UH,20%,7070,0.09OHM,3000 |
| 2703-001426 | INDUCTOR-SMD;680UH,20%,7070,3.78OHM,160M |
| 3722-001061 | JACK-PHONE;1P,3.6PI,AG,BLK,N |
| 3722-003038 | JACK-PHONE;7P/1C W/L,SN,BLK |
| 3722-002711 | JACK-PIN;10P,NI,GRN/BLU/RED/WHT/RED,STRA |
| 3722-002691 | JACK-PIN;2P,NI,WHT/RED,STRAIGHT |
| 3722-002699 | JACK-PIN;3P,NI,YEL/WHT/RED,STRAIGHT |
| BN64-00467D | KNOB CONTROL;MOSEL32,ABS,V0(NT),BK07 |
| BN64-00589A | KNOB POWER;32S81,PC,VIOLET |
|
|
LCD-PANEL;V260B1-L13,CM26B13,6BIT+FRC,26 |
| BN39-00802A | LEAD CONNECTOR;LE32R86BDX,UL1007#26,UL/C |
| BN39-00603B | LEAD CONNECTOR;RE32**,UL1007#26,14P,200M |
| BH39-00362G | LEAD CONNECTOR;SONOMA,UL1007#26,5PIN,100 |
| BN44-00213A | POWER SUPPLY DC VSS-LCD TV;MK32P5T,SEM,AC/DC,137W,AC1 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-007297 | R-CHIP;110OHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-000106 | R-CHIP;220KOHM,5%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608 |
| 2007-000763 | R-CHIP;330OHM,1%,1/10W,TP,1608 |
| 2007-000869 | R-CHIP;4.7KOHM,1%,1/10W,TP,1608 |
| 2007-000950 | R-CHIP;47OHM,5%,1/4W,TP,3216 |
| 2007-008429 | R-CHIP;499OHM,1%,1/16W,TP,1005 |
| 2007-001010 | R-CHIP;51KOHM,5%,1/10W,TP,1608 |
| 2007-001164 | R-CHIP;75OHM,1%,1/10W,TP,1608 |
| 2007-001167 | R-CHIP;75OHM,5%,1/10W,TP,1608 |
| 2011-001001 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,3.2 |
| 2011-001093 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001011 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-000881 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,3. |
| 2011-000585 | R-NETWORK;47OHM,5%,1/16W,L,CHIP,8P,TP,3. |
|
|
REMOCON;TM-95,39,AMERICA,61.37G |
| BN73-00052C | RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S |
|
|

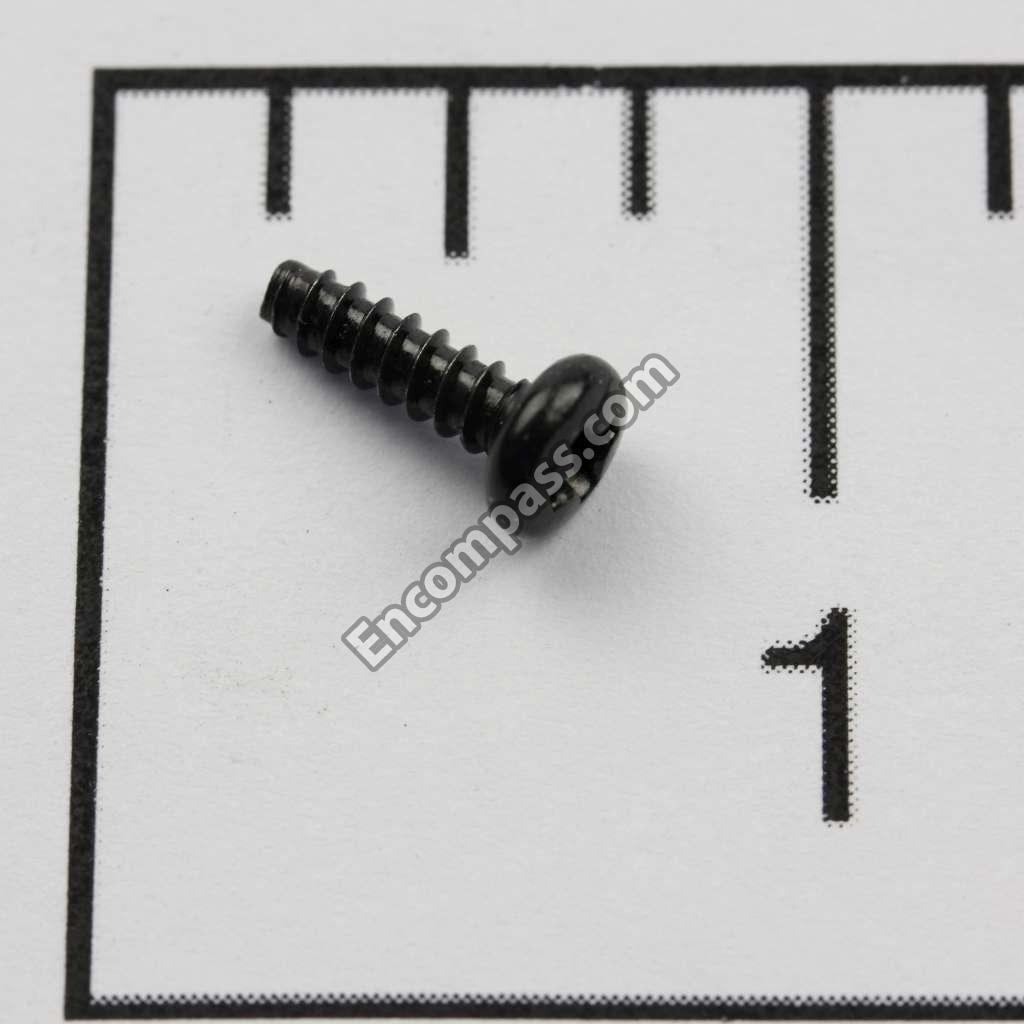

SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
| BN61-01655A | SPRING ETC;STS-304 SUS,D8,L12,T0.5 |
| 0501-002080 | TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59 |
| 0501-000669 | TR-SMALL SIGNAL;KTA1505Y,PNP,150MW,SOT-2 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00113A | TUNER;HTM-6M/13F2S,HTM-6M/13F2S,PAL M,18 |
| 1405-001185 | VARISTOR;500V,24VDC,1.6X0.8X0.36MM,TP,15 |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1.6X0.8X0.8MM,TP,1 |
