Manufacturer
Samsung
Model Number
LN40C530F1FXZA
Description
Samsung 40-inch 1080p Lcd Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-04153A | A/S-T CON LTF400HM01;LTF400HM01 |
|
|

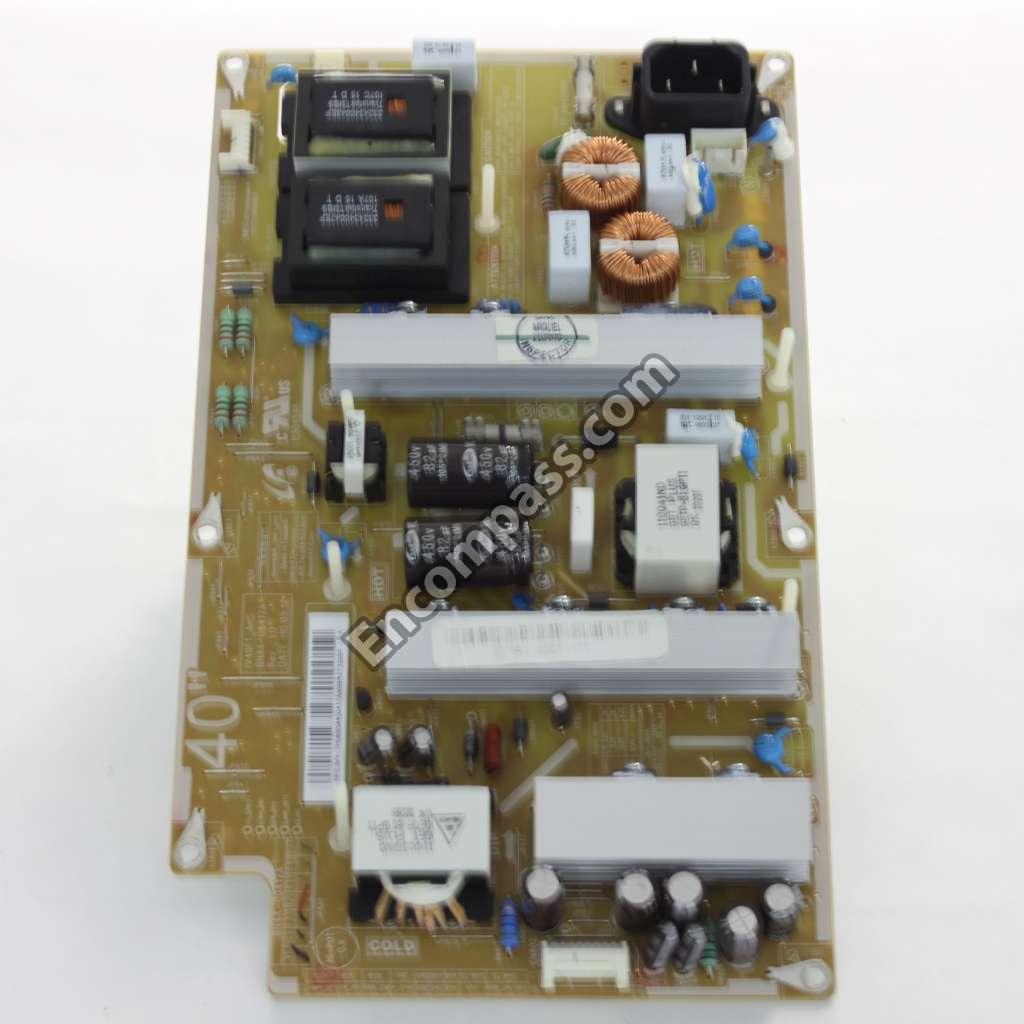

AC POWER SUPPLY BOARD(I)-TV;PSIV231510A,I40F1_ASM,14MA, |
| BN96-14467A | ASSY ACCESSORY;LN40C530F1FXZA |
|
|

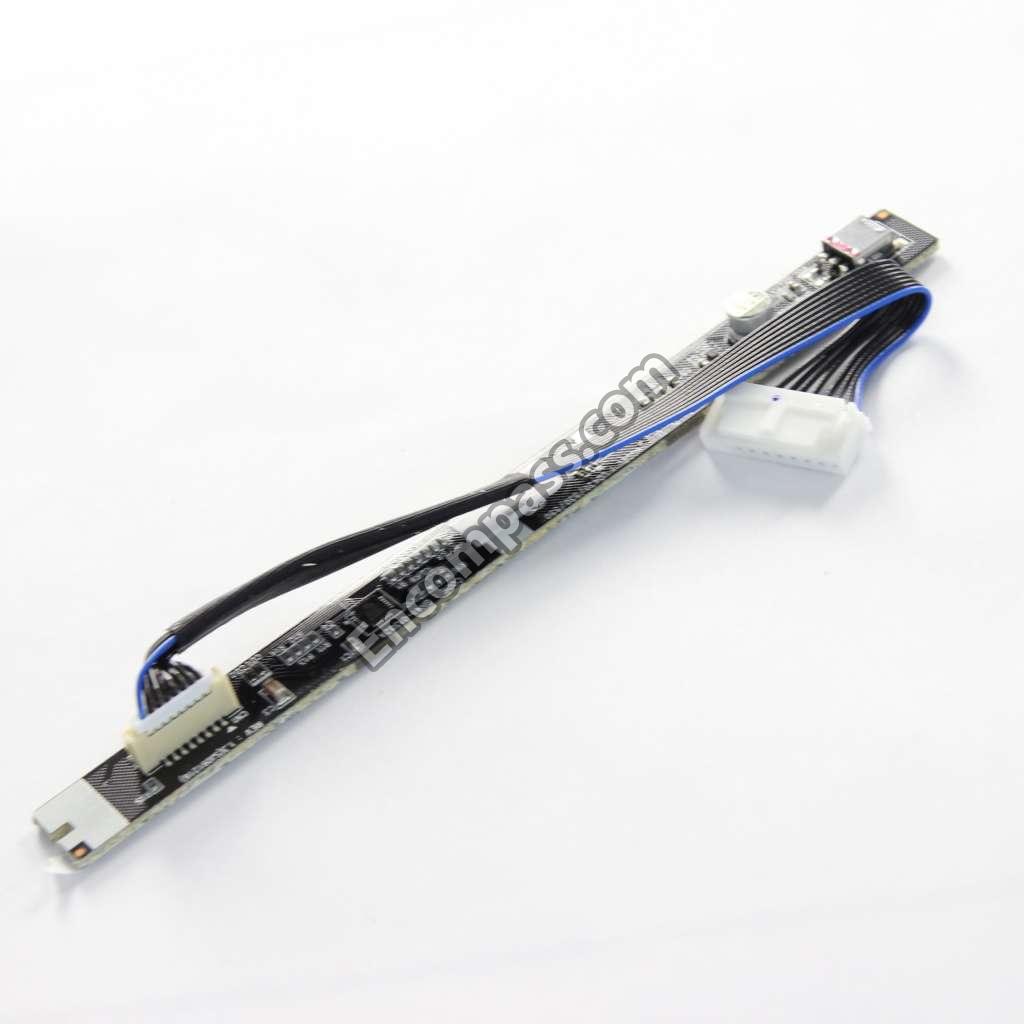

ASSY BOARD P-TOUCH FUNCTION&IR;LN32C530F |
| BN96-13342A | ASSY BRACKET P-STAND LINK;LC530 37/40/46 |
| BN96-12973A | ASSY BRACKET P-WALL;32,37,40,LC650,SECC, |
| BN96-15116C | ASSY CABLE P-FFC;LN40C530F1FXZA,FFC,0.5M |
| BN96-12785A | ASSY COVER P-FRONT;40,LC530,UO,ABS+PMMA, |
| BN96-12767A | ASSY COVER P-REAR;40,LC530,UO,PCM T0.5,B |
|
|

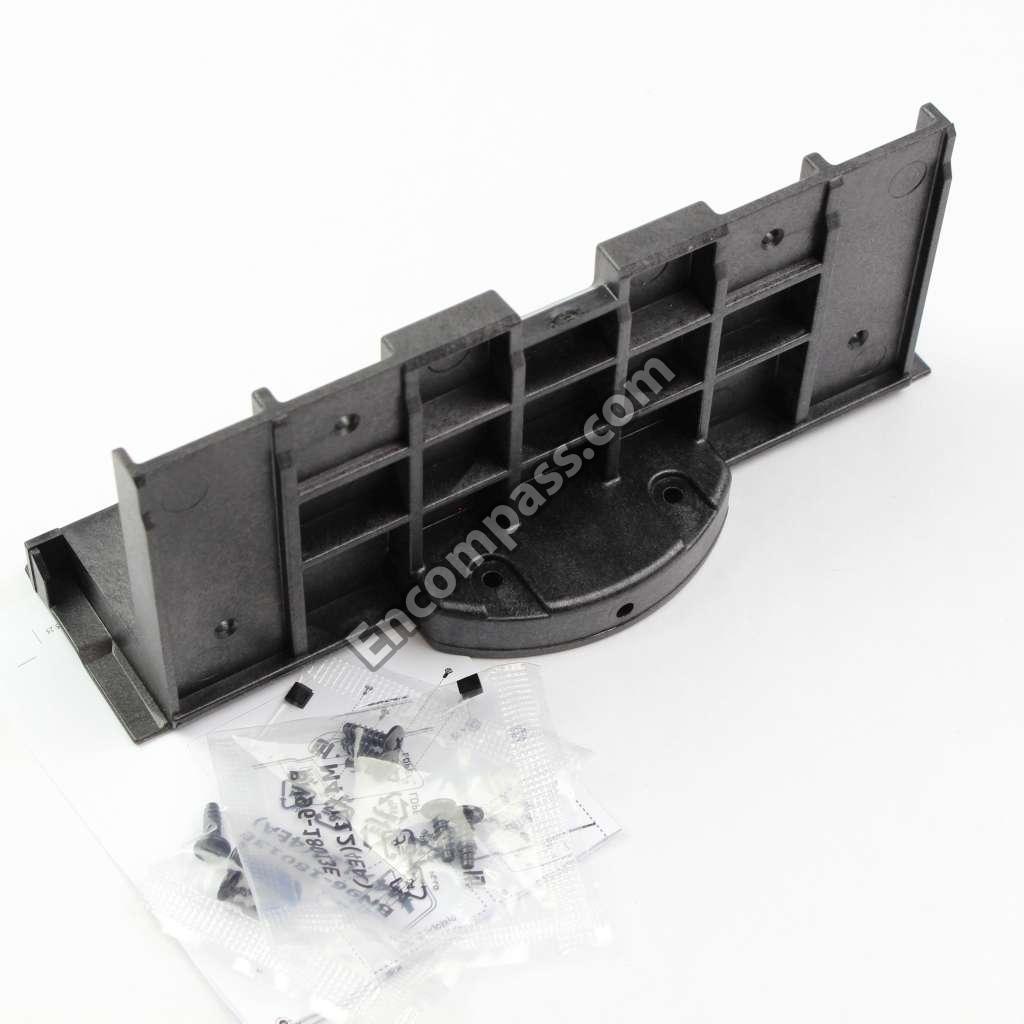

ASSY GUIDE P-STAND;37,40,46,LC530,UO,PC+ |
| BN96-15141A | ASSY PCB P-MAIN;BN94-02617X,LN40C530F1FX |
|
|

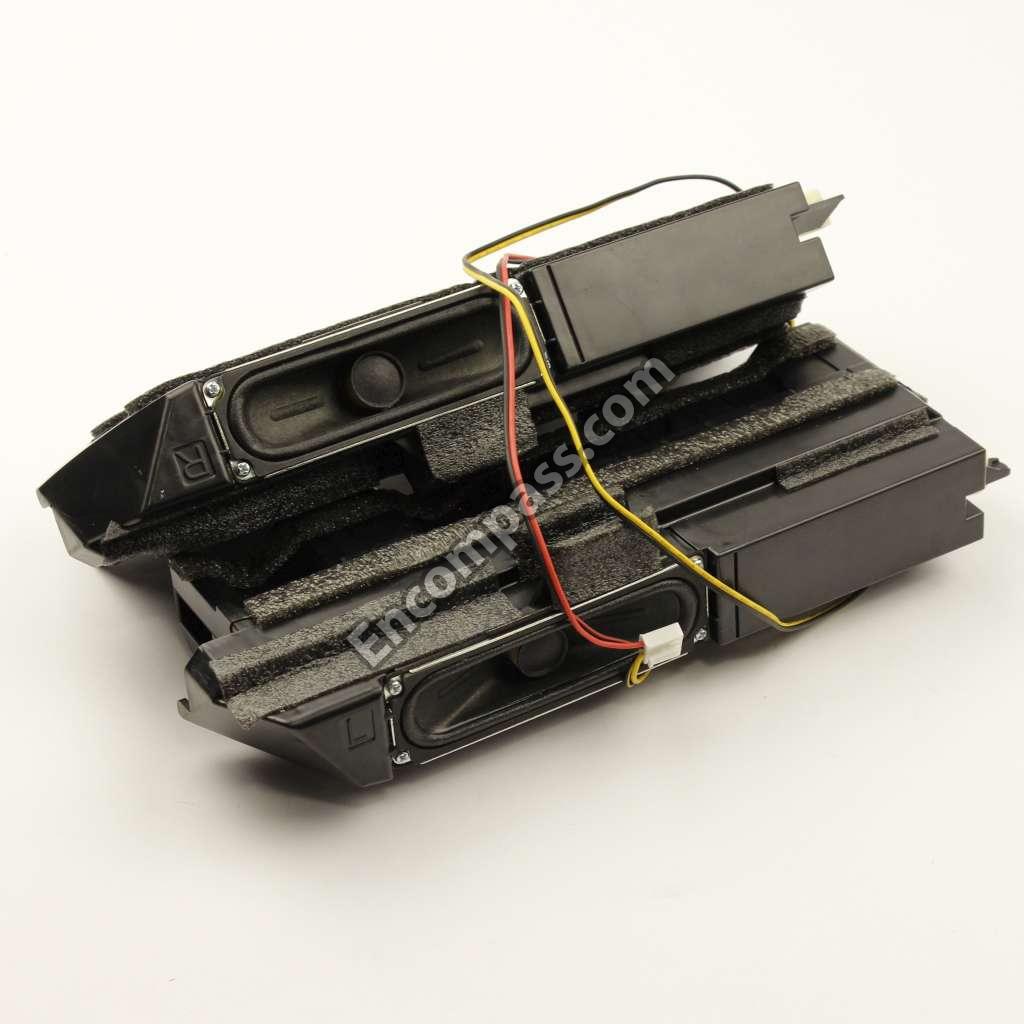

ASSY SPEAKER P;6OHM,4PIN,10W,L:570 R:250 |
|
|

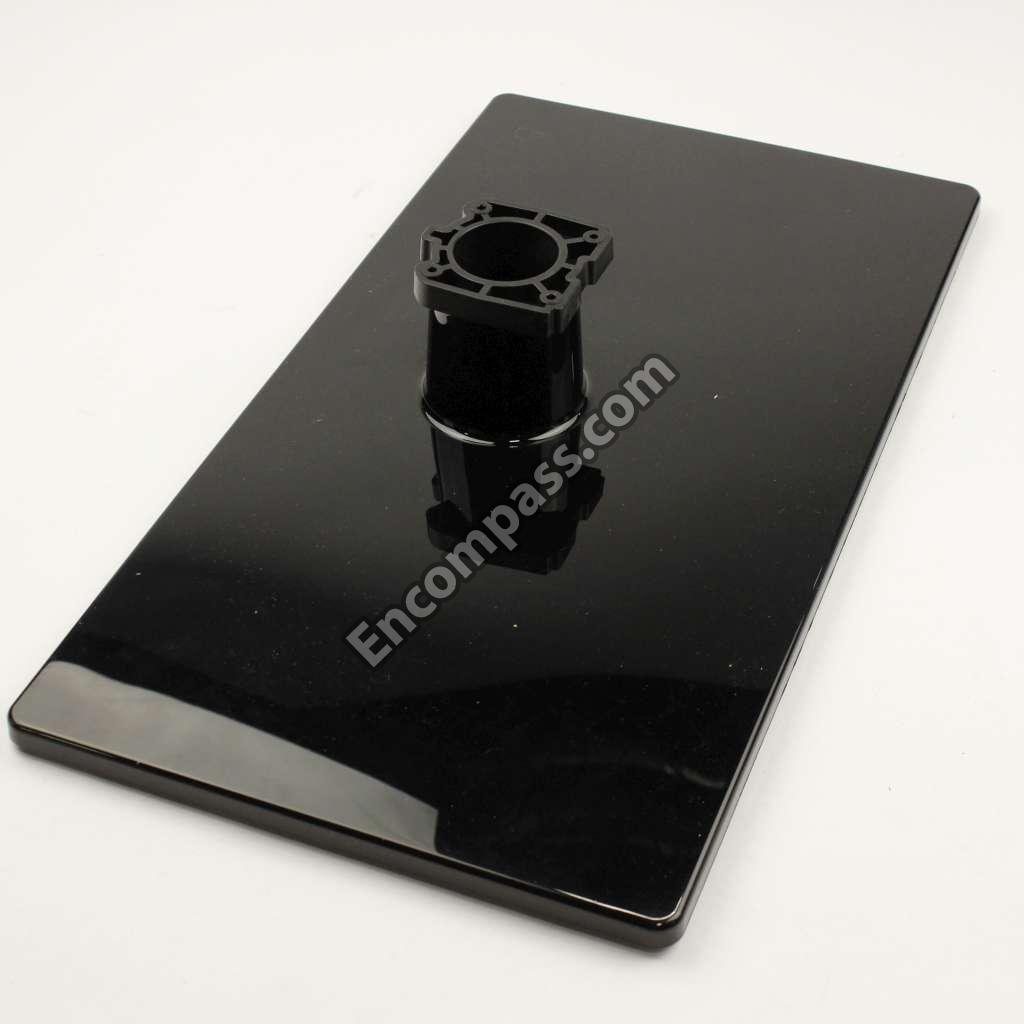

ASSY STAND P-BASE;37,40,LC530,ABS+PMMA,H |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|

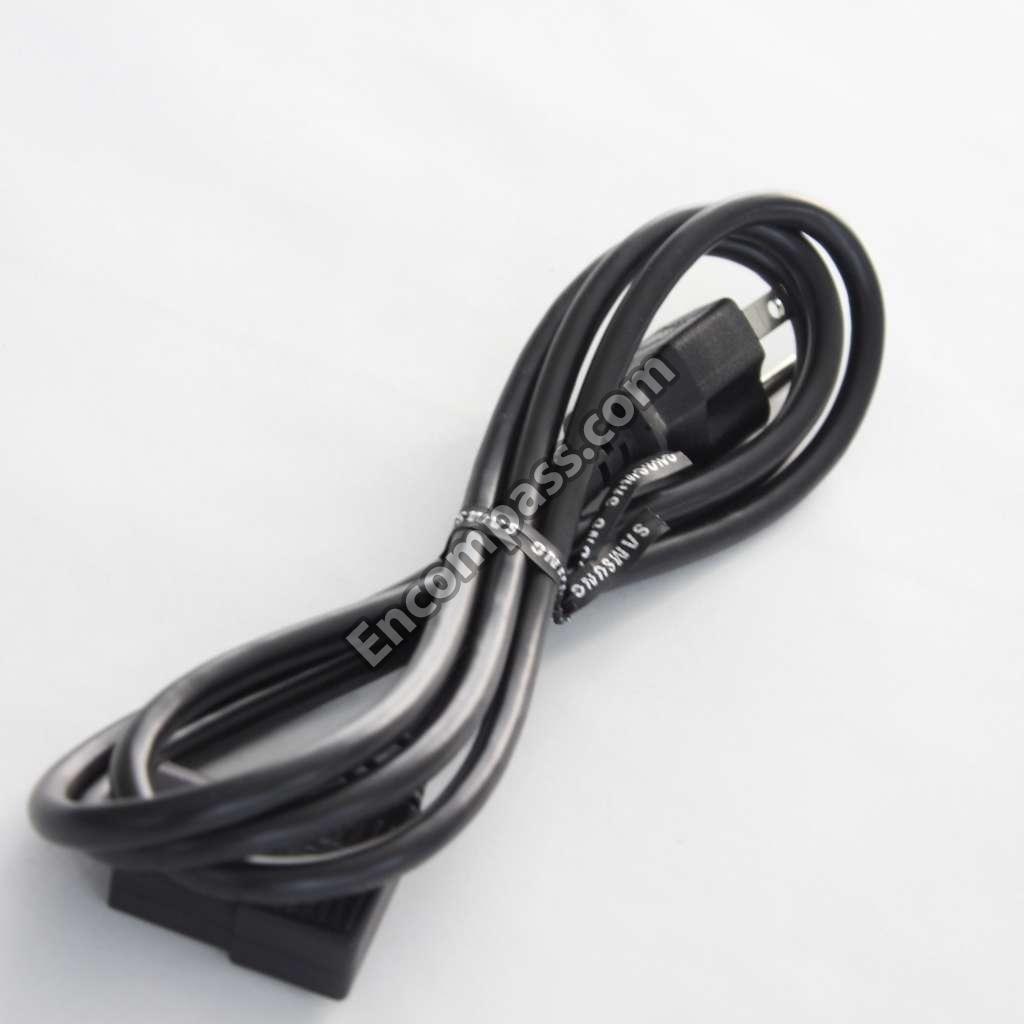

CBF-POWER CORD;DT,US,EP3,IEC320 C13-RA,1 |
|
|

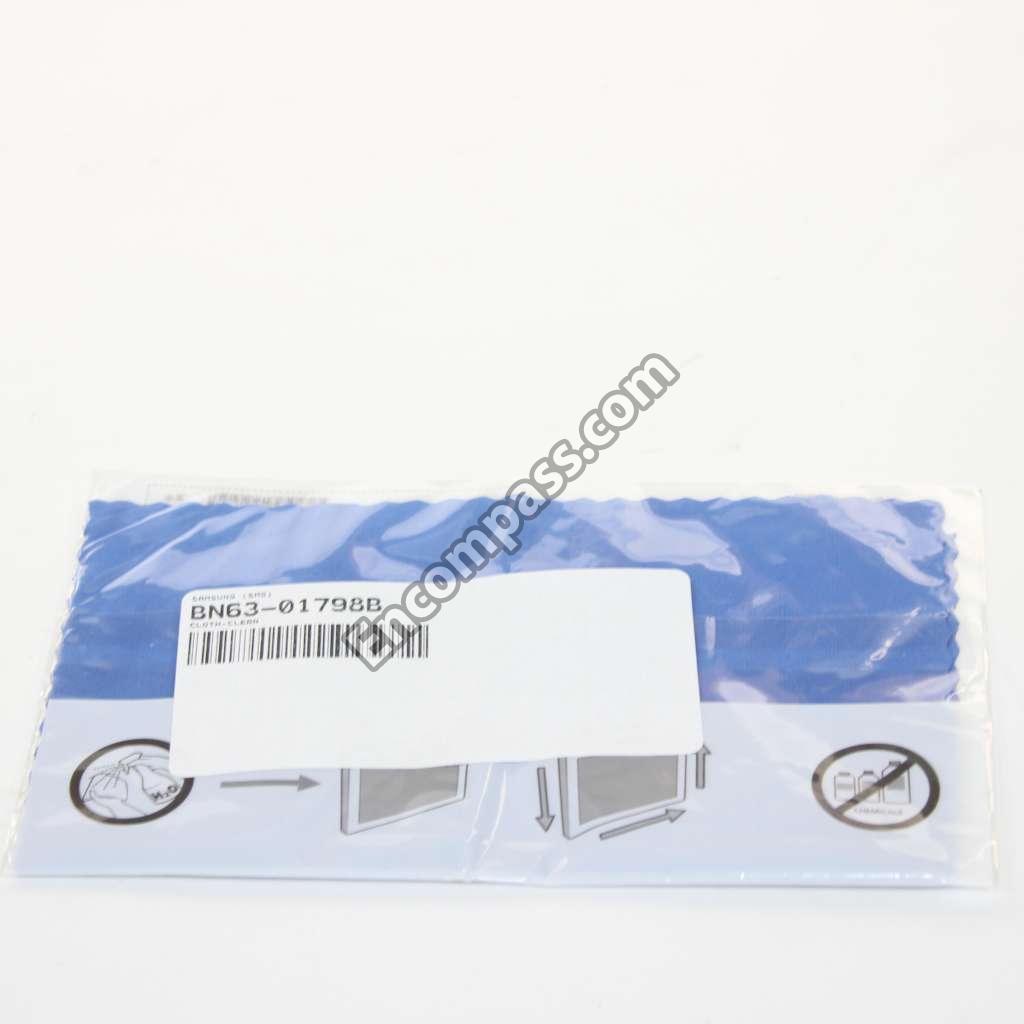

CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3701-001480 | CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN |
| 3708-002797 | CONNECTOR-FPC/FFC/PIC;51P,0.50MM,SMD,AU, |
| 3701-001693 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001096 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| BN63-02183E | COVER-SHEET;RHCM,PE VINYL,T0.04,750MM,20 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-004004 | CRYSTAL-SMD;20.25MHZ,20PPM,28-AAN,13PF,2 |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0402-000553 | DIODE-SCHOTTKY;SS24/B240,40V,2000MA,DO-2 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94/5.2V,500MW,SOD- |
| 0505-002572 | FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075O |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
|
|

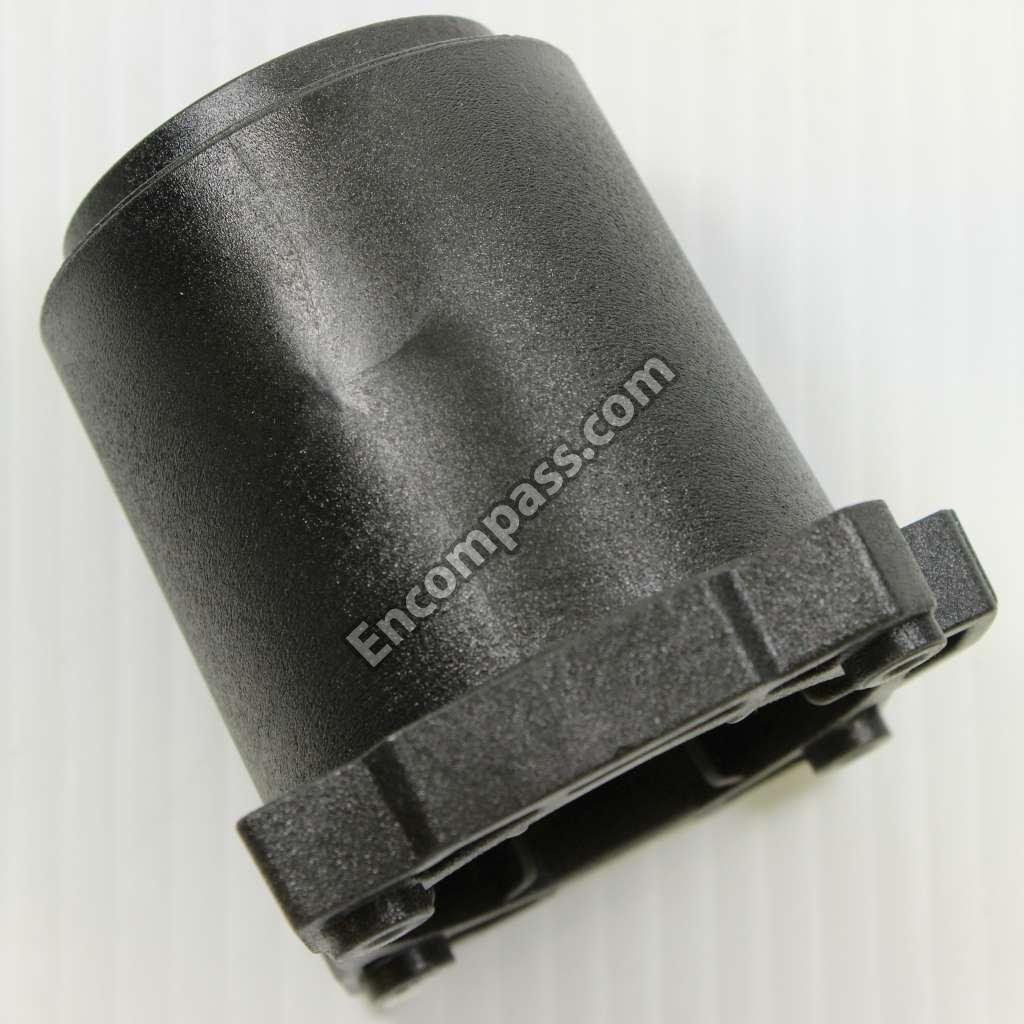

GUIDE-STAND NECK;40,LC530,PC+G/F,20%,V2, |
|
|
GUIDE-STAND;37,40,46,LC650,PC+G/F,20%,V2 |
| 3711-007302 | HEADER-BOARD TO BOARD;BOX,18P,2R,2MM,ANG |
| 3711-005616 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,SMD |
| 3711-006715 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| BN61-06066A | HOLDER-SIDE AV;LC550,PC+ABS,V0,BK0008 |
| 1201-002849 | IC-AUDIO AMP;DRV603,TSSOP,14P,5X4.4MM,DU |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006127 | IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3X4 |
| 1203-006104 | IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. |
| 1204-003089 | IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9X9X0.8 |
| 1103-000129 | IC-EEPROM;24C02,2KBIT,256X8,SOP,8P,5X4MM |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 1107-001940 | IC-NAND FLASH;KFG1G16U2D-HIB6,1GBIT,64MX |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,6.6X6.1MM,PLA |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006337 | IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1201-002993 | IC-POWER AMP;TAS5715,HTQFP,48P,7X7MM,DUA |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 0904-002554 | IC-USC;AU6256-JBF,QFN,28P,5X5MM,12MHZ,TP |
| 1204-003096 | IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P |
| 1001-001573 | IC-VIDEO SWITCH;SII9287BCNUTR,QFN,72P,10 |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-000403 | INDUCTOR-SMD;22UH,10%,3225,1.15OHM,210MA |
| 2703-003362 | INDUCTOR-SMD;4.7UH,20%,7070,0.09OHM,3000 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003038 | JACK-PHONE;7P/1C W/L,SN,BLK |
| 3722-003015 | JACK-PIN;10P,NI,RED/WHT/RED/BLU/GRN,STRA |
| 3722-003040 | JACK-PIN;3P W/L,SN,BLK/YEL/WHT/RED,ANGLE |
| 3722-003037 | JACK-USB;4P/1C W/L,AU/NI,BLK,ANGLE,A |
|
|
LCD DISPLAY PANEL;LTF400HM01,SSDZMS,8BIT,40,1.67 |
| BN39-01279E | LEAD CONNECTOR;LB6T,FALT CONNECTOR,UL106 |
| BN39-01267E | LEAD CONNECTOR;LB6T,FALT CONNECTOR,UL265 |
| BN39-01024E | LEAD CONNECTOR;LC5F,LEAD CONNECTOR,UL323 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-008720 | R-CHIP;4.7OHM,1%,1/4W,TP,3216 |
| 2007-000903 | R-CHIP;430OHM,1%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001237 | R-CHIP;910OHM,1%,1/10W,TP,1608 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOTE CONTROL |
| BN73-00052C | RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |

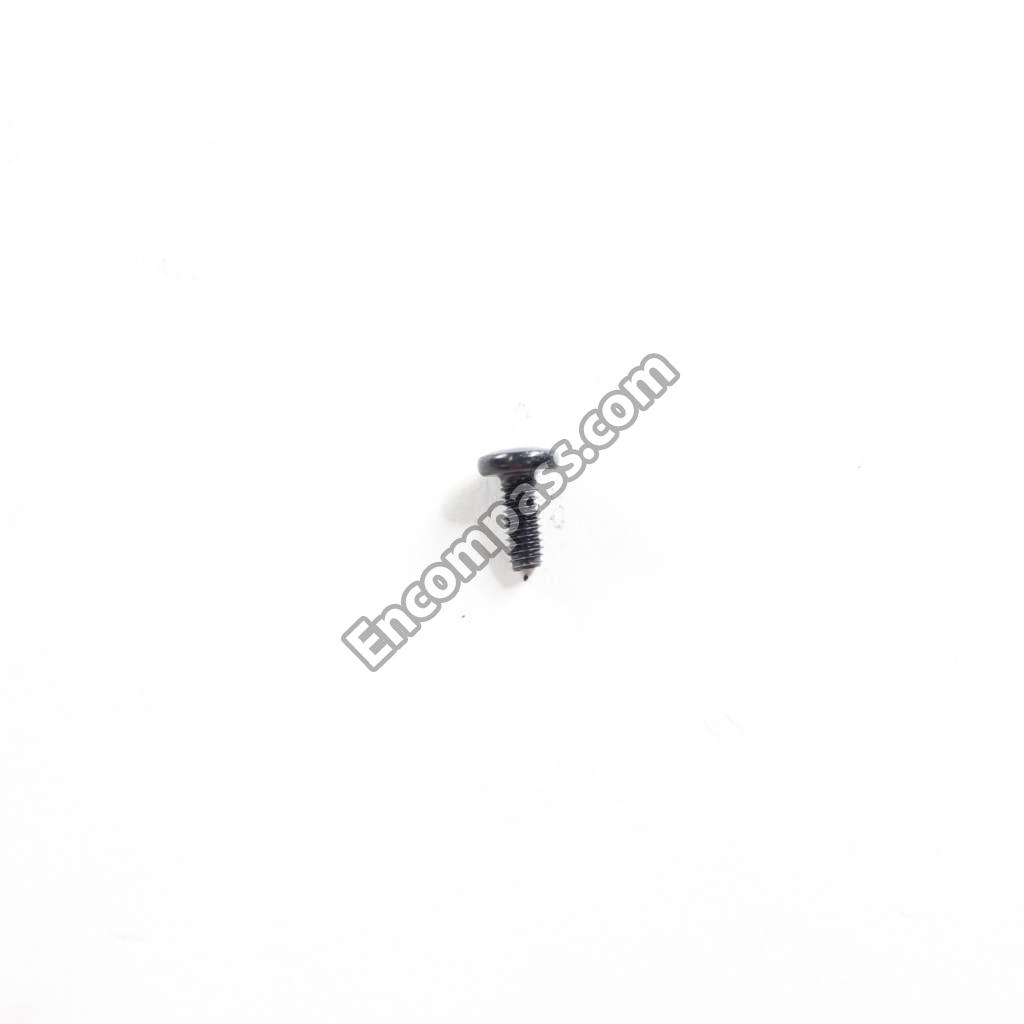

| 6001-002604 | SCREW-MACHINE;BH,+,M4,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
| 3404-001207 | SWITCH-TACT;12V,50MA,160GF,6.2X6.2,SPST |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;DTVS20CVL081A,NTSC,191CH,45.75MHZ, |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
