Manufacturer
Samsung
Model Number
LN46D550K1FXZA
Description
46-inch Lcd 550 Series Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-17116D | 51 PIN LVDS CABLE |
|
|
AC POWER SUPPLY(I)-TV;I46F1_BHS,I46F1_BHS,45KHZ,1 |
| BN96-13342A | ASSY BRACKET P-STAND LINK;LC530 37/40/46 |
| BN96-12974A | ASSY BRACKET P-WALL;46,52,55,LC650,SECC, |
| BN96-16764A | ASSY COVER P-FRONT;LD550,46,W/W,MABS+PMM |
| BN96-16768A | ASSY COVER P-REAR;LD550,46,UO,PCM,T0.45, |
|
|
ASSY SPEAKER P;6OHM,4PIN,10W,11YEAR LCD |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
|
|
BRACKET-SUPPORT PCB;LD550,SK-5,T0.5,PLAT |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006378 | C-CER,CHIP;4700NF,10%,6.3V,X5R,TP,1608 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, |
| 3701-001746 | CONNECTOR-DSUB;15P,3ROW,FEMALE,STARAIGHT |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007741 | CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE, |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-004058 | CRYSTAL-SMD;25MHZ,30PPM,SMD,20PF,50OHM,T |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85/3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94/5.2V,500MW,SOD- |
| 0505-002572 | FET-SILICON;AO4801AL,P,-30V,-5.6A,0.075O |
| 0505-002893 | FET-SILICON;AO4801AS,P,-30V,-5A,2W,SOIC- |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| 3711-007336 | HEADER-BOARD TO CABLE;B0X,4P,1R,2.5MM,SM |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1105-002194 | IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM |
| 1204-003240 | IC-DECODER;SEMS20-LF,HSBGA,572P,20X20MM, |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006337 | IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1201-003153 | IC-POWER AMP;NTP-7411S,MLF,48P,7X7MM,DUA |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| BN96-16729P | IR & FUNCTION PCB |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
| 3722-003227 | JACK-PIN;10P,NI,RED/WHT/RED/BLU/GRN,STRA |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A |
| BN39-01449D | LEAD CONNECTOR;LN46D550,LEAD CONNECTOR,U |
| BN39-01448D | LEAD CONNECTOR;LN46D550,LEAD CONNECTOR,U |
|
|

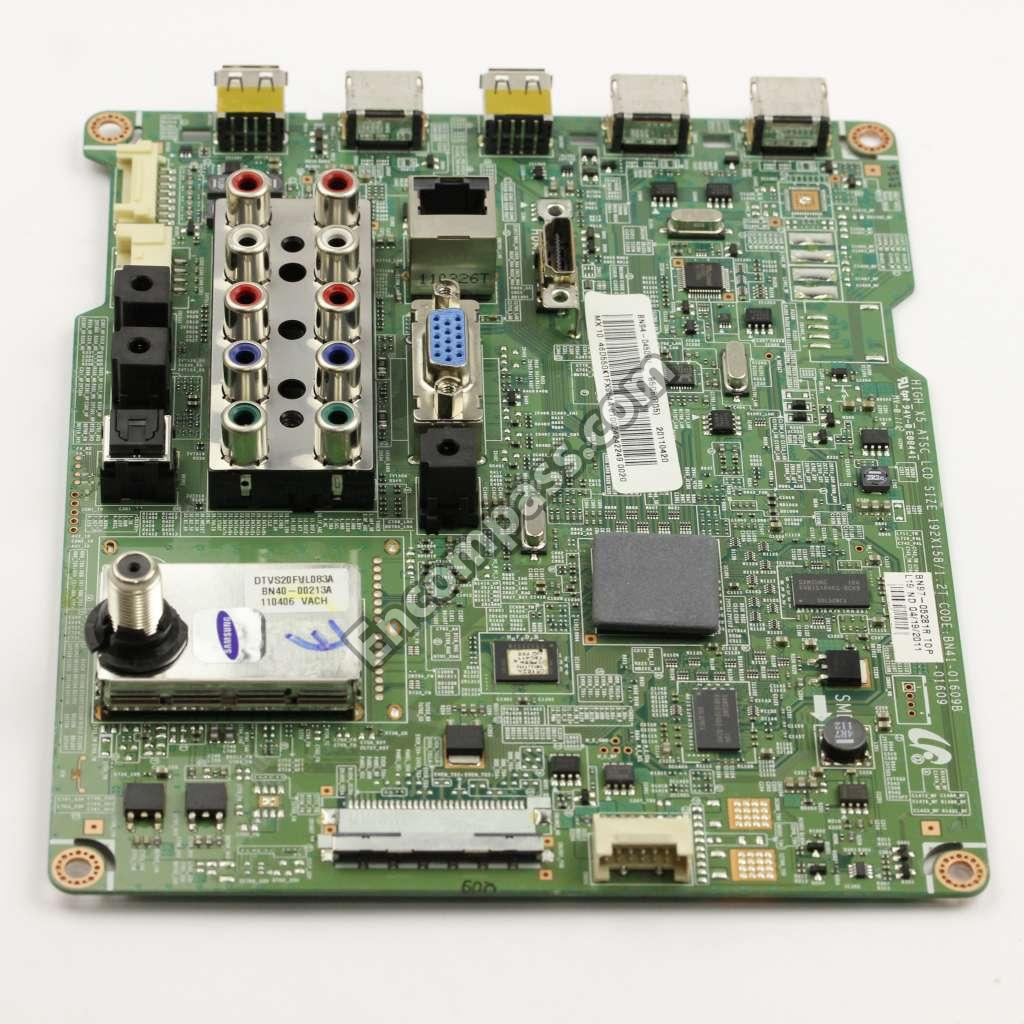

MAIN BOARD PCB;LN46D550K1FXZA |
| BN94-04509D | MAIN PC BOARD (VERSION HJ02) |
| BN94-04847E | MAIN PC BOARD (VERSION SQ03) |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-000515 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
|
|

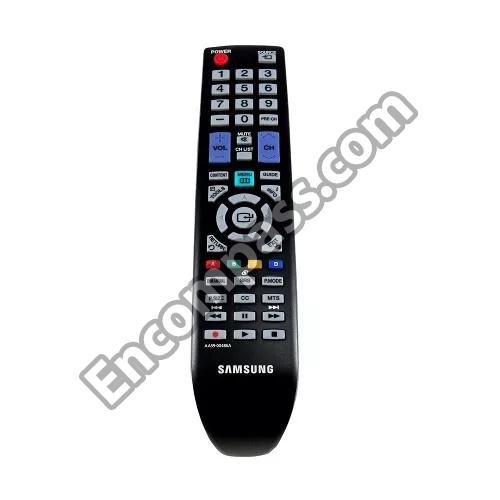

REMOTE;TM950,48,3.0V,NORTH AMERICA,550, |
| BN73-00052C | RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |
|
|
SCREW-MACHINE;BH,+,M4,L8,ZPC(WHT),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
|
|

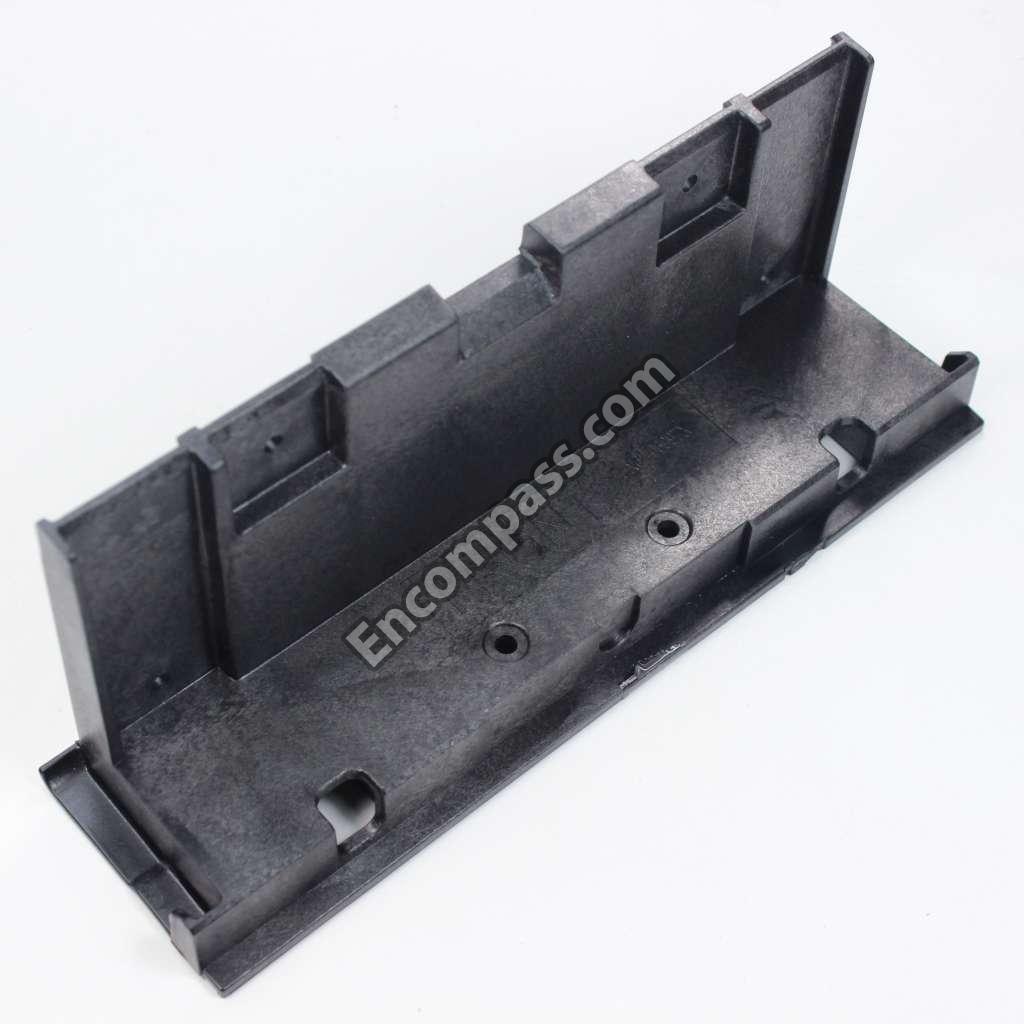

STAND BASE ;LD550,46,PMMA/ABS,HB,B |
|
|
STAND SUPPORT;LD550,37/40/46,SAMEX, |
| BN61-06997A | STAND SUPPORT;LD550,46,PC+G/F 20%,V2,BK000 |

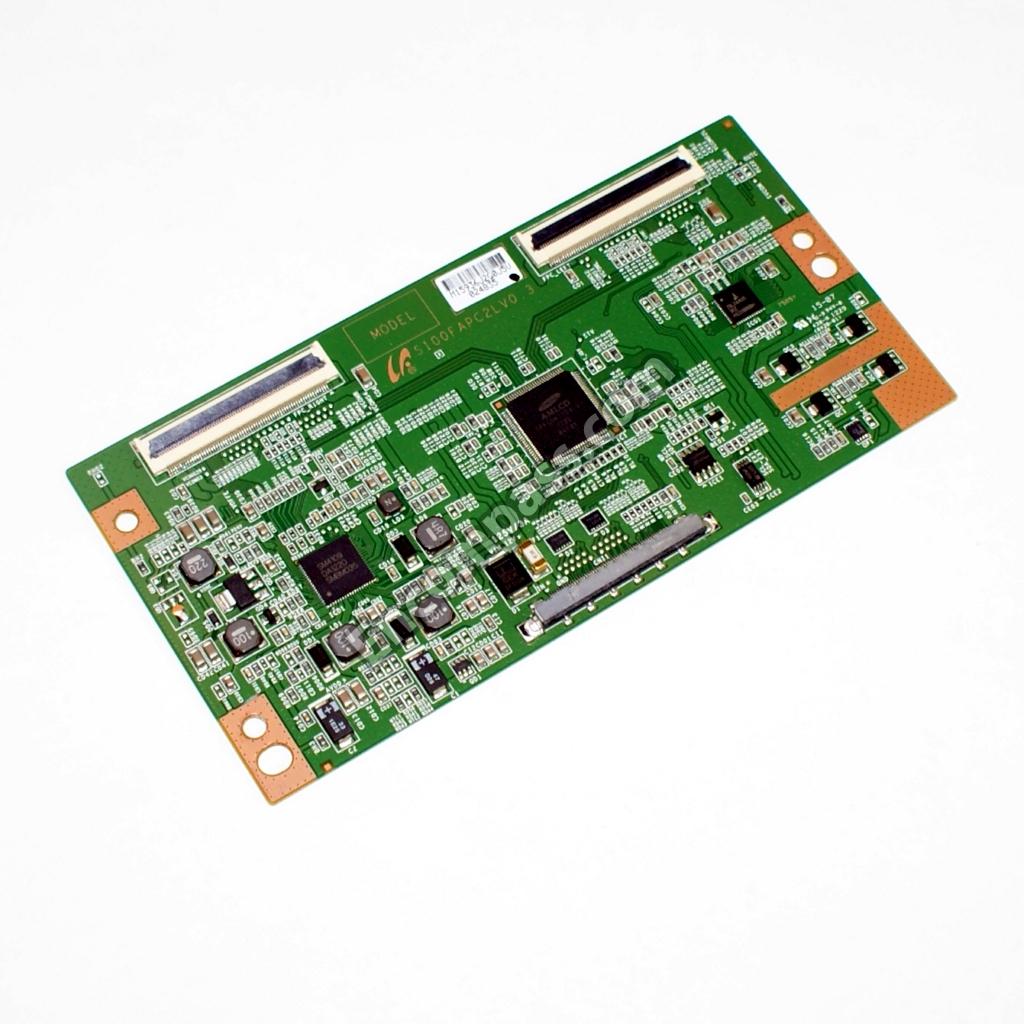

| BN81-05901A | T-CON ASSY V460H1-L11;V460H1-L11 |
|
|
T-CON PC BOARD (VERSION SQ03) |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;DTVS20FVL083A,DTVS20FVL083A,VSBHAL |
|
|
TUNER;DVTX-31B/F2,DVTX-31B/F2,VSBHALFNIM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
