Manufacturer
Samsung
Model Number
LS24AM506NNXZA
Description
Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-19721A | A/S-DRIVER SOURCE;DRIVER SOURCE,47-70116 |
| BN96-53797A | ASSEMBLY COVER P-REAR;24M50A,ABS,HB,BK0007,N |
| BN96-51992A | ASSEMBLY LED BAR P;T35F,ALUMINUM |
| BN94-16733Z | ASSEMBLY PCB MAIN;M50A |
| BN96-52378C | ASSEMBLY SPEAKER P-FRONT;TV-SPK,M50A,2CH,6OH |
| BN96-53796A | ASSEMBLY STAND P-COVER NECK;24M50A,PP+GF40%, |
| BN96-52116A | ASSEMBLY STAND P-COVER TOP;24T35F,PP+GF40%,B |
| 6902-000341 | BAG PE;LDPE,T0.05,W70,L90,TRP,ECO. N |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001404 | BEAD-SMD;30OHM/100MHZ,2X1.2MM,TP,10MOHM, |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,30P,1.0MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
|
|
DC VSS(A);A3514_RPN,DC14V,AC100-240V,50- |
| 0404-001595 | DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001820 | DIODE-TVS;AZ1023-04F,4.5V,6V,7.5V,0.5MAV |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| BN96-53824A | FFC;24M50,FOLD,L370,30P |
| BN67-00327S | FOOT-RUBBER;E7000,SI,GRAY,W10,L10,T3 |
| BN39-01997D | HDMI CABLE;C27HG70,19,1500MM,BLACK,HDMI |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
|
|
HOLDER-STAND;TA550,SUM24L,NATURAL,M4,L11 |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-004117 | IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009377 | IC-DC/DC CONVERTER;TPS56C230,VQFN,20P,3X |
| 1105-002853 | IC-DDR3 SDRAM;K4B4G1646E-BCNB,DDR3 2133, |
| 1204-003797 | IC-DECODER;SDP19405,HSBGA,754P,27X27X2.1 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1003-003099 | IC-LED DRIVER;LP8863-Q1,HTSSOP,38P,4.4X9 |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-004692 | IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8 |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-005035 | INDUCTOR-SMD;22UH,20%,12X12MM,T6,0.059OH |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
|
|
JACK-DC POWER;6P/4C,6.5PI,SN,BLK,16.4X14 |
| 3722-003248 | JACK-USB;4P/1C,BLK,STRAIGHT,A,2.0,14.6X1 |
| BN39-01476N | LEAD CONNECTOR-DIMMING;S19B300NW S19B360 |
|
|

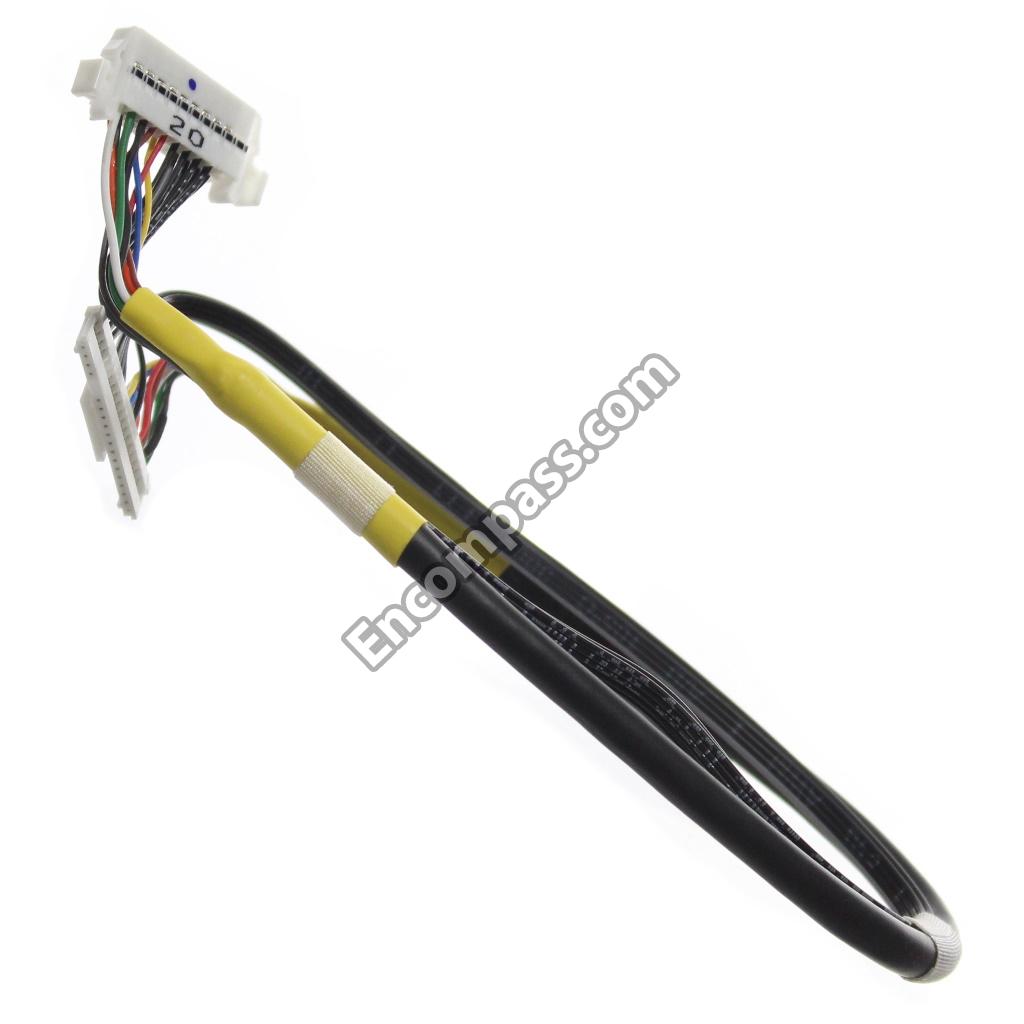

LEAD CONNECTOR-SUB ASSEMBLY;VE TU7K,UL21451, |
|
|
NETWORK-WLAN CLIENT;WCT734M,44.17X31.99X |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000121 | PRIMARY BATTERY MN;1.5V,4.4MAH,R03,10.5X |
| BN95-07760B | PRODUCT LCD-BOE;CY-MA238BGEV2H(V),M50A,F |
| 2007-007046 | R-CHIP;0.02OHM,1%,1W,TP,6432 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000563 | R-CHIP;220KOHM,1%,1/10W,TP,1608 |
| 2007-002437 | R-CHIP;2OHM,5%,1/10W,TP,1608 |
| 2007-000708 | R-CHIP;3.9KOHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-000828 | R-CHIP;39KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000910 | R-CHIP;43KOHM,1%,1/10W,TP,1608 |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
| BN59-01380A | REMOCON-TV;2021 SMART MONITOR,SAMSUNG,20 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| 3601-001374 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007425 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-000679 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008672 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-007100 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001288 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-007005 | SMG PART |
| 0203-007247 | SMG PART |
| 0203-007268 | SMG PART |
| 0204-006855 | SMG PART |
| 0403-001783 | SMG PART |
| 1107-002690 | SMG PART |
| 2007-010307 | SMG PART |
| 2703-005715 | SMG PART |
| 6902-000476 | SMG PART |
| 6902-002487 | SMG PART |
| 6902-002963 | SMG PART |
| 6902-003858 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00043J | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00652A | SMG PART |
| BN41-02906A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN60-00162X | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01665A | SMG PART |
| BN60-01668A | SMG PART |
| BN61-08997A | SMG PART |
| BN61-13319A | SMG PART |
| BN61-13332A | SMG PART |
| BN61-17373A | SMG PART |
| BN61-17404A | SMG PART |
| BN61-17422A | SMG PART |
| BN61-17424A | SMG PART |
| BN61-17431A | SMG PART |
| BN61-18164A | SMG PART |
| BN62-00273B | SMG PART |
| BN63-12151A | SMG PART |
| BN63-19208A | SMG PART |
| BN63-19210A | SMG PART |
| BN63-19211A | SMG PART |
| BN63-19568A | SMG PART |
| BN63-19827A | SMG PART |
| BN63-19828A | SMG PART |
| BN63-19829A | SMG PART |
| BN64-04468A | SMG PART |
| BN68-00226M | SMG PART |
| BN68-00513A | SMG PART |
| BN68-03677A | SMG PART |
| BN68-04657D | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-07103D | SMG PART |
| BN68-09371B | SMG PART |
| BN68-11384Q | SMG PART |
| BN68-12929A | SMG PART |
| BN68-15181A | SMG PART |
| BN69-17053S | SMG PART |
| BN69-21674A | SMG PART |
| BN69-22702A | SMG PART |
| BN69-22713E | SMG PART |
| BN74-00120A | SMG PART |
| BN81-19723A | SMG PART |
| BN81-19724A | SMG PART |
| BN90-11807G | SMG PART |
| BN90-11970C | SMG PART |
| BN90-11971E | SMG PART |
| BN91-23077A | SMG PART |
| BN91-23079K | SMG PART |
| BN92-29791M | SMG PART |
| BN92-29793H | SMG PART |
| BN92-30340Z | SMG PART |
| BN92-30341Z | SMG PART |
| BN96-51434A | SMG PART |
| BN96-52004A | SMG PART |
| BN96-52005A | SMG PART |
| BN96-52008C | SMG PART |
| BN96-52185A | SMG PART |
| BN96-53792B | SMG PART |
| BN96-53903A | SMG PART |
| BN97-18012A | SMG PART |
| BN97-18012B | SMG PART |
| BN97-18035A | SMG PART |
| BN97-18062A | SMG PART |
| BN97-18787A | SMG PART |
| BN61-02932E | STUD-PEM;ECOFIT 20,SUM24L,T3.5,L12,ZPC(B |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
