Manufacturer
Samsung
Model Number
LS32BM801UNXGO
Description

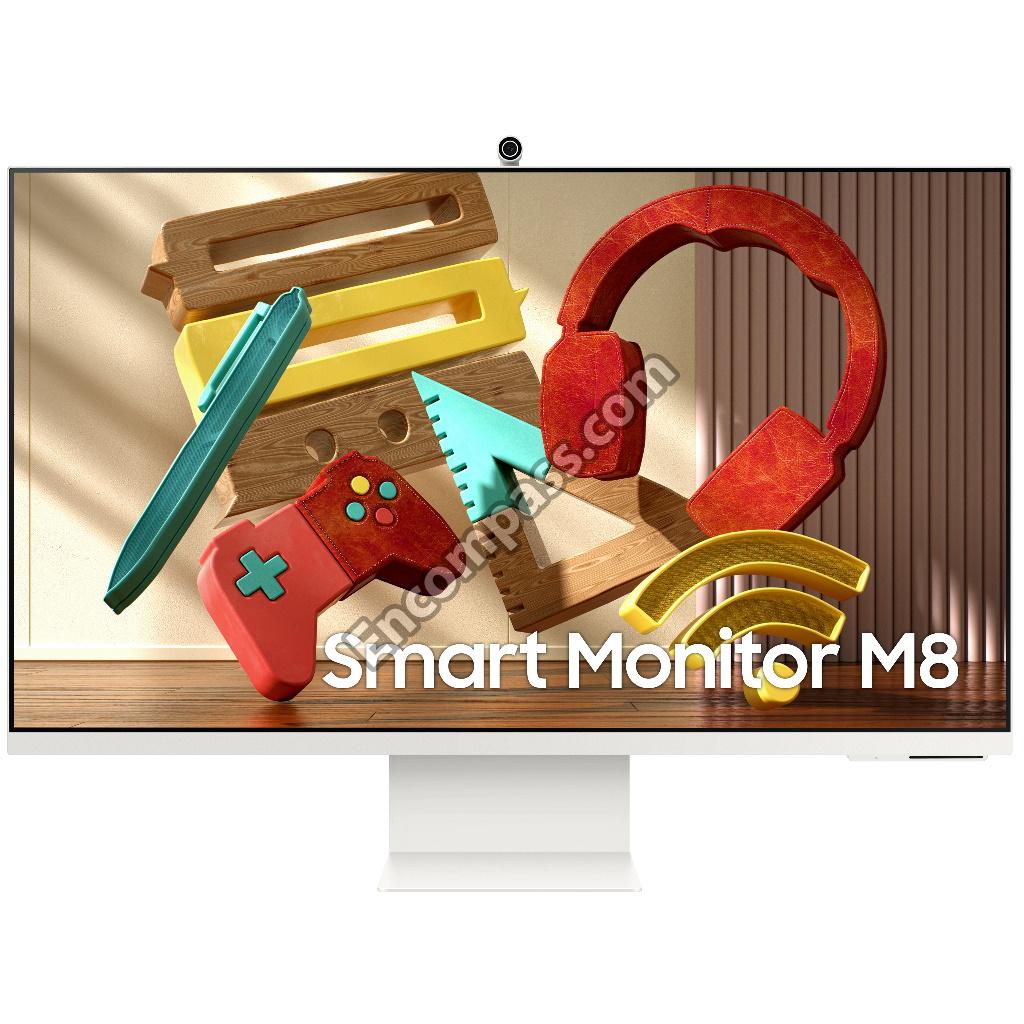

32 Inch M80b 4k Uhd Smart Monitor
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-22603A | A/S-ADHESIVE-A.C.F;SG3151D03-1,3240102C0 |
| BN81-22602A | A/S-ADHESIVE-A.C.F;SG3151D03-1,324010400 |
| BN81-22607A | A/S-FPC;FPC,39CL200000001R,SG3151D03-1,F |
| BN81-22601A | A/S-IC DRIVER SOURCE;SG3151D03-1,3302100 |
| VA81-01133A | A/S-LENS COVER WHITE;COVER,LENS COVER WH |
| BN81-22605A | A/S-POLARIZER CF;POLARIZER CF,313090B100 |
| BN81-22606A | A/S-POLARIZER TFT;POLARIZER TFT,313090B0 |
| 0201-003279 | ADHESIVE-AA;UPUV,CLEAR |
| BN96-52824F | ASSY ACCESSORY MANUAL CABLE;M80B |
| BN92-31020P | ASSY ACCESSORY;M80B |
| BN90-00149V | ASSY BACK LIGHT UNIT;M80B |
| BN92-31018D | ASSY BOX;M80B |
| BN96-55171A | ASSY CHASSIS FRONT P;32BM801 |
| BN96-54938A | ASSY CHASSIS REAR P;32M80B,EGI-SECC |
| BN91-23960A | ASSY CHASSIS;M80B |
| BN96-54939A | ASSY COVER P-DECORATION;32M80B,PC+ABS+ED |
| BN96-55253A | ASSY COVER P-REAR;32M80B,PC+ABS,5VB,WT01 |
| BN90-12436M | ASSY COVER REAR;M80B |
| BN97-19516A | ASSY DRM;M70/50B,MAC, HDCP |
| BN96-54940A | ASSY FRAME P-MIDDLE BOTTOM FRONT;32M80B, |
| BN92-31017C | ASSY LABEL;M80B |
| BN96-54686A | ASSY LED BAR P;M80B,ALUMINUM,LEFT |
| BN96-54687A | ASSY LED BAR P;M80B,ALUMINUM,RIGHT |
| BN97-19690A | ASSY MICOM-CYPRESS;CYPRESS,M8B |
| BN97-19691A | ASSY MICOM-GL3523;GL3523,M80B |
| BN97-19686A | ASSY MICOM-MAIN;MAIN FW,M80B |
| BN97-19687A | ASSY MICOM-SUB MICOM;SUB MICOM,M80B |
| BN97-19688A | ASSY MICOM-TCON DATA;TCON DATA,M80B |
| BN97-19689A | ASSY MICOM-TCON FW;TCON FW,M80B |
| BN97-20050A | ASSY MICOM-USBC;USB-C PDIC,M80B,MONITOR, |
| BN97-19703A | ASSY MICOM;PS176,M80B |
| BN96-54965A | ASSY MISC P-CAMERA MODULE;VG-STCBU2K,W/W |
| BN96-55043A | ASSY MISC P-MODULE;LS32BM801UA,CHEMTRONI |
| BN96-54683A | ASSY OPEN CELL;CSOT,31.5INCH,NEW OPEN CE |
| BN92-31019A | ASSY P/MATERIAL;M80B |
| BN94-17471A | ASSY PCB MAIN;M80B |
| BN94-17470A | ASSY PCB MAIN;M80B |
| BN91-23961A | ASSY SHIELD;M80B |
| BN97-19489A | ASSY SMD BOTTOM;M80B |
| BN97-19486A | ASSY SMD BOTTOM;M80B |
| BN97-19490W | ASSY SMD TOP;M80B |
| BN97-19487A | ASSY SMD TOP;M80B |
| BN96-54704A | ASSY SPEAKER P-FRONT;TV-SPK,32M80B,4.0CH |
| BN96-55021A | ASSY STAND P-BRACKET LINK;32M80B,EGI-SEC |
| BN96-55030A | ASSY STAND P-COVER NECK;32M80B,PC+ABS,WT |
| BN96-55023A | ASSY STAND P-COVER TOP;32M80B,CR-SPCC,BL |
| BN90-12429A | ASSY STAND;M80B |
| 6902-003537 | BAG ACCESSORY;LDPE,T0.06,W400,L280,TRP,R |
| 6902-003503 | BAG ACCESSORY;LDPE,T0.07,W480,L300,TRP,R |
| BN69-13935A | BAG ACCESSORY;LDPE,T0.07,W700,L350,TRP,R |
| 6902-003849 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W220,L28 |
| 6902-003850 | BAG PE;HDPE/PE FOAM,T0.015/T0.5,W220,L60 |
| 6902-003713 | BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W900,L |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN69-24416C | BOX UNIT;32M80B,CB,SW3,A1,L556,W786,H99, |
| BN69-23470D | BOX UNIT;32M80B,CB,SW3,A1,L786,W556,H99, |
| BN61-18497A | BRACKET-LED PCB;32M80B,AL,T1.5,NATURAL,A |
| BN61-16777B | BRACKET-PUSH PIN GUIDE;32M80B,SK5,T0.3,N |
| BN61-16777A | BRACKET-PUSH PIN GUIDE;65QTQ950SA,SK5,T0 |
| BN61-18641A | BRACKET-STAND HOLDER;32M80B,GI-SGCC,NATU |
| BN61-18510A | BRACKET-STAND LINK;32M80B,EGI-SECC,T1.2, |
| BN61-18636A | BRACKET-STAND NECK;32M80B,ALDC12,BLACK |
| BN61-18638A | BRACKET-STAND RAIL;32M80B,GI-SGCC,NATURA |
| BN61-18509A | BRACKET-STAND STOPPER;32M80B,PP,T3,BK002 |
| BN61-18637A | BRACKET-STAND TILT REAR;32M80B,ALDC12,BL |
| BN61-18639A | BRACKET-STAND TILT;32M80B,CR-SPCC,BLACK |
| BN61-18640A | BRACKET-STAND TOP;32M80B,CR-SPCC,BLACK |
| BN61-13557K | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| BN64-02286F | BUTTON-FUNCTION;32M80B,PC+ABS+ED20%,WT01 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,55TO |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005194 | C-CER,CHIP;220PF,10%,50V,X7R,TP,1608,55 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| BN64-04709A | CHASSIS-FRONT;32M80B,PC+ABS+ED18%,V-0,WT |
| BN64-04708A | CHASSIS-REAR;32M80B,EGI-SECC,T0.5,NATURA |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3708-003357 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,14P,0.5MM |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-002056 | CONNECTOR-HDMI;TP,SMD-S,FEMALE,19P,0.4MM |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| BN63-20095A | COVER-DECORATION;32M80B,PC+ABS+ED18%,V-0 |
| BN63-20100A | COVER-REAR;32M80B,PC+ABS,T1.6,5VB,WT0143 |
| BN63-20133A | COVER-STAND HOLDER;32M80B,POM,HB,BK0059 |
| BN63-20128A | COVER-STAND NECK FRONT;32M80B,PC+ABS,T1. |
| BN63-20129A | COVER-STAND NECK REAR;32M80B,PC+ABS,T1.6 |
| BN63-20131A | COVER-STAND TILT BOTTOM;32M80B,PC+ABS,T1 |
| BN63-20130A | COVER-STAND TILT TOP;32M80B,PC+ABS,T1.6, |
| BN63-20132A | COVER-STAND TILT;32M80B,PC+ABS,5VB,BK000 |
| BN63-20099A | COVER-STAND TOP;32M80B,CR-SPCC,T2.5,BLAC |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-005372 | CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF |
| 2801-004678 | CRYSTAL-SMD;25MHZ,30PPM,18PF,25OHM,TP |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
| BN69-23419A | CUSHION-SET;32M80B,EPS,16.7G/L,WHITE |
| BN44-01187A | DC VSS(A);A14020_BPNW,DC20V,AC100-240V,5 |
| 0404-001595 | DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001290 | DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 |
| 0406-001395 | DIODE-TVS;AOZ8802ADI,6V,1MAV,1VPA,TP |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001783 | DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO |
| 0403-002014 | DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-003769 | FET-SILICON;AO4447A,P,30V,18.5A,0.0058OH |
| 0505-003224 | FET-SILICON;AO6405,P,30V,5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,7.3A,1. |
| 0505-003732 | FET-SILICON;MMFTN123K,N,100V,0.19A,10OHM |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-55042A | FFC;32M80B,STRAIGHT,L80,14P,MAIN- POGO P |
| BN96-54887A | FFC;M80B,FOLD,L230,24P,MAIN- WIFI/BT MOD |
| BN96-54886A | FFC;M80B,WRINKLE/FOLD,L230,96P,MAIN- PAN |
| 2901-001302 | FILTER-EMI SMD;20V,0.3A,0PF,2.0X1.2X1.3M |
| BN67-00327M | FOOT-RUBBER;STAND,RUBBER,GRAY,T1.5,W10,L |
| BN61-18498A | FRAME-MIDDLE BOTTOM FRONT;32M80B,STS439, |
| BN61-18496A | FRAME-MIDDLE BOTTOM;32M80B,PC+ABS,V-0,BK |
| 3601-001402 | FUSE-SURFACE MOUNT;125V,7A,FAST-ACTING,C |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-12151A | GASKET-EMI;EMI SHIELDING,FABRIC,T0.13,W2 |
| 6302-001230 | GASKET-EMI;SMT GASKET,SI,T3,W3,L2,SILVER |
| BN39-02820A | GENDER CABLE;32M80B,4P,L0,NONE,WHITE,USB |
| BN39-02815A | HDMI CABLE;M80B,19,1500MM,GRAY,HDMI D,HD |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| BN62-00968A | HEAT SINK-PS;M80B,A1050,T0.13,W395,L105, |
| BN61-18570A | HOLDER-BUTTON;32M80B,PC+ABS,T1,WT0143,5V |
| BN61-18635A | HOLDER-STAND LINK;32M80B,PC+ABS,BK0008,5 |
| BN61-18633A | HOLDER-STAND SUPPORT BOTTOM;32M80B,POM,B |
| BN61-18632A | HOLDER-STAND SUPPORT TOP;32M80B,POM,BK00 |
| BN61-18634A | HOLDER-STAND SUPPORT;32M80B,GI-SGCC,NATU |
| BN61-18642A | HOLDER-STAND;32M80B,POM,BK0059,HB |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC |
| 1001-002119 | IC-ANALOG SWITCH;PS8742B,TR,6X4X0.75MM, |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 0801-003580 | IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3 |
| 1203-009652 | IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
| 1203-009648 | IC-DC/DC CONVERTER;VPMS3BSM,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1204-003839 | IC-DECODER;QUANTUM PROCESSOR III NEO,TR, |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1003-003099 | IC-LED DRIVER;LP8863-Q1,HTSSOP,38P,4.4X9 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1107-002339 | IC-NOR FLASH;W25Q80DV,8MBIT,SOP,5.28X5.2 |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005968 | IC-SWITCH;AOZ1375DI,DFN,12P,3X3X0.9MM,PL |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-006555 | IC-SWITCH;SYU234DUC,14P,TDFN2X3-14,TP,2X |
| 1205-005824 | IC-TRANSMITTER;PS176,QFN,48P,6X6X0.85MM, |
| 0904-003183 | IC-USC;CYPD3125-40LQXI,QFN,40P,6X6X0.6MM |
| 0904-003236 | IC-USC;GL3523-OTYS3,QFN,76P,9X9X0.75MM,2 |
| 0904-003200 | IC-USC;GL850G-34,QFN,24P,5X5X0.75MM,12MH |
| 0904-003058 | IC-USC;RTS5450,TP,46P,6.5X4.5X0.85MM,TP, |
| 1203-009590 | IC-VOL. DETECTOR;G623AF11U,8P,TP,TP,4.9X |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005902 | INDUCTOR-SMD;10UH,20%,10.85X10MM,T2.9,0. |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005720 | INDUCTOR-SMD;1UH,20%,1608,T0.8,0.6OHM,25 |
| 2703-004145 | INDUCTOR-SMD;2.2UH,20%,7066,T2.8,0.02OHM |
| 2703-005781 | INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005901 | INDUCTOR-SMD;22UH,20%,7066,T2.9,0.138OHM |
| 2703-005786 | INDUCTOR-SMD;3.3UH,20%,6060,T2.6,0.033OH |
| 2703-005900 | INDUCTOR-SMD;6.8UH,20%,10.85X10MM,T2.9,0 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| BN63-20172A | INSULATOR-SHEET;32M80B,PC,BLACK,L240,W25 |
| BN63-20188A | INSULATOR-SHEET;32M80B,PC,BLACK,L95.4,W8 |
| 3722-004239 | JACK-DC POWER;TP,3P/3C,P-BRONZE,12.4X10. |
| 3722-004238 | JACK-USB;TP,24P/2C,BRASS,8.94X7.5X4.45MM |
| BN46-00109H | KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL |
| BN46-00110P | KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) |
| BH68-00697A | LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9 |
| BN68-04746A | LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER, |
| BN68-05595A | LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W |
| BN68-00513A | LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W |
| BN68-14118A | LABEL-RATING;ALL,WW,PP,T0.1,W130,L35,WHI |
| BN68-08112A | LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO |
| BN68-05381A | LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI |
| BN39-02822A | LEAD CONNECTOR-BLU;32M80B,UL21016,6P,L25 |
| BN68-14065C | LEAFLET-QUICK SETUP GUIDE;M80B(32),ZA&ZC |
| BN68-15058D | LEAFLET-QUICK SETUP GUIDE;M80B,ZA&ZC&GO, |
| BN68-04657D | LEAFLET-REGULATORY GUIDE;LFD/LM,EXCEPT E |
| BN68-09371B | LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO, |
| BN68-15181A | LEAFLET-SAFETY GUIDE;MONITOR,ZA,NA LATIN |
| BN68-15923A | LEAFLET-STAND GUIDE;CAUTION CARD MONITOR |
| BN68-00226M | LEAFLET-WARRANTY;COMM,SAMSUNG,ENG/FRE,CA |
| BN68-03677A | LEAFLET-WARRANTY;QR,1YEAR,US,MOJO 80G,14 |
| BN61-18622A | LGP;22Y_M80B_31.5INCH_LGP,PMMA,T1.5 |
| BN59-01412A | NETWORK-WLAN CLIENT;WCB735M,90.83X20.91X |
| BN61-18625A | OPTICAL SHEET-COMPLEX;22Y_M80B_31.5INCH_ |
| BN61-18624A | OPTICAL SHEET-DIFFUSER;22Y_M80B_31.5INCH |
| BN61-18623A | OPTICAL SHEET-REFLECTOR;22Y_M80B_31.5INC |
| BN69-17053D | PACKING ANGLE;ALL,PAPER,T3,W2000,L50,YEL |
| BN69-20163A | PALLET-WOODEN;32QRQ50O,WOOD,W1150,L820,H |
| BN41-03016A | PCB-MAIN;M80B,FR-4,4L,T1.2,2,245X245MM |
| BN41-03016B | PCB-MAIN;M80B,FR-4,T1.2,4,B,245X245MM |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,GRY,L1500 |
| BN95-08496A | PRODUCT LCD-CSOT;CY-MB315HQHV1H,M80B,Y22 |
| 2007-008714 | R-CHIP;0.01OHM,1%,1W,TP,6432 |
| 2007-007046 | R-CHIP;0.02OHM,1%,1W,TP,6432 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER |
| 2007-000219 | R-CHIP;1.2KOHM,1%,1/10W,TP,1608 |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608,T0.45,GEN |
| 2007-000132 | R-CHIP;180KOHM,5%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000591 | R-CHIP;22OHM,1%,1/10W,TP,1608 |
| 2007-000602 | R-CHIP;240KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-009401 | R-CHIP;2MOHM,1%,1/4W,TP,3216 |
| 2007-001342 | R-CHIP;2MOHM,5%,1/10W,TP,1608 |
| 2007-002437 | R-CHIP;2OHM,5%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000708 | R-CHIP;3.9KOHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-010307 | R-CHIP;33KOHM,1%,1/4W,TP,3216 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-000828 | R-CHIP;39KOHM,1%,1/10W,TP,1608 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000869 | R-CHIP;4.7KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-000910 | R-CHIP;43KOHM,1%,1/10W,TP,1608 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001111 | R-CHIP;680KOHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001206 | R-CHIP;82KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| BP59-00149A | REMOCON-ECO SMART CONTROL;2022 LUXO,SAMS |
| BN46-01937A | S/W MICOM;TCON_DATA,M80B 32",CSOT |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
| 6001-003425 | SCREW-MACHINE;SWRCH22A,ZPC(BLK),L14,M4,B |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN63-20200A | SHEET-PET;32M80B,PET,T0.05,W385,L700,BLA |
| BN63-19568B | SHEET-PROTECTION COVER;65QAQ60G,PO,T0.05 |
| BN63-17418N | SHEET-PROTECTION COVER;QTQ60F,PO,T0.05,W |
| BN63-20267A | SHEET-THERMAL;32M80B,GRAPHITE,T0.2,W439. |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| BN60-01656A | SPACER-CONDUCTIVE;CONDUCTIVE FABRIC/PU F |
| BN60-00162V | SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W10 |
| BN60-00162K | SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W7 |
| BN60-01660A | SPACER-FOAM;PU FOAM,L1000,DARK GRAY,T0.3 |
| BN60-01598B | SPACER-SILICONE;32M80B,SI,L5,GRAY,T1.2,W |
| 3404-001490 | SWITCH-TACT;12V,50MA,353GF,7.5X7.5X6MM,6 |
| BN02-00644A | TAPE DOUBLE FACE;32S60A,PU FOAM,T0.8,W3. |
| BN02-00404A | TAPE DOUBLE FACE;SD390,PET,T0.2,W8,L35,C |
| BN02-00105B | TAPE SINGLE FACE;Y13 SNB 8.5K,PET,T0.05, |
| 0203-007233 | TAPE-DOUBLE FACE;PU FOAM,T0.8,W3.2,N/A,B |
| BN02-00102K | TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL |
| BN02-00319B | TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE |
| BN02-00102B | TAPE-SINGLE FACE;OPP,T0.15,W25,L100M,WHI |
| BN02-00173C | TAPE-SINGLE FACE;PET,T0.05,W40,BLACK |
| 0203-007086 | TAPE-SINGLE FACE;PET,T0.05,W6,L50M,BLACK |
| 1404-001731 | THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN39-02259C | USB CABLE;M70A,16,5.1MM,1000MM,GRAY,USB |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
| BH69-00418A | WRAP;762,1828M,SAMEX FACTORY |
