Model Image
Manufacturer

Samsung

Model Number

LS55BG970NNXGO

Description

55 Inch Odyssey Ark 4k Uhd Curved Gaming Screen

Interactive Exploded View

Parts List

Part Number Description
BN81-23280A A/S-FPC;FPC,39TL2000000093,ST5461D21-1-F
BN81-23279A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33
BN81-23281A A/S-POLARIZER-C/F;POLARIZER-C/F,313090K9
BN81-23282A A/S-POLARIZER-TFT;POLARIZER-TFT,313090BG
0201-003279 ADHESIVE-AA;UPUV,CLEAR
0201-003555 ADHESIVE-SILICON;A,CLEAR
0201-003554 ADHESIVE-SILICON;B,CLEAR
0201-003752 ADHESIVE-UV;UV-3430,CLEAR,5000-10000CPS,
BN96-55674Q ASSY ACCESSORY MANUAL CABLE;G97NB
BN92-24981M ASSY ACCESSORY;CRG9
BN90-12521A ASSY BACK LIGHT UNIT;G97NB
BN96-39758A ASSY BOARD P-FUNCTION JOG;CF390_CF770(BL
BN96-55697A ASSY BOARD P-SUB;G97NB FUNCTION MODULE,A
BN96-55708A ASSY BOARD P-SUB;G97NB,1299-03972-00,ARE
BN96-55709A ASSY BOARD P-SUB;G97NB,1299-03972-01,ARE
BN92-31524A ASSY BOX;G97NB
BN96-55771A ASSY BRACKET P-WALL REAR;55G97NB,HGI,NAT
BN96-55670A ASSY BRACKET P-WALL;55G97NB,HGI,BLACK,T2
BN96-55536A ASSY CHASSIS FRONT P-BOTTOM;55G97NB,AL,T
BN96-55537A ASSY CHASSIS FRONT P;55G97NB,AL,TITAN BL
BN96-55534A ASSY CHASSIS REAR P;55G97NB,EGI-SECC,T0.
BN91-24174T ASSY CHASSIS;G97NB
BN96-55669A ASSY COVER P-CLEAN BACK TERMINAL;55G97NB
BN96-55024G ASSY COVER P-OC BOTTOM;55G97NB,PC+ABS+GF
BN96-50999L ASSY COVER P-OC TOP;75QBLS03M,PC,V-0,TP0
BN96-55666A ASSY COVER P-REAR;55G97NB,PC+ABS,5VB,BLA
BN90-12535A ASSY COVER REAR;G97NB
BN97-19516A ASSY DRM;M70/50B,MAC, HDCP
BN96-55535A ASSY FRAME P-MIDDLE BOTTOM;55G97NB,PC+GF
BN96-53284G ASSY HOLDER P-OC CABLE;55G97NB,ABS,BK000
BN92-31523A ASSY LABEL;G97NB
BN95-08461A ASSY LED BAR;G97NB 55 ARK,FR4,BLUE,55,N/
BN97-19374D ASSY MICOM;G97NB,1107-002779,BN94-17422F
BN97-00120S ASSY MICOM;G97NB,EMMC
BN97-00120V ASSY MICOM;HDMI SW,G97NB,OC
BN97-19374A ASSY MICOM;Q900B,Q800B,1107-002779,BN94-
BN97-00120W ASSY MICOM;SUBMICOM JP,G97NB,OC
BN97-00120T ASSY MICOM;SUBMICOM,G97NB,MAIN
BN97-00120U ASSY MICOM;TCON,G97NB,MAIN
BN91-24175M ASSY ONE CONNECT;G97NB
BN91-24175A ASSY ONE CONNECT;G97NB
BN91-00172U ASSY OPEN CELL-DECORATION;G97NB
BN96-54688A ASSY OPEN CELL;CSOT,55INCH,Y22 NEW,ST546
BN92-31525A ASSY P/MATERIAL;G97NB
BN96-55230A ASSY PACKING P-CUSHION SET;Y22
BN94-07238T ASSY PCB FUNCTION-BN96-39758A;CF39,BN96-
BN94-17422F ASSY PCB MAIN SUBCON;G97NB,8K 55"65" AM,
BN94-17422B ASSY PCB MAIN SUBCON;Q900B,Q800B,8K 55"6
BN94-17739X ASSY PCB MAIN;G97NB
BN94-00086S ASSY PCB OC;G97NB
BN96-54788G ASSY PCB P;FR-1,OC + COVER
BN96-54788F ASSY PCB P;FR-1,OC + COVER
BN91-24176A ASSY SHIELD;G97NB
BN97-19221A ASSY SMD BIN;G97NB 55,LM,2
BN97-19955Z ASSY SMD BOTTOM;G97NB
BN97-19955A ASSY SMD BOTTOM;G97NB
BN97-19956B ASSY SMD TOP;G97NB
BN97-19956A ASSY SMD TOP;G97NB
BN97-09080K ASSY SMD;CF39,BN96-39758A
BN97-19403M ASSY SMD;G97NB,Y22_8K_65_AM_LED_7A50,4L,
BN97-19403L ASSY SMD;Q900B,Q800B,Y22_8K_65_AM_LED_7A
BN96-55415A ASSY SPEAKER P-FRONT;TV-SPK,55G97NB,2.2.
BN96-55777A ASSY STAND P-BRACKET LINK;55G97NB,HGI,BL
BN96-55667A ASSY STAND P-COVER NECK;55G97NB,ABS,BK00
BN96-55668A ASSY STAND P-COVER TOP;55G97NB,HGI,BK000
BN90-12534A ASSY STAND;G97NB
BN64-04741A BADGE;ODYSSEY,NI,T0.11,W47,OCEAN BLUE,WI
6902-003922 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003859 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003816 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003809 BAG ACCESSORY;HDPE/PE FOAM,T0.015/T0.5,W
6902-003936 BAG ACCESSORY;LDPE,T0.06,W250,L200,TRP,R
6902-003913 BAG ACCESSORY;LDPE,T0.06,W380,L480,TRP,R
6902-003625 BAG ACCESSORY;LDPE,T0.06,W80,L80,TRP,REC
6902-003503 BAG ACCESSORY;LDPE,T0.07,W480,L300,TRP,R
6902-003719 BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1600,
6922-000421 BAND;PP,T0.8,W18,L2300,TRP,RECYCLED PIR_
3301-002039 3301-002039 BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM
6011-008899 BOLT-ETC;M6,L25,ZPC(BLK),FH,+,SWRCH18A
BN69-20743A BOX ACCESSORY;65Q95T,CB,SW-E,NON STANDAR
BN69-24081A BOX UNIT-IN;55G97NB,CB,DW4,C1,L1922,W556
BN69-24080D BOX UNIT-OUT;55G97NB,CB,DW4,F3,L1347,W30
BN61-18957A BRACKET-STAND BODY LEFT;55G97NB,ALDC12,N
BN61-18956A BRACKET-STAND BODY RIGHT;55G97NB,ALDC12,
BN61-19166A BRACKET-STAND BOTTOM FRONT;55G97NB,HGI,T
BN61-18933A BRACKET-STAND BOTTOM;55G97NB,HGI,T2,BLAC
BN61-18959A BRACKET-STAND GUIDE;55G97NB,SM50C,T2,NAT
BN61-18944A BRACKET-STAND HINGE;55G97NB,ALDC12,T2,NA
BN61-18945A BRACKET-STAND HOLDER;55G97NB,ALDC12,NATU
BN61-18953A BRACKET-STAND LEFT;55G97NB,ALDC12,NATURA
BN61-18955A BRACKET-STAND LINK LEFT;55G97NB,ALDC12,N
BN61-18954A BRACKET-STAND LINK RIGHT;55G97NB,ALDC12,
BN61-19037A BRACKET-STAND LINK SUB;55G97NB,ALDC12,NA
BN61-19043A BRACKET-STAND LINK TOP;55G97NB,CR-SPCC,T
BN61-18934A BRACKET-STAND LINK;55G97NB,EGI-SECC,T2,N
BN61-18935A BRACKET-STAND NECK FRONT;55G97NB,HGI,T2,
BN61-18936A BRACKET-STAND NECK;55G97NB,HGI,T2,NATURA
BN61-18942A BRACKET-STAND PIVOT FRONT;55G97NB,HGI,T2
BN61-18937A BRACKET-STAND PIVOT;55G97NB,CR-SPCC,T3,N
BN61-18949A BRACKET-STAND RAIL;55G97NB,ABS,T3,BLACK
BN61-18952A BRACKET-STAND RIGHT;55G97NB,ALDC12,NATUR
BN61-18938A BRACKET-STAND STOPPER;55G97NB,ALDC12,BLA
BN61-18950A BRACKET-STAND TILT LEFT;55G97NB,SM50C,T3
BN61-18951A BRACKET-STAND TILT RIGHT;55G97NB,SM50C,T
BN61-18939A BRACKET-STAND TILT;55G97NB,ALDC12,NATURA
BN61-18943A BRACKET-STAND TOP;55G97NB,ALDC12,T2,NATU
BN61-19170A BRACKET-WALL SUPPORT;55G97NB,CR-SPCC,T2,
BN61-13521A BRACKET-WALL;32K5500,CR-SPCC,T1.2,NATURA
BN61-18997A BRACKET-WALL;55G97NB,HGI,T2,BLACK,M8,D14
BN61-11982C BRACKET-WALL;65QNQ7FC,CR-SPCC,BLACK,M8,L
BN61-13557H BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI
BN61-13557V BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L
BN64-03398A BUTTON-CONTROL;22CF390,ABS,BLACK,HB, BK0
BN64-03400A BUTTON-FUNCTION;22CF390,ABS,BLACK,HB, BK
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,55
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,55
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T
2203-007513 C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8
2203-007176 C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-007423 C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,55T
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-006399 C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5
2203-006460 C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,55
2203-008096 C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1.
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012,55
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005642 C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5
2203-000627 C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5,
2203-008315 C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2
2203-006377 C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,55
2203-008412 C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1.
2203-006378 C-CER,CHIP;4.7UF,10%,6.3V,X5R,TP,1608,5
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,55
2203-006741 C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0.
2203-001428 C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,55
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2409-001213 C-ORGANIC,SMD;150UF,20%,6.3V,TP,3.5X2.8X
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343
BN64-04744A CHASSIS-FRONT BOTTOM;55G97NB,AL,TITAN BL
BN64-04743A CHASSIS-FRONT;55G97NB,AL,TITAN BLACK,ANO
BN64-04745A CHASSIS-REAR;55G97NB,EGI-SECC,T0.8,NATUR
3708-003241 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU
3708-003357 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,14P,0.5MM
3708-003355 3708-003355 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM
3708-003217 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM
3708-003176 CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM
3701-002024 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007975 3711-007975 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3707-001143 CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2
3710-004473 CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B
3710-004474 CONNECTOR-SOCKET;35P,1R,0.8MM,SMD-A,AU,B
BN63-20292A COVER-CLEAN BACK TERMINAL;55G97NB,PC+ABS
BN63-20291A COVER-DECORATION MIDDLE;55G97NB,ABS,HB,G
BN63-20290A COVER-DECORATION TOP;55G97NB,PC,V-2,TP01
BN63-18523C COVER-DECORATION;55G97NB,STS304,T0.15,BL
BN63-20161E COVER-OC BOTTOM;55G97NB,PC+ABS+GF15%,V-0
BN63-18808H COVER-OC TOP;65QBLS03M,PC,V-0,TP0116,POW
BN63-20289A COVER-REAR DECORATION TOP;55G97NB,PC,V-2
BN63-20288A COVER-REAR DECORATION;55G97NB,PC,V-2,TP0
BN63-20287A COVER-REAR;55G97NB,PC+ABS,5VB,BLACK
BN63-20274A COVER-STAND HOLDER;55G97NB,ABS,HB,BK0008
BN63-20276A COVER-STAND INSERT;55G97NB,POM,HB,BK0059
BN63-20269A COVER-STAND NECK FRONT;55G97NB,ABS,HB,BK
BN63-20270A COVER-STAND NECK REAR;55G97NB,ABS,HB,BK0
BN63-20275A COVER-STAND NECK SUB;55G97NB,POM,HB,BK00
BN63-20277A COVER-STAND NECK;55G97NB,POM,HB,BK0059
BN63-20271A COVER-STAND PIVOT;55G97NB,ABS,HB,BK0008,
BN63-20273A COVER-STAND TILT BOTTOM;55G97NB,ABS,HB,B
BN63-20272A COVER-STAND TILT TOP;55G97NB,ABS,HB,BK00
BN63-20268A COVER-STAND TOP;55G97NB,HGI,T5,NATURAL,B
BN63-20294A COVER-TERMINAL SIDE;55G97NB,PC+ABS,5VB,B
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-005372 CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF
2801-004938 CRYSTAL-SMD;24MHZ,20PPM,12PF,60OHM,20PPM
2801-004678 CRYSTAL-SMD;25MHZ,30PPM,18PF,25OHM,TP
2801-005504 CRYSTAL-SMD;26MHZ,7PPM,SMD,11.1PF,30OHM,
BN69-24025A CUSHION-SET FRONT;55G97NB,EPS,16.7G/L,WH
BN69-24026A CUSHION-SET;55G97NB,EPS,16.7G/L,WHITE
BN66-00070A CYLINDER;55G97NB,284.89MM,L615.89,D18
BN44-01202A DC VSS-POWER BOARD;P55A9N_BHS,AC/DC,270W
BN61-19029A DIFFUSER PLATE;22Y_G97NB_55INCH,PS,T2.5
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001976 DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T
0407-000112 DIODE-SWITCHING;BAV70,70V,200MA,SOT-23,T
0406-001886 DIODE-TVS;AZ1123-04F,5V,DFN2510,65W,TR
0406-001823 DIODE-TVS;PJUSB208,85V,0.1MAV,0.715VPA,2
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001317 DIODE-TVS;SMAJ14A,15.6V,17.2V,1MAV,6.5VP
0406-001438 DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300MW,SO
0403-001411 DIODE-ZENER;BZT52-B5V6S,5.49~5.73V,200MW
0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000MW,SOD
0403-001976 DIODE-ZENER;MM3Z6V2B,6.06~6.33V,300MW,SO
0403-000489 DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
0403-001797 DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD
0403-001785 DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-001089 FET-SILICON;AO3409L,P,30V,2.6A,0.097/0
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-003755 FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7
0505-003620 FET-SILICON;AOD4286,N,100V,14A,55.5MOHM,
0505-003752 FET-SILICON;AONR21321,P,30V,50A,0.035OHM
0505-003732 FET-SILICON;MMFTN123K,N,100V,0.19A,10OHM
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
BN96-55557A FFC;G97NB 55,FOLD,L1050,68P,MAIN~LED
BN96-55555A FFC;G97NB 55,FOLD,L1110,68P,MAIN~LED
BN96-55558A FFC;G97NB 55,FOLD,L1280,68P,MAIN~LED
BN96-55559A FFC;G97NB 55,FOLD,L220,68P,MAIN~LED
BN96-55552A FFC;G97NB 55,FOLD,L250,68P,MAIN~LED
BN96-55553A FFC;G97NB 55,FOLD,L370,68P,MAIN~LED
BN96-55556A FFC;G97NB 55,FOLD,L470,68P,MAIN~LED
BN96-55554A FFC;G97NB 55,FOLD,L810,68P,MAIN~LED
BN96-55664A FFC;G97NB,FOLD,L490,96P,MAIN~USIT_PANEL#
BN96-55682A FFC;G97NB,FOLD,L510,14P,MAIN~IR MODULE
BN96-55678A FFC;G97NB,FOLD,L540,96P,MAIN~USIT_PANEL#
BN96-55681A FFC;G97NB,FOLD,L570,68P,MAIN~AM BOARD#PO
BN96-55665A FFC;G97NB,FOLD,L870,24P,MAIN~AM BOARD#DI
BN67-00327J FOOT-RUBBER;PE400,SI,GRAY,T2.5
BN67-00474A FOOT-RUBBER;PE400,SI,GRAY,W8,L30,T3
BN67-00459A FOOT-RUBBER;STAND,RUBBER,GRAY,T2
BN61-18973A FRAME-CHASSIS REAR BOTTOM;55G97NB,PC+GF1
BN61-18974A FRAME-CHASSIS REAR LEFT;55G97NB,PC+GF10%
BN61-18975A FRAME-CHASSIS REAR RIGHT;55G97NB,PC+GF10
BN61-18972A FRAME-CHASSIS REAR TOP;55G97NB,PC+GF10%,
BN61-18976A FRAME-MIDDLE BOTTOM;55G97NB,PC+GF10%,V-2
3601-001061 3601-001061 FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING,
3601-001402 FUSE-SURFACE MOUNT;125V,7A,FAST-ACTING,C
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN63-11478A GASKET-EMI;32BNKH-20-10-10-23-C,FABRIC,T
BN63-12734A GASKET-EMI;EMI SHIELDING,CONDUCTIVE TAPE
BN63-12151A GASKET-EMI;EMI SHIELDING,FABRIC,T0.13,W2
AA63-01071A GASKET-EMI;EMI SHIELDING,FABRIC,T2,W15,L
6302-001376 GASKET-SMD;SMT GASKET,SI,T6,W4.5,L2.5,SI
BN63-02996A GASKET-TAPE;EMI SHIELDING,FABRIC,T0.13,W
BN39-02754A HDMI CABLE;G95NA,19,28AWG,2000MM,BLACK,H
3711-008488 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
3711-005872 HEADER-BOARD TO CABLE;BOX,5P,1R,2.0MM,SM
3711-008646 HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
3711-007838 HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
3711-009653 HEADER-BOARD TO CABLE;TP,STRAIGHT,2R,24P
BN62-00986A HEAT SINK-HEAT PIPE MODULE;G97NB,AL,W200
BN62-00894A HEAT SINK-PS;65QTQ95P,A1050,W126,L326,NA
BN62-00985A HEAT SINK-PS;G97NB,AL,W70,L140,BLACK,OSC
BN61-18437A HOLDER-BOLT;55QBLS03M,SWRCH10A,BLACK,M8,
BN61-14713B HOLDER-COVER;65QAQN900A,SI,BLACK,HS80->
BN61-16283A HOLDER-FUNCTION;32UR59C,ABS,T2,BK0007,HB
BN61-16910A HOLDER-OC CABLE JACK;65QTQ950SA,PA66,BLA
BN61-17632A HOLDER-OC CABLE;65QAQN900A,ABS,BK0007,HB
BN61-19165B HOLDER-STAND LINK LEFT;55G97NB,HGI,T2,NA
BN61-19165A HOLDER-STAND LINK LEFT;55G97NB,HGI,T2,NA
BN61-19167B HOLDER-STAND LINK RIGHT;55G97NB,HGI,T2,N
BN61-19167A HOLDER-STAND LINK RIGHT;55G97NB,HGI,T2,N
BN61-18946A HOLDER-STAND LINK;55G97NB,ALDC12,BLACK,A
BN61-18947A HOLDER-STAND STOPPER;55G97NB,POM,BK0059,
BN61-19044A HOLDER-STAND SUPPORT TOP;55G97NB,POM+GF1
BN61-18948A HOLDER-STAND SUPPORT;55G97NB,POM,BK0059,
BN61-19164A HOLDER-STAND TOP;55G97NB,HGI,T2,NATURAL
BN61-18958A HOLDER-STAND;55G97NB,AL,NATURAL
BN61-19077A HOLDER-WIFI;55G97NB,PC+ABS,BK0110,V-0
1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC
1001-002118 IC-ANALOG MULTIPLEX;TMUX1308QDYYRQ1,16P,
1201-004377 IC-AUDIO AMP;SABRE9601K,TP,3X3X1MM,20TO
1201-004306 IC-AUDIO AMP;SN005826M,TP,9.7X4.4X1.2MM,
0801-002628 IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC-
0801-003580 IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3
1203-009206 IC-DC/DC CONVERTER;AOZ2255LQI-30,QFN-22L
1203-009652 IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN-
1203-009194 IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6
1203-009312 IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T
1203-009193 IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6
1203-008921 IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X
1203-009063 IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0.
1203-009649 IC-DC/DC CONVERTER;VPMS3BRT,72P,QFN,TP,8
1105-003132 IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P
1204-003821 IC-DECODER;QUANTUM PROCESSOR 8K III,TR,3
1204-003778 IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5
1204-003822 IC-DECODER;SDP20813,TR,27X27X1.78MM,10T
1006-001595 IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001584 IC-EEPROM;M24512-DFMN6TP,512KBIT,64K X 8
1107-002590 IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1
1301-002316 IC-FPGA;XC7A50T-1CSG324C,BGA,324P,TR,15X
1003-003246 IC-LED DRIVER;SDP21822,18P,WLP,TP,1.85X1
1003-003247 IC-LED DRIVER;SDP21823,100P,QFP,TP,14X14
1003-003256 IC-LED DRIVER;SLG4AX45252,14P,QFN,TR,2.0
1003-003207 IC-LEVEL DRIVER;TPS2490DGSR,TP,5.0X3.0X1
0903-002252 IC-MICROCONTROLLER;PIC16F1459T-I/ML,TAPE
1107-002587 IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7
1107-002779 IC-NOR FLASH;EN25QH32B,SOP,8P,TR,5.28X5.
1107-002566 IC-NOR FLASH;W25Q32JVSSIQ,32MBIT,16384X2
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-004368 IC-OP AMP;LV358G-S08-R,SOP-8,8P,TP,3.95X
1203-009643 IC-POSI.ADJUST REG.;ET5A0ADJY2B,6P,DFN6,
1203-009186 IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P
1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
0904-002882 IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ,
1001-002117 IC-VIDEO SWITCH;AD55/066Z-0RL,QFN,108P,T
1203-009590 IC-VOL. DETECTOR;G623AF11U,8P,TP,TP,4.9X
1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3
2703-005782 INDUCTOR-SMD;1.5UH,20%,6060,T2.8,0.017OH
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005780 INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003488 INDUCTOR-SMD;10UH,20%,6965,T2.8,0.071OHM
2703-005783 INDUCTOR-SMD;2.2UH,20%,6060,T2.8,0.026OH
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-005781 INDUCTOR-SMD;220NH,20%,7876,T2.9,0.00176
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-003637 INDUCTOR-SMD;22UH,20%,7070,0.18OHM,2000M
2703-003263 INDUCTOR-SMD;3.3UH,20%,10X10MM,0.0118OHM
2703-005786 INDUCTOR-SMD;3.3UH,20%,6060,T2.6,0.033OH
2703-005194 INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM
2703-003930 INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W
2703-004226 INDUCTOR-SMD;8.2UH,20%,10.7X10MM,T3.8,0.
BN63-20332A INSULATOR-LD;55G97NB,PC,BLACK,L224,W137,
BN63-19186A INSULATOR-SHEET;PC,BLACK,L54,W42,T0.43
BN63-20392A INSULATOR-SMPS;55G97NB(ARK),PC,BLACK,L58
BN63-18852A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L329,W1
BN63-18851A INSULATOR-SMPS;65QTQ95P,PC,BLACK,L339.6,
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003216 JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2
3722-004127 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1
3722-004140 JACK-USB;4P/1C,AU,BLK,ANGLE,B,2.0,12.1X1
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
3722-004237 JACK-USB;TP,16P/2C,BRASS,9.6X9X3.4MM,WAV
BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,GENERAL
BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2)
BH68-00697A LABEL BOX;ALL,ART,W60,L100,WHT,NO SILK,9
BN68-09258B LABEL ETC;ALL MODEL,PET,T0.05,W40,L40,YW
BN68-04746A LABEL ETC;ALL,PET,W25.4,L9.53,POLYESTER,
BN68-05595A LABEL ETC;UF6P,ART,T0.08,W80,L23,WHITE,W
BN68-15120A LABEL WARNING;55G97NB,55G97NB,PET,T0.1,W
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W
BN68-08730A LABEL-E PASS;QTV,WW,ART,T0.161,W60,L15,P
BN68-07103D LABEL-RATING;ALL,WW,PP,T0.1,W90,L45,DARK
BN68-07104D LABEL-RATING;ALL,WW,PP,T0.1,W90,L50,DARK
BN68-08112A LABEL-SECURITY;ALL,PET,T0.05,W55,L52,GLO
BN68-00970A LABEL-SECURITY;ALL,PET,T0.05,W60,L60,SEA
BN68-06922R LABEL-STICKER;MONITOR,ART,W50,L20,ASSY S
BN68-05381A LABEL-STICKER;UF6P,ART,T0.08,W20,L50,WHI
BN39-02821A BN39-02821A LEAD CONNECTOR-POWER;QN65QN800BFXZA,UL10
BN39-02653A LEAD CONNECTOR-SUB ASSY;43LS05,UL21451,1
BN39-02845A LEAD CONNECTOR-SUB ASSY;G97NB,UL21016,5P
BN68-14580A LEAFLET-INSTALL GUIDE;S55BG970NN,ZA&ZC&G
BN68-14581B LEAFLET-QUICK SETUP GUIDE;G97NB,ZA&ZC&ZX
BN68-04657D LEAFLET-REGULATORY GUIDE;LFD/LM,EXCEPT E
BN68-09371B LEAFLET-REGULATORY GUIDE;QT/UT,W/W,MOJO,
BN68-15181A LEAFLET-SAFETY GUIDE;MONITOR,ZA,NA LATIN
BN68-15081A LEAFLET-WALL MOUNT;G97NB,WW,MOJO,1COLOR,
BN68-00226M LEAFLET-WARRANTY;COMM,SAMSUNG,ENG/FRE,CA
BN68-03677A LEAFLET-WARRANTY;QR,1YEAR,US,MOJO 80G,14
0601-003965 LED-BIN;SMD(TOP VIEW),BLU,WATER DIFF.,0X
0601-003620 0601-003620 LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940
0601-001896 LED;SMD(TOP VIEW),BLU,WATER CLEAR,1.6X0.
BN59-01333A BN59-01333A NETWORK-WLAN CLIENT;WCP730M,,,"WCP730M,7
BN39-02688B BN39-02688B ONECONNECT CABLE;QAQN800B,35P/34P,L2500,
BN61-19031A OPTICAL SHEET-COMPLEX;G97NB,PET,ARK,T0.4
BN61-19030A OPTICAL SHEET-HIGH COLOR;22Y_G97NB_55INC
BN61-19033A OPTICAL SHEET-REFLECTOR;22Y_G97NB_55INCH
BN61-19032A OPTICAL SHEET-REFLECTOR;22Y_G97NB_55INCH
2804-001595 OSCILLATOR-CLOCK;27MHZ,50PPM,10TTL,15PF,
BN69-17053Q PACKING ANGLE;ALL,PAPER,T3,W1800,L50,YEL
BN69-24238A PACKING SHEET;55G97NB,HDPE/PE FOAM,T0.5,
BN62-00883A PAD GAP-THERMAL;QN65Q90RAFXZA,SI,T12.5,L
BN62-00498A PAD GAP-THERMAL;SILICON,T5.5,L40,H40,GRA
BN69-20848A PAD-EPE;65Q95T,EPE,T20,W45,L340,WHITE
BN69-22276B PAD-SHEET;55QAQ60G,PET,T3.2,W50,L686,WHI
BN41-02999B PCB-FPGA;Y22_8K_65_AM_LED_7A50,FR-4,4L,T
BN41-02522A PCB-FUNCTION;CF770,FR-4,2L,T1.2,47X25.6M
BN41-02988A PCB-LED MODULE;G97NB 55,FR-4,2L,T0.6,1,3
BN41-03084A PCB-MAIN;G97NB,FR-4,6L,T1.2,1,278X225MM
BN41-03083A PCB-OC;G97NB,FR-4,4L,T1.2,1,330X142MM
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-09016A PRODUCT LCD-CSOT;CY-PB055SLHV1H,G97NB,BA
2007-008485 R-CHIP
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-008779 R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER
2007-007463 R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000102 R-CHIP;100KOHM,5%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-008167 R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35
2007-000063 R-CHIP;150KOHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-007992 R-CHIP;1OHM,1%,1/10W,TP,1608
2007-008661 R-CHIP;2.1KOHM,1%,1/10W,TP,1608
2007-000501 R-CHIP;2.2OHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-000633 R-CHIP;270KOHM,1%,1/10W,TP,1608
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45
2007-000683 R-CHIP;3.3KOHM,1%,1/10W,TP,1608
2007-000082 R-CHIP;3.3KOHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000929 R-CHIP;470OHM,1%,1/10W,TP,1608
2007-000946 R-CHIP;47OHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-001007 R-CHIP;51KOHM,1%,1/10W,TP,1608
2007-008269 R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35
2007-001058 R-CHIP;6.2OHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-000127 R-CHIP;9.1KOHM,5%,1/10W,TP,1608
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001590 R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1
BN59-01385A REMOCON-ECO SMART CONTROL;2022 TV,SAMSUN
BN59-01427A REMOCON-ECO SMART CONTROL;2022,SAMSUNG,1
6001-001211 6001-001211 SCREW-MACHINE;FH,+,M4,L8,ZPC(BLK),STS304
6001-003016 6001-003016 SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR
6001-003424 SCREW-MACHINE;SWRCH18A,ZPC(BLK),L2,M3,CH
6001-003425 SCREW-MACHINE;SWRCH22A,ZPC(BLK),L14,M4,B
6003-000275 6003-000275 SCREW-TAPTYPE;BH,+,B,M3,L10,ZPC(BLK),SWR

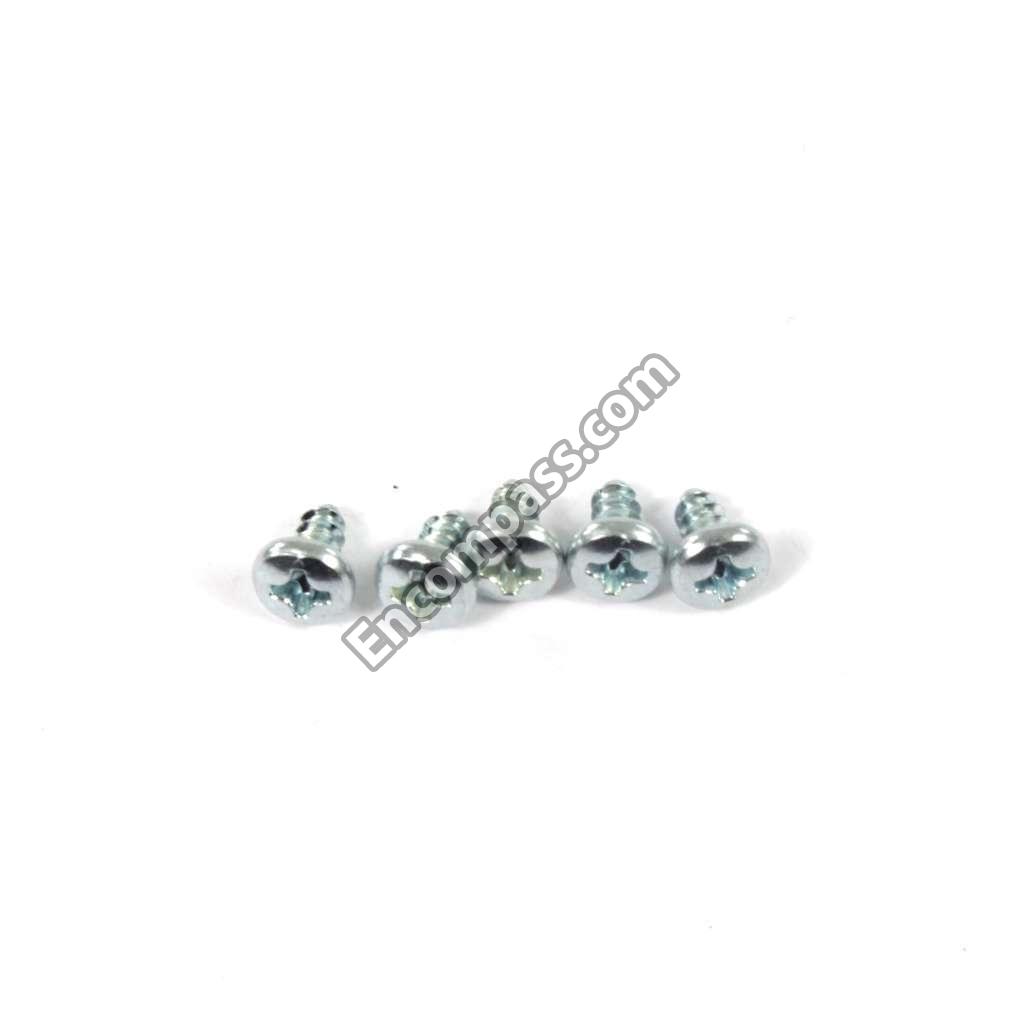

AH81-09813A AH81-09813A SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(WHT),SW
BN63-20442A SHEET-PC;55G97NB,PC,T0.1,W295,L242,BLACK
BN63-20480A SHEET-PC;55G97NB,PC,T0.5,W10,L50000,BLAC
BN63-16149A SHEET-PROTECTION COVER;32K5500,PO,T0.068
BN63-17418Q SHEET-PROTECTION COVER;LS003,PO,T0.05,W4
BN63-19568F SHEET-PROTECTION COVER;QAQN85K,PO,T0.05,
BN63-02183C SHEET-PROTECTION COVER;RHCM,PE,T0.05,W20
BN63-20331A SHEET-THERMAL;55G97NB,GRAPHITE,T0.5,W534
BN63-20330A SHEET-THERMAL;55G97NB,GRAPHITE,T0.5,W684
BN63-18853A SHEET-THERMAL;65QTQ95P,GRAPHITE,T1,W120,
BN63-20459A SHEET-THERMAL;G97NB,GRAPHITE,T1,W280,L10
BN63-20458A SHEET-THERMAL;G97NB,GRAPHITE,T1,W280,L79
BN63-18806A SHIELD-OC BOTTOM;65QTQ95P,EGI-SECC,T0.5
BN63-18807A SHIELD-OC TOP;65QTQ95P,EGI-SECC,T0.8
0202-001976 SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~
0202-002133 SOLDER-CREAM;M705-SVD1 TYPE5,D15~25UM,96
BN63-10135C SPACER-EVA;EVA,EVA,L50,BLACK,T7,W20
BN60-01528A SPACER-FOAM;55Q5F,PE FOAM,ROLL,BLACK,T1.
BN60-01714A SPACER-FOAM;G97NB(ARK),PU FOAM,L13.8,BLA
BN60-00162V SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W10
BN60-00162K SPACER-FOAM;PE FOAM,L50M,GRAY,T0.5,W7
BN60-01679A SPACER-FOAM;PU FOAM,L1000,BLACK,T0.3,W2,
BN60-01660A SPACER-FOAM;PU FOAM,L1000,DARK GRAY,T0.3
BN60-01670A SPACER-FOAM;Q950,PU FOAM,L1000,BLACK,T1.
BN60-01459A SPACER-SILICONE;55PMF,SI,L10,WHITE,T1.8,
BN61-17866A SUPPORT-PLATE;65QAQN900A,PA66,V-0,WHITE,
3404-001490 SWITCH-TACT;12V,50MA,353GF,7.5X7.5X6MM,6
BN02-00671A TAPE DOUBLE FACE;55G97NB,PU FOAM,T0.5,W3
BN02-00404A TAPE DOUBLE FACE;SD390,PET,T0.2,W8,L35,C
BN02-00586C TAPE DOUBLE FACE;TU7000,ACRYL,T0.3,W3,L1
BN02-00054B TAPE SINGLE FACE;49KS9000,PET,T0.05,W3,L
BN02-00074F TAPE SINGLE FACE;65QRQ80C,PET,T0.05,W10,
BN02-00595A TAPE SINGLE FACE;65QRQ80C,PET,T0.2,W3,L2
BN02-00352S TAPE SINGLE FACE;JS8500,PET,T0.05,W20,L3
BN02-00431A TAPE SINGLE FACE;LFD OHD,PET,T0.05,W15,L
BN02-00074G TAPE SINGLE FACE;QAQN85K,PET,T0.05,W10,L
0203-001085 TAPE-DOUBLE FACE;ACRYL,#706BH,T0.64,W12,
0203-007158 TAPE-DOUBLE FACE;ACRYL,T0.1,W10,N/A,CLEA
BN61-05728D TAPE-DOUBLE FACE;ACRYL,T0.4,W18,L33M,GRA
BN02-00611A TAPE-DOUBLE FACE;PU FOAM,T0.5,W3.2,N/A,B
BN02-00612A TAPE-DOUBLE FACE;PU FOAM,T0.5,W4,N/A,BLA
BN02-00102K TAPE-SINGLE FACE;FILAMENT,T0.15,W25,ROLL
0203-006894 TAPE-SINGLE FACE;OPP,3M, #3675,T0.05,W75
BN02-00319B TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE
BN02-00102B TAPE-SINGLE FACE;OPP,T0.15,W25,L100M,WHI
BN74-00053G TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W10,
BN74-00053E TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W20,
BN02-00352E TAPE-SINGLE FACE;PET,T0.05,W15,L50M,BLAC
1404-001731 THERMISTOR-NTC;33KOHM,4050K,1MWC,TP,1.6X
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000462 TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT-
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
1405-001452 VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001185 VARISTOR;500V,24VDC,1608,TP,150V,0.055PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
BH69-00418A WRAP;762,1828M,SAMEX FACTORY
Main Menu x
