Manufacturer
Samsung
Model Number
ME21DG6300MTAA
Description
2.1 Cu. Ft. Over The Range Microwave - Matte Black
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DE42-10018E | ANTENNA-CERAMIC;16 X 12 X 10 |
| DE42-00003A | ANTENNA;C1020W-H,MGT-RHN,2465MHZ,2.7 X 6 |
| DE99-00234A | ASSEMBLY ANODE;MGT-RHN,-,- |
| DE94-04264G | ASSEMBLY BASE BOTTOM;MC17T8000C*,EGI-SECC,T0 |

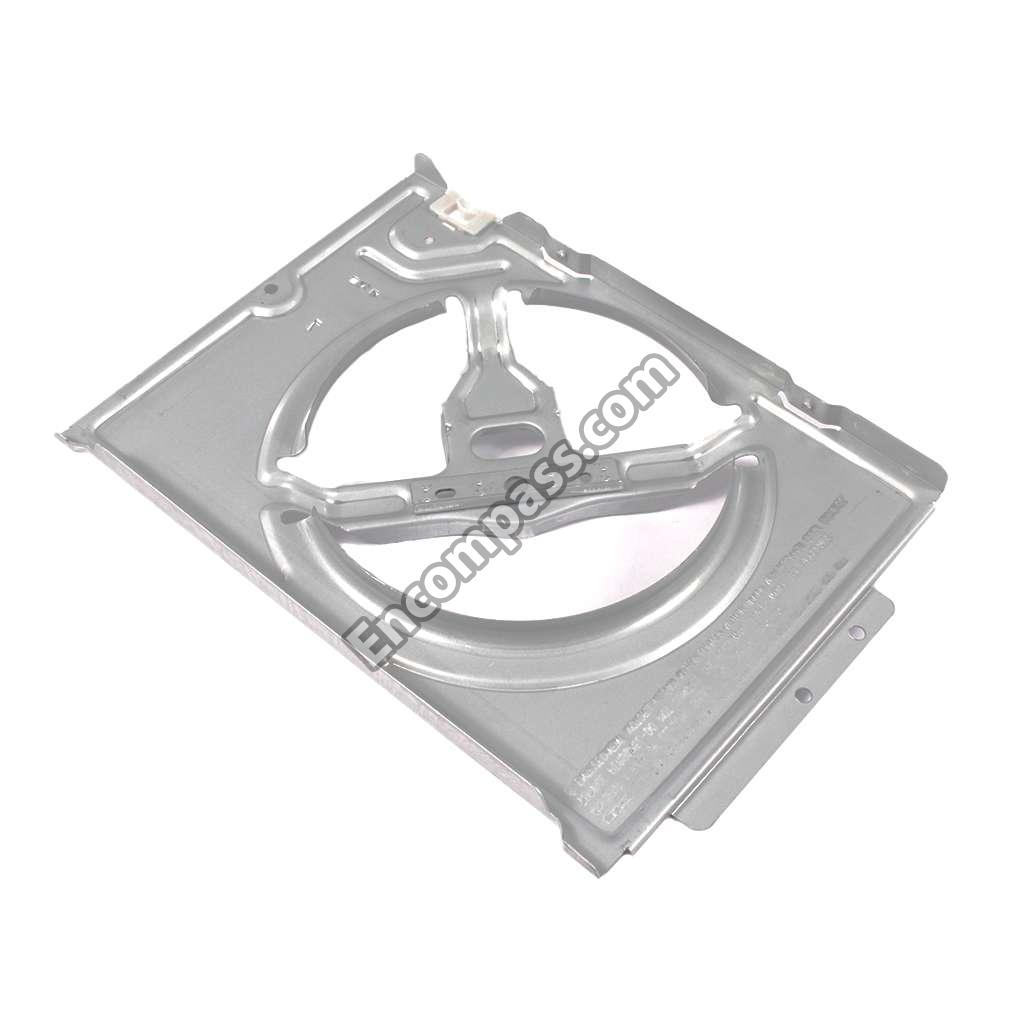

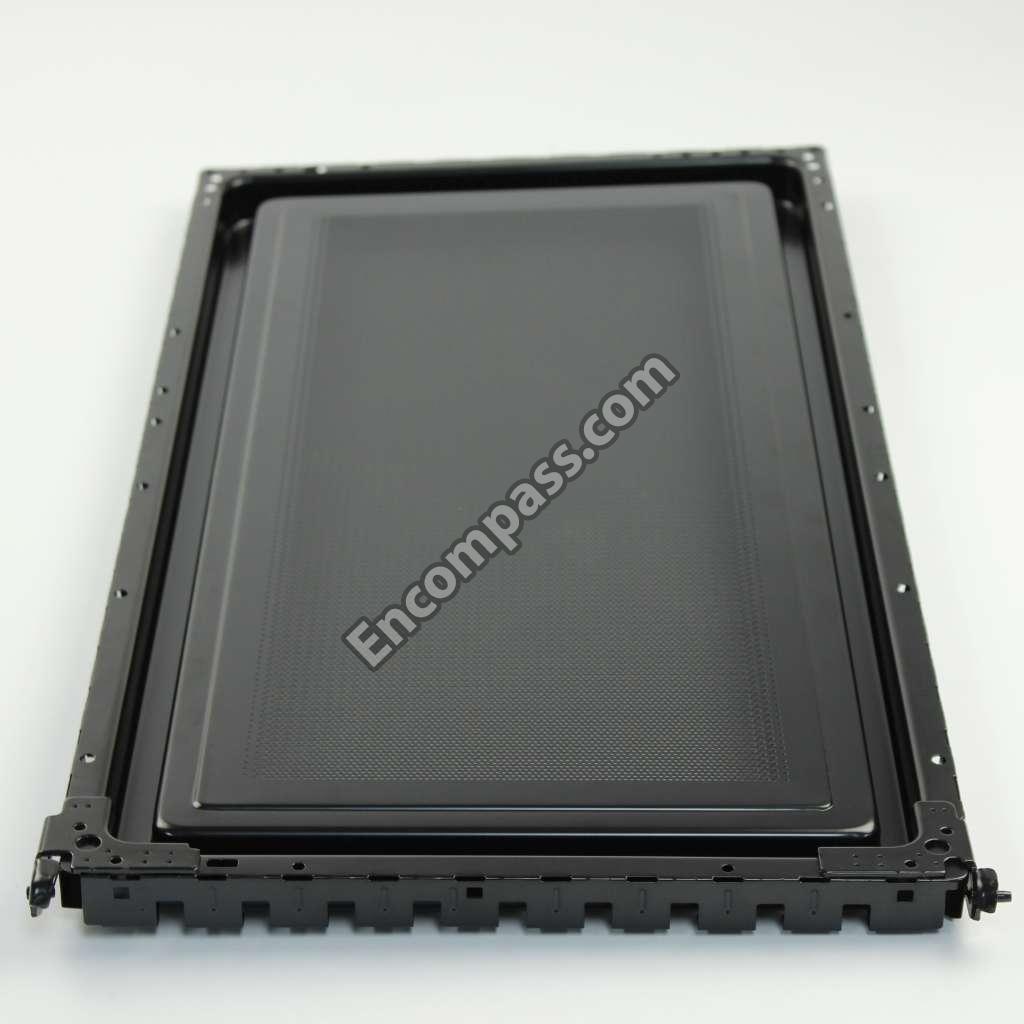

| DE94-02379F | ASSEMBLY BASE PLATE |
| DE94-02379H | ASSEMBLY BASE PLATE;ME21M706BAG/AA,SPP,T0.6 |
|
|

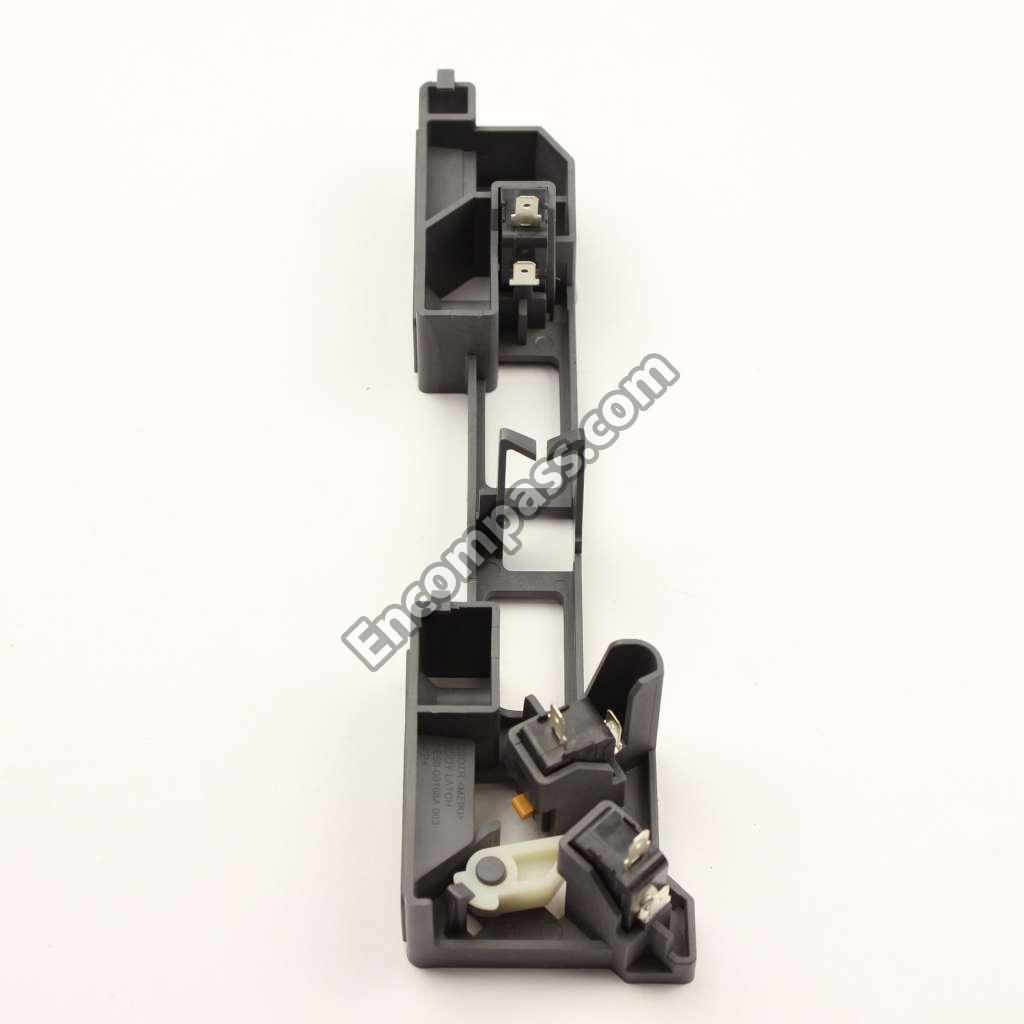

ASSEMBLY BODY LATCH;SMH2177, JVM 1950,ML1-MD |
| DE99-00237A | ASSEMBLY CATHODE;MGT-RHN,-,- |
| DE94-05563A | ASSEMBLY CONTROL PANEL;ME21DB6300SRAA,SR, ST |
| DE94-02362C | ASSEMBLY COVER FRONT;GE MD4, PREMIUM,SPP,T0. |
|
|
ASSEMBLY COVER MOTOR;ME21F707MJT/AA,EGI-SECC |
|
|
ASSEMBLY COVER MOTOR;PVM-9195SF2SS,EGI-SECC, |

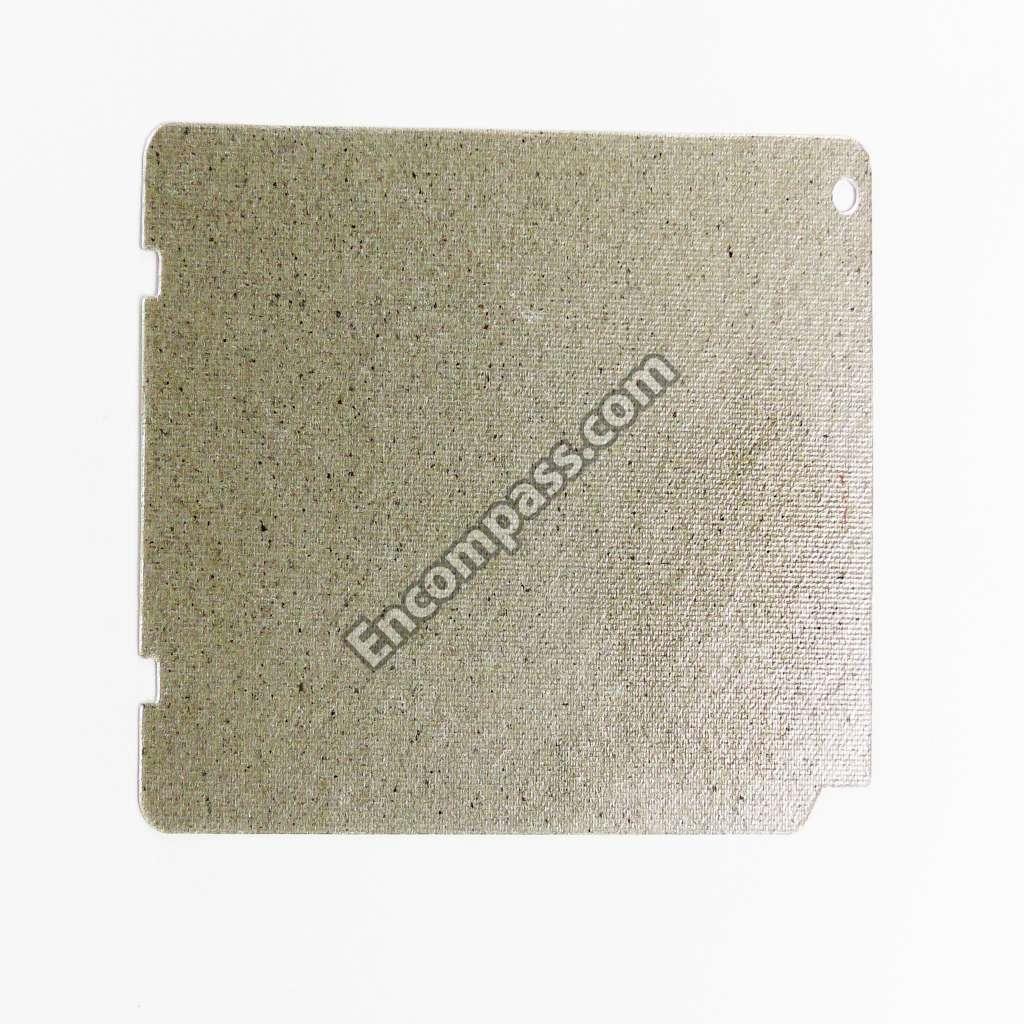

| DE94-03615A | ASSEMBLY COVER STIRRER;ME21K7010DS/AA,MICA S |
|
|

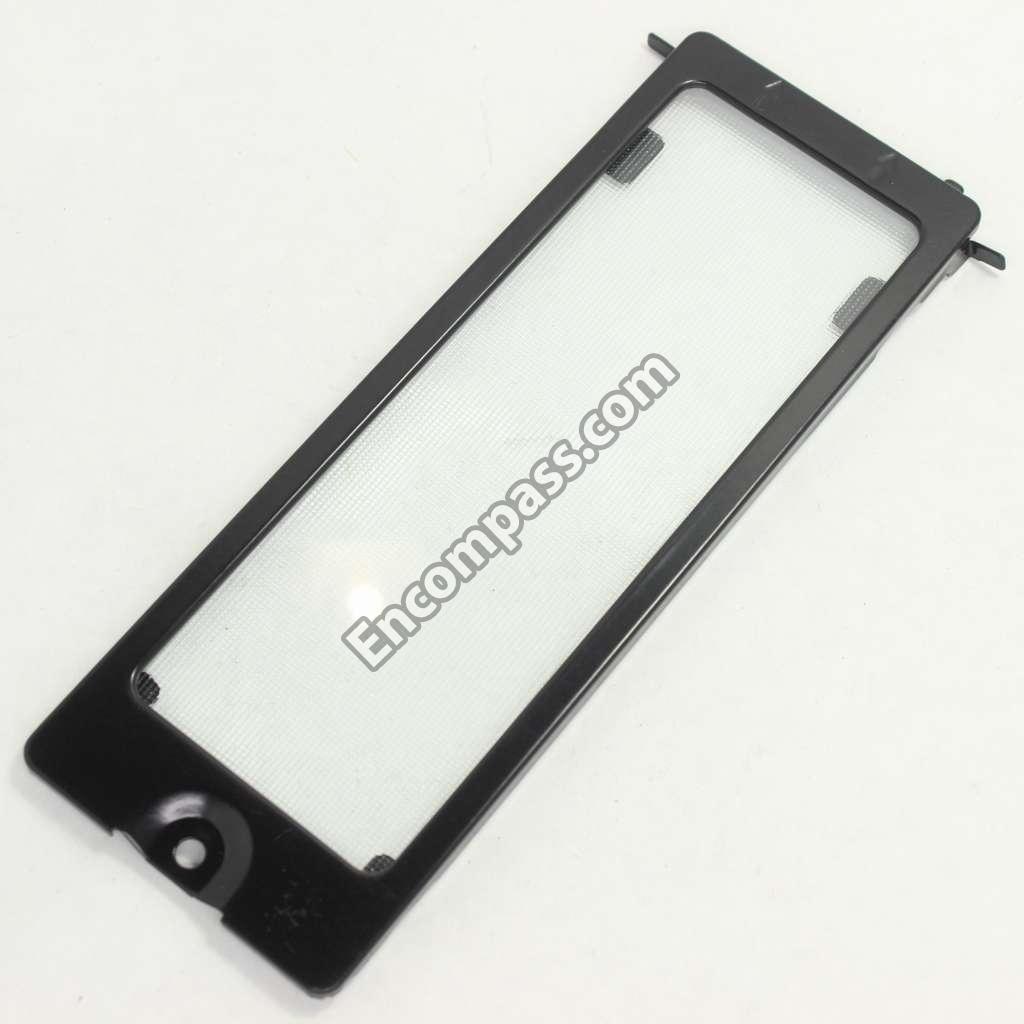

ASSEMBLY COVER-COOK TOP LAMP;OTR 6/7,-,-,EMO |
| DE94-05561B | ASSEMBLY DOOR A;ME21DG6300MTAA,PC,MATTLE BLA |
|
|
ASSEMBLY DOOR E;MAYTAG2.0,-,-,COATING |
| DE94-05552B | ASSEMBLY DOOR;ME21DG6300SRAC,PC,STSS,ME7500D |
| DE94-02372K | ASSEMBLY DUCT EXHAUST;ME21DG6300SRAA,EGI-SEC |
| DE94-02373C | ASSEMBLY DUCT UPPER-SUB;JVM1950,PVM1970,PVM2 |
|
|
ASSEMBLY GUIDE ROLLER;JVM7195, PVM9215,SPS,T |
|
|

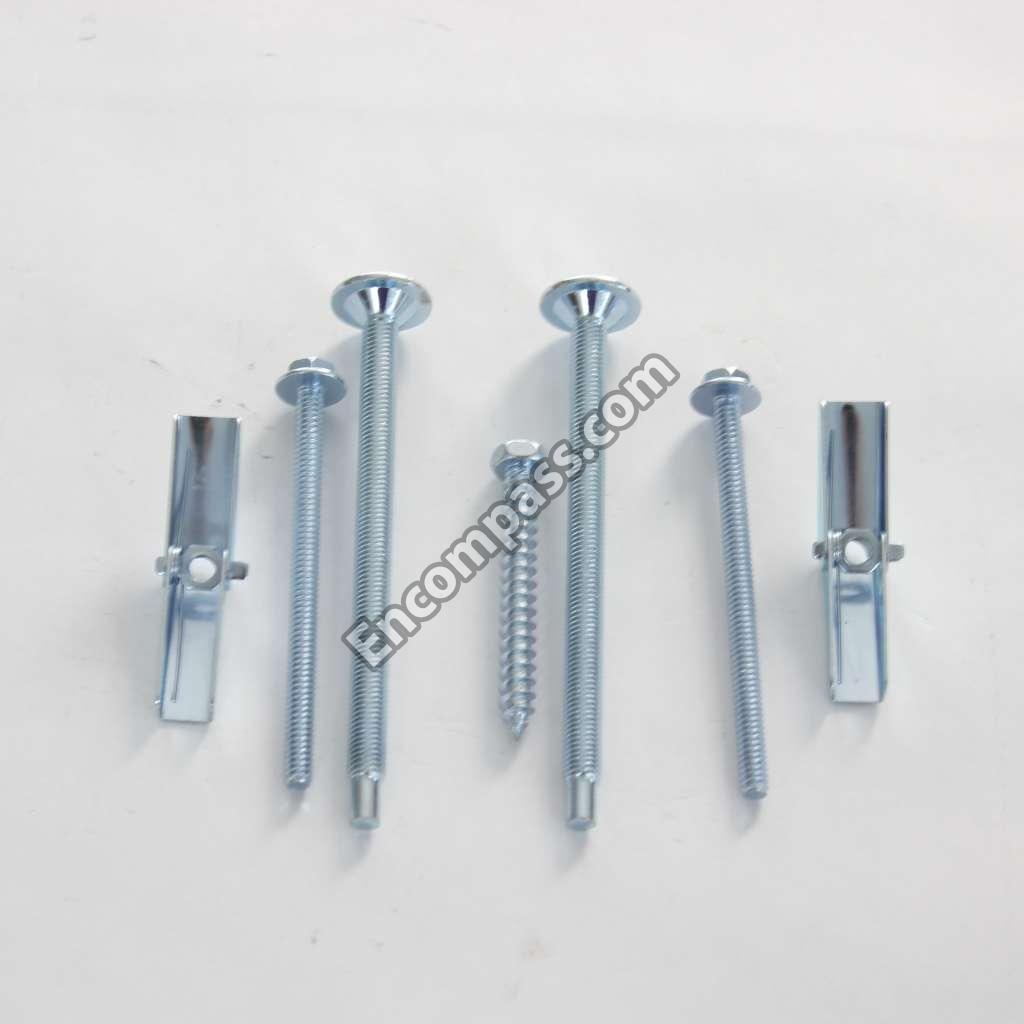

ASSEMBLY HARD WARE;SMH1611B/XAA,SS MD-3 |
| DE94-02742A | ASSEMBLY HOLDER-HALOGEN;JVM1950,PVM1970,PVM2 |
|
|

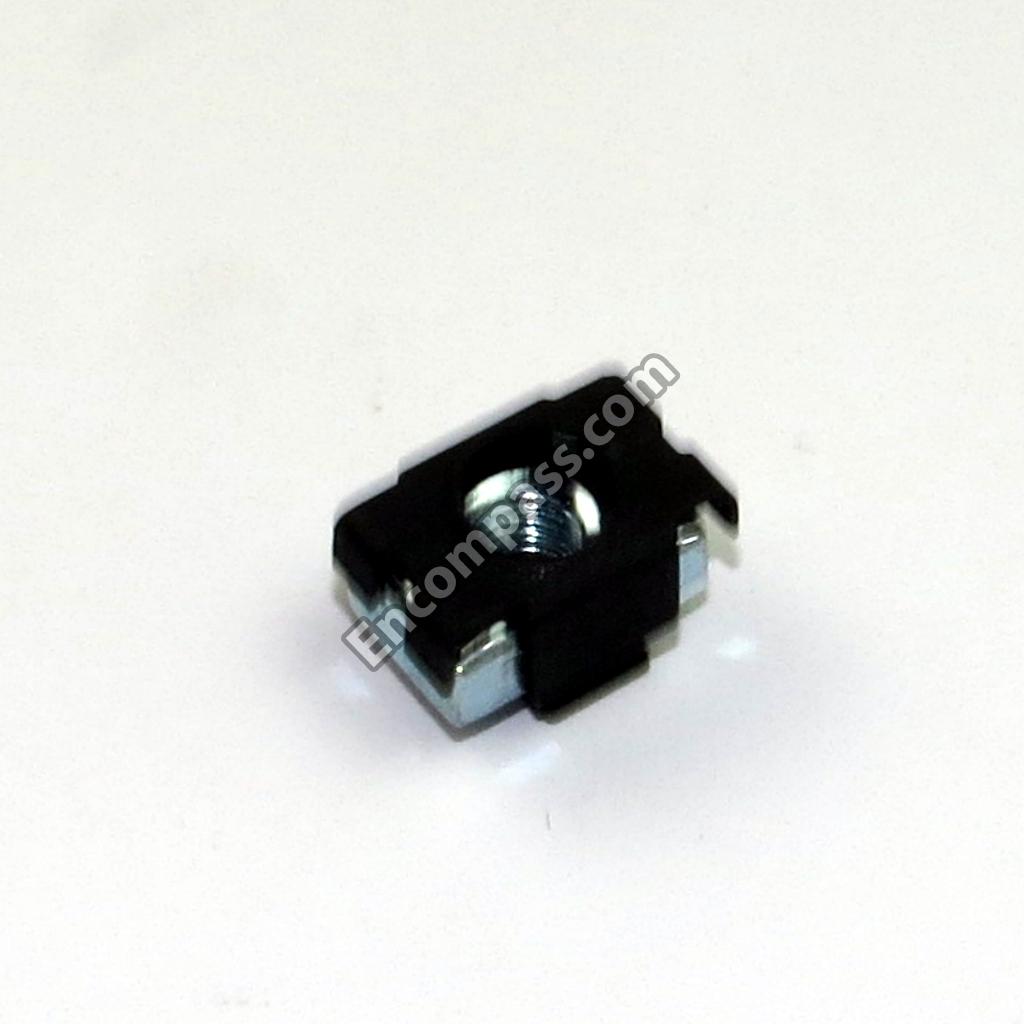

ASSEMBLY HOLDER-NUT;OTR6,SK5(T0.5) + S10C |
|
|
ASSEMBLY HVC;SMH7175,-,-,0.91UF HVC,-,- |
|
|
ASSEMBLY HVD;5KV,500,#250+#250 |
| DE96-01131B | ASSEMBLY LAMP LED;2EA,METAL,30*20,WHITE,2003 |
|
|

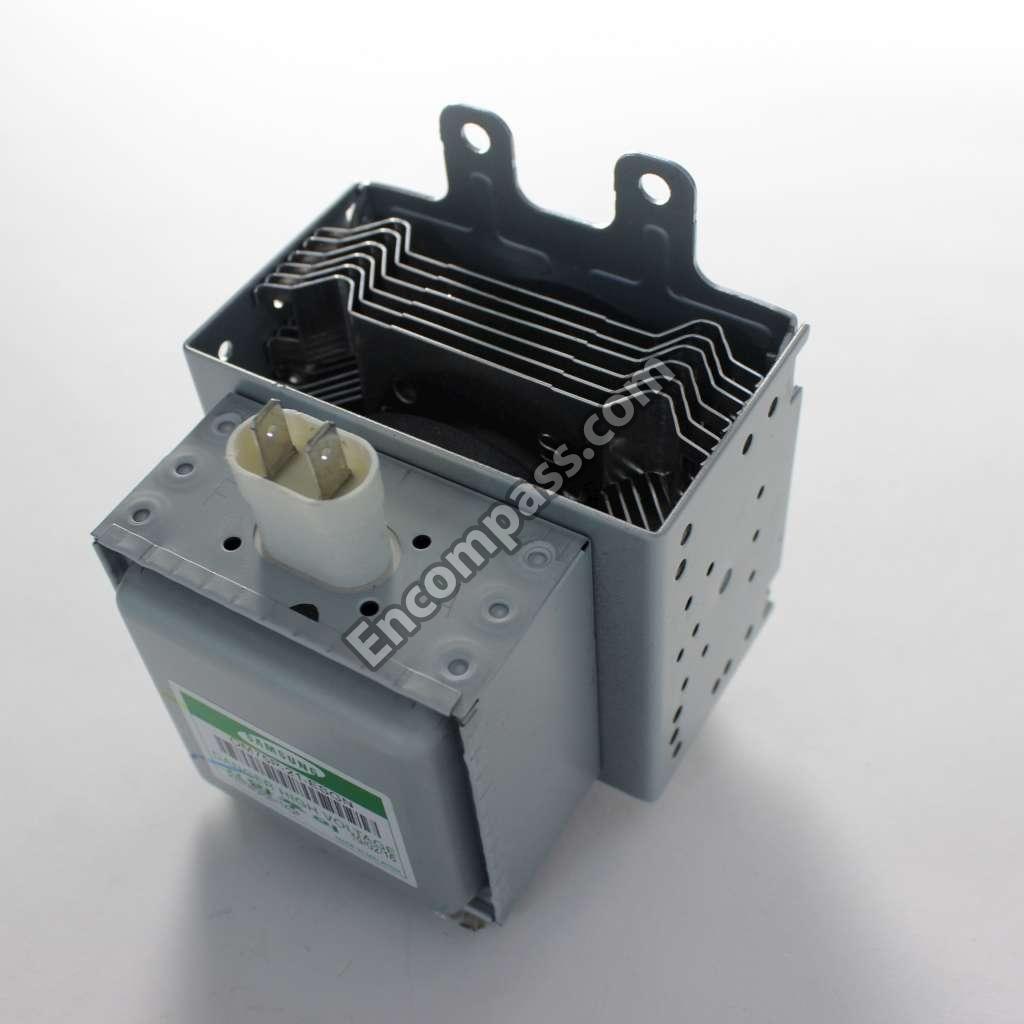

ASSEMBLY MGT |
| DE96-01155A | ASSEMBLY NOISE FILTER;-,250V/20A,250V/20A,1U |
| DE99-00235A | ASSEMBLY OUTPUT;MGT-RHN,-,- |
| DE94-05582A | ASSEMBLY PCB AUTO;MAIN PBA,ME7500D GOOD,194X |
| DE92-04759B | ASSEMBLY PCB DISPLAY;DISPLAY PBA,ME7500D GOO |
| DE92-04757C | ASSEMBLY PCB MAIN;MAIN PBA,ME7500D GOOD,194X |
| DE94-05583A | ASSEMBLY PCB SMD;MAIN PBA,ME7500D GOOD,194X9 |
|
|

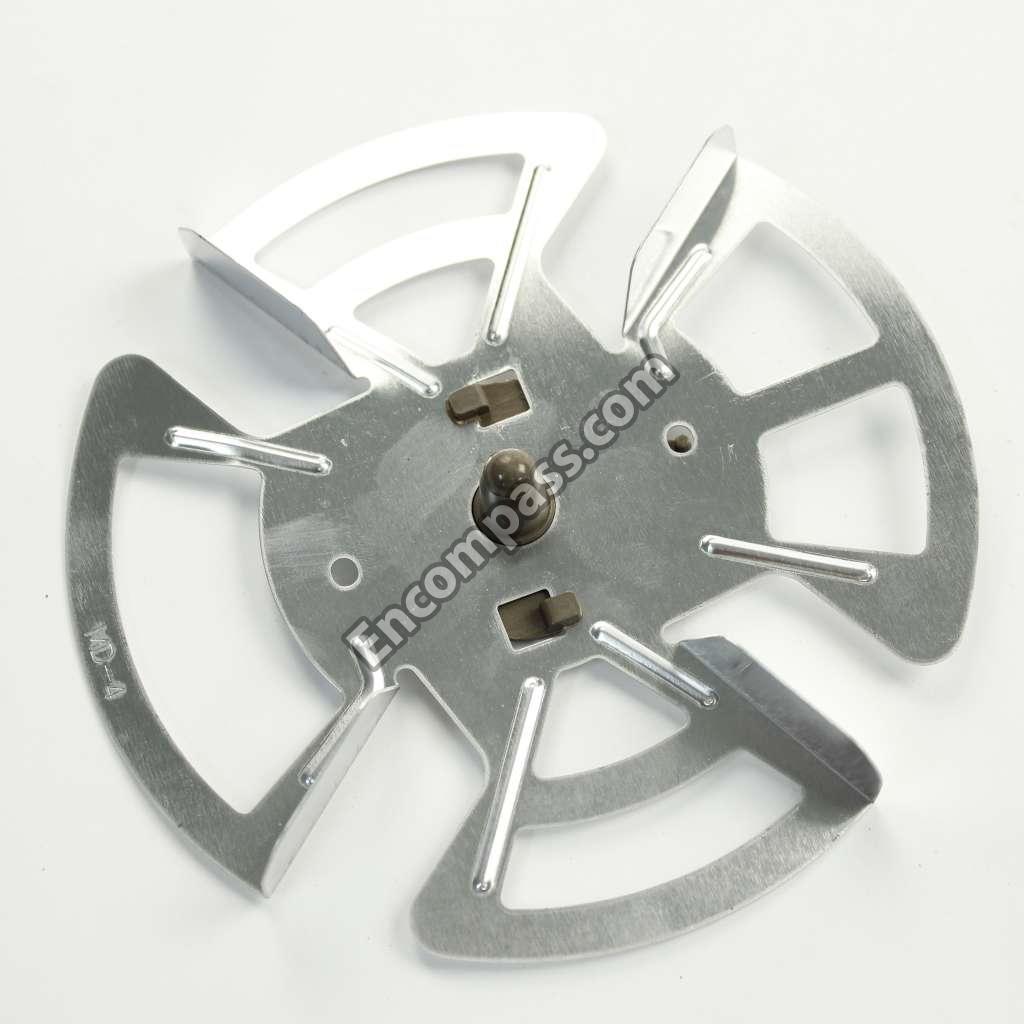

ASSEMBLY STIRRER;85053,MHC-4,ALP T0.6,SEARS |
|
|

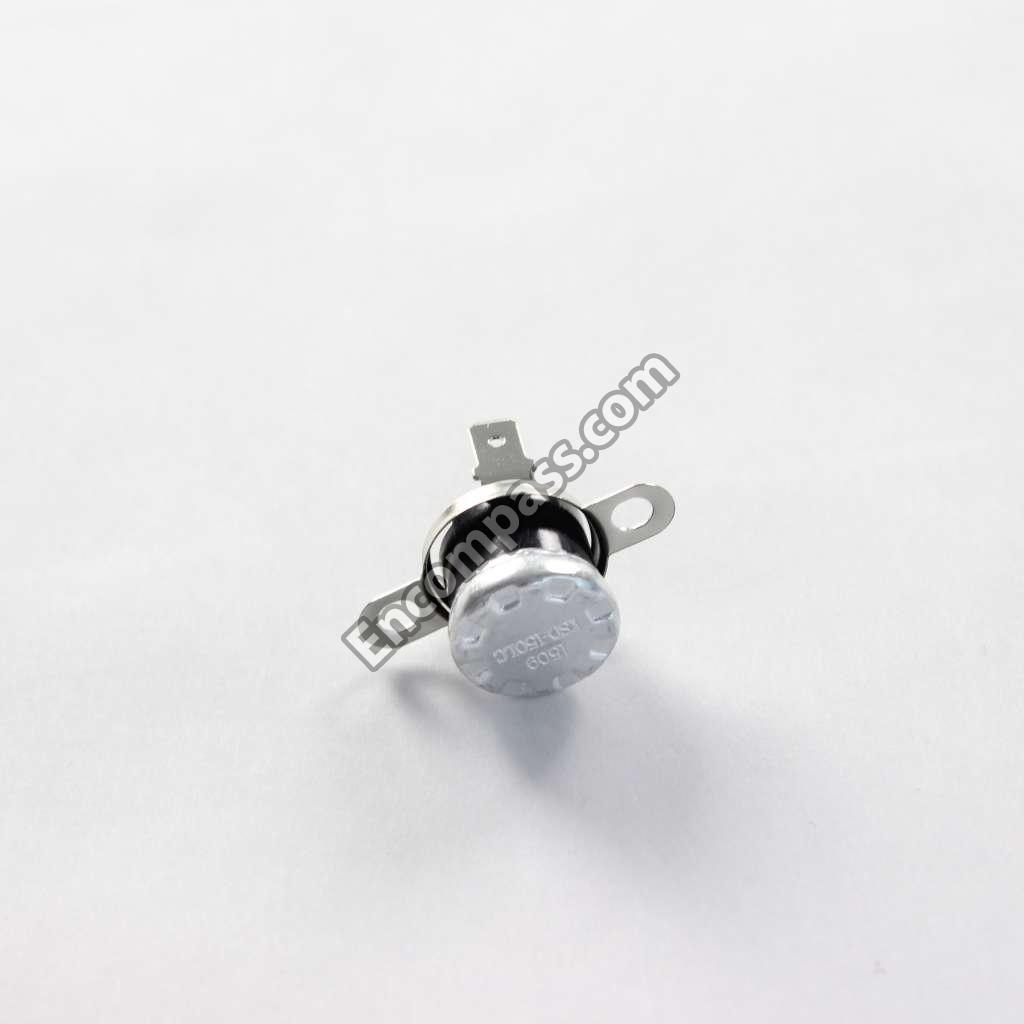

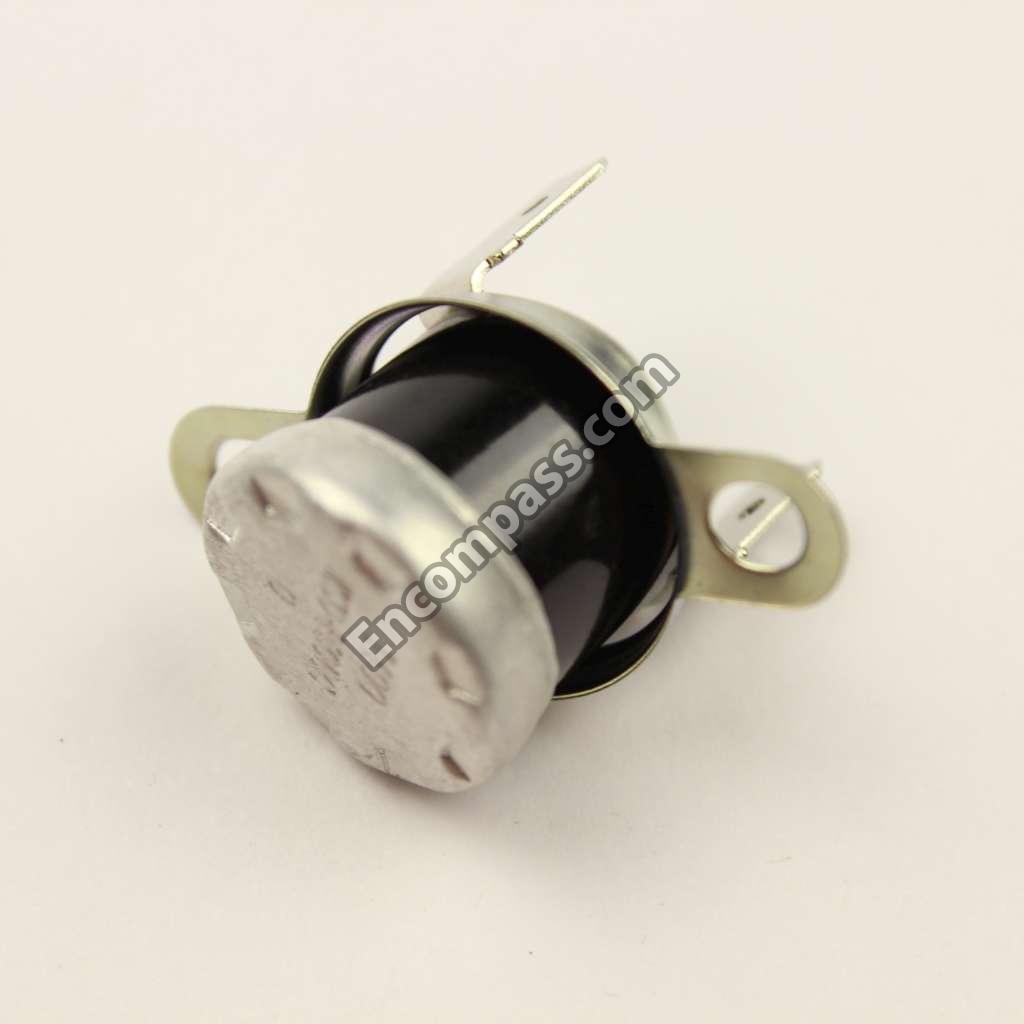

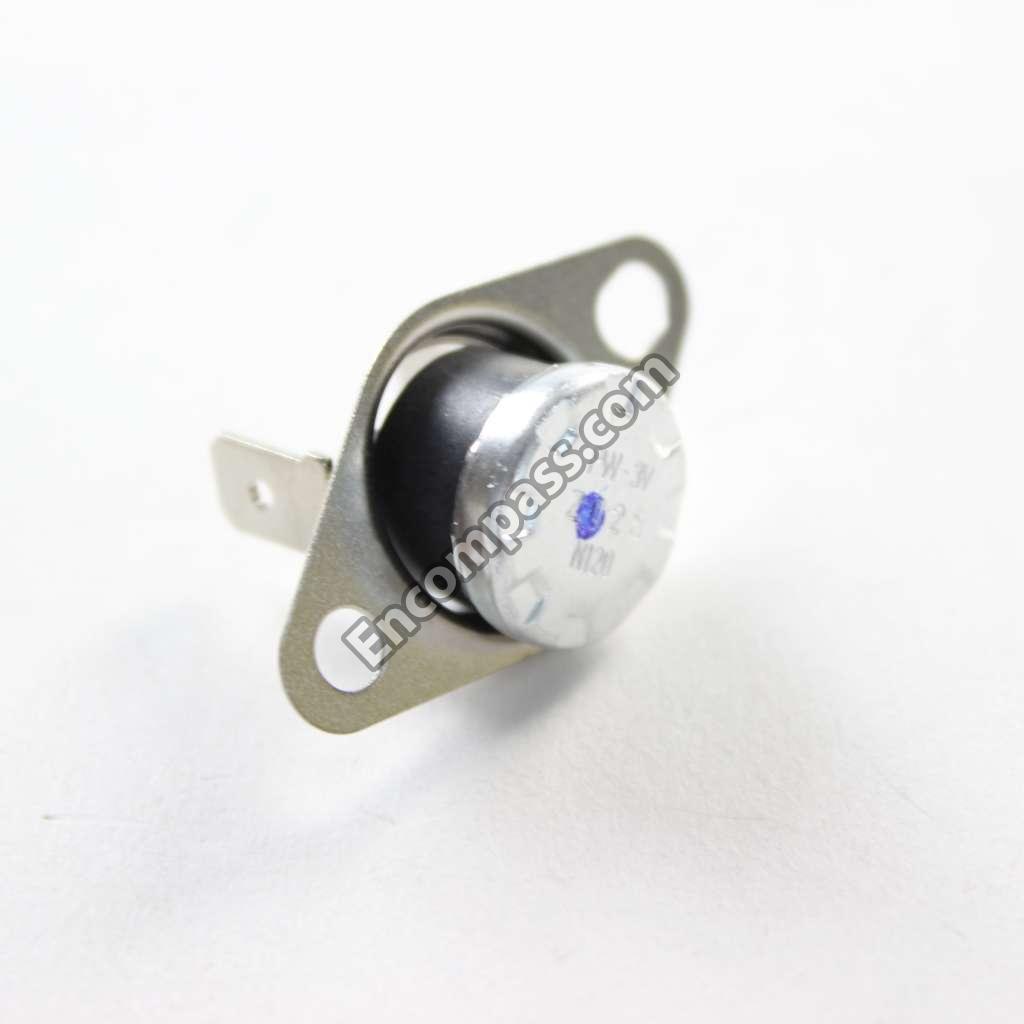

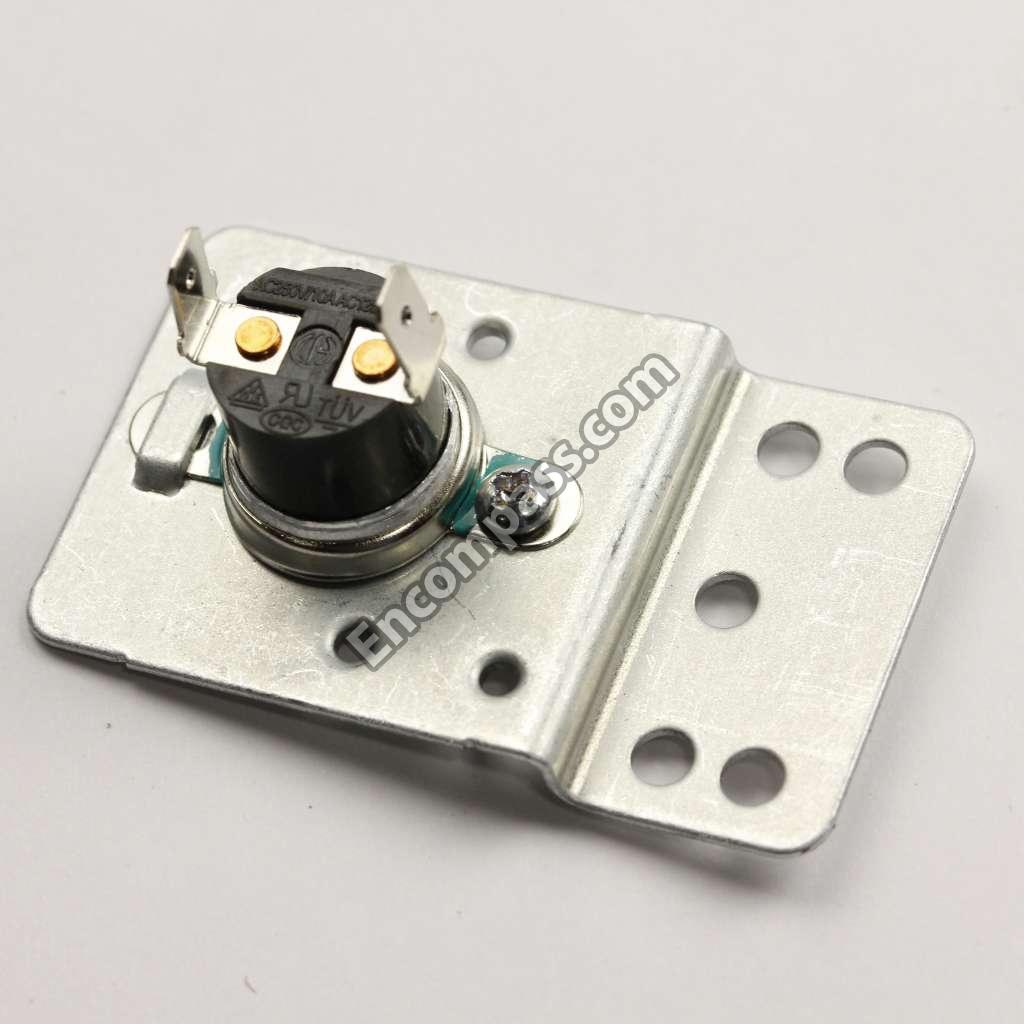

ASSEMBLY THERMOSTAT;ME16K3000AS/AA,160/60,BR |
| DE96-00948E | ASSEMBLY WIRE HARNESS-DISPLAY;ME21DB6300SRAA |
| DE96-01106D | ASSEMBLY WIRE HARNESS-DISPLAY;ME21DG6300SRAA |
|
|

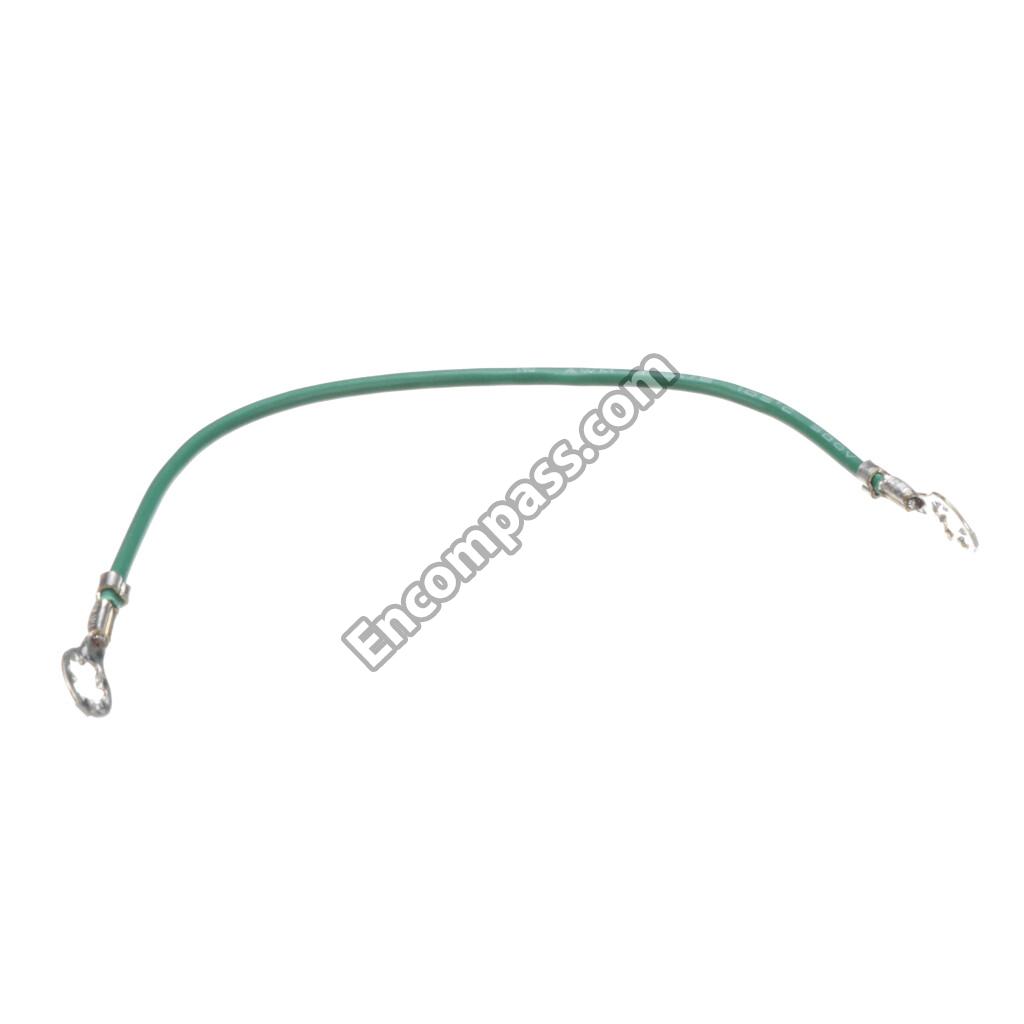

ASSEMBLY WIRE HARNESS-EARTH;OTR6ALLMODEL,120 |
| DE96-01104B | ASSEMBLY WIRE HARNESS-MAIN;ME21DB6700SRAA,12 |
| DE96-01026C | ASSEMBLY WIRE HARNESS-POWER;ME21DB6700SRAA,1 |
|
|
ASSEMBLY WIRE HARNESS-SENSOR;PVM-1970 / PVM- |
| DE96-00956D | ASSEMBLY WIRE HARNESS-SUB;ME21K7010DS/AA, LE |
| DE92-90242D | ASSEMBLY-HOOD DAMPER;JVM-1870,-,JVM250BL OTR |
| DE99-00224A | ASSEMBLY-ROD END;MGT-RHN,7.5*43.8 |
| DE61-01302B | BASE BOTTOM;MC17J8000CS/AA,EGI-SECC,T0.4 |
| DE61-01296C | BASE PLATE;MODULAR4,CR-SPE,T0. |
| DE61-01296D | BASE PLATE;MODULAR4,CR-SPE,T0. |
| DE61-01302A | BASE-BOTTOM;MODULAR4,EGI-SECC,T0.4 |
|
|

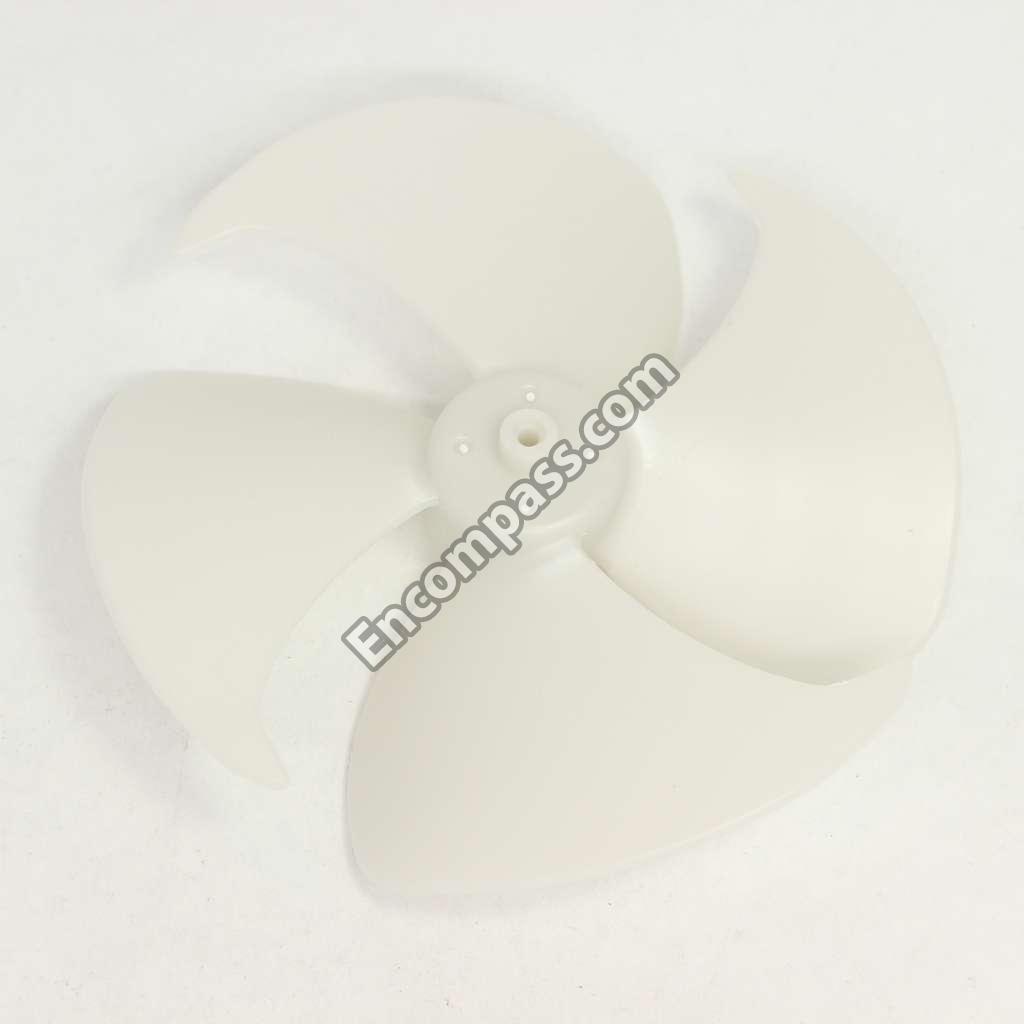

BLADE-FAN;MODULAR4,PP+TD40%,-,NATURAL,-, |
| DE66-00227A | BLADE-STIRRER;MODULAR4,ALCOAT-SA1C,T0.5, |
| DE72-10012D | BODY-ANODE;MGT-ALL,C1020T-H,T2,OD39XID35 |
|
|

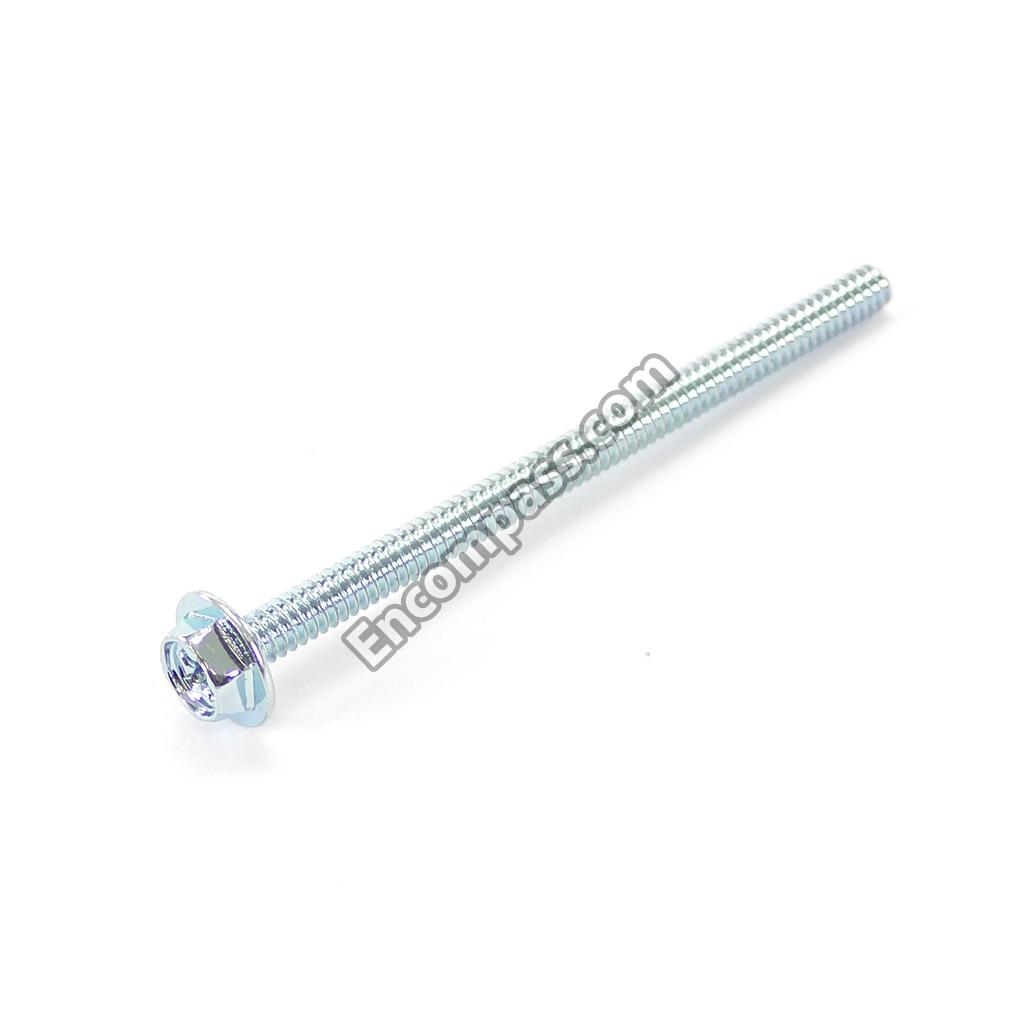

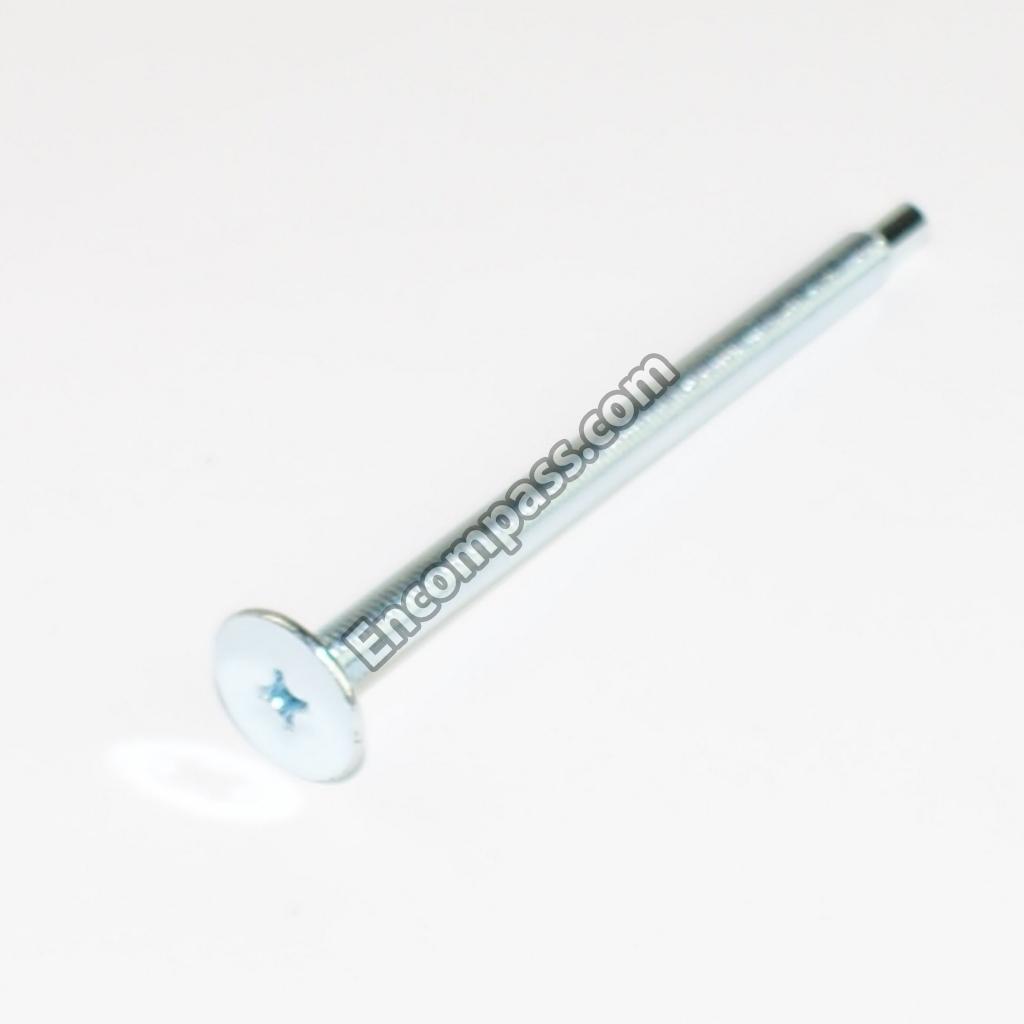

BOLT-FLAT;MSWR,L100,UNF1/4 |
|
|
BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA |
|
|
BOLT-TOGGLE;MSWR,W3/16X75,MSWR |
|
|
BRACKET BARRIER;JVM-1950DR1BB,EGI-SECC,T |
| DE61-00162A | BRACKET EARTH;JVM-1860,EGI-SECC,T0.5,W39 |
| DE61-01565B | BRACKET SUPPORTER;ME18H704SFG/AA,GI-SGCC |
|
|
BRACKET-BOTTOM LAMP;SMH2117S,EGI-SECC,T0 |
| DE61-01370A | BRACKET-COVER MOTOR;85059,EGI-SECC,T0.8, |
| DE61-00115A | BRACKET-HVC;SMH7175,EGI-SECC,T0.5 |
| DE61-01371A | BRACKET-TCO;SMH9151B/XAA,EGI-SECC,T0.6,- |
| 2402-000120 | C-AL,SMD;10UF,20%,50V,GP,TP,6.6X6.6X5.4M |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
|
|
C-FILM,LEAD;10,-25TO+70,220V,+10~-5,38X2 |
|
|

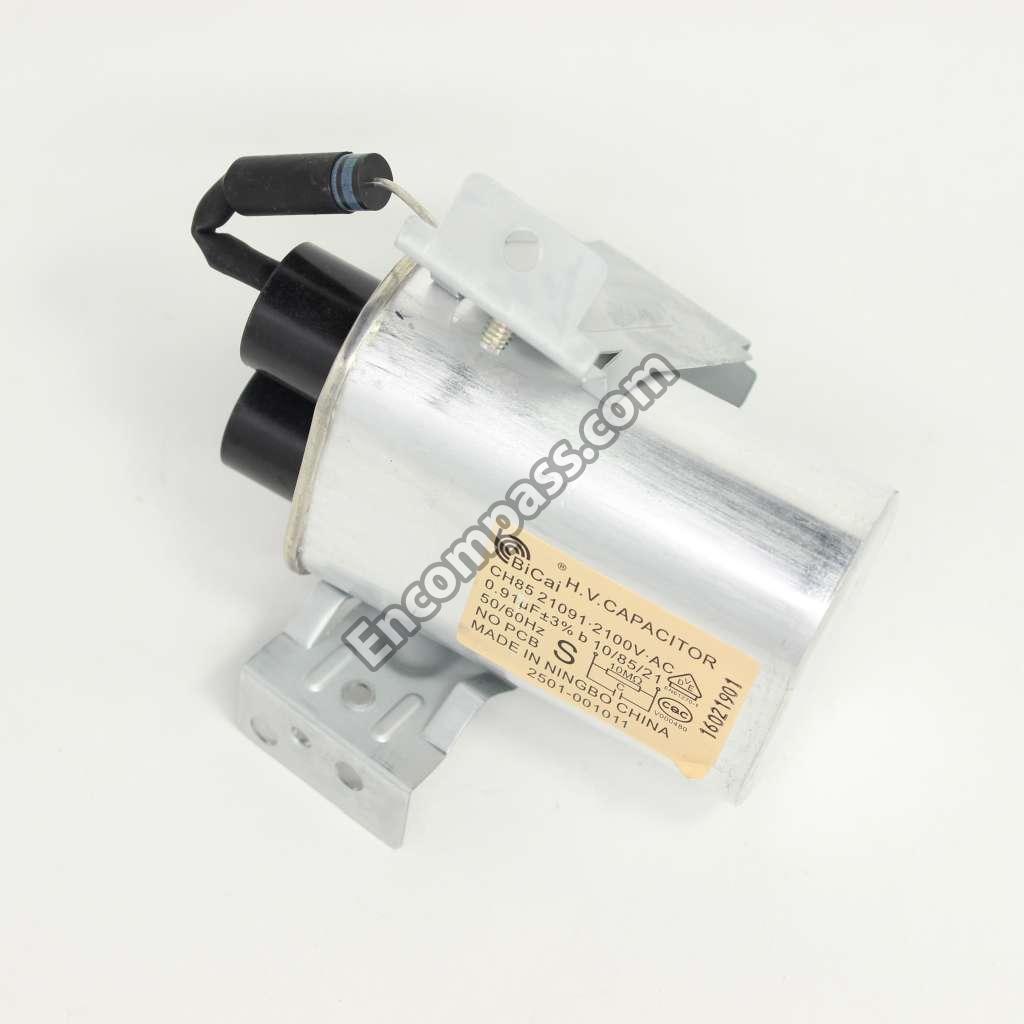

C-OIL HIGH VOLTAGE;910NF,2100V,BK,34X54X |
| 6502-000127 | CABLE CLAMP;DAWH-18NB,PA66,NTR |
| DE71-60270C | CAP-ANTENNA;MGT-ALL,CR-SPCE,T0.25,-,-,-, |
| DE02-00060A | CHEMICALS-ALCOHOL;DT-3000,COLORLESS,CLEA |
| DE02-00135A | CHEMICALS-TOLUENE;C6H5CH3,92.14 |
| DE73-00019A | CHOKE-RING;H-6,SPCCT-1/4H,T0.25X26X26,NI |
| DE62-00041A | CHOKE;MGT-RHN,SPCCT-1/4H,ID9.0,OD14.0,T0 |
|
|
COUPLER;PPS+GF40%,E1040SEW,NATURAL,-,OTR |
|
|
COVER CEILING;ME21K7010DS/AA,MICA SHEET, |
| DE63-00660A | COVER CONNECTOR;MODULAR4,PP,T2,HB,NATURA |
|
|
COVER DAMPER;JVM-1870,MICA SHEET,0.22,68 |
| DE63-00658A | COVER FRONT-SUB;MODULAR4,EGI-SECC,T0.4 |
|
|
COVER LAMP;MODULAR4,EGI-SECC,T0.4 |
| DE63-00661A | COVER MOTOR;MODULAR4,EGI-SECC,T0.6 |

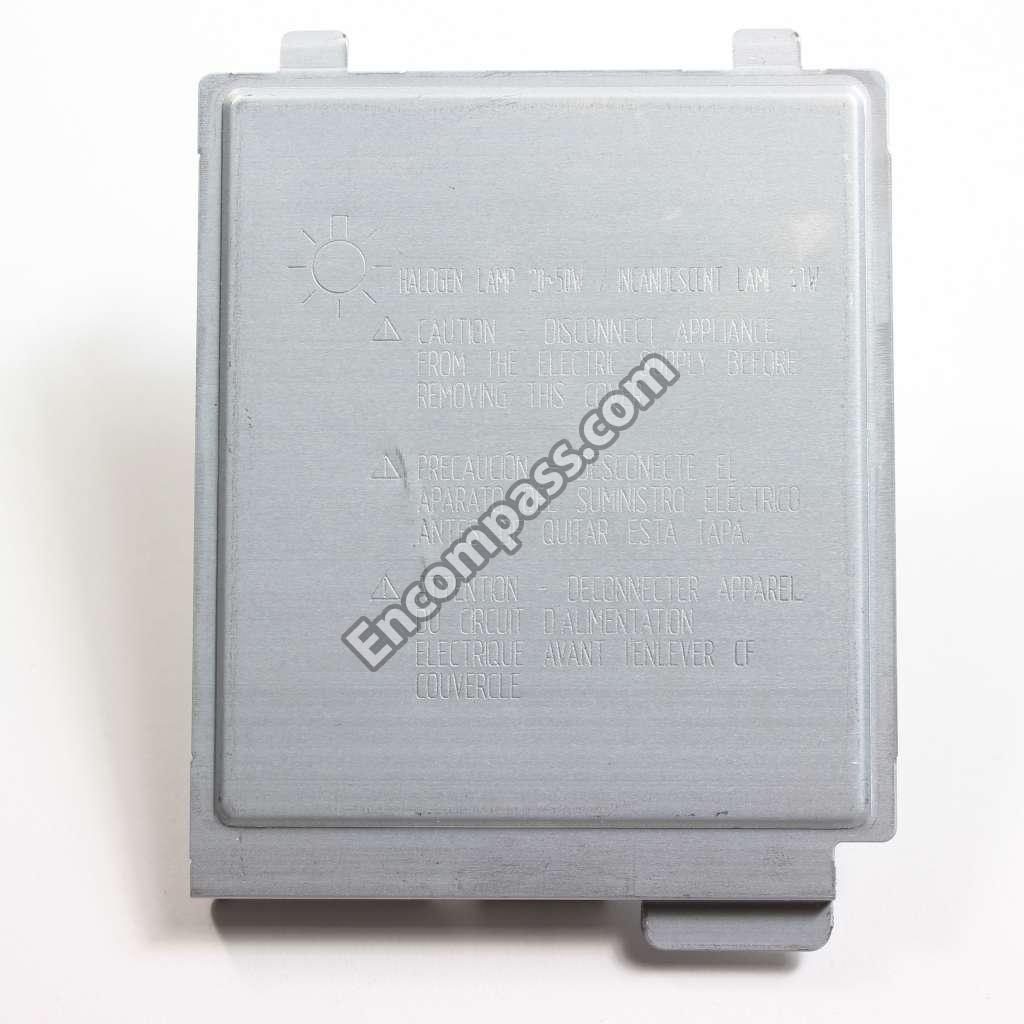

| DE63-00100A | COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,- |
| DE63-00100B | COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,- |
| DE71-00112A | COVER-FILTER;MGT-ALL,EGI-SECE,T0.4,V-0 |
| 2801-000258 | CRYSTAL-SMD;0.032768MHZ,20PPM,SMD,12.5PF |
| DE67-00184A | CUP-K;MGT-RHN,CR-SCP2,T0.5,W60,L60,-,- |
| DE63-90004B | CUSHION SPONGE;OTR,PUR FOAM,T10,W10,L100 |
|
|
DAMPER-MAIN;OTR,GI-SGCC,T0.5,L34,-,-,-,L |
| 0402-000324 | DIODE-BRIDGE;D3SB60,600V,4A,SIP-4,ST,120 |
|
|
DIODE-H.V;MWO,2CL4512H/CL04-12A,500MA,12 |
| 0404-001250 | DIODE-SCHOTTKY;RB520G-30,30V,100MA,SOD-7 |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.6V,5.32/5.88V,50 |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
|
|
DOOR C;ME21F707MJT,PP+TD30%,T1.5,HB,TB53 |
|
|
DOOR-CAP;MHC4,PP+TD30%,TB53D,NATURAL |
|
|
DOOR-KEY |
|
|
DOOR-KEY;MODULAR-2,POM,K300,BLACK |
| DE67-00264A | DUCT-EXHAUST;MODULAR4,GI-SGCC,T0.5 |
|
|
DUCT-REAR;MODULAR4,EGI-SECC,T0.4 |
| DE67-00262A | DUCT-UPPER FRONT;MODULAR4,EGI-SECC,T0.4 |
| DE67-00263A | DUCT-UPPER REAR;MODULAR4,EGI-SECC,T0.4 |
| 0505-000110 | FET-SILICON;2N7002,N,60V,115MA,7.5OHM,0. |
| DE47-80008A | FILAMENT;PI0.5,ID3.0,OD4.0,L13.4,T0.5,VT |
|
|

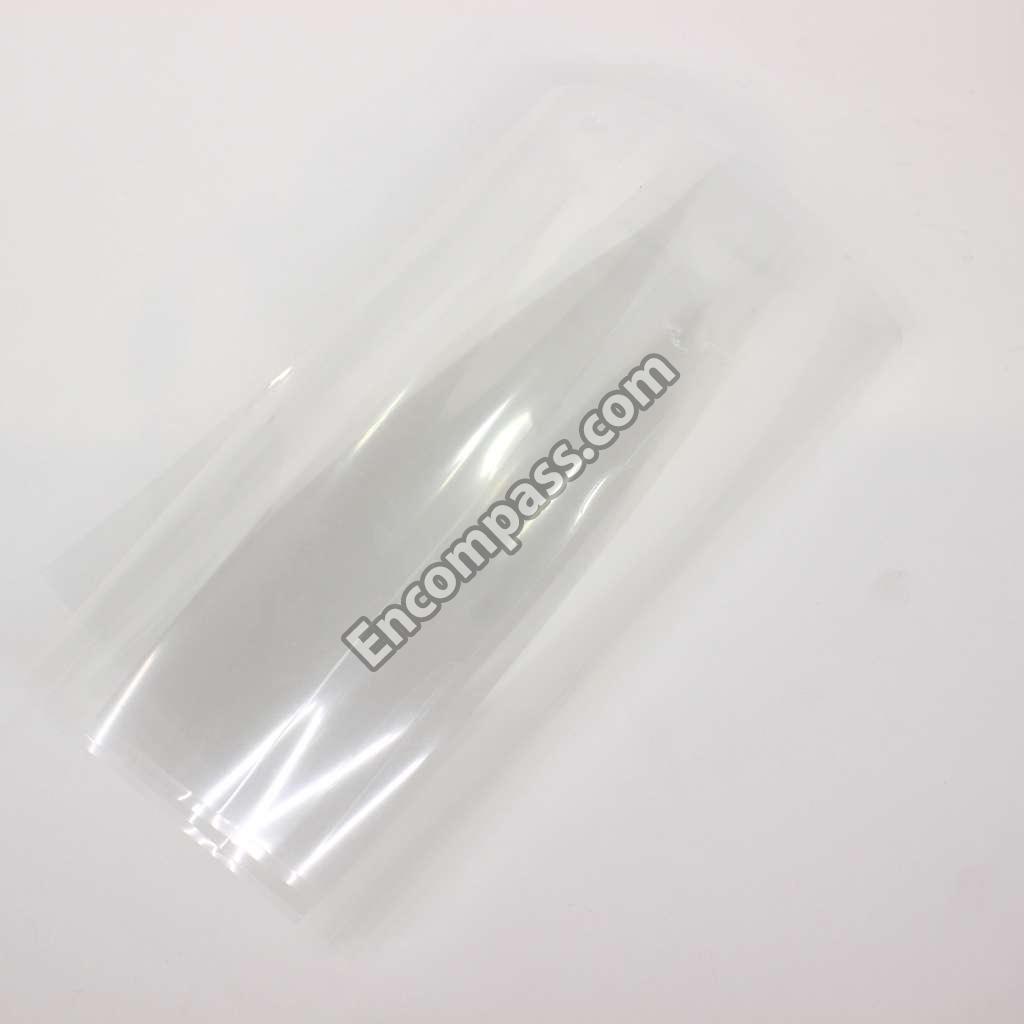

FILM DOOR;JVM-1860,POLYESTER,PET,L479,T0 |
|
|

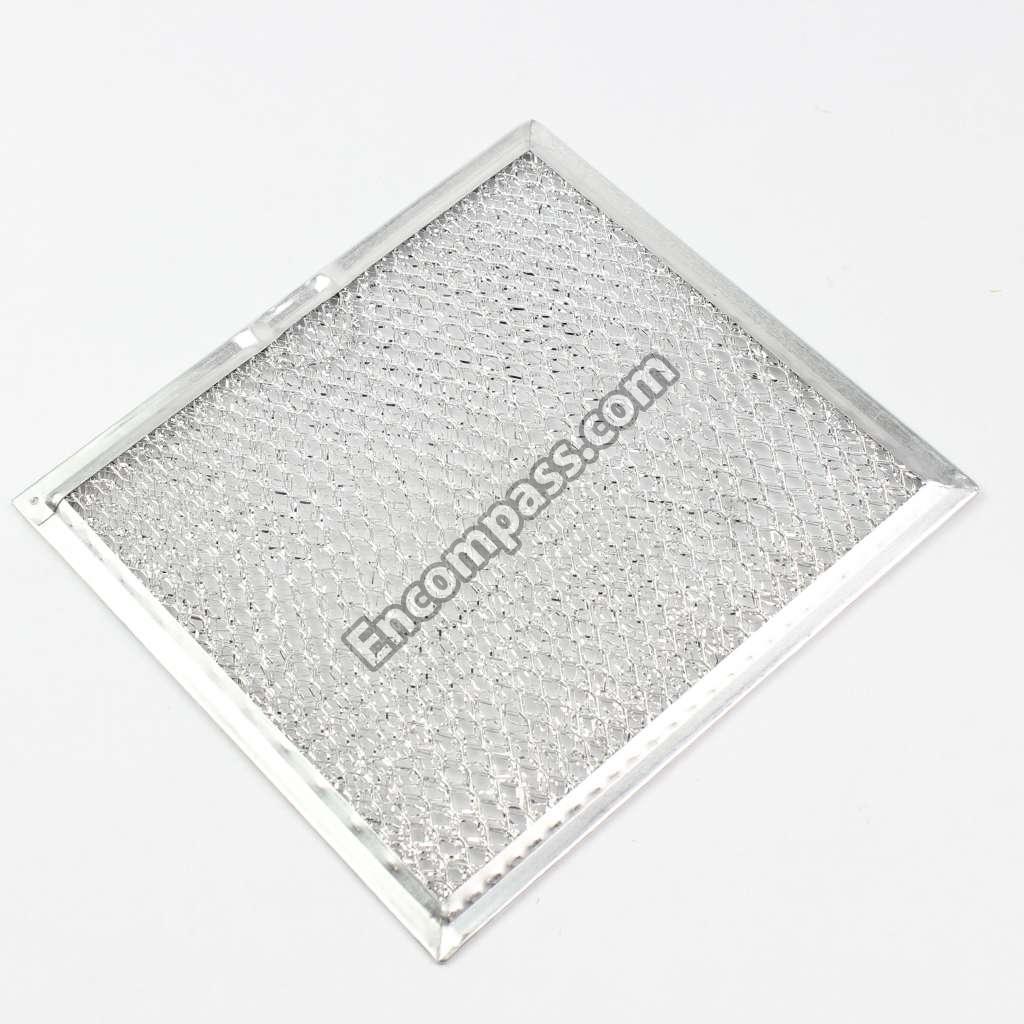

FILTER AIR;MODULAR4,AL,W172.9,L161.2,4 L |
|
|

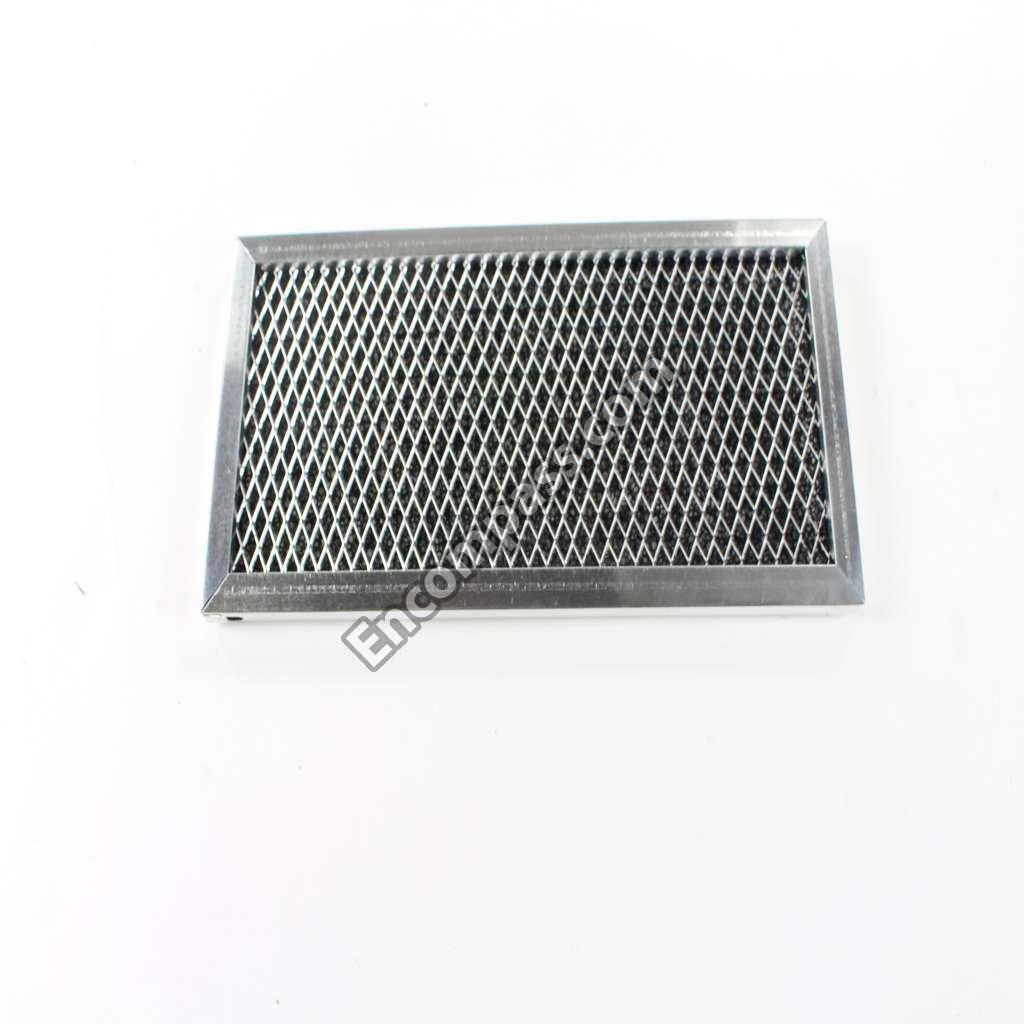

FILTER CHARCOAL;MD4,ACTIVATED CARBON,T9, |
| DE63-20015A | GASKET-R.F;MGT-ALL,BRASS,T2,OD39,ID16.8, |
|
|

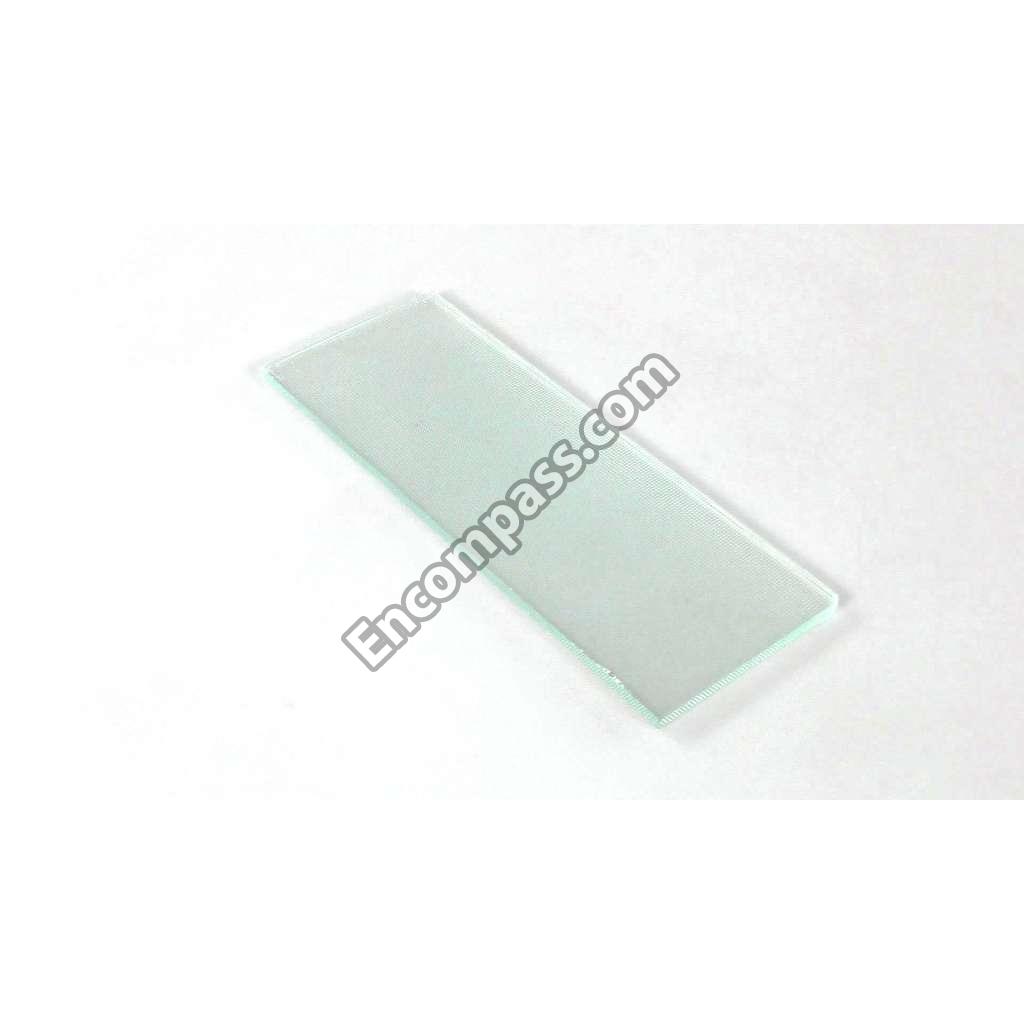

GLASS-COOK TOP LAMP;GLASS,T2.8,W59,L159. |
|
|

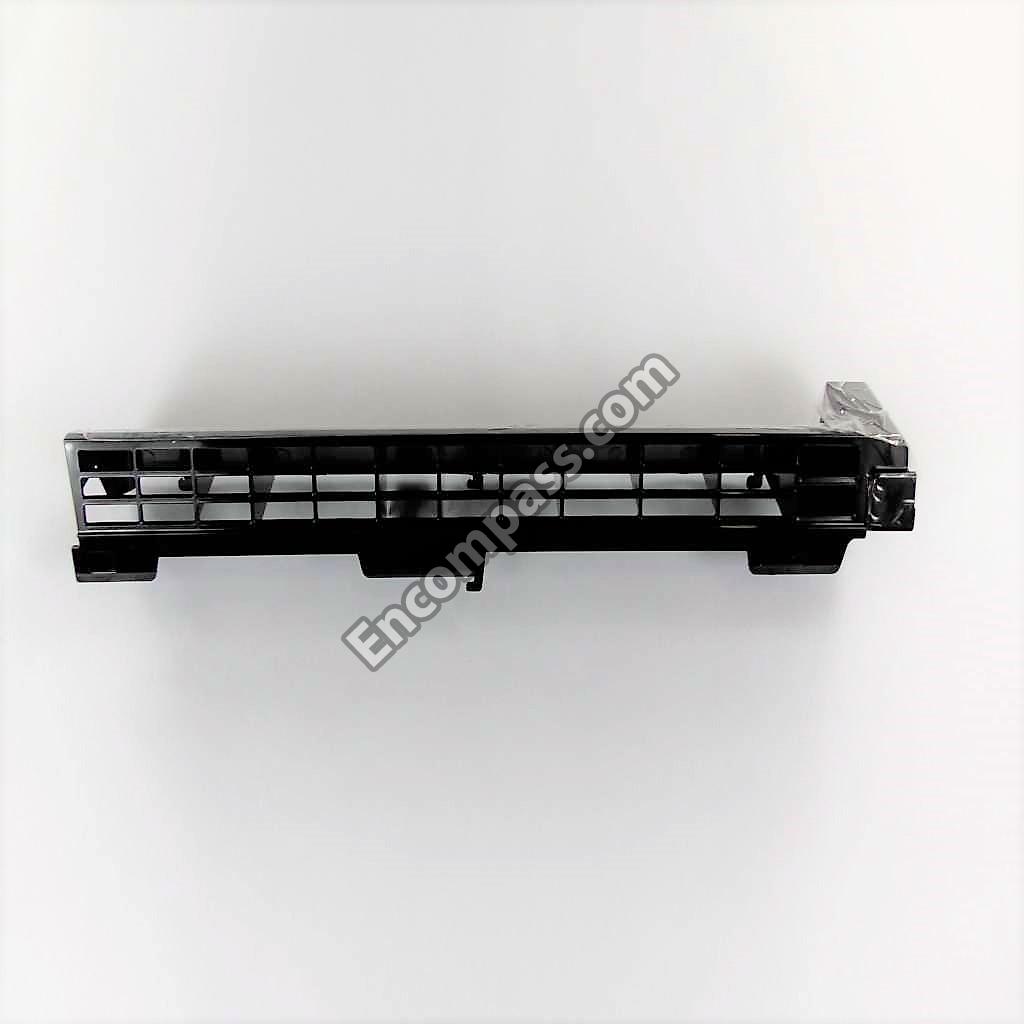

GRILLE;ME21F707MJT,PC,T2.5,W615.8,L85.1, |
| DE61-01299A | GUIDE-STIRRER AIR;MODULAR4,EGI-SECC,T0.4 |
| DE61-01297B | GUIDE-VENT AIR;JVM1950,PVM1970,PVM2170,P |
| 3711-000203 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-001038 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P, |
| 3711-004236 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P, |
| 3711-003843 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,8P, |
| 3711-004143 | HEADER-BOARD TO CABLE;BOX,2P/3P,1R,5MM,S |
| 3711-004142 | HEADER-BOARD TO CABLE;BOX,3P,1R,5MM,STRA |
| 3711-000939 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST |
| 3711-004484 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| DE61-01301A | HOLDER-HALOGEN LAMP;MODULAR4,EGI-SECC,T0 |
|
|
HOLDER-SENSOR;POM,NATURAL,HB,K300,K300 |
|
|
HOLDER-STIRRER;MD3,PPS+GF40%,T-,NATURAL, |
| DE61-00164A | HOLDER-WIRE;OTR8,PP+TD30%,NATURAL,HB,TB5 |
| 1103-001183 | IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8 |
| 1201-001125 | IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D |
| 1203-006759 | IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3 |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DG68-00785A | LABEL INSTRUCTION;NX58K7850SS, |
| DE47-00032D | LAMP SOCKET-HALOGEN;250V,UL SPEC,CERAMIC |
|
|

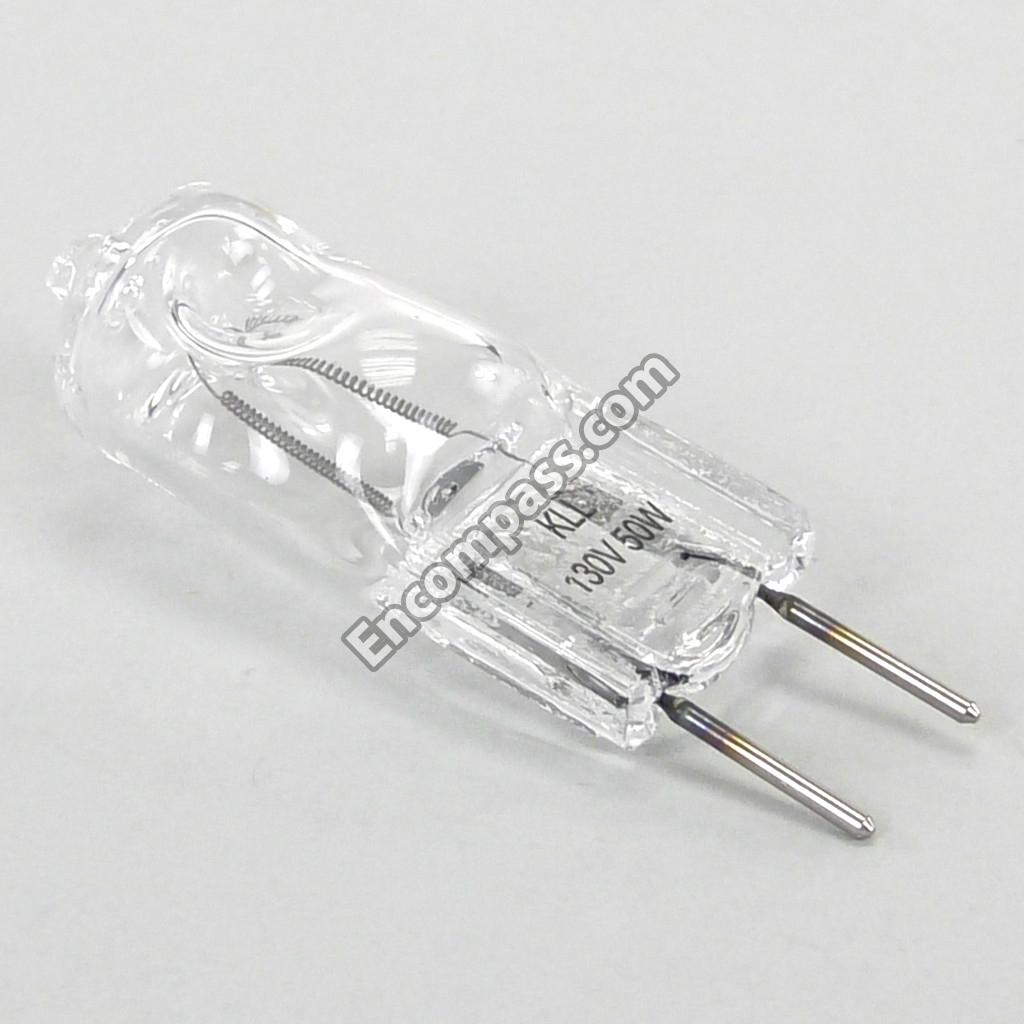

LAMP-HALOGEN;130V,50W,NTR,380LM,13*41,9. |
|
|

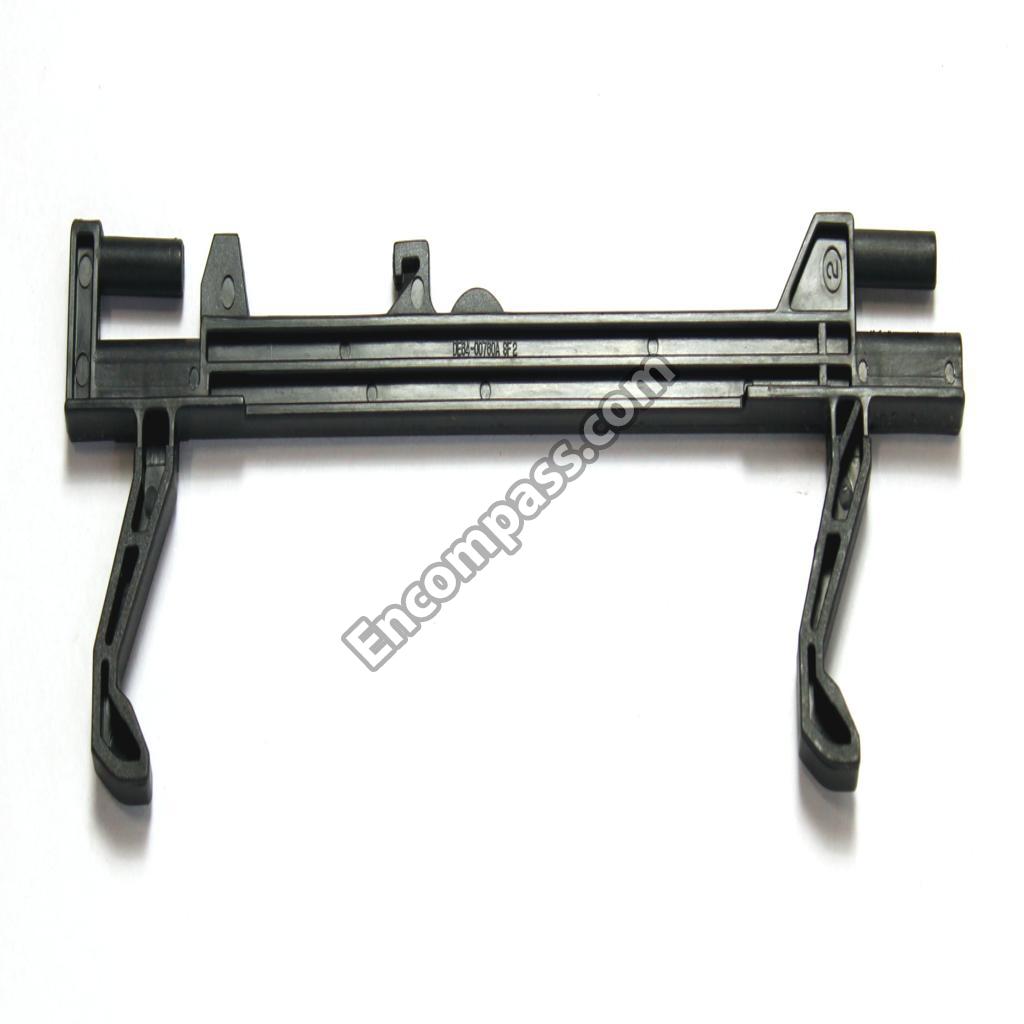

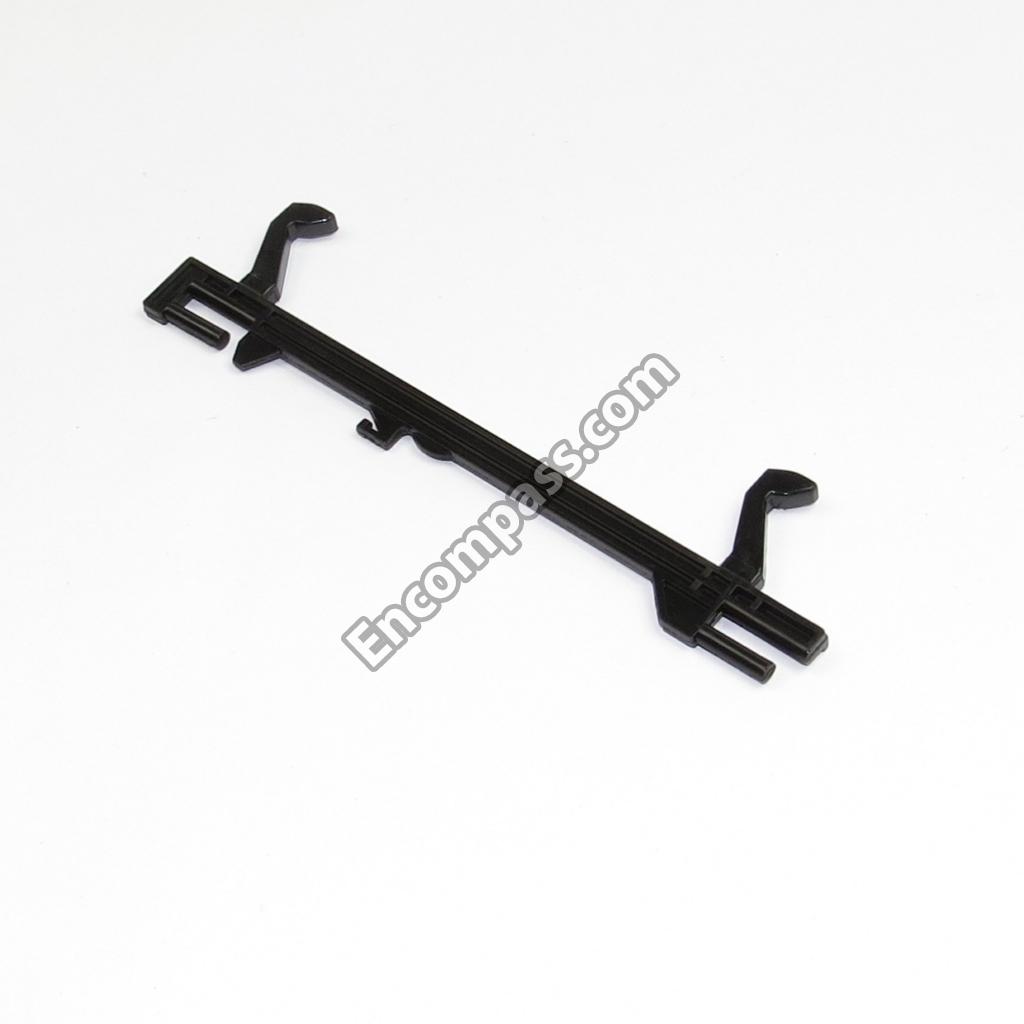

LATCH BODY;JVM1950, PVM1940, PVM2170,PP, |
|
|
LEVER SWITCH-LOWER;OTR6,POM,-,F20-03,NAT |
| DE73-90014A | MAGNET-CATHODE;FERRITE,T13.1,PMF-2BB |
|
|

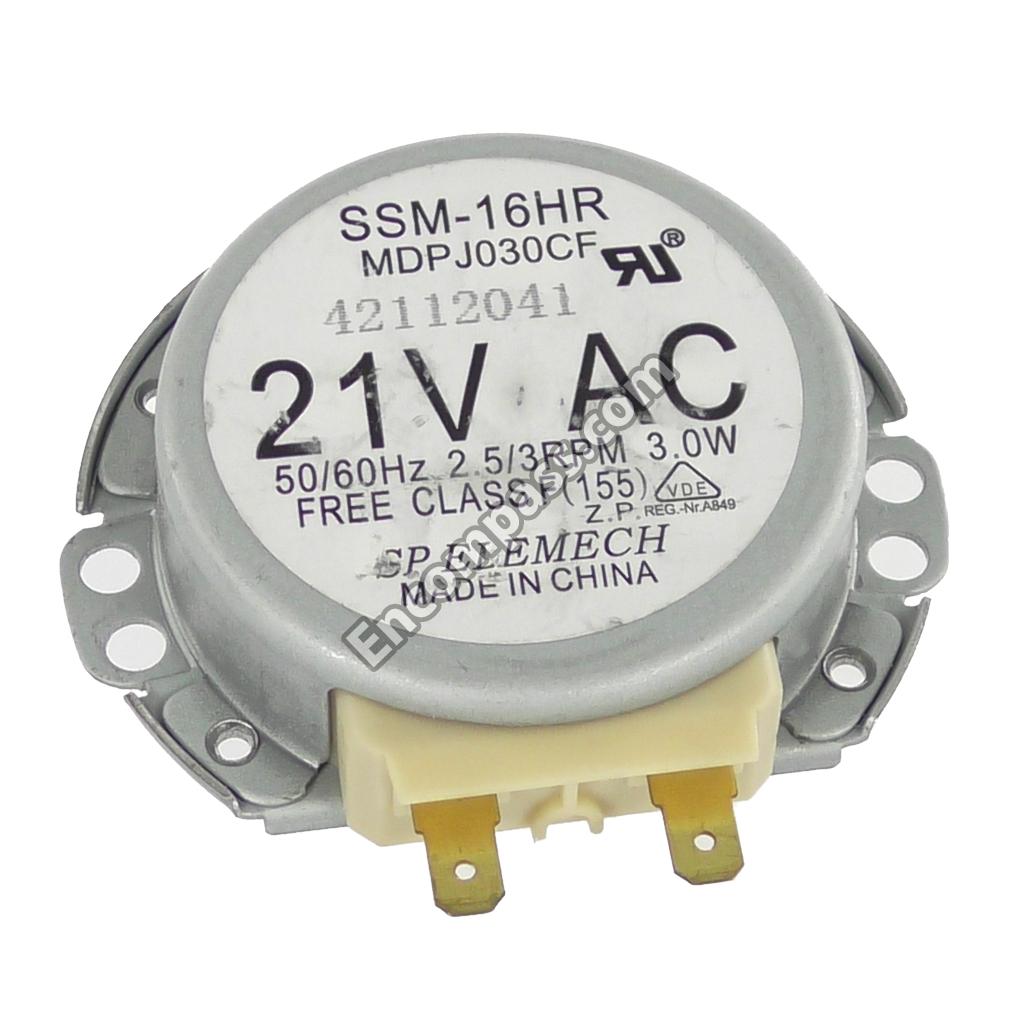

MOTOR AC DRIVE;ME6000A,SSM-16HR,8POLE,21 |
|
|

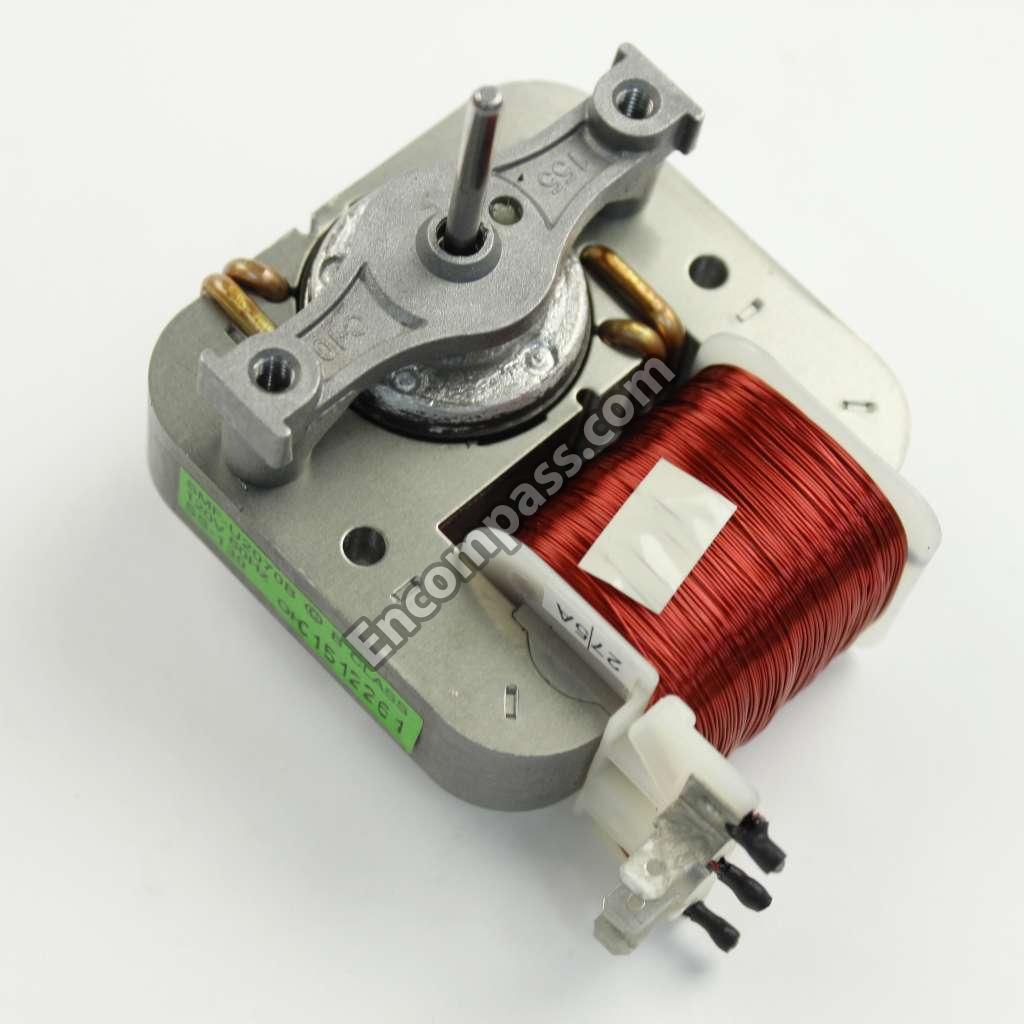

MOTOR AC FAN;SMF-U2070B,2,120V,60HZ,25W, |
|
|
MOTOR AC VENTILATION;SMV-U460B,2POLE,120 |
| DE60-30022A | NUT TOGGLE;ZPC,ZPC2 |
| DE64-02379M | PANEL OUTER;ME21DG6300SRAA,EGI-SECC,T0.4 |
| DE64-02379N | PANEL OUTER;ME21DG6300SRAA,EGI-SECC,T0.4 |
| 0604-001002 | PHOTO-COUPLER;TR,100-600%,170MW,SOP,TP |
| DE62-20011B | PIPE-EXHAUST;MGT-RHN,C1020BD-H,L7,OD12,L |
| DE62-20020A | PIPE-TITANIUM;MGT-ALL,TI,ID1.8,OD2,L2.0, |
| DE61-00569A | POLE-PIECE(A);MGT-RHN,SCP2-S D,NI-PLATIN |
| DE61-00570A | POLE-PIECE(K);MGT-RHN,SCP2-S D,NI-PLATIN |
| DE02-00040A | POWDER-EPOXY;TMP-350,EPOXY,TITANUM,MESH |
|
|

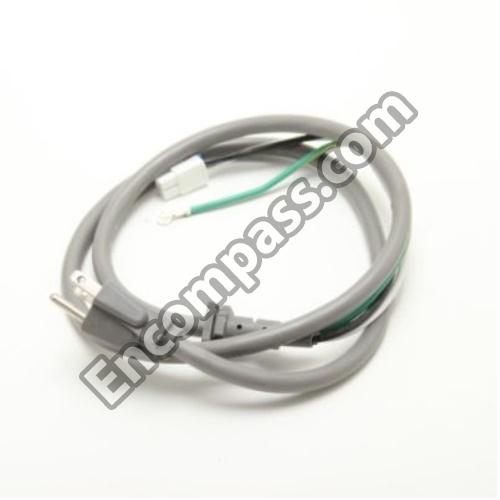

POWER CORD-AT;SJT 3X14AWG 105C,GRY,US3S, |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000467 | R-CHIP;1KOHM,1%,1/4W,TP,3216 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-008791 | R-CHIP;2.2OHM,1%,1/16W,TP,1005,T0.3 |
| 2007-000670 | R-CHIP;2KOHM,1%,1/4W,TP,3216 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-001162 | R-CHIP;75KOHM,5%,1/4W,TP,3216 |
|
|
RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1 |
| 2802-001211 | RESONATOR-CERAMIC;8MHZ,0.5%,0.2%,TP,3.2X |
|
|

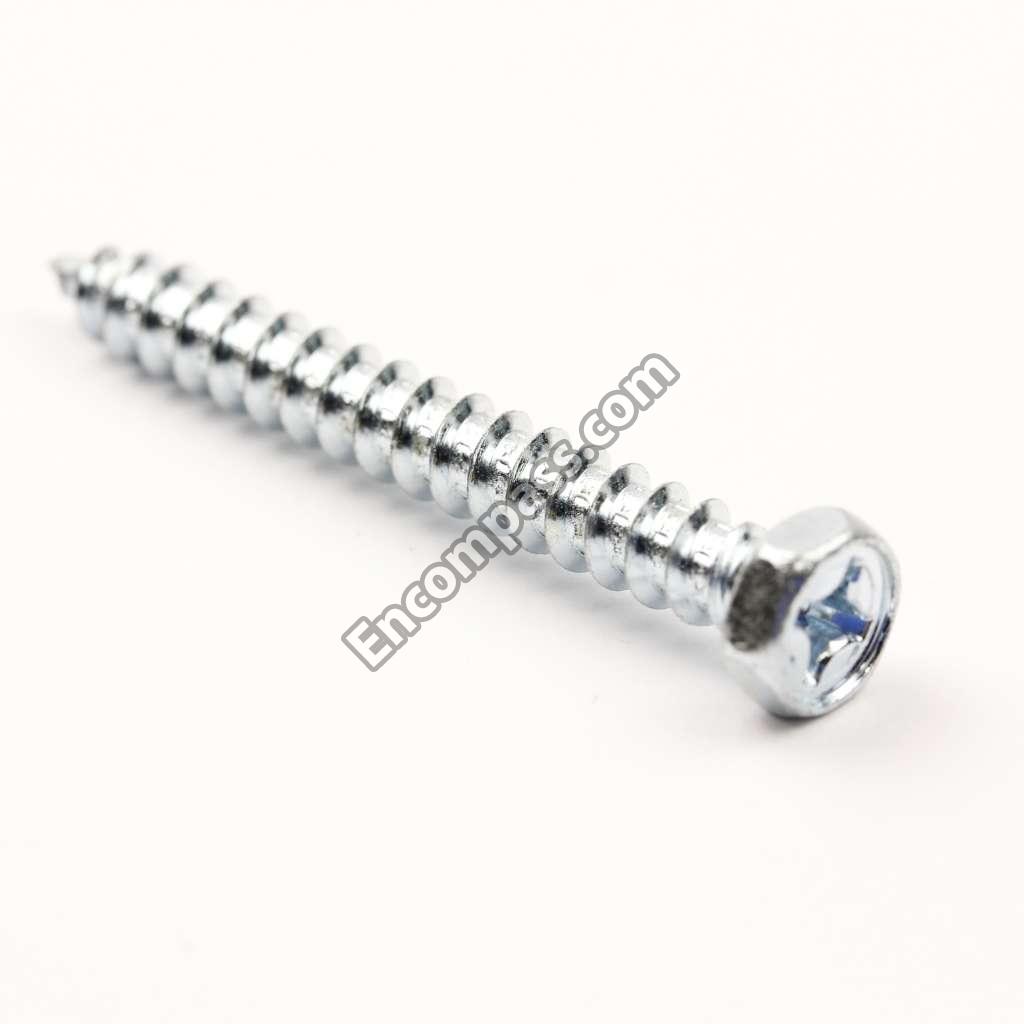

SCREW-TAPPING;STS304,NI PLT,L8,M4,TH,+,2 |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,F |
| DE60-10062A | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T |
| 6002-000522 | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L15,M4,T |
| DE60-10067A | SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH |
| 6002-000432 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
| 6002-001237 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M3,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M5,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M3,PH |
| DE60-10051A | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M4,PH |
| 6002-001614 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PW |

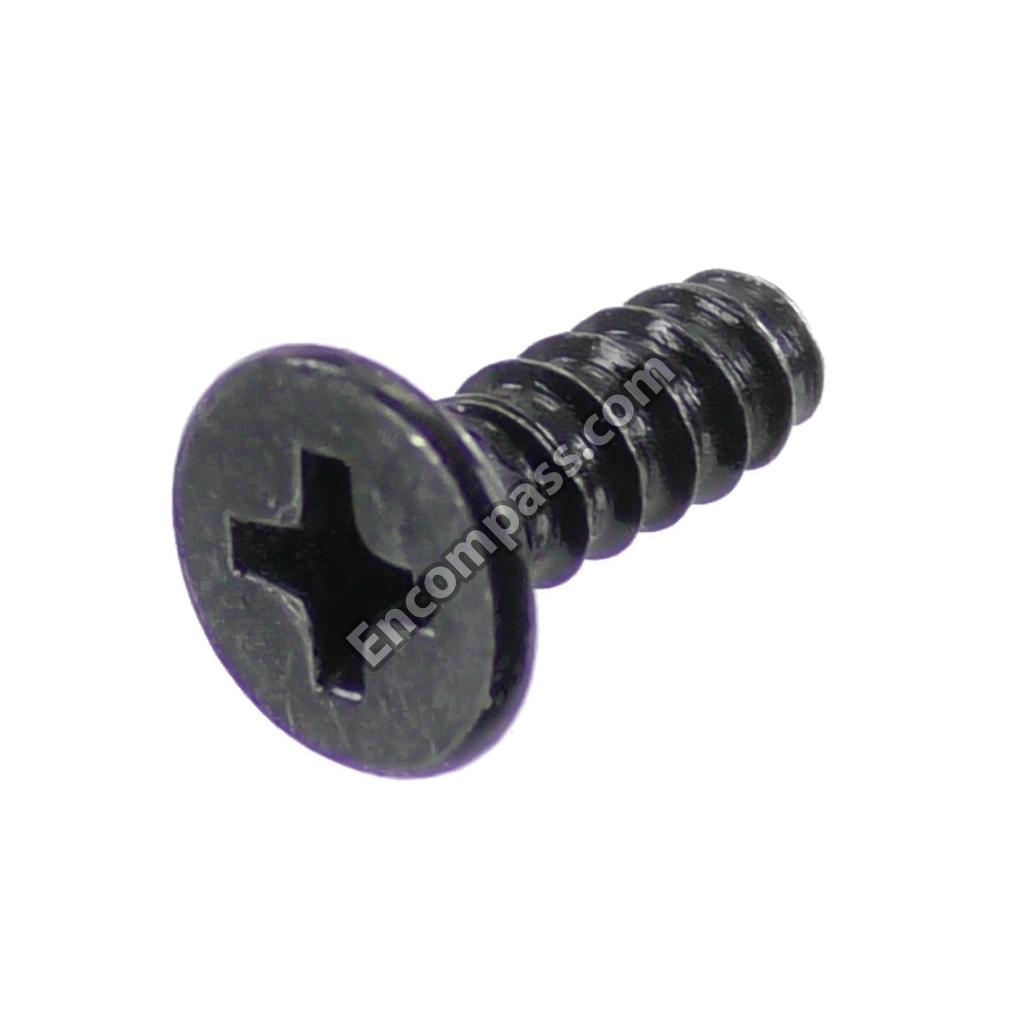

| DE81-01903A | SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L16,M4,F |
| 6006-001176 | SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,PH |
| DE74-10011A | SEAL-WASHER;MGT-ALL,TK721(AG+CU),T0.05,I |
| DE32-00012A | SENSOR-GAS;5V,-,0MM,-,GAS,ANALOG |
| DE70-90027A | SHEET-ALLOY;ST-NIFE,COIL,T0.5,W34,ALLOY |
| DE70-90033A | SHEET-BRAZE;MGT-ALL,VAGCU28,T0.35,PI0.3X |
| DE71-00042A | SHIELD-CUP(A);MGT-ALL,CR-SCP2,T0.5,W60,L |
| DE71-80021A | SHIELD-END;MO,T2.5,OD7.5,ID3.4,-,-,- |
| DE71-80022A | SHIELD-TOP;MGT-ALL,MO,T2,W7.5,L1.74,-,-, |
| 2203-007795 | SMG PART |
| 2203-007392 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007861 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007589 | SMG PART |
| 2007-007586 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007107 | SMG PART |
| 0106-001061 | SMG PART |
| 0106-001101 | SMG PART |
| 0106-001313 | SMG PART |
| 0201-001328 | SMG PART |
| 0202-001463 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-001373 | SMG PART |
| 0204-004665 | SMG PART |
| 0204-009273 | SMG PART |
| 0402-001472 | SMG PART |
| 0402-001741 | SMG PART |
| 0404-001241 | SMG PART |
| 0504-001064 | SMG PART |
| 0505-001943 | SMG PART |
| 0604-001405 | SMG PART |
| 0903-002203 | SMG PART |
| 1203-004400 | SMG PART |
| 1203-009429 | SMG PART |
| 1404-001872 | SMG PART |
| 1405-001438 | SMG PART |
| 2007-001262 | SMG PART |
| 2007-007219 | SMG PART |
| 2007-007336 | SMG PART |
| 2201-002690 | SMG PART |
| 2202-002252 | SMG PART |
| 2203-010033 | SMG PART |
| 2203-010142 | SMG PART |
| 2401-004553 | SMG PART |
| 2401-005669 | SMG PART |
| 3002-001129 | SMG PART |
| 3301-002113 | SMG PART |
| 3501-001306 | SMG PART |
| 3601-001288 | SMG PART |
| 3711-001037 | SMG PART |
| 3711-002046 | SMG PART |
| 3711-004201 | SMG PART |
| 4709-003218 | SMG PART |
| 6812-000145 | SMG PART |
| 6902-001500 | SMG PART |
| 6902-002671 | SMG PART |
| 6902-003459 | SMG PART |
| DB68-05458A | SMG PART |
| DE01-00228A | SMG PART |
| DE01-00288A | SMG PART |
| DE01-00305A | SMG PART |
| DE02-00014A | SMG PART |
| DE02-00029A | SMG PART |
| DE02-00049A | SMG PART |
| DE26-00170B | SMG PART |
| DE41-00492A | SMG PART |
| DE42-00006A | SMG PART |
| DE42-00007A | SMG PART |
| DE59-00008A | SMG PART |
| DE60-60071A | SMG PART |
| DE61-00161D | SMG PART |
| DE61-01042A | SMG PART |
| DE61-01043A | SMG PART |
| DE61-01288B | SMG PART |
| DE61-01290G | SMG PART |
| DE61-01291B | SMG PART |
| DE61-01292D | SMG PART |
| DE61-01293B | SMG PART |
| DE61-01294B | SMG PART |
| DE61-01295B | SMG PART |
| DE61-01296B | SMG PART |
| DE61-01541A | SMG PART |
| DE61-01542A | SMG PART |
| DE61-01553B | SMG PART |
| DE61-01603A | SMG PART |
| DE61-50279A | SMG PART |
| DE62-00019A | SMG PART |
| DE62-00020A | SMG PART |
| DE62-00039A | SMG PART |
| DE63-00008H | SMG PART |
| DE63-00217R | SMG PART |
| DE63-00217S | SMG PART |
| DE63-00283A | SMG PART |
| DE63-00657C | SMG PART |
| DE63-00657D | SMG PART |
| DE63-00792A | SMG PART |
| DE63-00836A | SMG PART |
| DE63-00839A | SMG PART |
| DE63-00844A | SMG PART |
| DE63-00891A | SMG PART |
| DE63-00892A | SMG PART |
| DE63-00893A | SMG PART |
| DE63-90064B | SMG PART |
| DE64-00849B | SMG PART |
| DE64-03013A | SMG PART |
| DE64-03014K | SMG PART |
| DE64-03015A | SMG PART |
| DE64-03197A | SMG PART |
| DE65-00008A | SMG PART |
| DE65-00009A | SMG PART |
| DE66-00261A | SMG PART |
| DE66-30012H | SMG PART |
| DE67-40021A | SMG PART |
| DE68-03142B | SMG PART |
| DE68-03721A | SMG PART |
| DE68-03843A | SMG PART |
| DE68-03970L | SMG PART |
| DE68-03984A | SMG PART |
| DE68-04037A | SMG PART |
| DE68-04077A | SMG PART |
| DE68-04108A | SMG PART |
| DE68-04487E | SMG PART |
| DE68-04730A | SMG PART |
| DE68-30138D | SMG PART |
| DE68-40727D | SMG PART |
| DE69-00988A | SMG PART |
| DE69-00996B | SMG PART |
| DE69-00997B | SMG PART |
| DE70-00347C | SMG PART |
| DE70-00347D | SMG PART |
| DE70-00347N | SMG PART |
| DE70-00414A | SMG PART |
| DE70-00551G | SMG PART |
| DE70-00559A | SMG PART |
| DE70-00561B | SMG PART |
| DE70-90142B | SMG PART |
| DE71-30022A | SMG PART |
| DE73-00012A | SMG PART |
| DE73-00028A | SMG PART |
| DE73-80020A | SMG PART |
| DE73-90013D | SMG PART |
| DE81-01614A | SMG PART |
| DE90-02016C | SMG PART |
| DE90-02143A | SMG PART |
| DE90-02274A | SMG PART |
| DE90-02275A | SMG PART |
| DE90-02280A | SMG PART |
| DE92-04751A | SMG PART |
| DE94-01471A | SMG PART |
| DE94-02308A | SMG PART |
| DE94-02311A | SMG PART |
| DE94-02363U | SMG PART |
| DE94-02364T | SMG PART |
| DE94-02369B | SMG PART |
| DE94-02374L | SMG PART |
| DE94-02378B | SMG PART |
| DE94-02754A | SMG PART |
| DE94-03158C | SMG PART |
| DE94-03258B | SMG PART |
| DE94-04176B | SMG PART |
| DE94-05562A | SMG PART |
| DE98-01323H | SMG PART |
| DE98-01530B | SMG PART |
| DE99-00236B | SMG PART |
| DE99-00271B | SMG PART |
| DE99-00287A | SMG PART |
| DE99-00352A | SMG PART |
| DE99-00376A | SMG PART |
| DE99-00377B | SMG PART |
| DE99-00383A | SMG PART |
| DE99-00384A | SMG PART |
| DG02-01003A | SMG PART |
| DG69-00005B | SMG PART |
| 0106-001605 | SMG PART |
| 1205-006575 | SMG PART |
| 6902-004344 | SMG PART |
| DE61-01553D | SMG PART |
| DE61-90111B | SMG PART |
| DE64-03210A | SMG PART |
| DE92-04754B | SMG PART |
| DE94-03158E | SMG PART |
| DE94-04264K | SMG PART |
| DE94-05563C | SMG PART |
| DE94-05867A | SMG PART |
| DE94-05871A | SMG PART |
| DE96-01160A | SMG PART |
| DE99-00359E | SMG PART |
| DE61-01412A | SPRING ETC-KEY;HSWR-SWRH,D8.35,L47,TURNI |
| DE66-00054A | STRAP-INNER;MGT-ALL,C1020T-H,T2.5,AG-PLA |
| DE66-00055A | STRAP-OUTER;MGT-ALL,C1020T-H,T2.5,AG-PLA |
| DE70-50027A | STRIP-CU;C1020S,H,T1.85,W13.45 |
|
|
SUPPORT PCB;PA66+GF15%,KN3321G15V0,BLACK |
|
|

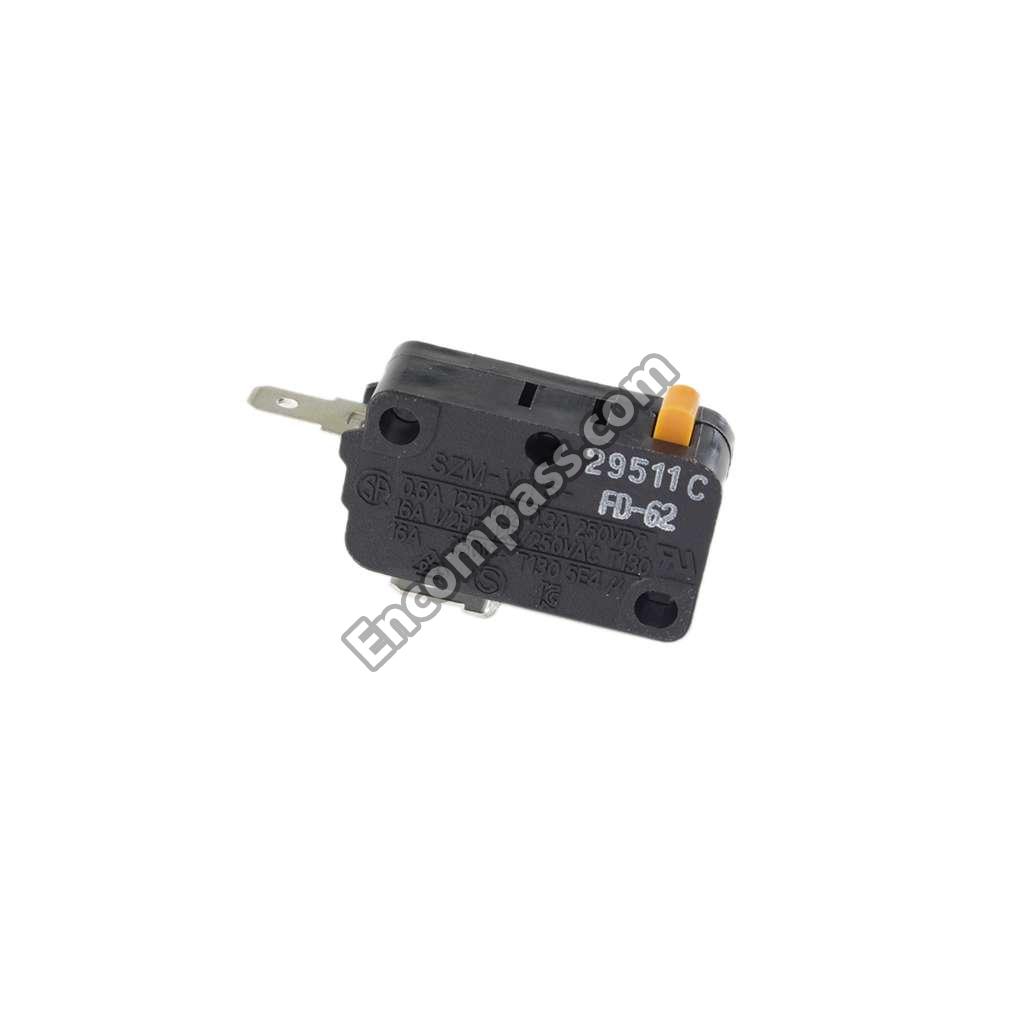

SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N |
|
|
SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N |
| DE02-00168A | TAPE ETC;OPP,-,W72,L1000,TRANSPARENT |
| DE02-00022B | TAPE POLYESTER;POLYESTER,T0.15,W80,NATUR |
| 1404-001413 | THERMISTOR-NTC;18OHM,3A,3200K,19MWC,15MM |
| CALL_1-800-SAMSUNG | THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA |
|
|

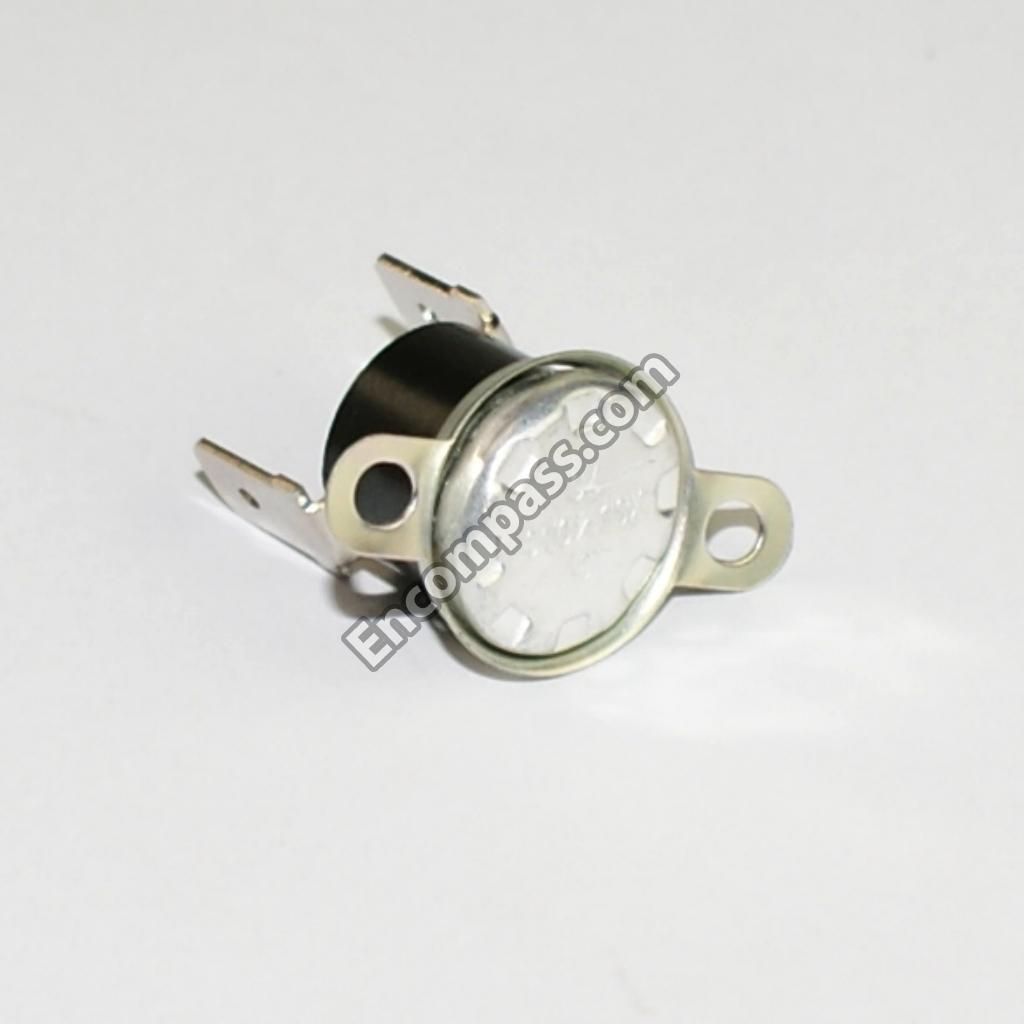

THERMOSTAT;AC125-250V,15/10A,140C,0C,S.O |
|
|
THERMOSTAT;AC125/250V,15/10A,150C,60C,NO |
|
|
THERMOSTAT;AC125/250V,15/10A,40C,70C,NOR |
|
|
THERMOSTAT;AC125/250V,15/16A,120C,0C,S.O |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0504-001008 | TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM, |
| 0502-001266 | TR-POWER;KTA1532T,PNP,900MW,TSM,TP,200/- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
|
|
TRANS H.V;SHV-U1870C,120V,2260V,2500V,60 |
|
|

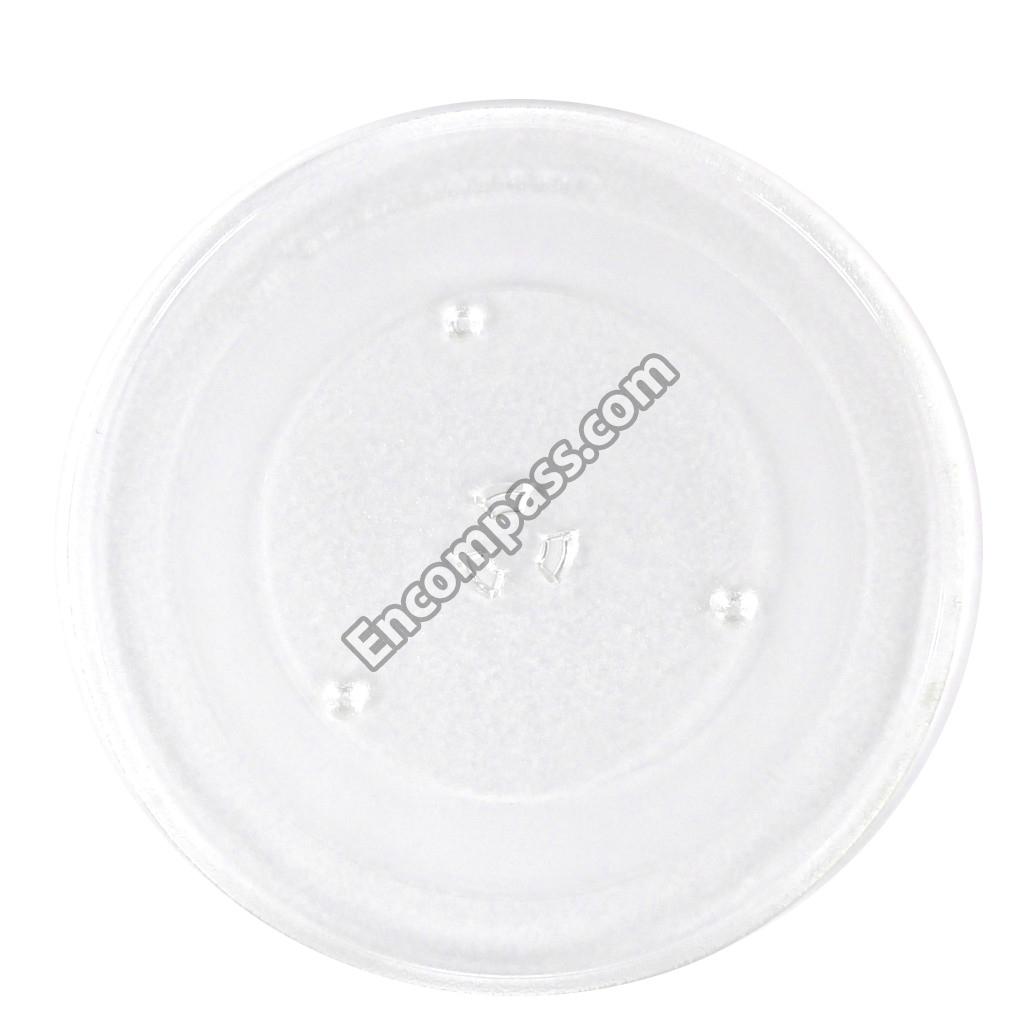

TRAY COOKING;85059,GLASS,T6 |
| DE62-20026A | TUBE-CU;C1020T-H,T0.7,OD18.6,L1800,ILLUS |
| DE62-20025A | TUBE-CU;C1020T-H,T0.725,OD15.35,L1800,IL |
| DE62-20027A | TUBE-CU;C1020T-H,T2.2,OD39,L1800,ILLUSIO |
| DE66-00149A | VANE;MGT-ALL,C1020R-H,T1.85,13.45X9.5 |
| DE60-40006A | WASHER-BRAZE;MGT-ALL,VAGCU28,OD15.9 X ID |
| DE70-60025A | WIRE-COPPER,OFHC;C1020W-H,PI12XROLL |
| DE70-60022A | WIRE-CU;H-6,C1020W,COIL,PI2.7 |
| DE66-00123A | WIRE-SADDLE;JE620/610BF/WF,PA66+GF15%,KN |
