Manufacturer
Samsung
Model Number
ML-1665
Description
Ml-1665 Monochrome Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC66-02591A | ACTUATOR-EMPTY;ML-1660,ABS,BLACK |
| JC66-02590A | ACTUATOR-FEED;ML-1660,PC,BLACK |
| JC70-00581A | ADJUST-CASSETTE_R;ML-1660,HIPS,1.7,120.5 |
| JC61-03769A | BRACKET-LSU;ML-1660,SECC,0.8 |
| JC61-01281A | BRACKET-P-BAR_PICK_UP;ML-1610,SECC,1.00, |
| JC67-00496A | BRUSH-ANTISTATIC;ML-1660,SUS FIBER,11.5 |
| JC67-00487A | BRUSH-ANTISTATIC;ML-1660,THUNDERON FIBER |
| JC61-03754A | BUSH-HR_L;ML-1660,PPS,25.1,17.4,BLACK,CO |
| JC61-03755A | BUSH-HR_R;ML-1660,PPS,17.6,BLACK,CONDUCT |
| JC61-03756A | BUSH-PR;ML-1660,PPS,6.1,10,BLACK,CONDUCT |
| JC61-03777A | BUSH-TR L;ML-1660,POM |
| JC61-03776A | BUSH-TR R;ML-1660,POM |
| 2402-000209 | C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM |
| 2203-000426 | C-CER,CHIP;0.018NF,5%,50V,C0G,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-006993 | C-CER,CHIP;0.27NF,5%,50V,C0G,TP,1005 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-002709 | C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005 |
| 2203-006166 | C-CER,CHIP;100NF,10%,25V,X5R,TP,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| JB39-00017A | CBF HARNESS-EARTH (TX MOTOR);SF-3100,UL |
| 3903-000190 | CBF-POWER CORD;DT,AR,AP3,IEC320 C13,250/ |
| JC70-00580A | CENTERING-ADJUST CASSTTE L;ML-1660,HIPS, |
| 3708-001252 | CONNECTOR-FPC/FFC/PIC;16P,1MM,STRAIGHT,S |
|
|
COVER-CASSETTE;ML-1660,ABS,2.3,HB,BLACK |
| JC95-01214A | COVER-FRONT;ML-1660,SEC |
| JC63-02621A | COVER-LEFT;ML-1660,ABS HF-0660I,2.0,HB,B |
| JC95-01212A | COVER-LEFT;ML-1660,SEC |
| JC63-02608A | COVER-LSU;ML-1660,PP,BLACK |
| JC63-02609A | COVER-MOTOR;ML-1660,ABS,BLACK |
| JC63-02622A | COVER-RIGHT;ML-1660,ABS,2.0,V0,BLACK |
| JC95-01213A | COVER-RIGHT;ML-1660,SEC |
| JC95-01211B | COVER-TOP;ML-1660,SEC |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| JC01-00022A | FILM-LOCKER;SCX-4500,PET,0.05,10,15 |
| JC39-01358A | FLAT CABLE;ML-1660,16,549MM,1.0MM,WHITE, |
| JC39-01357A | FLAT CABLE;ML-1660,26,70MM,AWM20624,1.0M |
| JC93-00221A | FRAME MAIN-BOTTOM;ML-1660,SEC,SECC,0.6,N |
| JC93-00218A | FRAME MAIN-LEFT;ML-1660,SEC,SECC,1.0,NTR |
| JC93-00220A | FRAME MAIN-MIDDLE;ML-1660,SEC,SECC,0.8,N |
| JC93-00219A | FRAME MAIN-RIGHT;ML-1660,SEC,SECC,0.8,NT |
| JC61-03762A | FRAME-BOTTOM;ML-1660,SECC,0.6 |
| JC93-00223A | FRAME-FEED IDLE;ML-1660,SEC |
| JC93-00211A | FRAME-HOLDER PAD;ML-1660,SEC |
| JC93-00214A | FRAME-PAPER PATH;ML-1660,SEC |
| JC93-00213A | FRAME-PICKUP GEAR;ML-1660,SEC |
| JC93-00212A | FRAME-PICKUP;ML-1660,SEC |
| JC93-00216A | FRAME-PLATE KNOCK UP;ML-1660,SEC |
| JC93-00217A | FRAME-TERMINAL;ML-1660,SEC,WORLDWIDE,SUS |
| JC91-00991B | FUSER;ML-1660,SEC,SEE,220V |
| JC66-01434A | GEAR-DEVE;SCX-4500,POM,0.8,14,BLACK,HELI |
| JC66-02585A | GEAR-FEED;ML-1660,POM,0.8,Z21,NATURAL,SP |
|
|
GEAR-FUSER Z37;ML-1710,PPS OFL4036,0.8,3 |
| JC66-01430A | GEAR-OPC;SCX-4500,POM,0.8,25,BLACK,HELIC |
| JC66-02588A | GEAR-PICKUP A;ML-1660,POM,0.8,Z33,BLACK, |
| JC66-02587A | GEAR-PICKUP B;ML-1660,POM,0.8,Z33,BLACK, |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC61-03766A | GUIDE-DEVE RAIL L;ML-1660,PC ABS,BLACK |
| JC61-03767A | GUIDE-DEVE RAIL R;ML-1660,PC ABS,BLACK |
| JC61-03775A | GUIDE-INPUT;ML-1660,PET+GF30%,218,BLACK, |
| JC61-03778A | GUIDE-PAPER PATH;ML-1660,ABS,266,158.19, |
| JC39-01355A | HARNESS-FUSER;ML-1660,3,300MM,WHT,#18,35 |
| JC39-01354A | HARNESS-MOTOR;ML-1660,4,450MM,BLACK/GRAY |
| JC61-03969A | HINGE-HOLDER_PAD;ML-1660,POM(F20-02) |
| JC61-03781A | HOLDER-EXIT_F_DOWN;ML-1660,PC,BLACK |
| JC61-03765A | HOLDER-HARNESS;ML-1660,ABS,2,BLACK,V0 |
| JC61-01548A | HOLDER-M-CAM;CLP-300,POM (DE8903),18.5,2 |
| JC61-03759A | HOLDER-PAD;ML-1660,PC+ABS,W47.4,BLACK |
| JC61-03973A | HOLDER-SHAFT;ML-1660,POM,21.8,BLACK |
| JC61-03763A | HOUSING-PICKUP A;ML-1660,ABS+PC,20.2,AMB |
| JC61-03764A | HOUSING-PICKUP B;ML-1660,ABS+PC,18.9,46, |
| JC13-00027A | IC ASIC-JUPITER4E;S4FD004X01-E080,ML-152 |
| JC13-00042B | IC ASIC-NCRUM2;S3CC921,ML-1650,8,2.7V-3. |
| 0801-003337 | IC-CMOS LOGIC;74LVC14APW,SCHMITT INVERTE |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC- |
| 1103-001228 | IC-EEPROM;93C66,4KBIT,256X16,SOP,8P,5X4M |
| 1203-002454 | IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| 3722-002303 | JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE |
| JC64-00542B | KEY-POWER;ML-1660,ABS,HB,BLACK |
| JC64-00543B | KEY;ML-1660,ABS,HB,BLACK |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-01584A | LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| JC68-02561A | LABEL-POP;ML-1660,SEC,YUPO,0.1,96,110,SE |
| 4713-001520 | LAMP-HALOGEN;230V,600W,287 |
| JC66-02592A | LEVER-KICKER PU;ML-1660,ABS,2.0,12.0,28. |
| JC97-03775A | LSU;ML-1660,SEC,SINGLE,A4(LTR),600,S1,78 |
| JC31-00134B | MOTOR STEP;ML-1660,1.18A,800PPS,DC 24V |
| JC74-00011A | MPR-PAD KNOCK UP MP;ML-6060A,CR+CORK,NTR |
|
|
PBA-FEED SENSOR;ML-1660,SEC,FEED SENSOR, |
| JC92-02255C | PBA-MAIN;ML-1660,SEC,MAIN,DOM,64.25MMX10 |
| 0604-001210 | PHOTO-INTERRUPTER;TR,200MW,DIP-4,ST |
|
|
PLATE-P-SAW;ML-1400,SUS304-CSP,0.15,15.1 |
| JB72-00819A | PMO-BUSH;SCX-1110F,POM,NTR |
| JG72-40960A | PMO-CAP TONER;SF6000,PP,OD22,W6,BLK |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-007521 | R-CHIP;14.7KOHM,1%,1/10W,TP,1608 |
| 2007-008567 | R-CHIP;15.4KOHM,1%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-007803 | R-CHIP;2.37KOHM,1%,1/10W,TP,1608 |
| 2007-007382 | R-CHIP;20MOHM,5%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000076 | R-CHIP;330OHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000077 | R-CHIP;470OHM,5%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000144 | R-CHIP;5.1KOHM,5%,1/16W,TP,1005 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-001134 | R-CHIP;68OHM,5%,1/10W,TP,1608 |
| 2007-000088 | R-CHIP;7.5KOHM,5%,1/10W,TP,1608 |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| JC66-02742A | ROLLER-EXIT_MAIN;ML-1660,POM,9.2,BLACK |
| JC66-02598A | ROLLER-FEED;ML-1660,EPDM+SUM,5,214.4,GRA |
|
|

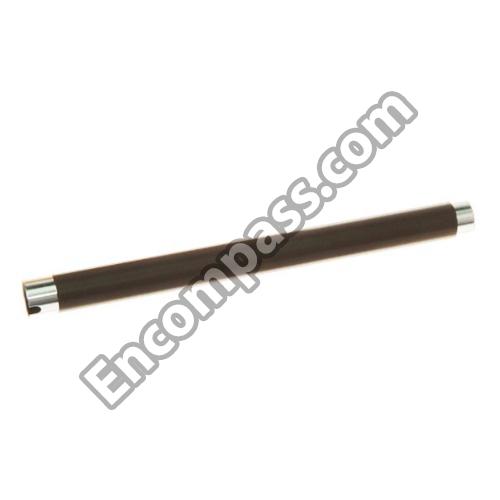

ROLLER-HEAT;ML-1660,AL5052,18.1,247.5 |
| JC66-00529D | ROLLER-IDLE_FEED;ML-1660,POM SW-01,13,13 |
|
|
ROLLER-M-IDLE FEED;ML-1510,POM(DELRIN890 |
|
|
ROLLER-PRESSURE;ML-1660,SUM22/23,20,237. |
|
|

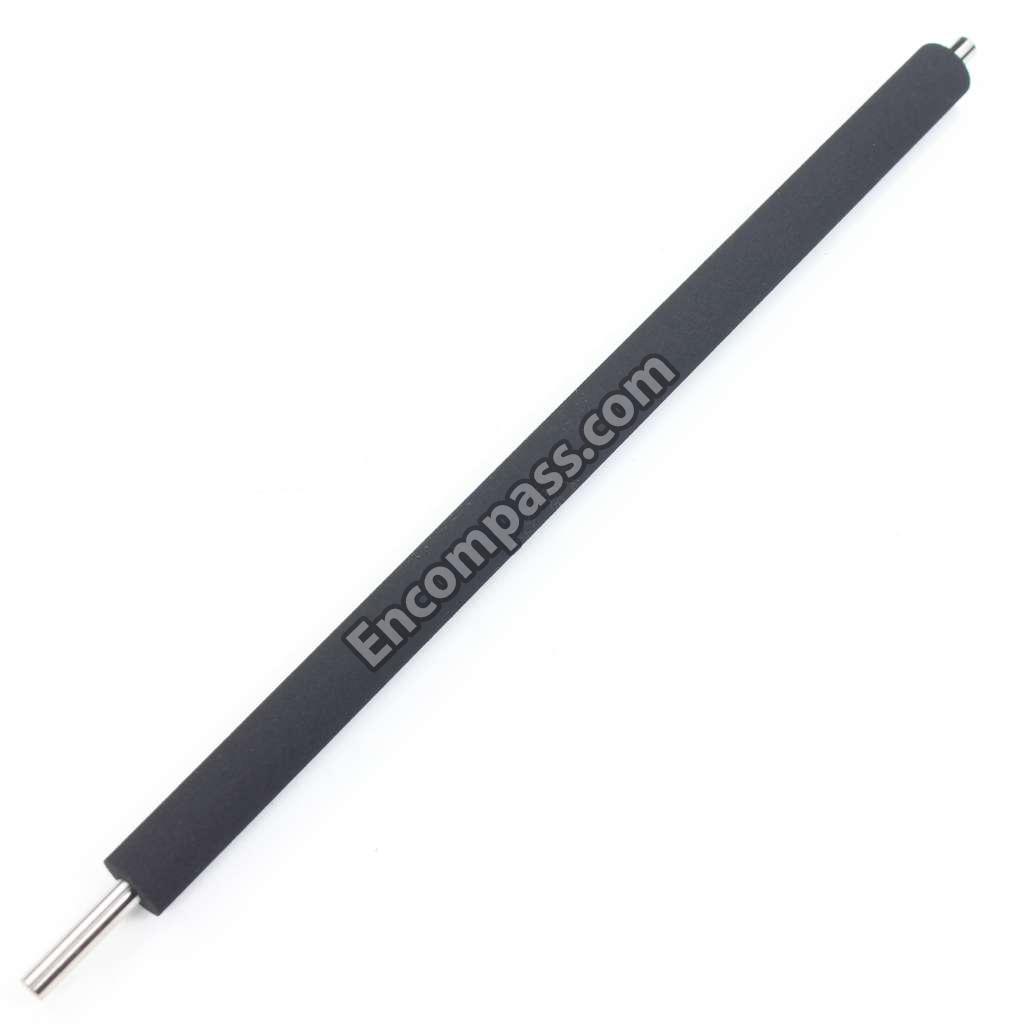

ROLLER-TRANSFER;ML-1660,NBR+ECO+SUM22L+N |
|
|
RUBBER-PAD_FRICTION;ML-1660,EPDM,1.0,47* |
| JC73-00322A | RUBBER-PAD_FRICTION;ML-1660,EPDM,1.1,47* |
|
|

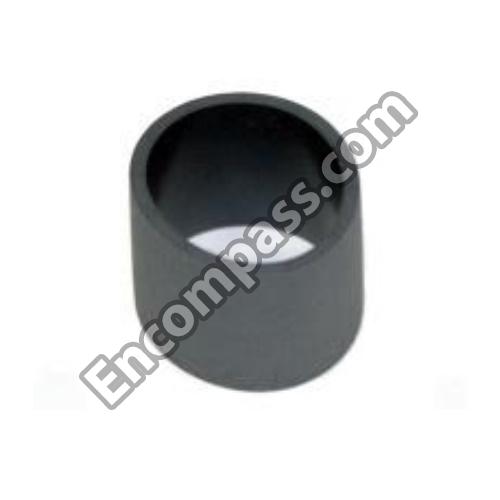

RUBBER-PICK UP;ML-1660,EPDM,20,21,35,GRA |
| 6003-000261 | SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6006-001078 | SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT) |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
|
|
SHAFT-EXIT_F_DOWN;ML-1660,PBT+GF,5,BLACK |
| JC63-02758A | SHEET-INSULATOR;ML-1660,PC,0.254,100.5,5 |
| JC44-00189A | SMPS/HVPS-V2;ML-1660,BLUEBIRD-V2,FLYBACK |
|
|
SOLENOID-MP;ML-1660,DC-24V,120OHM,525MM, |
| JC72-01444A | SPONGE-GUIDE CHANGE DUP;ML-2851ND/XAA,PO |
| JC72-01581A | SPONGE-PICKUP;ML-1660,PORON,4,10,32.5,BL |
| JC61-00025A | SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS |
| JC61-00022A | SPRING ETC-HOOK;SF-5100,SUS304-WPB,0.26, |
| JC61-70940A | SPRING ETC-TR(12);ML-5500,0.5,5,13,SUS30 |
| 6107-002617 | SPRING-CS;SUS304,PI0.45,D4.95,L16.5,ID4. |
| 6107-002665 | SPRING-CS;SUS304,PI0.45,L10.6,ID3.5,FREE |
| 6107-001167 | SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I |
| 6107-002592 | SPRING-CS;SWP B,PI0.8,D19.3,L57,ID18.5,O |
| 6107-001296 | SPRING-ES;SUS304-WPB,PI0.45,D2.75,L17.2, |
| 6107-002664 | SPRING-ES;SWP B,PI0.85,L24.4,OD7.0,14.25 |
| 6107-002622 | SPRING-ETC;SUS304,PI0.35,L10.8,ID3.1,5.5 |
| 6107-002633 | SPRING-TS;SUS304,PI0.2,ID2.7,OD3.1,LEFT, |
| 6107-002634 | SPRING-TS;SUS304,PI0.26,ID5.6,OD6.12,LEF |
| 6107-002674 | SPRING-TS;SUS304,PI0.35,L6.475,ID3.2,OD3 |
| 6107-002626 | SPRING-TS;SWP B,PI1.1,D7.5,ID6.4,OD8.6,2 |
| 6107-002625 | SPRING-TS;SWP B,PI1.1,D7.5,ID6.4,OD8.6,2 |
|
|
STACKER-MAIN;ML-1660,ABS,3.0,236.1,112.9 |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| 0506-001069 | TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT |
| 0501-000632 | TR-SMALL SIGNAL;2SB1197K,PNP,200MW,SOT-2 |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
