Manufacturer
Samsung
Model Number
MNA114MS1CCXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-003637 | ADHESIVE-EPOXY;CP13341-25AJ,GRAY,50000CP |
| 0201-003635 | ADHESIVE-EPOXY;CP17531-14YA,GRAY,50000CP |
| 0201-003833 | ADHESIVE-EPOXY;CU31-2030NF,BLACK |
| 0201-003831 | ADHESIVE-EPOXY;ENJ-CPI-PMI,YELLOW |
| 0201-003636 | ADHESIVE-EPOXY;TCG7330UN-B,BLACK,40000CP |
| 0201-003832 | ADHESIVE-TS;SPI 50 PAD,BLACK,1000~2500CP |
| 0201-003641 | ADHESIVE-UV;HC-U330,YELLOW,1450CPS,50G/B |
| 0201-003650 | ADHESIVE-UV;MB-01,BLACK,7000CPS |
| 0201-003756 | ADHESIVE-UV;UP44-5120,CLEAR,1000~6000CPS |
| BN96-53227A | ASSEMBLY ACCESSORY-ANCHOR BOLT;65QALS03M,W/W |
| BN96-54014A | ASSEMBLY ACCESSORY-WALL MOUNT;110MAMS1A,W/W, |
| BN96-53509A | ASSEMBLY BOARD P-SUB;MAMS1A,D16,USB JACK,- |
| BN96-53263A | ASSEMBLY BOARD P-SUB;THEWALL2.0,SJ20-01-005A |
| BN96-54731A | ASSEMBLY BRACKET P-PANEL;89MAMS1A,ACRYL,NATU |
| BN96-58173A | ASSEMBLY BRACKET P-POWER;114MAMS1A,EGI-SECC, |
| BN96-54015A | ASSEMBLY BRACKET P;110MAMS1A,AL,BK0007,T0.3, |
| BN96-58134B | ASSEMBLY COVER P-REAR;114MAMS1A,AL,BLACK,NOR |
| BN96-55533B | ASSEMBLY INLET P;MSMS1B,AC110/220V,3P,AC INL |
| BN90-12360C | ASSEMBLY LED MODULE;ASSEMBLY LED MODULE- EVEN,TF |
| BN96-52720A | ASSEMBLY MISC P-AOC RX;CWDM 2.0 RX |
| BN96-52719A | ASSEMBLY MISC P-AOC TX;CWDM 2.0 TX |
| BN91-24733B | ASSEMBLY ONE CONNECT;MAMS1A |
| BN94-16935X | ASSEMBLY PCB MAIN;MAMS1A |
| BN94-18241J | ASSEMBLY PCB MISC-CENTER_BRIDGE(2X4);BN41-02 |
| BN94-16938C | ASSEMBLY PCB MISC-CENTER_BRIDGE_2X2;MAMS1A |
| BN94-18015M | ASSEMBLY PCB MISC-CENTER_BRIDGE_2X3_PCB_B;MA |
| BN94-17081A | ASSEMBLY PCB MISC-R2R_ULED;MAMS1A |
| BN94-18015N | ASSEMBLY PCB MISC-T-CON_ULED_HYBRID;MAMS1A |
| BN96-52708C | ASSEMBLY SPEAKER P-FRONT;TV-SPK,114MAMS1A,6. |
| 6902-003983 | BAG SHIELDING;NYLON/AL/LLDPE,T0.1,W2800, |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 3301-001404 | BEAD-SMD;30OHM/100MHZ,2X1.2MM,TP,10MOHM, |
| 6011-008215 | BOLT-ETC;M5,L55,ZPC(BLK),HH,+,SWRCH18A,W |
| BN61-18303A | BRACKET-SPEAKER;89MAMS1A,EGI-SECC,T0.8,N |
| BN61-18316A | BRACKET-WIRE;MAMS1A,SW-C,T1,NATURAL |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-006005 | C-CER,CHIP;10NF,10%,100V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-005659 | C-CER,CHIP;180PF,5%,50V,C0G,TP,1005,-55T |
| 2203-000440 | C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8, |
| 2203-009740 | C-CER,CHIP;1UF,10%,100V,X7R,TP,3216,T2.7 |
| 2203-006391 | C-CER,CHIP;1UF,10%,10V,X7R,TP,1608,-55TO |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-007486 | C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-001397 | C-CER,CHIP;2.2NF,5%,50V,C0G,TP,1608,-55T |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005,-55 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006378 | C-CER,CHIP;4.7UF,10%,6.3V,X5R,TP,1608,-5 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0. |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 2409-001129 | C-POLYMER ,CHIP;100UF,20%,6.3V,WT,TP,3.5 |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
| 3708-003062 | CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3708-003143 | CONNECTOR-FPC/FFC/PIC;60P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3708-003389 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,10P,0.5MM |
| 3708-003356 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,30P,0.5MM |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,68P,0.5MM |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3711-009537 | CONNECTOR-HEADER;BOX,14P,2R,2MM,ANGLE,SN |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3711-009536 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3711-007799 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-S, |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| 3710-004395 | CONNECTOR-SOCKET;38P,2R,0.8MM,ANGLE,AU,B |
| 3710-004144 | CONNECTOR-SOCKET;44P,1R,0.5MM,SMD-A,AU,B |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-005372 | CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| BN44-01160A | DC VSS-POWER BOARD;M42019PW_AHS,AC/DC,42 |
| BN44-00898A | DC VSS-POWER BOARD;P4513Q_MHS,AC/DC,45W, |
| 0404-001643 | DIODE-SCHOTTKY;B360A,60V,3000MA,DO-214AC |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001820 | DIODE-TVS;AZ1023-04F,4.5V,6V,7.5V,0.5MAV |
| 0406-001886 | DIODE-TVS;AZ1123-04F,5V,DFN2510,65W,TR |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001691 | DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0406-001896 | DIODE-TVS;UCLAMP2424P.A,26.5V,DFN,250W,T |
| 0406-001810 | DIODE-TVS;UCLAMP2461P,27V,32V,36V,23000M |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-001089 | FET-SILICON;AO3409L,P,-30V,-2.6A,0.097/0 |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-54535A | FFC;89MS1A,WRINKLE/STRAIGHT,L200,96P,MOD |
| BN96-57975A | FFC;MNA114,FOLD,L1040,96P,TCON-CENTER BR |
| BN96-57979A | FFC;MNA114,FOLD,L1290,96P,TCON-CENTER BR |
| BN96-57986A | FFC;MNA114,FOLD,L260,96P,TCON-CENTER BRI |
| BN96-57985A | FFC;MNA114,FOLD,L360,96P,TCON-CENTER BRI |
| BN96-57981A | FFC;MNA114,FOLD,L380,96P,TCON-CENTER BRI |
| BN96-57983A | FFC;MNA114,FOLD,L380,96P,TCON-CENTER BRI |
| BN96-57980A | FFC;MNA114,FOLD,L500,96P,TCON-CENTER BRI |
| BN96-57984A | FFC;MNA114,FOLD,L500,96P,TCON-CENTER BRI |
| BN96-57995A | FFC;MNA114,FOLD,L570,96P,TCON_CENTER BRI |
| BN96-57988A | FFC;MNA114,FOLD,L580,60P,R2R-TCON_5R, BL |
| BN96-57987A | FFC;MNA114,FOLD,L580,68P,R2R-TCON_4R, BL |
| BN96-57996A | FFC;MNA114,FOLD,L600,68P,R2R-TCON_2R, BL |
| BN96-57989A | FFC;MNA114,FOLD,L640,60P,R2R-TCON_1R, BL |
| BN96-57997A | FFC;MNA114,FOLD,L640,68P,R2R-TCON_6R, BL |
| BN96-57976A | FFC;MNA114,FOLD,L660,60P,R2R-TCON_3R, BL |
| BN96-57982A | FFC;MNA114,FOLD,L660,96P,TCON-CENTER BRI |
| BN96-57973A | FFC;MNA114,FOLD,L750,96P,TCON-CENTER BRI |
| BN96-57978A | FFC;MNA114,FOLD,L820,96P,TCON-CENTER BRI |
| BN96-57972A | FFC;MNA114,FOLD,L870,96P,TCON-CENTER BRI |
| BN96-57977A | FFC;MNA114,FOLD,L930,96P,TCON-CENTER BRI |
| BN96-57974A | FFC;MNA114,FOLD,L960,96P,TCON-CENTER BRI |
| BN96-58149A | FFC;MNA114MS1CCXKR,FOLD,L470,10P,MAIN-IO |
| BN96-56035A | FFC;MNA114MSAACXKR,FOLD,L1150,30P,MAIN-I |
| BN96-56034A | FFC;MNA114MSAACXKR,FOLD,L310,96P,MAIN-CC |
| BN96-56032A | FFC;MNA114MSAACXKR,FOLD,L440,51P,MAIN-CC |
| BN96-56033A | FFC;MNA114MSAACXKR,FOLD,L510,51P,MAIN-CC |
| BN96-56039A | FFC;MNA114MSAACXKR,FOLD,L580,24P,MAIN-US |
| BN41-02983A | FPC;MNA89MS1AACXKR,1,PI,96P,T0.13,49.9X3 |
| BN41-02984A | FPC;MNA89MS1AACXKR,1,PI,96P,T0.13,98.88X |
| BN41-02985A | FPC;MNA89MS1AACXKR,1,PI,96P,T0.13,98.88X |
|
|
FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING, |
| 3601-001470 | FUSE-SURFACE MOUNT;32V,1.5A,FAST-ACTING, |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 6302-001232 | GASKET-EMI;SMT GASKET,FABRIC,T3.5,W4,L3, |
| 6302-001236 | GASKET-EMI;SMT GASKET,FABRIC,T6,W4.5,L6, |
|
|
HEADER-BOARD TO CABLE;BOX,10P,2R,2MM,ANG |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-008101 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| AH62-00243A | HEAT SINK-ES;HT-E3500,A6063,W23,L23,BLAC |
| BN62-01006A | HEAT SINK-HEAT PIPE MODULE;MS1B,AL,W129. |
| BN62-00995A | HEAT SINK-HEAT PIPE MODULE;ULED_R2R_114_ |
| BN62-01025A | HEAT SINK-HEAT PIPE MODULE;ULED_R2R_114_ |
| BN62-00996A | HEAT SINK-HEATPIPE;ULED_TCON_HYBRID_114_ |
| BN62-00997A | HEAT SINK-HEATPIPE;ULED_TCON_HYBRID_114_ |
| BN62-01005A | HEAT SINK-PS;MS1B,A1050,W180,L122,BLACK, |
| BN61-17904A | HOLDER-BOLT;65QAQ80E,PA66,T1,GRAY,V-2,WA |
| BN61-16318B | HOLDER-BOX;ALL,PP,BLACK,HB,RECYCLED PCR_ |
| BN61-01778A | HOLDER-CABLE;ROME.,PA66,MOLD,NATURAL,DAF |
| BN61-17993A | HOLDER-GUIDE;110MAMS1A,ABS,BLACK,HB |
| 1002-001459 | IC-A/D CONVERTER;PCM1803A,24BIT,SSOP,20P |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003486 | IC-AUDIO AMP;DRV632PW,14Z30,6.6 X 5.1 X |
| 1205-006482 | IC-BUS SWITCH;HD3SS3212IRKSR,20P,VQFN,TP |
| 0801-003408 | IC-CMOS LOGIC;74AUP1G32GW,2 INPUT OR GAT |
| 0801-003667 | IC-CMOS LOGIC;74LVC157A,TP,2.5X3.5X0.85M |
| 0801-002779 | IC-CMOS LOGIC;74LVC1G125,BUS BUFFER,SOT- |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,TP,2X1.25X0.95MM,-40 |
| 0801-003675 | IC-CMOS LOGIC;CDCLVD1204,TP,3X3X1MM,-40T |
| 0801-003677 | IC-CMOS LOGIC;CDCS501,TP,6.4X3X1.2MM,-40 |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 0801-003676 | IC-CMOS LOGIC;SLG4R44072V,TP,1.6X1.6X0.5 |
| 0801-003580 | IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3 |
| 1301-002314 | IC-CPLD;LCMXO2-2000HC-4FTG256IAK7,FTBGA, |
| 1203-009206 | IC-DC/DC CONVERTER;AOZ2255LQI-30,QFN-22L |
| 1203-009560 | IC-DC/DC CONVERTER;AOZ2264NQI-11,23P,QFN |
| 1203-008746 | IC-DC/DC CONVERTER;AOZ2264QI-11,QFN,23,4 |
| 1203-009145 | IC-DC/DC CONVERTER;AOZ2368QI-11,QFN,28P, |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-008921 | IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X |
|
|
IC-DC/DC CONVERTER;TPS54331D,SOIC8,8P,4. |
| 1203-009561 | IC-DC/DC CONVERTER;TPS65192RHDR,28P,QFN, |
| 1203-009063 | IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0. |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1204-003778 | IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1003-002757 | IC-DRIVER;PI90LV01TEX,SOT-23,5P,2.9*1.6* |
| 1003-003257 | IC-DRIVER;SDP21421,TR,25X25X1.68MM,-40TO |
| 1003-003228 | IC-DRIVER;SDP21422,TP,48.175X23.75X1.43M |
| 1107-002758 | IC-EMMC;KLMAG1JETD-B041009,BGA,153P,TR,1 |
| 1209-002912 | IC-ETC, LINEAR;INA228AIDGST,TP,3X3X1.1MM |
| 1301-002310 | IC-FPGA;10AX066N2F40I2LG,FBGA,1517P,TR,4 |
| 1205-006293 | IC-LCD CONTROLLER;SE19HM01-NT,TP,1420P,3 |
| 1003-003058 | IC-LEVEL DRIVER;TXB0104PWR,TSSOP,14P,5X4 |
| 1006-001610 | IC-LINE DRIVER;DS100BR410SQX,TP,7X7X0.75 |
| 0903-002280 | IC-MICROCONTROLLER;MSP432P401MIRGCR,VQFN |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1107-002629 | IC-NOR FLASH;MT25QL512ABB,512MBIT,SOP,16 |
| 1107-002893 | IC-NOR FLASH;W25Q01JVSFIQ,SOP,16P,TR,10. |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1107-002574 | IC-NOR FLASH;W25Q64JVSSIQ,64MBIT,SOP,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,8P,ST,9.6X6.45X33.8M |
| 1201-004336 | IC-OP AMP;LM7321MFX/NOPB,SOT,5P,TP,2.9X1 |
| 1203-008471 | IC-POSI.ADJUST REG.;AP2204K-ADJTRG1-89,S |
| 1203-008933 | IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9X |
| 1203-009562 | IC-POSI.ADJUST REG.;TPS7A4701RGWR,20P,VQ |
| 1205-005537 | IC-REPEATER;TCA9517ADGKR,VSSOP,8P,TP,3X3 |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1001-002117 | IC-VIDEO SWITCH;AD55/066Z-0RL,QFN,108P,T |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005782 | INDUCTOR-SMD;1.5UH,20%,6060,T2.8,0.017OH |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005843 | INDUCTOR-SMD;1UH,20%,6060,T2.6,0.0156OHM |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-004589 | INDUCTOR-SMD;2.2UH,20%,5050,T2,0.048OHM, |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-005845 | INDUCTOR-SMD;220NH,20%,7366,T2.8,0.00198 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-005700 | INDUCTOR-SMD;470NH,20%,11X10MM,T3.8,0.00 |
| 2703-003719 | INDUCTOR-SMD;6.8UH,20%,10.7X10MM,T3.8,0. |
| 2703-005703 | INDUCTOR-SMD;6.8UH,20%,6966,T2.4,0.072OH |
| 2703-005841 | INDUCTOR-SMD;680NH,20%,4040,T1.6,0.026OH |
| BN39-02737A | IRBLASTER CABLE;LS063-200595,3P/3P,L2500 |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| BN39-02875A | LEAD CONNECTOR-AC INLET;MNA114MS1CCXKR,U |
| BN39-02972A | LEAD CONNECTOR-AC INLET;MNA114MS1CCXKR,U |
| BN39-02878A | LEAD CONNECTOR-AC INLET;UL10938,3P,L575, |
| BN39-02724A | LEAD CONNECTOR-ETC;MNA110MS1A,UL21451,10 |
| BN39-02974A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL10 |
| BN39-02879A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02880A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02882A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02883A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02884A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02885A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02886A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02971A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02973A | LEAD CONNECTOR-POWER;MNA114MS1CCXKR,UL21 |
| BN39-02881A | LEAD CONNECTOR-POWER;UL21016,30P,L400,BL |
| BN68-12558A | LEAFLET-WALL MOUNT;MNA110MS1A,W/W,ART,WH |
|
|
LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940 |
| 0601-003931 | LED-MICRO;BLU,CLEAR,0.034X0.058X0.0085MM |
| 0601-003933 | LED-MICRO;BLU,CLEAR,0.034X0.058X0.0085MM |
| 0601-003938 | LED-MICRO;BLU,CLEAR,0.034X0.058X0.0085MM |
| 0601-003932 | LED-MICRO;GRN,CLEAR,0.034X0.058X0.0085MM |
| 0601-003934 | LED-MICRO;GRN,CLEAR,0.034X0.058X0.0085MM |
| 0601-003936 | LED-MICRO;GRN,CLEAR,0.034X0.058X0.0085MM |
| 0601-004051 | LED-MICRO;RED,CLEAR,0.034X0.058X0.0085MM |
| 0601-004052 | LED-MICRO;RED,CLEAR,0.034X0.058X0.0085MM |
| 0601-004053 | LED-MICRO;RED,CLEAR,0.034X0.058X0.0085MM |
| 0601-001094 | LED;SMD(TOP VIEW),Y-GRN,WATER DIFF.,1.2X |
| BN59-01435A | NETWORK-IOT HUB;WIC212S,57X25X6MM,IOT HU |
| BN59-01387A | NETWORK-WLAN CLIENT;WCA942M,85.63X34.14X |
| BN39-02709A | OPTICAL CABLE;MS1A,1P,L5000,UL1666,BLACK |
| 2804-002084 | OSCILLATOR-CLOCK;100MHZ,50PPM,CMOS 15PF, |
| 2804-001889 | OSCILLATOR-CLOCK;12.288MHZ,50PPM,15PF,TP |
| 2804-002082 | OSCILLATOR-CLOCK;74.25MHZ,50PPM,CMOS 15P |
| 2804-002083 | OSCILLATOR-CLOCK;88MHZ,50PPM,CMOS 15PF,T |
| BN39-02711A | POWER CORD-AT;3X14AWG,BLK,3P-F,125V/15A, |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 2007-008714 | R-CHIP;0.01OHM,1%,1W,TP,6432 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-002900 | R-CHIP;11KOHM,1%,1/10W,TP,1608 |
| 2007-008167 | R-CHIP;120KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007768 | R-CHIP;13KOHM,1%,1/10W,TP,1608 |
| 2007-000400 | R-CHIP;150OHM,1%,1/4W,TP,3216 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-007847 | R-CHIP;16KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-008661 | R-CHIP;2.1KOHM,1%,1/10W,TP,1608 |
| 2007-000124 | R-CHIP;2.2KOHM,5%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-000509 | R-CHIP;2.4KOHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000570 | R-CHIP;220OHM,1%,1/10W,TP,1608 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000633 | R-CHIP;270KOHM,1%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000708 | R-CHIP;3.9KOHM,1%,1/10W,TP,1608 |
| 2007-000726 | R-CHIP;300OHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000763 | R-CHIP;330OHM,1%,1/10W,TP,1608,T0.45 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005,T0.5 |
| 2007-000076 | R-CHIP;330OHM,5%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-007947 | R-CHIP;36OHM,1%,1/10W,TP,1608 |
| 2007-008218 | R-CHIP;39OHM,1%,1/16W,TP,1005 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000869 | R-CHIP;4.7KOHM,1%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000939 | R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000946 | R-CHIP;47OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000962 | R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-001096 | R-CHIP;62KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-008032 | R-CHIP;750KOHM,1%,1/10W,TP,1608 |
| 2007-007431 | R-CHIP;91KOHM,1%,1/10W,TP,1608,T0.45 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| BN59-01432A | REMOCON-ECO SMART CONTROL;2023 TV,SAMSUN |
|
|

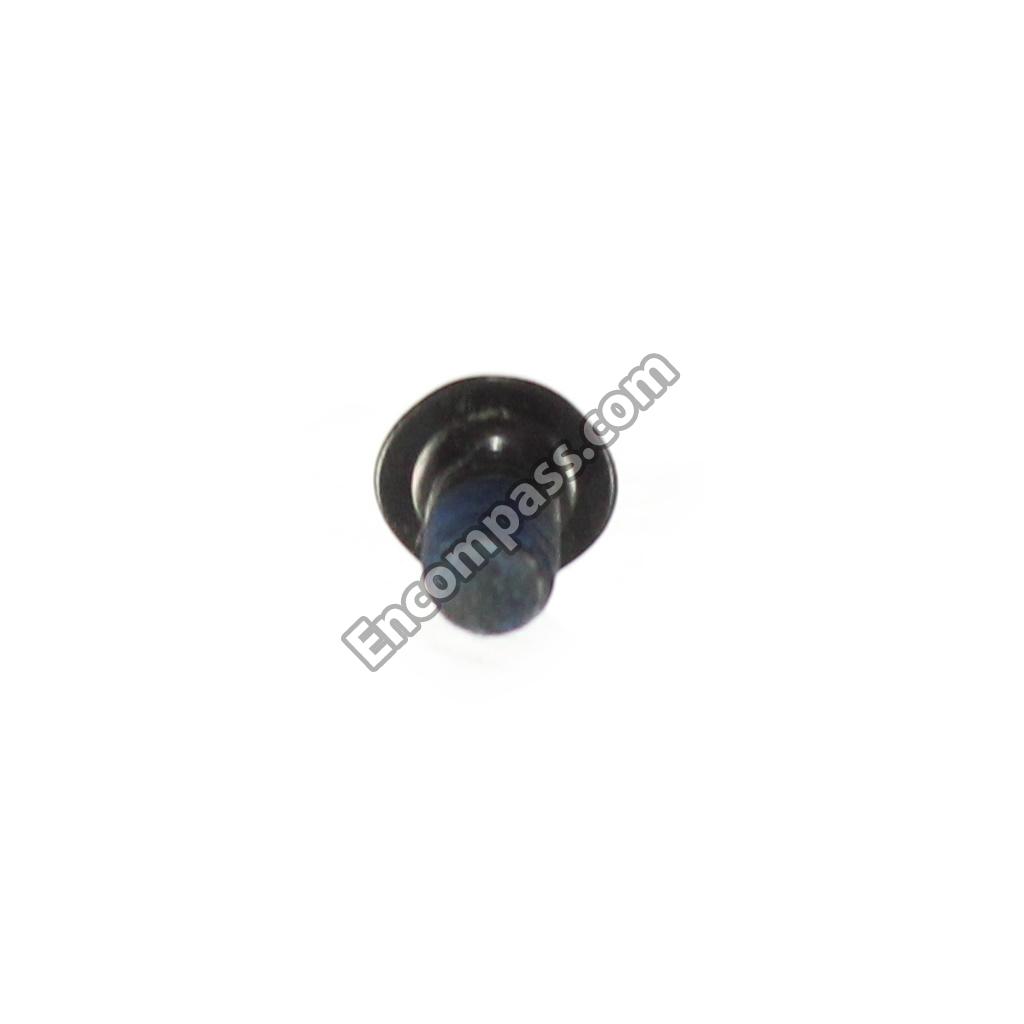

SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
| 6001-003469 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L6,M4,BH |
| 6001-003423 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L6,M4,CH |
| 6001-002789 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L6,M4,BH |
| 6009-002438 | SCREW-SPECIAL;FH,+,NONE,M5,L22,ZPC(BLK), |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L10,M3,B |
| 3601-001374 | SMG PART |
| 3301-001901 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007270 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006838 | SMG PART |
| 2203-006824 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006474 | SMG PART |
| 2203-006307 | SMG PART |
| 2203-006257 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-001412 | SMG PART |
| 2203-000995 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000280 | SMG PART |
| 2203-000278 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000236 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-008776 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008137 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007643 | SMG PART |
| 2007-007590 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007156 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001320 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001175 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000923 | SMG PART |
| 2007-000775 | SMG PART |
| 2007-000744 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000162 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000137 | SMG PART |
| 2007-000070 | SMG PART |
| 0801-000796 | SMG PART |
| 0601-002037 | SMG PART |
| 0406-001573 | SMG PART |
| 0406-001203 | SMG PART |
| 0406-001200 | SMG PART |
| 0103-009882 | SMG PART |
| 0103-010275 | SMG PART |
| 0103-010724 | SMG PART |
| 0103-011533 | SMG PART |
| 0103-012184 | SMG PART |
| 0201-003543 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001830 | SMG PART |
| 0203-006966 | SMG PART |
| 0203-007132 | SMG PART |
| 0203-007278 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-001784 | SMG PART |
| 0406-001253 | SMG PART |
| 0406-001317 | SMG PART |
| 0406-001745 | SMG PART |
| 1103-001584 | SMG PART |
| 1105-003102 | SMG PART |
| 1105-003142 | SMG PART |
| 1107-002925 | SMG PART |
| 1201-004306 | SMG PART |
| 1203-009504 | SMG PART |
| 1203-009590 | SMG PART |
| 1203-009643 | SMG PART |
| 1204-003833 | SMG PART |
| 1205-006555 | SMG PART |
| 1404-001731 | SMG PART |
| 2203-010348 | SMG PART |
| 2409-001213 | SMG PART |
| 2703-004145 | SMG PART |
| 2703-004199 | SMG PART |
| 2703-005715 | SMG PART |
| 2703-005784 | SMG PART |
| 2801-004678 | SMG PART |
| 2801-005504 | SMG PART |
| 2804-002066 | SMG PART |
| 6302-001290 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-002905 | SMG PART |
| 6902-003574 | SMG PART |
| 6902-003660 | SMG PART |
| 6902-003662 | SMG PART |
| 6922-000421 | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102L | SMG PART |
| BN02-00352E | SMG PART |
| BN02-00661A | SMG PART |
| BN02-00662A | SMG PART |
| BN02-00663A | SMG PART |
| BN41-02964B | SMG PART |
| BN41-02965B | SMG PART |
| BN41-02966C | SMG PART |
| BN41-03104A | SMG PART |
| BN41-03105A | SMG PART |
| BN41-03107A | SMG PART |
| BN41-03174A | SMG PART |
| BN41-03175A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-02278A | SMG PART |
| BN46-02284A | SMG PART |
| BN60-00162X | SMG PART |
| BN60-00920G | SMG PART |
| BN60-01653B | SMG PART |
| BN61-02428D | SMG PART |
| BN61-02431B | SMG PART |
| BN61-08548L | SMG PART |
| BN61-13521A | SMG PART |
| BN61-15056A | SMG PART |
| BN61-15056B | SMG PART |
| BN61-15057A | SMG PART |
| BN61-17284A | SMG PART |
| BN61-17587A | SMG PART |
| BN61-17667A | SMG PART |
| BN61-17679A | SMG PART |
| BN61-17703A | SMG PART |
| BN61-17703B | SMG PART |
| BN61-17966A | SMG PART |
| BN61-17992A | SMG PART |
| BN61-18050A | SMG PART |
| BN61-18302A | SMG PART |
| BN61-18304A | SMG PART |
| BN61-18309A | SMG PART |
| BN61-18318A | SMG PART |
| BN61-18319A | SMG PART |
| BN61-18322A | SMG PART |
| BN61-18323A | SMG PART |
| BN61-18464A | SMG PART |
| BN61-18465A | SMG PART |
| BN61-18568A | SMG PART |
| BN61-18643A | SMG PART |
| BN61-18644A | SMG PART |
| BN61-19112A | SMG PART |
| BN61-19207A | SMG PART |
| BN61-19208A | SMG PART |
| BN61-19208B | SMG PART |
| BN61-19209A | SMG PART |
| BN61-19210A | SMG PART |
| BN61-19211A | SMG PART |
| BN61-19212A | SMG PART |
| BN61-19213A | SMG PART |
| BN61-19214A | SMG PART |
| BN61-19215A | SMG PART |
| BN61-19216A | SMG PART |
| BN61-19217A | SMG PART |
| BN61-19219A | SMG PART |
| BN61-19269A | SMG PART |
| BN61-19708A | SMG PART |
| BN61-19709A | SMG PART |
| BN61-19743A | SMG PART |
| BN61-19754A | SMG PART |
| BN61-19755A | SMG PART |
| BN61-19756A | SMG PART |
| BN61-19757A | SMG PART |
| BN62-00885A | SMG PART |
| BN62-00938A | SMG PART |
| BN62-00998A | SMG PART |
| BN63-03887A | SMG PART |
| BN63-07441A | SMG PART |
| BN63-12734A | SMG PART |
| BN63-16127A | SMG PART |
| BN63-16532A | SMG PART |
| BN63-18142A | SMG PART |
| BN63-18440A | SMG PART |
| BN63-19121A | SMG PART |
| BN63-19351B | SMG PART |
| BN63-19352A | SMG PART |
| BN63-19353A | SMG PART |
| BN63-19354A | SMG PART |
| BN63-19568D | SMG PART |
| BN63-19639A | SMG PART |
| BN63-19648A | SMG PART |
| BN63-19714A | SMG PART |
| BN63-19804A | SMG PART |
| BN63-19921A | SMG PART |
| BN63-19922A | SMG PART |
| BN63-19924A | SMG PART |
| BN63-20075A | SMG PART |
| BN63-20076A | SMG PART |
| BN63-20125A | SMG PART |
| BN63-20144A | SMG PART |
| BN63-20464A | SMG PART |
| BN63-20465A | SMG PART |
| BN63-20466A | SMG PART |
| BN63-20475A | SMG PART |
| BN63-20476A | SMG PART |
| BN63-20947A | SMG PART |
| BN63-20948A | SMG PART |
| BN63-20989A | SMG PART |
| BN64-04767A | SMG PART |
| BN64-04768A | SMG PART |
| BN64-04769A | SMG PART |
| BN65-00010A | SMG PART |
| BN67-00327J | SMG PART |
| BN68-00513A | SMG PART |
| BN68-05603A | SMG PART |
| BN68-05603E | SMG PART |
| BN68-07104D | SMG PART |
| BN68-07835Q | SMG PART |
| BN68-08730A | SMG PART |
| BN68-08822B | SMG PART |
| BN68-09371E | SMG PART |
| BN68-11362A | SMG PART |
| BN68-11940A | SMG PART |
| BN68-12374A | SMG PART |
| BN68-12478A | SMG PART |
| BN68-12478C | SMG PART |
| BN68-12479A | SMG PART |
| BN68-12571A | SMG PART |
| BN68-12571B | SMG PART |
| BN68-12571C | SMG PART |
| BN68-12571D | SMG PART |
| BN68-13142A | SMG PART |
| BN68-13480A | SMG PART |
| BN68-16305A | SMG PART |
| BN68-17179A | SMG PART |
| BN68-17183A | SMG PART |
| BN69-11504A | SMG PART |
| BN69-21424F | SMG PART |
| BN69-22276Q | SMG PART |
| BN69-22465A | SMG PART |
| BN69-22563A | SMG PART |
| BN69-22564A | SMG PART |
| BN69-22631A | SMG PART |
| BN69-24373A | SMG PART |
| BN69-24374A | SMG PART |
| BN69-24540A | SMG PART |
| BN69-24541A | SMG PART |
| BN69-24542A | SMG PART |
| BN69-24543A | SMG PART |
| BN69-24708A | SMG PART |
| BN69-26069A | SMG PART |
| BN69-26070A | SMG PART |
| BN81-01918A | SMG PART |
| BN90-12358S | SMG PART |
| BN91-23318F | SMG PART |
| BN91-23869L | SMG PART |
| BN91-24324L | SMG PART |
| BN92-30264T | SMG PART |
| BN92-30267R | SMG PART |
| BN92-31731G | SMG PART |
| BN92-31975A | SMG PART |
| BN94-16936C | SMG PART |
| BN94-18117B | SMG PART |
| BN96-53692A | SMG PART |
| BN96-53693B | SMG PART |
| BN96-53938A | SMG PART |
| BN96-53938B | SMG PART |
| BN96-53939A | SMG PART |
| BN96-54032A | SMG PART |
| BN96-54033A | SMG PART |
| BN96-54349A | SMG PART |
| BN96-55663S | SMG PART |
| BN96-55991A | SMG PART |
| BN96-57576A | SMG PART |
| BN96-57577A | SMG PART |
| BN96-58133A | SMG PART |
| BN96-58160A | SMG PART |
| BN96-58168A | SMG PART |
| BN97-00051H | SMG PART |
| BN97-00135J | SMG PART |
| BN97-00135K | SMG PART |
| BN97-00135L | SMG PART |
| BN97-00135M | SMG PART |
| BN97-00135N | SMG PART |
| BN97-00135R | SMG PART |
| BN97-00135S | SMG PART |
| BN97-18395D | SMG PART |
| BN97-18398M | SMG PART |
| BN97-18398P | SMG PART |
| BN97-18398U | SMG PART |
| BN97-18398V | SMG PART |
| BN97-18398W | SMG PART |
| BN97-18696Y | SMG PART |
| BN97-20024A | SMG PART |
| BN97-20270G | SMG PART |
| BN97-20308C | SMG PART |
| BN97-20809A | SMG PART |
| BN97-20810A | SMG PART |
| BN97-20817A | SMG PART |
| BN97-20957A | SMG PART |
| BN97-20967B | SMG PART |
| BN97-20967C | SMG PART |
| BN97-20967H | SMG PART |
| BN97-20981A | SMG PART |
| BN97-21115G | SMG PART |
| BN97-21115H | SMG PART |
| 3407-000183 | SWITCH-DIP;50V,100MA,SLIDE,STANDARD |
| 3404-001560 | SWITCH-TACT;12V,50MA,220GF,4.5X2.2X2.6MM |
| 3404-001209 | SWITCH-TACT;12VDC,50MA,250GF,4.5X4.5X1.5 |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-002080 | TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
