Model Image
Manufacturer

Samsung

Model Number

NE58R9560WG

Description

30 Inch Induction Slide-in Range

Interactive Exploded View

Parts List

Part Number Description
DG94-00910B ASSY BASE BOTTOM;NE59J7850WS

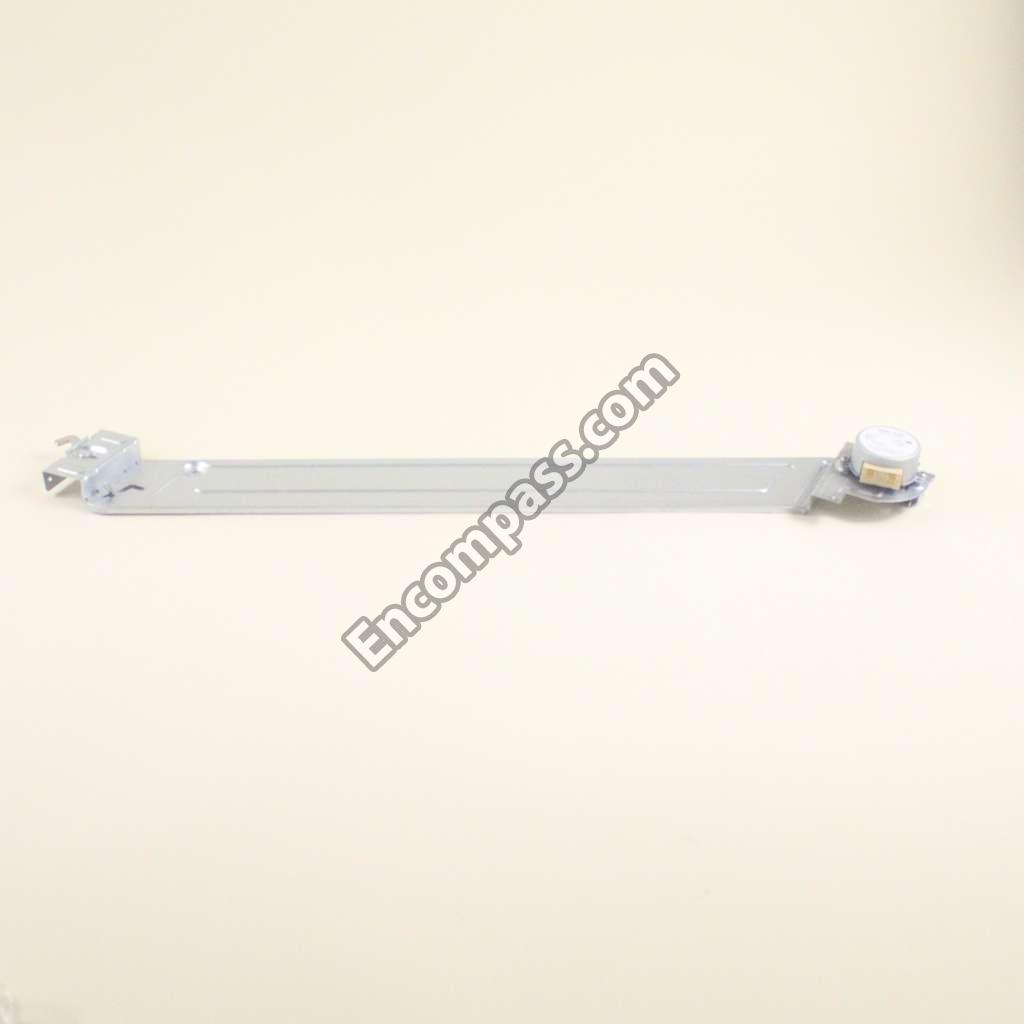

DG94-01334B DG94-01334B ASSY BODY LATCH;NE58F9500SS,SLIDE-IN

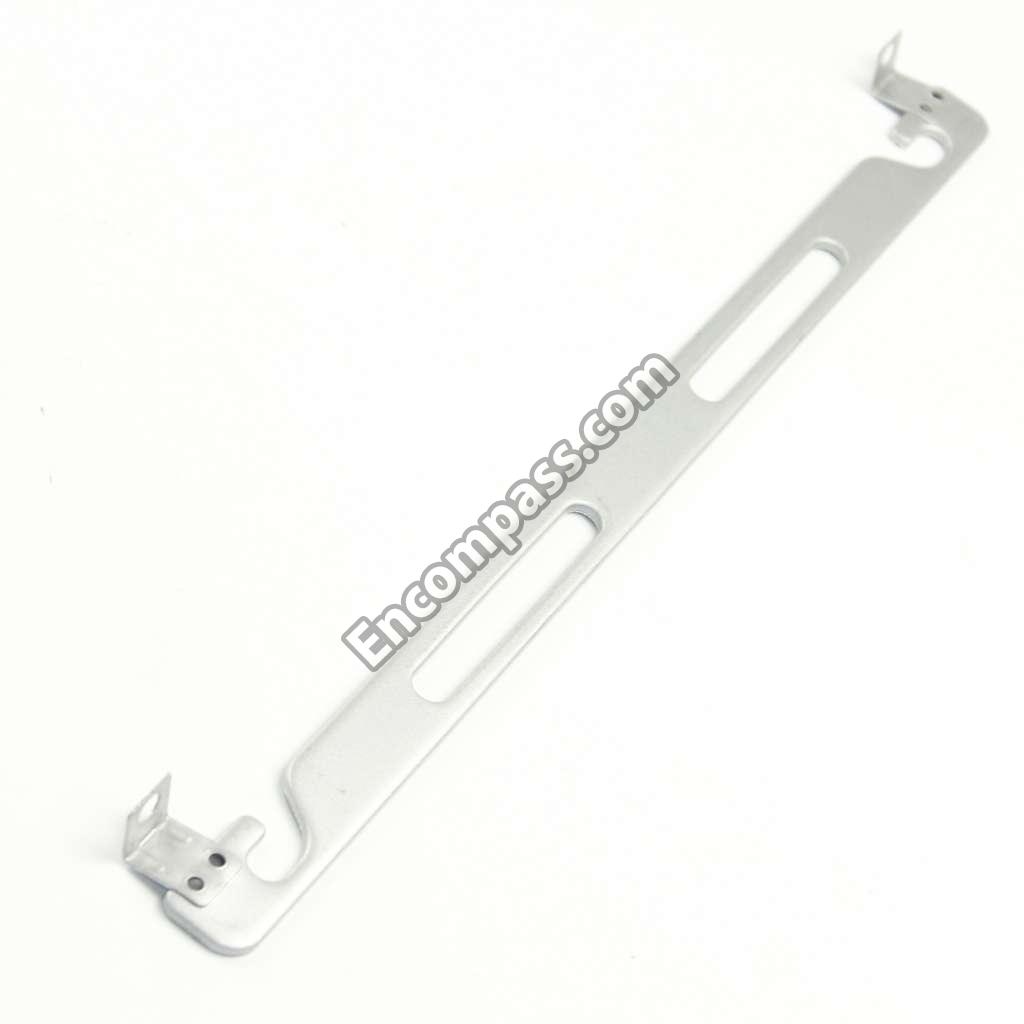

DG94-00911A DG94-00911A ASSY BRACKET HEATER;NE58F9710WS,ALCOAT,T
DG94-03201B ASSY BRACKET MOTOR;NE58K9430SS,GI-SGCC,1
DG94-00870B DG94-00870B ASSY BRACKET SUB;NE58F9710WS,SLIDE-IN PJ
DG94-00915B ASSY BRACKET SUPPORTER;NE58K9850WS,BLK,N
DG94-00992B ASSY CASE BURNER;NE58K9560WS,SEE-DUCTION
DG94-00884C ASSY CHASSIS DOOR;NX58K9500WG,STSS,SLIDE
DG94-02505A ASSY CONTROL PANEL SUB;NE58N9560WG/AC,BL
DG94-01345A ASSY COOKTOP;NE58K9560WS,SEE-DUCTION
DG94-02188A ASSY COVER BACK-MAIN;NE58K9850**,GI-SGCC
DG94-00489B DG94-00489B ASSY COVER CASING-UPPER;NE599N1*, FE710*
DG94-00893A ASSY COVER HEATER;NE58F9710WS
DG94-00899A ASSY DOOR E;NE58F9710WS,ENAMEL COATING
DG94-00890D ASSY DOOR;NX58K9500WG,SINGLE DOOR
DG90-00791P ASSY DRAWER MAIN;NE58N9560WG/AC,BLK STSS
DG94-00903D ASSY DRAWER;NE58K9850WG
DG94-00989A ASSY DUCT;NE58H9970WS,SEE-DUCTION
DG94-00993B ASSY FRAME COOK TOP;NE58K9560WS,NE9900H
DG94-00913B ASSY GUIDE AIR;NE58K9560WS,GI-SGCC

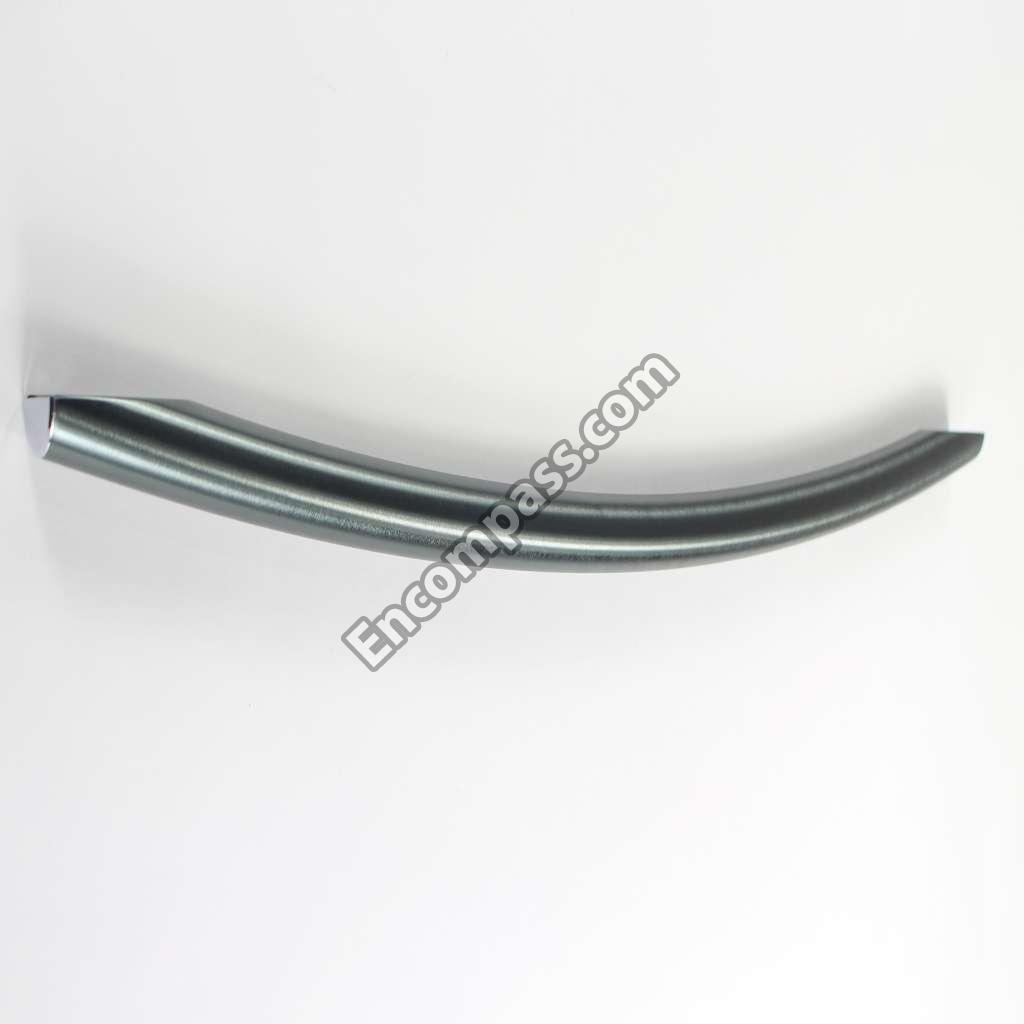

DG94-00686B DG94-00686B ASSY HANDLE;NE59J7630SG

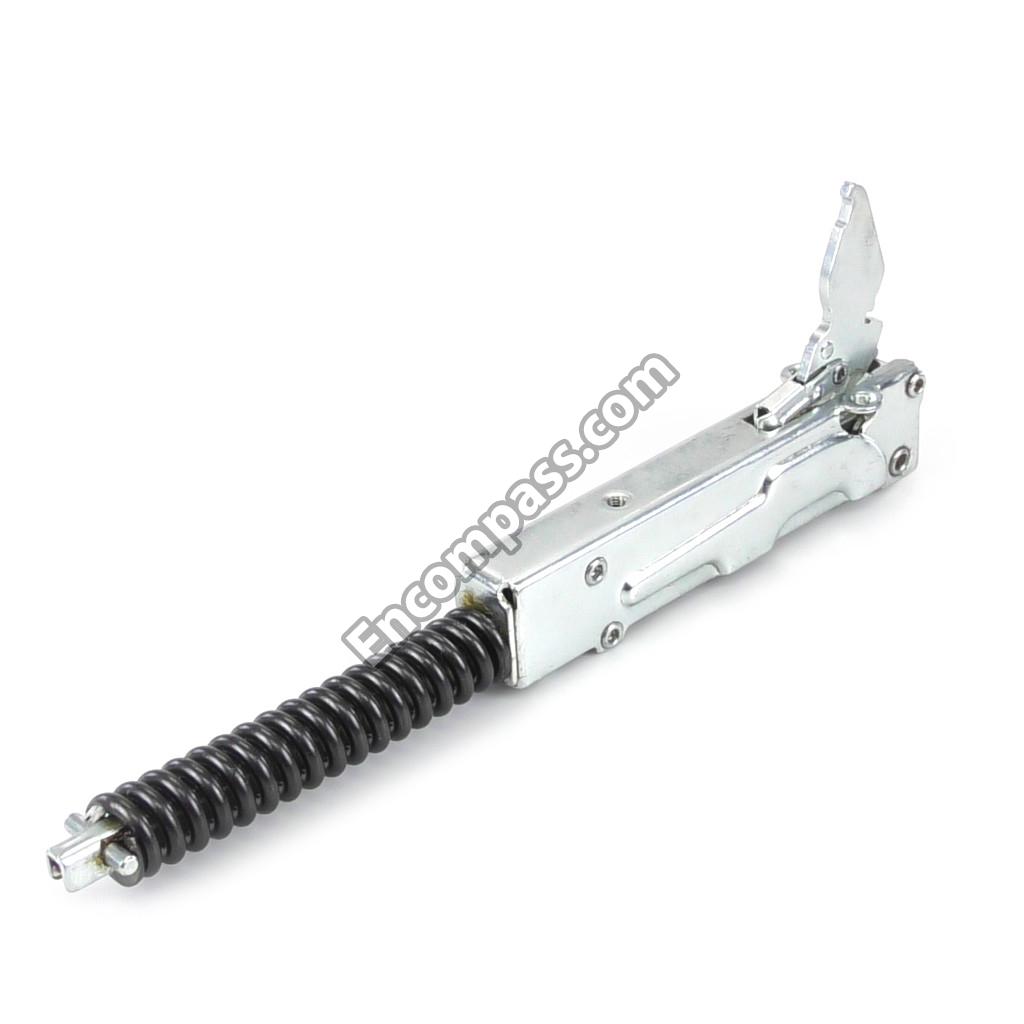

DG94-00358F DG94-00358F ASSY HINGE;NX9000H,30" DOOR
DG94-01402C ASSY HOLDER PCB-WIFI;NE58K9850WS,SLIDE-I
DG94-00995D ASSY KNOB;NE58N9560WG,PCABS,BLACK,VIRTUA
DG97-00083A DG97-00083A ASSY LAMP BULB;NE58K9500SG/AA,LH-01,120V

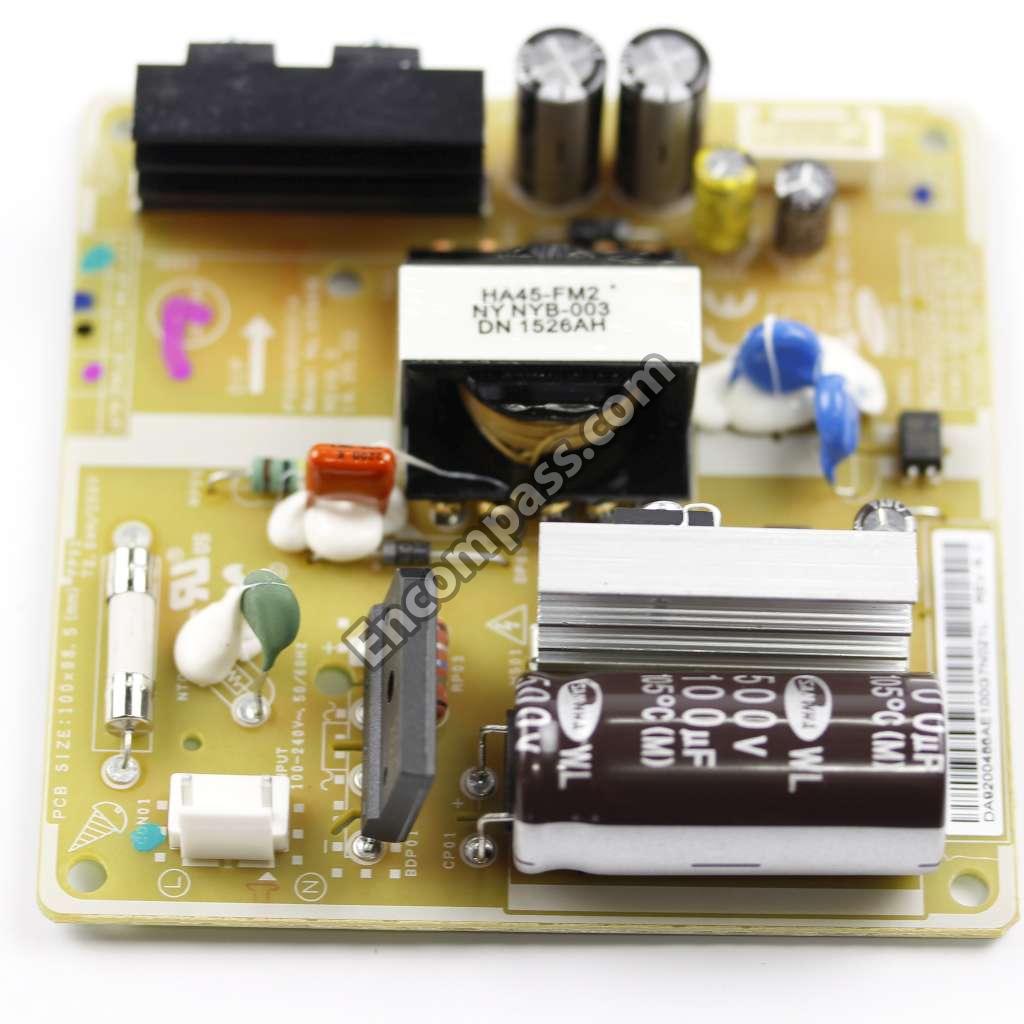

DA92-00486A DA92-00486A ASSY MODULE;STD #8 SMPS,FOOD SHOWCASE,45
DE92-03971A ASSY MODULE;VF_LED PBA,NE9900H_VE-PJT,NE
DE92-03970A ASSY MODULE;VF_LED PBA,NE9900H_VE-PJT,NE
DE92-03969A ASSY MODULE;VF_LED PBA,NE9900H_VE-PJT,NE
DG96-00110F DG96-00110F ASSY MOTOR CONVECTION;NE58H9970WS,120V,6
DG96-00110E DG96-00110E ASSY MOTOR CONVECTION;NE58H9970WS,35W,13
DG94-00904E ASSY PANEL WARMING DRAWER;NX58K9500WG,ST

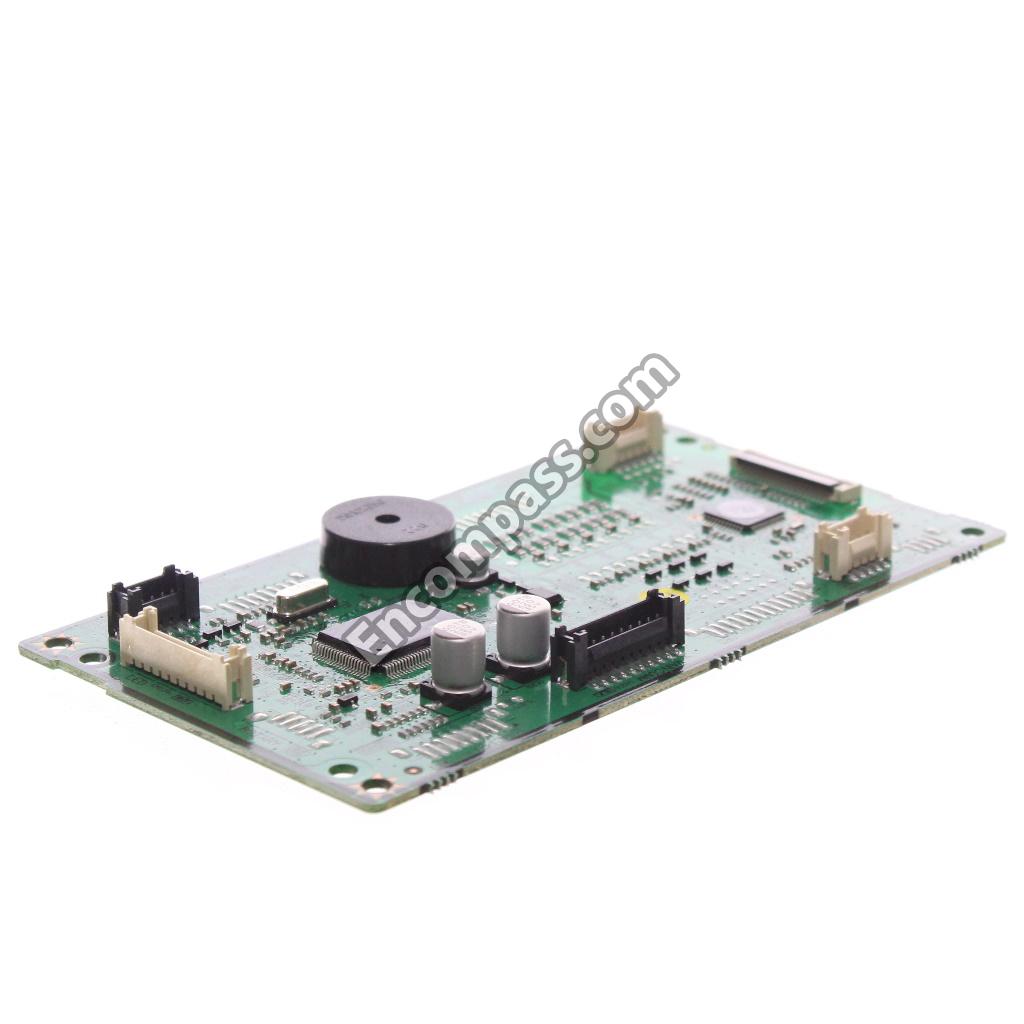

DG94-02415A DG94-02415A ASSY PCB EEPROM;EEP_02,DE92-03959B,NE990

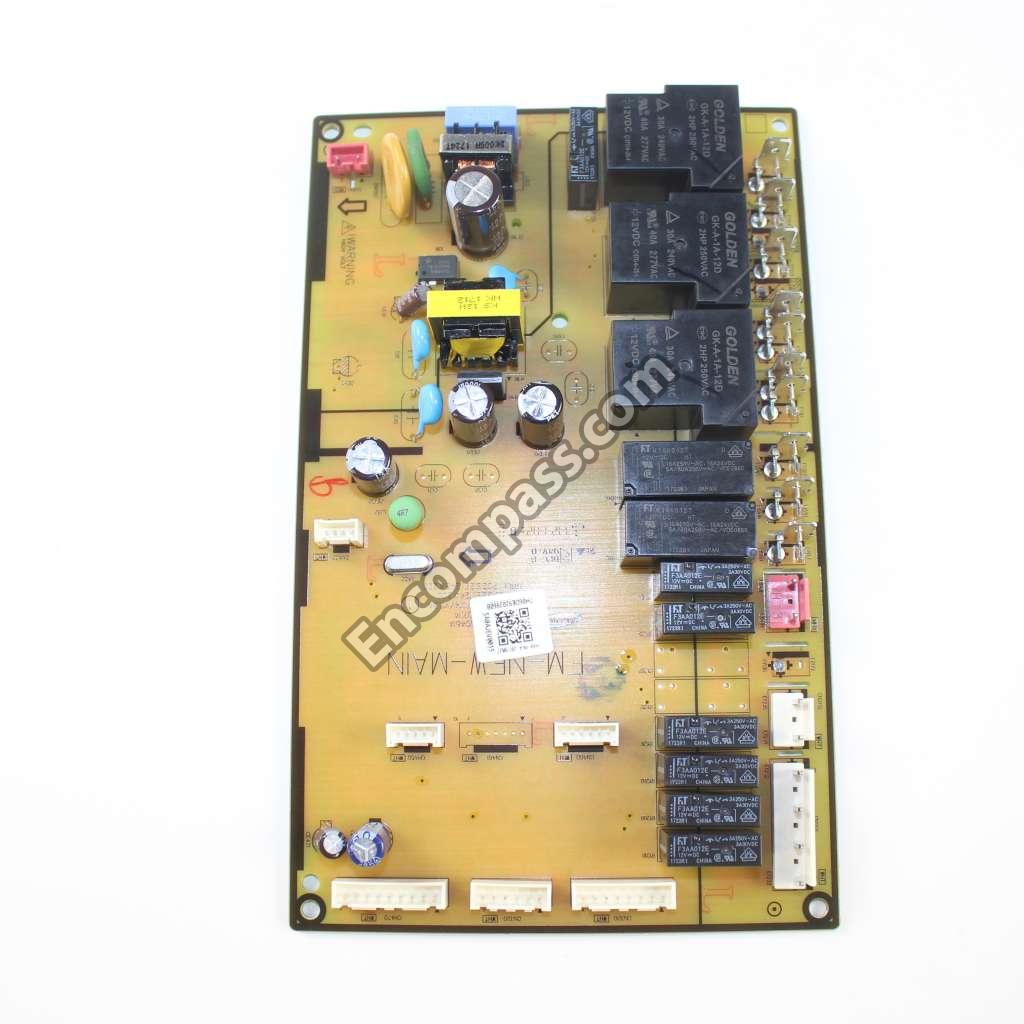

DE92-03960B DE92-03960B ASSY PCB MAIN;FM-NEW-MAIN-01,NE9900H,124

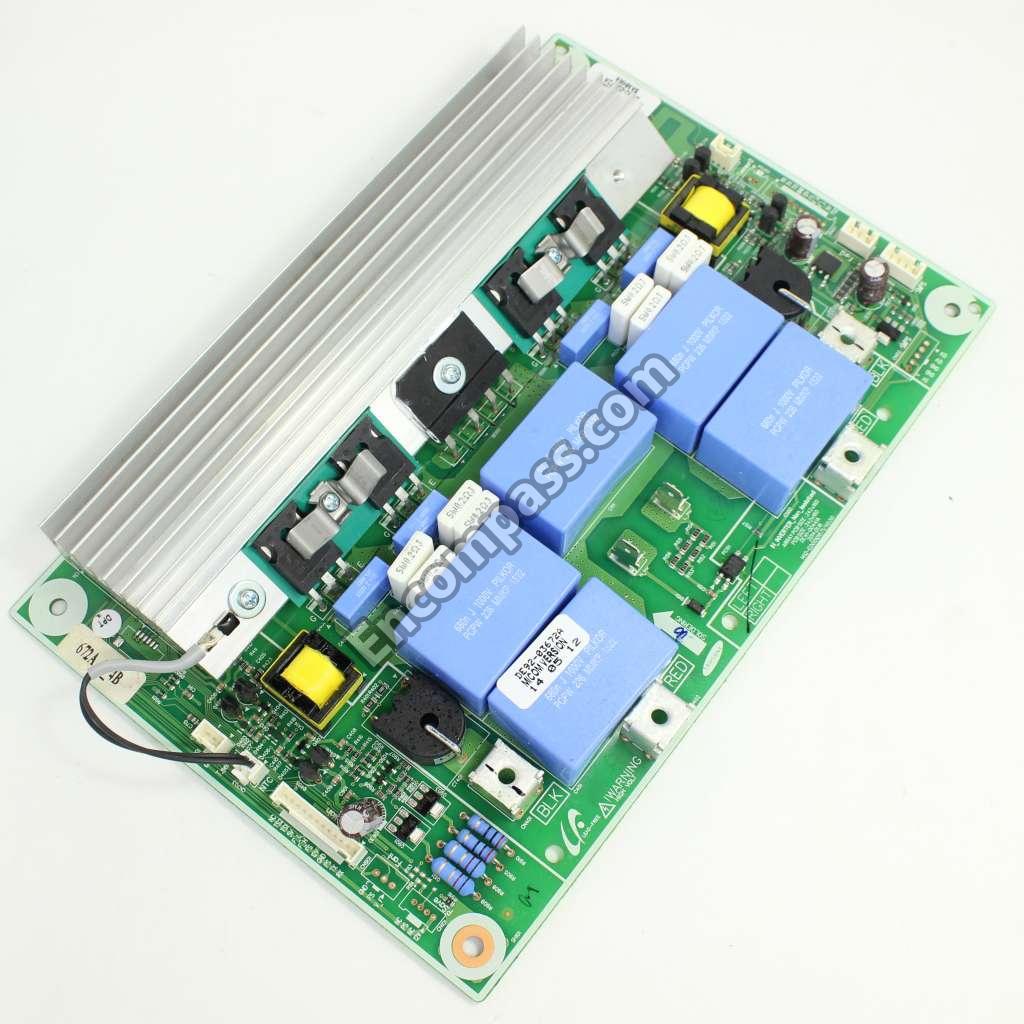

DE92-03672A DE92-03672A ASSY PCB MAIN;NE9900 4 BURNER L,NE9900H-
DE92-03671A DE92-03671A ASSY PCB MAIN;NE9900 4 BURNER R,NE9900H-

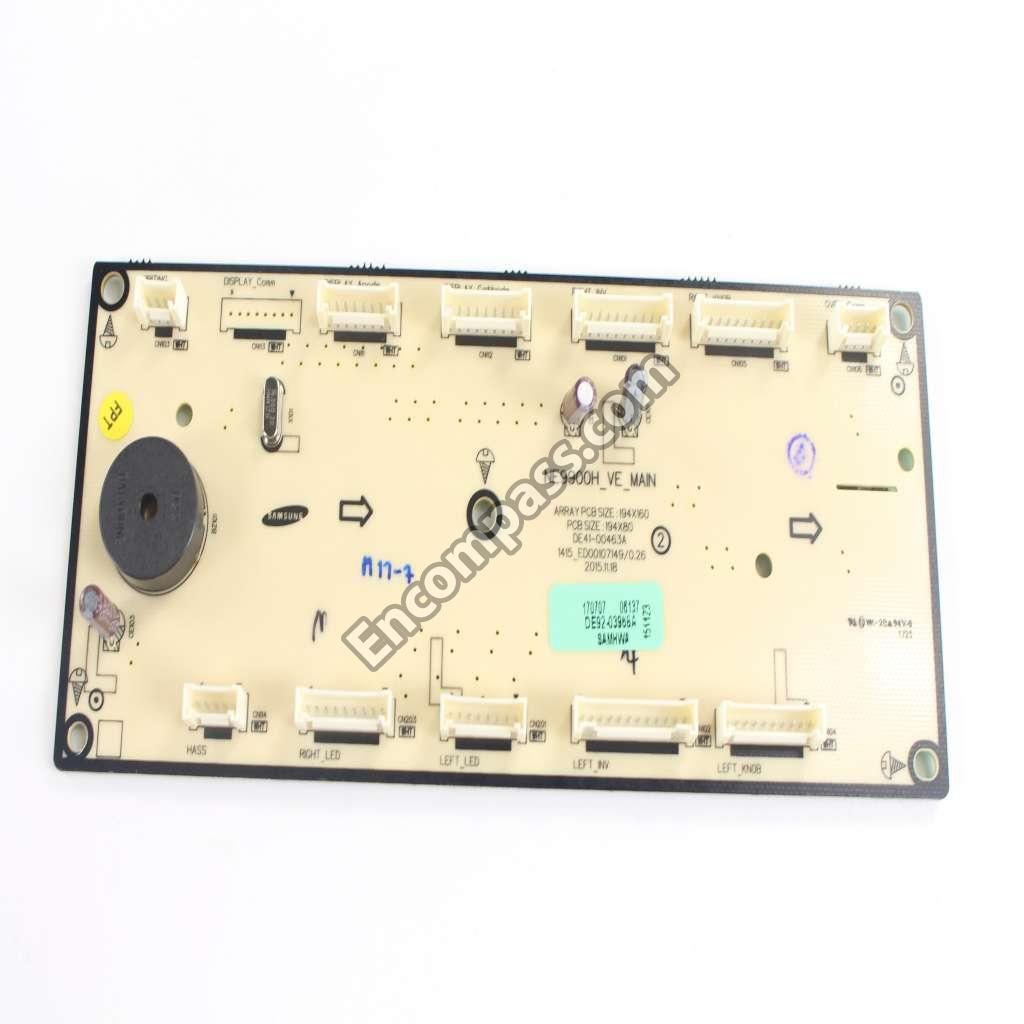

DE92-03968A DE92-03968A ASSY PCB MAIN;NE9900H_VE_MAIN-00,NE9900H

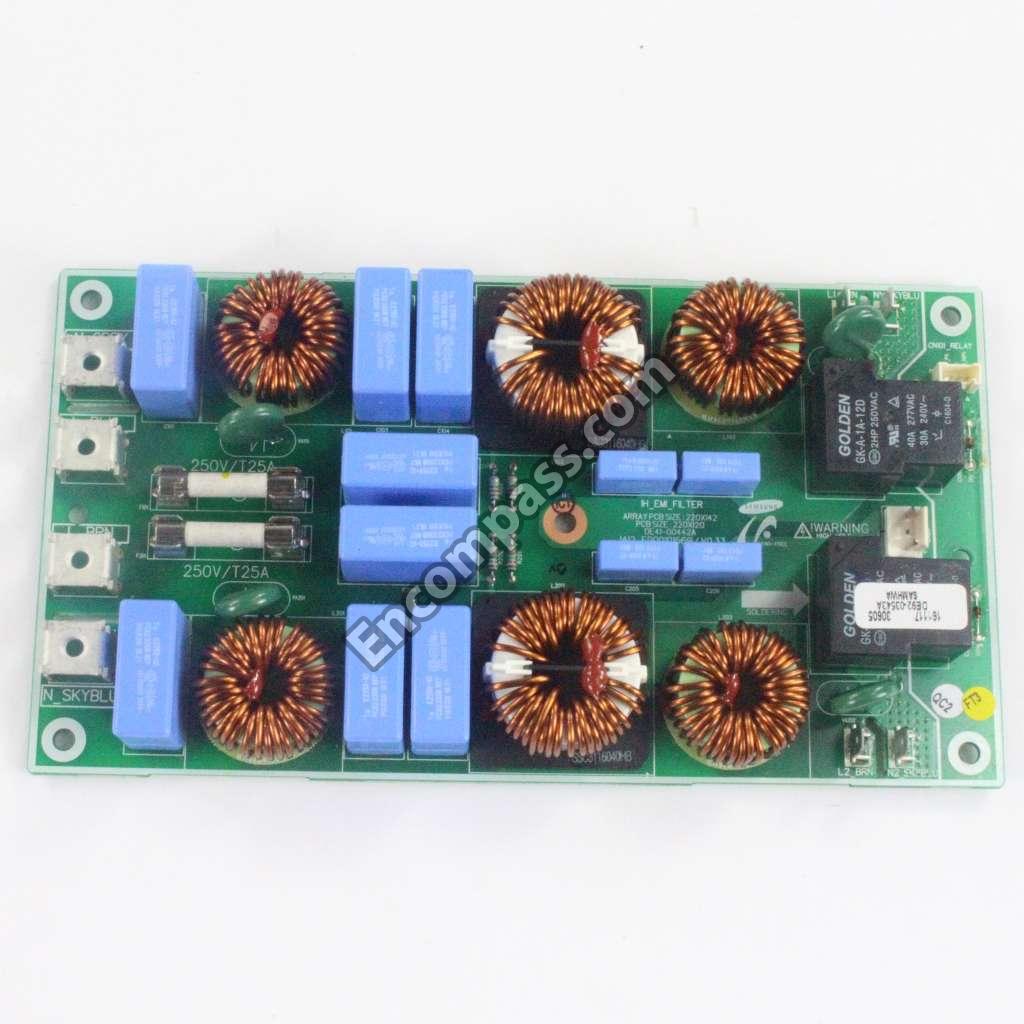

DE92-03543A DE92-03543A ASSY PCB SUB;IH WIDE EMI FILTER,NZF700G-
DG94-02255D ASSY PEDESTAL;NE58K9560WS,STSS,SLIDE-IN,
DG94-01266A ASSY VENT-FILTER;SLIDE-IN,ALCOAT,FILTER
DG94-00905A DG94-00905A ASSY VENT;NE58F9710WS,ALCOAT, T0.4
DG96-00364A ASSY WIRE HARNESS-COOKTOP;NE58H9970WS,24
DG96-00363A ASSY WIRE HARNESS-COOKTOP;NE58H9970WS,24
DG96-00362A ASSY WIRE HARNESS-COOKTOP;NE58H9970WS,24
DG96-00360A ASSY WIRE HARNESS-DC SIGNAL;NE58H9970WS,

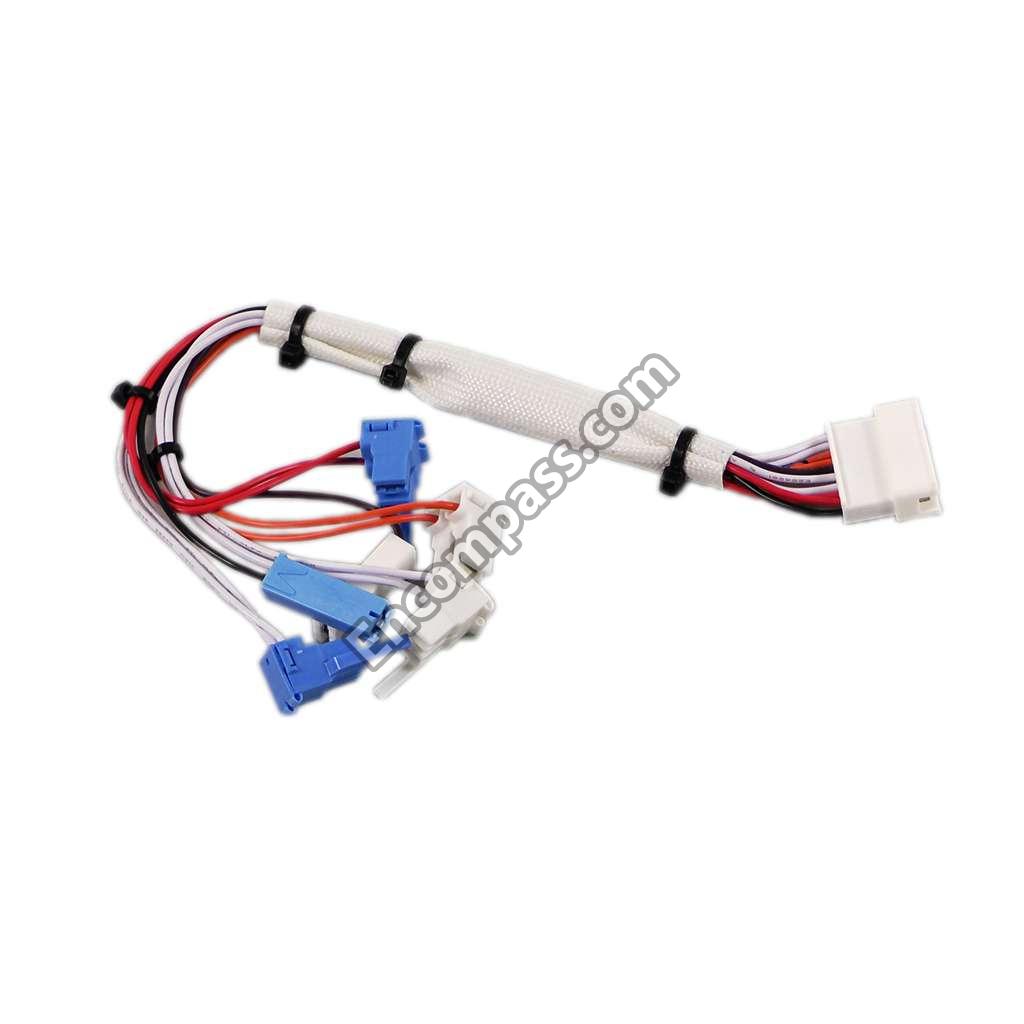

DG96-00359A DG96-00359A ASSY WIRE HARNESS-DC SIGNAL;NE58H9970WS,
DG96-00433A ASSY WIRE HARNESS-DC SIGNAL;NE58K9850WS,

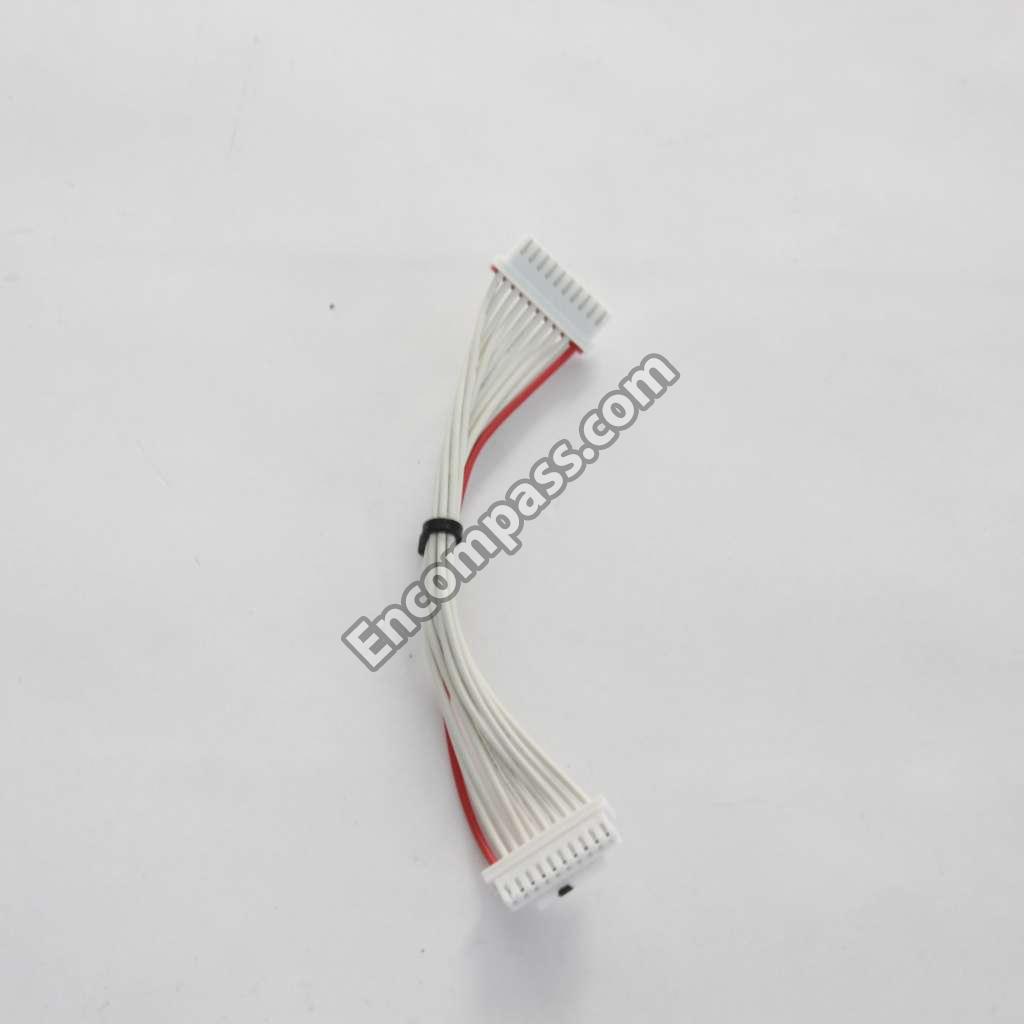

DG96-00348A DG96-00348A ASSY WIRE HARNESS-DISPLAY;NE7000J PJT AL
DG96-00134A ASSY WIRE HARNESS-DRAWER;FTQ307NWGX,120V
DG96-00432A ASSY WIRE HARNESS-MAIN;NE58K9560WS,240V/
DG96-00129B ASSY WIRE HARNESS-MOTOR;NE58K9430SS/NE58
DG96-00361A ASSY WIRE HARNESS-POWER;NE58H9970WS,240V

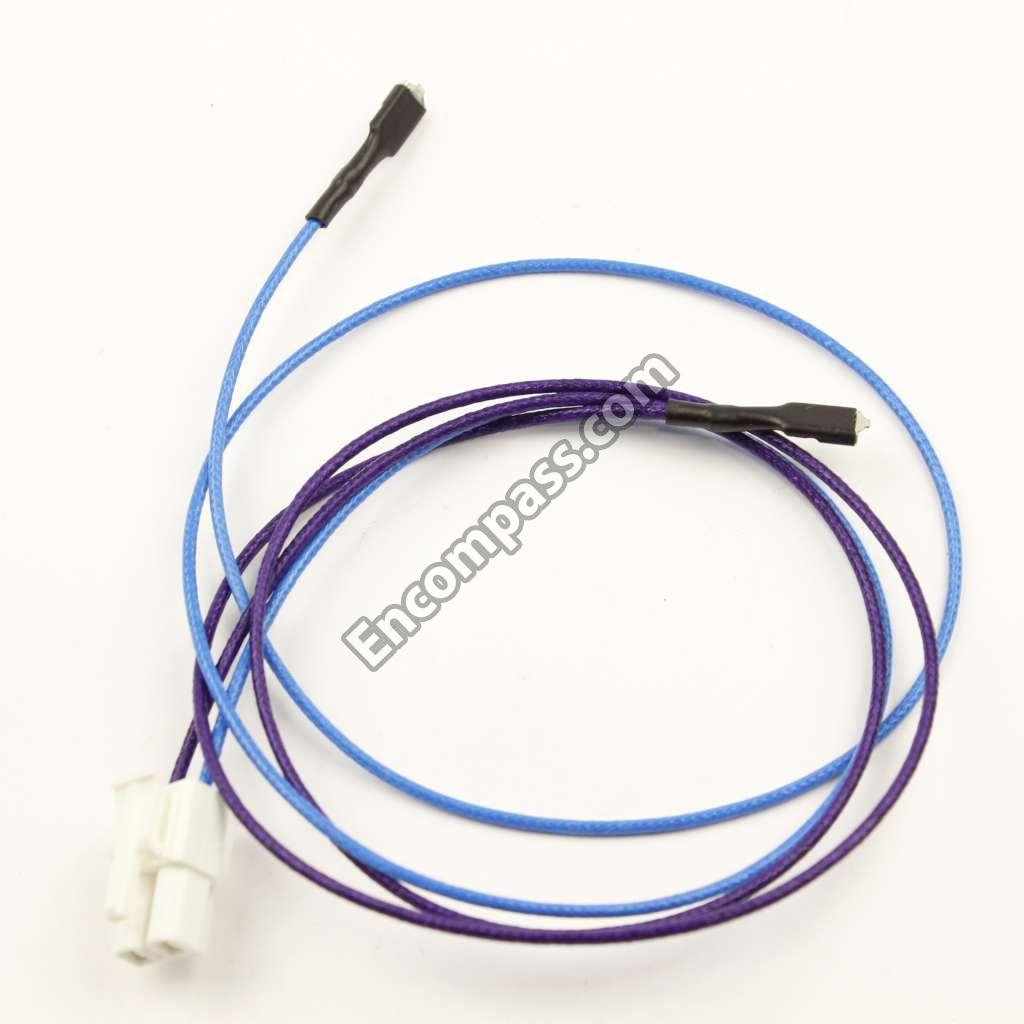

DG39-00019A DG39-00019A ASSY WIRE HARNESS-SUB;FTQ386,120VAC,UL,C

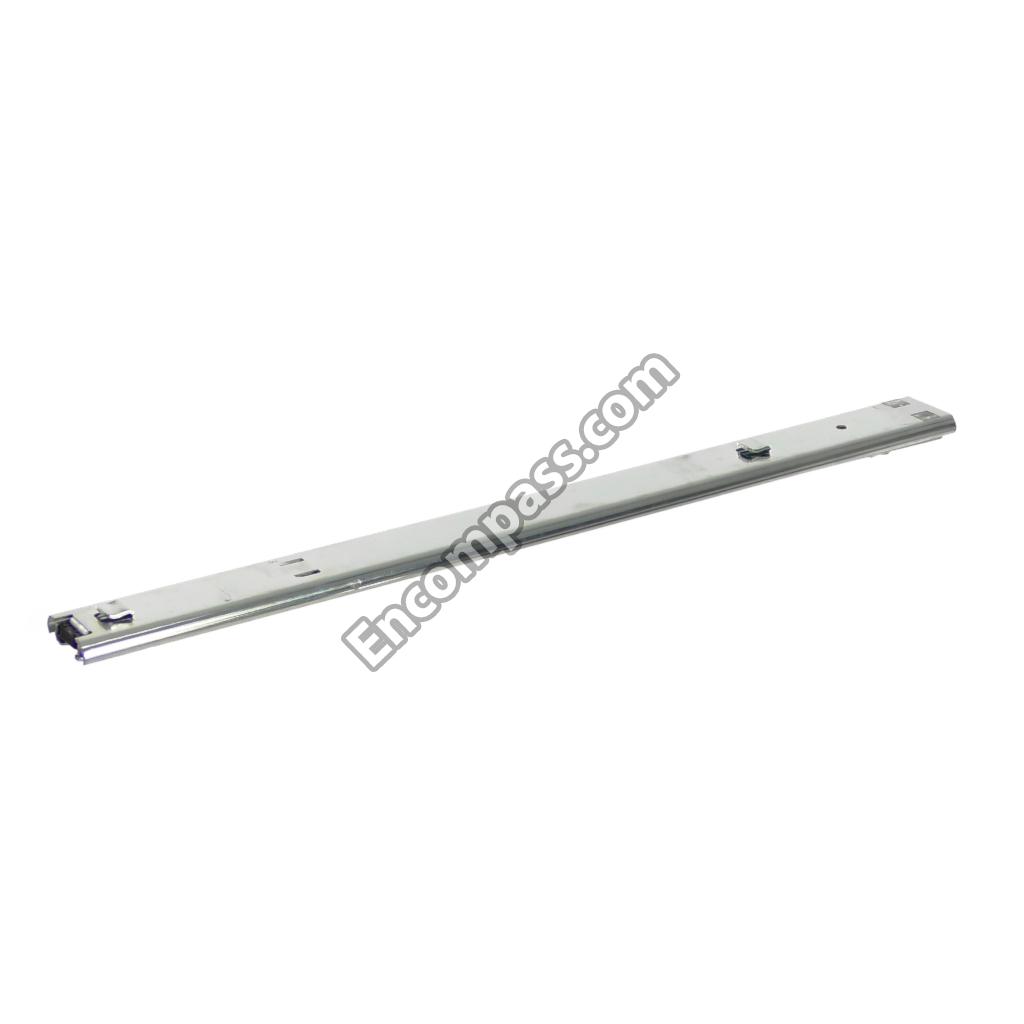

DG94-00550A DG94-00550A ASSY-SLIDER;FX710BGS,V1-BEST
DG64-00360C DG64-00360C BADGE LOGO INLET;NI,T0.08,W9.19,L65,BLAC
DE60-10111A DE60-10111A BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA
DG61-00778A BRACKET MOTOR;NE58F9710WS,GI-SGCC,T0.6,W
DG61-00168B BRACKET-COVER ACCESS;FCQ321HSUX,GI-SGCC,
DG61-00212A DG61-00212A BRACKET-GROUND;FTQ386LWUX,GI-SGCC,0.8,14
DG61-00430A DG61-00430A BRACKET-LEG LEVELING;NE59J7850**,NE59J77

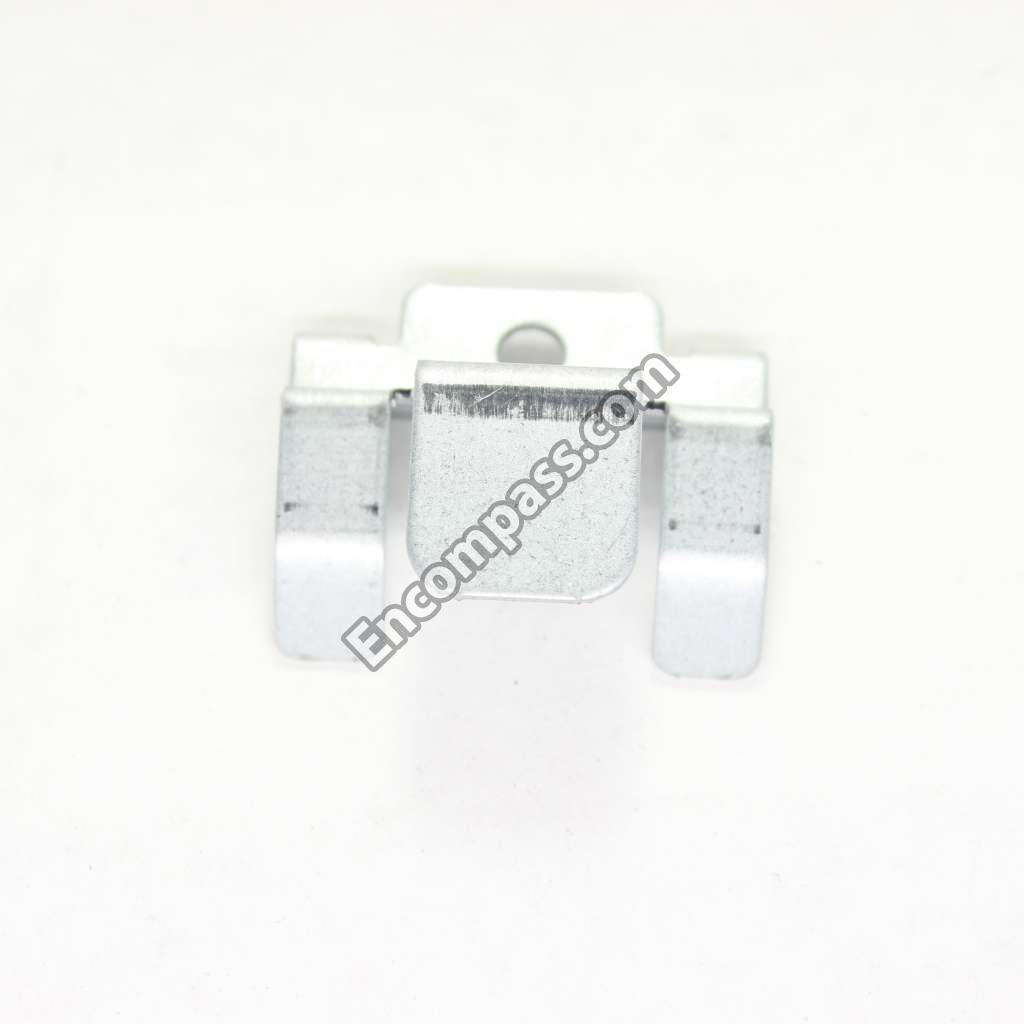

DG61-00126A DG61-00126A BRACKET-WARMING HEATER;NE58F9710WS,GI-SG
2402-001303 C-AL,SMD;220UF,20%,35V,TP,8.3X8.3X10MM
2402-001368 C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM
2401-003139 C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO
2401-000481 C-AL;10UF,20%,50V,WT,TP,5X11MM,5MM
2401-000842 C-AL;220UF,20%,25V,WT,TP,8X11.5MM,5MM
2401-000970 C-AL;22UF,20%,50V,TP,5X11MM,5MM,-55TO+10
2401-000040 C-AL;47UF,20%,250V,TP,12.5X25MM,5MM,-40T
2401-001548 C-AL;47UF,20%,25V,TP,5X11MM,5MM,-55TO+10
2203-006457 C-CER,CHIP
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0.
2203-000239 C-CER,CHIP;100PF,5%,50V,C0G,TP,2012,-55T
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608,T0.8
2203-000260 C-CER,CHIP;10NF,10%,50V,X7R,TP,2012,-55T
2203-007513 C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-000389 C-CER,CHIP;15PF,5%,50V,C0G,TP,2012,-55TO
2203-000440 C-CER,CHIP;1NF,10%,50V,X7R,TP,1608,T0.8,
2203-000444 C-CER,CHIP;1NF,10%,50V,X7R,TP,2012,T1.2,
2203-000455 C-CER,CHIP;1NF,5%,50V,C0G,2012,-55TO+125
2203-006698 C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8,
2203-007486 C-CER,CHIP;1UF,10%,50V,X5R,TP,1608,-55TO
2203-006960 C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO
2203-006460 C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55
2203-006320 C-CER,CHIP;2.2UF,10%,16V,X7R,TP,2012,T1.
2203-000626 C-CER,CHIP;22PF,5%,50V,C0G,TP,1608,-55TO
2203-000634 C-CER,CHIP;22PF,5%,50V,C0G,TP,2012,-55TO
2203-001071 C-CER,CHIP;56PF,5%,50V,C0G,TP,1608,-55TO
2203-001105 C-CER,CHIP;6.8NF,10%,50V,X7R,TP,2012,-55
2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20%,50V,Y5
2301-001220 C-FILM,LEAD-PPF;100NF,10%,275VAC,BK,18X6
6502-001117 CABLE CLAMP;DALF-94-2,SI,150C TEMP
DG67-00028A DG67-00028A CAP-MOTOR CONVECTION;BT62FQBPST,GI-SGCC,
DG61-00861A CASE BURNER;NE58H9970WS,GI-SGCC,T1,SEE-D
DG61-01024A CASE INDUCTION;NE58K9560WS,A5052,T1.5,W6
DG61-00823A CAVITY FLOOR COATING;NE58F9710WS,CR-SPE,

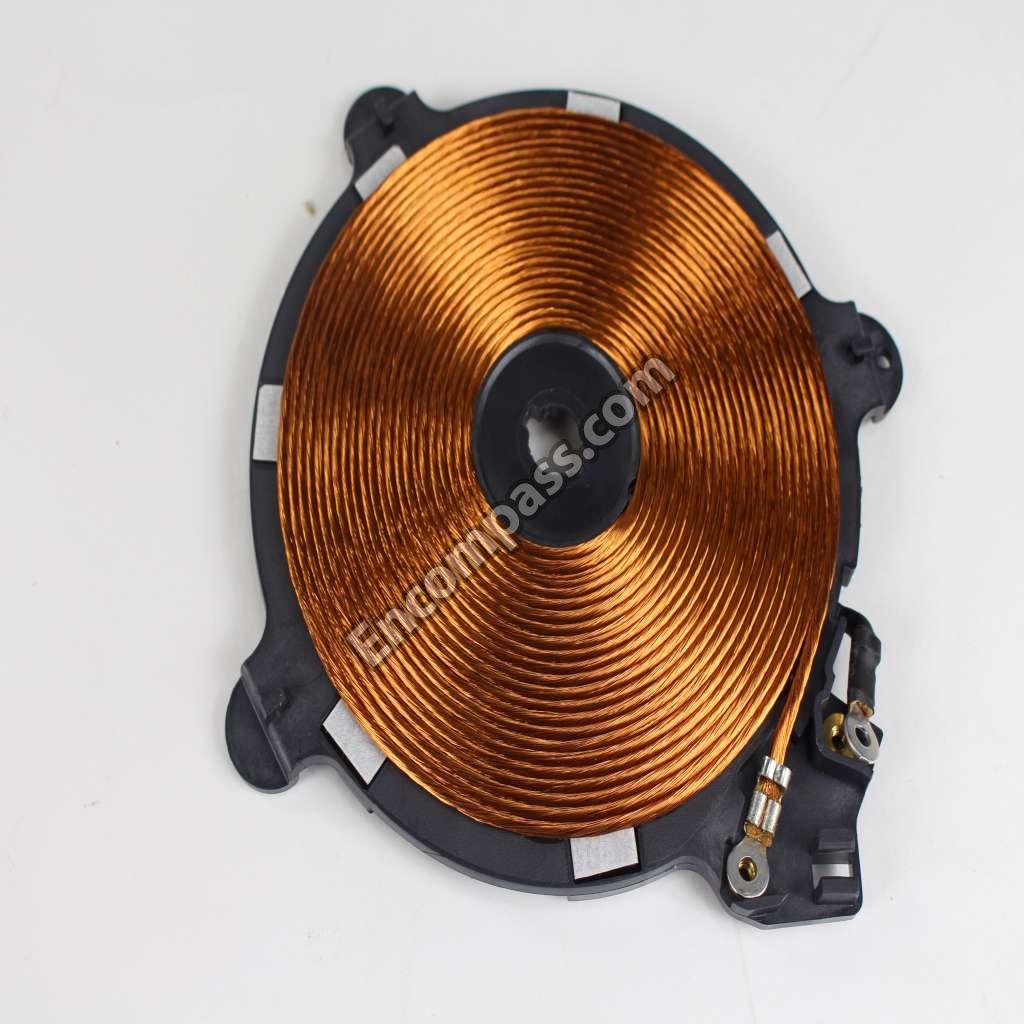

DG27-01011A DG27-01011A COIL-WORKING 160;160PI,54.0UH,5%,SIH3-1

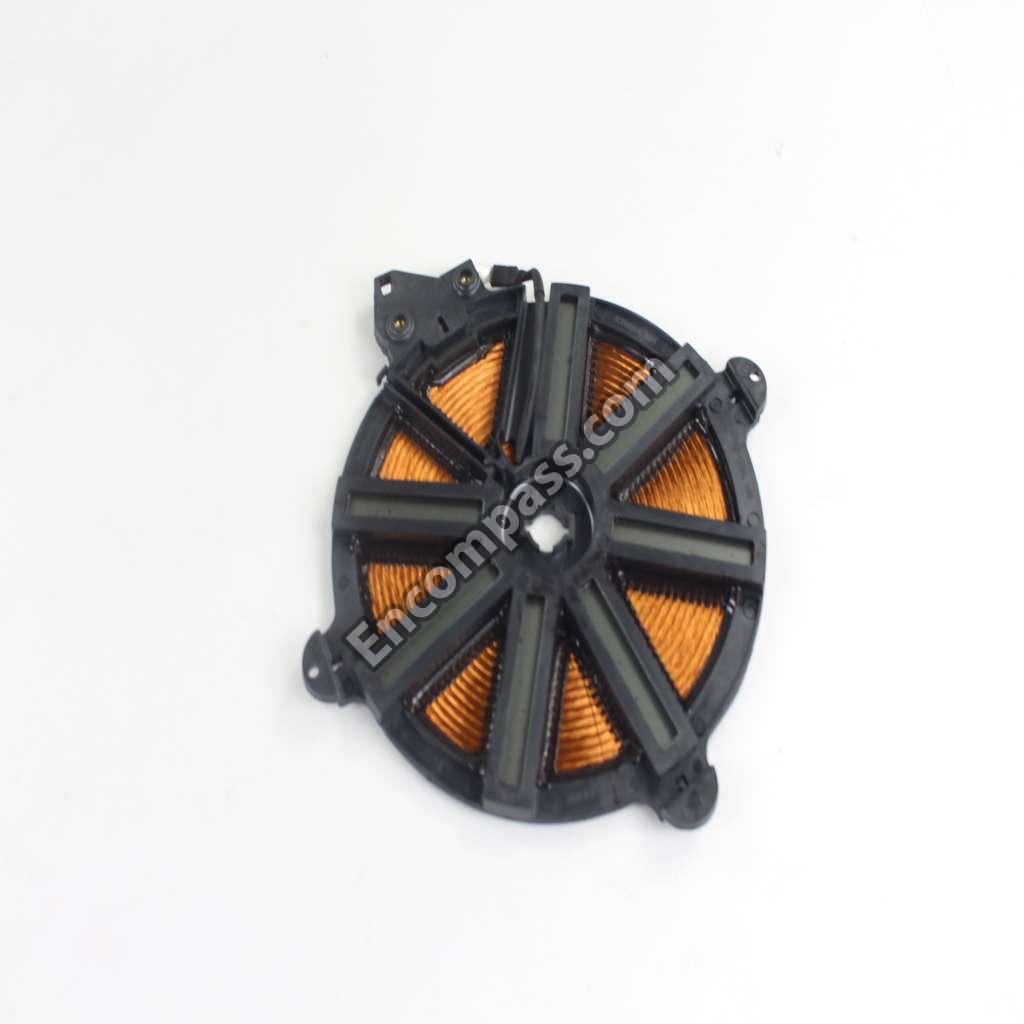

DG27-01012A DG27-01012A COIL-WORKING 180;180PI,54.0UH,5%,SIH3-1

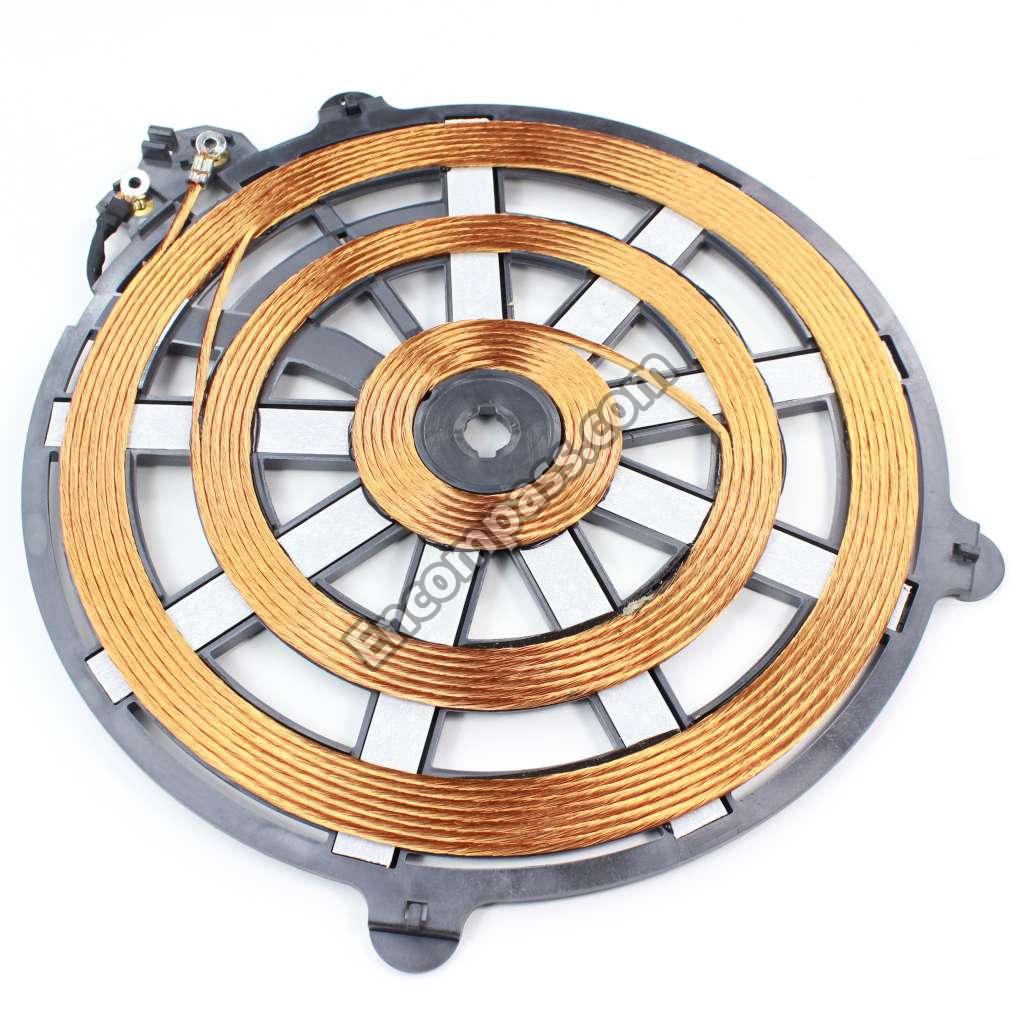

DG27-01014A DG27-01014A COIL-WORKING 280;280PI,54.0UH,5%,SIH3-2
DG63-00346A COVER FILTER;NZ84F7NC6AB,MICA SHEET,T0.3
DG63-00347A COVER PCB;NZ84F7NC6AB,MICA SHEET,T0.3
DG63-00101B COVER-WARMING HEATER;FTQ387**,FTQ353**,G
2801-004181 CRYSTAL-SMD;20MHZ,50PPM,28-AAN,16PF,30OH
DE63-00009W CUSHION SPONGE;PUR FOAM,T 24,W15,L100,BL
0402-001298 0402-001298 DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP
0402-001795 0402-001795 DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP
0404-001595 DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A
0401-001002 DIODE-SWITCHING;1N4148M,100V,200MA,DO-34
0401-001010 DIODE-SWITCHING;1N4148W,75V,150MA,400MW,
0401-001099 DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3
0403-000772 DIODE-ZENER
0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0403-000461 DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW
6042-001015 EYELET;ID1.2,OD1.6,L3.0,NI+SN PLT,BRASS
DG67-00011B DG67-00011B FAN CONVECTION-LOW;BT62FQBPST,ALCOAT-SA1
DG67-00001B DG67-00001B FAN CONVECTION-UP;BT62FQBPST,ALCOAT-SA1C
3601-001637 FUSE-CARTRIDGE;250V,25A,SLOW-BLOW,CERAMI

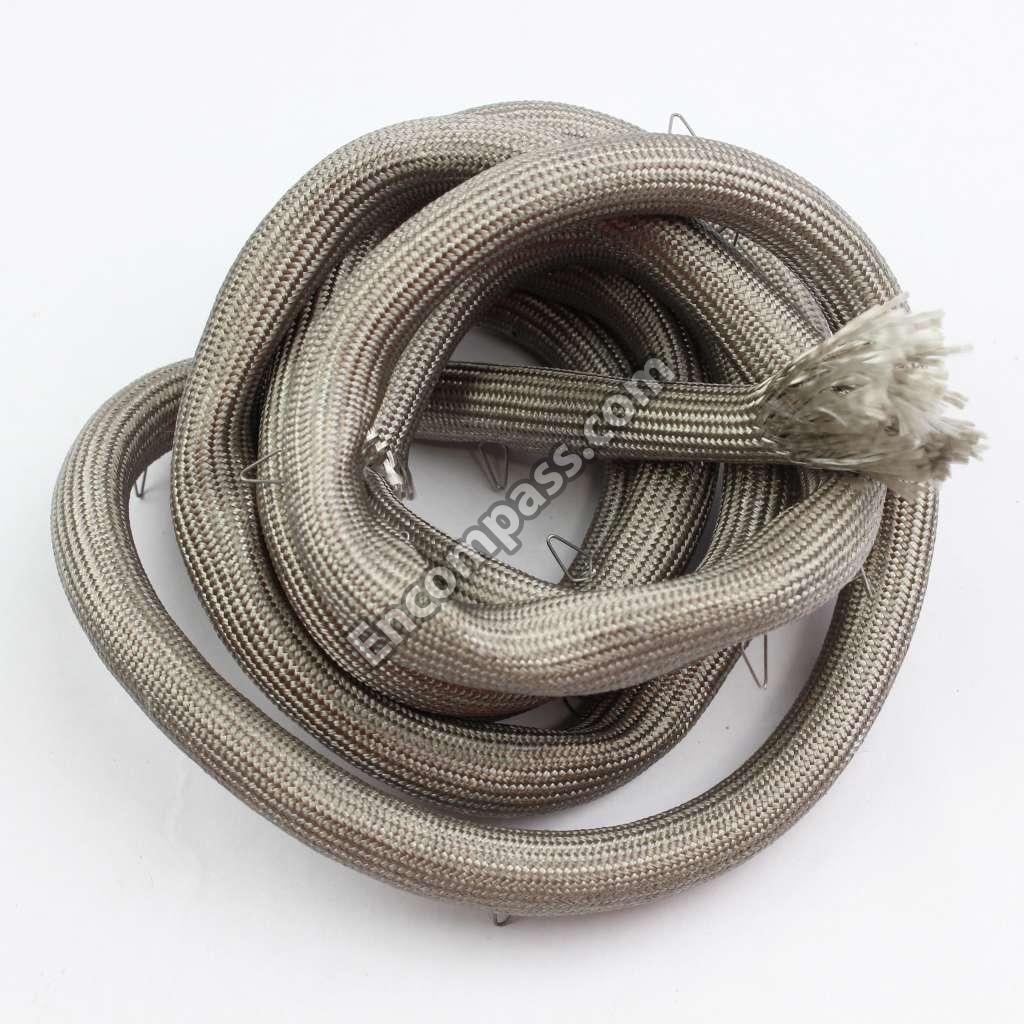

DG63-00255B DG63-00255B GASKET DOOR;NX583G0VBSR,GLASS FIBER,L215

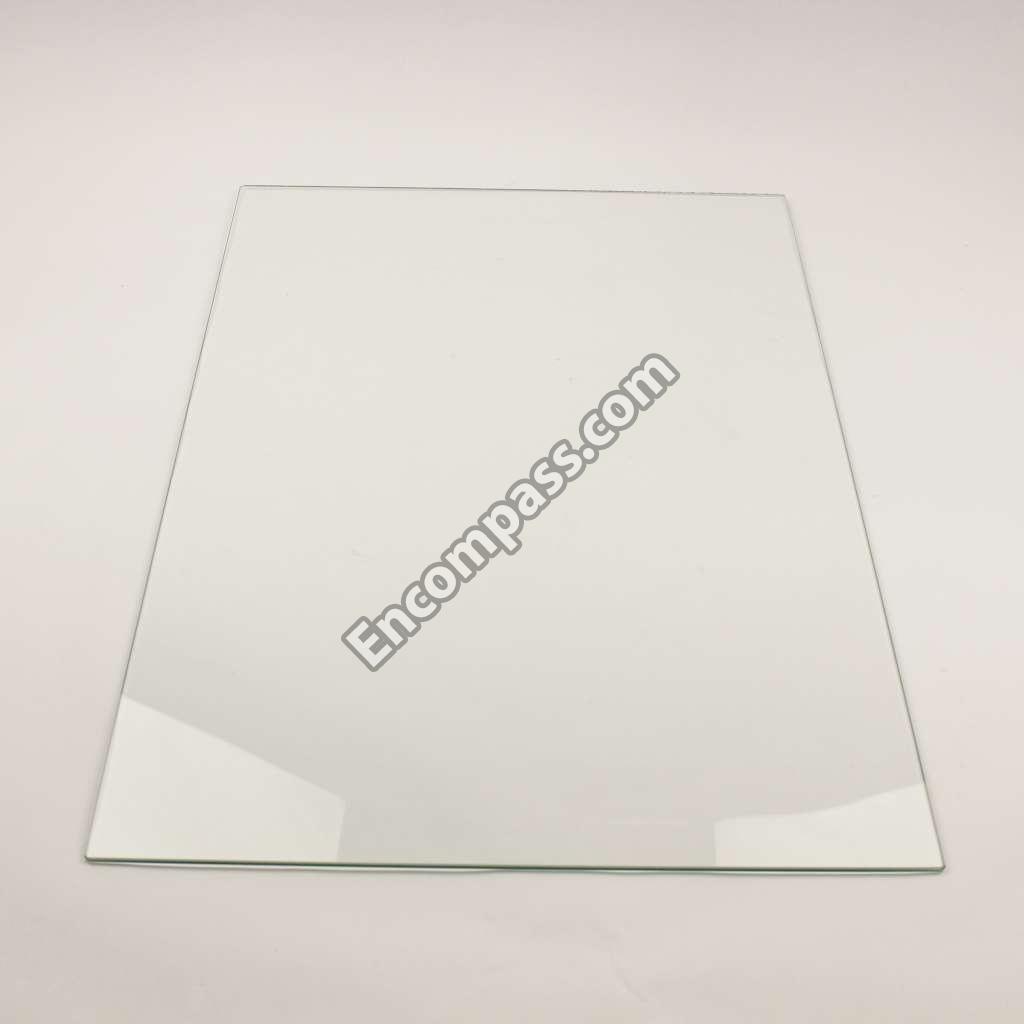

DG64-00133A DG64-00133A GLASS-INNER SUB;FTQ386LWUX,GLASS,3.2,W56

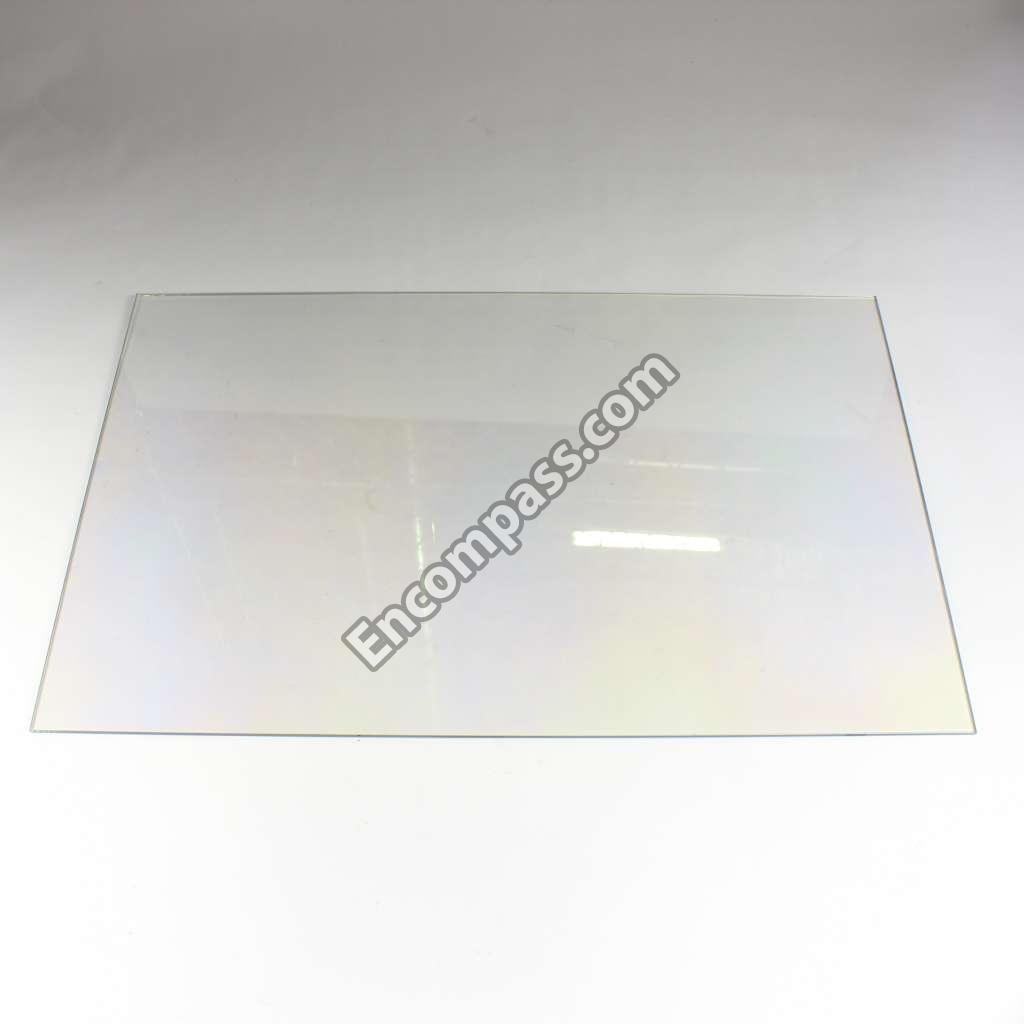

DG64-00092A DG64-00092A GLASS-INNER;FTQ386LWUX/XAA,GLASS,4.0,526
DG63-00107A GROUND-TERMINAL BLOCK;FTQ386LWUX,CU,T0.8
3711-000203 HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM
3711-000315 HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM
3711-003843 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,8P,
3711-006099 HEADER-BOARD TO CABLE;BOX,10P,1R,2.0MM,S
3711-004182 HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,STR
3711-003844 HEADER-BOARD TO CABLE;BOX,12P,1R,2MM,STR
3711-003942 HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA
3711-004143 HEADER-BOARD TO CABLE;BOX,2P/3P,1R,5MM,S
3711-000024 HEADER-BOARD TO CABLE;BOX,3P,1R,2.5MM,ST
3711-004349 HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA
3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,STRA
3711-008000 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,SMD-
3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-006042 HEADER-BOARD TO CABLE;BOX,6P,1R,2.0MM,SM
3711-001038 HEADER-BOARD TO CABLE;BOX,6P,1R,2.5MM,ST
3711-004236 HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,STRA
3711-001084 HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,ST
3711-001154 HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST
3711-004712 3711-004712 HEADER-BOARD TO CABLE;BOX,9P,1R,2MM,STRA

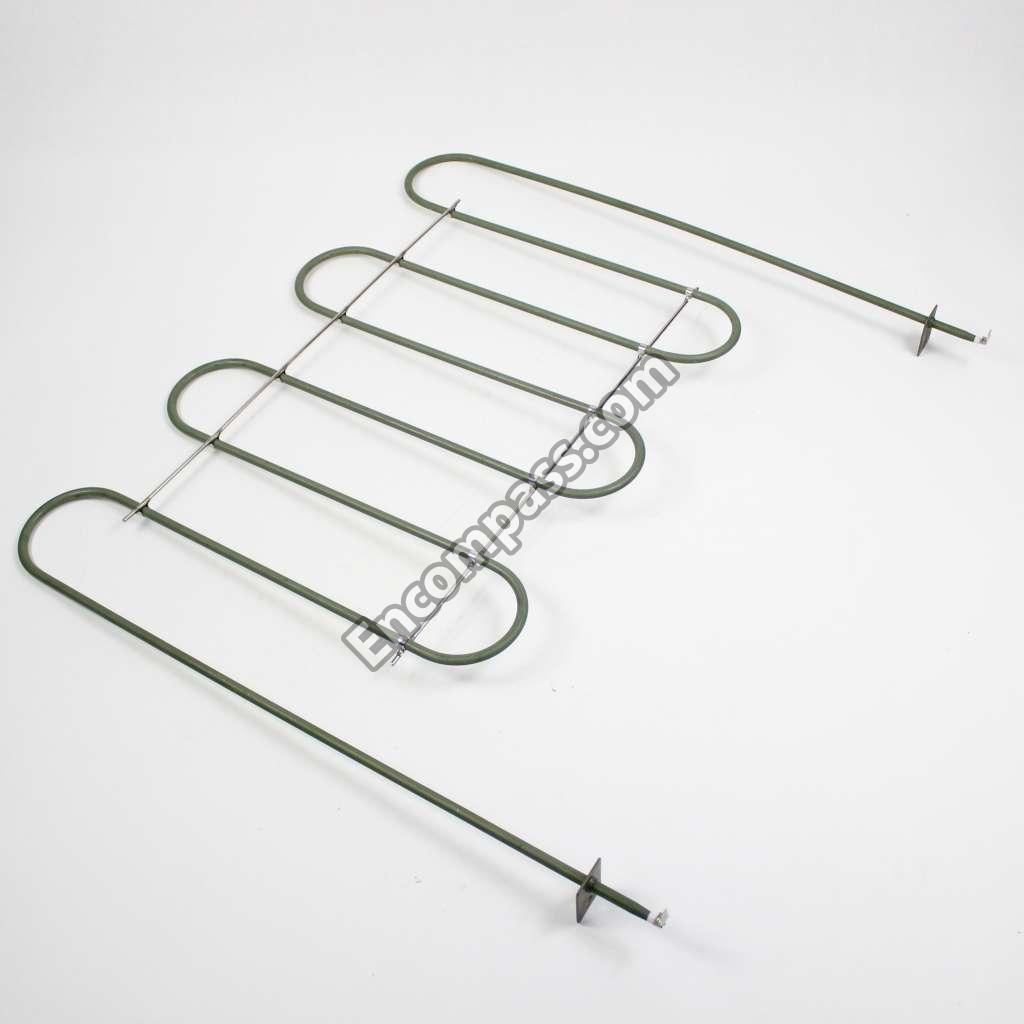

DG47-00020B DG47-00020B HEATER SHEATH-BOTTOM;AC240V,BKT TYPE(FIX
DG47-00009C DG47-00009C HEATER SHEATH-CONVECTION;AC240V,BKT TYPE

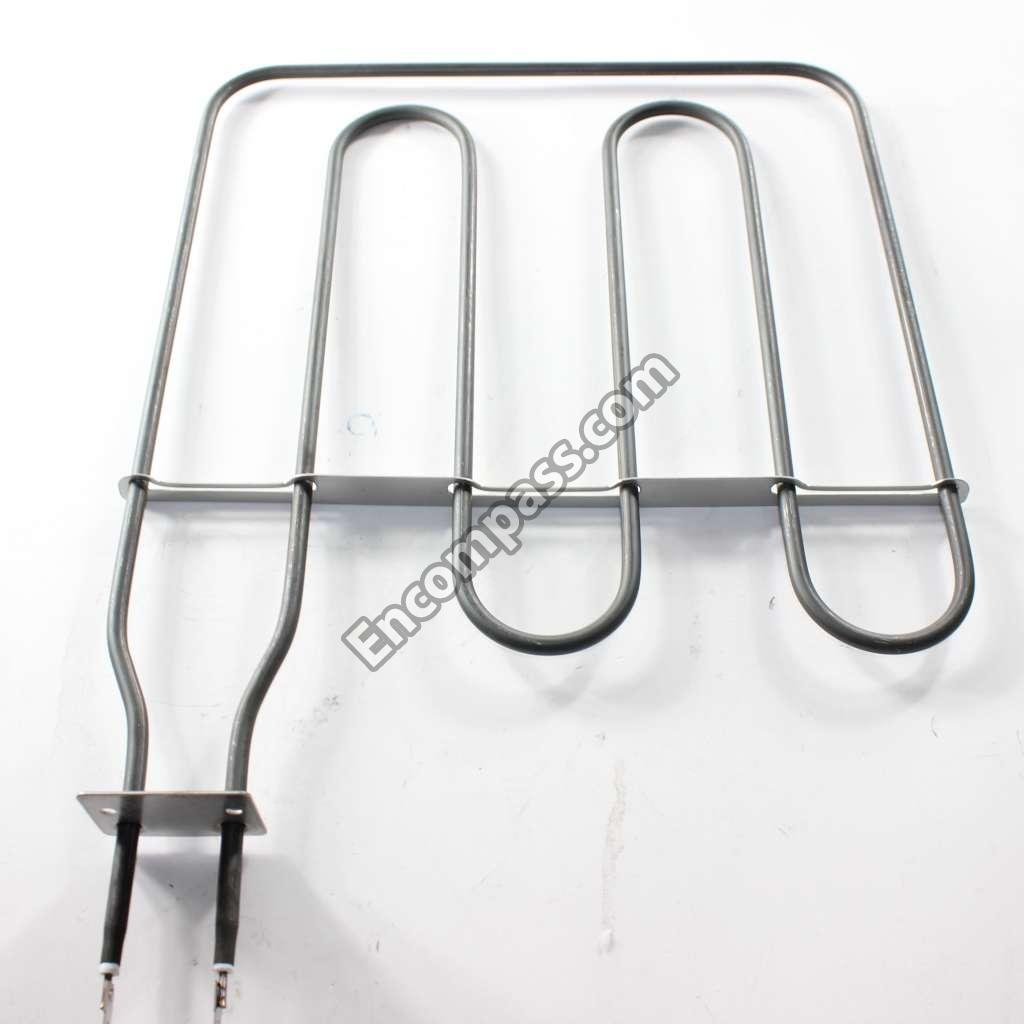

DG47-00058A DG47-00058A HEATER SHEATH-GRILL;AC240V,BKT TYPE(FIXE

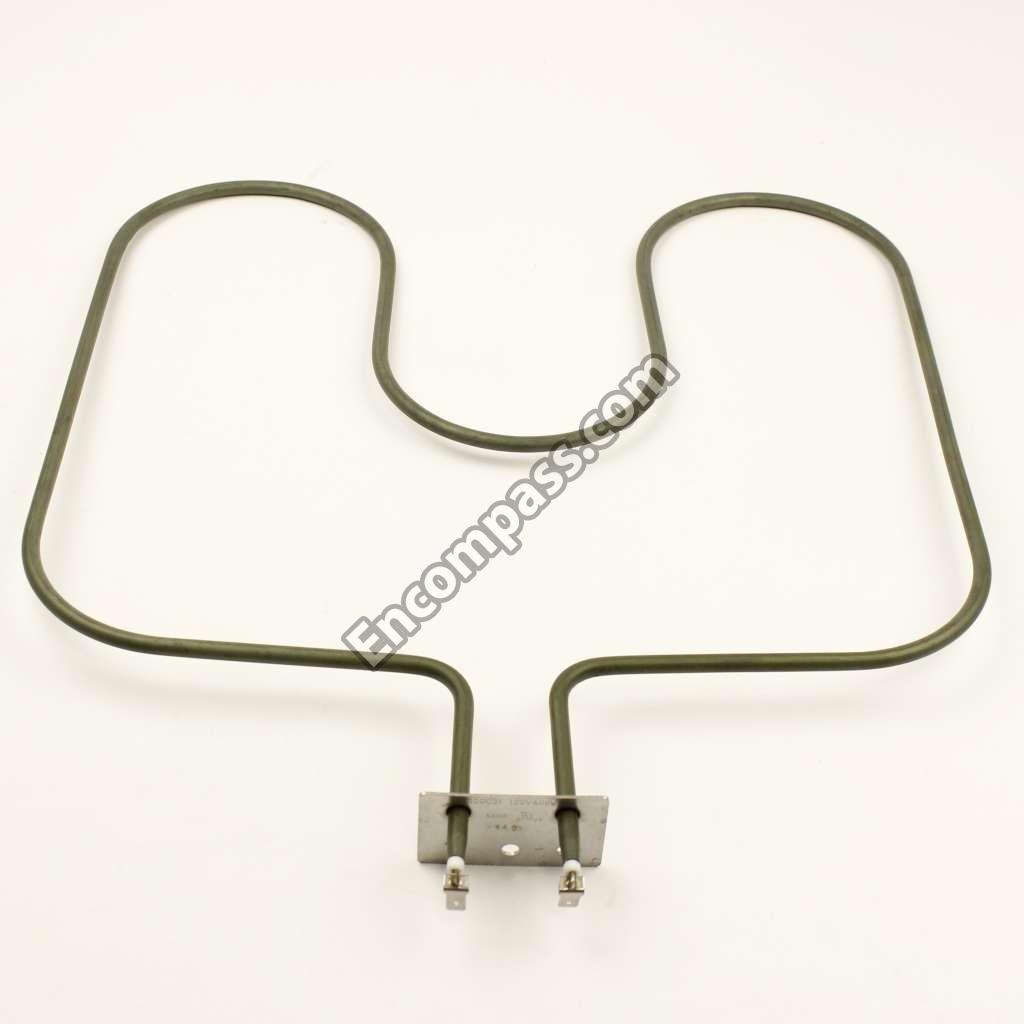

DG47-00018A DG47-00018A HEATER SHEATH-WARMER;AC120V,BKT,600W,SUS

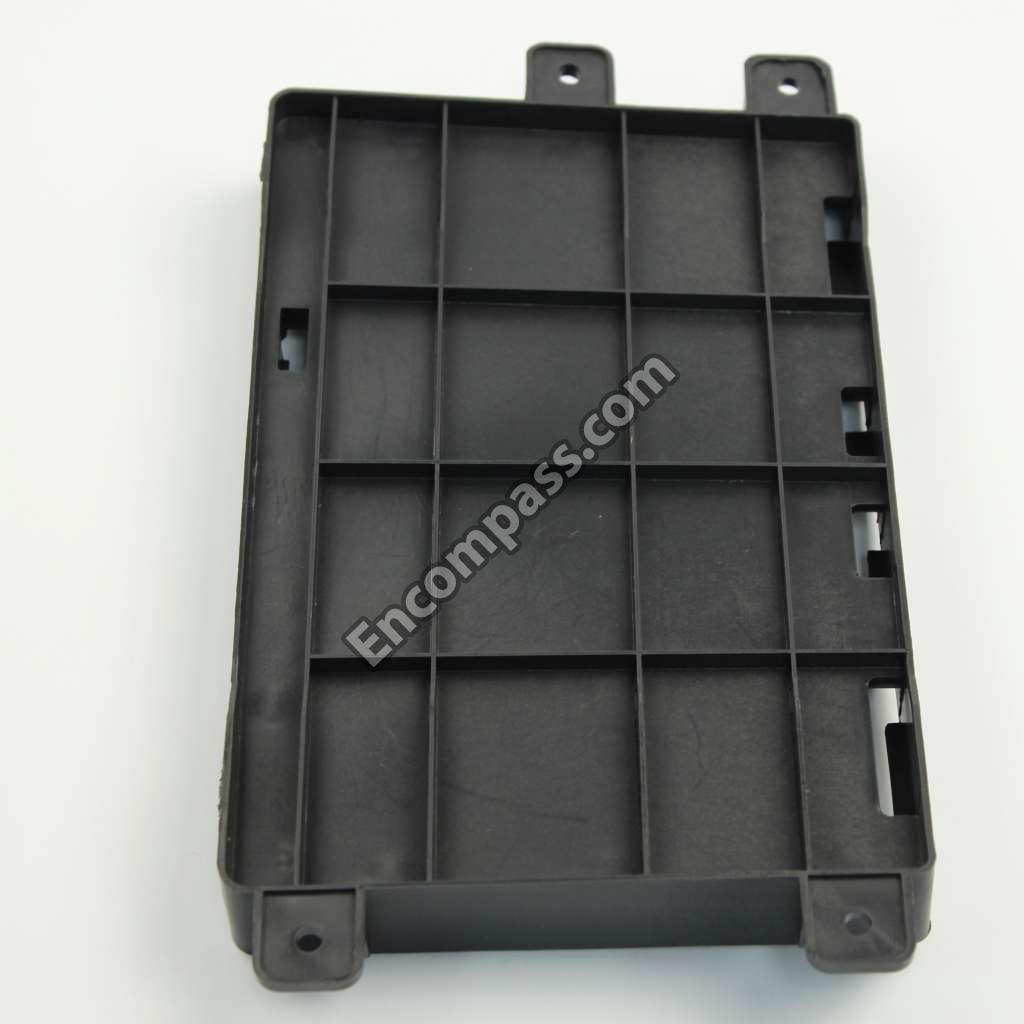

DG61-00060C DG61-00060C HOLDER PCB-MAIN;FE710DRS**,PBT+GF,W132,L
1103-001183 IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8
1201-001125 IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D
1203-006759 IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3
1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1.
1202-000104 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
DG68-00099A LABEL-POWER;EVN-30(FTQ386LWUX),SEA,PET,W

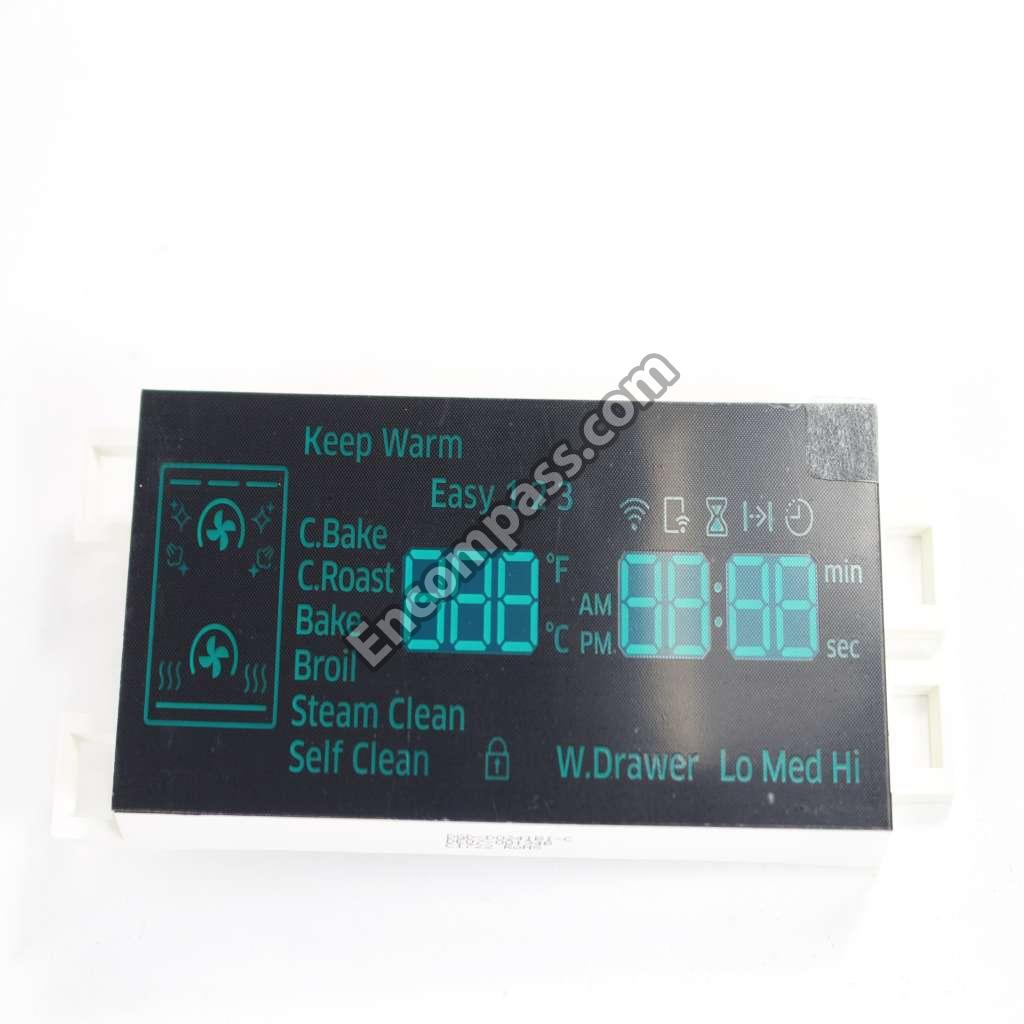

DE07-00134B DE07-00134B LED DISPLAY;7S,6D,NE9900H_$2799,IBL,CONN

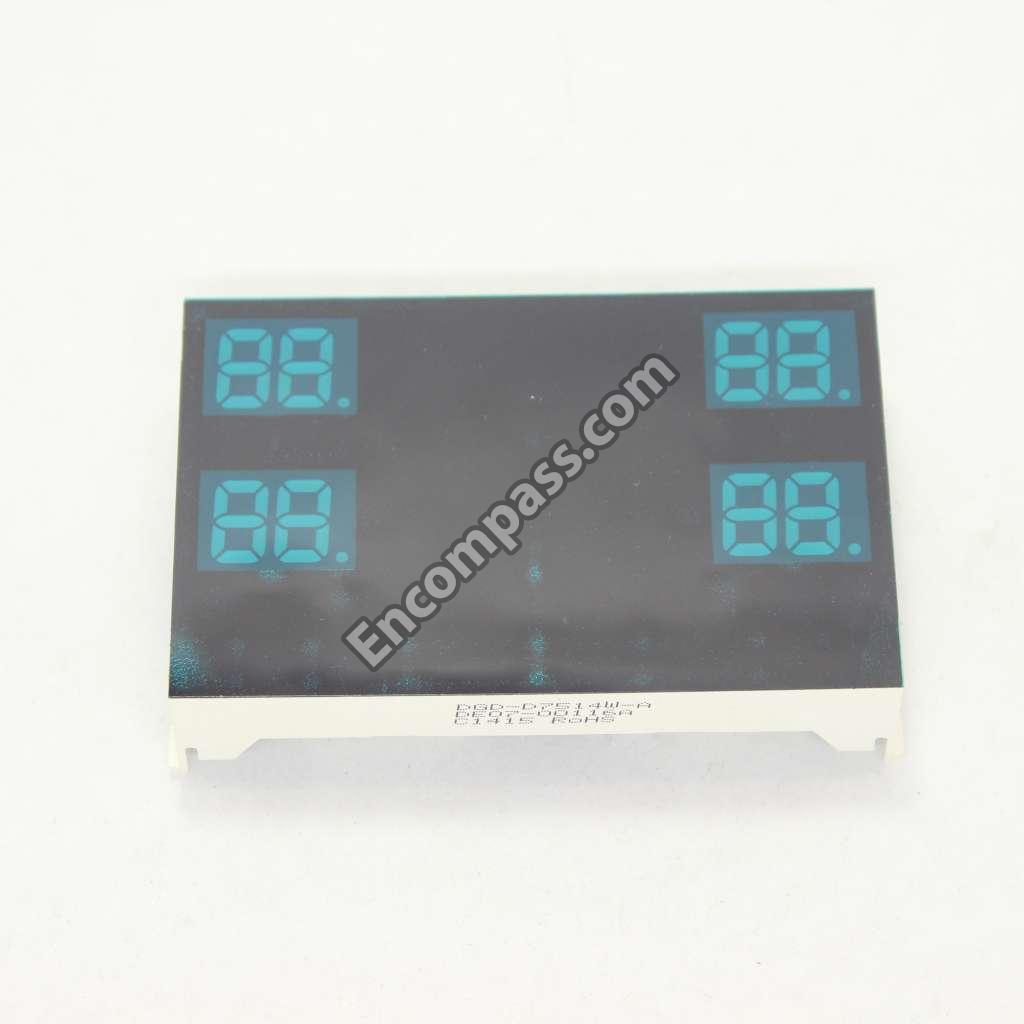

DE07-00116A DE07-00116A LED DISPLAY;BLUE

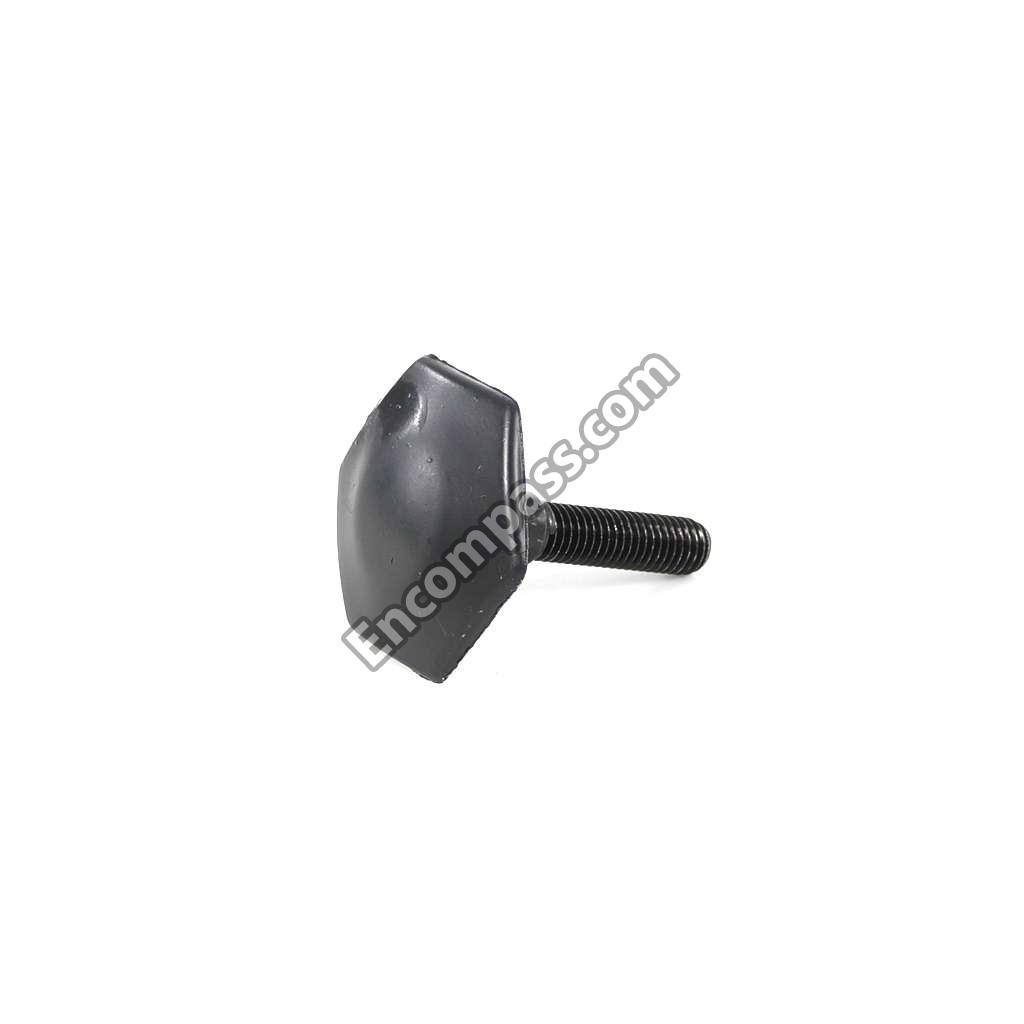

DG61-00294B DG61-00294B LEG LEVELING;NE59M6850SS,PP,NATURAL,441J
DG61-00525A DG61-00525A LEG LEVELING;NE59N6630SS/AA,PA66+GF30%,H
DG67-00103A LENS LED-A;NE58K9560WS,PC,NATURAL,3025PN
DG67-00105A LENS LED-C;NE58K9560WS,PC,NATURAL,3025PN
DG31-00005C DG31-00005C MOTOR AC CONVECTION;30" OVEN,SMC-U386E,2
DG31-00007E DG31-00007E MOTOR AC CONVECTION;30" OVEN,SMC-U386F,2

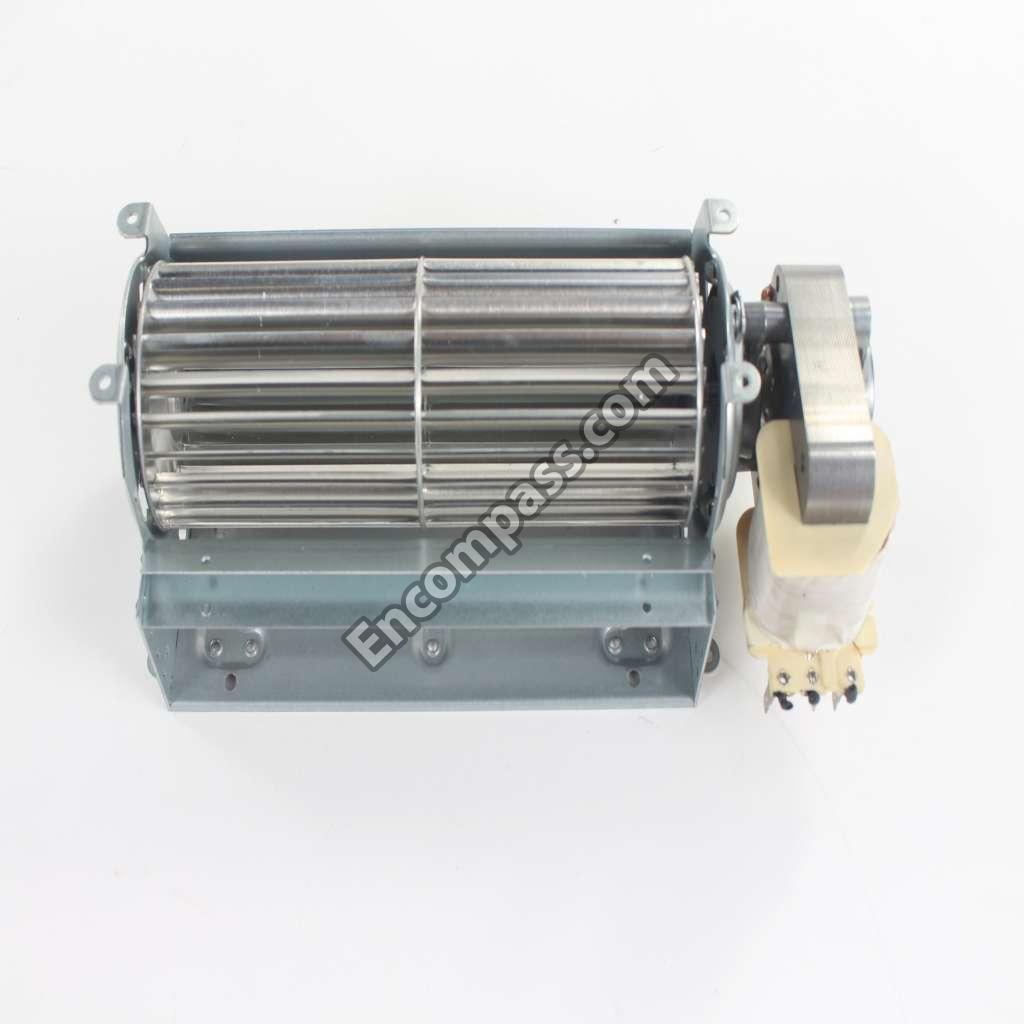

DG31-00026A DG31-00026A MOTOR AC FAN;SMB-U485C,2,120V,60HZ,35W,1

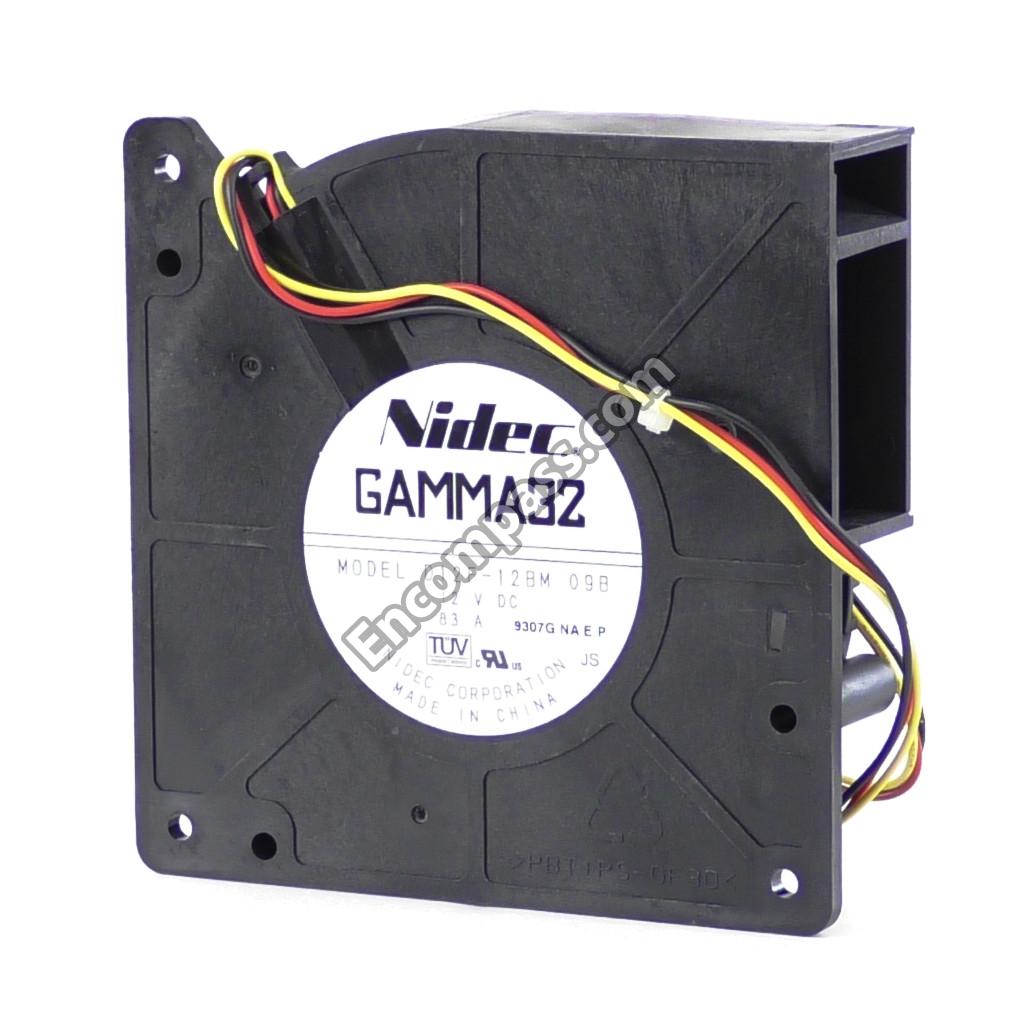

DG31-00011B DG31-00011B MOTOR BLDC FAN-BOX;D12F-12BM 09B,2900RPM
DE60-30016A DE60-30016A NUT FLANGE;MSWR-SWRM,MSWR10
6021-001208 6021-001208 NUT-HEXAGON CAP;M4,NI PLT,SWRCH10A
6021-001211 6021-001211 NUT-HEXAGON CAP;M4,NI PLT,SWRCH10A,LEFT
DG64-00142A PANEL-SIDE COATING;FTQ386LWUX,EGI-SECC,T
0604-001421 PHOTO-COUPLER;TR,SOP,TR
DE60-60030A PIN-STAPLE;MSW
2001-001047 R-CARBON(S);1.2MOHM,5%,1/2W,AA,TP,2.4X6.
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-000029 R-CHIP;0OHM,5%,1/8W,TP,2012
2007-000238 R-CHIP;1.5KOHM,1%,1/8W,TP,2012
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000286 R-CHIP;100OHM,1%,1/8W,TP,2012
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000297 R-CHIP;10KOHM,1%,1/8W,TP,2012
2007-000300 R-CHIP;10KOHM,5%,1/8W,TP,2012
2007-000335 R-CHIP;120KOHM,1%,1/8W,TP,2012
2007-002557 R-CHIP;120OHM,1%,1/4W,TP,3216
2007-001433 R-CHIP;12KOHM,1%,1/10W,TP,1608,T0.45
2007-000352 R-CHIP;12KOHM,1%,1/8W,TP,2012
2007-000454 R-CHIP;18KOHM,1%,1/8W,TP,2012
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000467 R-CHIP;1KOHM,1%,1/4W,TP,3216
2007-000465 R-CHIP;1KOHM,1%,1/8W,TP,2012
2007-000468 R-CHIP;1KOHM,5%,1/8W,TP,2012
2007-000069 R-CHIP;1OHM,1%,1/4W,TP,3216
2007-000490 R-CHIP;2.2KOHM,1%,1/8W,TP,2012
2007-000493 R-CHIP;2.2KOHM,5%,1/8W,TP,2012
2007-000530 R-CHIP;200KOHM,1%,1/8W,TP,2012
2007-007164 R-CHIP;20OHM,1%,1/4W,TP,3216
2007-000572 R-CHIP;220OHM,5%,1/8W,TP,2012
2007-000586 R-CHIP;22KOHM,5%,1/8W,TP,2012
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45
2007-000668 R-CHIP;2KOHM,1%,1/8W,TP,2012
2007-000671 R-CHIP;2KOHM,5%,1/8W,TP,2012
2007-000762 R-CHIP;330OHM,1%,1/8W,TP,2012
2007-000766 R-CHIP;330OHM,5%,1/8W,TP,2012
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000868 R-CHIP;4.7KOHM,1%,1/8W,TP,2012
2007-000872 R-CHIP;4.7KOHM,5%,1/8W,TP,2012
2007-000924 R-CHIP;470KOHM,1%,1/4W,TP,3216
2007-000922 R-CHIP;470KOHM,1%,1/8W,TP,2012
2007-000928 R-CHIP;470OHM,1%,1/8W,TP,2012
2007-000931 R-CHIP;470OHM,5%,1/8W,TP,2012
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608,T0.45
2007-000941 R-CHIP;47KOHM,5%,1/8W,TP,2012
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000961 R-CHIP;5.1KOHM,1%,1/8W,TP,2012
2007-001023 R-CHIP;560KOHM,1%,1/10W,TP,1608
2007-001067 R-CHIP;6.8KOHM,1%,1/8W,TP,2012
2007-001118 R-CHIP;680OHM,5%,1/8W,TP,2012
2007-001162 R-CHIP;75KOHM,5%,1/4W,TP,3216
2003-000422 R-METAL OXIDE(S);1.2OHM,5%,2W,AA,TP,4X12
DG75-01056A RACK WIRE-BOTTOM;NE58F9710WS,MSWR-SWRM,W

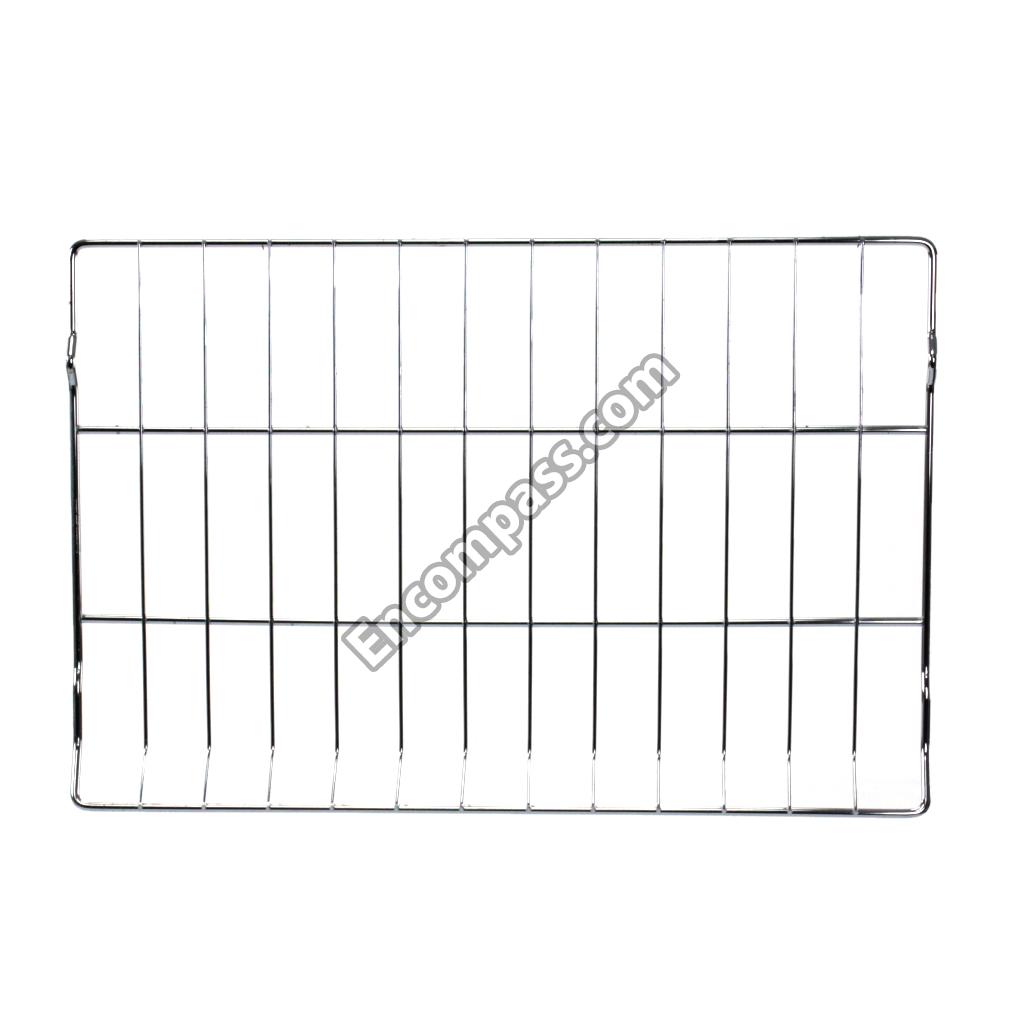

DG67-00108B DG67-00108B RACK WIRE;NE58K9430SS,NE9000K,MSWR,W62
DG73-00003A DG73-00003A RUBBER-CUSHION;FTQ386LWUX,SILICON RUBBER
6001-000516 SCREW-MACHINE;PH,+,M3,L10,ZPC(WHT),SWR
6001-001959 SCREW-MACHINE;PH,+,WT,M4,L8,PASS,STS304,
6001-002701 6001-002701 SCREW-MACHINE;PWH,+,M4,L10,ZPC(BLK),SWRC
DE60-10199A DE60-10199A SCREW-MACHINE;PWH,+,WT,M5,L10,ZPC(WHT),S
6001-000547 6001-000547 SCREW-MACHINE;TH,+,M4,L25,ZPC(WHT),SWRCH
6001-000592 SCREW-MACHINE;TH,+,M4,L8,ZPC(WHT),SWRC
6001-002267 SCREW-MACHINE;TH,+,WP,M5,L57,ZPC(BLK),SW
6006-001171 SCREW-MACHINE;WS,PH,+,M4,L8,NI PLT
6009-001395 6009-001395 SCREW-SPECIAL;TH,+,WP,M5,L10,ZPC(BLK),SW
6002-000440 SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(BLK),SWR
6002-000432 SCREW-TAPPING;TH,+,2,M4,L10,ZPC(WHT),SWR
6002-000558 6002-000558 SCREW-TAPPING;TH,+,2S,M4,L10,NI PLT,STS4
DE60-10065A SCREW-TAPPING;TH,+,2S,M4,L6,NI PLT,SWRCH
6002-000217 6002-000217 SCREW-TAPPING;TH,+,NO,1,M4,L8,ZPC(WHT),S
DE60-10193A SCREW-TAPPING;TH,+,NO,2,M4,L25,ZPC(WHT),
DE60-10062A SCREW-TAPPING;TH,+,NO,2S,M4,L12,ZPC(BLK)
6006-001170 6006-001170 SCREW-TAPPING;TH,+,WT,2,M4,L10,ZPC(WHT),
6003-001622 6003-001622 SCREW-TAPTYPE;HEX,+,WT,S,M5,L10,ZPC(WHT)
6006-001176 SCREW-TAPTYPE;PH,+,WT,B,M4,L8,ZPC(WHT),S
DG32-00004C DG32-00004C SENSOR TEMP;1KOHM

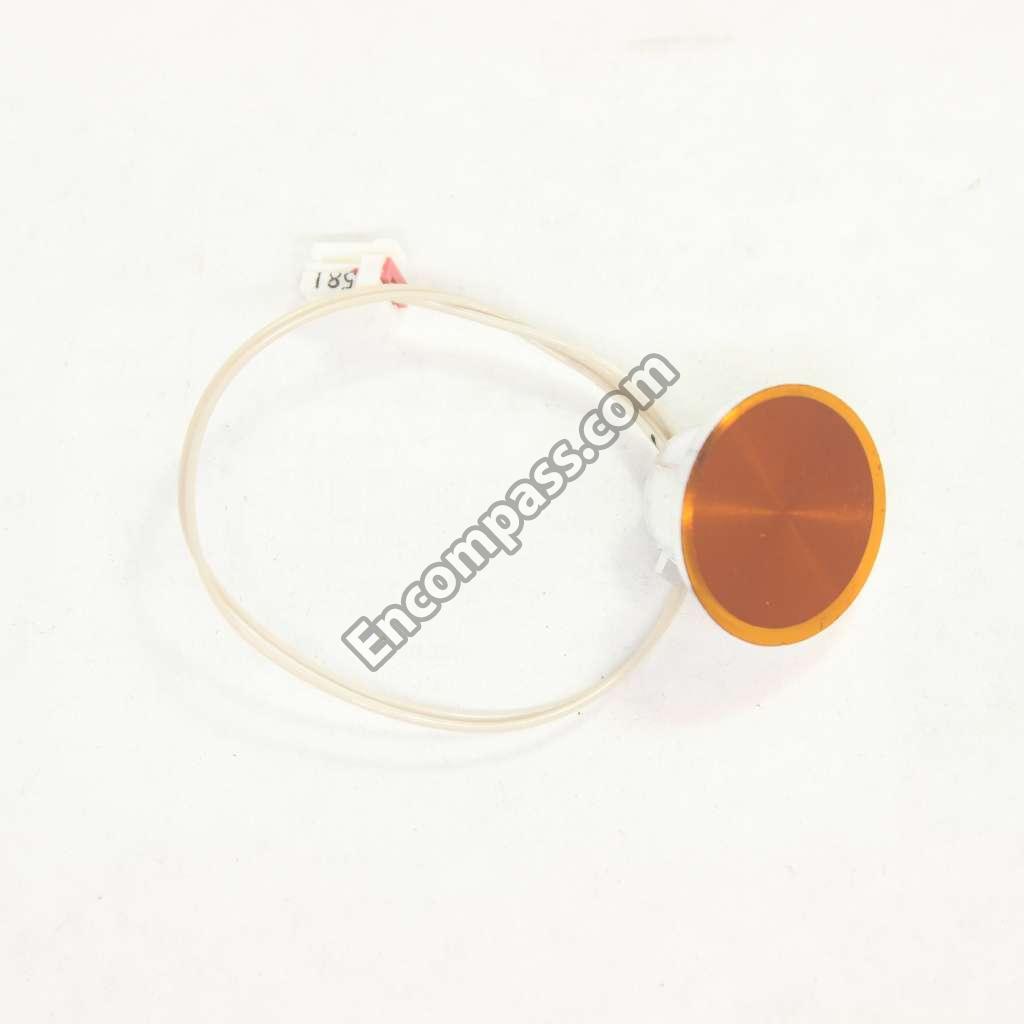

DG32-00005D DG32-00005D SENSOR TEMP;3.485KOHM
DG63-00338A DG63-00338A SHIELD DRAWER-LEFT;NE-F900A,GI-SGCC,T0.8

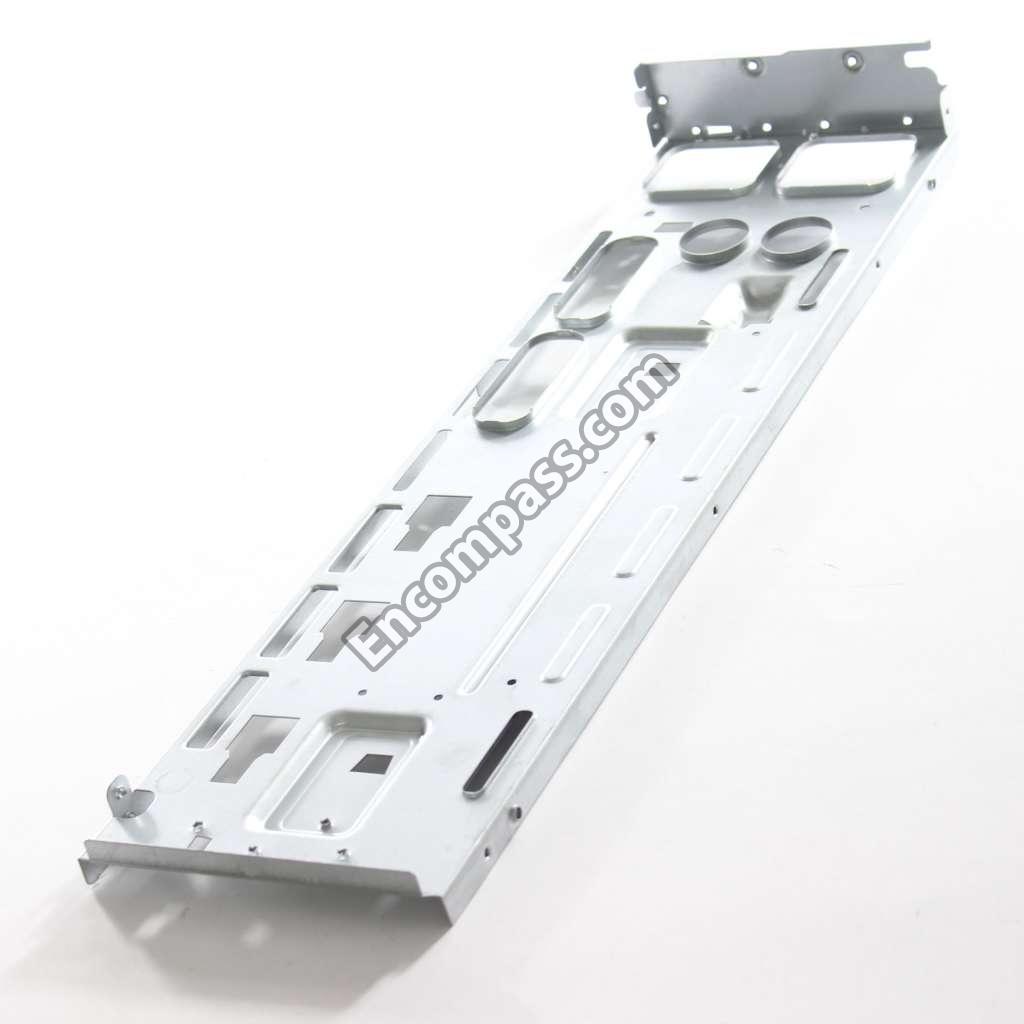

DG63-00337A DG63-00337A SHIELD DRAWER-RIGHT;NE-F900A,GI-SGCC,T0.
DG60-00008A DG60-00008A SPACER-DOOR E;FTQ387**, FTQ353**, FCQ321
DG60-00001A DG60-00001A SPACER-FAN CONVECTION;BT63BSST,STKM11A,L
DG60-00007B DG60-00007B SPACER-SIDE PANEL;FTQ386**, FTQ352**, FC
DG61-00324A DG61-00324A SPRING ETC-SENSOR;CTI613EHST,STAINLESS-S
DG61-00188A DG61-00188A SUPPORT HINGE;FTQ386LWUX,ALCOAT-SA1C,T1.
DG34-00029A DG34-00029A SWITCH SELECT ROTARY;5V,0.5A,NE9900H
DG34-00006A DG34-00006A SWITCH-DOOR PLUNGER;120/240 VAC,BLACK,FT
3405-001034 3405-001034 SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N
DG96-00173A DG96-00173A TERMINAL BLOCK;FCQ**,FTQ**,FE-N**,,600V,
DE47-20037A DE47-20037A THERMOSTAT;AC125/250V,15/10A,150C,0C,S.O
0506-000175 TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100
0504-001080 TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM
0502-001266 TR-POWER;KTA1532T,PNP,900MW,TSM,TP,200/-
0501-000362 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1000MW,TO
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
DG70-00004A DG70-00004A WIRE-STEEL;A-1 PROJECT,MSWR-SWRM,,1.2,2,
Main Menu x
